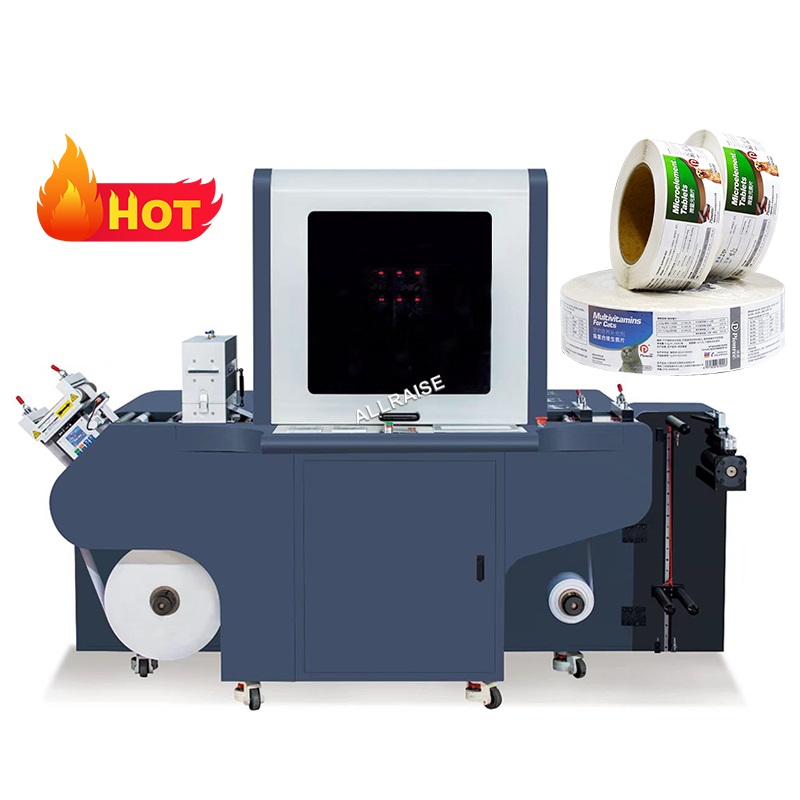

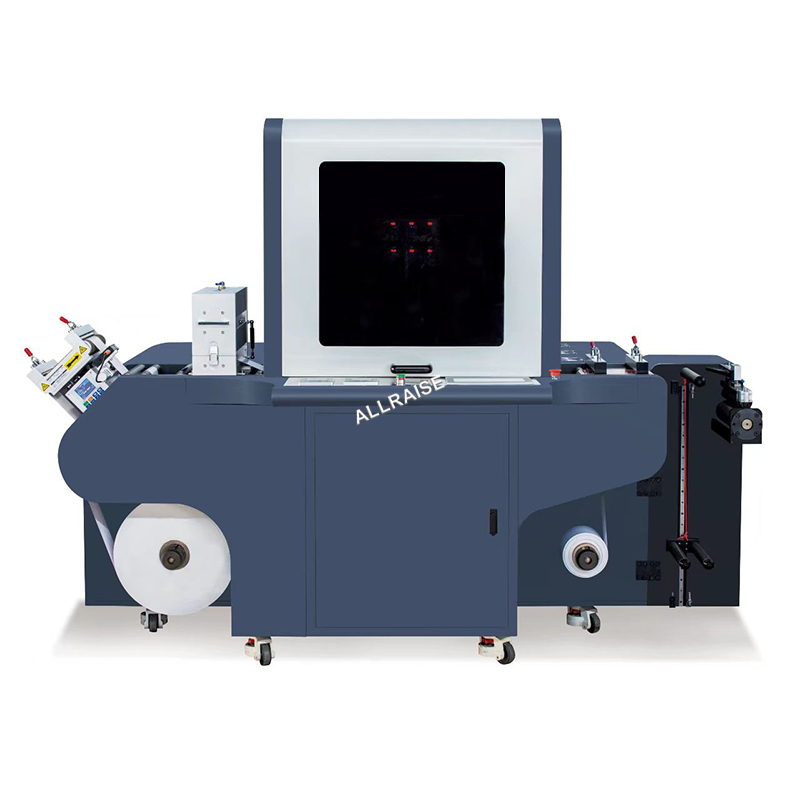

Auto Food Snacks Self-Adhesive Label Printer CMYKWW Stamping Gloss Oil Ink Wines Drinks Roll UV Digital Sticker Printing Machine

Product Description

Attention Header
ATTENTION
  • Factory Direct price
  • Nice quality, No MOQ, 1 set ok
  • Quick shipping within 15 days, After sales service 24/7
Products Description

Auto Food Snacks Self-Adhesive Label Printer CMYKWW Stamping Gloss Oil Ink Wines Drinks Roll UV Digital Sticker Printing Machine

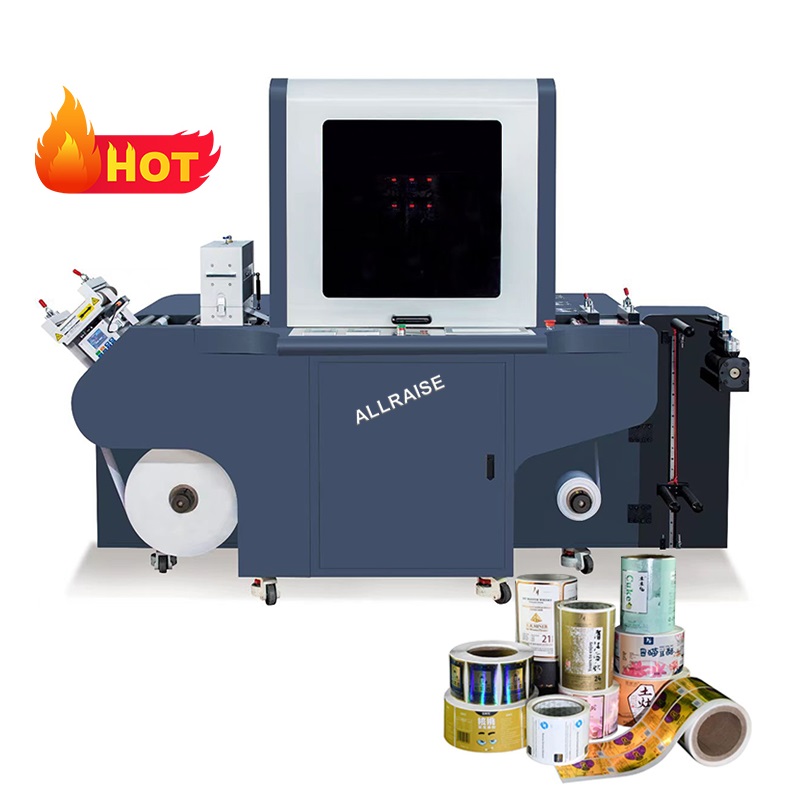

UV Digital Sticker Printing Machine
Digital label inkjet printers are integrated roll label production equipment, combining unwinding, dust removal, corona treatment, CMYK white color printing, varnishing, hot stamping, and paper delivery. Equipped with industrial-grade printheads and an intelligent ink supply system, it features built-in ink level monitoring and automatic printhead maintenance, along with professional RIP software for accurate color reproduction. The equipment includes automatic deviation correction, tension control, and emergency stop protection, operates on 380V power, ensures stable operation, and is suitable for batch printing of various roll labels for daily chemicals, food, and other industries. It is easy to operate and has a clear maintenance schedule.
Digital Label Inkjet Printer Details
Product Specifications
Product Name Auto Food Snacks Self-Adhesive Label Printer CMYKWW Stamping Gloss Oil Ink Wines Drinks Roll UV Digital Sticker Printing Machine
Model OR-X108
Print Technology DOD piezoelectric inkjet Kyocera Head
Print Width 108mm(4.25") / 216mm(8.5")
Ink LED-UV curable ink
Print Resolution 600x600dpi / 600x1200dpi
Print Speed Up to 50m/min (164ft/min)
Number of Print Heads 4-6 heads with 108mm Configuration; 8-12 heads with 216mm Configuration
Color 6 ink channels; CMYK, White, Varnish, Spot Color
Ink Tank Volume 3L per color
Connectivity Fast Ethernet
Software and User Interface Label Print control software, PrintFactory Rip software
Main Dimensions (W x D x H) 2010mm x 1240mm x 1850mm (79.2" x 48.8" x 72.8")
Unwinder/Rewinder Roll-fed Width: Max. 250mm(9.8"), Roll Diameter: Max. 500mm(19.7"), Core Diameter: 76.2mm(3")
Other Device Rectification, Corona treatment, Web Cleaner, Antistatic treatment
Pre-Curing UV-LED (Air cooling)
Final Curing UV-LED (Water cooling)
Media Width Max. 230mm (9.1")
Media Type Coated and uncoated paper, self-adhesive label stock, aluminum foil, white and transparent films, PP, PE, PVC, PET, BOPP, etc.
Media Thickness 0.08 - 0.5mm (0.003 - 0.02")
Working Environment Temperature: 15-30°C (59-86°F), Relative Humidity: 40-60% (Recommended)
Machine Weight 1430 Kg
Power Supply Two-phase 220V (50/60HZ AC) 60A
Power Printer: Max. 4500W, Corona Treatment: Max. 2000W, Water Cooler: 1500W
Air 6-8bar, Clean and dry
Auxiliary Devices Air-pressure utilities such as compressor; Connection to exhaust duct
Machine Features

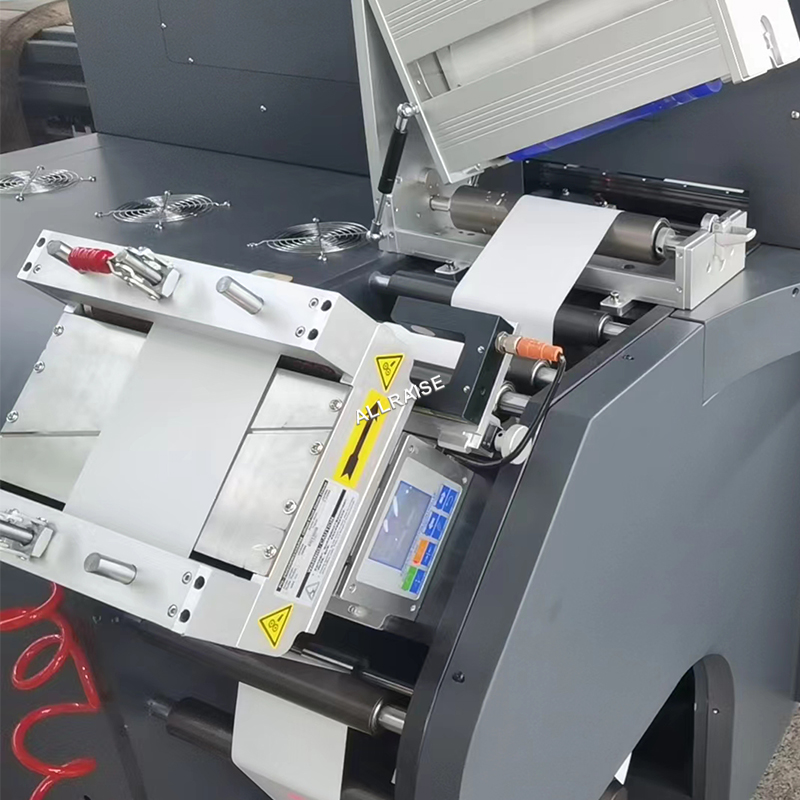

1. Rewinder System
Utilizes 76.2mm (3") servo-driven rewind spindle with magnetic particle clutch and closed-loop tension control system supporting rewind diameter up to 500mm (19.7").
2. Roll-back System
Double driver motor and accurate tension control system ensure the media can be rolled back neatly.
3. Print Position Fine-tuning
Position of the print module can be adjusted within full media region (230mm). It can be fine-tuned via control software with no need to adjust media.
4. Variable Data Printing
Supports variable data printing specifically designed for industrial short-run narrow-format production. Integrated with advanced UV inkjet printing technology, it can be applied to labels, hang tags, tickets, RFID, foil packaging, etc.
5. Media Buffer Module (Option)
Cooperates with other processing machinery, such as detection systems, cutters, and finish devices.
6. Varnish/Foil Module (Option)
Varnish ink printing provides versatile surface finishes with tactile and visual effects to beautify the appearance of labels and grasp viewers' attention.

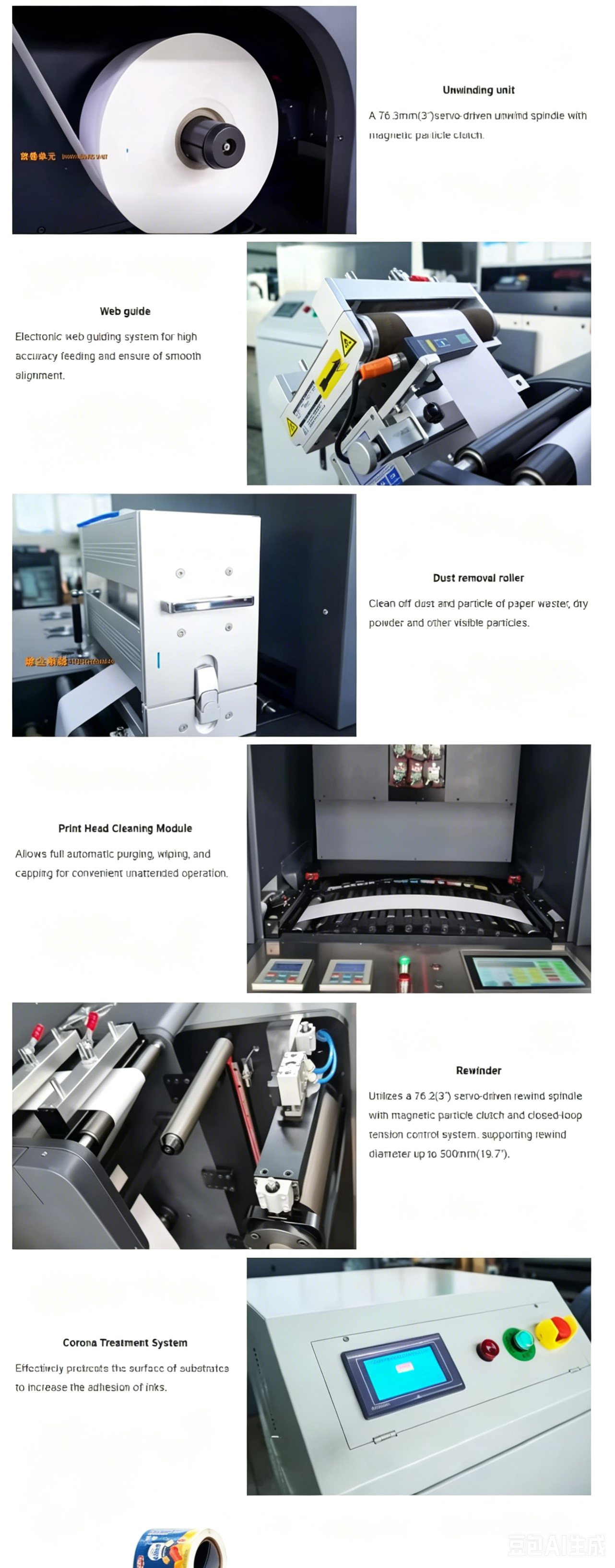

Features Diagram

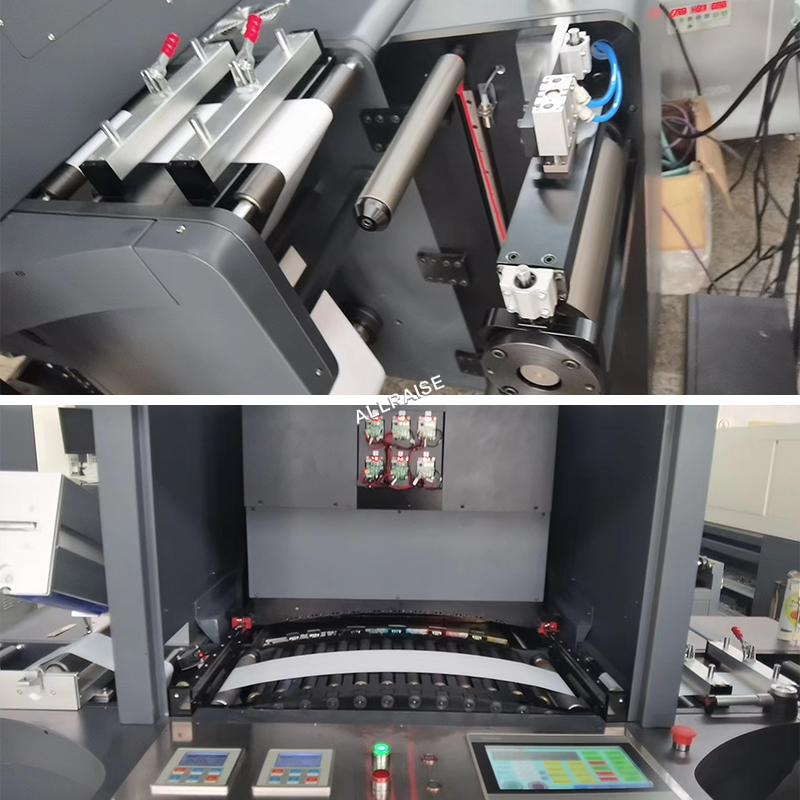

Feature details 1

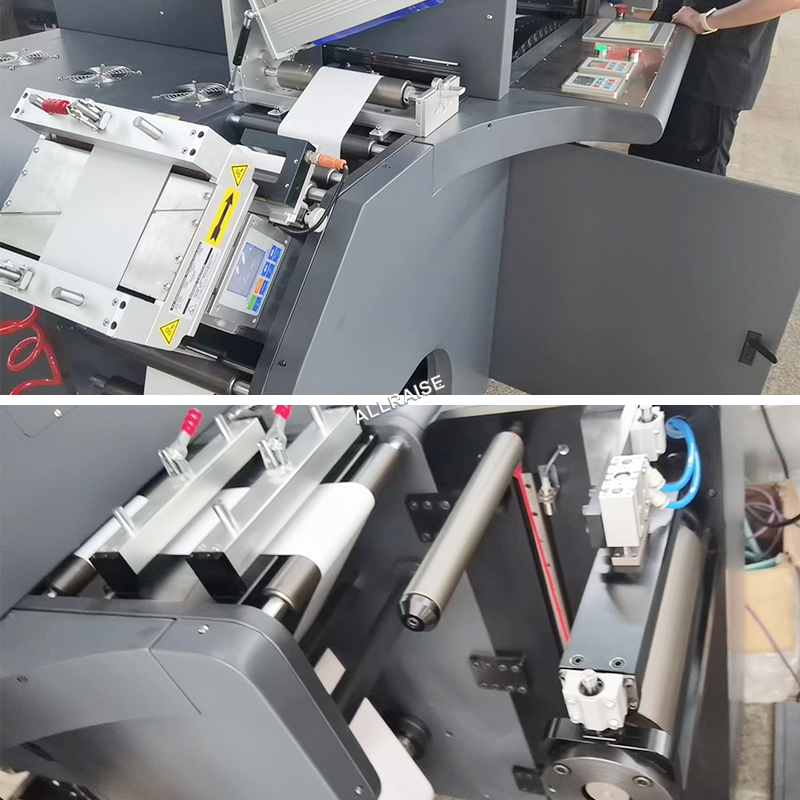

Feature details 2
Feature details 3
Production details
Inkjet printhead module
Application Scenarios
1. Daily Necessities & Beauty Labels
Roll-type self-adhesive labels for skincare, makeup, and personal care products; supports hot stamping and varnishing for enhanced packaging quality.
2. Food & Beverage Labels
Roll-type labels for snacks, beverages, wine, and pre-prepared meals; small-batch, multi-style, fast on-demand printing with no plate making required.
3. Pharmaceutical & Health Product Labels
Roll-type anti-counterfeiting labels for medicines and dietary supplements; high-definition small-print printing for compliant graphic printing needs.
4. Electronic & Digital Stickers
Nameplates for electronic products and data cable accessories; printable with white ink base, suitable for various matte and glossy materials.
5. Cultural & Creative Gift Labels
Colorful roll-type stickers for handmade gift boxes, aromatherapy products, and stationery; supports short-order customization with varnishing and hot stamping.
Related Products
Related Product Line
Package & Shipping
Packaging By container or standard export packing per machine
Delivery time 15-30 days after payment received
Packaging details
Certifications
Certifications
Our Services
Services Support
Frequently Asked Questions
Why don't person reply to me?
Our person is 24hours on-line. When nobody reply you, please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Can you guarantee your quality?
Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
How do you make your price?
We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
What types of media can this digital sticker printing machine process?
This system supports a wide array of media types, including coated and uncoated paper, self-adhesive label stock, aluminum foil, white and transparent films, PP, PE, PVC, PET, BOPP, and other synthetic roll materials.
What is the printing speed and configuration for the OR-X108 model?
The machine features a DOD piezoelectric inkjet Kyocera Head system supporting 4-6 heads for the 108mm configuration, achieving high-speed production of up to 50 meters per minute (164 feet per minute).
Does the machine support custom ink effects like white ink and varnish?
Yes, it features 6 ink channels supporting CMYK, White, Varnish, and Spot Color configurations. Varnish ink printing provides tactile gloss/matte finishes, while the white ink allows for clean prints on transparent or dark films.
