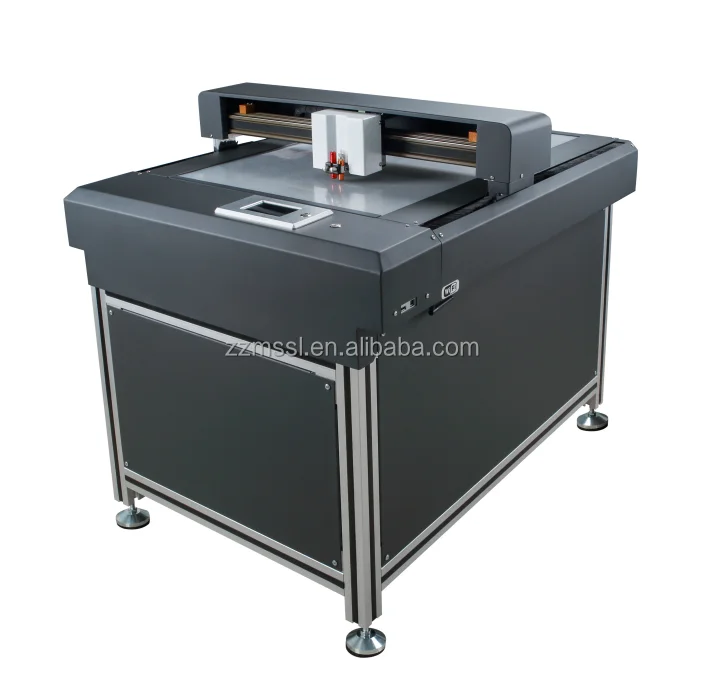

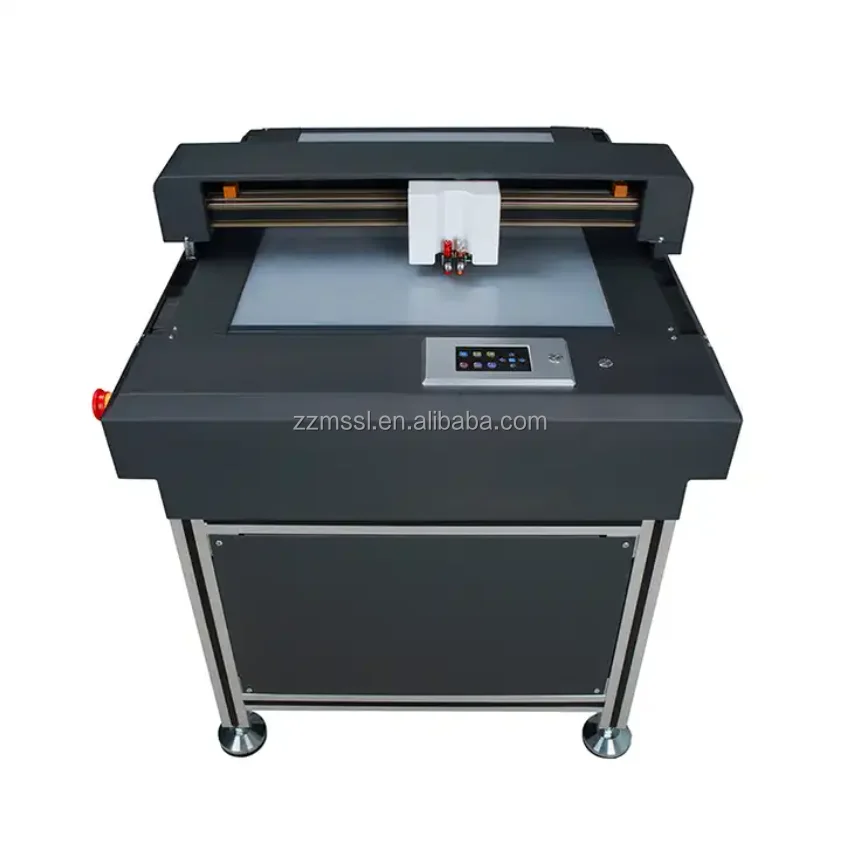

Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
1 / 5
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine
Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine

Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine

Send Inquiry

Product Description

Automatic Paper Plotter Cutting Folding Machine A3 Label Flatbed Die Cutting Machine

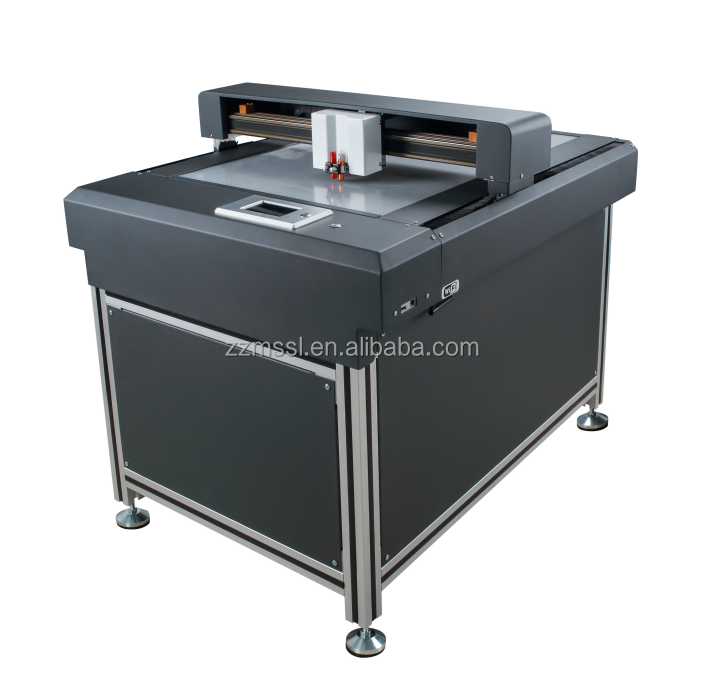

Automatic Paper Plotter Cutting Folding Machine
Scope of Application

Prototype and Light Production: Ideal for tags, DIY paper crafts, on-demand packaging and sheet card cutting system. It is also highly suitable for sheet labels.

Flatbed Cutting Plotter is ideal for designers and prototyping in offset printing, digital printing, the packaging industry, road sign making, stone and glass sandblasting and etching, etc.

Technical Specifications
Model MT-6090
Max cutting size 570*870mm
Contour cutting size 570*870mm
Working pattern Negative pressure adsorption
Control panel Touch screen
Number of heads Dual heads
Cutting precision 0.01mm
Repeat precision 0.05mm
Max moving speed 800mm/s
Max cutting speed 700mm/s
Max thrust 2000g
Connection interface U-disk/WIFI/USB cable
Power <100W
Working environment +5°C - +35°C
Packing size 1370*1090*1020mm
Gross weight 180kg
Product Features

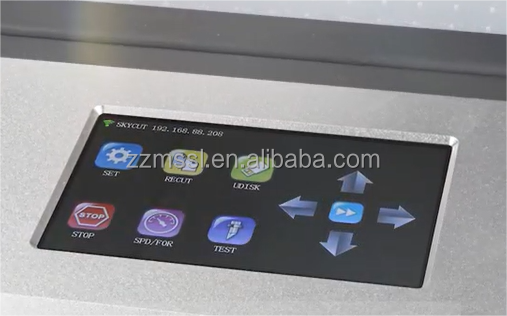

Touch Screen Panel
Sensitive Touch Screen
Equipped with a touch screen control panel for simple operation and highly sensitive functions.

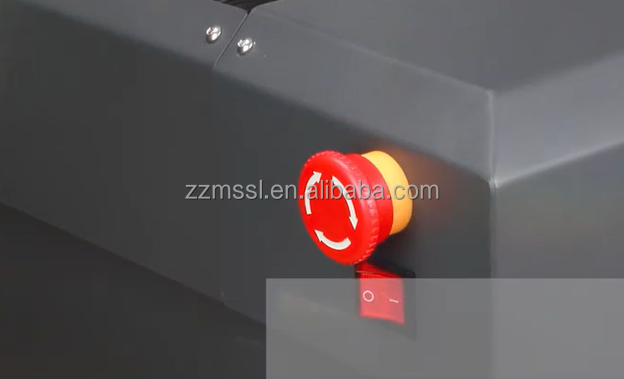

Emergency Button
Double Protection Switch
Includes an emergency stop button and switch double protection for improved safety and convenience.

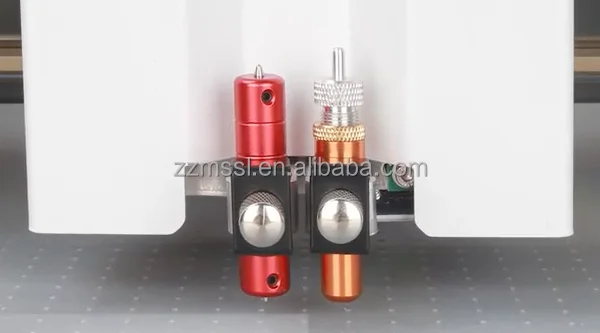

Double Head System
Dual Head Configuration
Supports half cut, creasing, and full cut, allowing multiple processes to run efficiently.

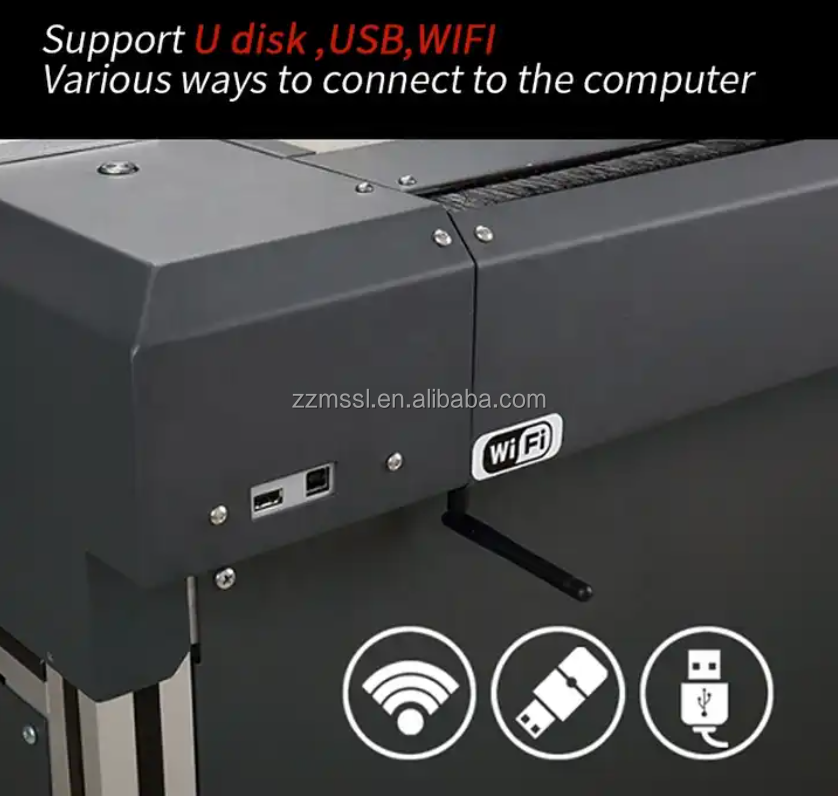

Connectivity interfaces
Multi-Interface Connectivity
Supports U-disk, USB, and Wifi, providing various convenient ways to connect to the computer.
Sample Gallery

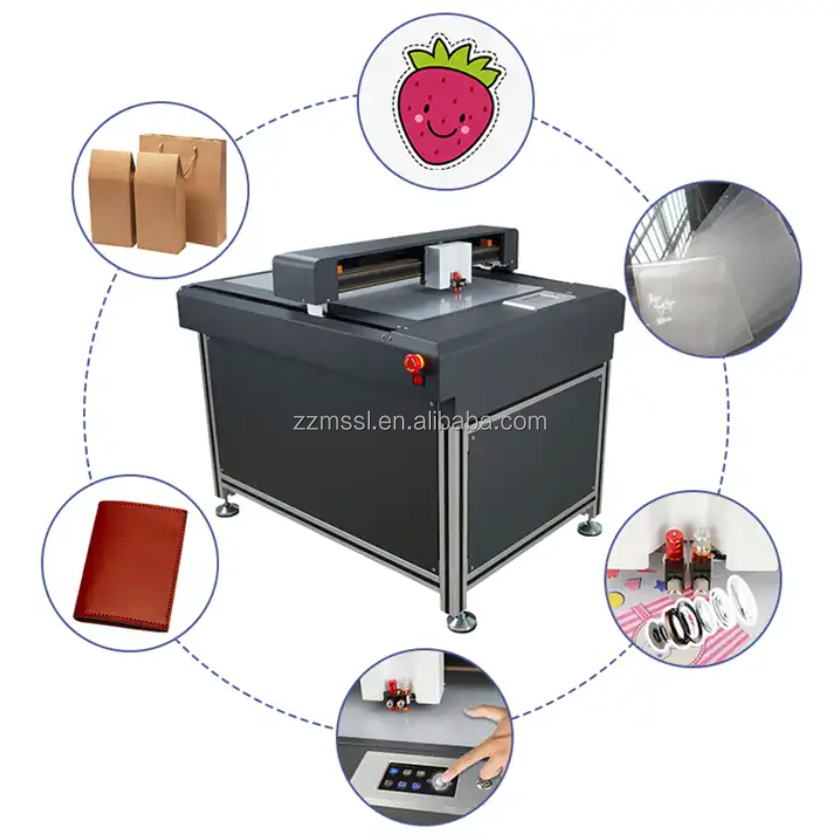

Cutting Sample Detail 1
Cutting Sample Detail 2
Product Packaging
Wooden Case Packaging
Wooden Case
Wooden Case Packing Process
Wooden Case
Carton Packaging Options
Carton
Packaging and Shipping Preparation
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided, or customized according to your request.
Production Environment
Factory Workshop
Production Line
Quality Certificate Standards
Frequently Asked Questions
? Are you a manufacturer?
Yes, we have been manufacturing such machines for over 10 years and we are also a professional exporter.
? What about the payment term?
Mostly 30% T/T in advance as a deposit, and 70% T/T when the machine is finished and inspected before shipping.
? What is the warranty policy?
We offer a one-year warranty after sales. During the warranty period, we will send spare parts to replace those that break due to quality issues.
? What is your after-sale service?
Any questions will be responded to within 24 hours via email. In addition, we have professional engineers available for overseas service.
? What is the delivery time?
Mostly it takes 5 to 10 working days (depending on the specific machine) after receiving the deposit and confirming the drawings or samples as required.
? What features does the dual-head configuration offer?
The dual-head system supports half-cutting, creasing, and full-cutting capabilities simultaneously, allowing you to switch processes efficiently.
