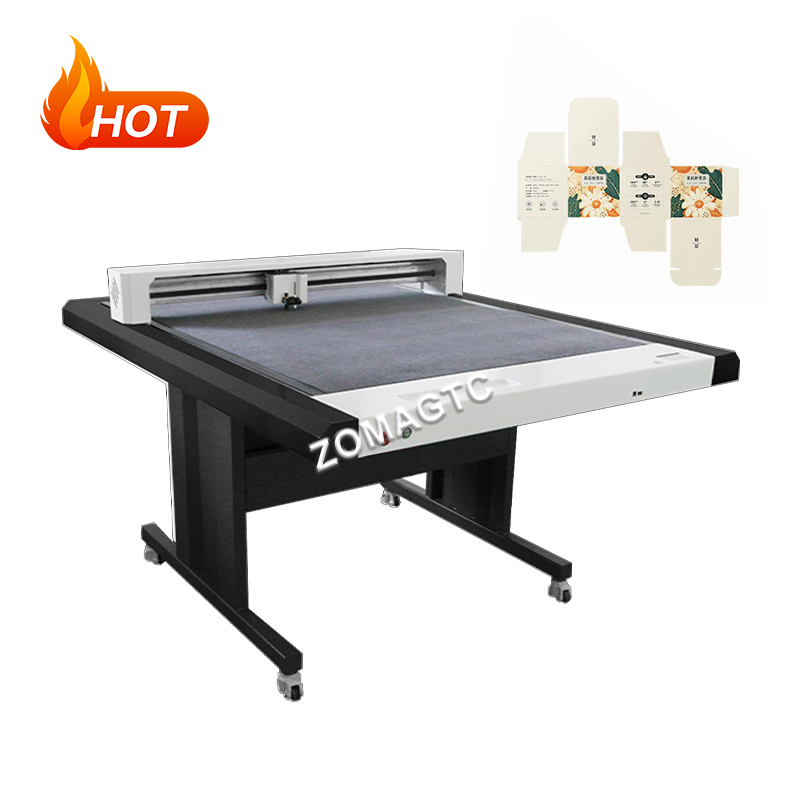

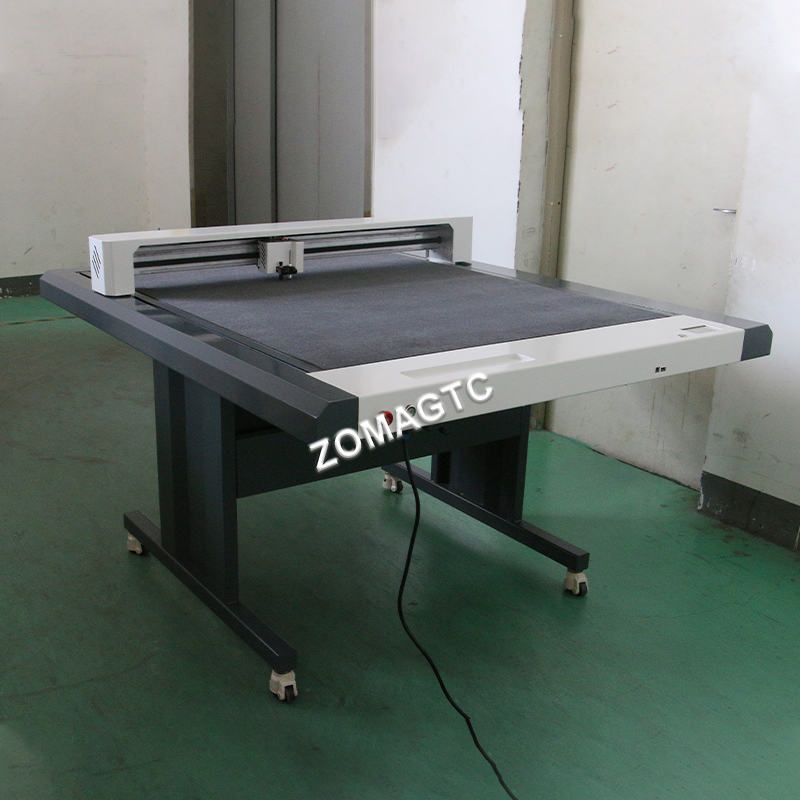

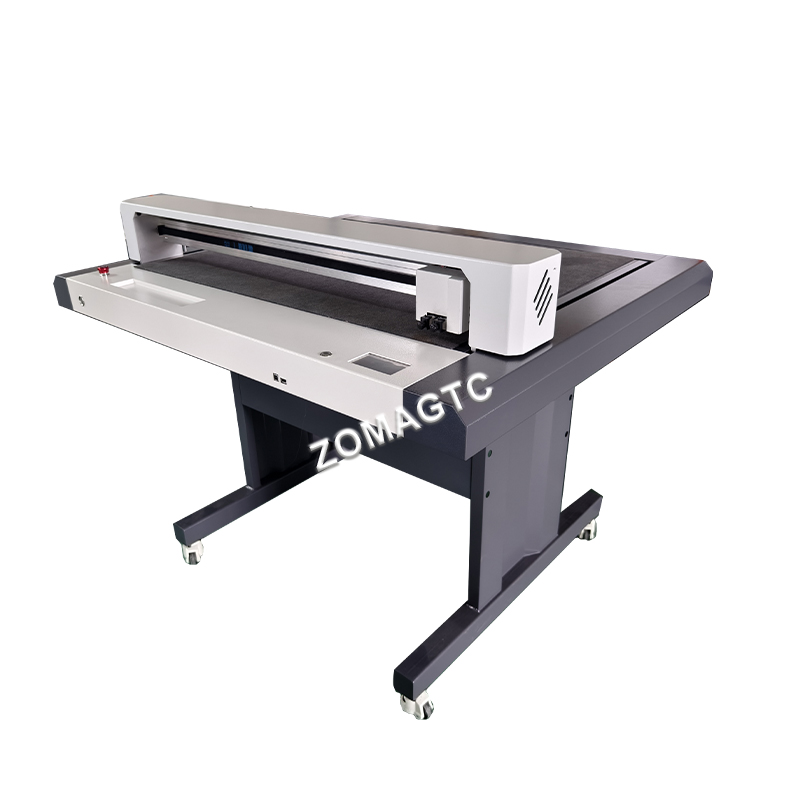

Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
1 / 5
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter
Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter

Automatic Label Flatbed Paper Cardboard Digital Laser Flatbed Cutter Die Cutting Machine Plotter

Send Inquiry

Product Description

Parameters of CMYK Colour Label Banner UV Printers Roll to Roll Digital Printing Machine Price Coated Paper Film Ink
Digital Printing Machine Banner
1. Main Function of the Machine
This flatbed cutting machine is a professional digital cutting device designed for precise contour cutting and creasing on various materials such as coated paper, cardboard, white card, and film, making it ideal for packaging, signage, and graphic design applications after digital printing.
Flatbed Cutting Machine Overview
Technical Specifications
Model JKF4060 JKF6090 JKF7010 F9012
Machine size 990*890*1000mm 1290*1060*1000mm 1390*1160*1000mm 2900*1560*1000mm
Contoursize 610*430mm 600*850mm 700*950mm 1100*850mm
Cutting speed 1200mm/s
Cutting force 1000g
Max.cutting depth 1mm
Memory 16M
Interface USB+U-disk
Software Signmaster
Display 4.3-inch touch screen
Positioning model CCD Camera
Driving motor Servo motor
Command set HGPL
Operating environment Windows Vista/WindowsXP/Windows7/Windows8/Windows 10/MAC
Air pump 1.5KW
Working voltage AC 85-AC264V
Machine color Gray
Package size 1170*1000*530mm 1470*1225*545mm 1570*1225*545mm 1725*1465*550mm
G.W 104KG 140KG 155KG 174KG

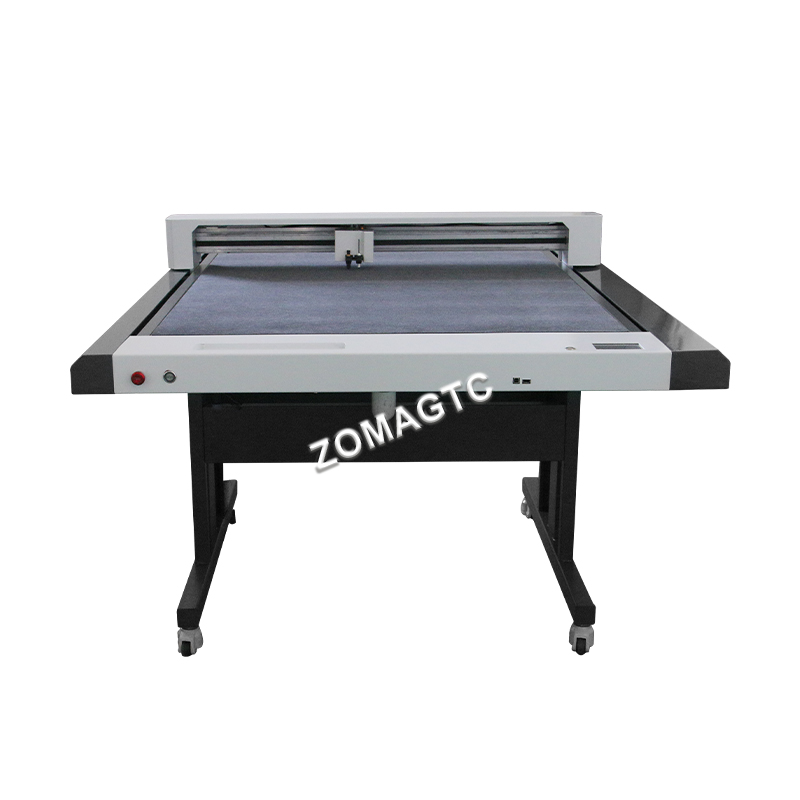

Flatbed Cutting Machine Front
2. Key Features of the Machine
  • Equipped with a CCD camera positioning system for high-precision cutting and accurate alignment.
  • Features a vacuum adsorption table to firmly hold materials like kraft board and white cardboard, ensuring uniform suction and stable operation.
  • Adopts a dedicated dual-head carriage that supports both creasing and cutting functions.
  • Uses a servo motor drive system for smooth and efficient operation, with a maximum cutting speed of 1200mm/s and a maximum cutting force of 1000g.
  • Comes with a 4.3-inch bilingual LCD touch screen (Chinese/English) for intuitive and smart operation.
  • Compatible with multiple operating systems (Windows Vista/XP/7/8/10/MAC) and interfaces (USB + U-disk).
Machine Structure Detail

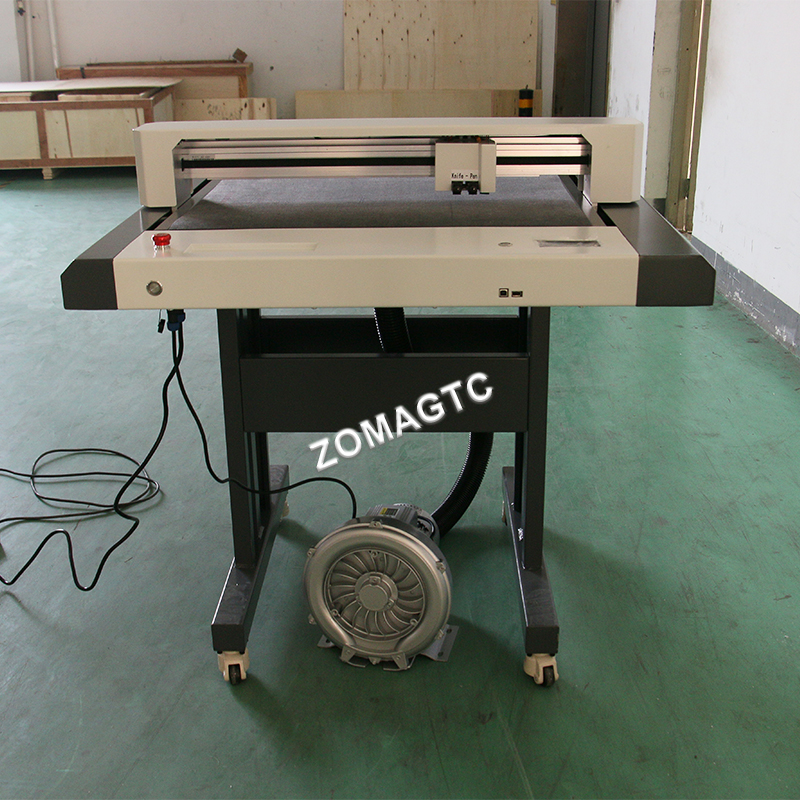

Air Pump Attachment
It is equipped with an external 1.5KW air pump connected to the vacuum adsorption table.
Wheel Mounted Stand
It features a compact, wheel-mounted stand with four casters, making it easy to move and reposition in the workshop.
Machine Configuration Detail
Flatbed Cutting System Overview
4. Main Products This Machine Can Produce
  • Packaging boxes (e.g., cartons, gift boxes, cosmetic boxes)
  • Paper tags and labels
  • Advertising signs and posters
  • Stickers and decals
  • Cardboard crafts and prototypes
  • Die-cut parts for printing and packaging industries
Production Facility & Equipment
Workshop Production Line
Assembly Workshop
Quality Inspection Area
Packaging & Shipping
Packaging Process Step 1
Packaging Process Step 2
Packaging Process Step 3
Packaging Process Step 4
Packaging Process Step 5
Packaging Process Step 6
Frequently Asked Questions
Are you a manufacturer?
Yes. We are a professional manufacturer of machinery with over 15 years of industry experience.
Can your machine be customized?
Yes, almost all of our products can be customized, including the sizes, colors, logos, packages, and other custom specifications.
How is the machine packaged?
Our machines are first wrapped securely in plastic film to ensure waterproofing, and then loaded and fixed in a sturdy plywood case. For FCL (full container loading), we construct robust wooden cases for transit safety.

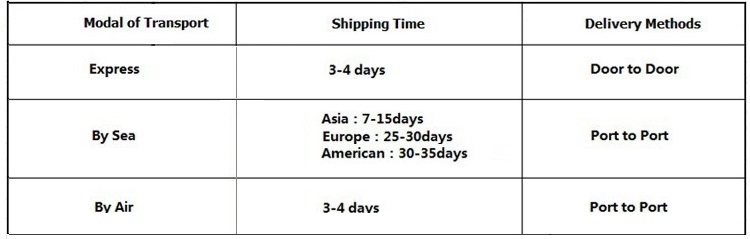

How do you ship the finished products?
We ship via Sea, Plane, or reliable couriers such as TNT, DHL, FedEx, UPS, etc.
What is the expected delivery time?
The standard delivery timeframe is within 15 to 35 days after receiving the initial payment.
What does your after-sales service include?
Any support inquiries will be responded to within 24 hours via email, Skype, call, or chat applications. Additionally, we have professional engineers available to provide overseas technical assistance.
