| Model | DBRY-1C | DBRY-2C | DBRY-3C | DBRY-4C | DBRY-5C | DBRY-6C | DBRY-7C | DBRY-8C |
|---|---|---|---|---|---|---|---|---|
| Printing speed | 70m/min | 60-80m/min | ||||||
| Printing color quantity | 1-12 colors | |||||||
| Max. unwinding width | 320-480mm | |||||||
| Max. Printing width | 320-480mm | |||||||
| Min. Printing width | 60mm | |||||||
| Max. unwinding diameter | 600-1000mm | |||||||
| Max. rewinding diameter | 600-1000mm | |||||||
| Precision of chromatography | ±0.10mm | |||||||
| Machine weight | 1800KG | 2100KG | 2400KG | 2700KG | 3000KG | 3300KG | 3600KG | 3900KG |

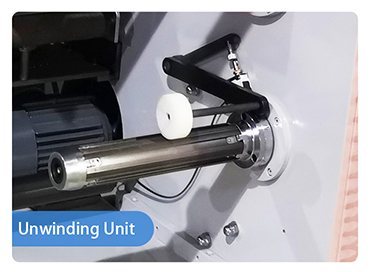

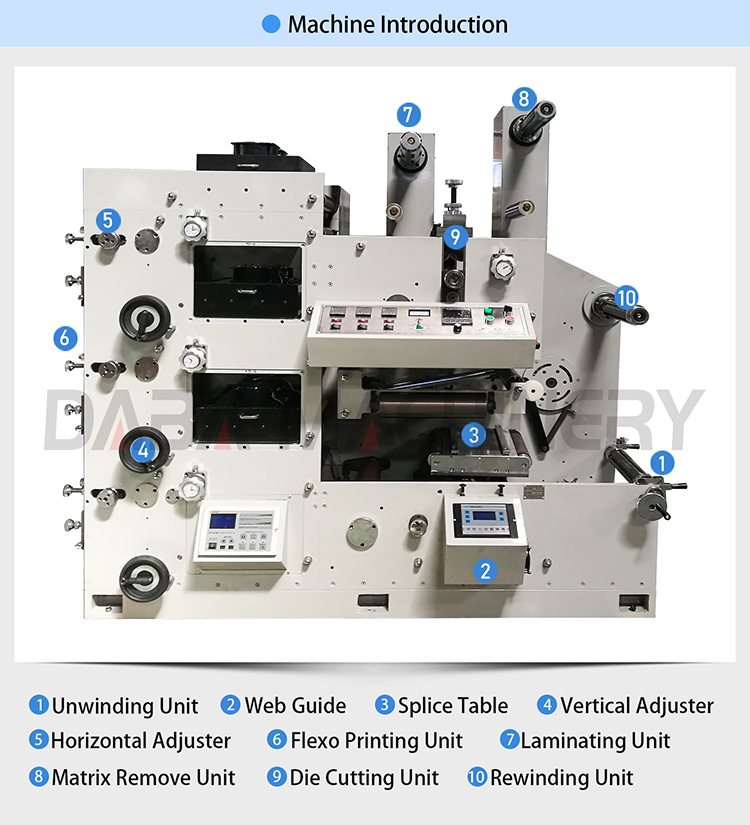

Standard Cantilever unwinding station, maximum unwind diameter: 600mm. 76mm (3") air shaft roller. Electromagnetic power brake. Auto tension control - No roll-followers or external sensors to be adjusted or maintained. Supports a stable unwinding tension.

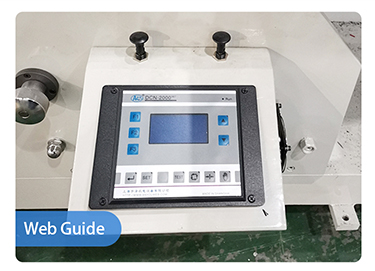

EPC system to ensure the printing material the lateral position before feeding to the printing station. Ultrasonic Web Guide System, transparent products can be easily detected. The precision is ±0.1mm.

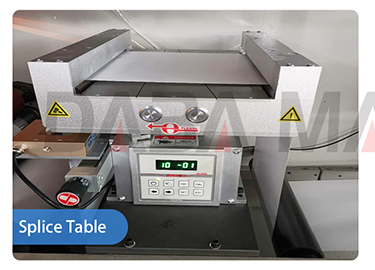

Provides a convenient platforms to splice the material during rolls replacement, ensuring continuous alignment and operation.

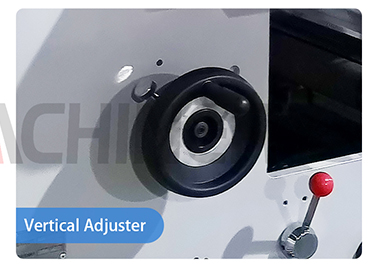

Allows precise vertical adjustments of the turn bar mechanism for optimized material path routing.

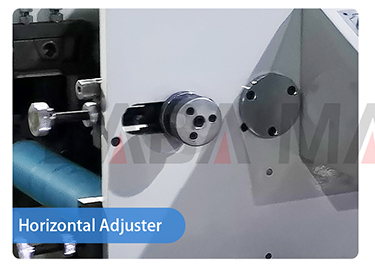

Enables accurate horizontal adjustment configurations of the turn bar system for reliable alignment.

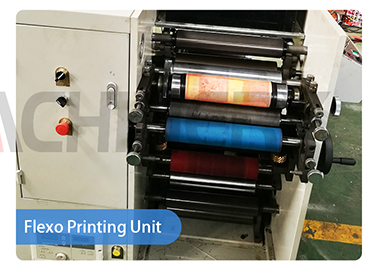

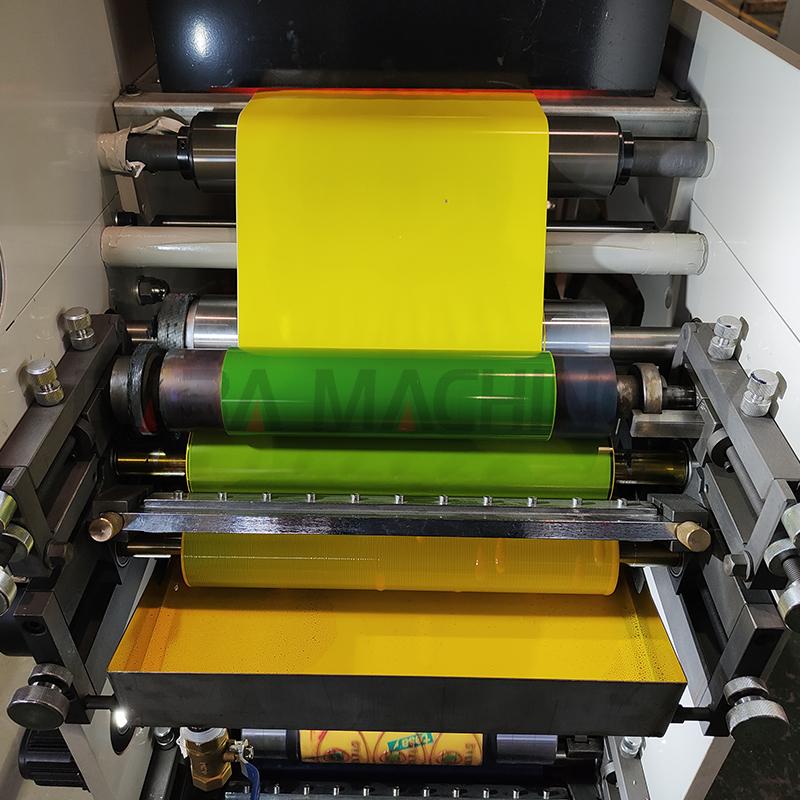

Printing width: 320 mm. Max printing area: 320mm x 580mm. Printing repeat Range: 178-580 mm (56T-182T). Printing driven by 3 kw motor, controlled at the control panel independently. Gearing - 1/8 cp. Printing plate thickness: 1.7 or 1.14 mm. Both sides tape thickness: 0.38mm (3M). Consists of: Measuring roller (Rub roller), Ceramic anilox roller, printing roller, scraper. 360° degree printing adjustment.

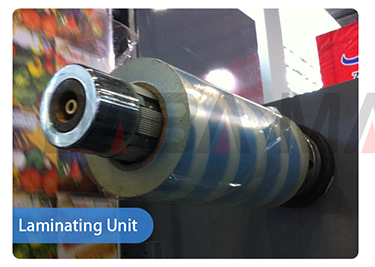

Features a 76mm (3") quick change air shaft. Driven efficiently by motor to feed and laminate film materials.

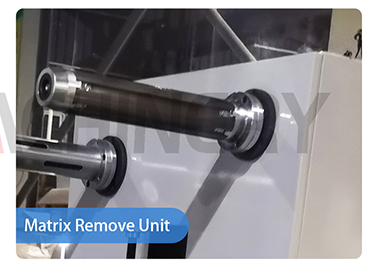

A driven capstan roller with adjustable tension control ensures reliable matrix stripping, enabling high speed running even if the matrix rewind becomes unstable. Matrix / Waste Rewind - 400mm (15.75") diameter with 76mm (3") air shaft.

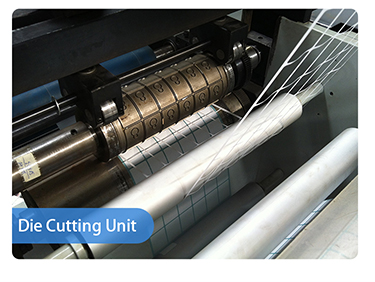

Gearing - 1/8 cp, 20 degree pressure angle. Precision ground steel die plates - 320mm (12.75") model. Driven capstan roller with adjustable tension control ensures reliable matrix stripping, enabling high speed running. Matrix / Waste Rewind - 400mm (15.75") diameter, 76mm (3") air shaft.

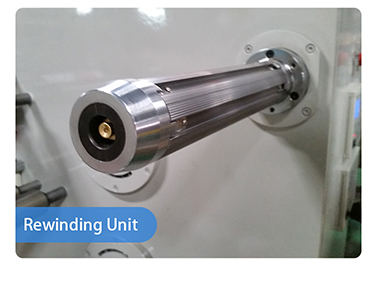

Maximum rewind diameter: 600mm. 76mm (3") quick change airshaft. Electromagnetic power clutch. Auto tension control ensures the rewinding tension is tight and the rewinding edge is clean.

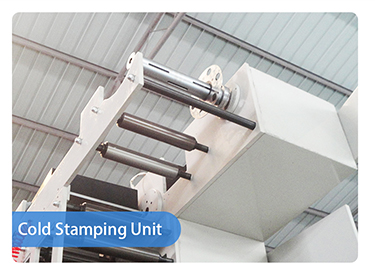

Requires use of UV glue with UV oven. Cold stamping can be placed at any desired position.

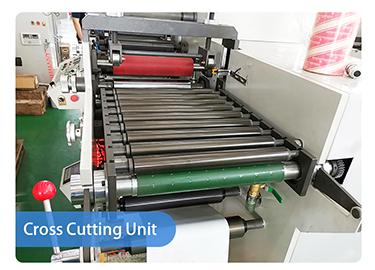

Designed for professional sheeting unit application requirements.

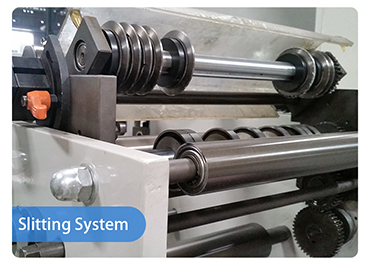

Equipped with 8 pcs rotary knives. Automatic magnetic powder tension control. Special blades can be customized according to the product.

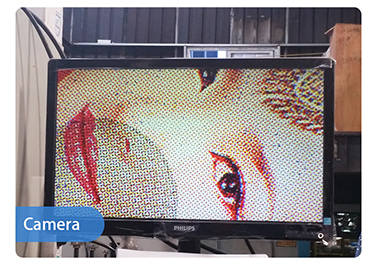

Real-time visual inspection camera system for print quality control.

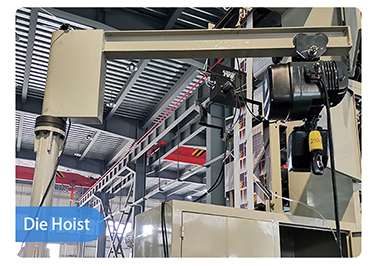

Heavy duty lifting mechanism for easy and safe installation of die cutting rollers.

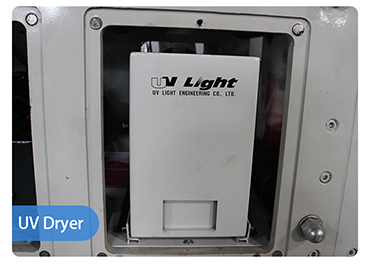

Each Printing Unit features an IR heating oven; UV is optional. Heating oven is equipped over the printing material. Independent windows for IR and UV oven ensure easy installation, do not affect the power/drying range of IR, and extend the UV oven lifetime.

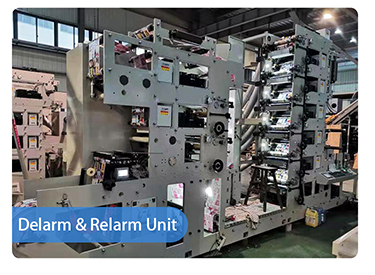

Enables stripping of label backing layer and relaminating capability for special printing requirements.

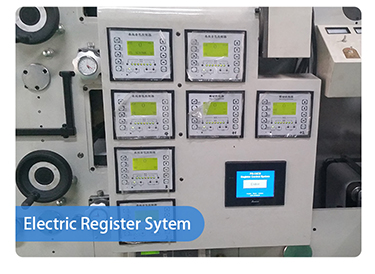

Automated electrical alignment and register correction system to maintain registration at high speeds.
We have a specialized and efficient working team. If you are new to the printing and packaging area, showing us some samples of your products would be highly appreciated. We will give you specialized suggestions for the entire workflow.
We have a specialized and independent department solely for shipping buyers' goods. The team understands T/T and L/C terms thoroughly. All export documents will be prepared perfectly. We cooperate with leading shipping carriers in China to provide cost-effective shipping routes.
Installation services are available for all of our machinery. We will dispatch a technician to the buyer's facility for onsite assembly and configuration. The buyer is responsible for round-trip tickets, meals, and lodging costs.
We advise buyers to send their own technicians to our factory for operational training. Our technical staff will provide hands-on instruction until the learner is proficient. Operational training during the installation phase at your facility is also supported.
All machinery is backed by a one-year warranty. A toolbox containing common replacement parts is supplied alongside each machine. In case of any components failing, send photos or videos of the issue, and replacement parts will be delivered within 3-7 express working days.
