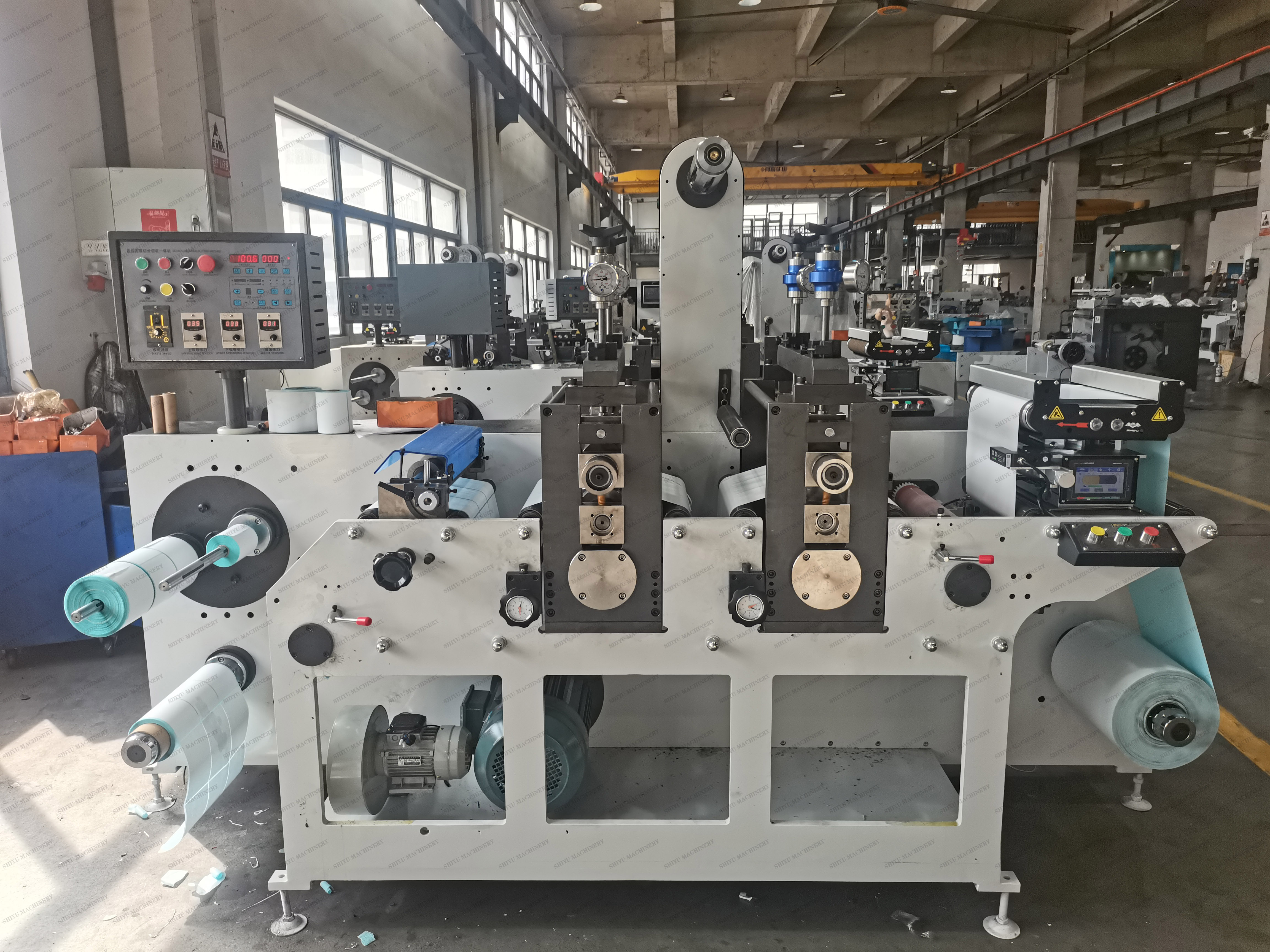

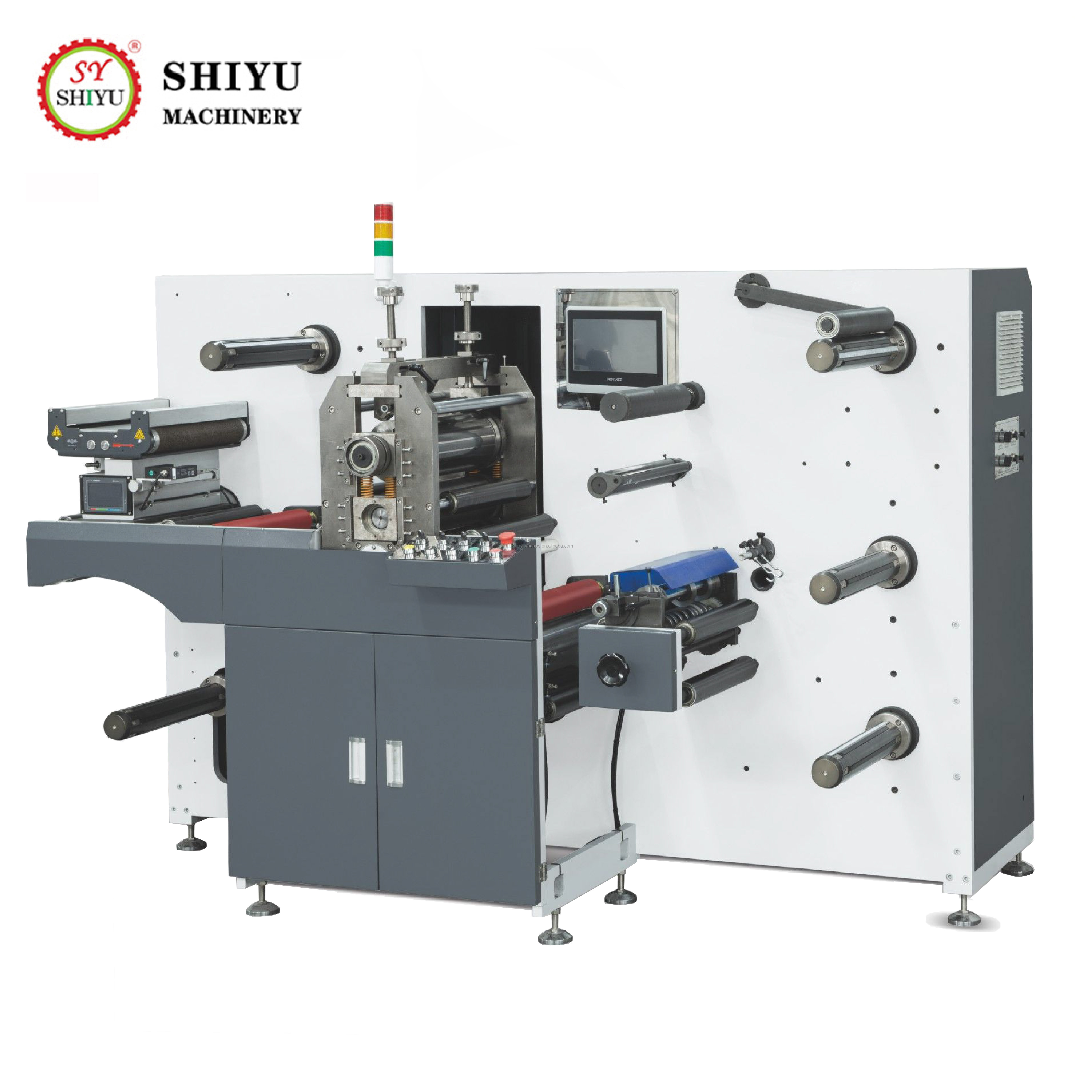

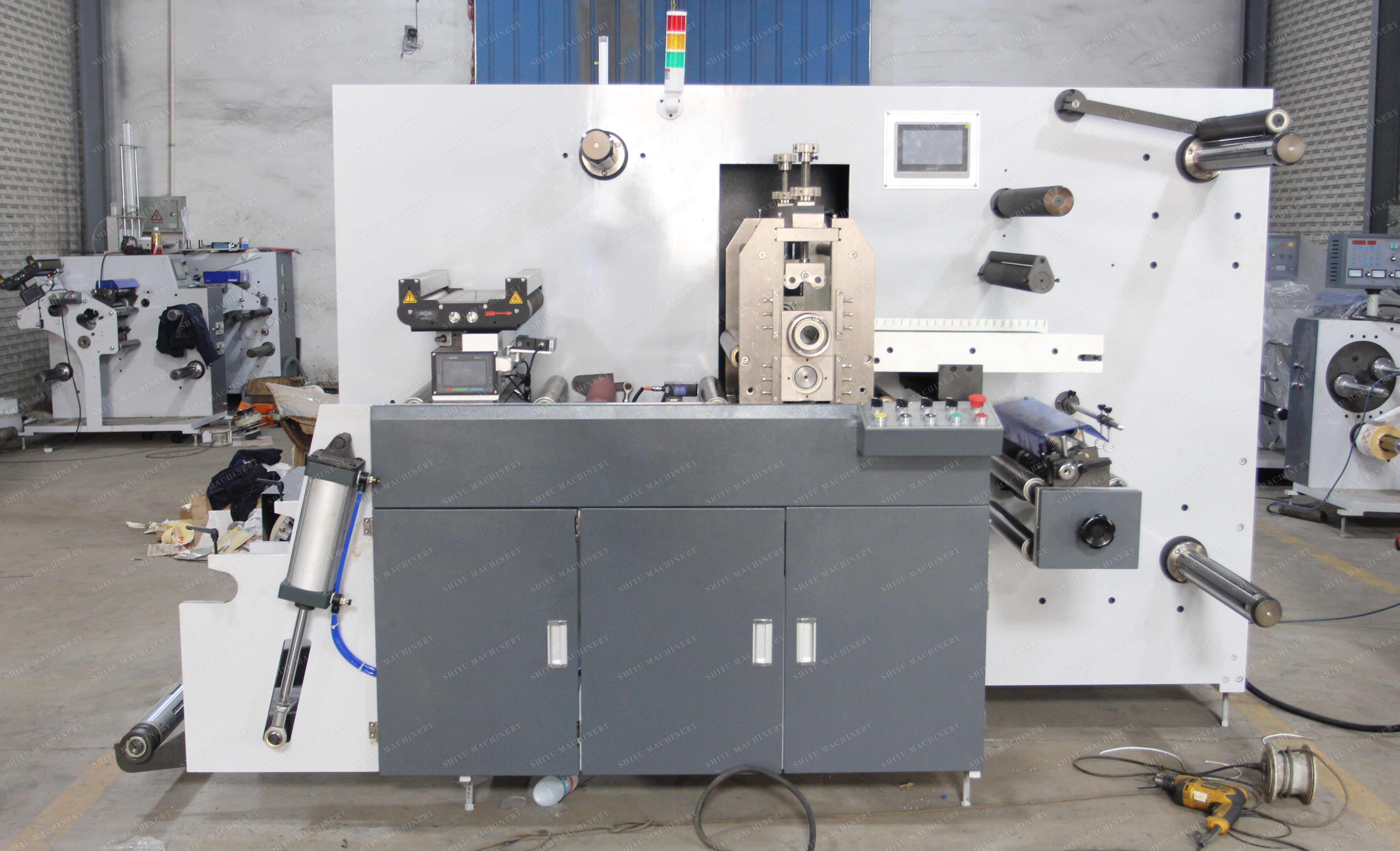

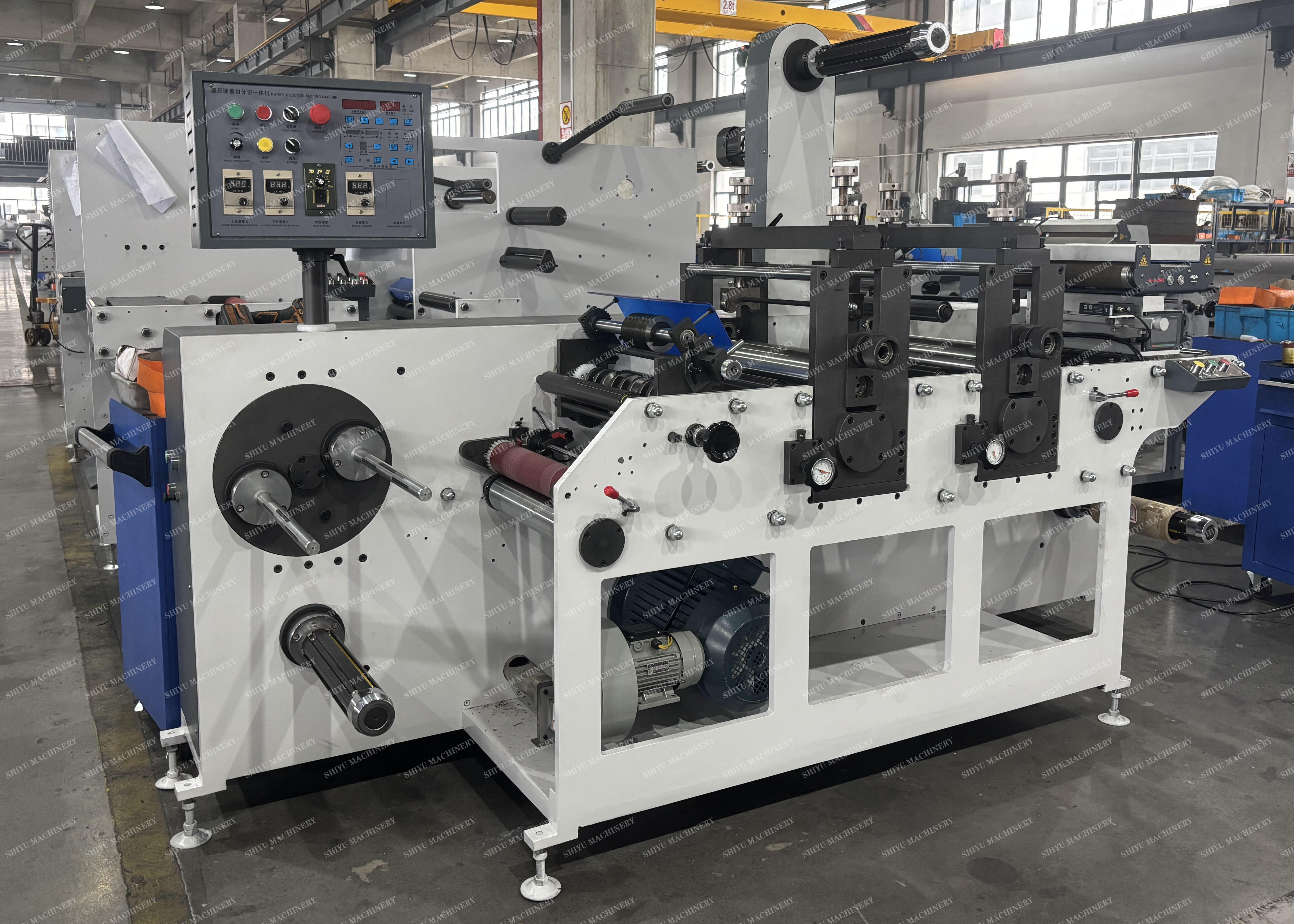

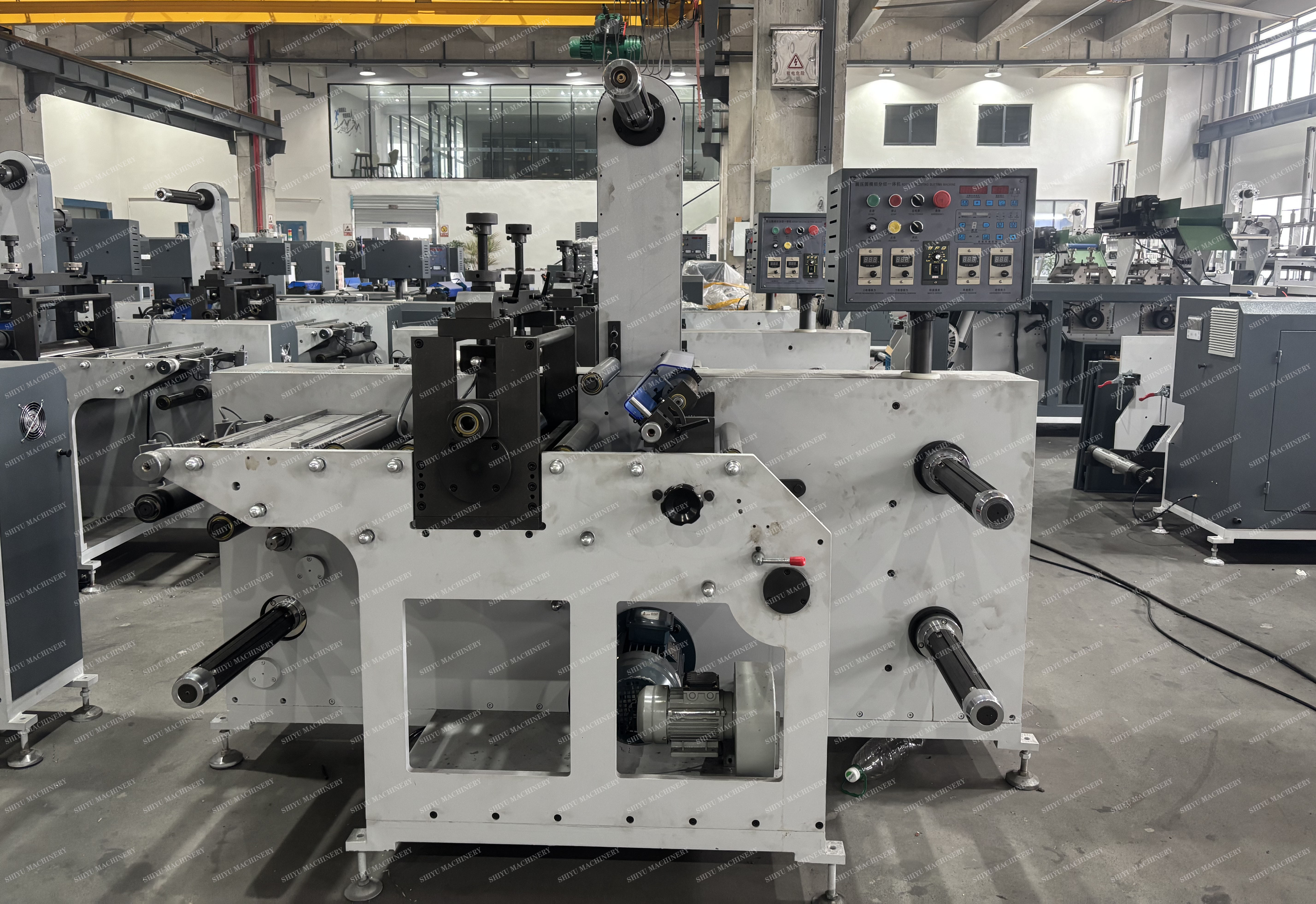

This equipment is the latest research product, equipped with intermittent die cutting/full rotary die cutting and slitting units, with color tracking system (main difference with normal rotary die cutting machine). It adopts an advanced servo motor control system and user-friendly operation panel, which greatly improves product quality and production efficiency. It is suitable for die cutting printed labels and IMD labels.
| Model | SY-350 | SY-450 |
|---|---|---|
| Slitting Speed | Rotary 120m/min Intermittent 65m/min |
Rotary 120m/min Intermittent 65m/min |
| Max. paper feeding width | 350mm | 450mm |
| Max. Unwinding Diameter | 700mm | 700mm |
| Max. Rewinding Diameter | 700mm | 700mm |
| Precision of Slitting | ±0.15mm | ±0.15mm |
| Thickness of material | 20-300um | 20-300um |
| Weight | 3600kg | 3800kg |
| Size (L×W×H) | 2400×1365×1475mm | 2400×1465×1475mm |

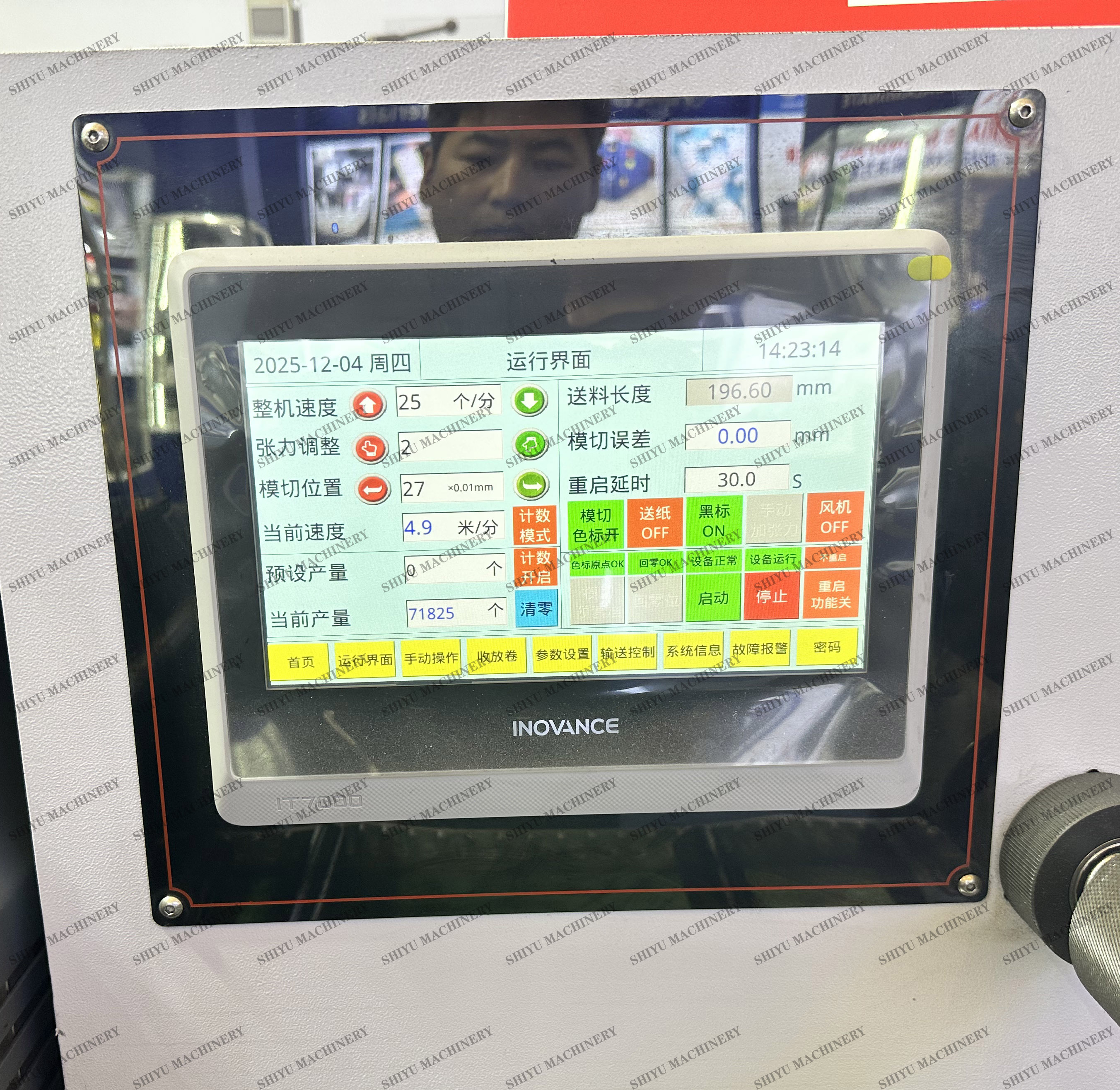

Simple and clear. Can quickly adjust the speed and tension of the machine to increase efficiency.
Equipped with a blower fan to blow away and efficiently collect the trimmed waste sides.

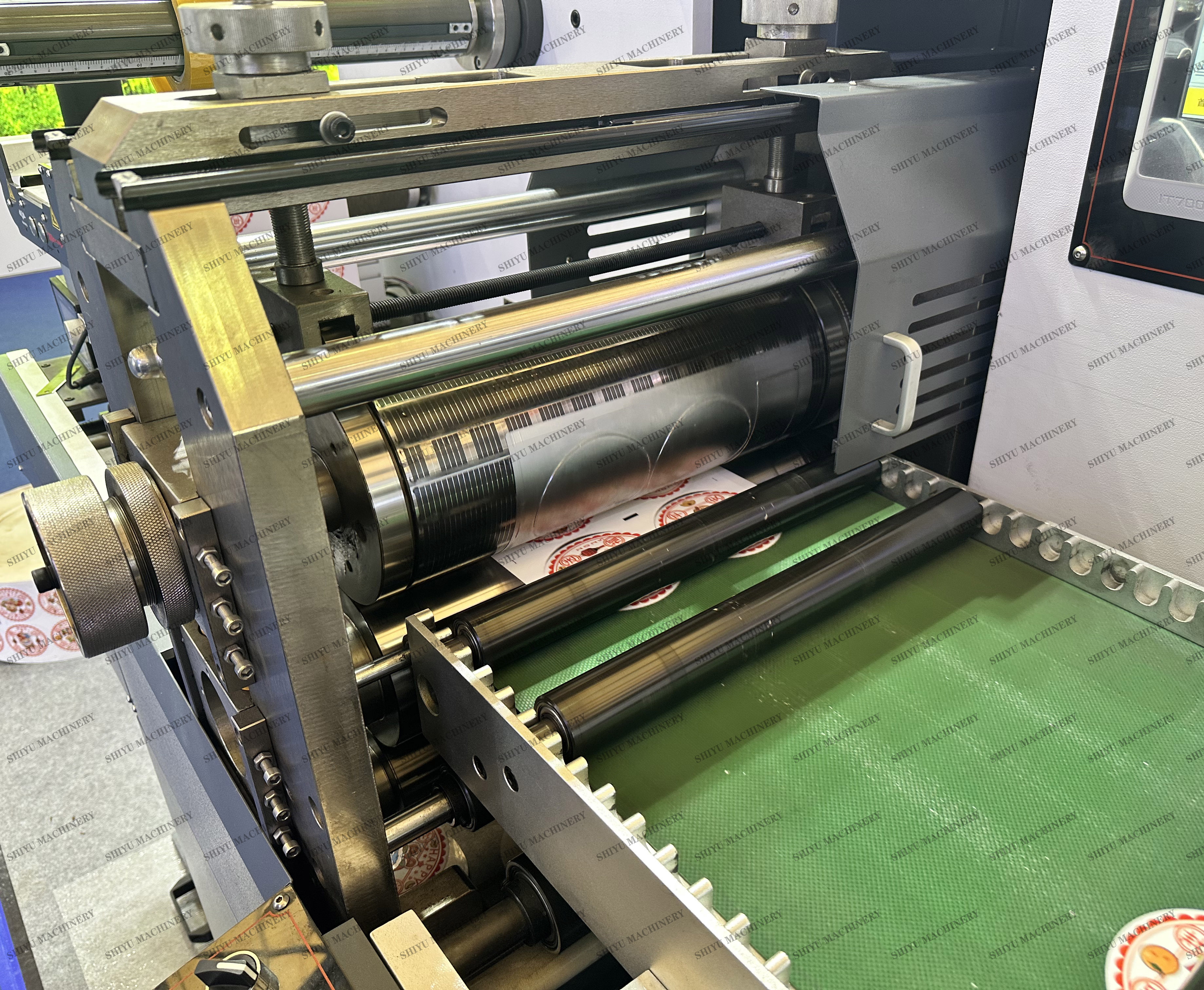

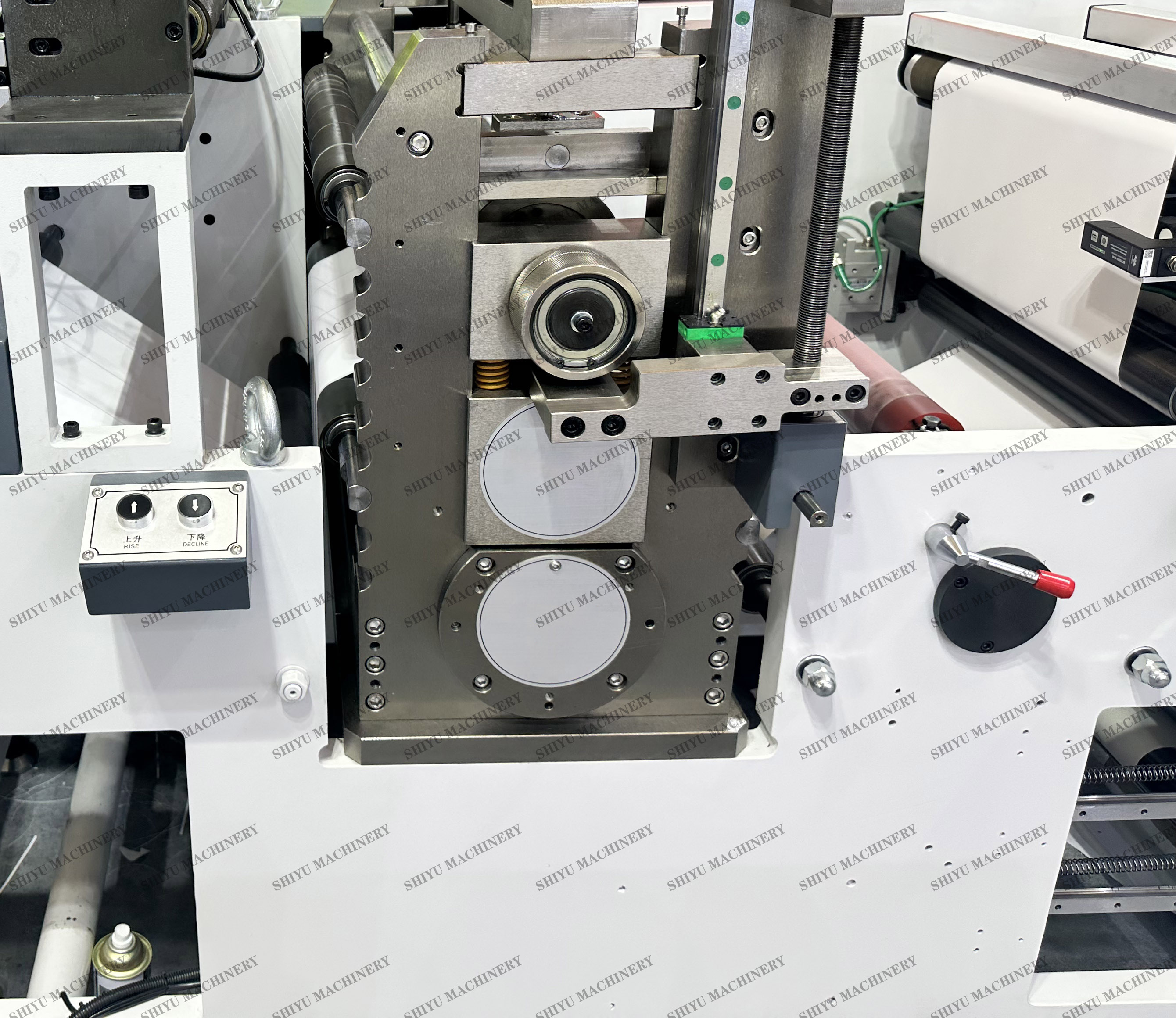

Highly versatile unit capable of both intermittent and full rotary die cutting modes.
Guarantees precision alignments for high-standard die-cutting accuracy.

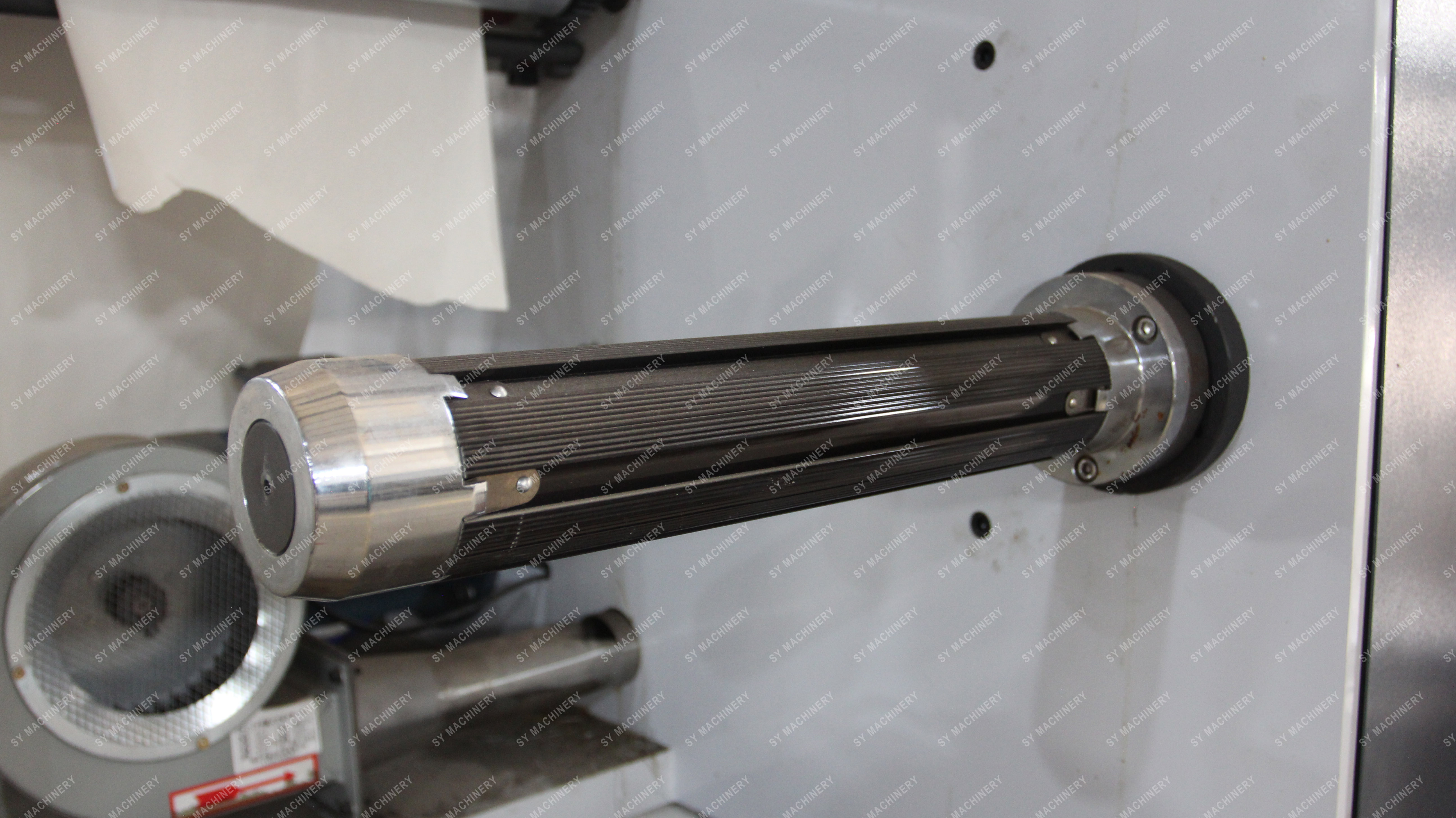

Reliable pneumatic shaft structure for secure roll loading and stable operation.

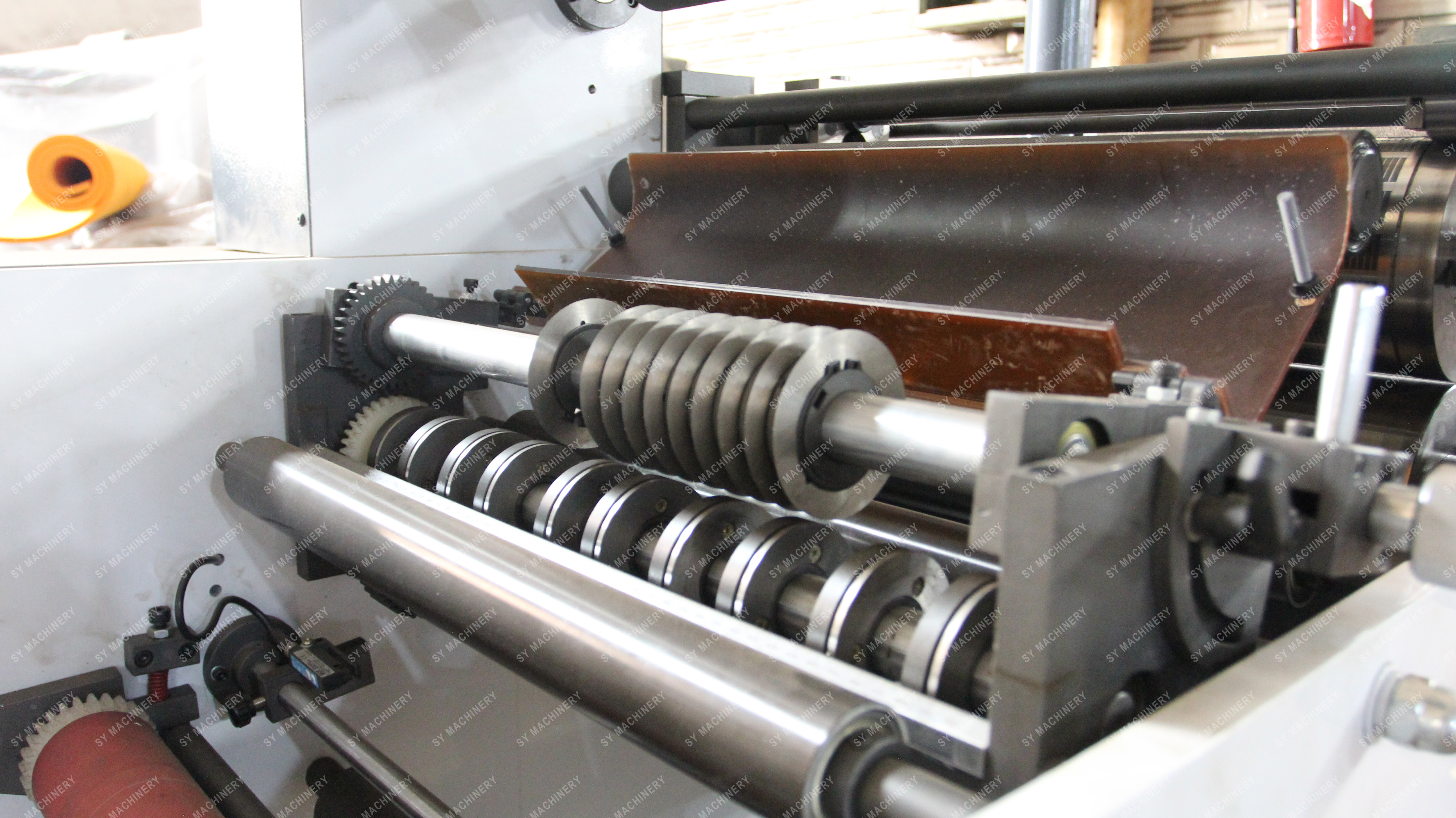

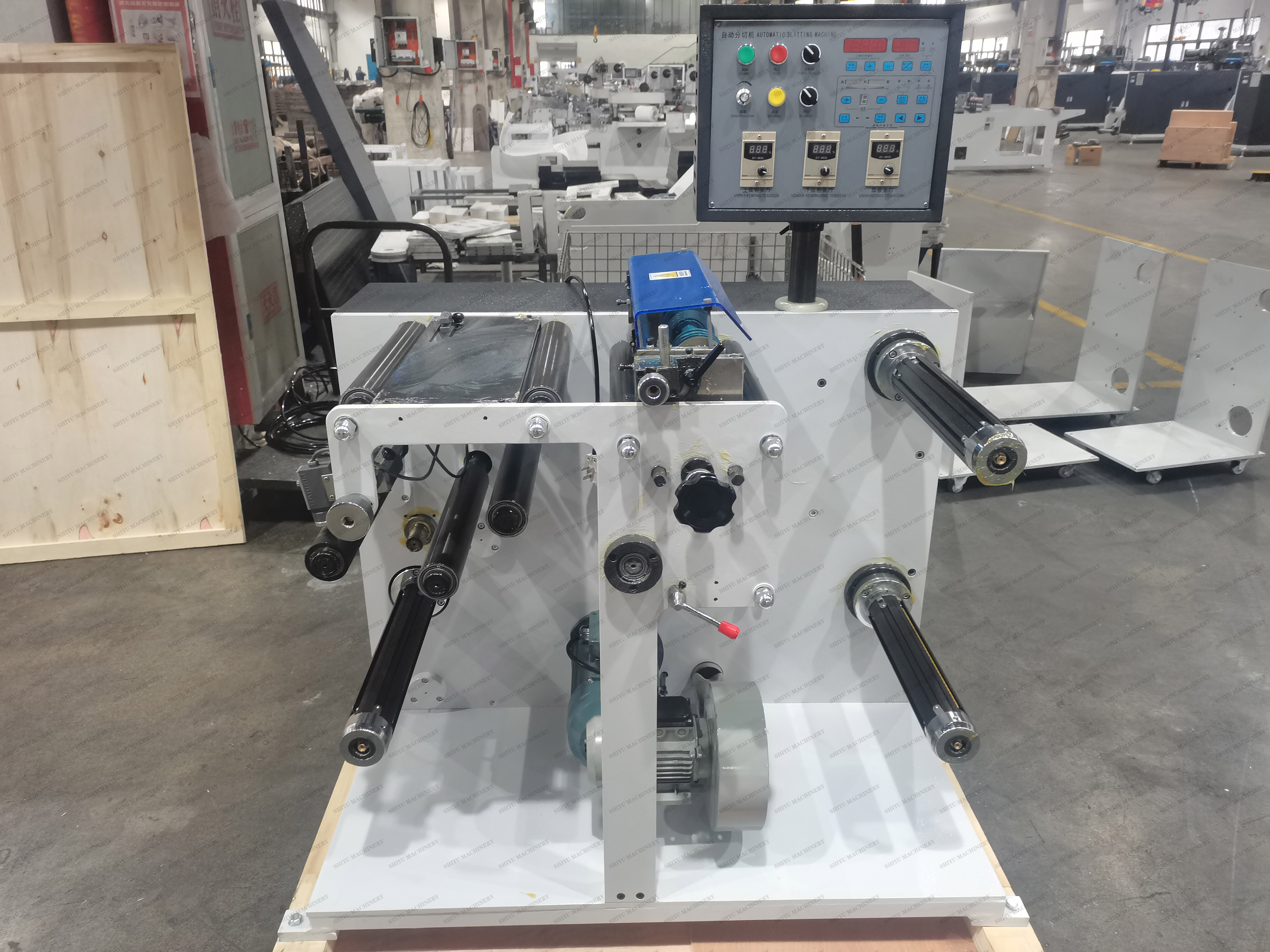

Precision slitting mechanism ensuring neat edges and consistent output width.

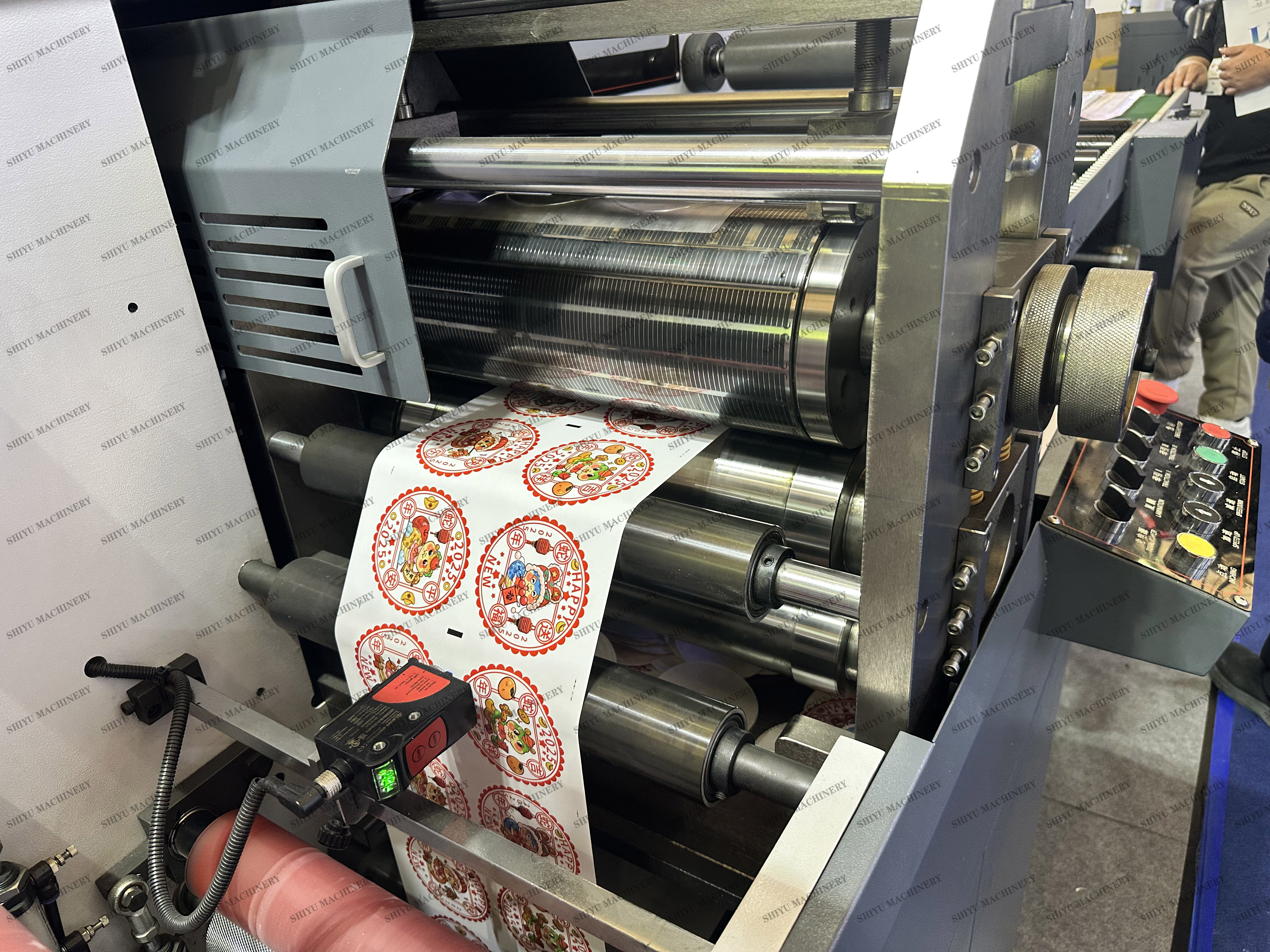

The color tracking system is the primary upgrade over conventional rotary die cutting machines. It allows for high-precision tracking and registration, making it highly effective for cutting printed labels and IMD labels accurately.
Both models support two operating modes: Full Rotary mode runs at a speed of up to 120m/min, and Intermittent mode runs at up to 65m/min, allowing you to optimize production based on label design complexity.
The equipment is compatible with a wide range of roll-fed materials, supporting processing thicknesses from 20um up to 300um.

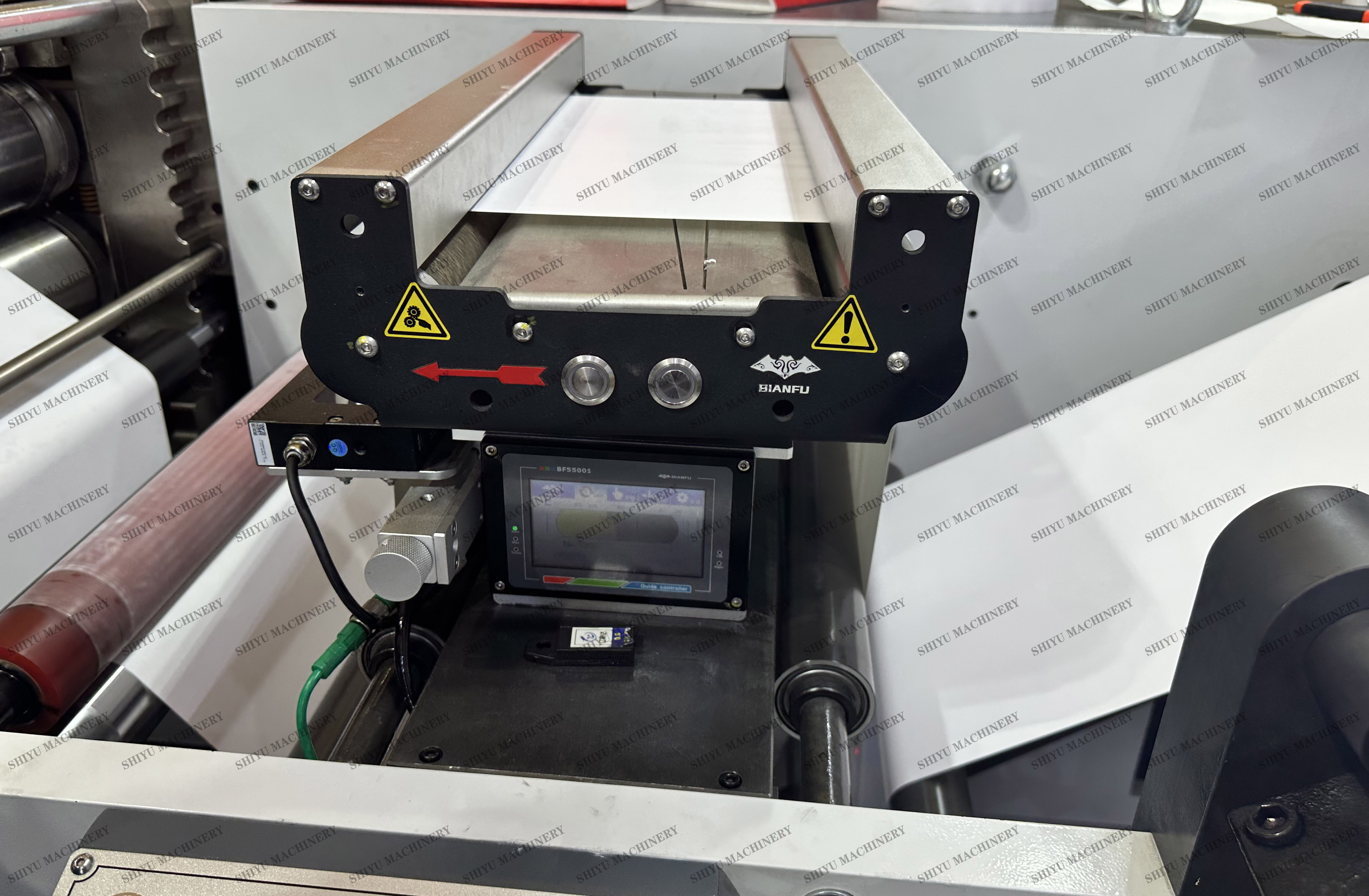

The integrated web guide system is paired with a high-capacity blower fan. This setup continuously blows away and gathers trimmed side strips, ensuring smooth and uninterrupted operation.
Both the SY-350 and SY-450 models are built to handle large roll capacities, featuring a maximum unwinding diameter of 700mm and a maximum rewinding diameter of 700mm.
Yes, this equipment utilizes an advanced servo motor control system paired with a user-friendly operator panel. This ensures consistent tension control, high slitting precision of ±0.15mm, and stable speed adjustment.
