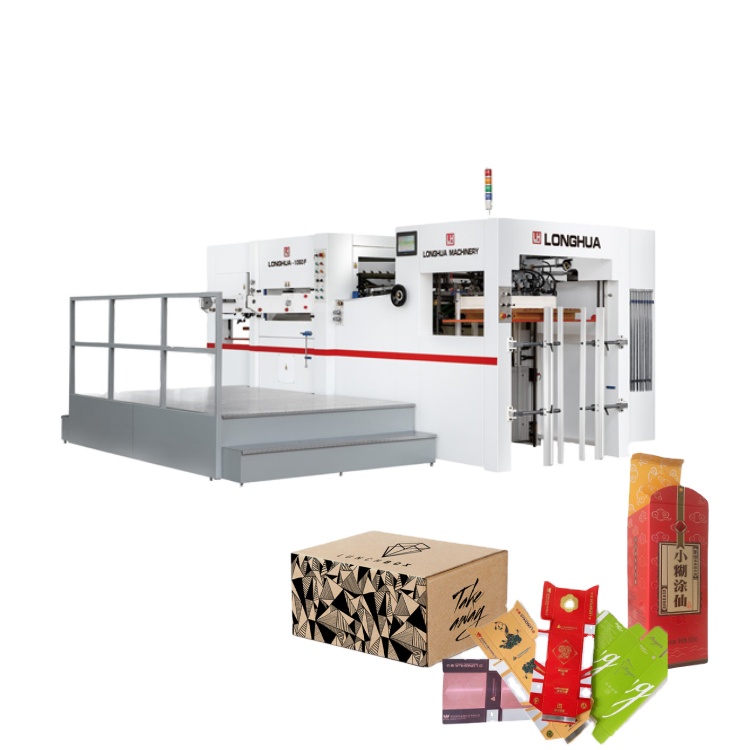

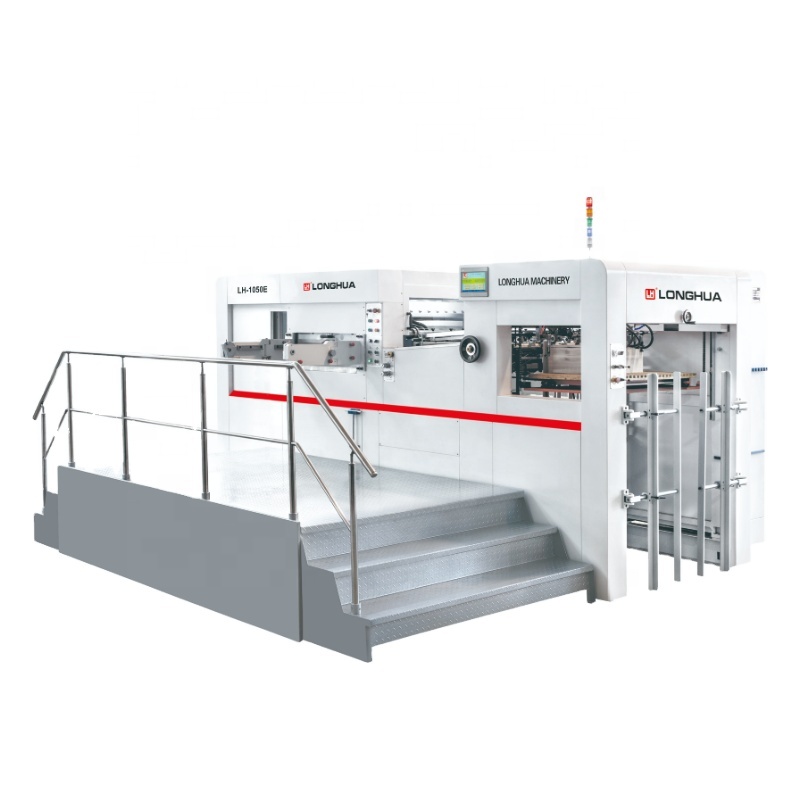

1. Automatic Die Cutting Machine is designed for die cutting specially. It suits for more than 80g/m² paper, cardboard, corrugated paper below 4mm, pasting paper, laminating paper and so on.

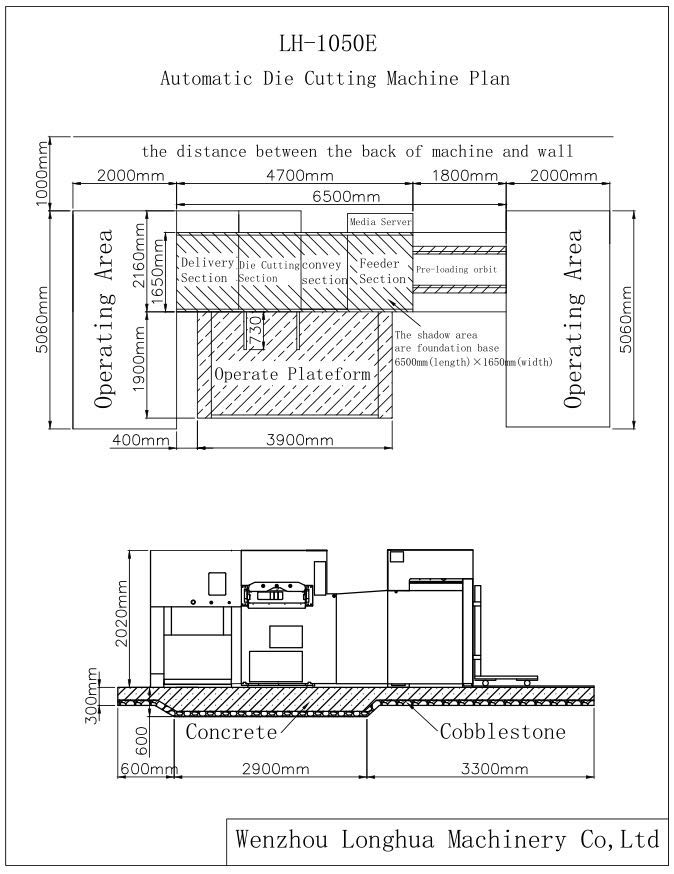

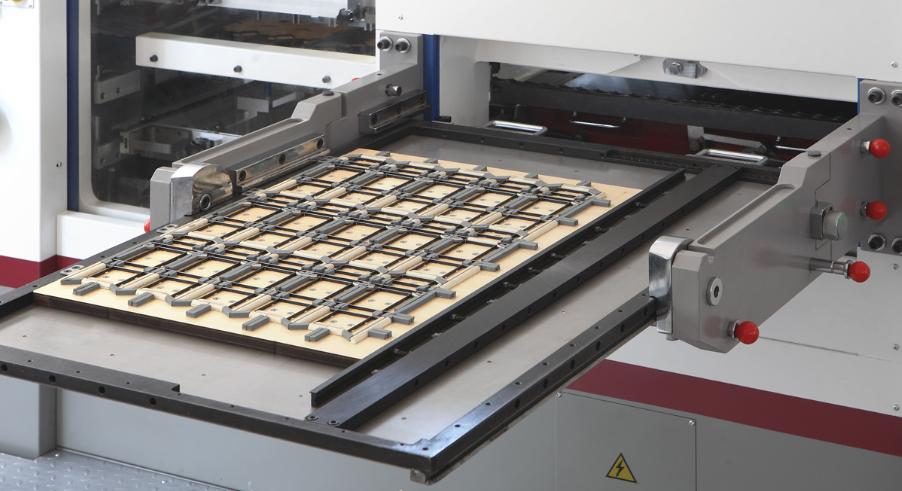

2. The machine includes 4 parts: Feeder, paper feed section, main motor and delivery section. And it can finish feeding, die cutting, and collecting work cycle automatically.

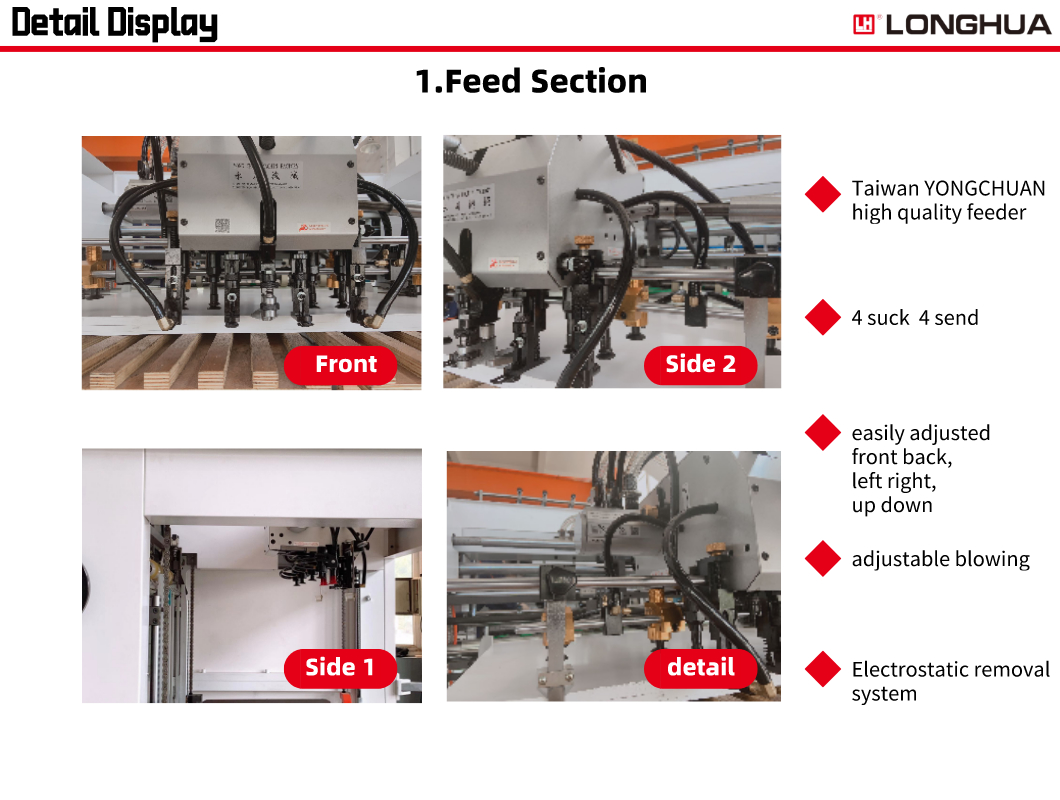

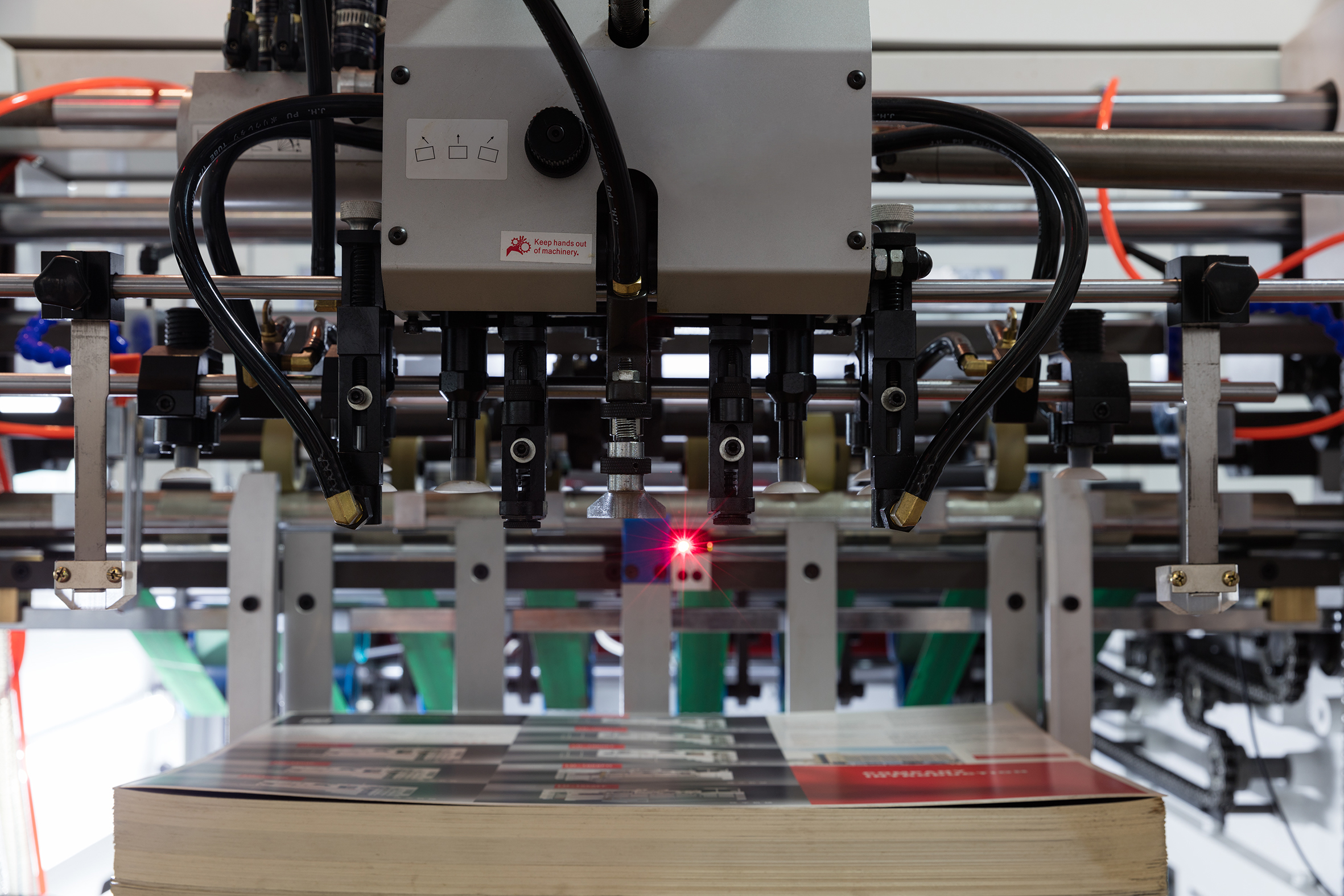

3. The feeder has excellent flexibility, that realize to make a change in the breadth frequently, last and easily.
4. The machine is equipped with automatic lubrication system. And the swing rod and copper tile are all reworked by hand. We scrap the surface and make it full of criss-cross scratch. The groove hold more oil that can ensure smooth going of the operation, and the precision of the pattern.
| Parameters | Details |
|---|---|
| Model | 1050E |
| Name | Automatic Platen Die Cutting Machine |
| Max. Sheet Size | 1050×750mm |
| Min. Sheet Size | 400×360mm |
| Max. Cutting Range | 1040×720mm |
| Inner Chase Size | 1080×745mm |
| Die Cutting Steel Plate Size | 1080×736mm |
| Paper Thickness | 80-2000 g/m² Cardboard / Corrugated paper ≤ 4mm |
| Plastic Range | 0.1-2.0mm |
| Min. Grabbing-sheet Width | 9mm |
| Max. Mechanical Speed | 7500 sheets/h |
| Max. Die Cutting Pressure | 300T |
| Max. Feeding Pile Height | 1350mm |
| Max. Delivery Pile Height | 1200mm |
| Total Weight | 16T |
| Dimensions | 6300×4200×2100mm |
| Total Power | 40kw |
| Heating System | 12 heating areas, 40°C-180°C adjustable |
| Full Load Power | 42kw |
| Voltage Requirements | 380V 50Hz |
| Air compressor | 0.8Mpa, 0.36m³/min, 3kw |

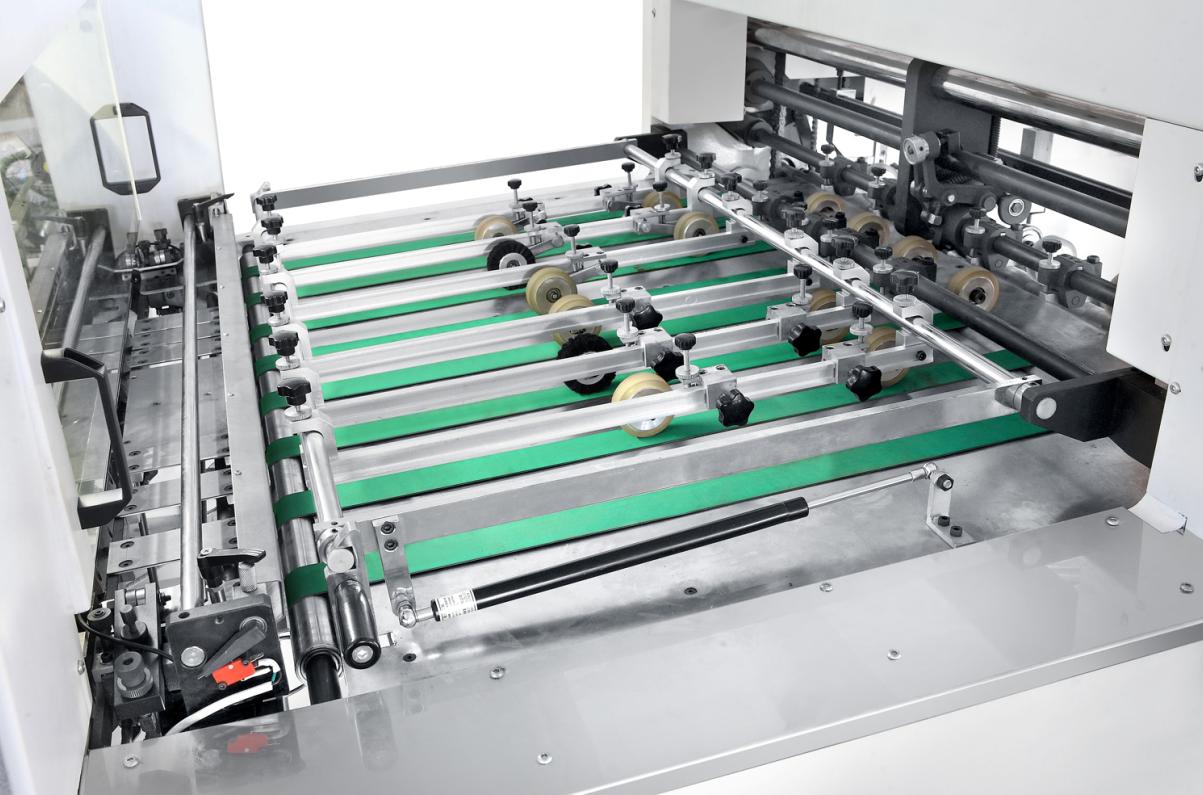

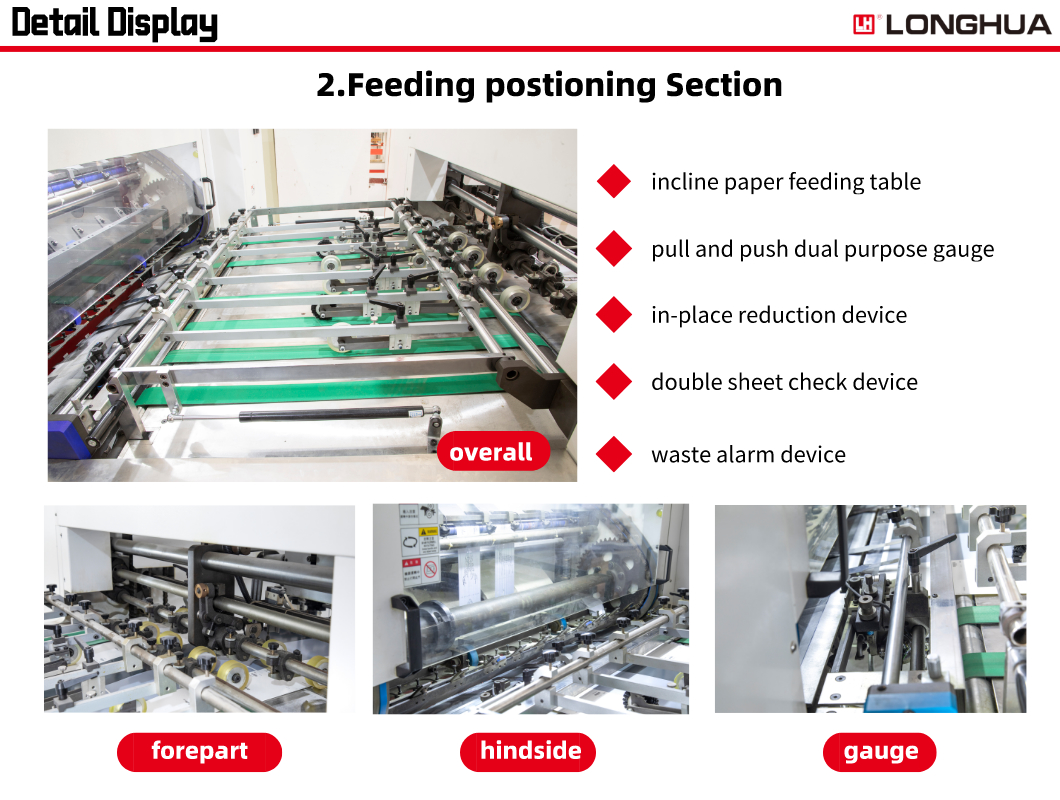

The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper's location.

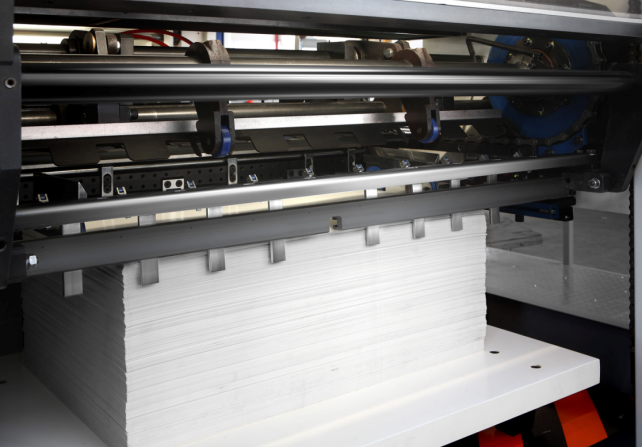

Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section could product stably. Gripper drive train expanded buffer device. NON-STOP PAPER.
