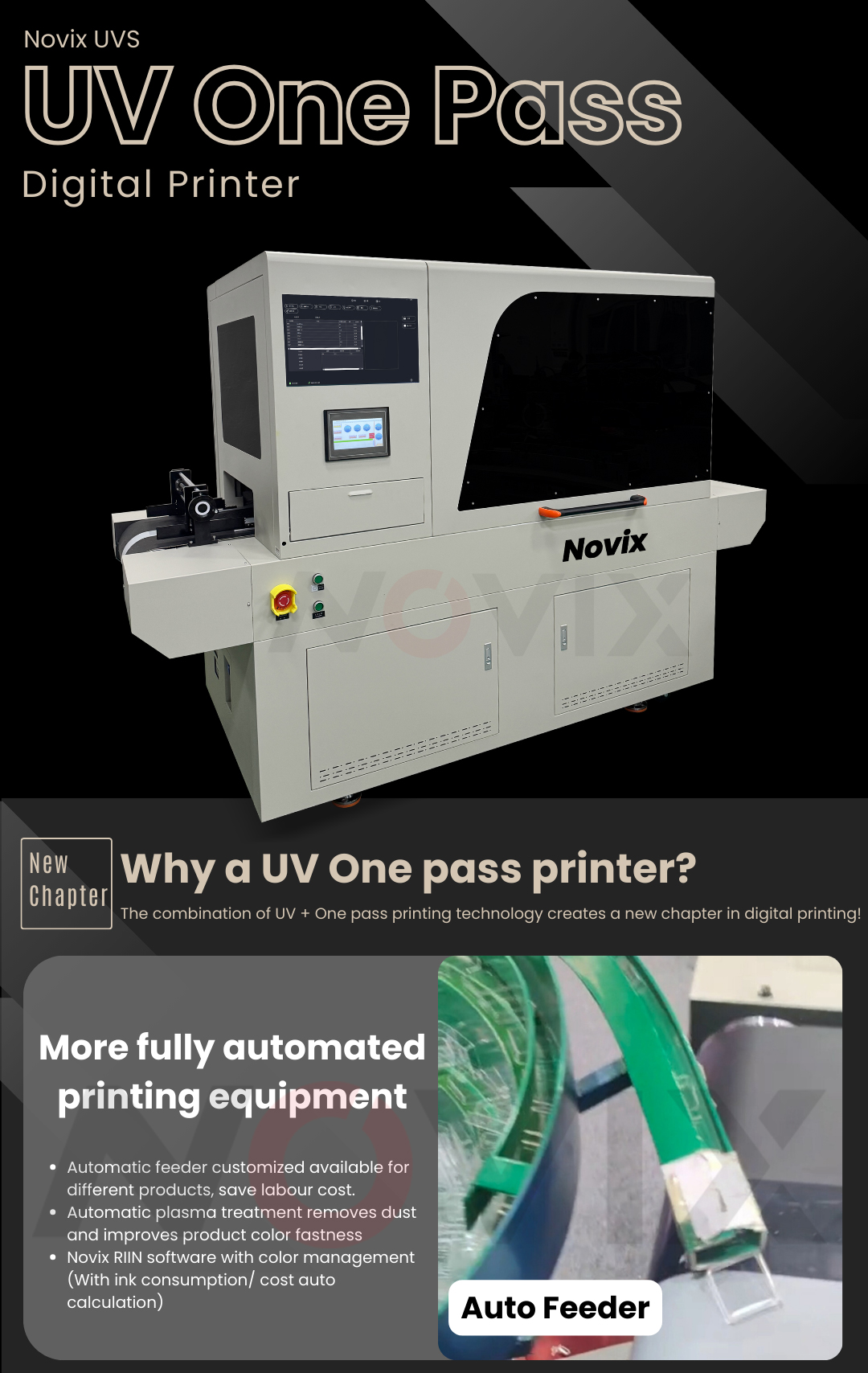

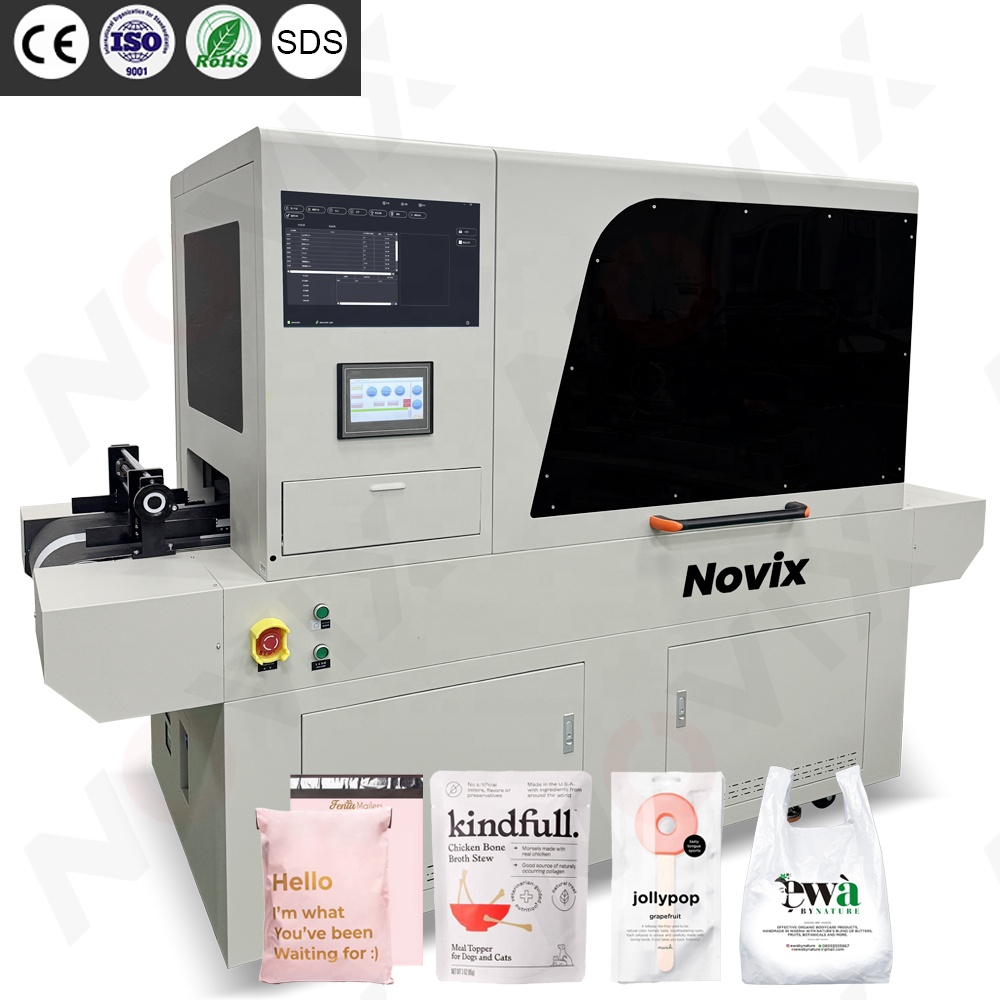

| Printer name | Novix-UVS UV Single Pass Printer |
| Print head | Ricoh Gen5/ Ricoh Gen6/ Kyocera (option) |
| Technology | MEMS |
| Printhead life | Piezoelectric Drive durability, more than 106 billion inkjet times |
| Ink drop Volume | Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink |
| Horizontal Resolution | 600dpi |
| Vertical Resolution | 200~1200dpi multiple adjustable |
| Number of nozzles | 1,280 (4 × 320 channels), staggered |

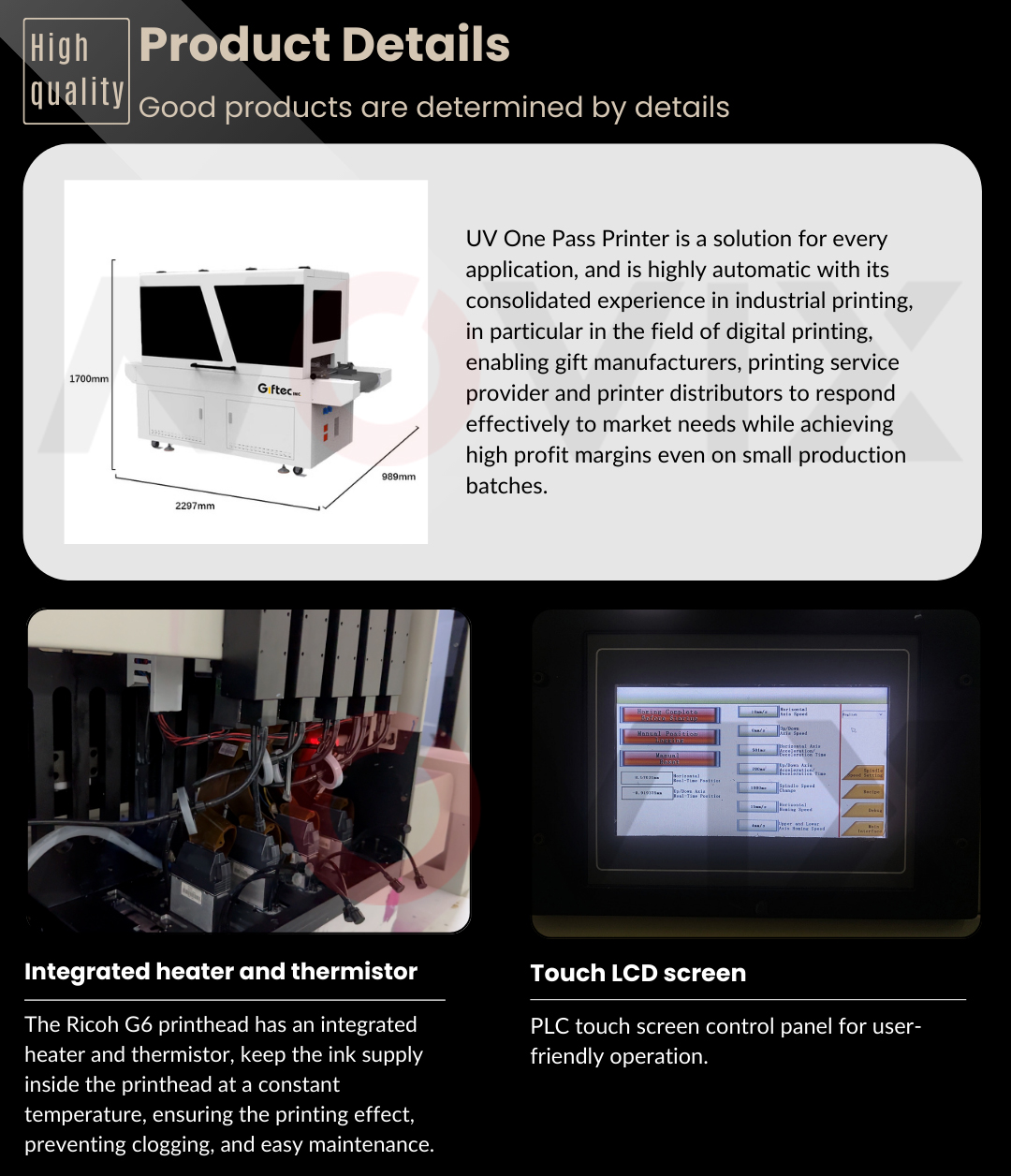

| Temperature control | Integrated heater and thermistor |
| Jetting frequency | Binary mode : 30kHz / Grey-scale mode : 20kHz |
| Printhead Protection Technology | Auto carriage/printhead anti-scratch kit |
| Maximum printing thickness | 0-150mm (Printing height customization available) |
| Printing width(mm) | 54mm/108mm/Multiple row options |
| Material width(mm) | 400mm |
| Print Speed | Single color: 0-120m/hrs Multi-color: 0-25m/hrs |

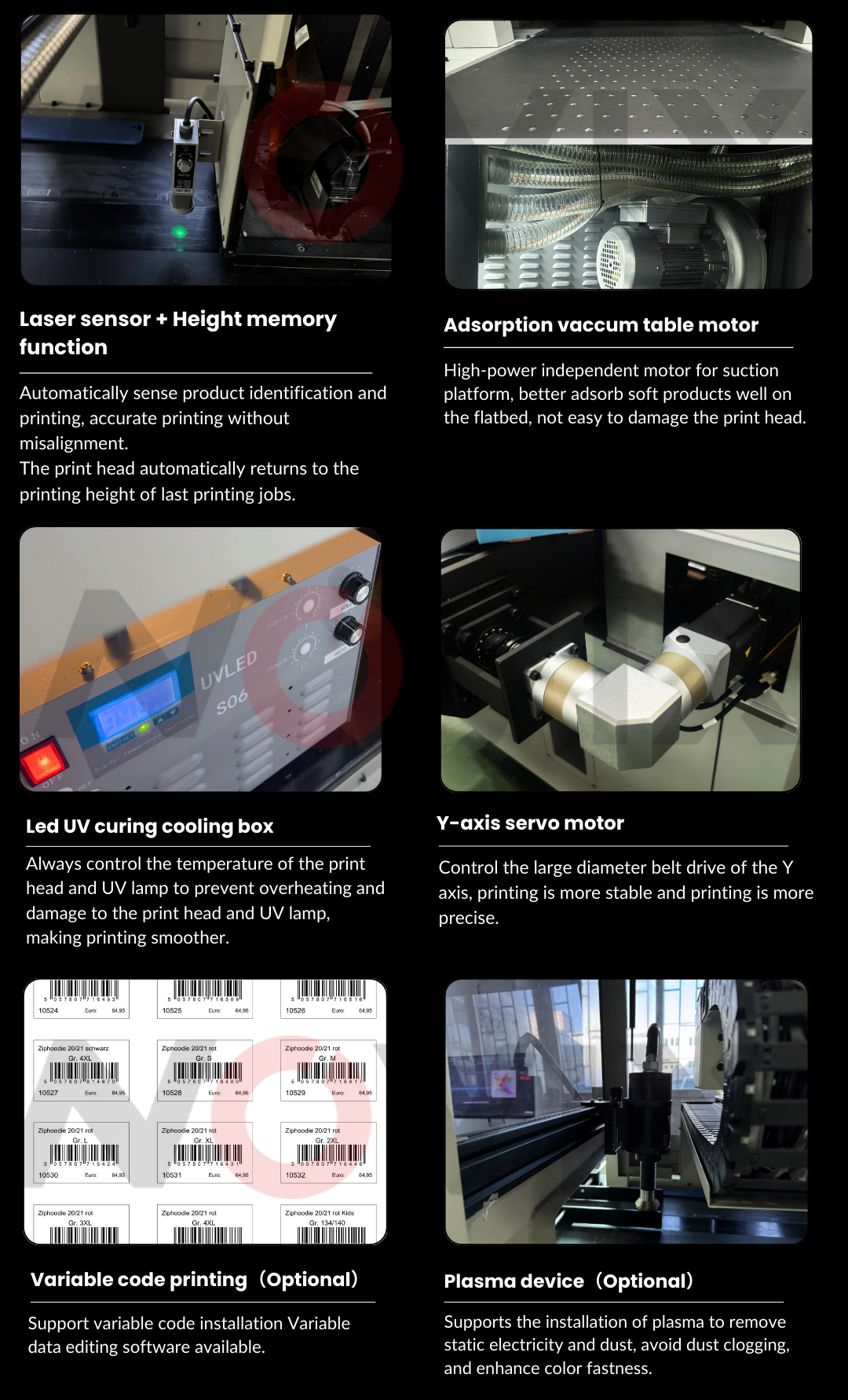

| Flatbed Type | Auto continual conveyor, Vacuum adsorption table option available |
| Media Release device | Manual feeding/ customized feeder *Optional |
| Media Take up device | Take up tray *Optional |
| Ink type | Oil-based Single Pass UV ink (Non-VOC) |
| Color Configuration | Single color; Multi-color: Cyan(C), Magenta(M), Yellow(Y), Black(K), White (W) |

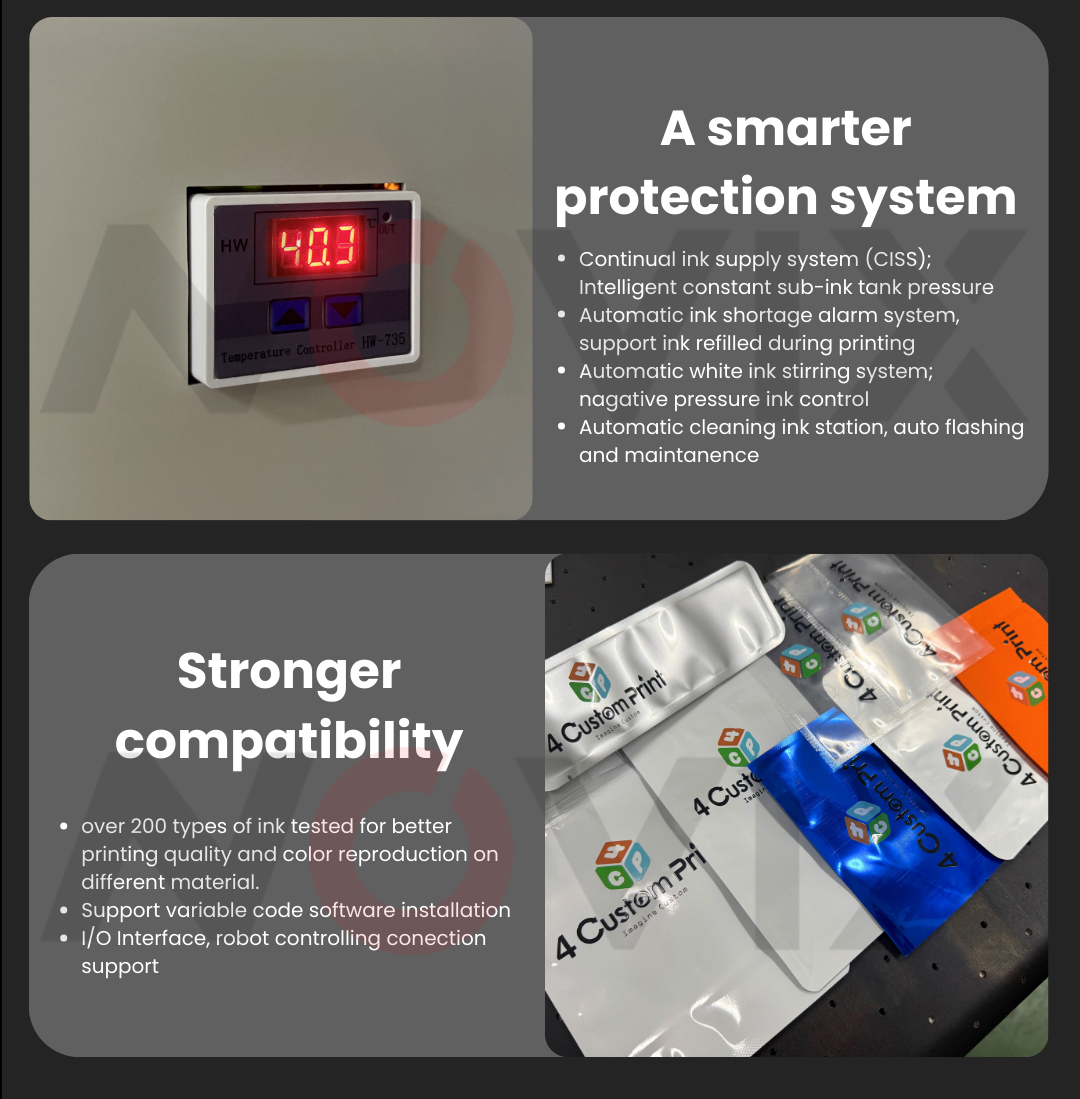

| Ink supply | Continual ink supply system (CISS); Intelligent constant sub-ink tank pressure |
| Ink filter | Ink filtration system available to filtering oversized particles |
| Ink tank | 2500ML/color |
| Protection system | Automatic ink shortage alarm system, support ink refilled during printing |
| Anti clogging of Printhead | Automatic white ink stirring system; negative pressure ink control |
| Cleaning & Maintenance system | Automatic cleaning ink station, auto flashing and maintenance |
| Temperature | 15℃ ~ 30℃ (59°F ~ 86°F), Humidity 30%-70% |
| Voltage | 220V/AC (±10%), 50/60Hz, 1KW (Max.) |
| Acoustic noise level | 70db(A) or less |

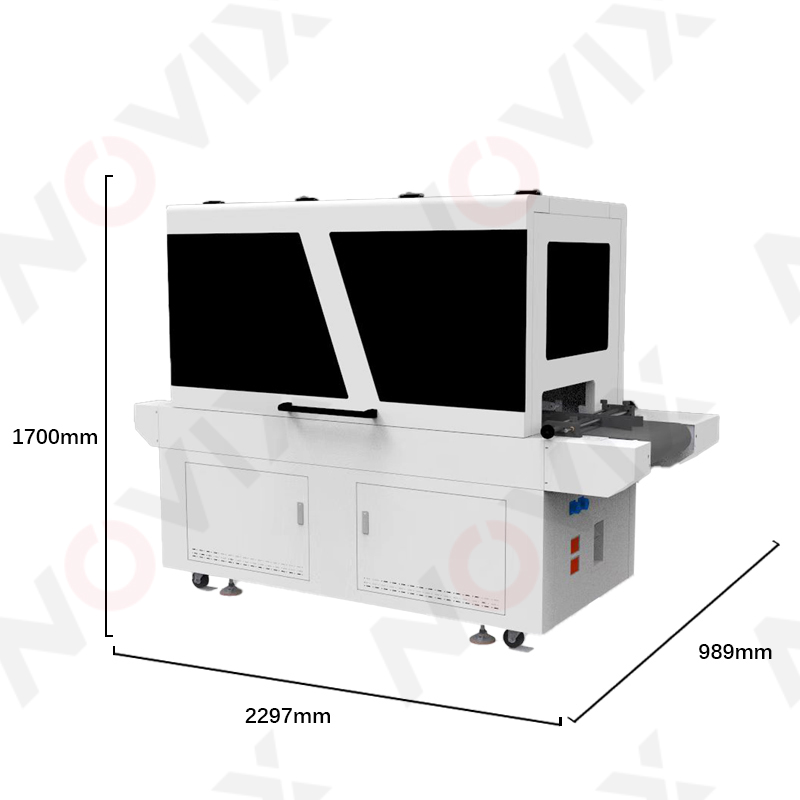

| Printer size (L*W*H) | 2297*989*1700mm |
| Package size (L*W*H) | 2500*1000*1900mm |
| Net Weight of printer | 560KG |
| Gross weight | 640KG |

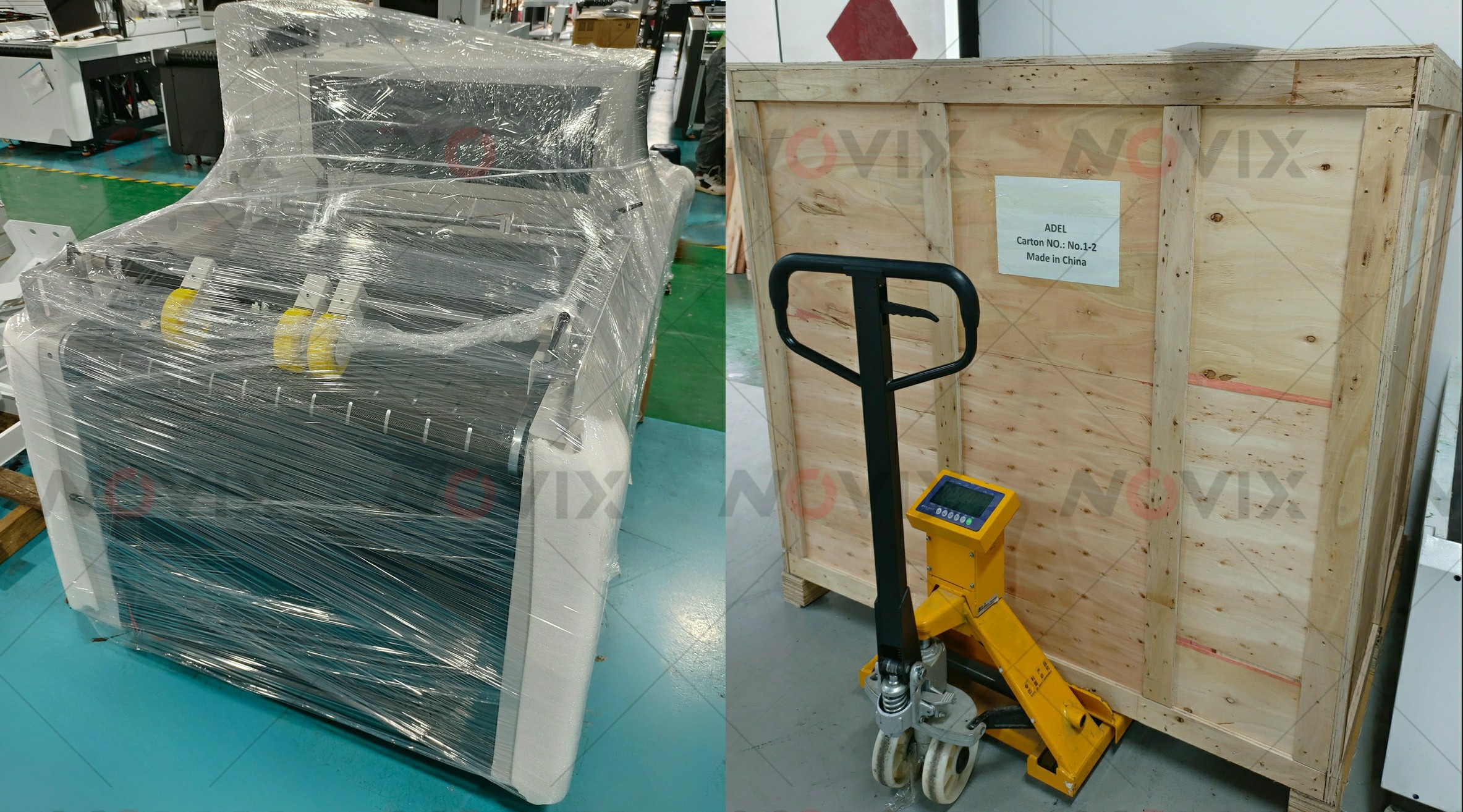

| Package type | Inside foam protection, outside Ply-wood steel frame package |
