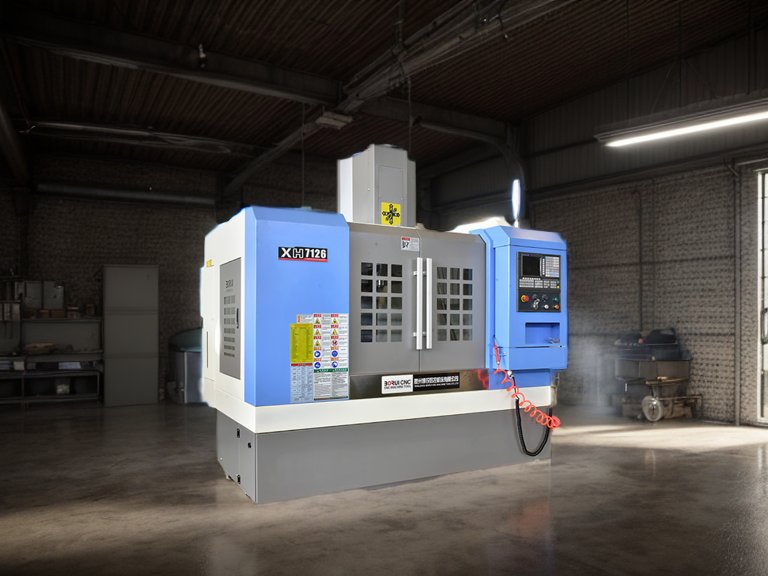

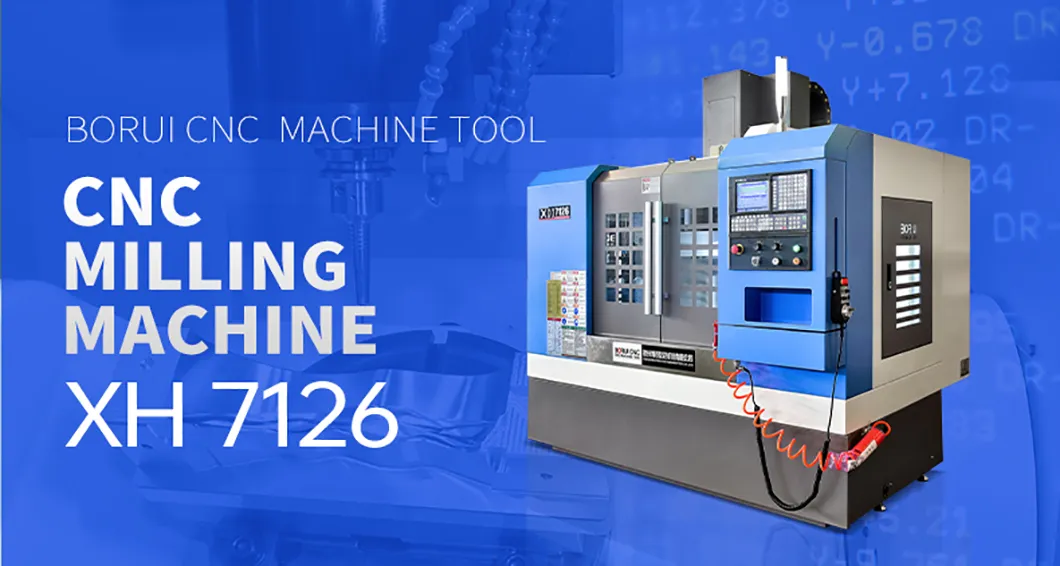

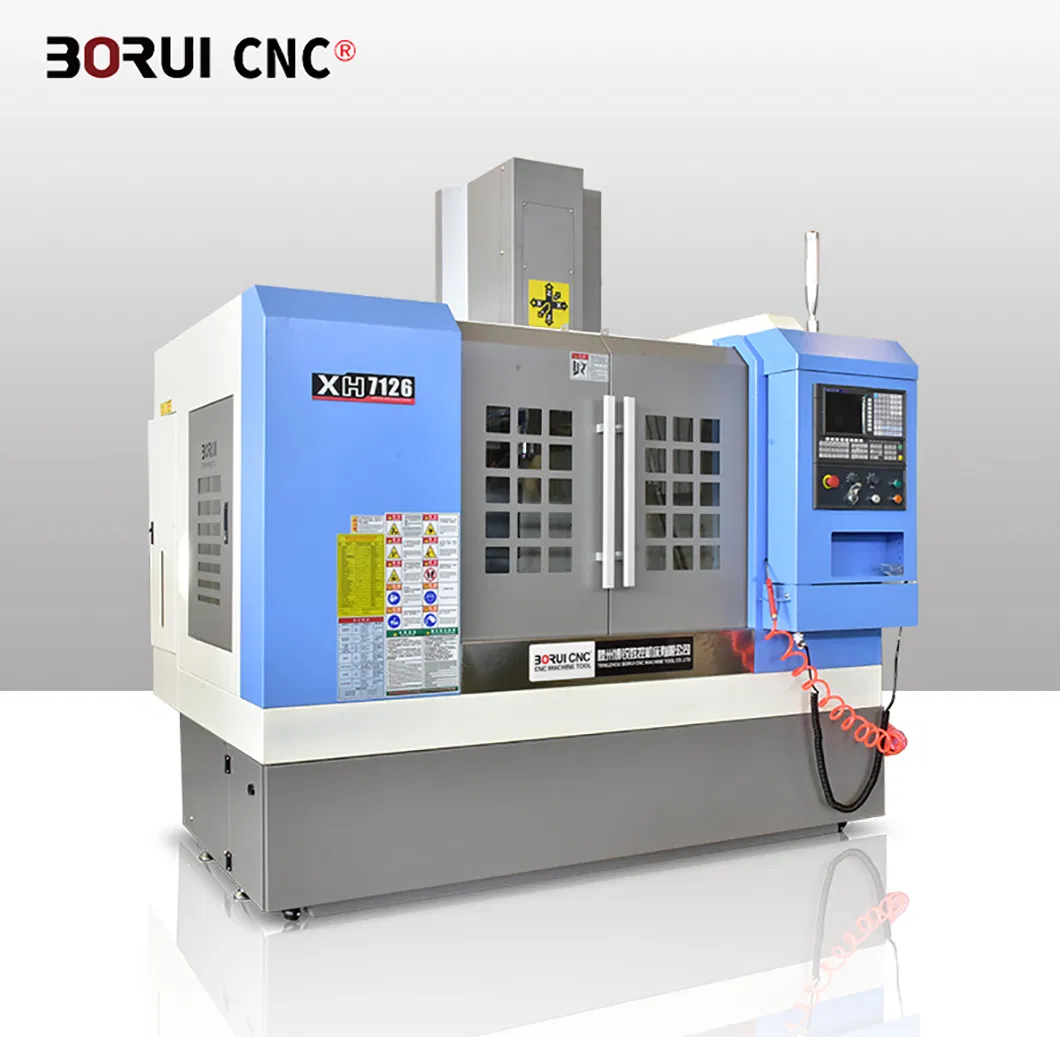

This product X, Y, Z three-axis servo direct control semi-closed vertical machining center features three-axis linear ball guides, providing high guide rail load capability, wide span, and high precision. Suitable for heavy load handling, it offers a compact structure and reasonable sizing. The spindle is driven by a servo motor via a timing belt. It facilitates the clamping of various parts such as discs, boards, housings, cams, and molds at one time. It is capable of drilling, milling, boring, expanding, reaming, rigid tapping, and more. Ideal for medium and small batch production, it successfully satisfies the requirements for processing complex and high-precision parts. A fourth rotary shaft can be added to support specialized processing demands.

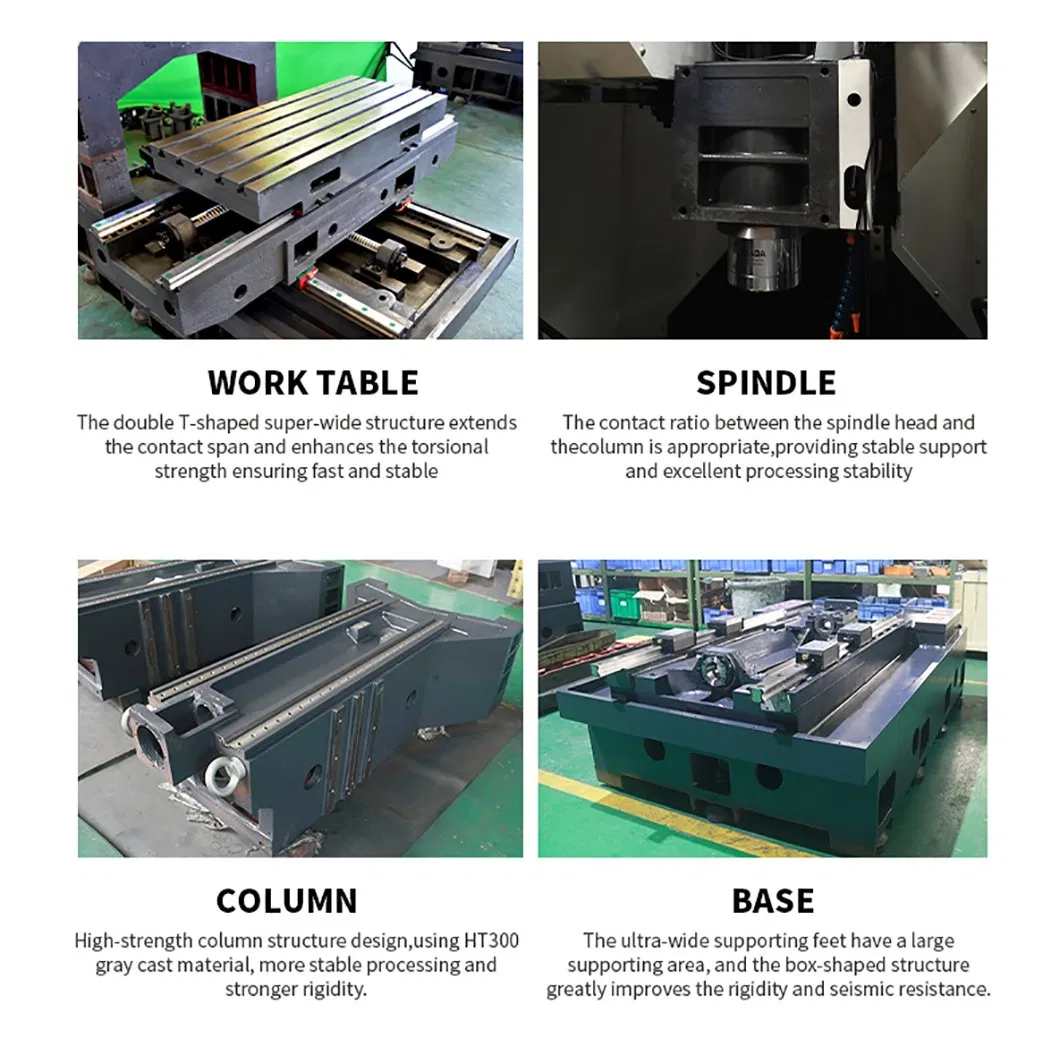

This CNC milling machine delivers strong bearing capacity, with a three-direction guide utilizing quenched hardened rails. Designed with a wide span and a compact structural dimension, it processes plates, shells, and molds effectively. It is highly applicable for mechanical processing and mold manufacturing, adapting seamlessly from roughing to finishing. Known for high precision and efficiency, it is widely utilized across aerospace, automotive, internal combustion engine, textile machinery, chemical processing, oil, and electronics industries.

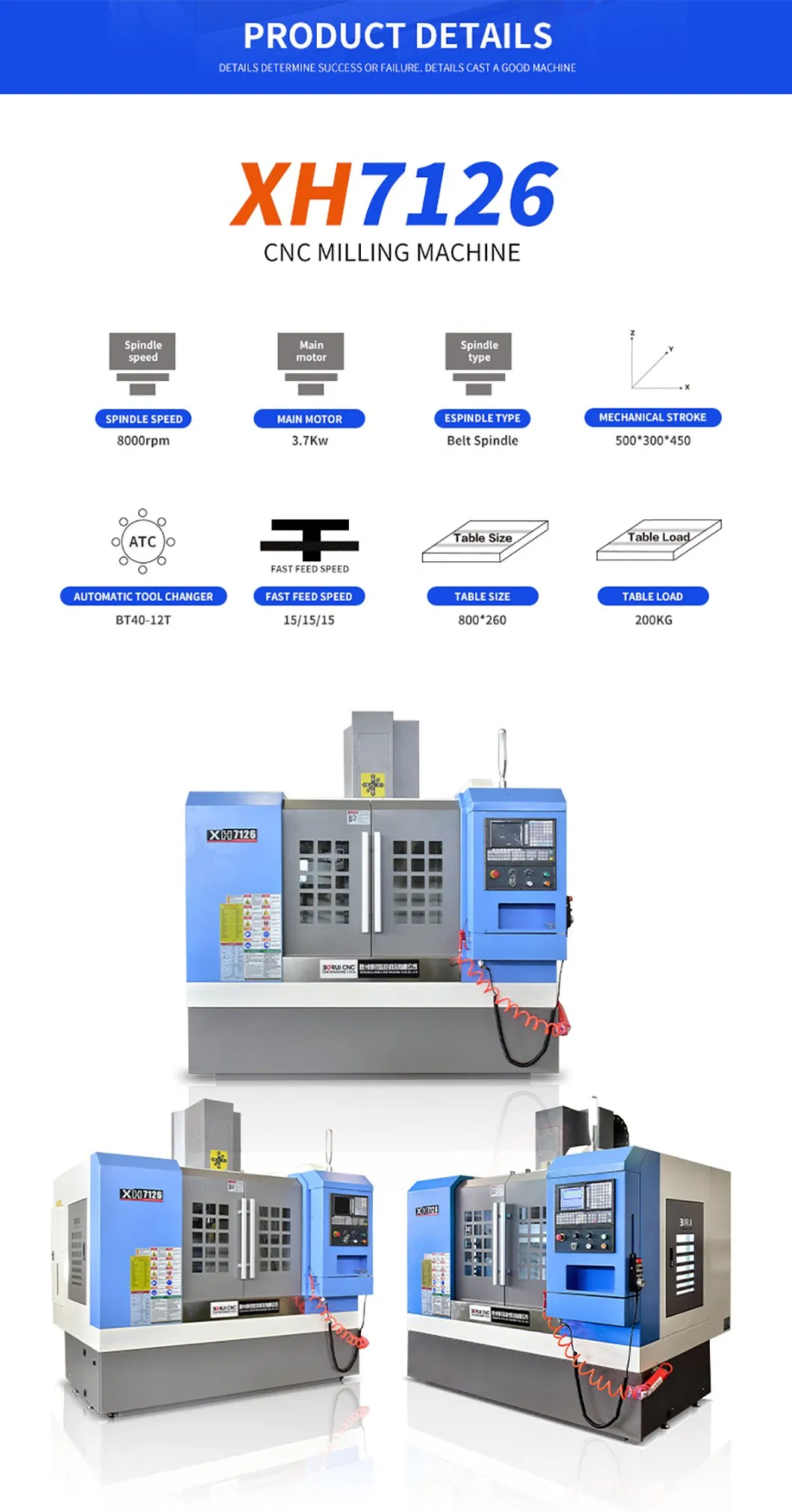

| Specification | XH7126 |
|---|---|

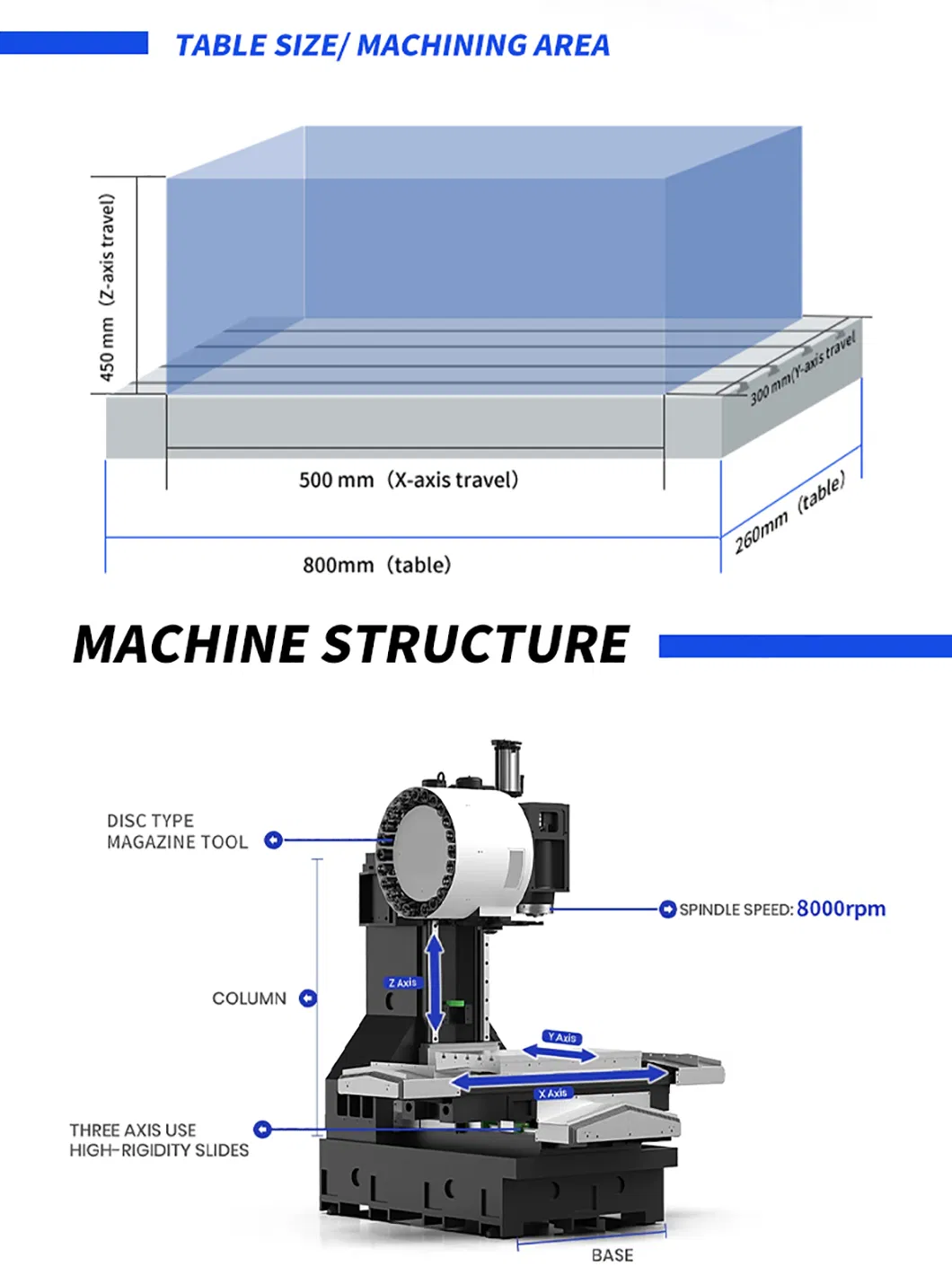

| Worktable size (LXW) | 800X260mm |
| T-slot (NXWXD) | 3/14/80mm |
| X axis travel | 450mm |
| Y axis travel | 320mm |
| Z axis travel | 450mm |
| Distance from spindle nose to worktable surface | 90-470mm |
| Distance from spindle center to column | 360mm |
| Rapid feed speed (X/Y/Z) | 15/15/15 m/min. |

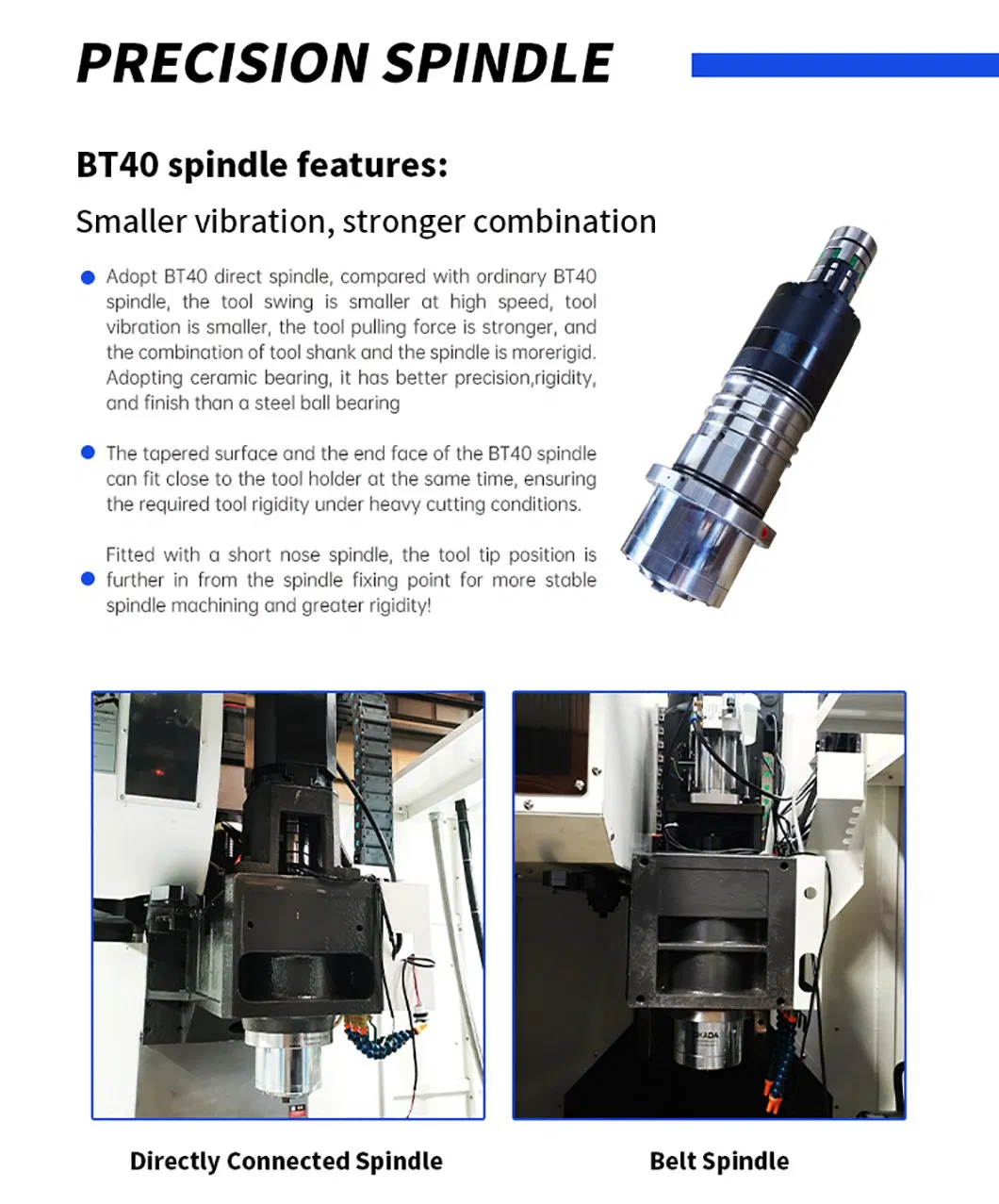

| Spindle taper | BT40 |
| Spindle speed | 6000rpm or 8000rpm |
| Main motor power | 3.7Kw |
| Servo motor torque (X/Y/Z) | 6/6/7.7 N.m |
| Overall size (LXWXH) | 2100X1800X1960mm |
| Net weight | 2400kg |
