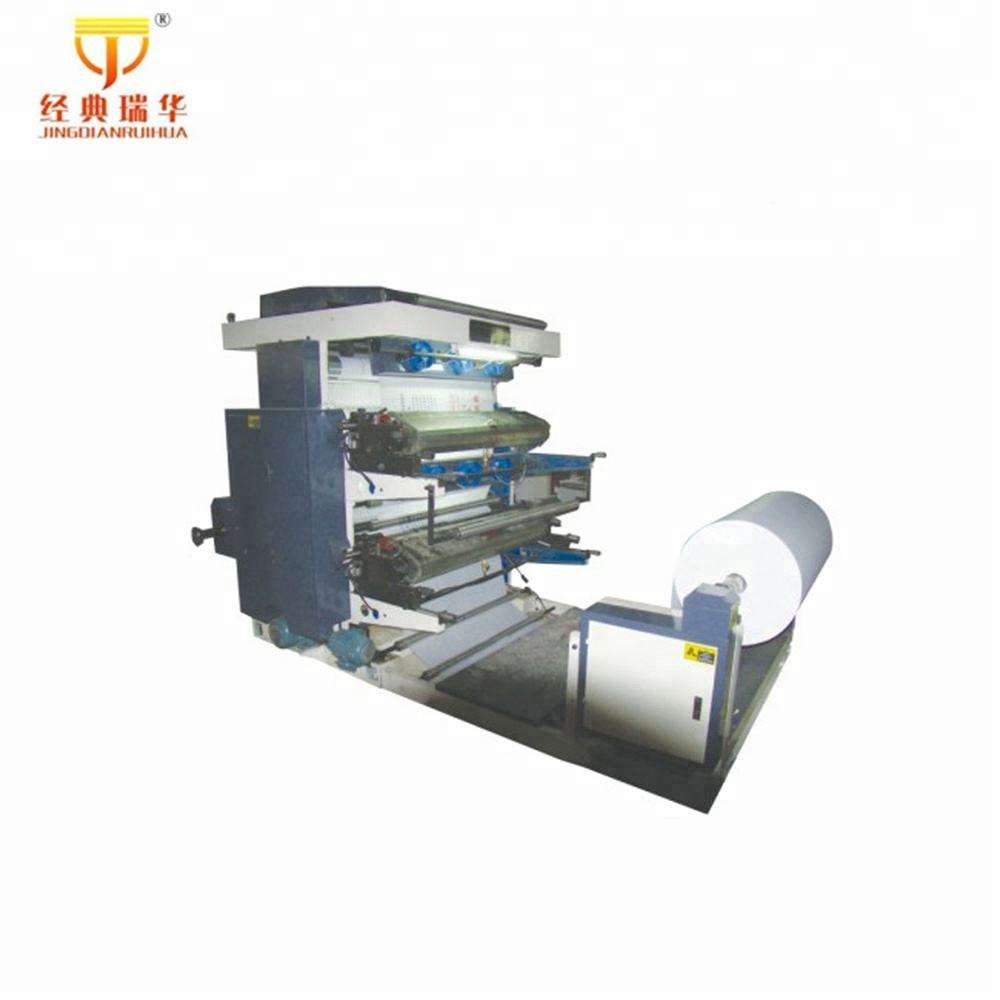

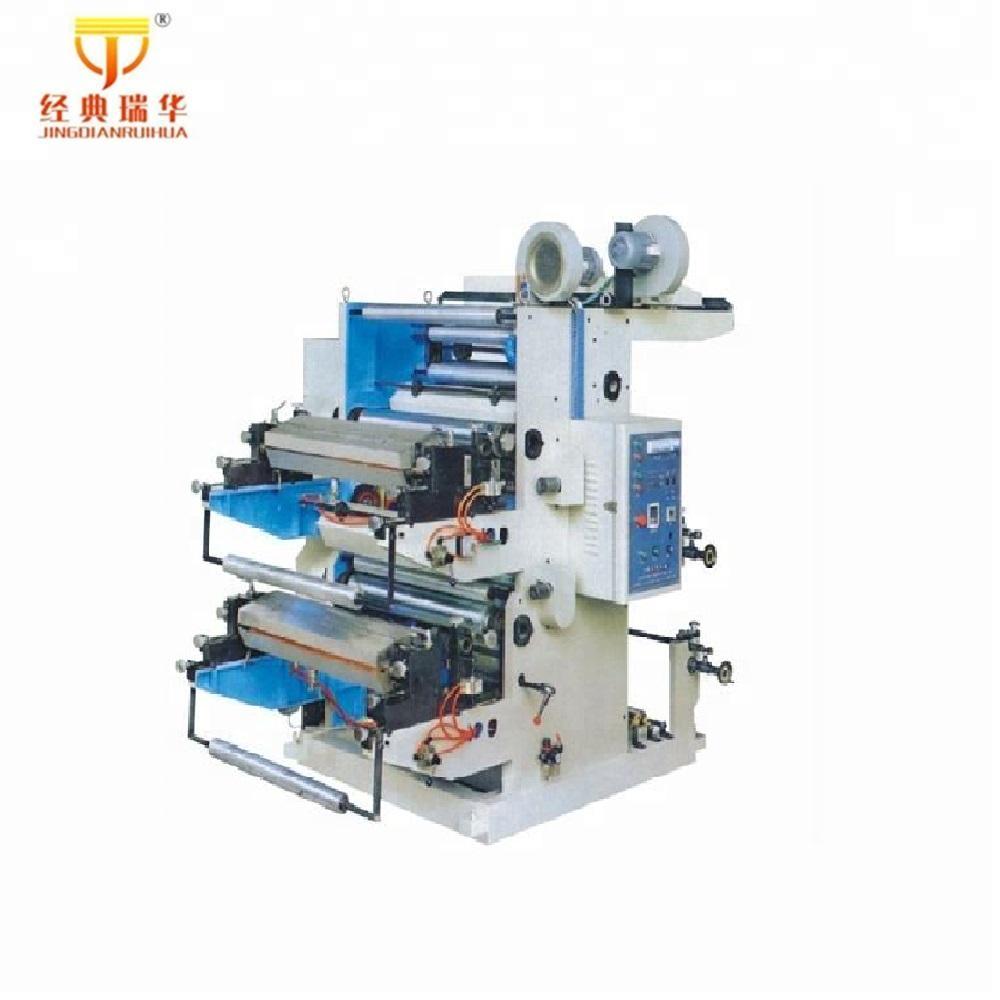

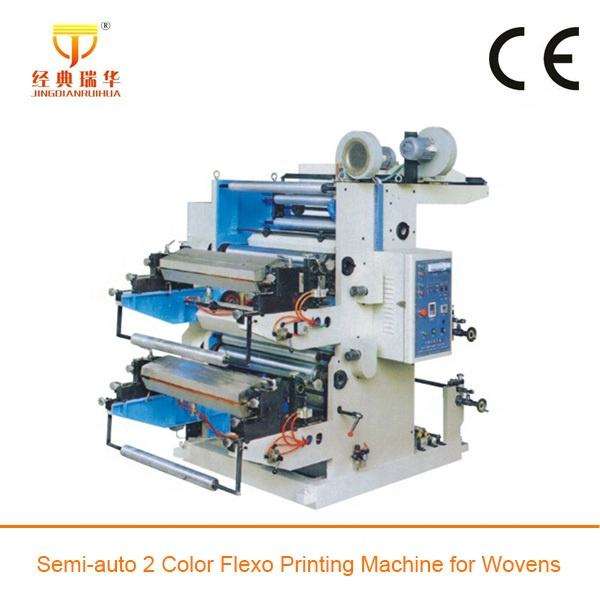

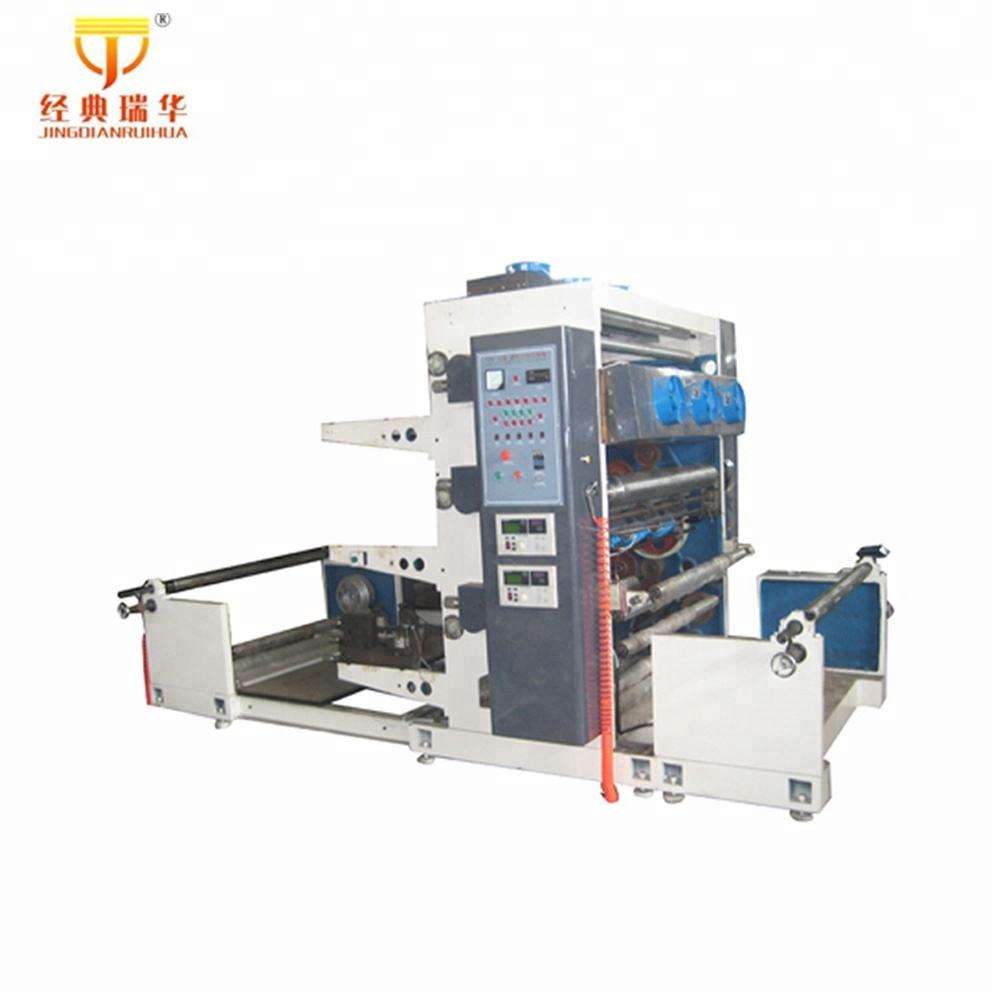

Low Price Automatic Non Woven Clothes Label Flex Letterpress Printing Machine With Long Service Life

Product Description

Professional Machine Manufacturer
Professional Manufacturer
  • Safety first, quality first.
  • Strict and advanced workshop management system.
  • The human production, people-oriented.
  • High quality products to provide high quality environment.
Product Description

Our Machine Approved by ISO9001, 2000.

Use:

This machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

Characteristics:

  • Easy operation, flexible starting, accurate colour register.
  • The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the set quantity or when the material is cut off.
  • Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
  • The printing ink is spread by the knurled cylinder with even ink colour.
  • Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
  • 3600 continuous and adjustable longitudinal register device.
  • The imported frequency control of motor speed adapts to different printing speeds.
  • There are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Machine Detail 1
Machine Detail 2
Technical Parameters
Model of Machine YT-2600 YT-2800 YT-21000
Max. Width of Printing Material 600mm 800mm 1000mm
Max. Printing Width 560mm 760mm 960mm
Length Range of Printed Product(mm) 180-1200 180-1200 180-1200
Max. Diameter of Roll Material Φ 450mm Φ 450mm Φ 450mm
Printing Speed 5-50m/min 5-50m/min 5-50m/min
Thickness of plate (Including Two-sided Glue Paper) 2.38mm 2.38mm 2.38mm
Total Power 10.87kw 12.5kw 14.37kw
Weight of Machine 3000kg 3500kg 4000kg
Overall Dimensions (mm) 2200X1600X2400 2200X1800X2400 2200X2000X2400

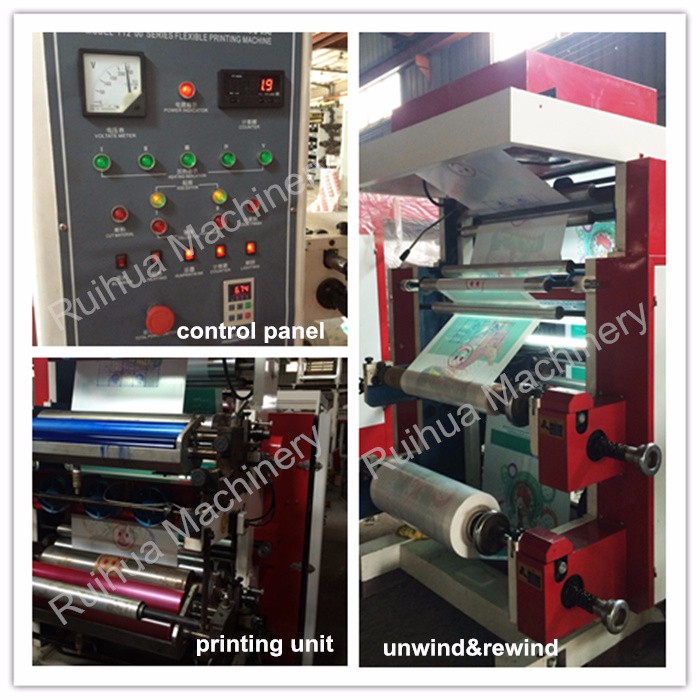

Machine Overview
About Us

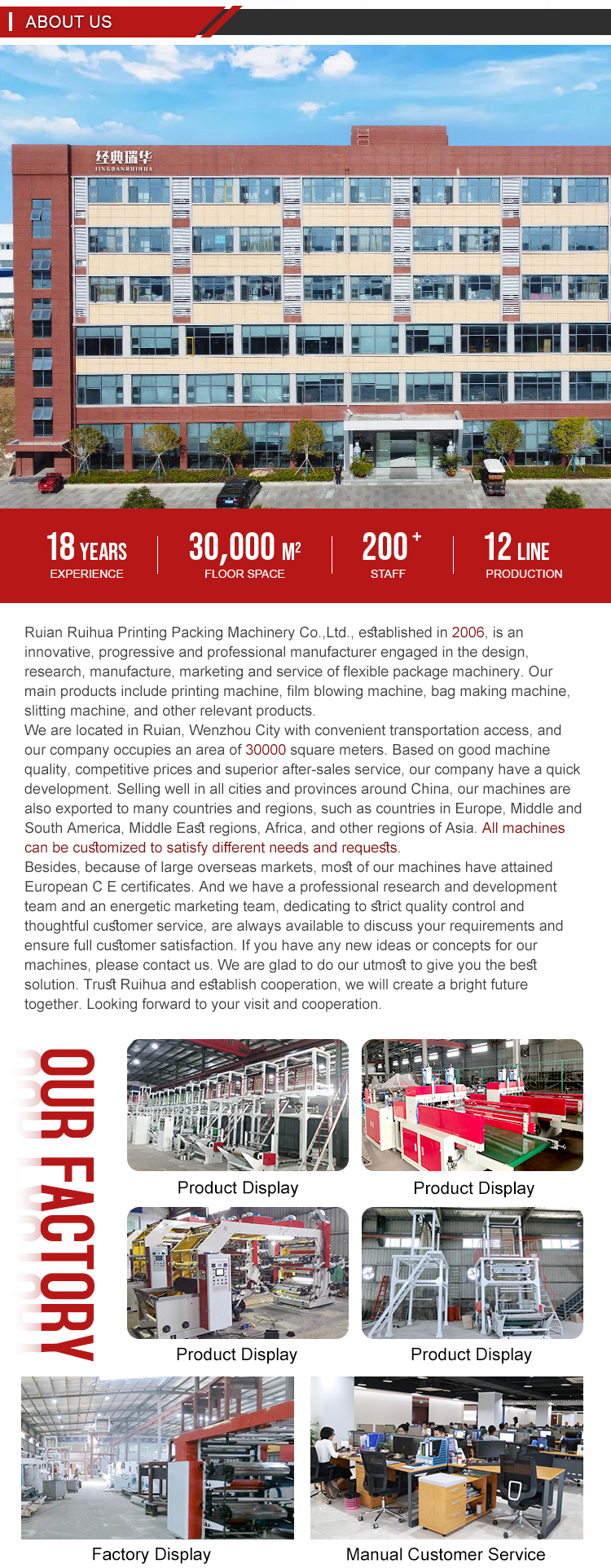

About Us Factory

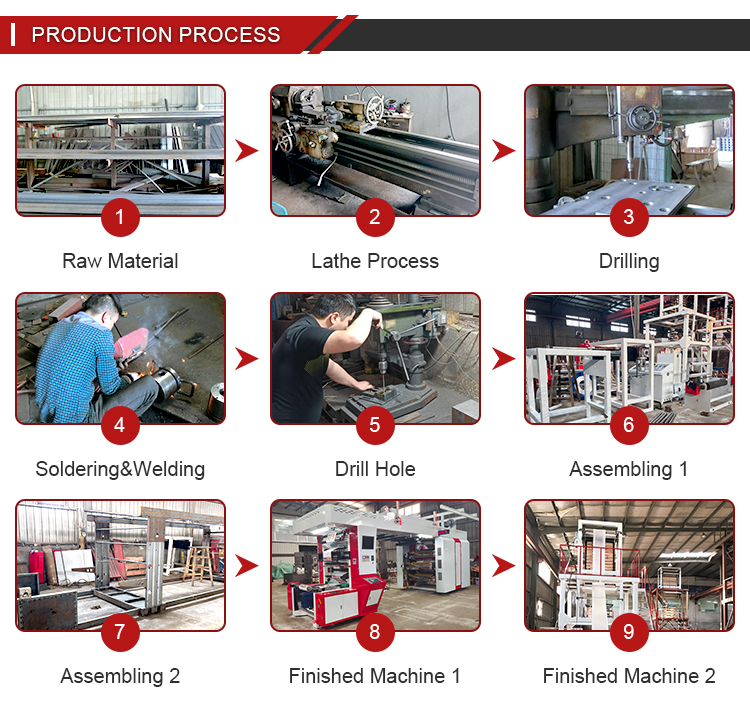

Production Process
Production Process
Sample Room
Sample Room
Certificate
Certificates
Packaging & Shipping
Packaging & Shipping
FAQ
Q Are you a factory or trading company?
We are manufacturer, have our own factory with over 18 years experiences. We not only sell machine for you, but offer the best solutions.
Q Where is your factory located? How can I visit?
Our factory is located in China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q What kind of quality certificate do you have?
We have CE certificate, SGS, ISO, etc.
Q How does your factory do regarding quality control?
Quality is our focus. From the beginning till the end of machine manufacture, we will inspect every components before using. And machine will be tested after finished.
Q What's the payment terms?
We usually do TT with 30% deposit, and 70% balance paid before machine delivery. Other ways like L/C, western union, etc. are also acceptable.
Q How about the delivery time?
Usually, our machines can be delivered within 30 working days.
