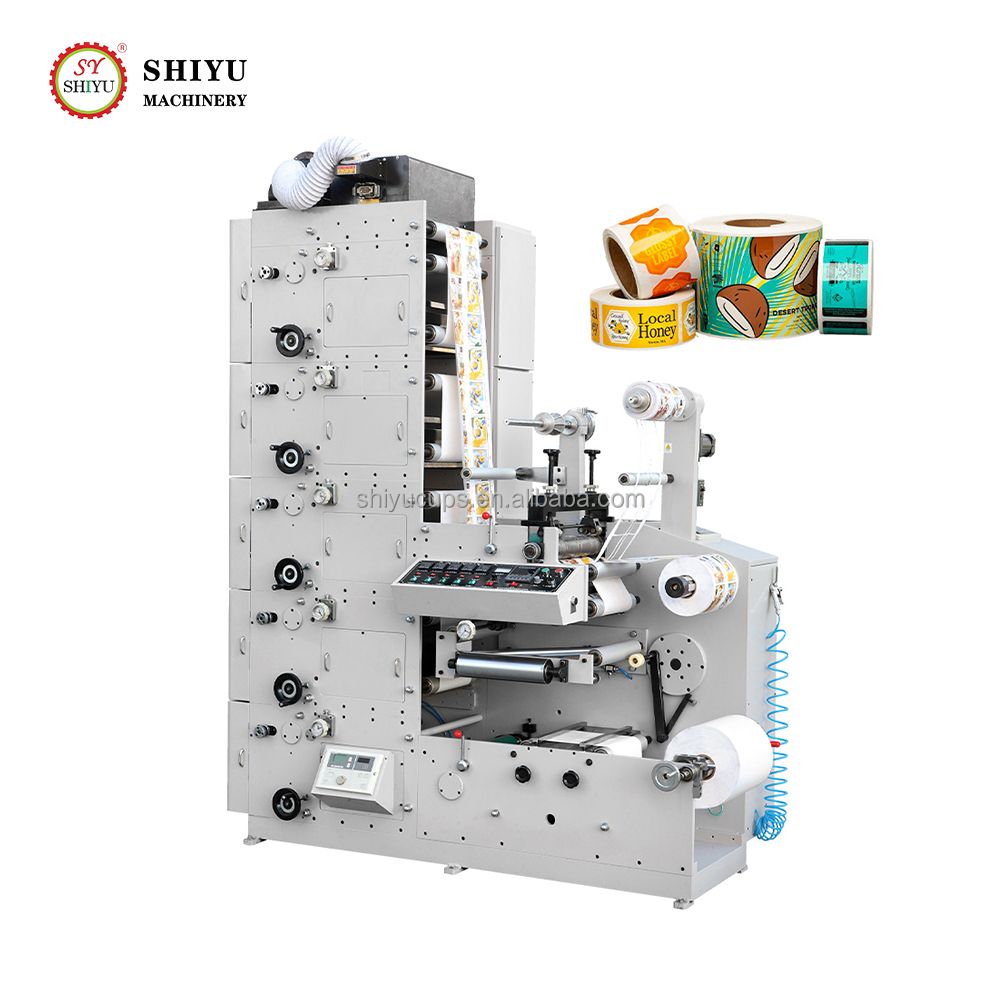

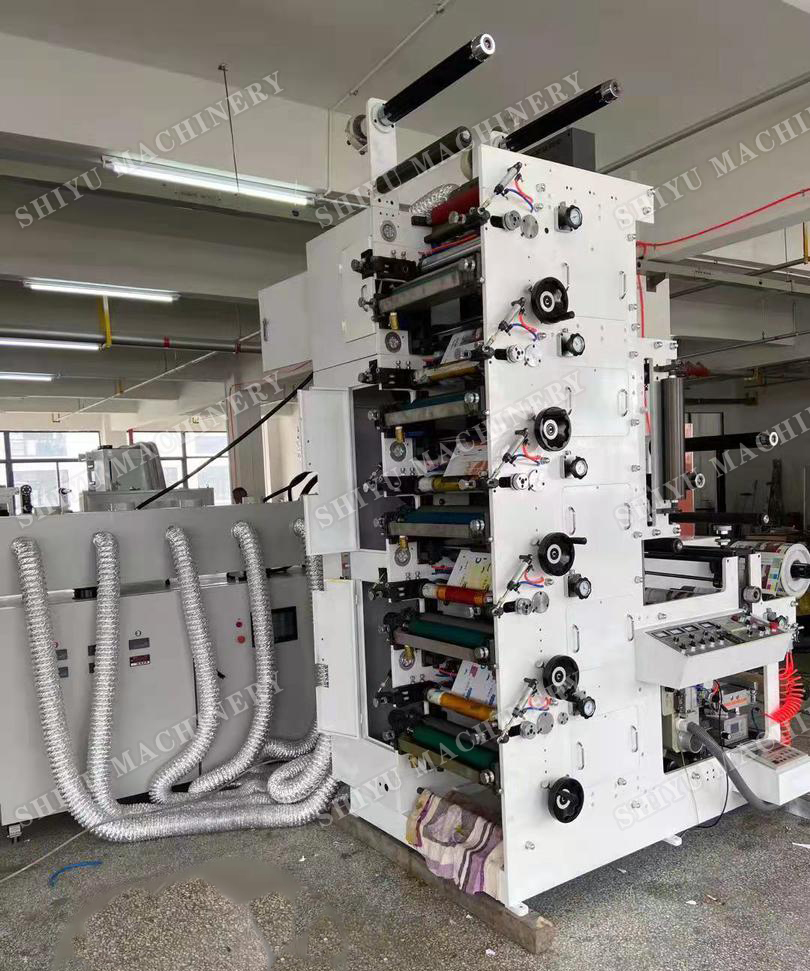

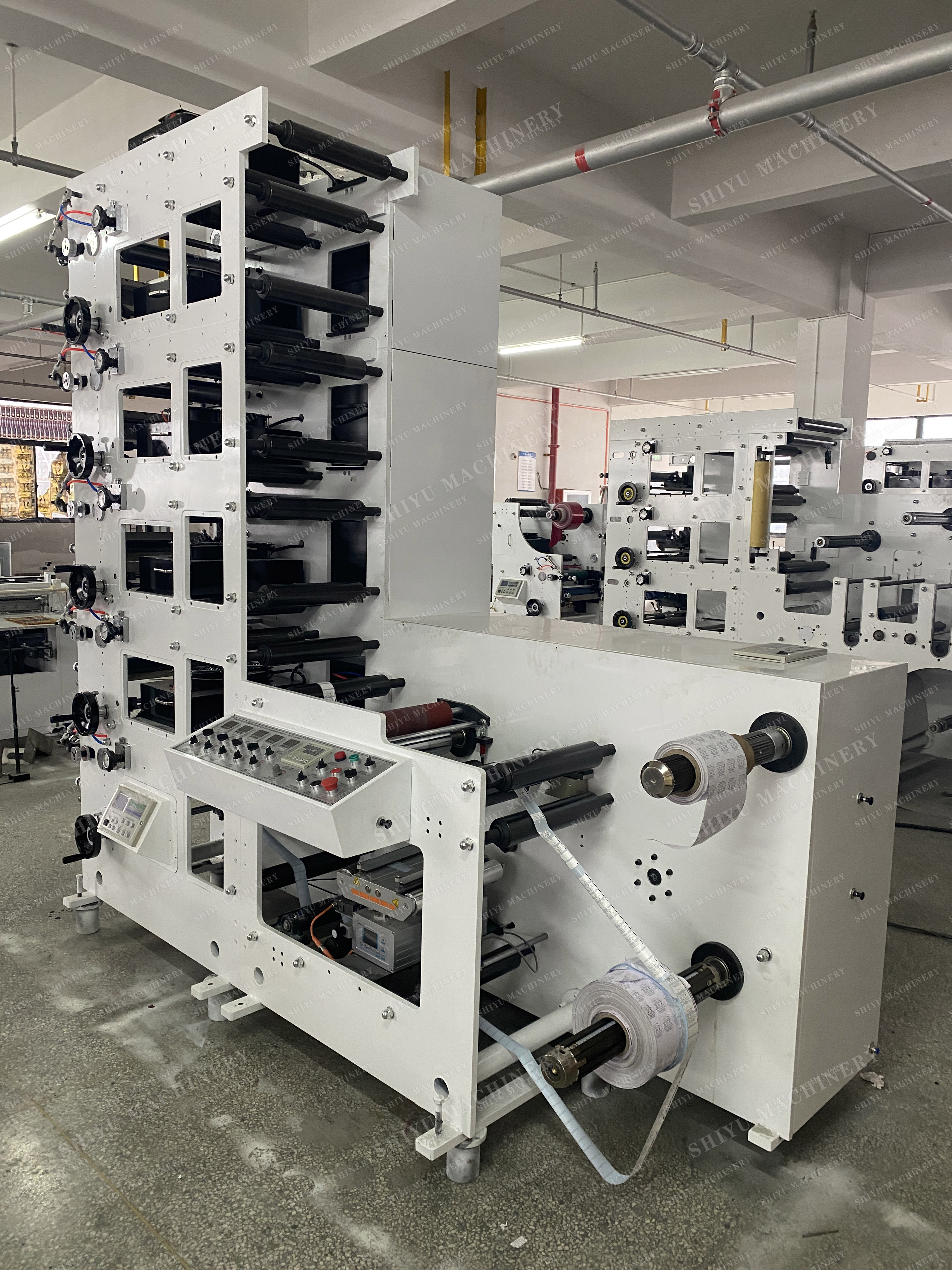

Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
1 / 5
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet
Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet

Automatic Roll to Roll Adhesive Paper 5 Color Narrow Web Flexo Printing Machine with Rotary Die Cutting and Sheet

Send Inquiry

Product Description

Flexo Printing Machine 1

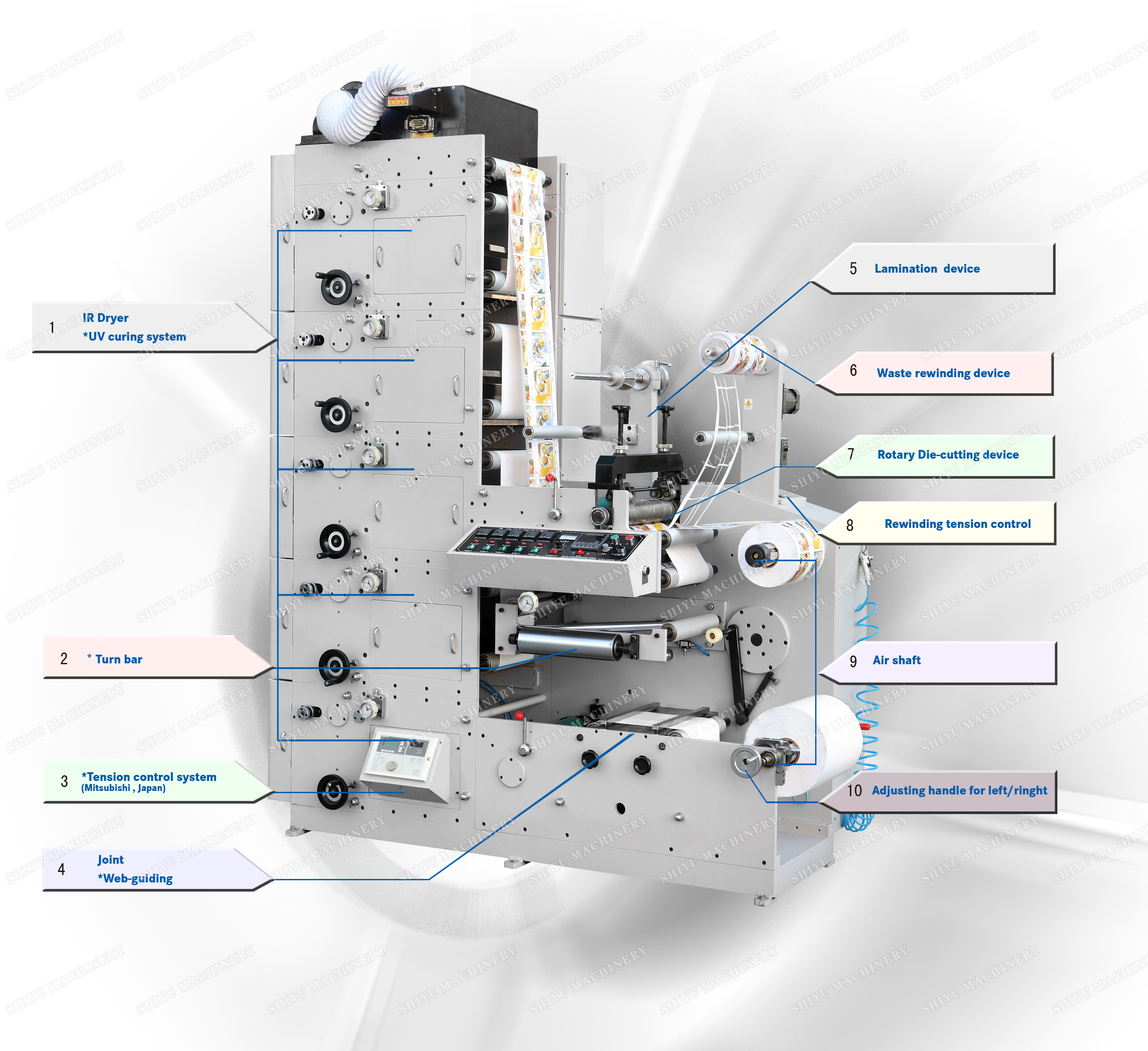

Flexo Printing Machine 2
Main Features
  • The main motor is equipped with a frequency conversion stepless speed regulation device imported from Japan. This device can reduce mechanical shock and power consumption, thus prolonging the machine’s lifespan and reducing operating costs.
  • Winding and unwinding are controlled by magnetic brake and clutch.
  • Unwind tension controller is Japan’s Mitsubishi automatic tension controller. This guarantees stable and reliable winding and unwinding.
  • The anilox roll has a strong resistance to abrasion and corrosion, thus having a long lifespan. This frees users from the troubling of regularly replacing the rolls. When the printing of one color and the 360°circular register regulation is adopted. Each printing unit can be taken apart and used independently.
  • It is equipped with a drying device which enables the ink to rapidly condense to avoid ink blurring or shedding and brings convenience to the cutting operation of the printed products.
  • Customers can choose to install an infrared or UV drying device. They can also specify the color of the equipment.
  • The flexographic printing machine is equipped with a deviation correction sensor that can automatically control the material feeding device and making the printing accurate and stable.
Usages:
An ideal machine to print different label materials such as plastic films, aluminum foil, tissue paper, self adhesive stickers, vinyl, pvc and carton weight boards etc.
Technical Parameters
Model 320
Printing Speed 80m/min
Printing Color 5 colors
Max.Web Width 320mm
Max. Printing Width 310mm
Max. Feeding Diameter 600mm
Max.Rewinder Diameter 600mm
Printing Perimeter Between 175~355mm
Registration Accuracy ±0.1mm
Voltage 380V/220V 50HZ
Total Power 25kw
Weight of Machine About 2200kg
Machine Overview

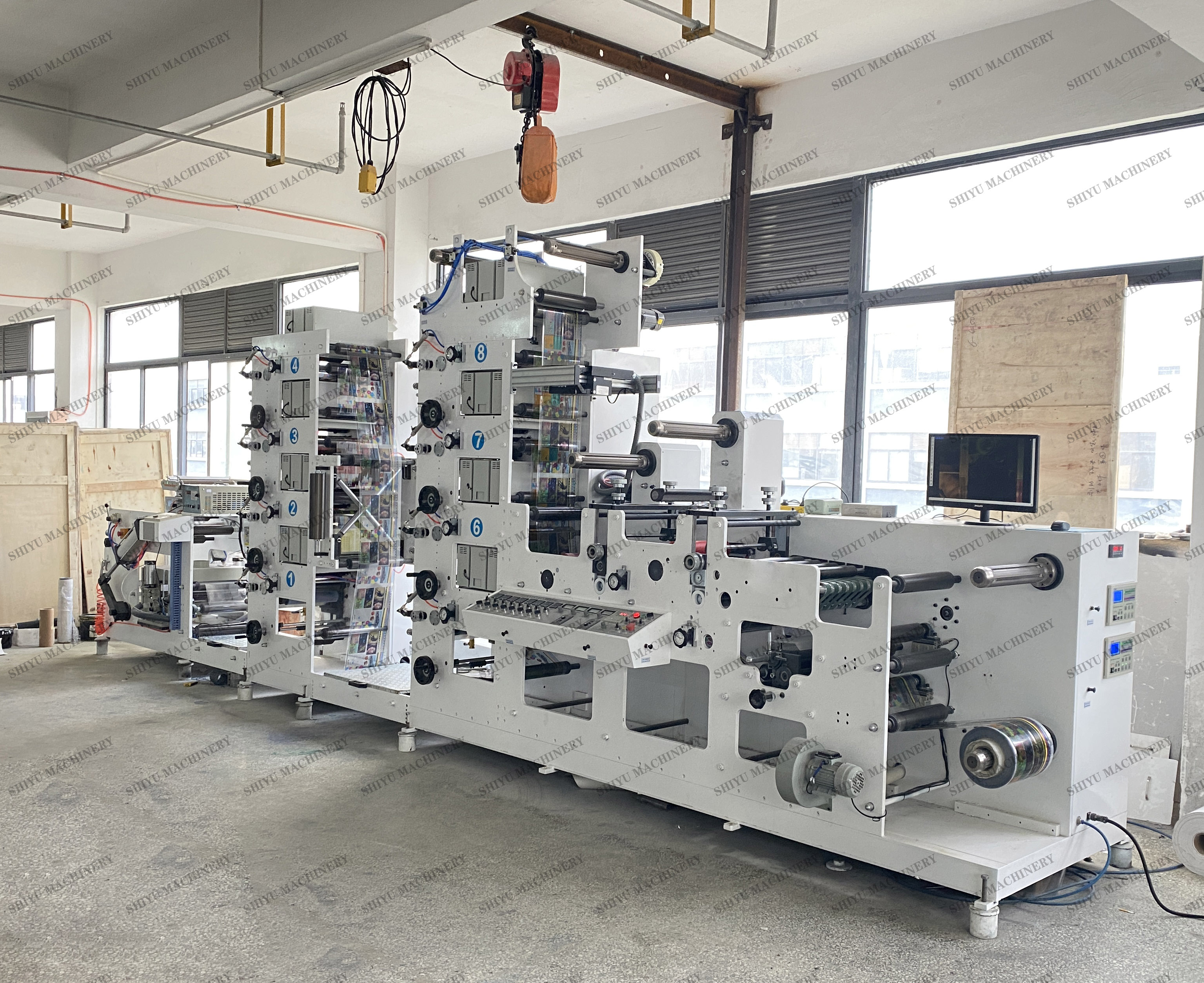

Details 1

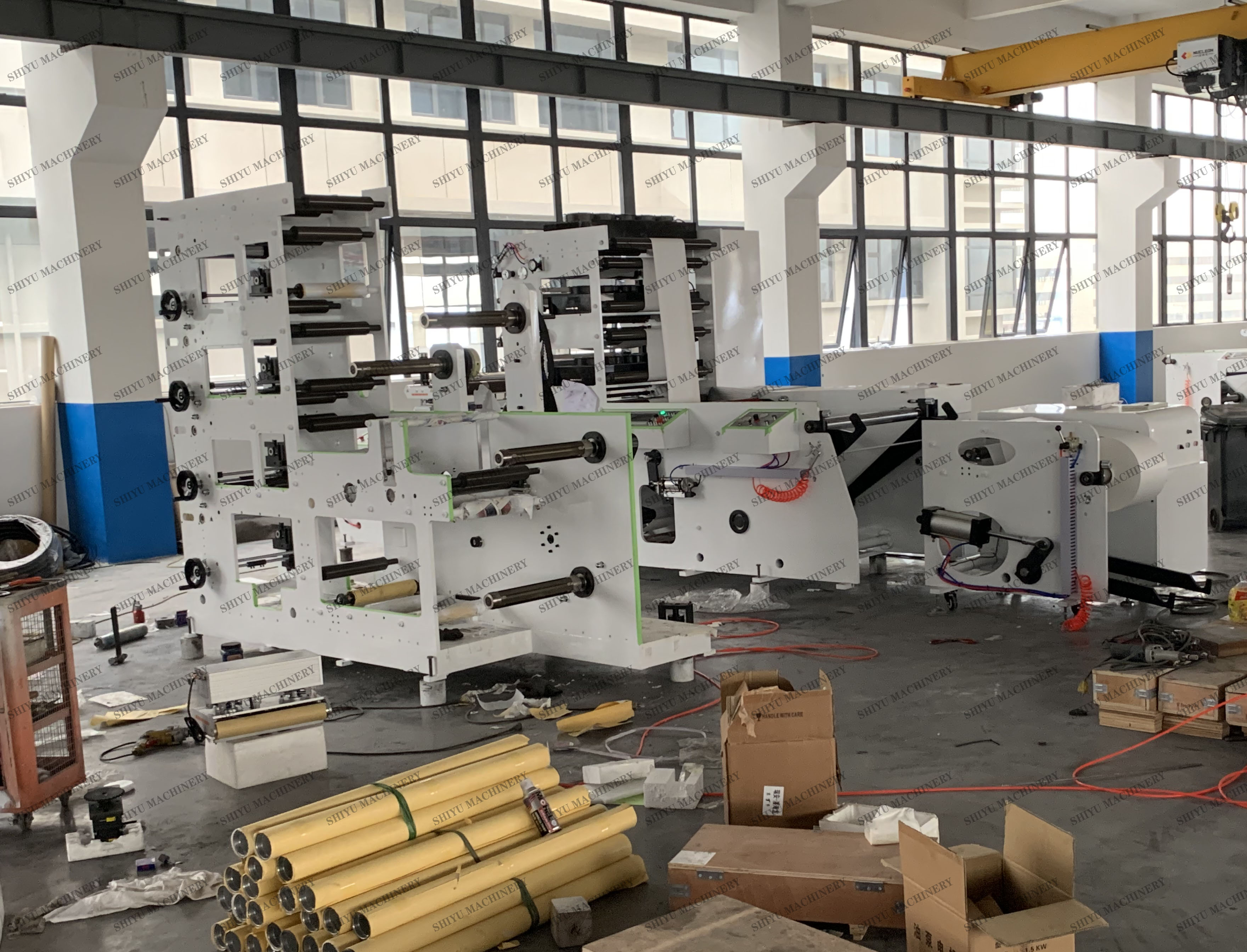

Details 2

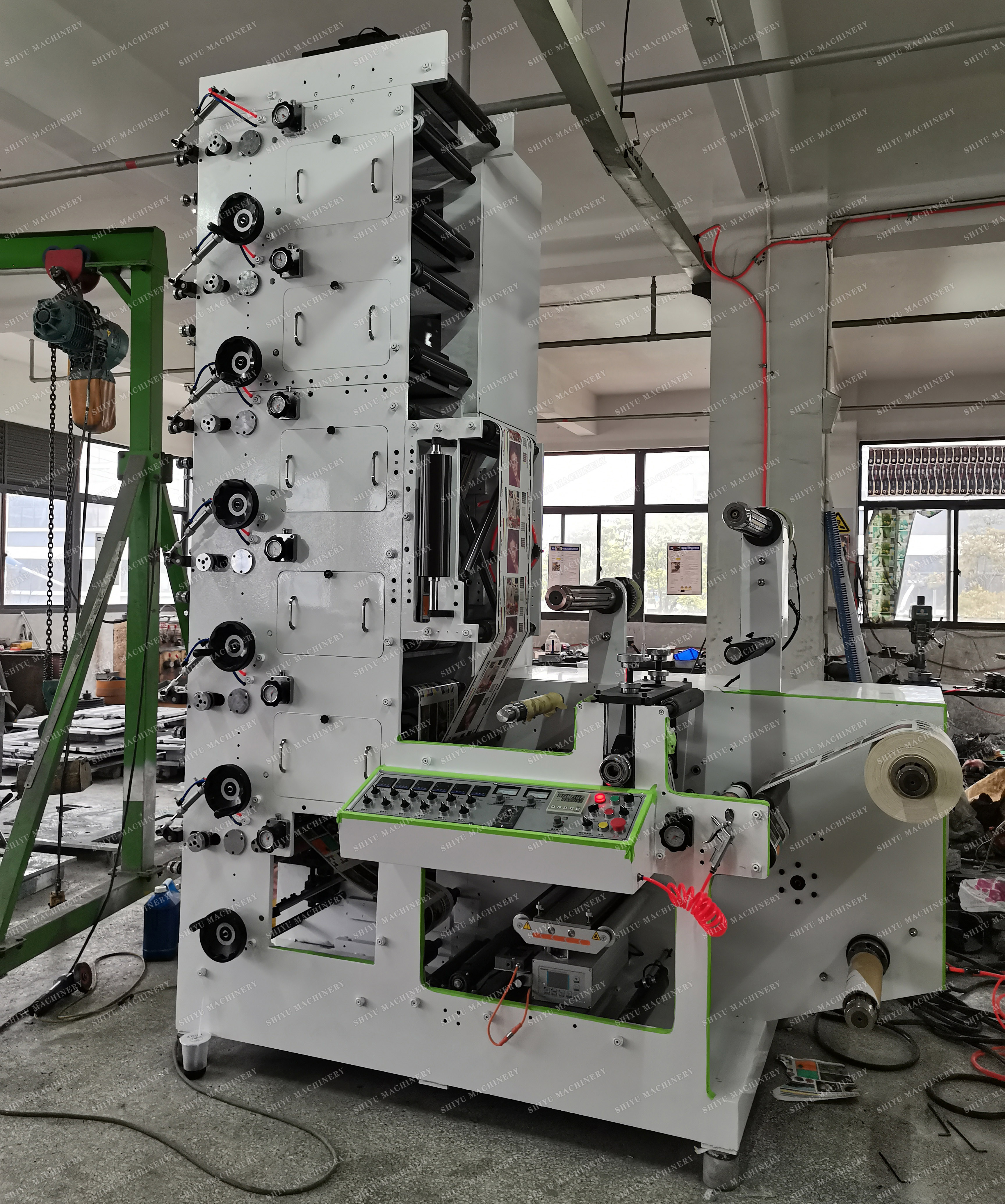

Details 3

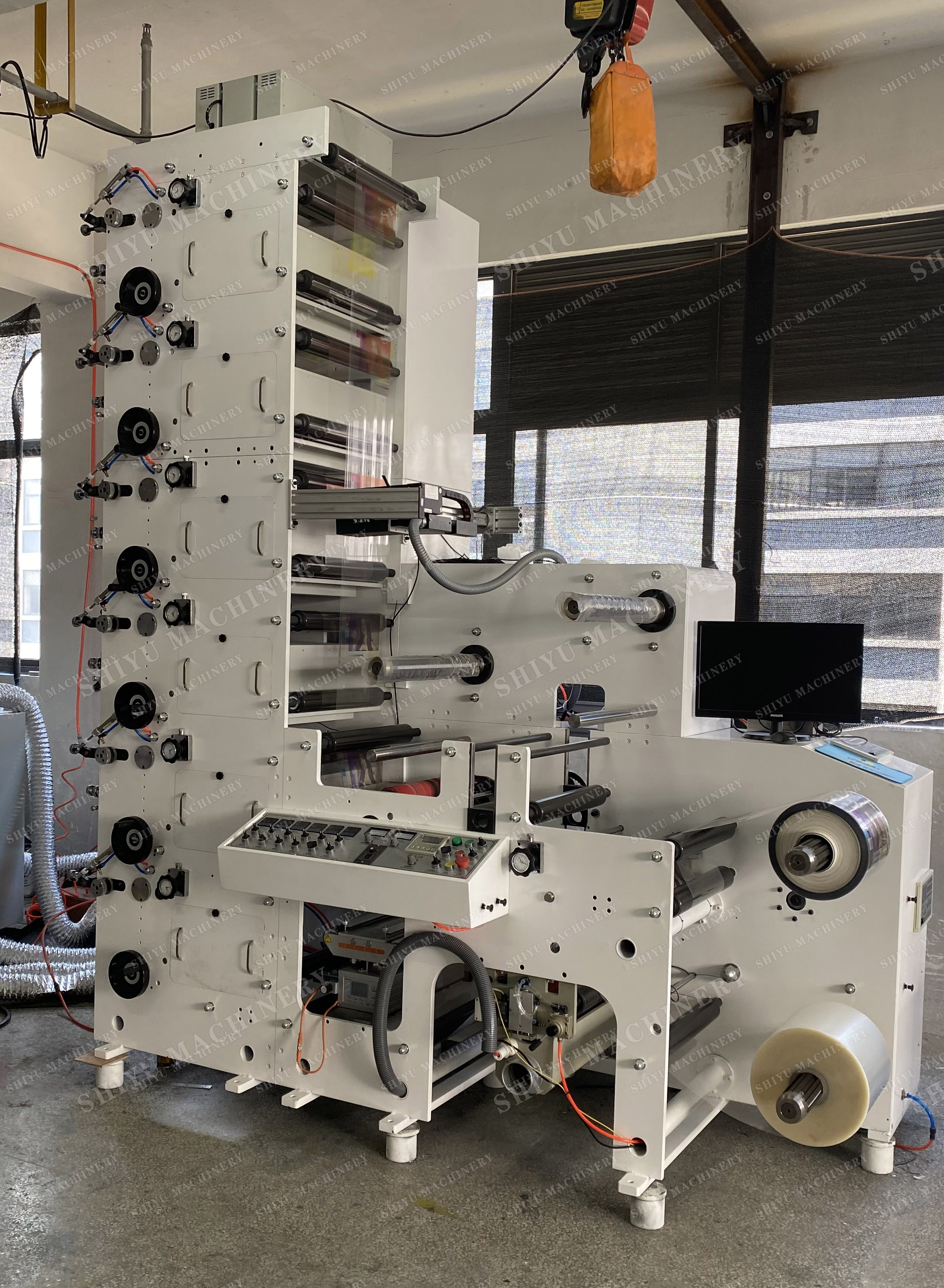

Details 4

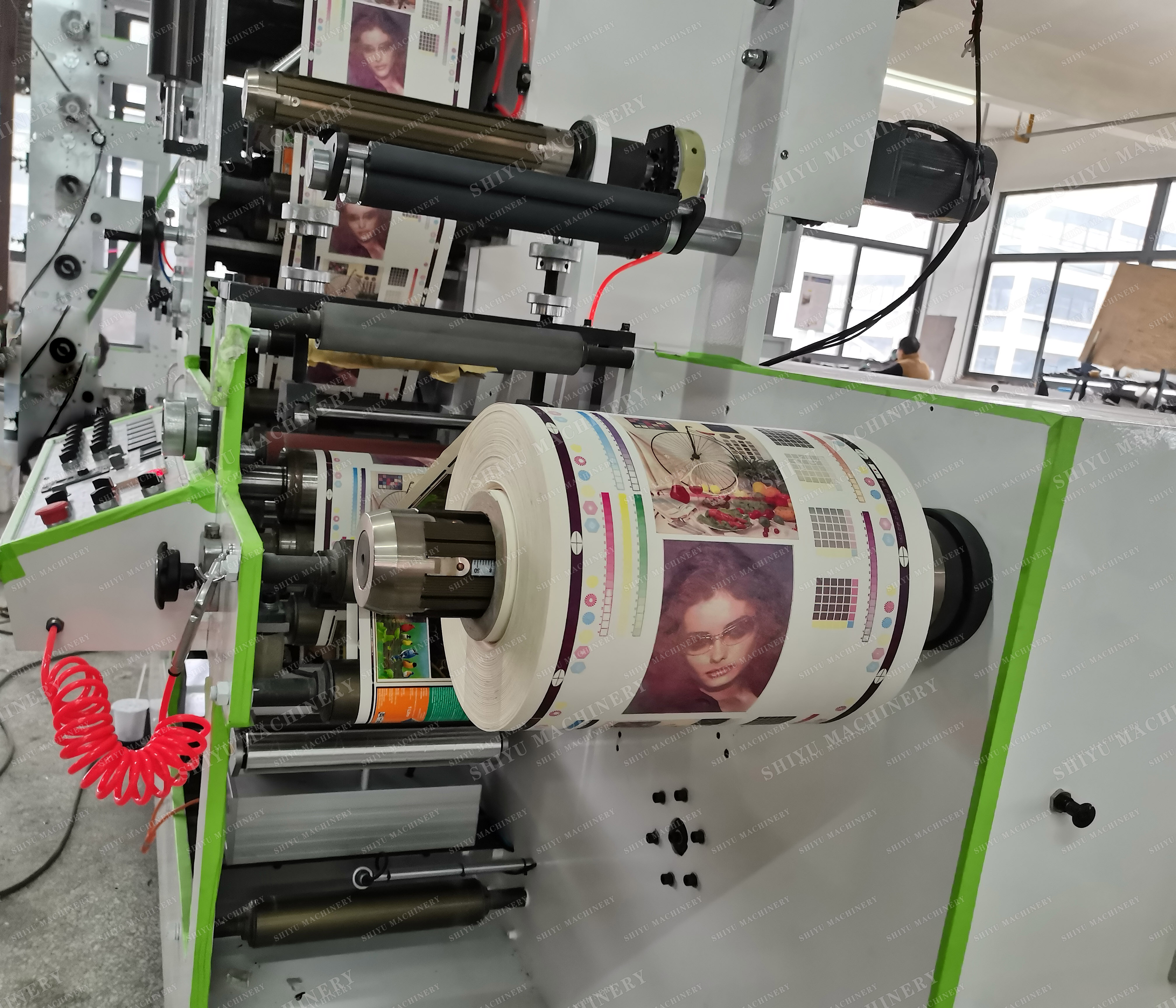

Details 5

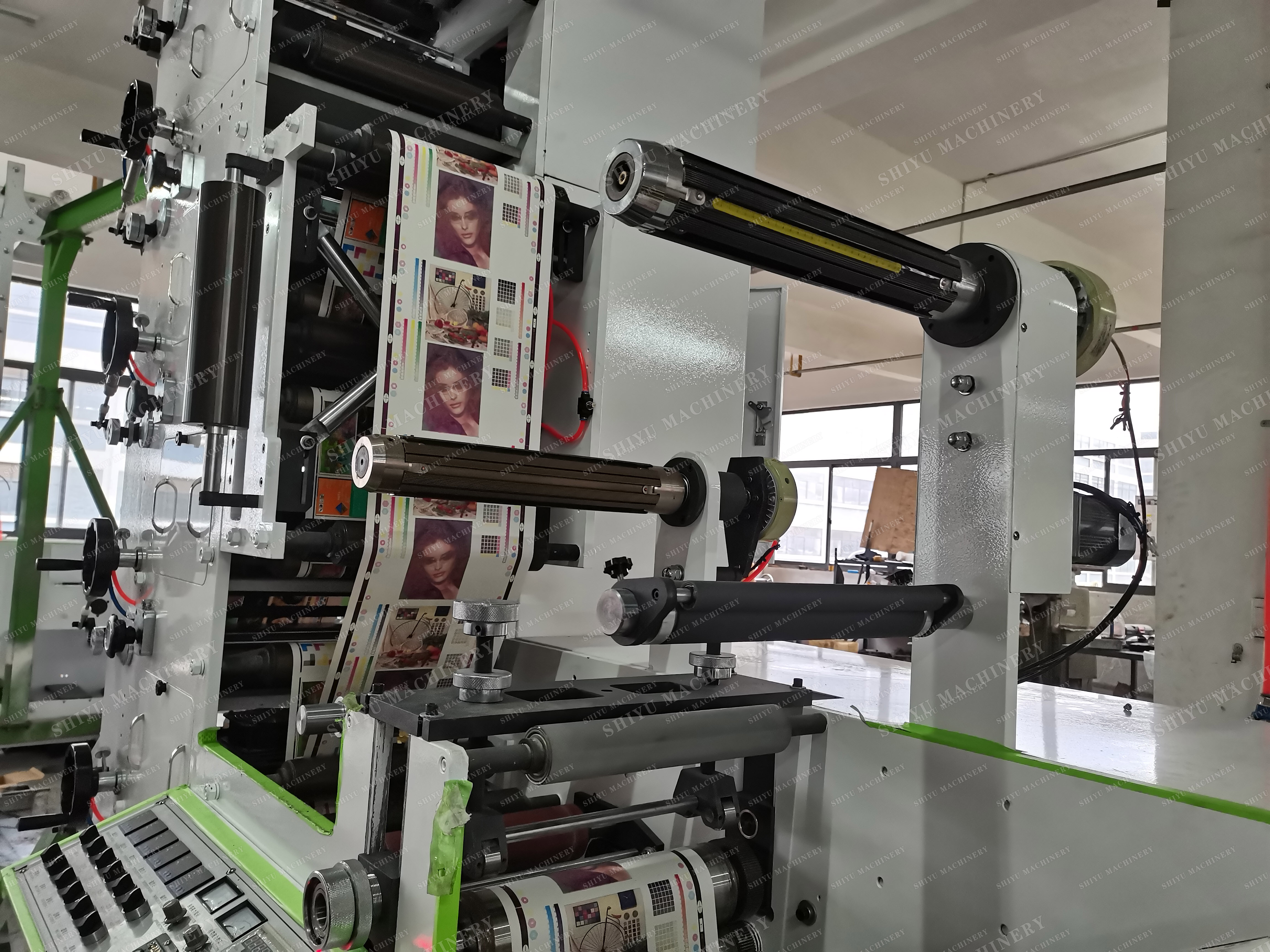

Details 6

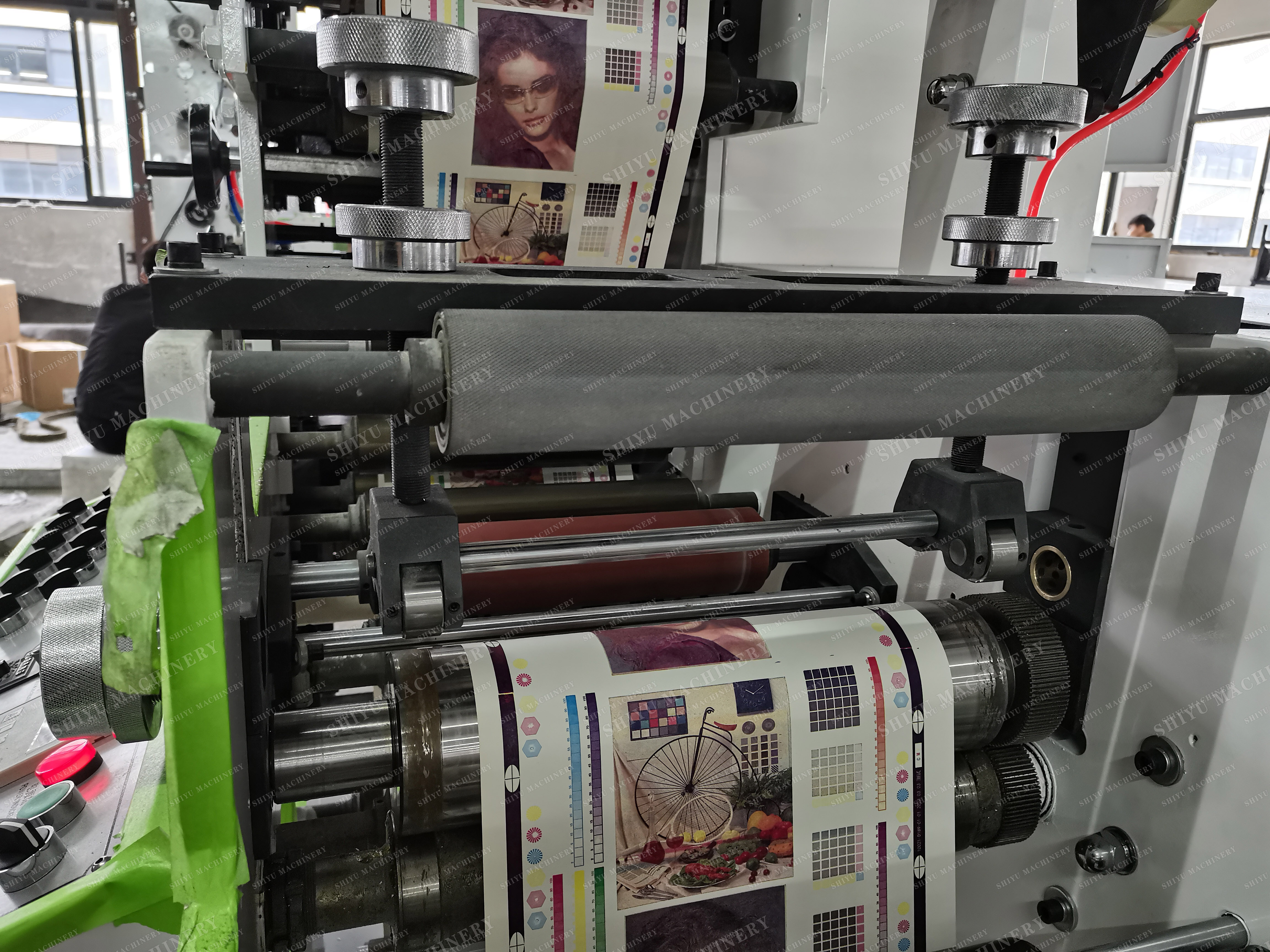

Details 7
Details 8
Main Functional Units

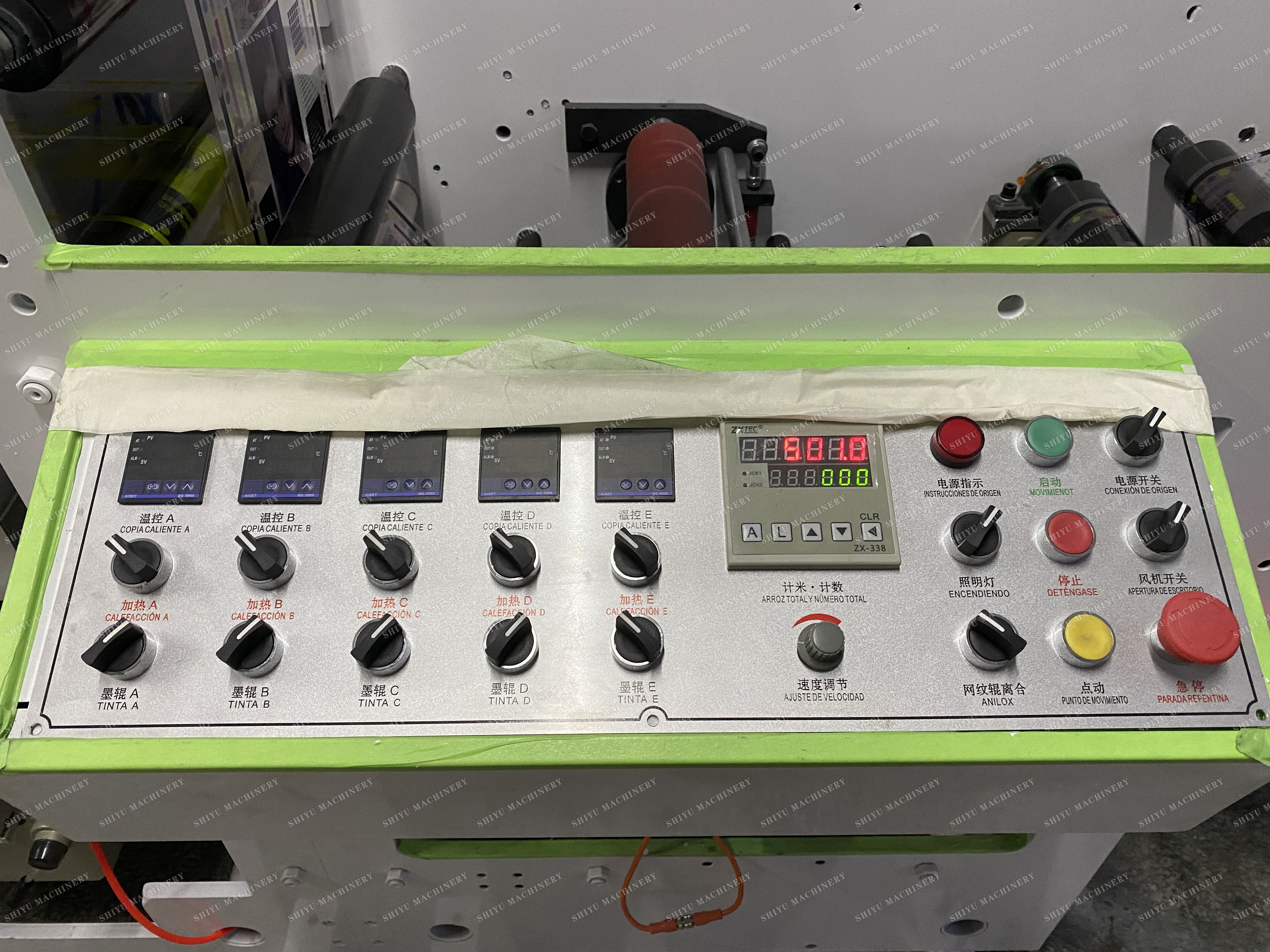

Control Panel
Control Panel
Power Supply, Stop Button, Start Button and Emergency Stop. Temperature Controller for each Heating Oven, and bottom roller tension control.
Unwinding Unit
Unwinding Unit
Standard Cantilever unwinding station, maximum unwind diameter: 600mm air shaft roller. Electromagnetic power brake.

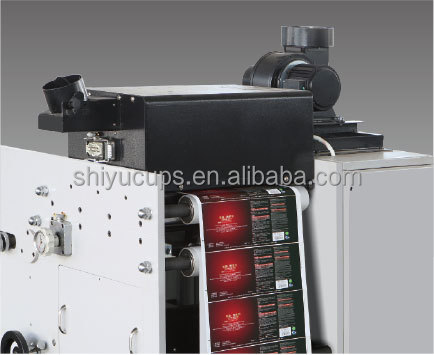

IR Dryer
IR Dryer
1). Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven. 2). Infrared Heating Drying Oven is placed on material and after each printing station.

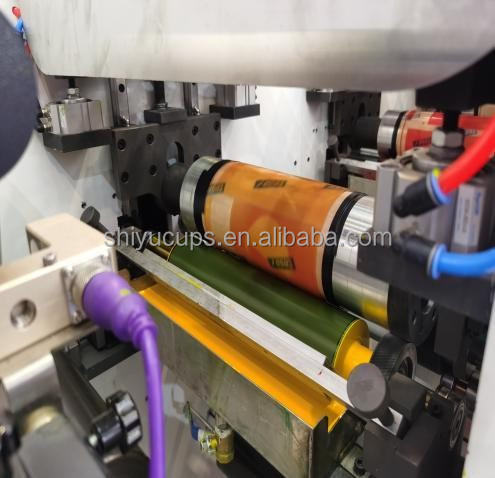

Printing Unit
Printing Unit
Printing station comes with ink rubber roller, ceramic anilox cylinder, printing plate cylinder, scrapper blade and ink container. helical gear.

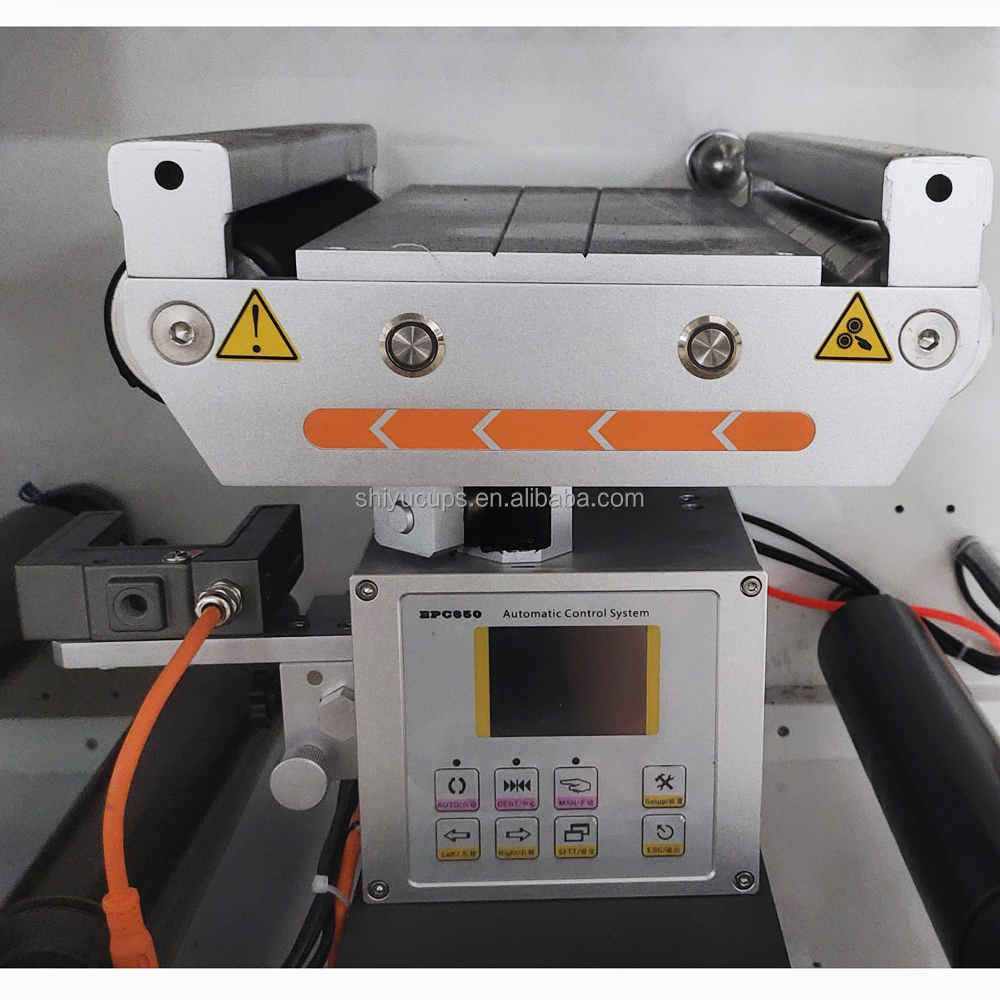

Web Guide
Web Guide
Detection mode: Edge checking, Control paper move straightly. can control material go straightly, then output final product with good edge.

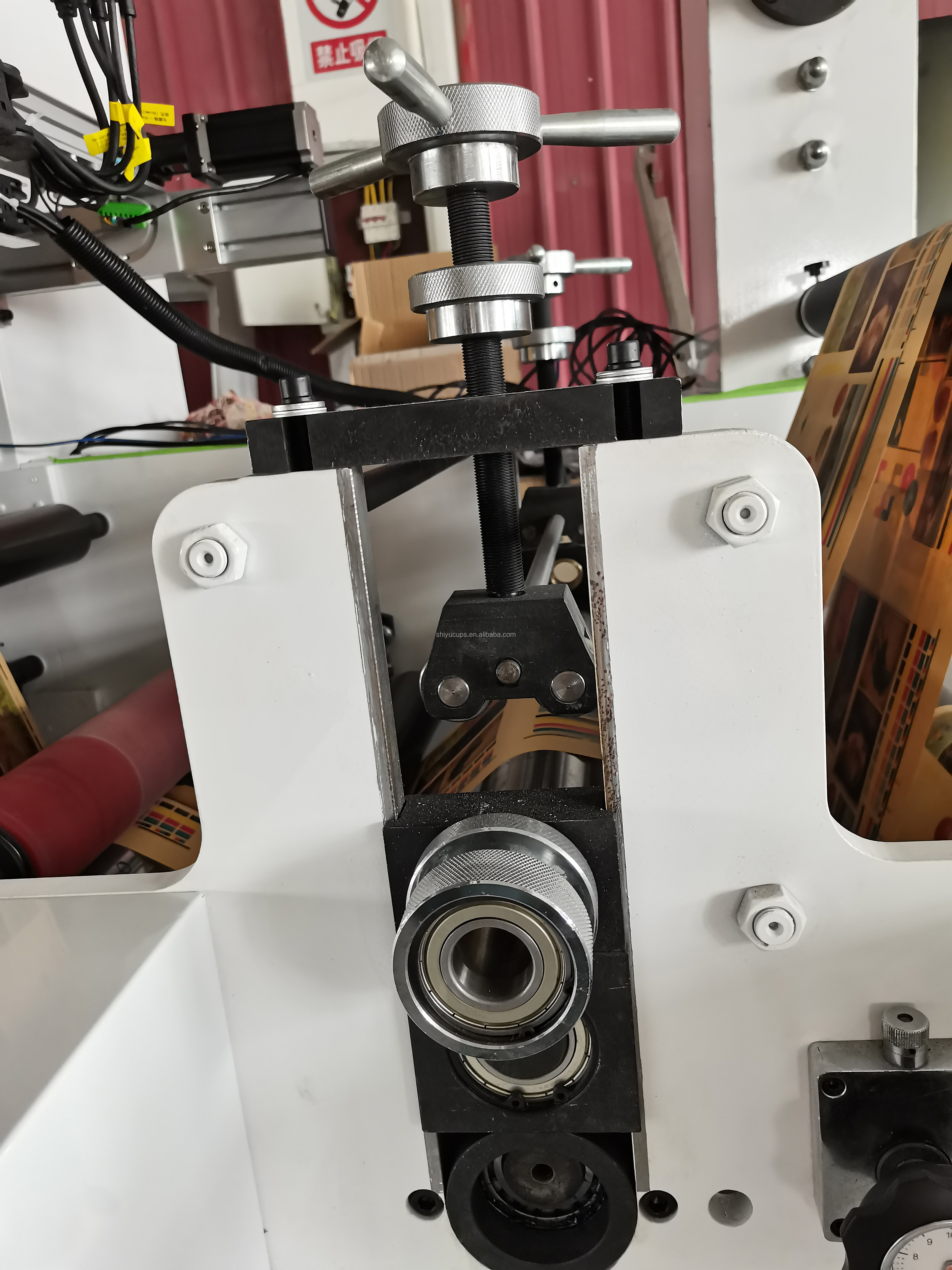

Die Cutting Unit
Die Cutting Unit
Rotary die cutting. Magnetic cylinder need to be customized according to your label size. Flexible dies can be customized according to your demand.
Operational Views

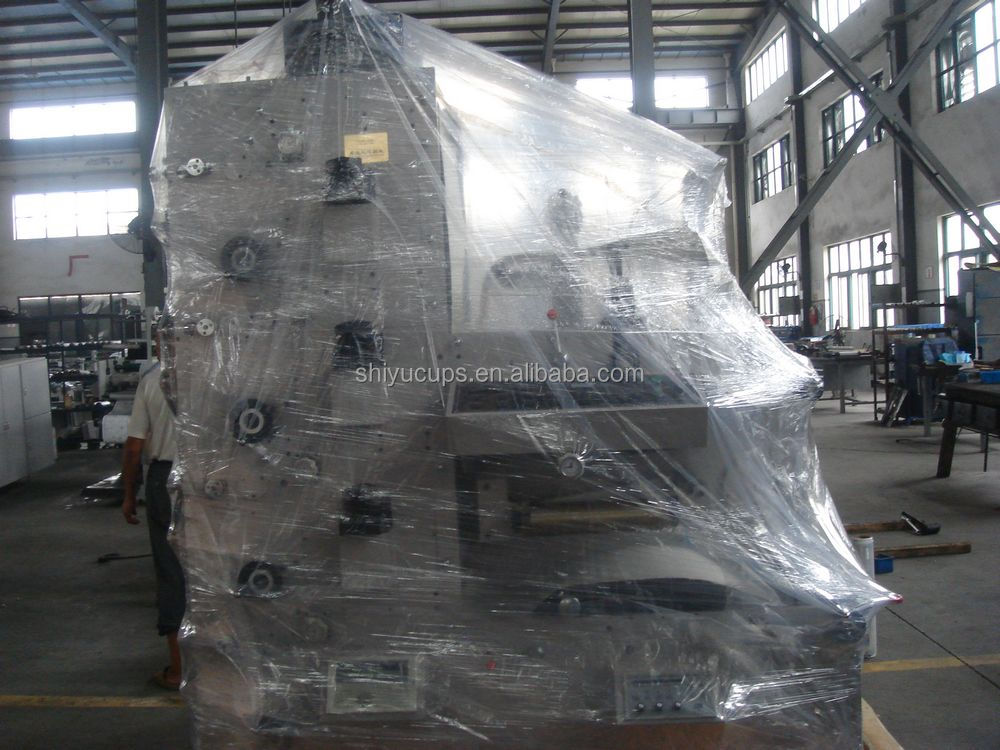

Operation view 1
Operation view 2
Operation view 3
Operation view 4
Product Series

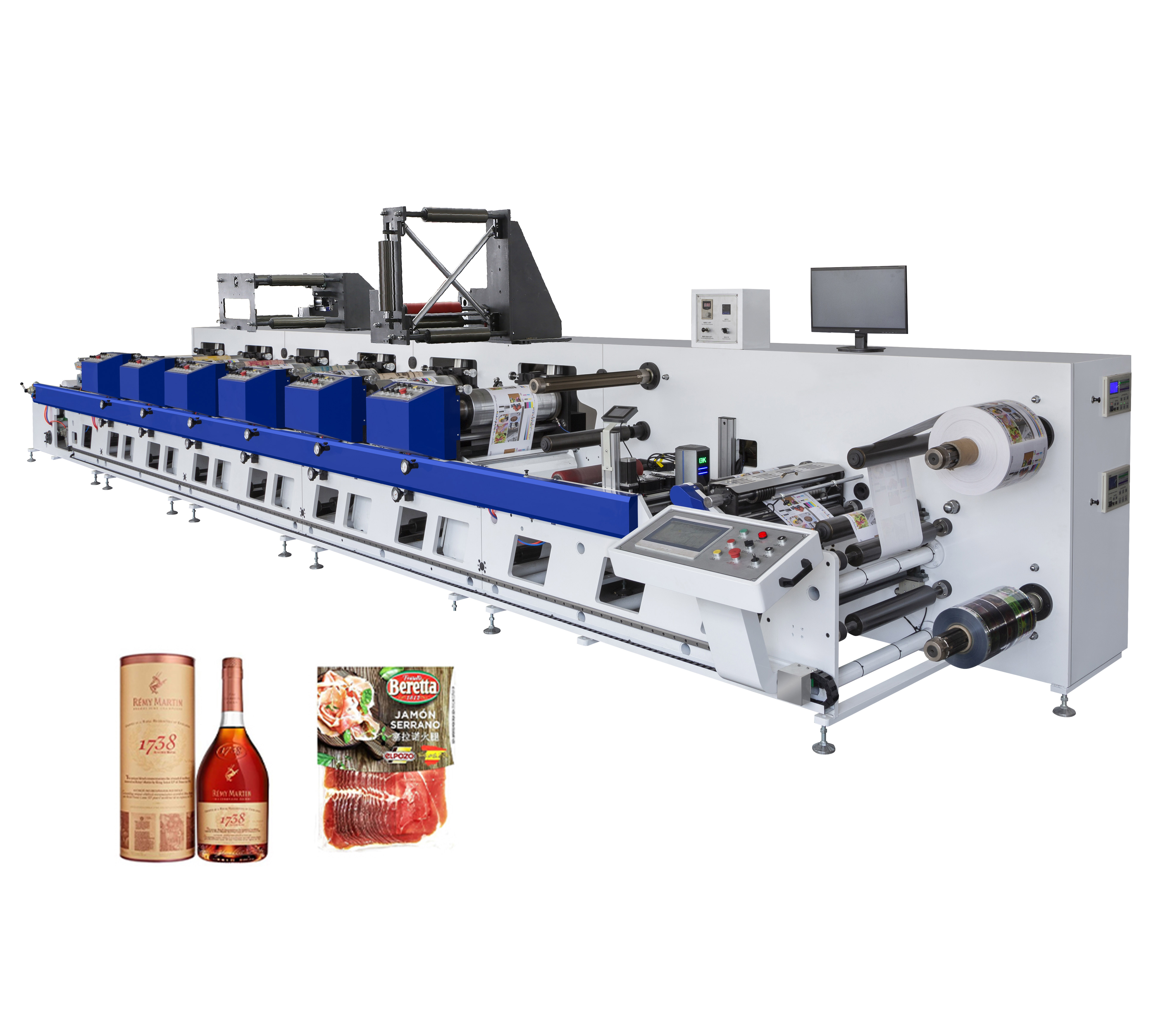

inline flexo printing machine
Inline Flexo Printing Machine

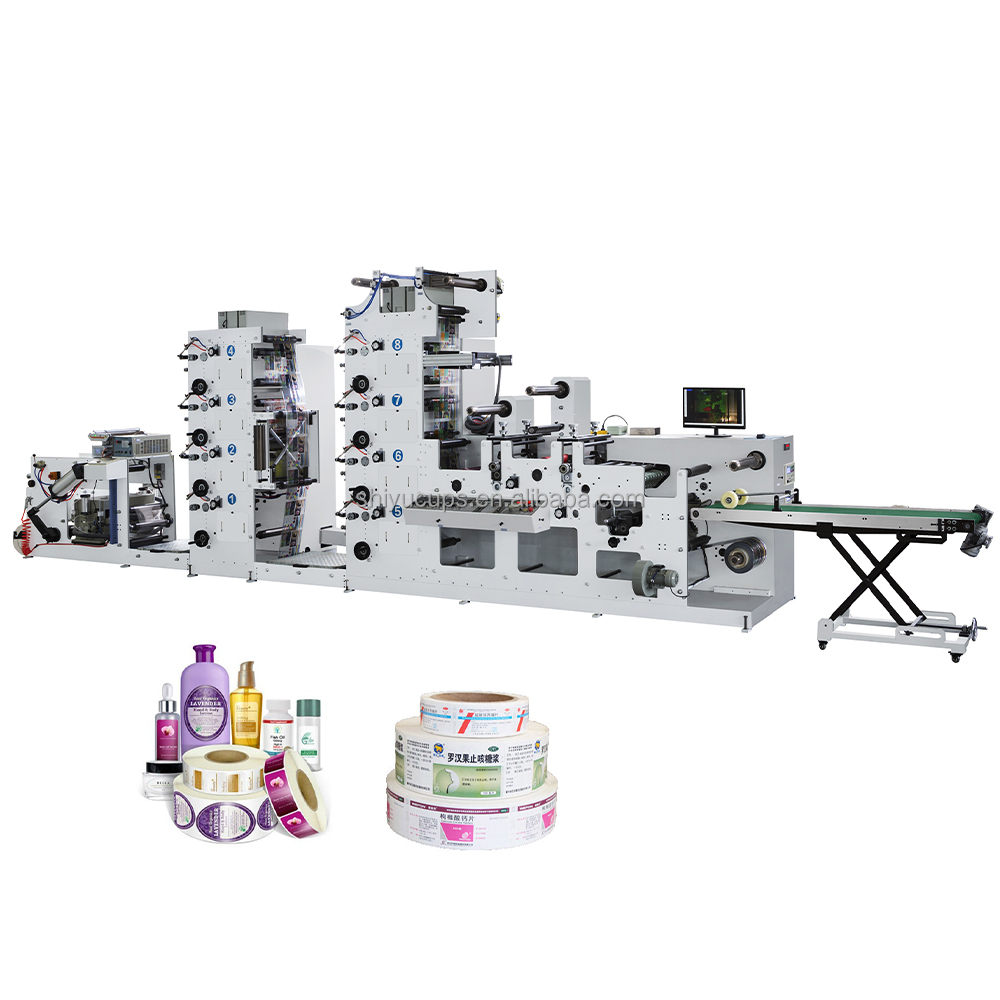

stack type flexo printing machine
Stack Type Flexo Printing Machine

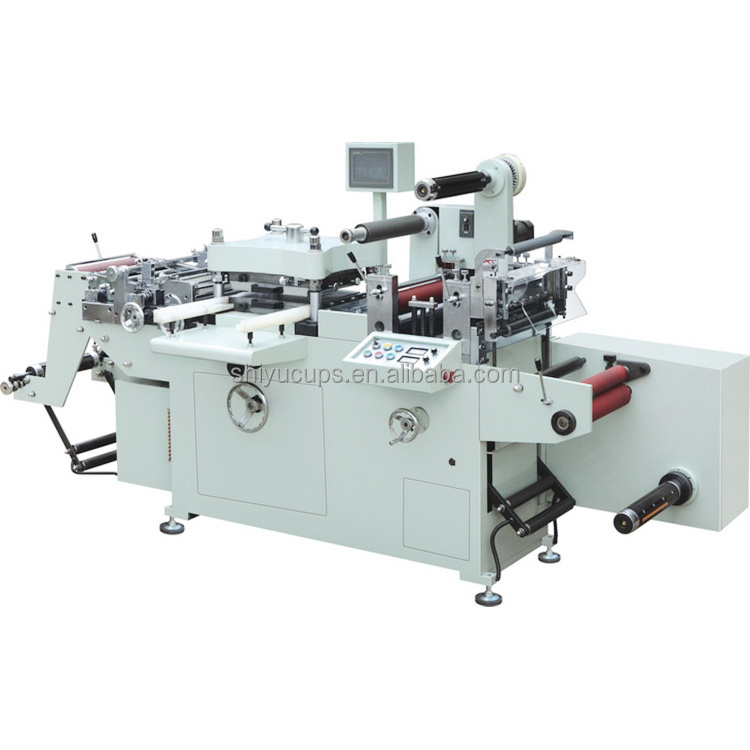

hot stamping die cutting machine
Hot Stamping Die Cutting Machine

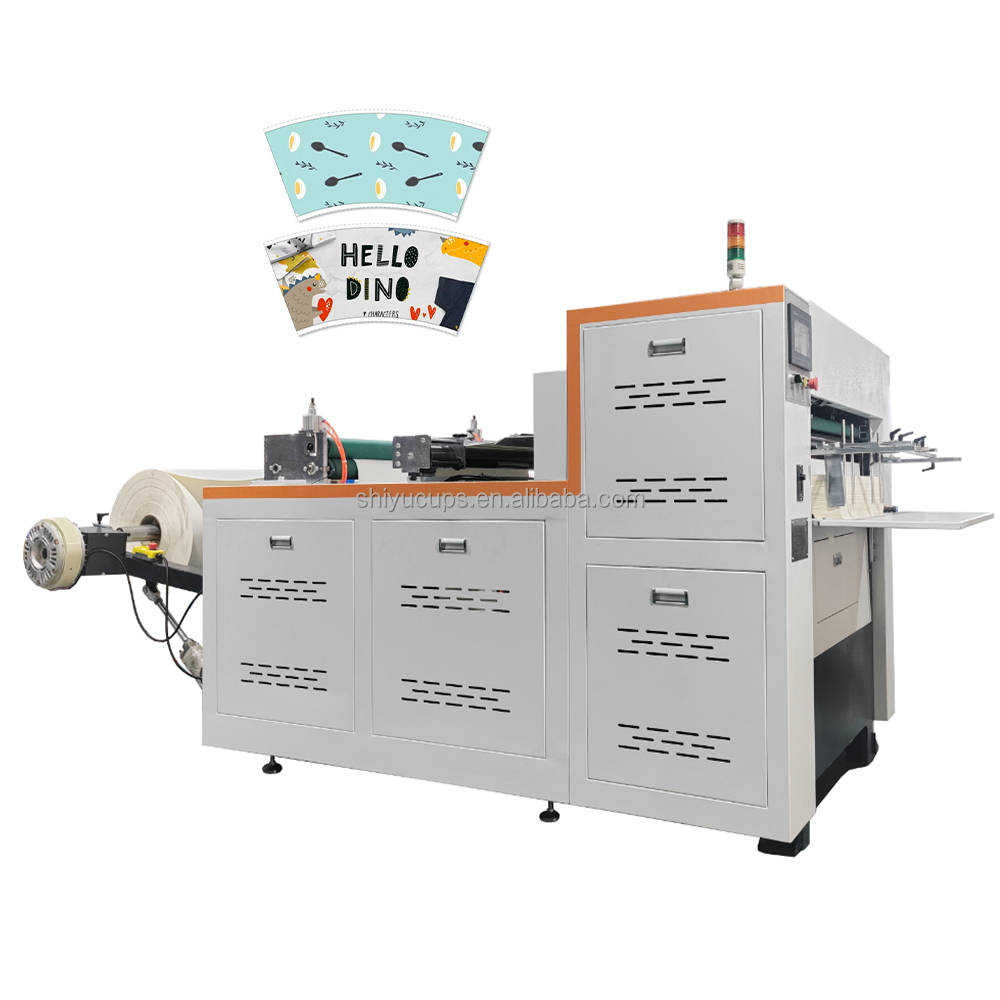

paper cup die cutting machine
Paper Cup Die Cutting Machine

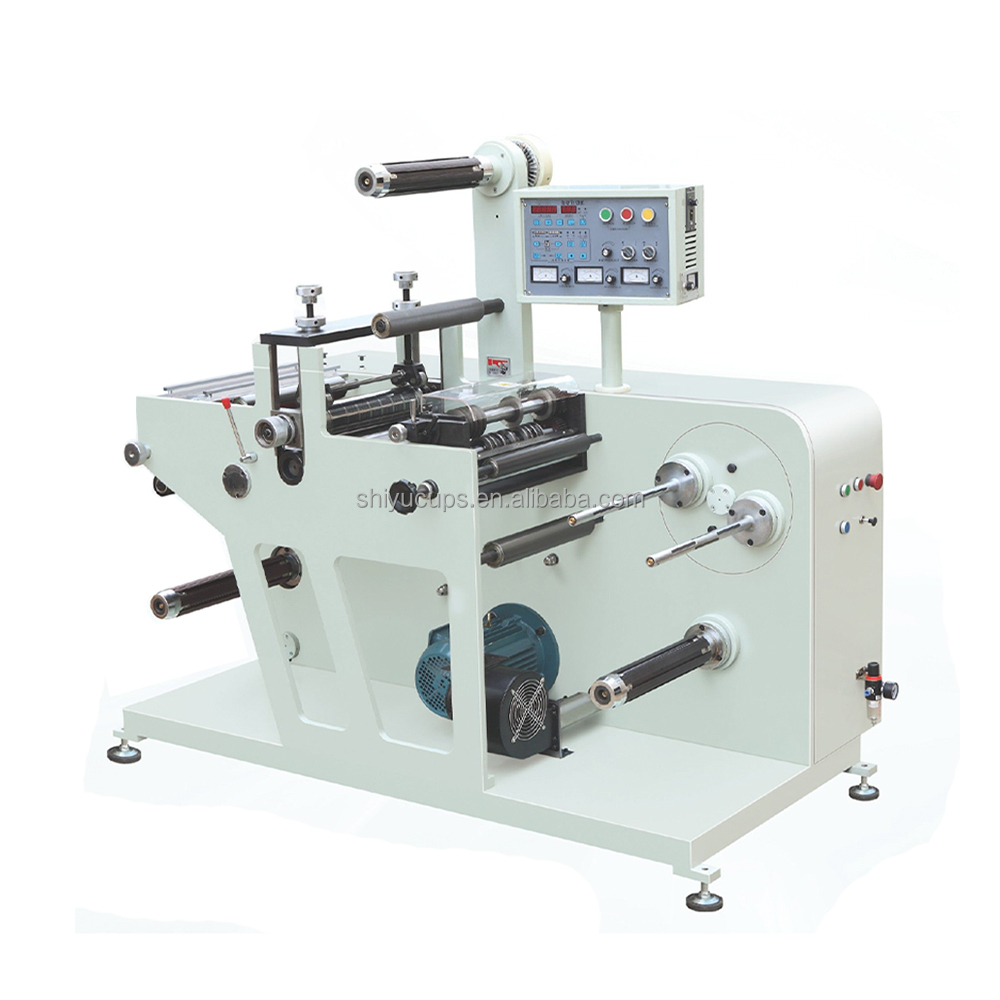

die cutting slitting machine
Die Cutting Slitting Machine

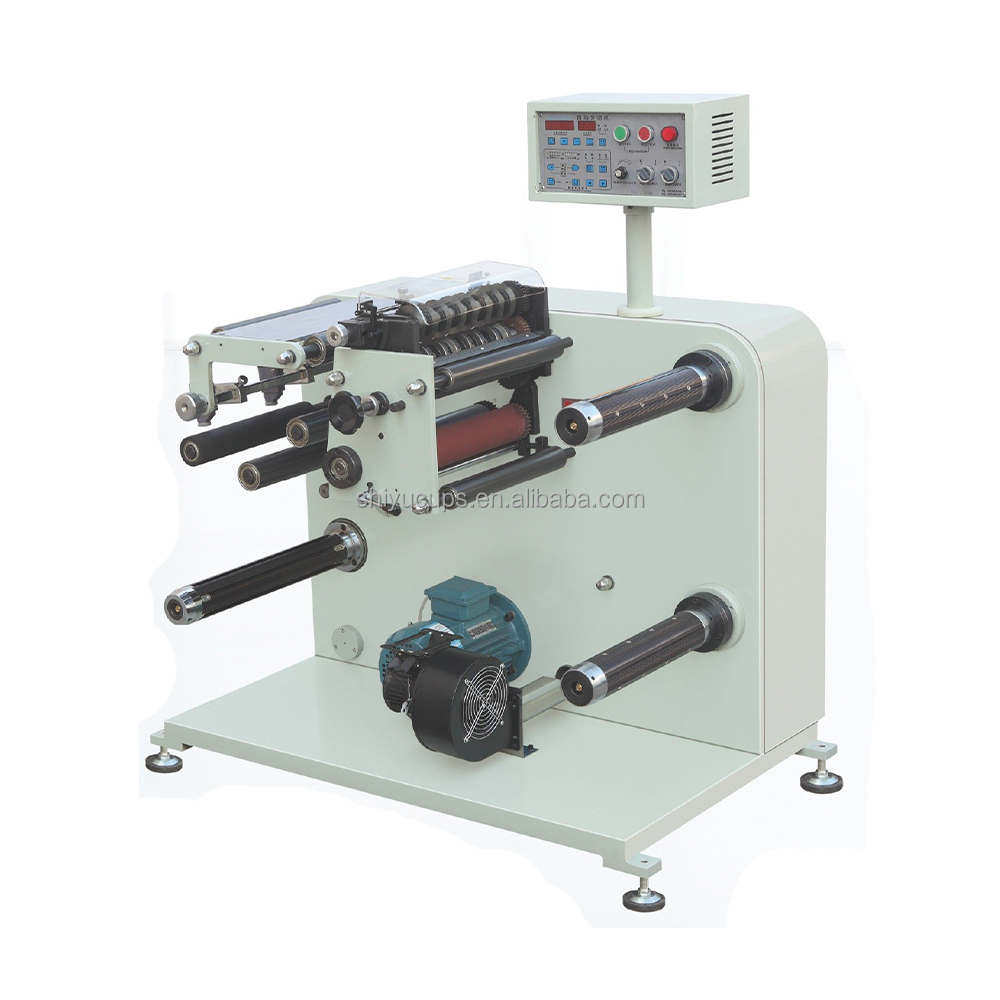

slitting rewinding machine
Slitting Rewinding Machine
Print Samples & Factory Details
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Full Machinery View
Frequently Asked Questions
What materials are suitable for the SY320 sticker label flexo printing machine?
This machine is ideal for printing on various materials including plastic films, aluminum foil, tissue paper, self-adhesive stickers, vinyl, PVC, and carton weight boards.
How does the machine control the unwinding and winding tension?
The unwinding and winding systems are controlled via magnetic brakes and clutches. The unwinding system specifically features a Japanese Mitsubishi automatic tension controller for precise and reliable operations.
What are the benefits of the ceramic anilox rolls?
The ceramic anilox rolls offer high resistance to both abrasion and corrosion. This significantly extends the rolls' lifespan, reducing maintenance frequency and lowering overall operating costs.
What type of drying systems does the machine use?
The machine features rapid-condensing heating ovens (each printing unit is equipped with an Infrared drying unit) to prevent ink blurring. Additionally, customers can choose to install UV drying systems based on their specific application needs.
How accurate is the registration of this printing press?
Thanks to the integrated deviation correction sensor (Web Guide system), the material feeding is automatically monitored and corrected, achieving a registration accuracy of ±0.1mm.
Can the printing units be operated independently?
Yes, each printing unit adopts a 360° circular register regulation. Each unit can be easily taken apart and operated independently according to your requirements.
