Machine Running Video Link: https://www.youtube.com/watch?v=xwbMSBuD-ds
Main Parameters
1
Printing Colors: 4 colors, 6 units
2
Max. Width of Printing Material: 1130mm
3
Max. Printing Width: 1100mm
4
Max. Mechanical Speed: 130 m/min
5
Max. Printing Speed: 120 m/min (varies by material and operator familiarity)
6
Max. Diameter of Unwind/Rewind: 600mm
7
Diameter of Printing Cylinder: 100mm - 350mm
8
Unwinding Traction Tension: Max 50N/m (Powder brake control)
9
Rewinding Tension: Max 25N/m
10
Rewinding Traction Tension: Max 10N/m (Torque motor control)
11
Register Precision: Vertical ±0.2mm
12
Main Motor: Frequency motor 7.5KW
13
Heating Type: Electric heating
14
Heating Power: Each color 12KW
15
Machine Power: Max 70kw (approx. 30-40kw during running)
16
Overall Dimension: 7800 * 2730 * 2670mm
17
Net Weight: 7000kg
Available Printing Materials
PET: 12-100μm
PE: 35-100μm
BOPP: 15-100μm
CPP: 20-100μm
PVC: 20-100μm
Note: Compatible with other film materials featuring similar printing performance to those listed above.

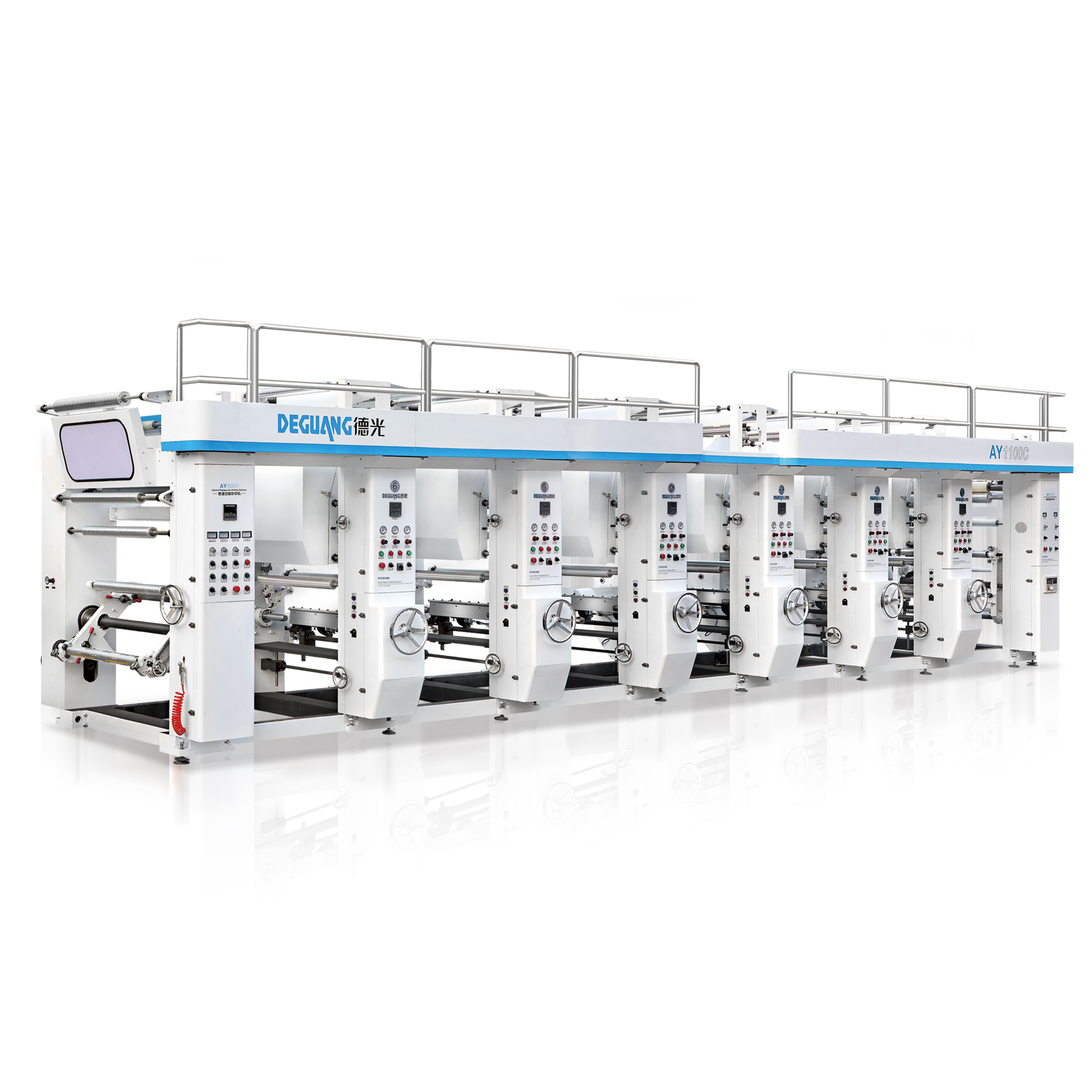

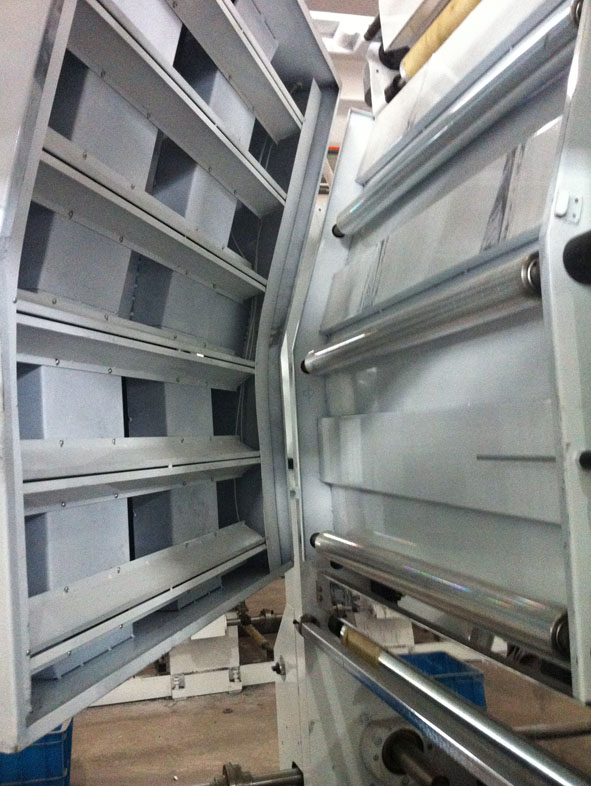

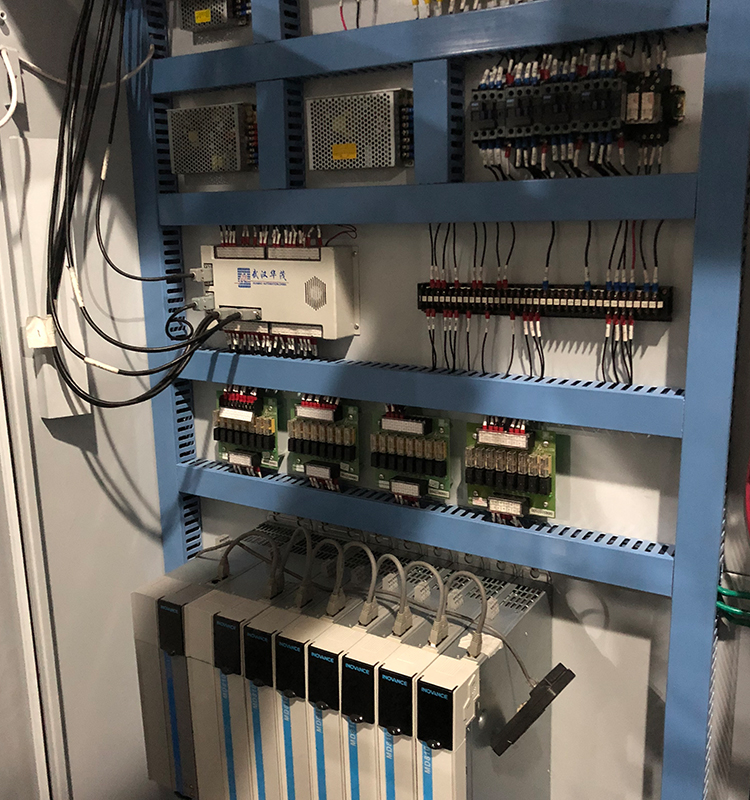

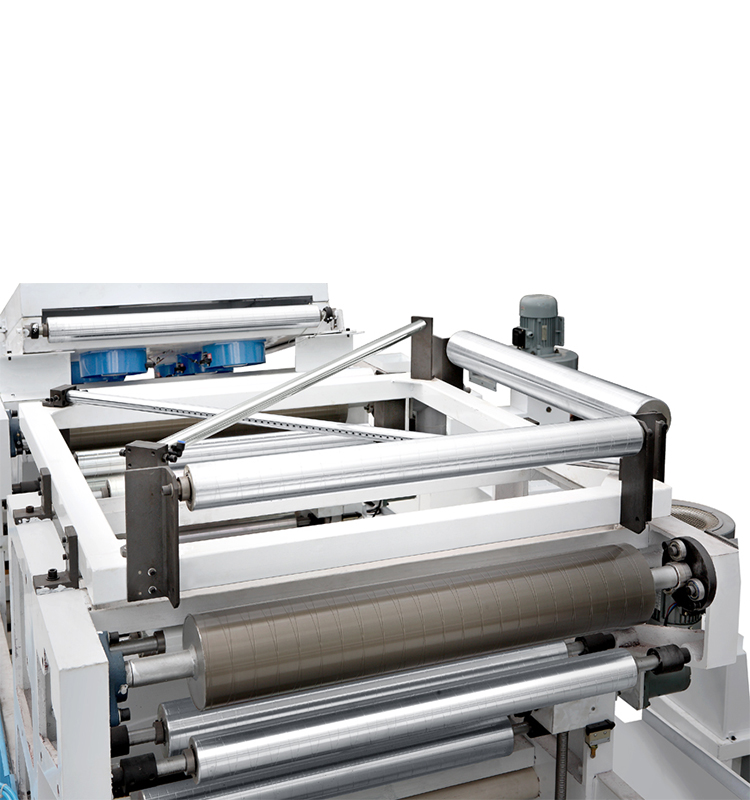

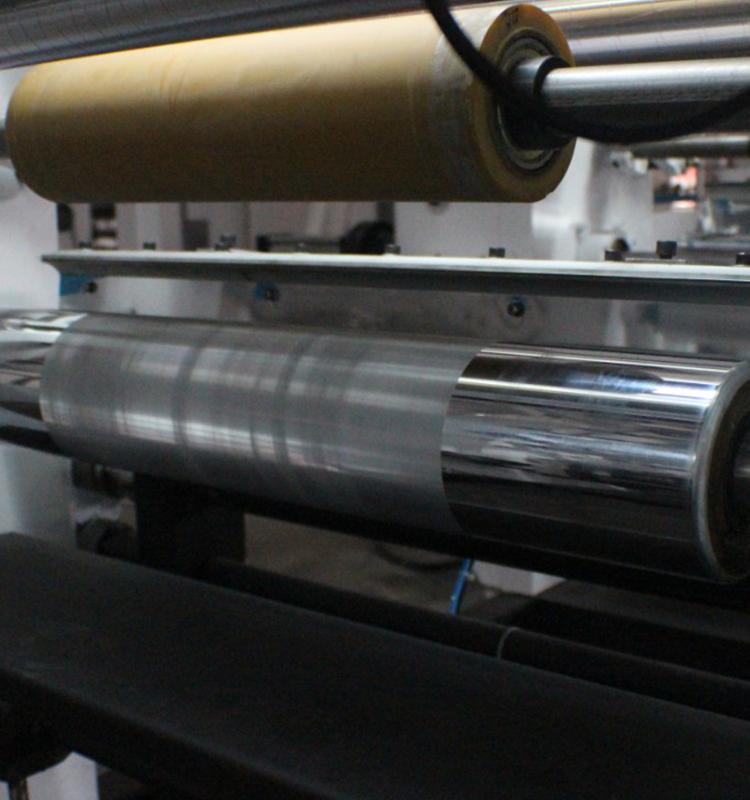

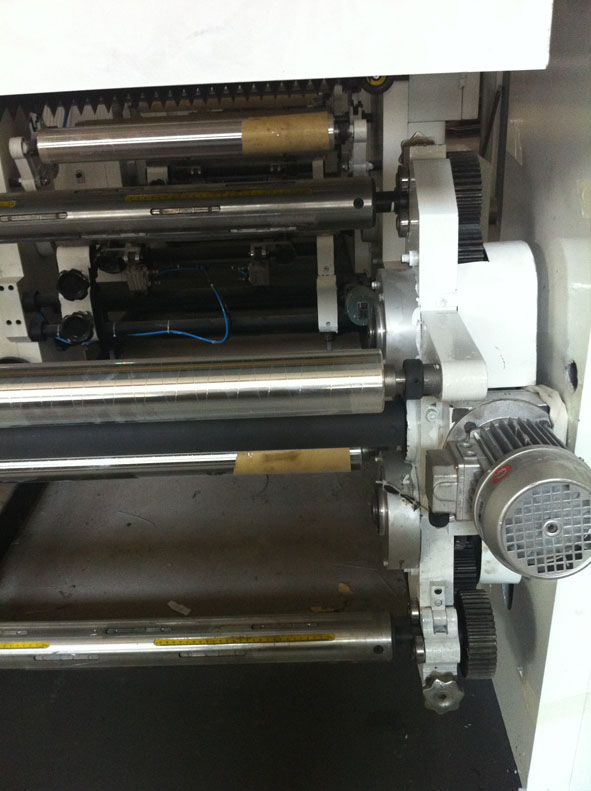

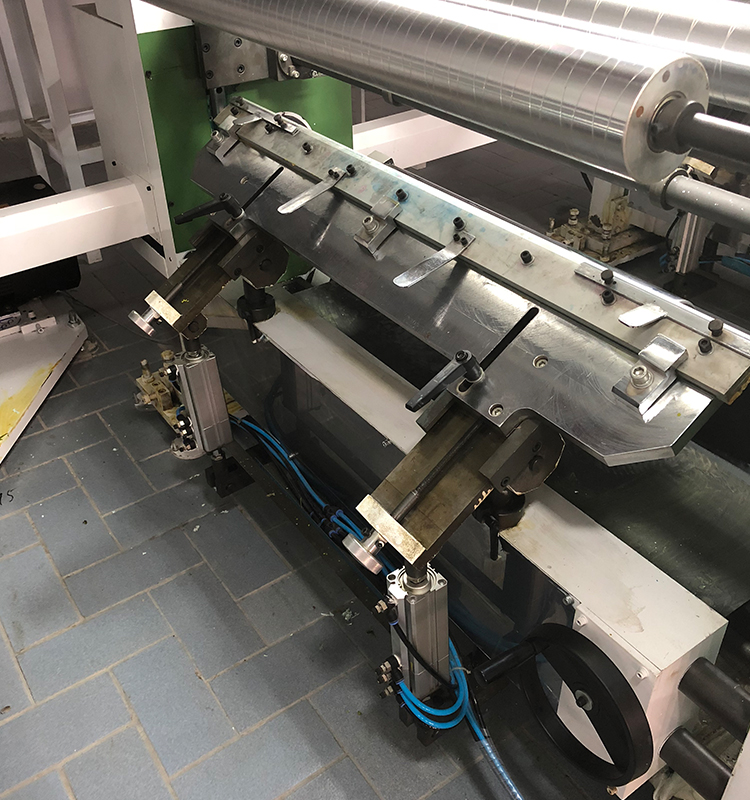

Details Picture of Rotogravure Printing Machine
Our Printing Products Sample

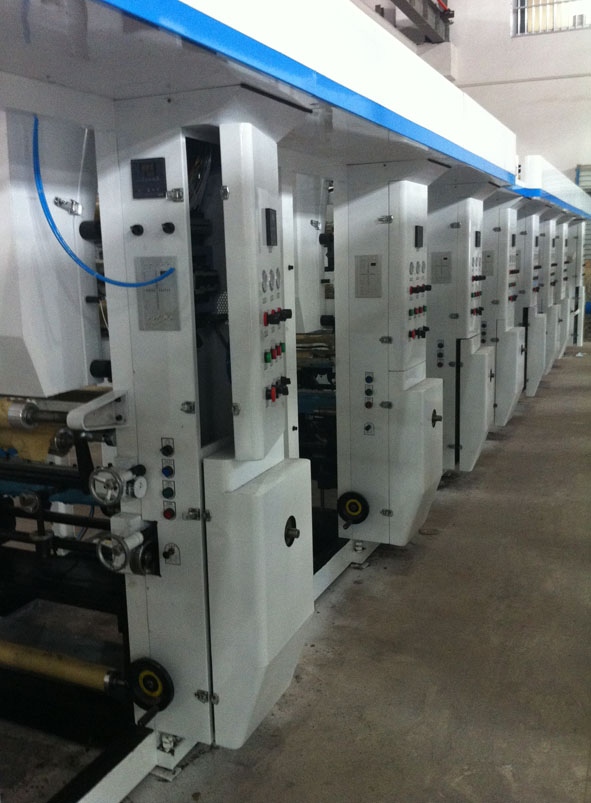

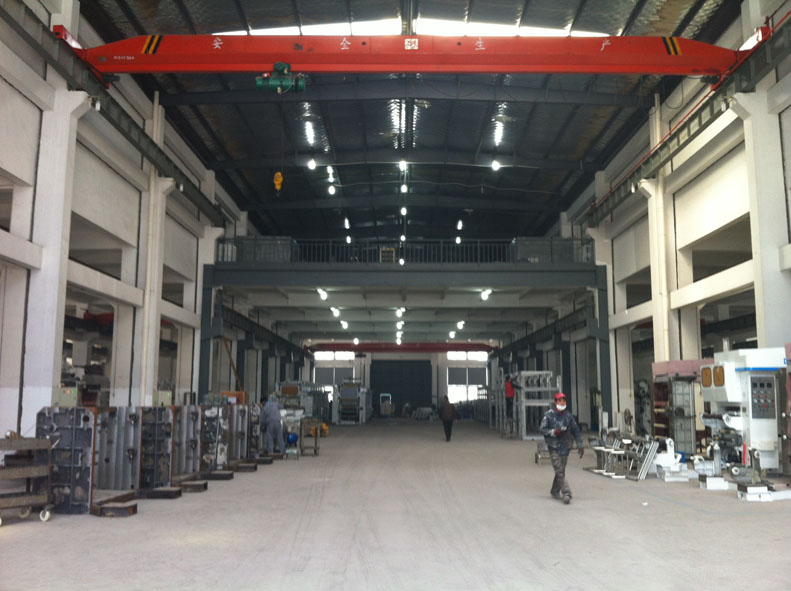

Our Workshop

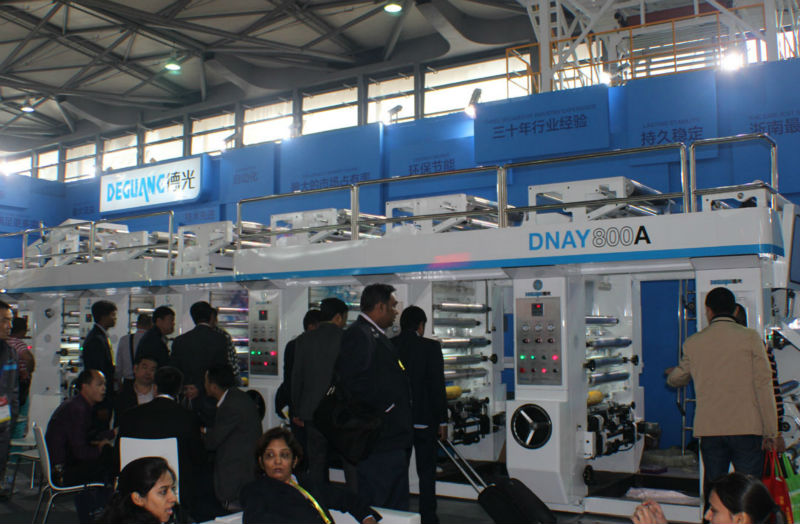

Exhibition

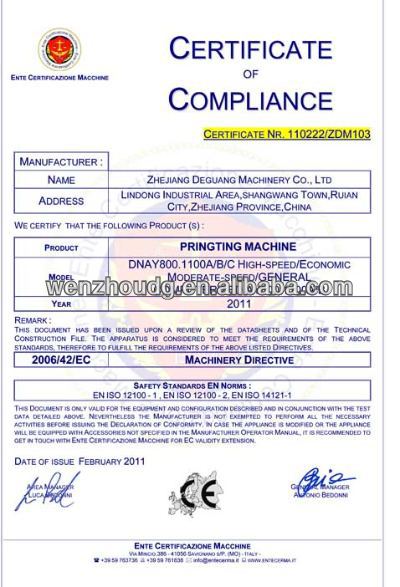

Certificate of Rotogravure Printing Machine
30 Years History Consistent and Stable Quality
Your Best Choice!!!
Frequently Asked Questions
Q Which materials are compatible with the AY1100C printing machine?
The machine is compatible with a wide range of plastic films, including PET (12-100μm), PE (35-100μm), BOPP (15-100μm), CPP (20-100μm), PVC (20-100μm), and other materials with similar printing characteristics.
Q What is the printing speed and mechanical speed of this press?
The maximum mechanical speed of the machine is 130 m/min, and the maximum printing speed is 120 m/min. The actual speed may vary based on the specific material, inks used, and operator setup.
Q What is the register precision of the AY1100C rotogravure printing machine?
It delivers high accuracy with a vertical register precision of ±0.2mm, ensuring clean and sharp multi-color print alignment.
Q What are the unwind and rewind capabilities?
Both the unwinding and rewinding units support a maximum material roll diameter of 600mm. The unwinding section uses a powder brake control with a max tension of 50N/m, while the rewinding section relies on torque motor control with a max tension of 10N/m.
Q How much power does the printing machine consume during operation?
The maximum startup power is 70kw. Once the machine is running stably, the actual power consumption decreases to approximately 30-40kw. The heating system uses 12KW per color color-unit.
