| Model NO. | BY-FR500 |
| Usage | Paper Printer, Label Printer, Card Printer |
| Automatic Grade | Automatic |
| System Supported | Windowsxp32 |
| Product Name | Friction Feeding and Rewinding Machine |
| Keywords | Rewinding Machine |
| Material | Stainless Steel/Painted Carbon Steel |
| Feature | High Efficiency, Multi-Function, Stable |
| OEM & ODM Custom | Yes / Yes |
| Origin | Guangdong, China |
| Production Capacity | 100sets/Year |
| Package Size | 200.00cm * 120.00cm * 170.00cm |
| Package Gross Weight | 350.000kg |

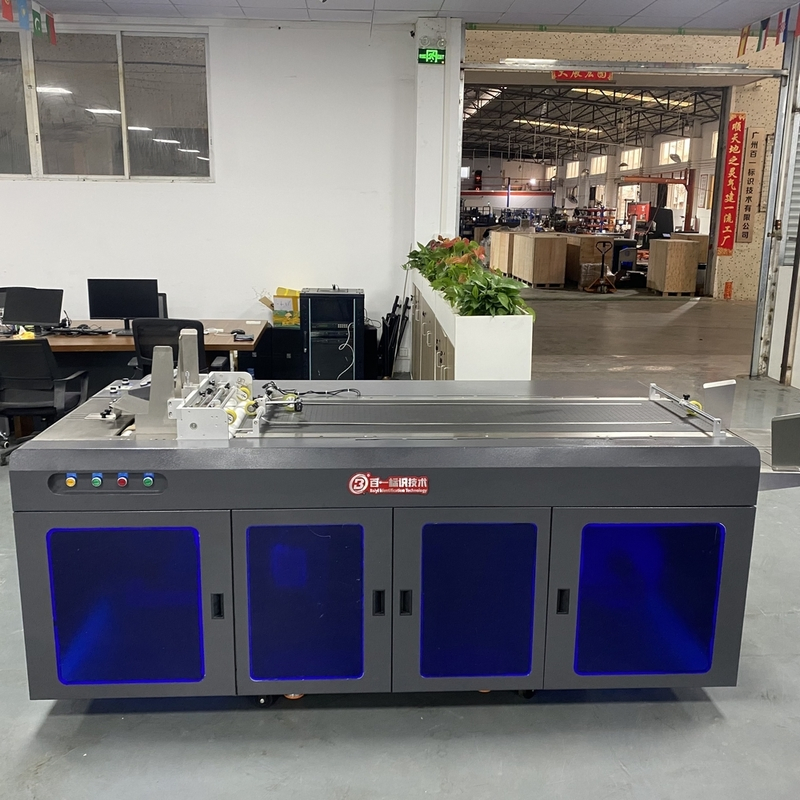

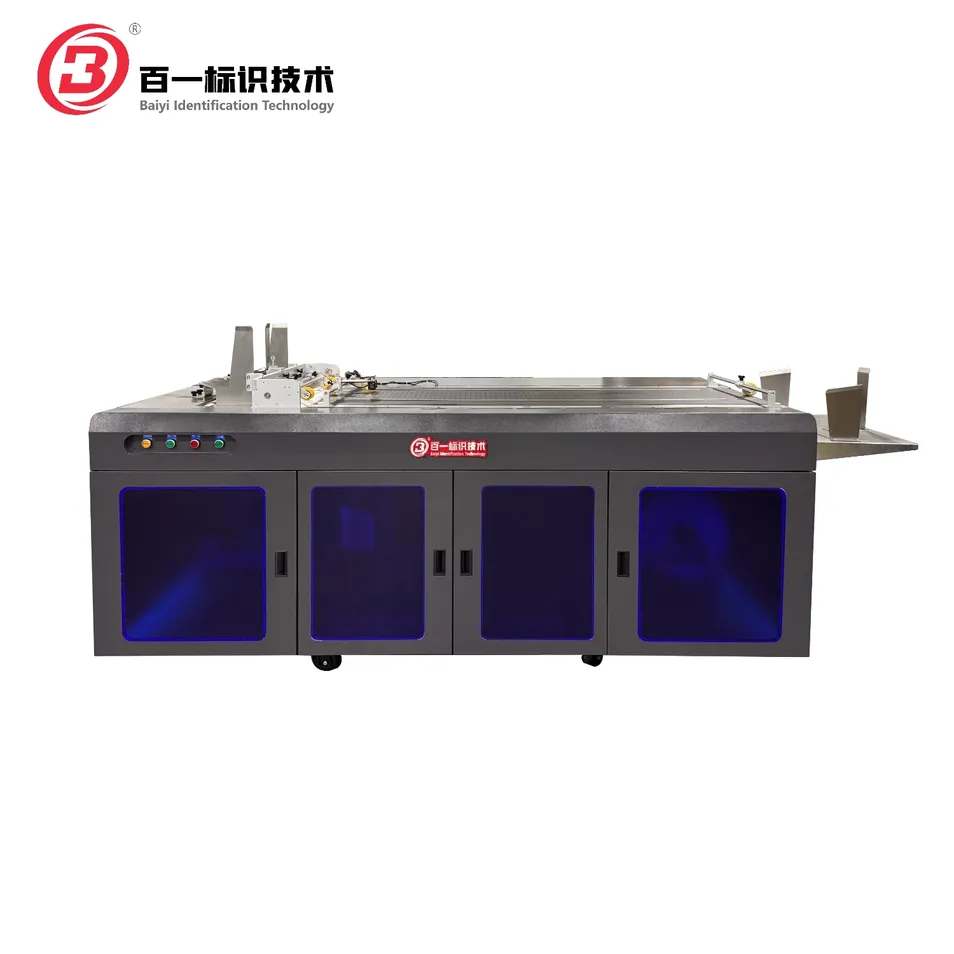

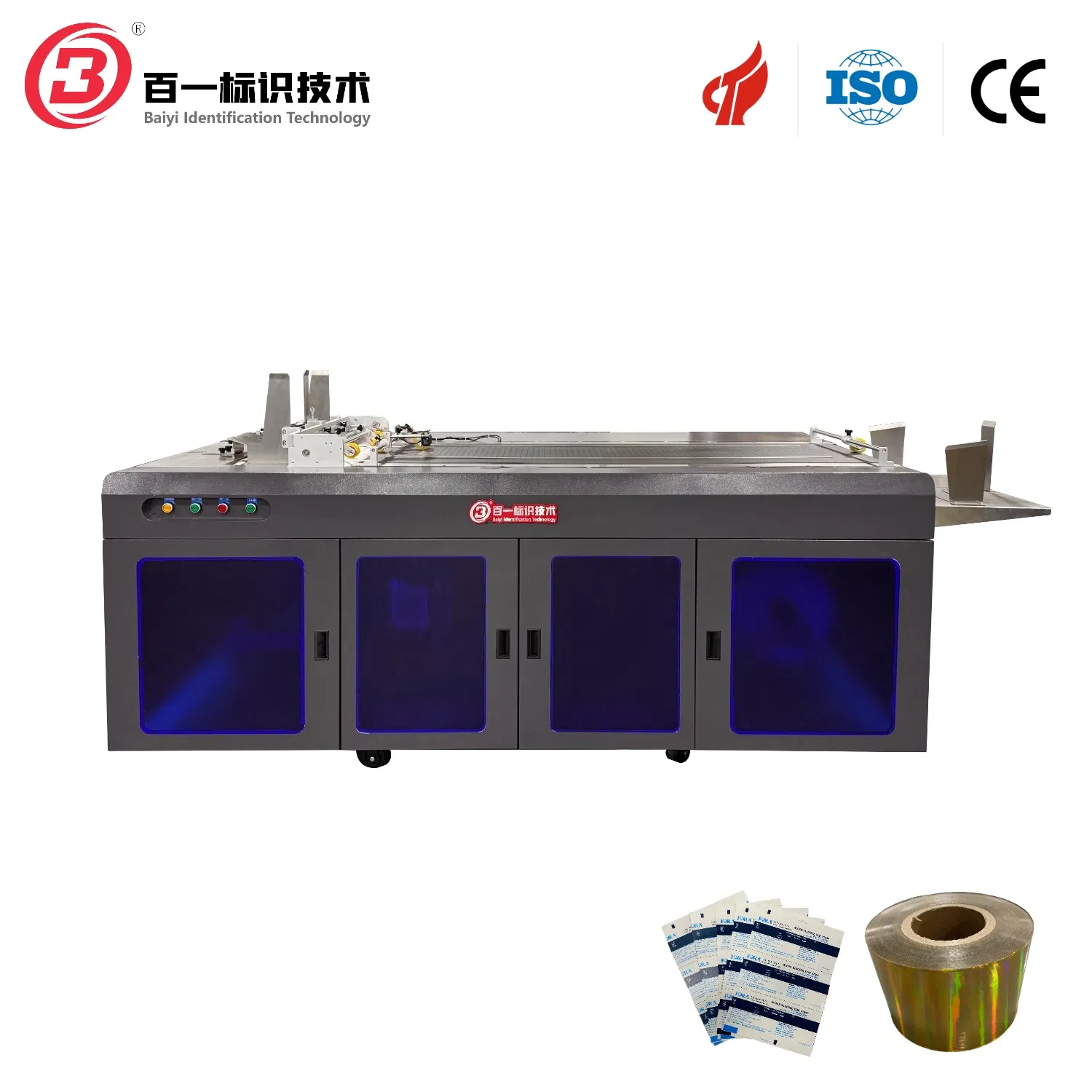

This advanced Intelligent feeding and rewinding machine is a versatile solution specifically designed for sheet material and roll material feeding, unwinding, and rewinding operations.

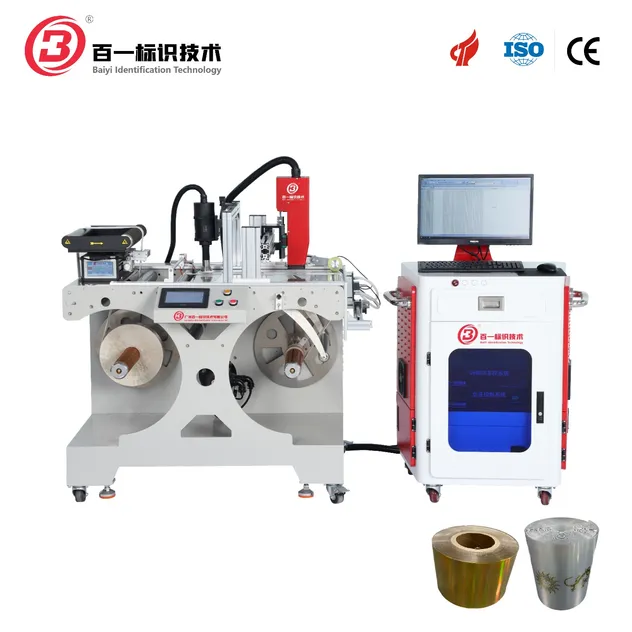

Integrating cutting-edge intelligent feeding technology with professional rewinding capabilities, this all-in-one machine delivers exceptional "one machine, multiple purposes" functionality by accommodating TTO thermal transfer printers, UV printing systems, CIJ inkjet printers, TIJ printers, and laser marking systems for comprehensive coding and printing applications.
The modular structure design supports both continuous and intermittent feeding modes, allowing customizable configuration based on specific production requirements across diverse industries including flexible packaging, label manufacturing, film processing, and materials converting. This high-performance feeding and rewinding equipment represents the optimal choice for manufacturers seeking efficient, intelligent, and multi-functional roll-to-roll processing solutions with integrated printing and coding capabilities.
| Technical Parameters Specifications | |||
|---|---|---|---|
| Voltage | 220Vac, 50Hz | Releasing Tension Control | Linear Tension Control |
| Efficiency | About 500 Pcs/Min (Based on 100mm product. Related with printing speed and frequency.) | ||
| Weight | About 500Kg | Collection Tension Control | Linear Tension Control |
| Conveyor Speed | 5-150M/Min (Adjustable Continuously) | Power | About 4.5Kw |

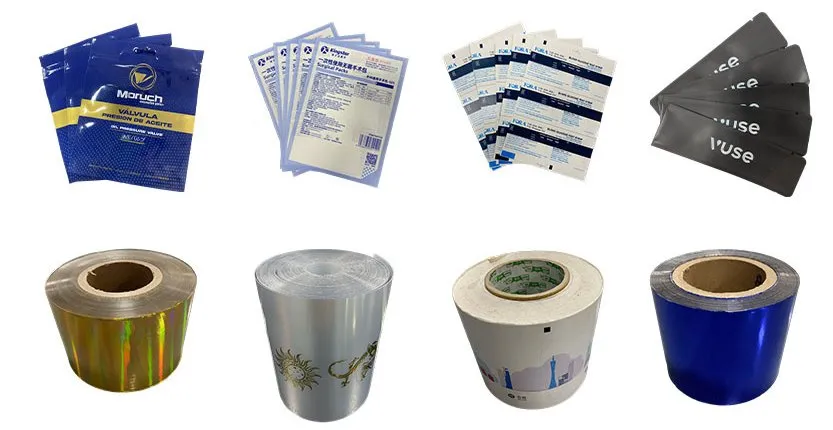

| Dimension (L*W*H) | 2600*1000*1200 mm | Available Product | BOPP, CPP, PET, PE, Paper, Composite Film, Aluminized Film etc. Material in Roll & Sheet. |
| Core Diameter | 3 Inch (76mm) | Available Product Size | Material Width: 30-480mm, Max Material Diameter: 500mm, Max Weight: 50Kg |

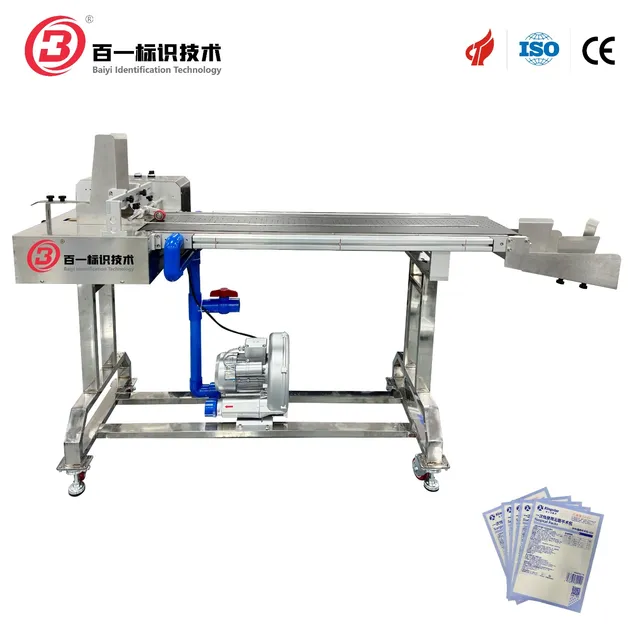

1. Feeding System Configuration:

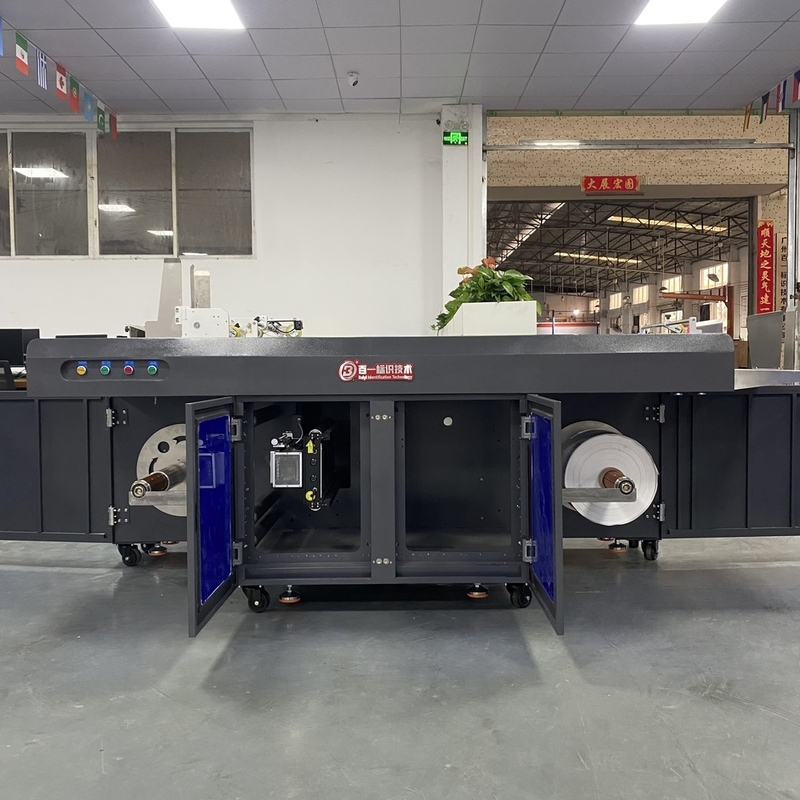

2. Rewinder Configuration:

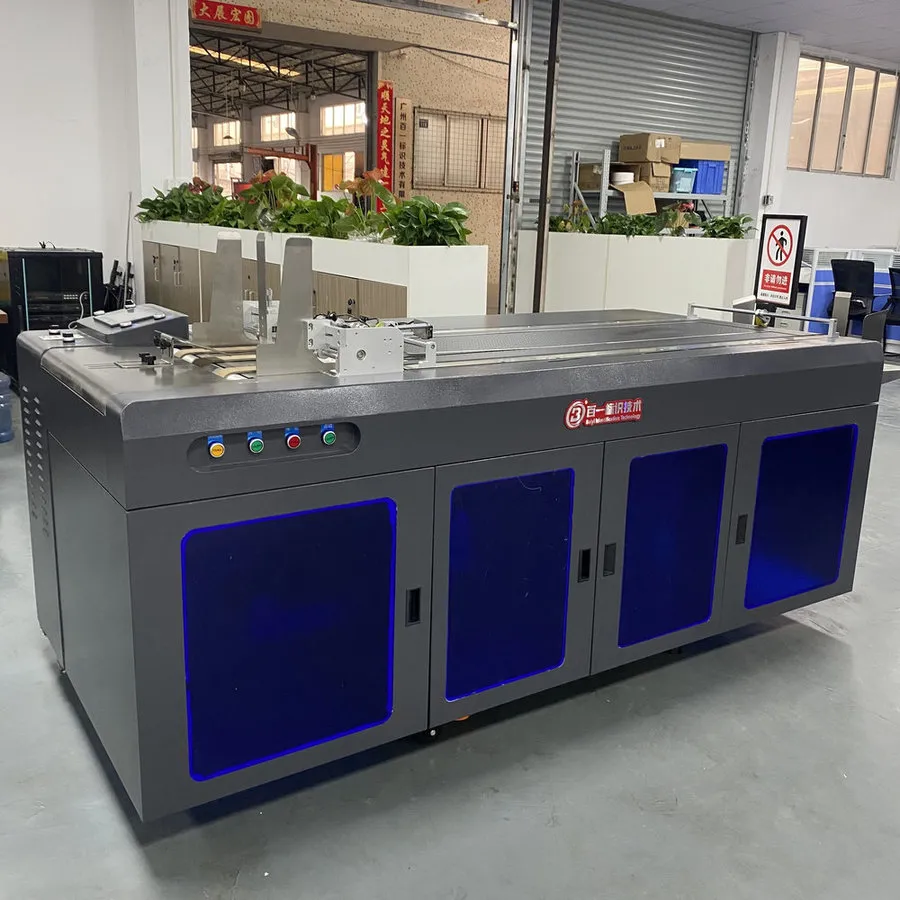

Customizable working parameters adaptable to different films and labels structures, with real-time monitoring and automatic alarm notifications for operational issues.

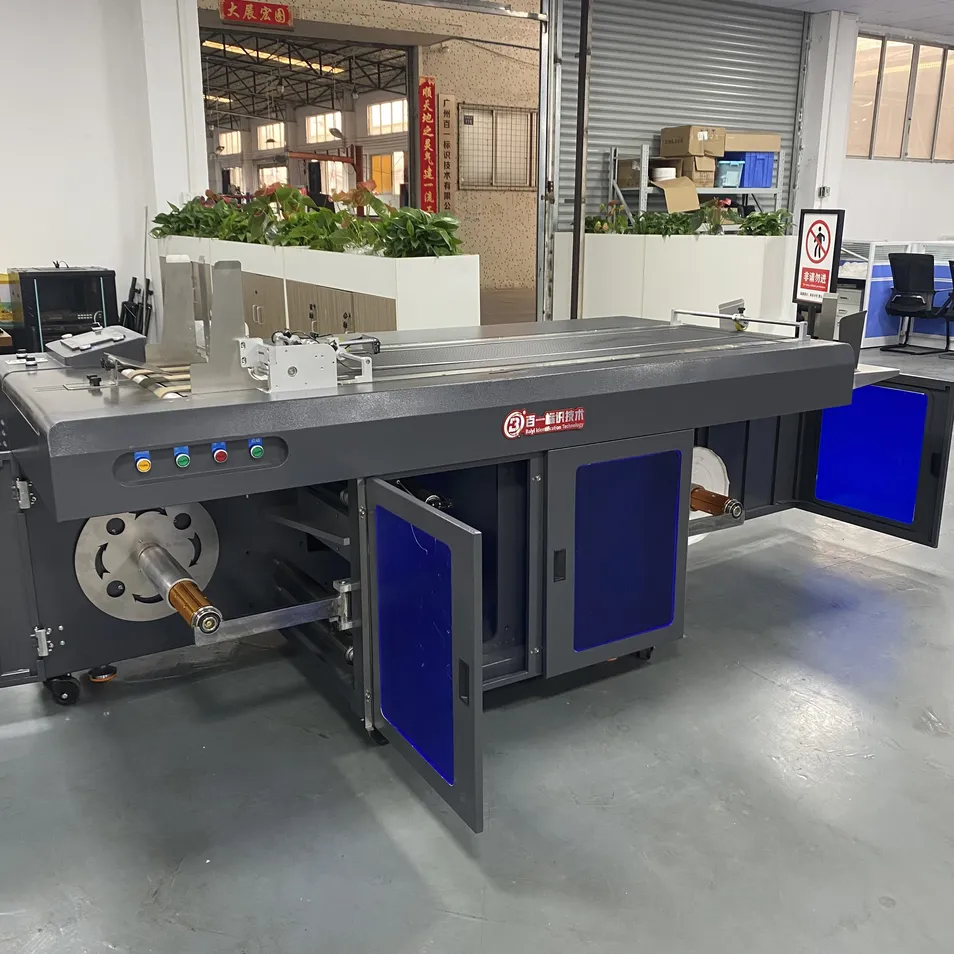

Fast/slow adjustable lifting speeds, automatic shutdown prevention, white mark or colorful mark trigger sensing, and accurate counting functions for complete production control.

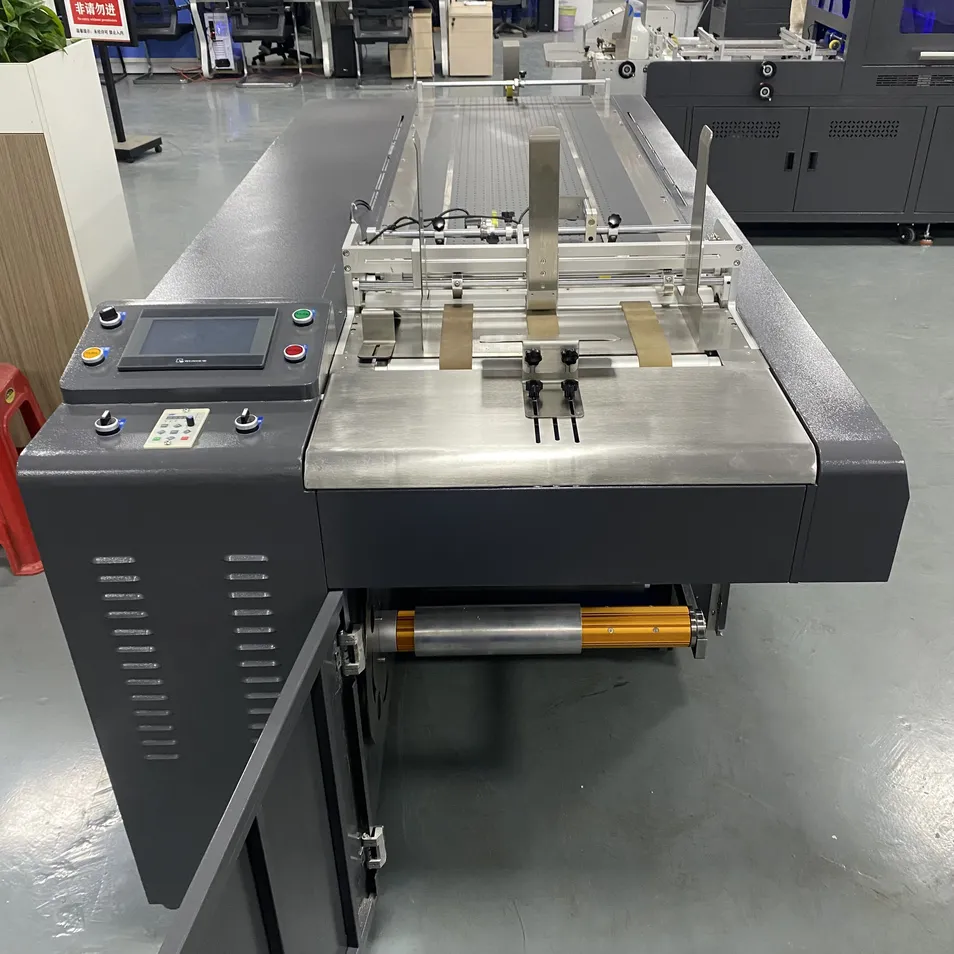

Built upon standard rewinding machine foundation with upgraded speed capabilities and more powerful functionality for high-volume production environments.

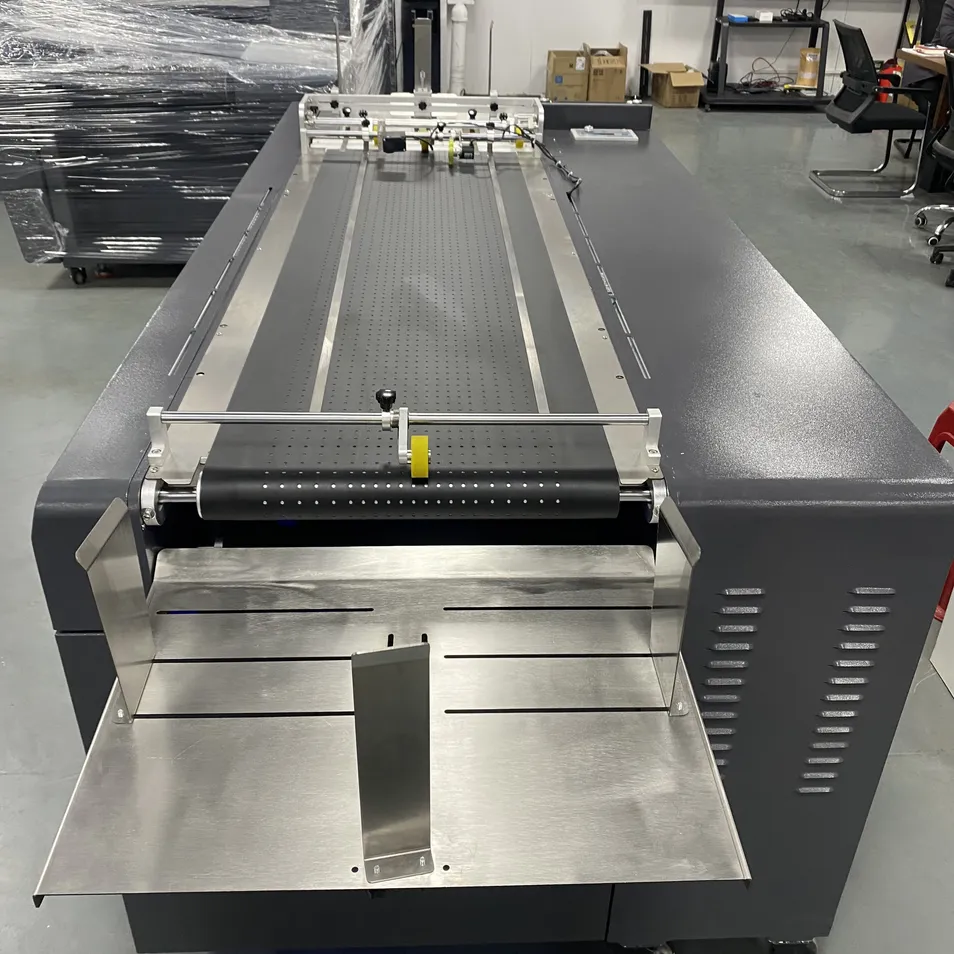

Comprehensive HMI system displays working status, production data, and diagnostic information with intelligent alarm system for proactive maintenance.
Price is directly related to the specific machine configurations according to your individual production requirements.
Yes, we require all international orders to have an ongoing minimum order quantity. However, for direct production or testing, our standard MOQ is 1 set.
Lead time depends heavily on your selected configuration, ranging from 2 working days up to 30 working days.
We accept TT (Telegraphic Transfer): 50% deposit payment after the order confirmation, with the remaining balance settled completely prior to shipment.
Generally, we provide a one-year warranty after delivery. Please note that standard wearable parts are not covered by this warranty.
Yes, we always utilize high-quality standard export packaging to safeguard items. Specialized packaging requirements can also be facilitated upon request.
