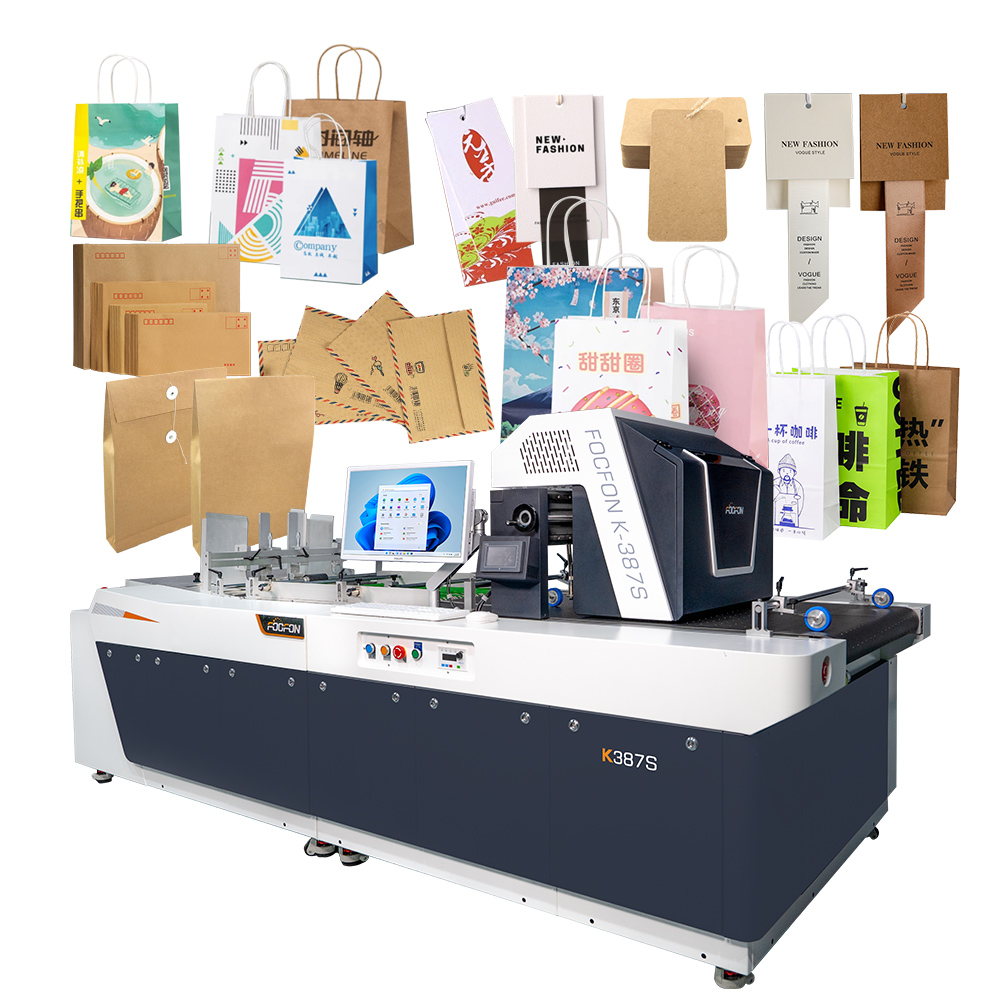

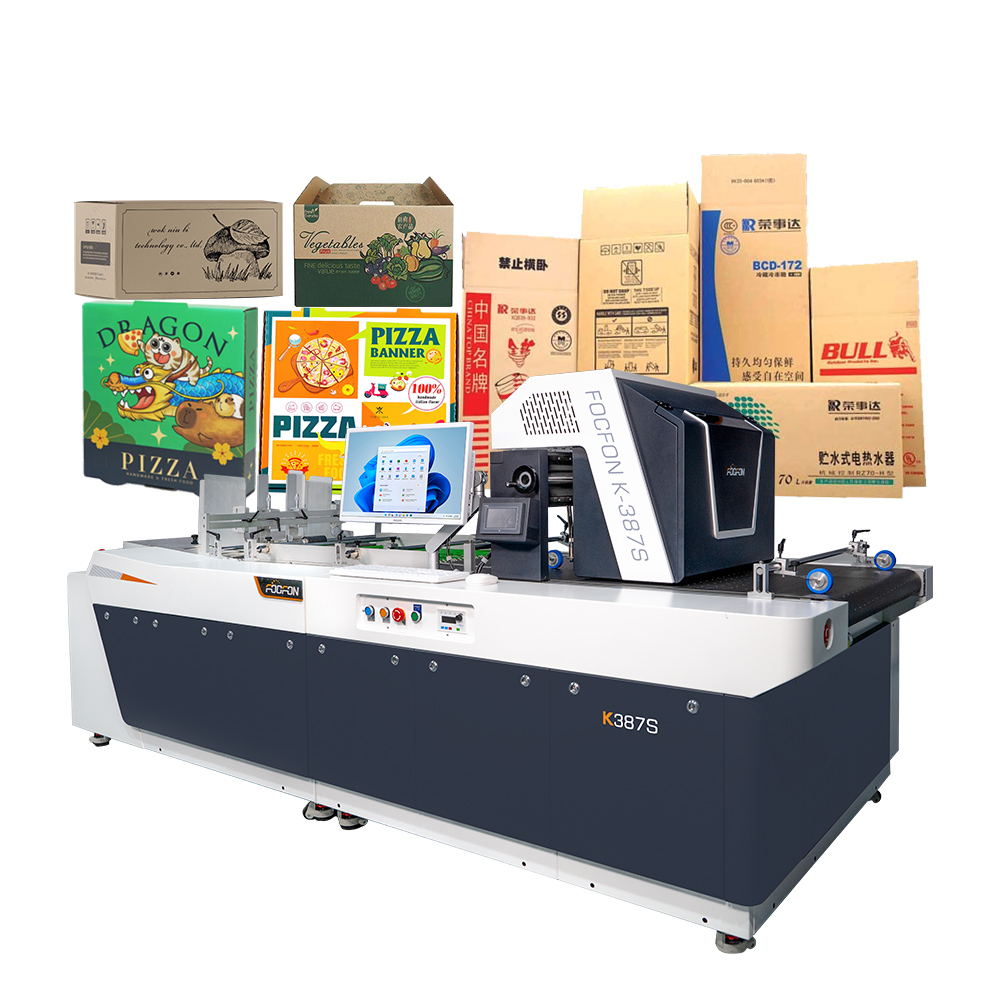

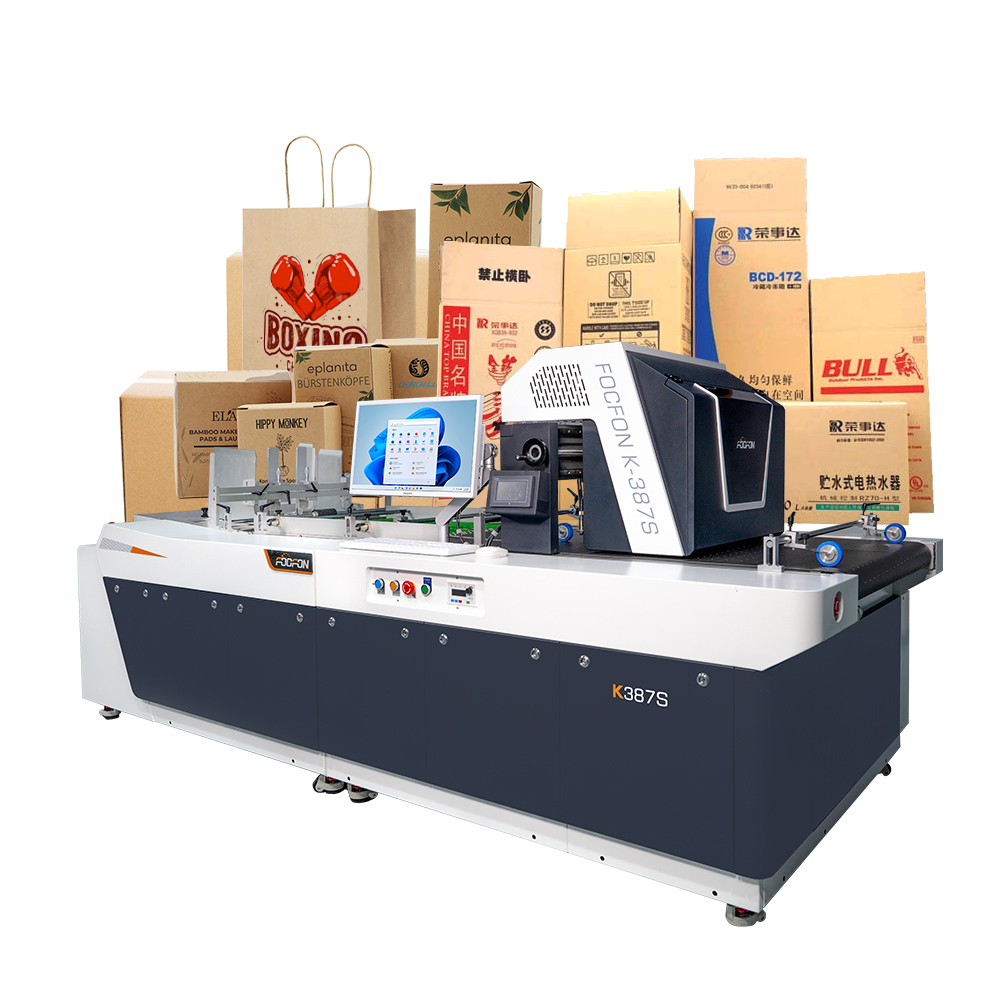

Foofon K387 New Inkjet Printer Multiple Size Print Width Kraft Paper Corrugated Single Pass Bag Printing Machine Automatic CMYK

Product Description

Single Pass Printer Banner
Product Parameters
Product Name Single pass printer
Applicable Industries Printing factory, Carton factory, Paper bag factory, Cardboard factory, Paper cup factory, Paper box factory, Advertising printing, Kraft paper factory
Use Corrugated box printer, Cardboard printer, Bag printer, Box printer, Pizza box printer, Paper cup fan printer, Paper Printer
Printing Materials Kraft paper, corrugated paper, pizza boxes, paper cups/bowls, rice paper, photo paper, toilet paper and other absorbent materials (Non-plastic materials)
Printing Resolution 1200*1200DPI / 1200*600DPI / 1200*300DPI
Print Speed 10-40 m/min
Operating System win.10/PLC
Image Format BMP/JPG/PDF/TIFF
Data Transfer Ethernet/USB3.0/R232
Ink Type Dye ink, pigment ink
Colors C/M/Y/K
Cleaning Nozzle method Auto cleaning
Ink supply Mode Continuous ink supply
Positioning method Infrared positioning
Environmental Requirements Normal temperature 15-35'C humidity 20%-80%
Input Power Supply 220V/10V 50HZ/60HZ
Customized Service YES
Thickness Of Printing Material(mm) 0.1mm-14mm
Adjustable Printhead Height Max 12cm
Spec Option Print heads 1 (PCS) 2 (PCS) 3 (PCS) 4 (PCS) 5 (PCS) 6 (PCS)
T129HD Printing width 12.9cm 25.8cm 38.7cm 51.6cm 64.5cm 77.4cm
A3 Printing width 31cm 62cm 93cm 124cm 155cm 186cm
Dimensions Product size 150*83*152cm 150*103*152cm 200*123*152cm 200*123*152cm 250*143*152cm 250*143*152cm
Product Display
Product Display 1
Product Display 2

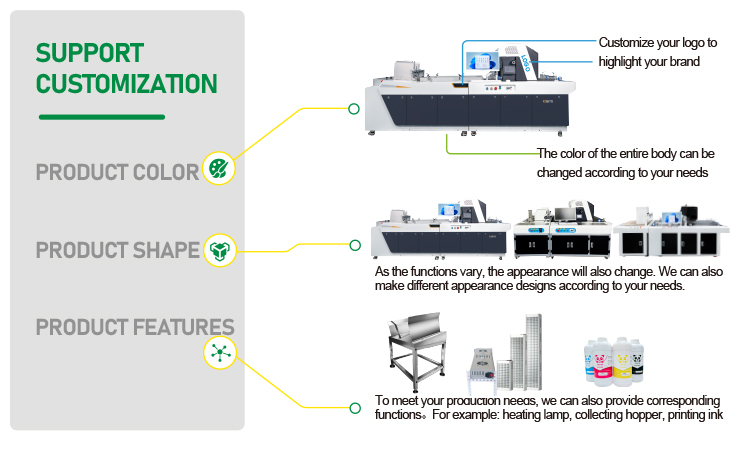

Product Display 3

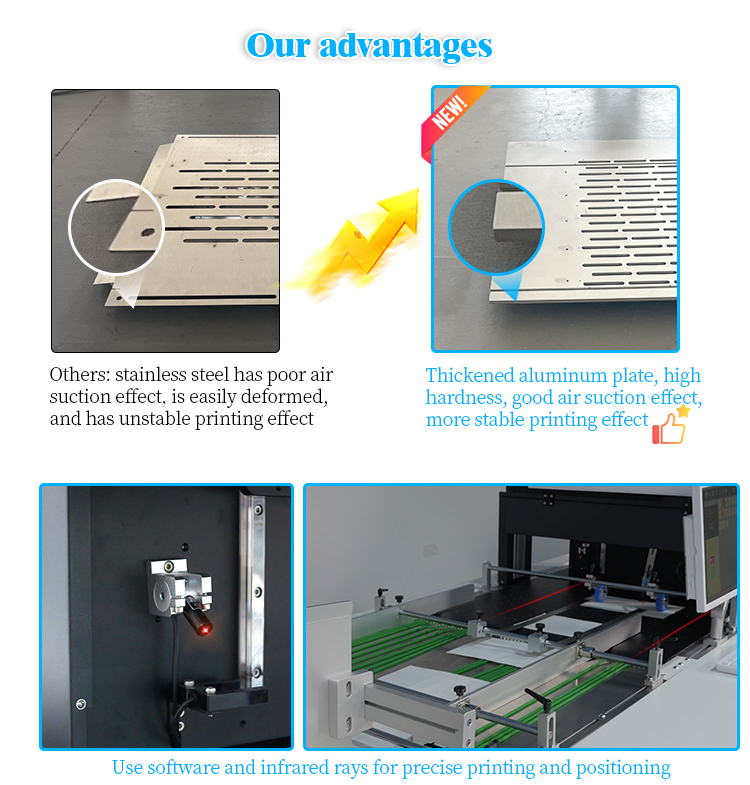

Product Display 4

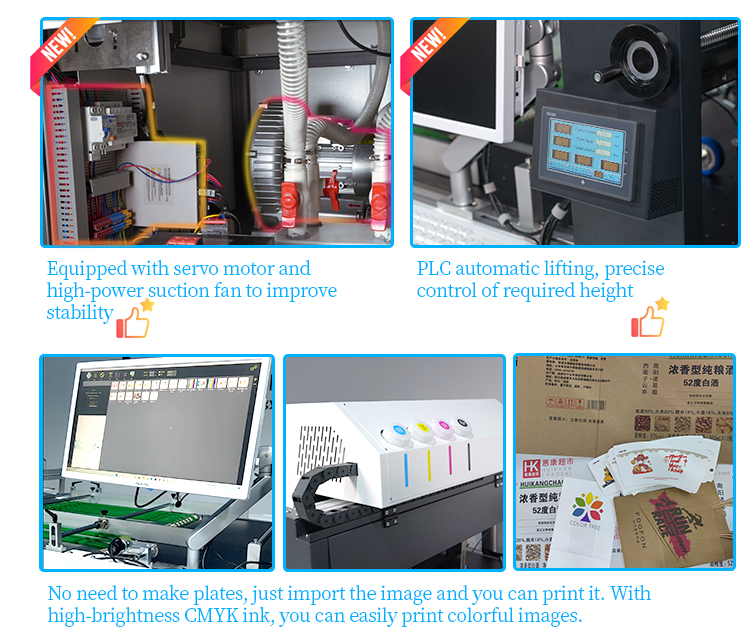

Product Display 5
Print Case
Print Case Showcase
About Us

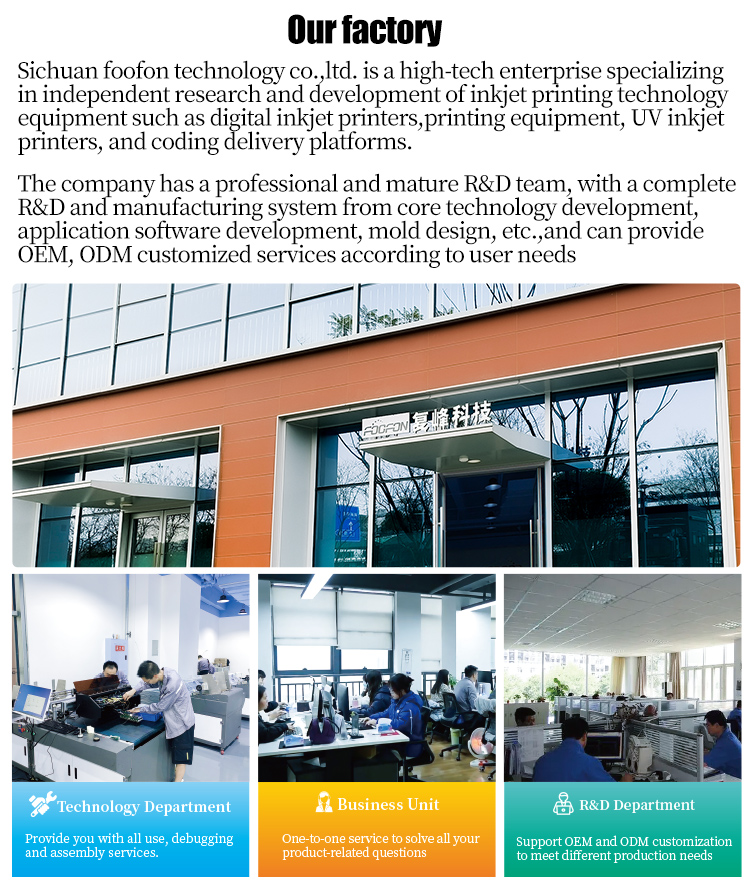

Factory Overview 1
Factory Overview 2
Production Process 1
Production Process 2
FAQ
FAQ Graphic
What printing materials are compatible with this Single Pass Printer?
It is designed for highly absorbent, non-plastic materials such as Kraft paper, corrugated paper, pizza boxes, paper cups/bowls, rice paper, photo paper, toilet paper, and related substrates.
What are the print resolution and speed options?
The printer supports multiple resolution settings including 1200*1200DPI, 1200*600DPI, and 1200*300DPI. It achieves a printing speed of 10-40 meters per minute depending on configuration and settings.
What type of inks does the printer use and what is the color configuration?
The printer uses either dye ink or pigment ink, running in a standard C/M/Y/K color configuration with continuous ink supply and automatic nozzle cleaning systems.
How is the printhead cleaned and positioned?
Nozzle maintenance is simplified through an auto-cleaning method, and printing accuracy is managed using high-precision infrared positioning technology.
Does the printer support customization options?
Yes, customized services are available to accommodate different print widths, printhead configurations (1 to 6 PCS options supporting both T129HD and A3 specifications), and unique operational requirements.
What are the input power and operating environmental requirements?
The printer operates on a 220V/10V 50HZ/60HZ power supply. Best performance is achieved within a normal temperature range of 15-35°C and relative humidity levels of 20%-80%.
