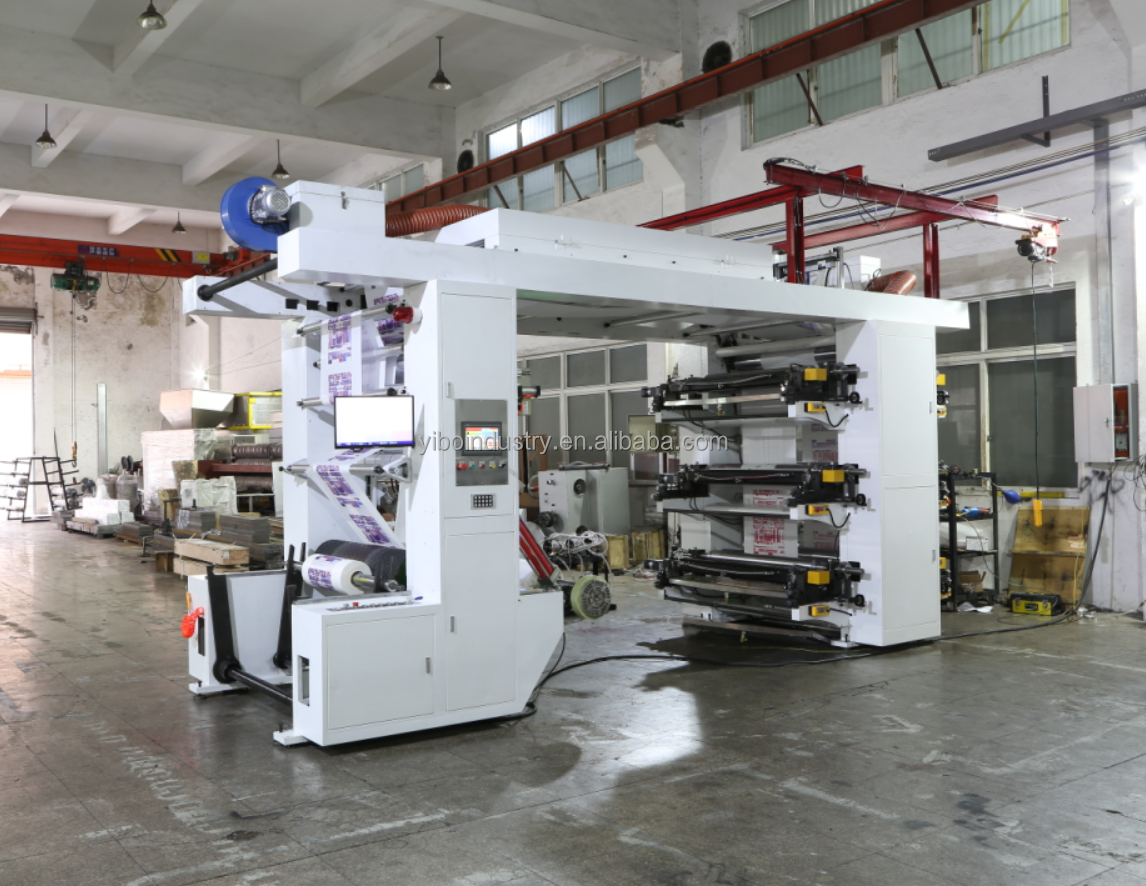

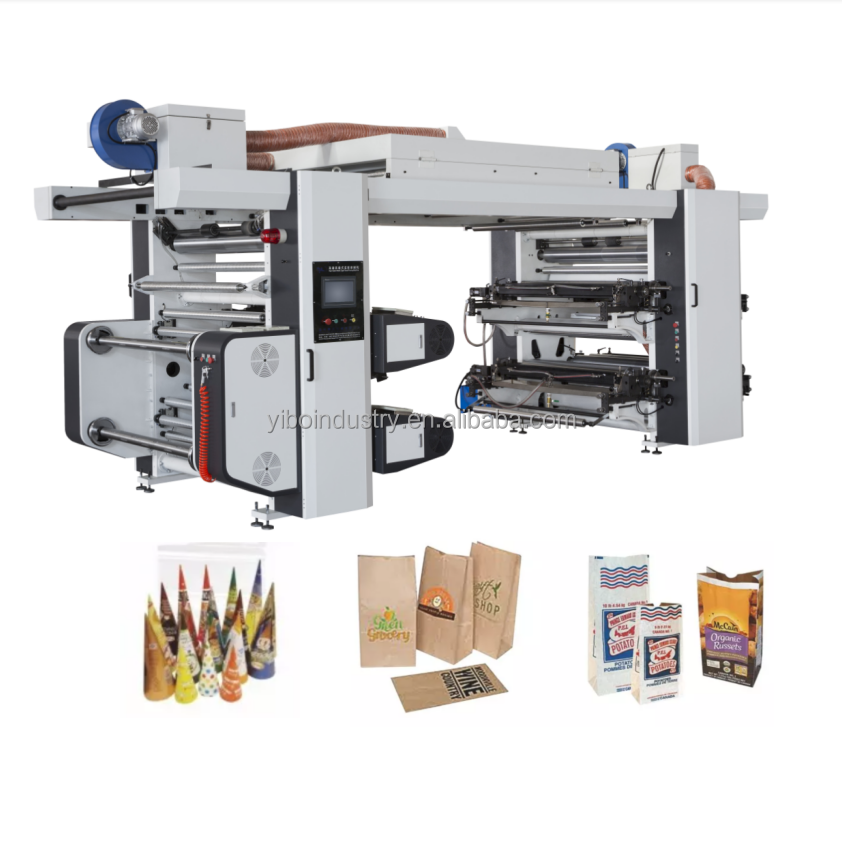

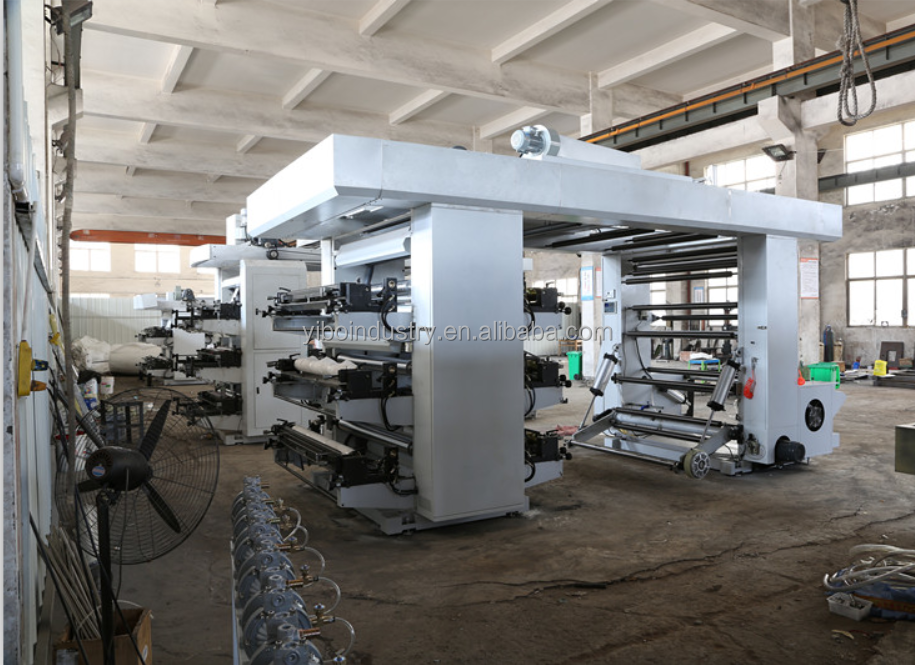

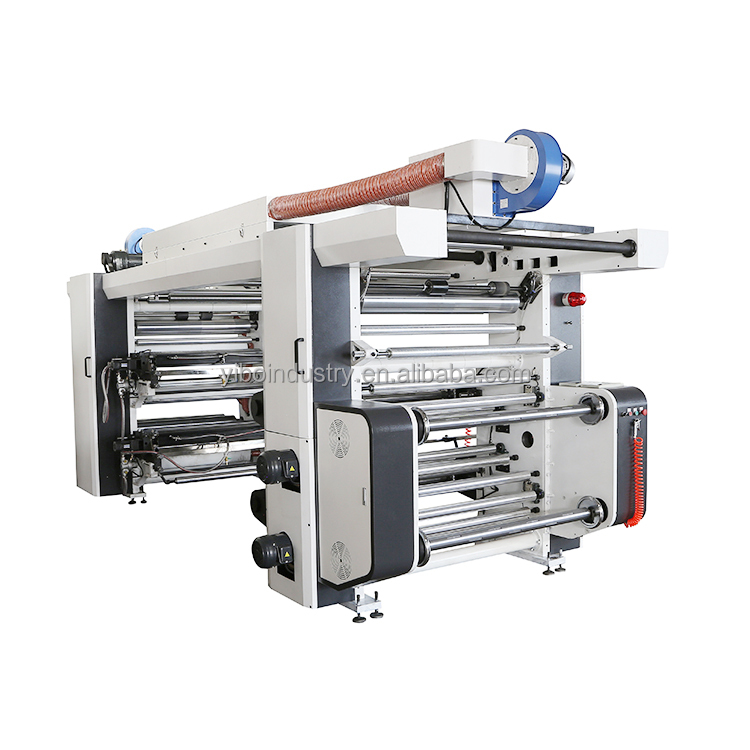

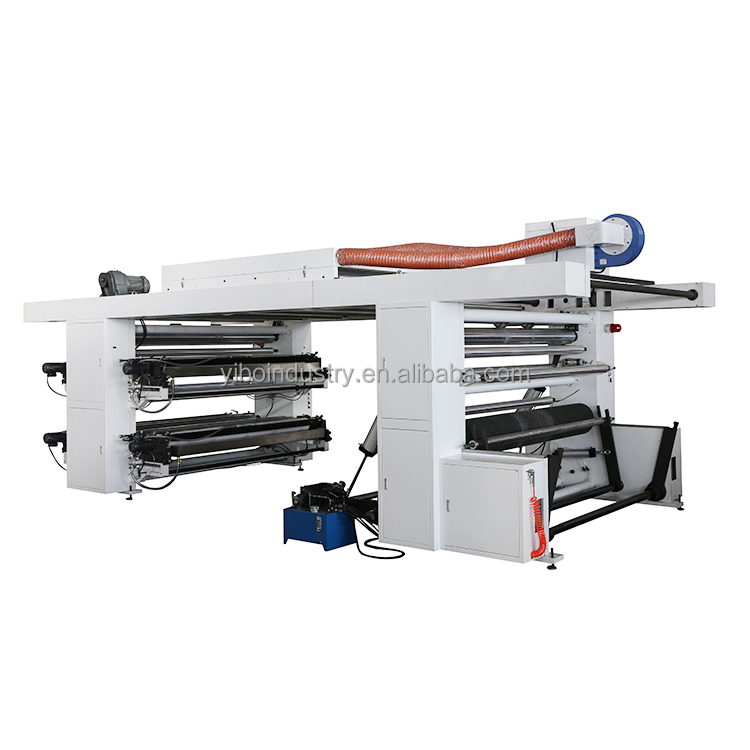

High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
1 / 5
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags
High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags

High Quality Plastic Roll Letterpress Label Printing Machine 2 4 6 8 Colour Polypropylene Flexo Printing Machine on Plastic Bags

Send Inquiry

Product Description

Product Description & Main Parameters
Model
YT-B6600-1800
Max Width of Material
600 - 1400 mm
Max Width of Printing
560 - 1360 mm
Printing Color
4 Colors
Max Length of Printing
200 - 1100 mm (400 mm standard)
Mechanical Speed
10 - 120 m/min
Max Printing Speed
10 - 70 m/min
Thickness of Plate
2.38 mm (including the glue)
Machine Weight
7800 Kg
Machine Dimension
4500 × 2600 × 2800 mm
Voltage
380V, 3PH, 50HZ
Compatible Materials
• Non-woven fabric: 15-120g    • Paper: 15~400g/m²    • Aluminum foil: 30~150μm
• Woven Fabric: 15-500g/m²    • PVC: 15~120μm    • OPP: 10~100μm
• BOPP: 10~100μm    • PE: 15~150μm    • NY: 15~120μm
• PET: 15~100μm    • CPP: 15~100μm
Technical Specifications (YB-1200mm Model)
Parameter Item Details / Specifications
Model YB-1200mm
Printing Color 4-6 color
Max material width 1200mm
Max effective printing width 1170mm
Printing length 280-1000mm
Mechanical speed 20-120m/min
Printing speed 20-100m/min (According to the printing of different materials)
Plate thickness (including double-sided adhesive tape) 2.28mm or 1.7mm (Customers can choose according to their own requirements)
Anilox roller Ceramic anilox roller
Ink type Water based ink or Solvent ink
Heating power 35KW
Total power 45KW
Machine weight About 9200Kg
Machine size 5800*2300*3250mm
Working power supply 3P 380V 50HZ
Machine Show

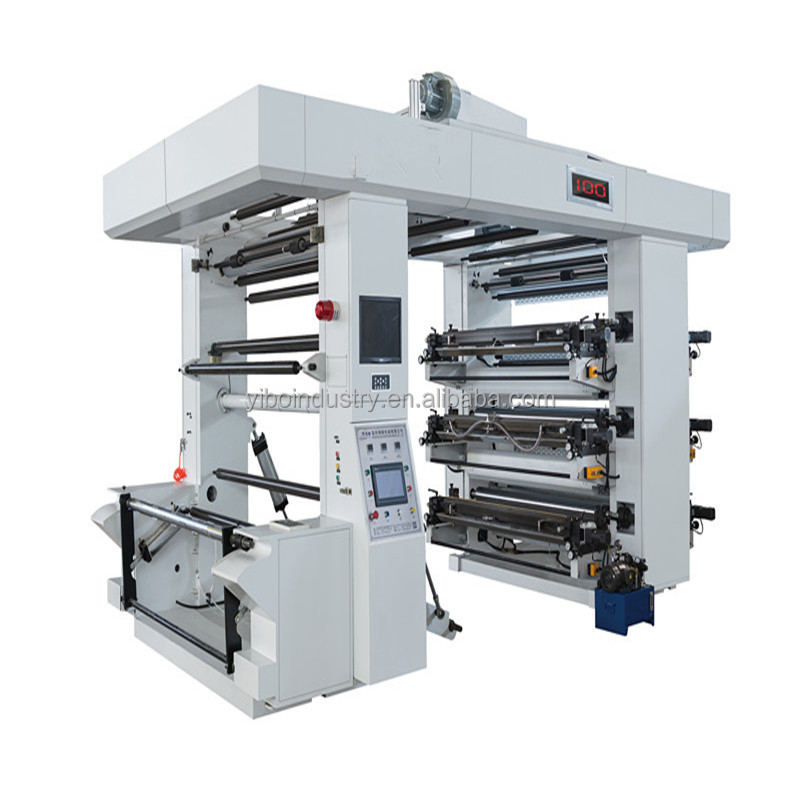

Machine details

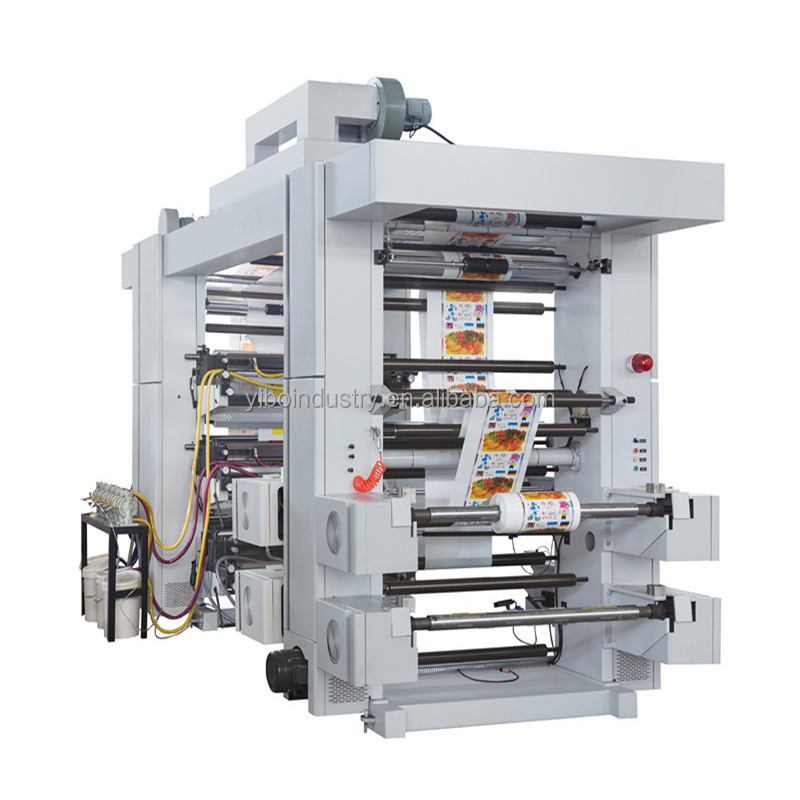

Machine components
Flexographic printing system

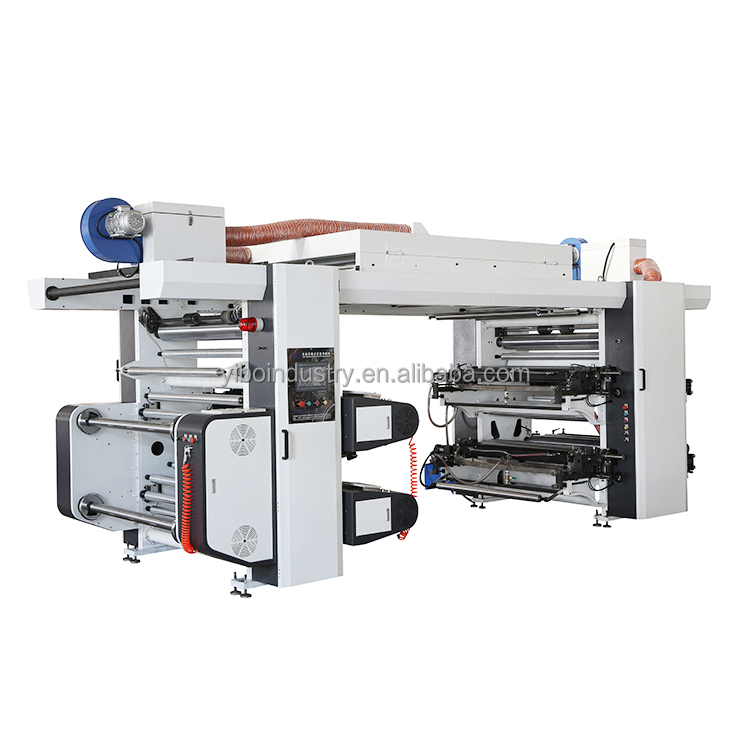

Printer configuration
Roller mechanism

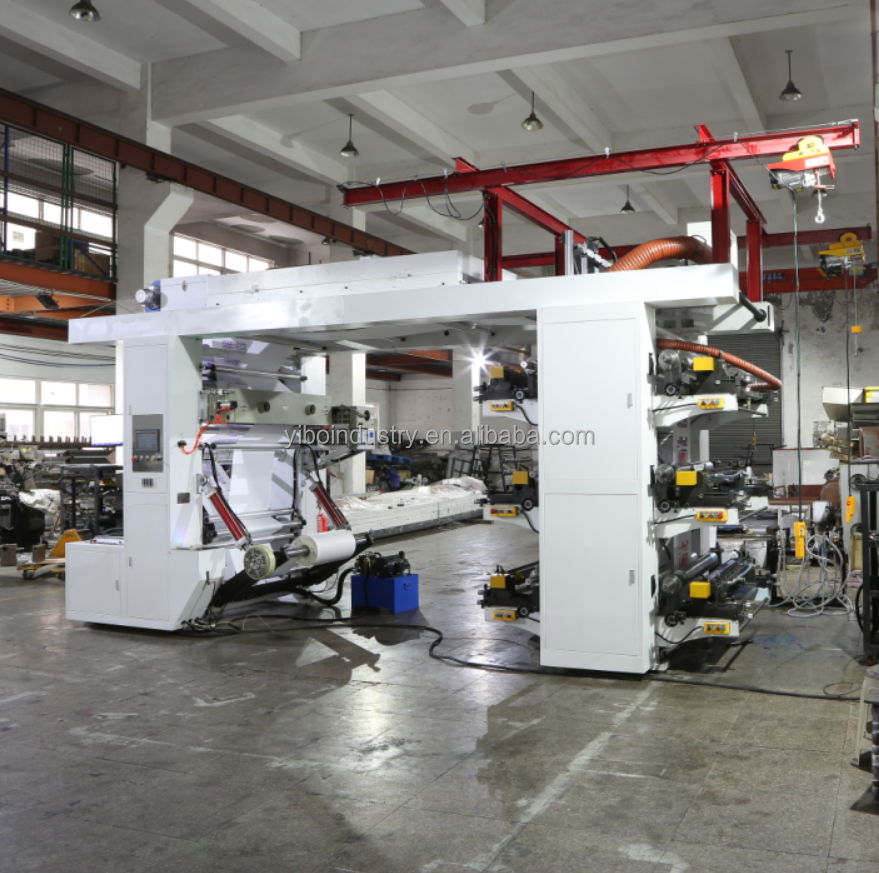

Structure layout

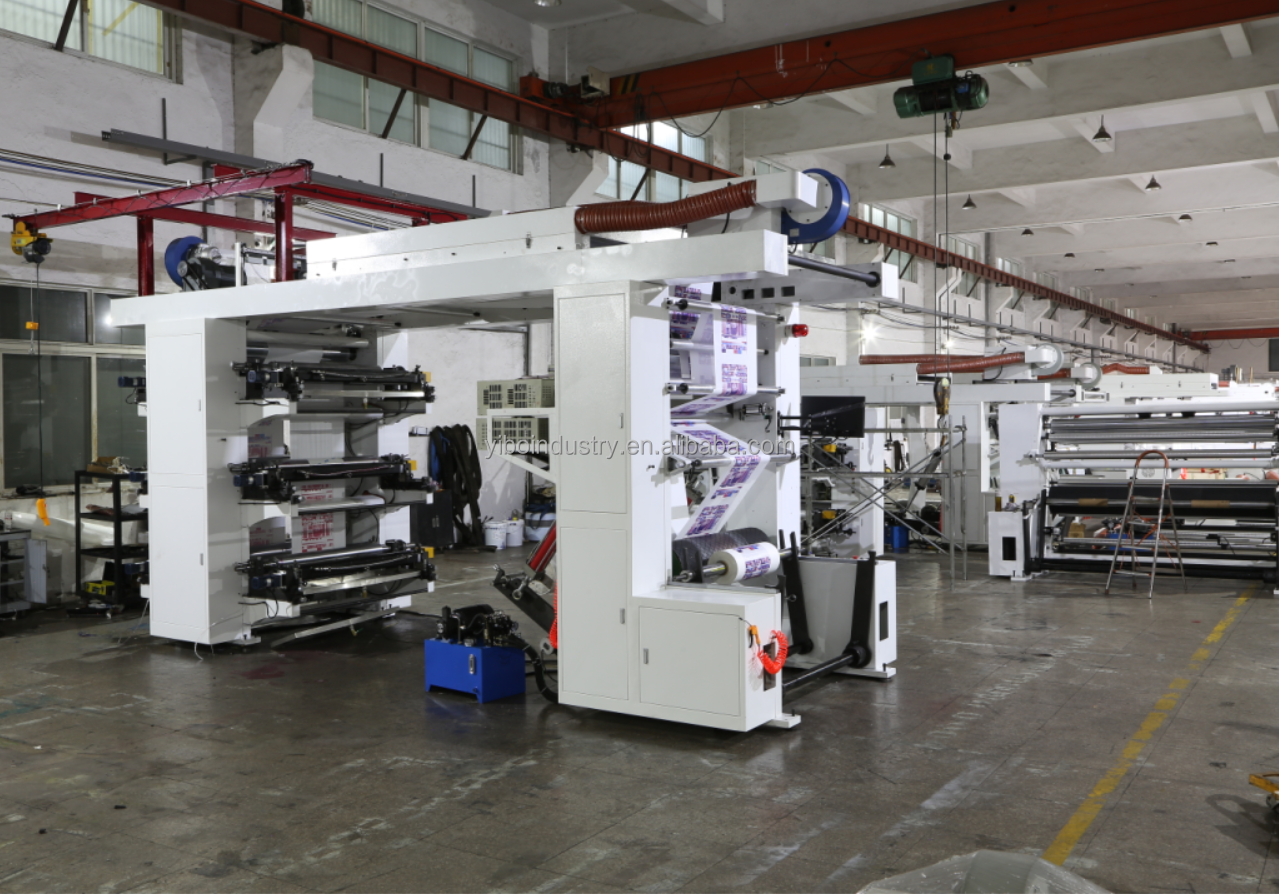

Control unit
Detail view

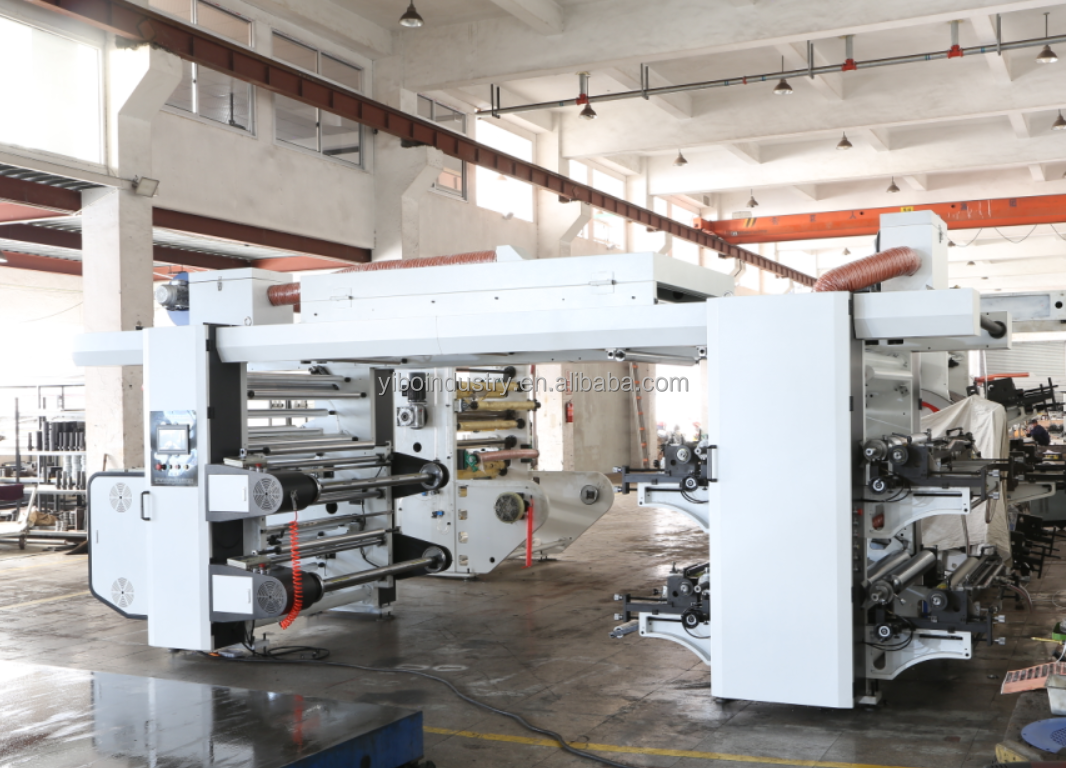

Operating station

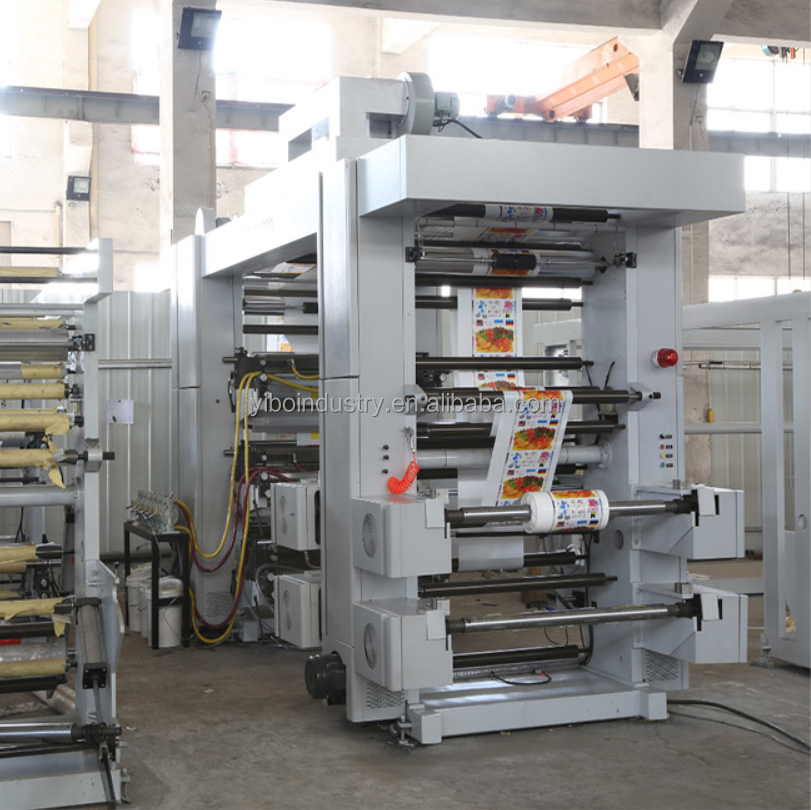

Printing rollers
Company Profile

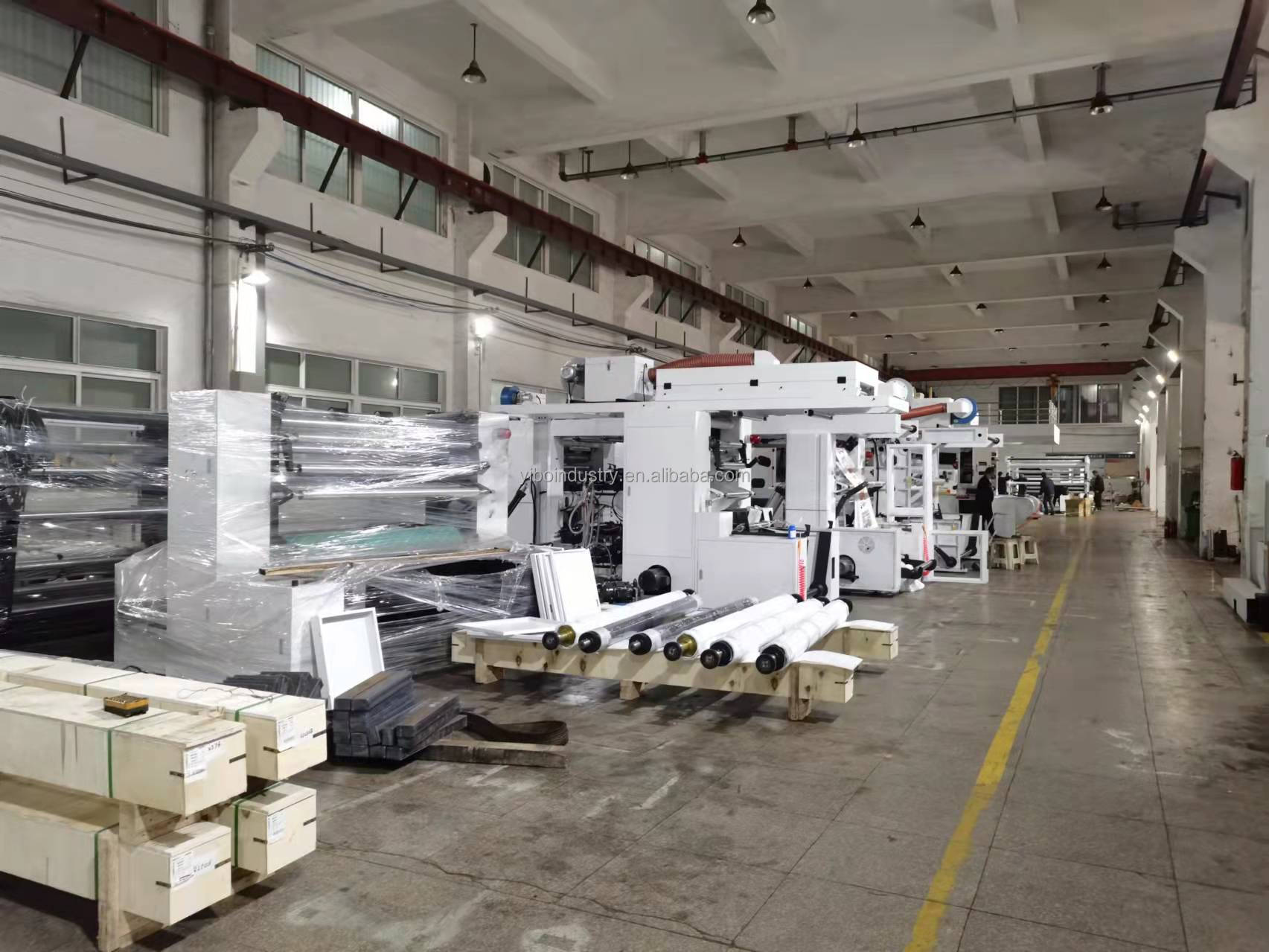

Workshop overview

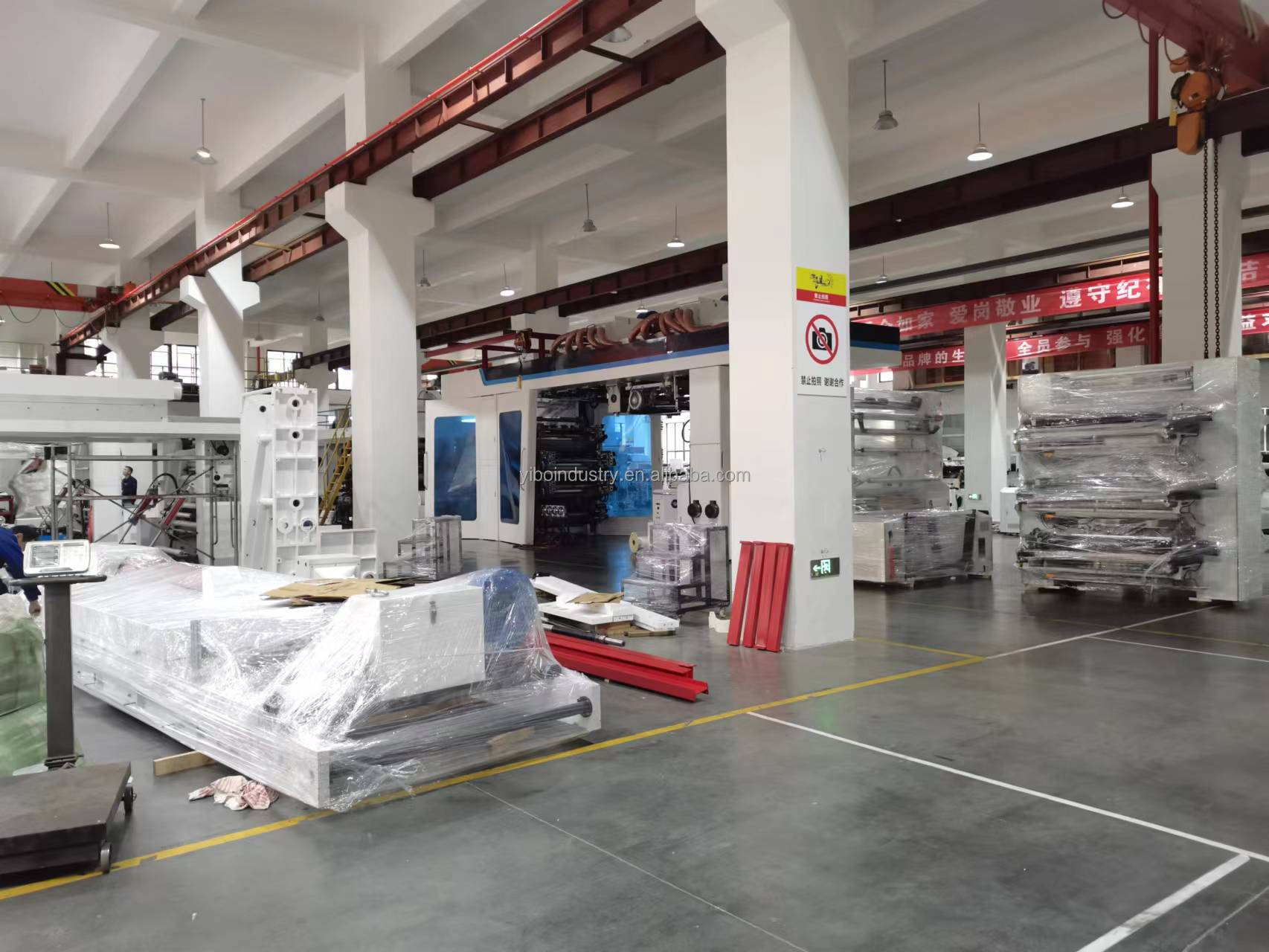

Manufacturing floor

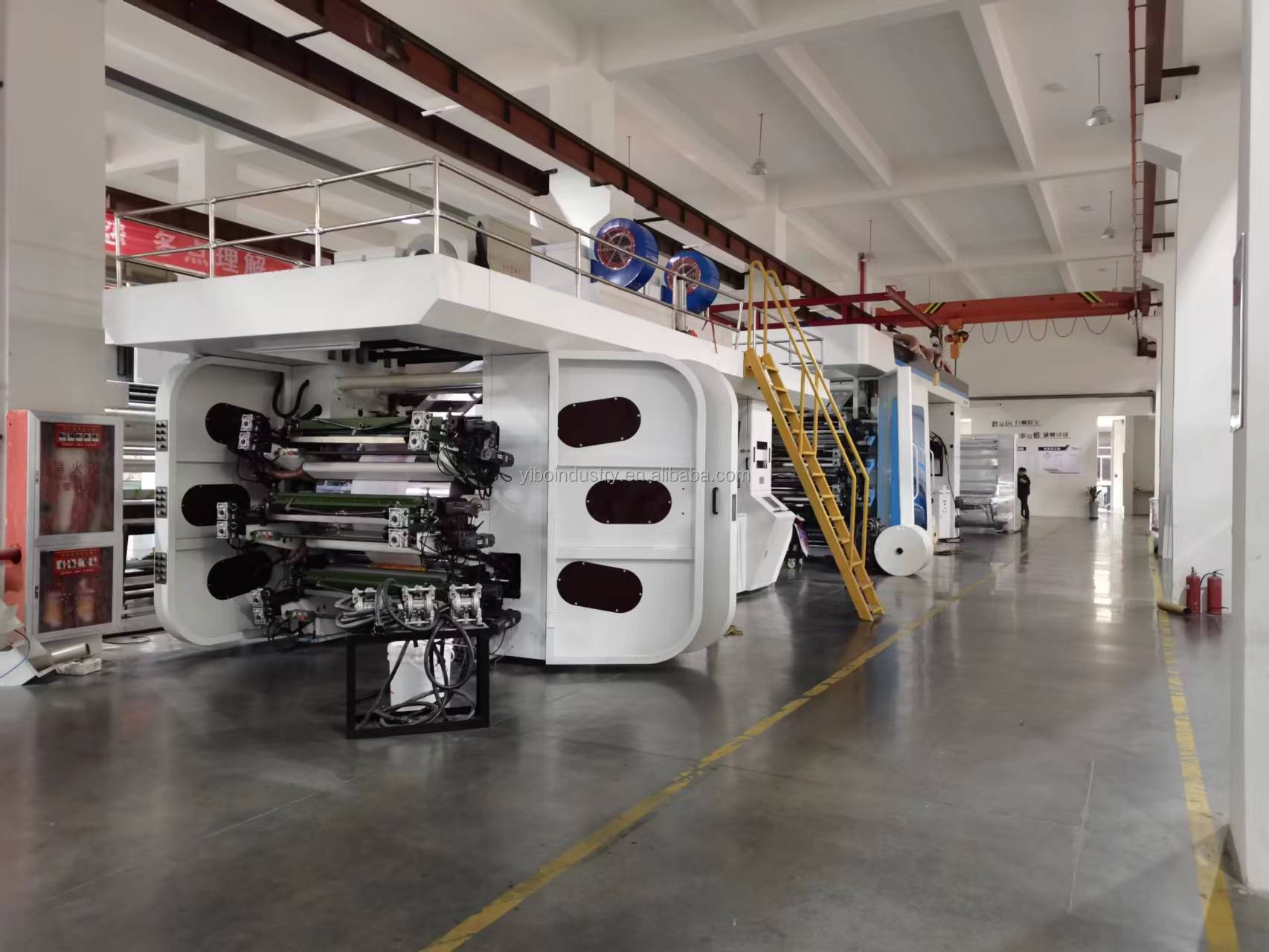

Assembly process

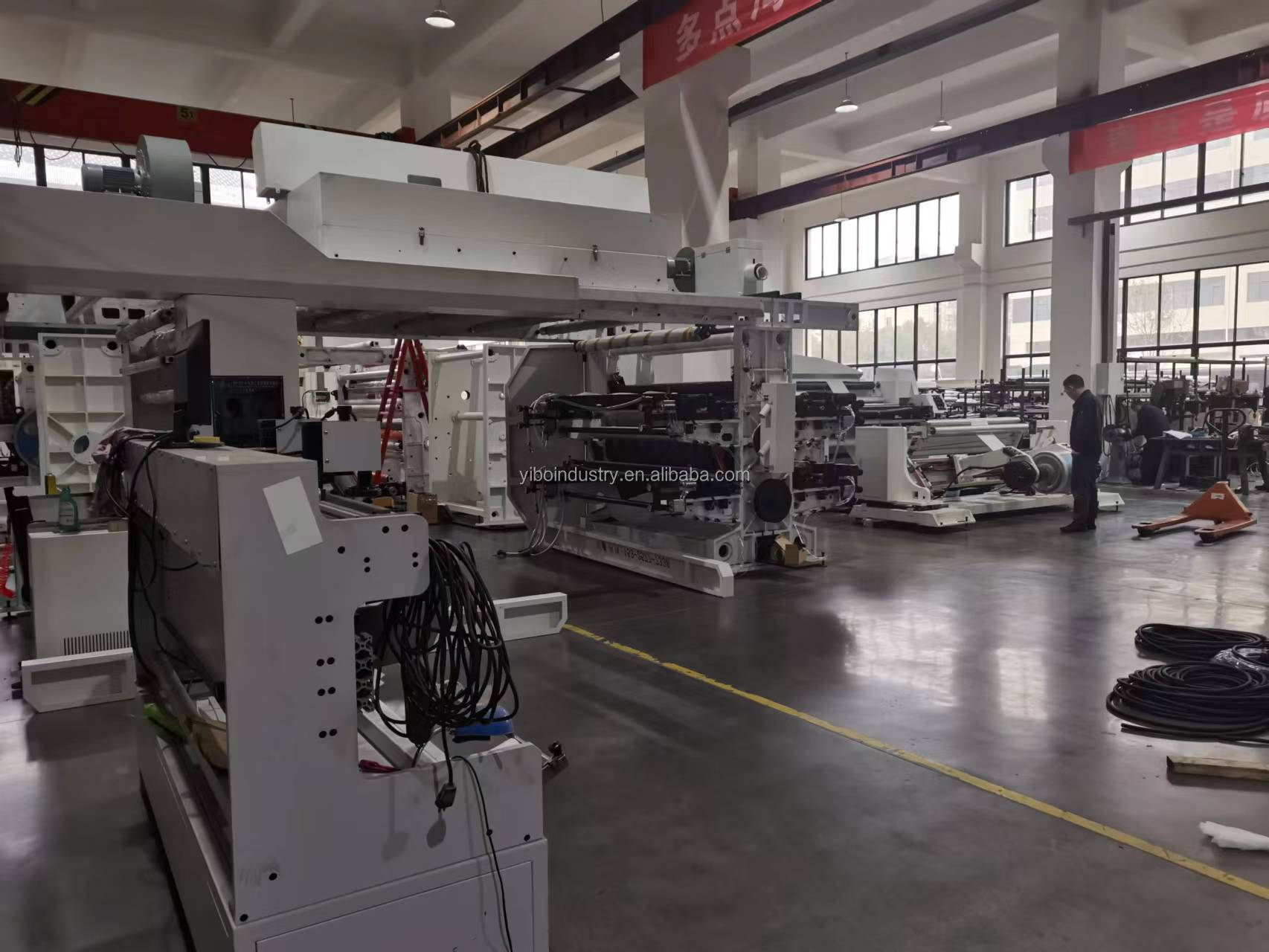

Office building
Customer Photos
Customer visiting factory
Customer discussion
Factory tour
Business cooperation
Customer site visit
Successful delivery
On-site inspection
Certifications
Certificate 1
Certificate 2
Certificate 3

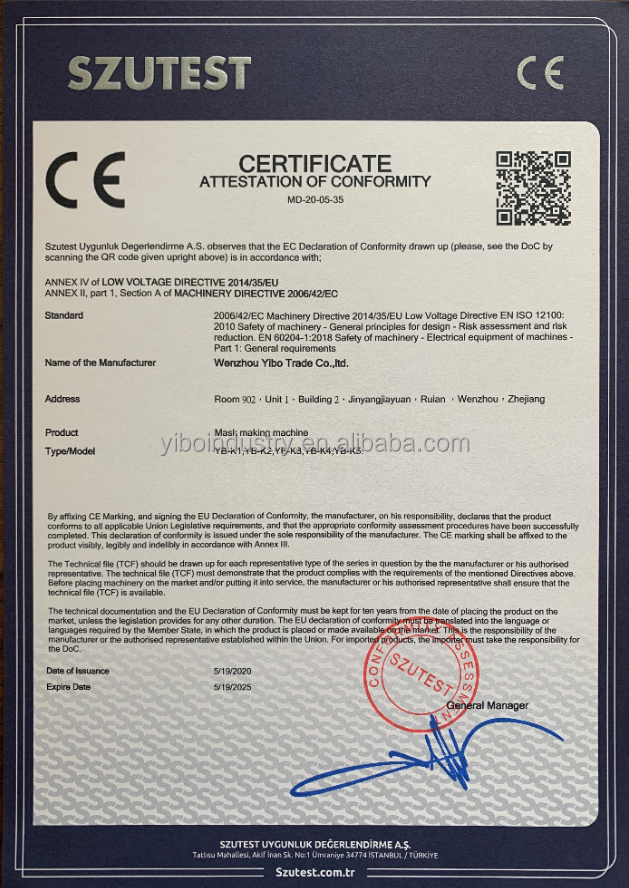

Certificate 4
Loading & Delivery Photos

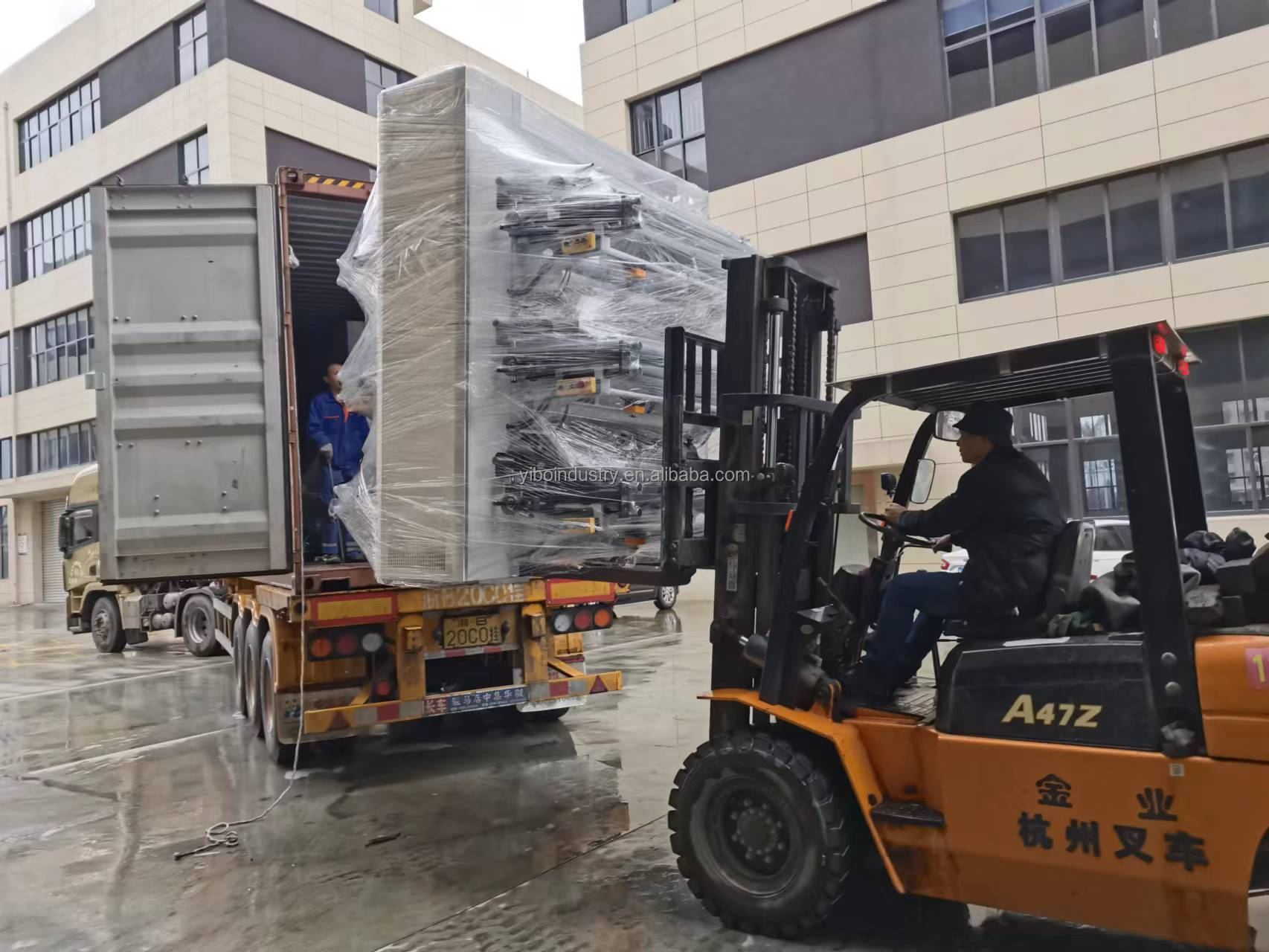

Packaging preparation

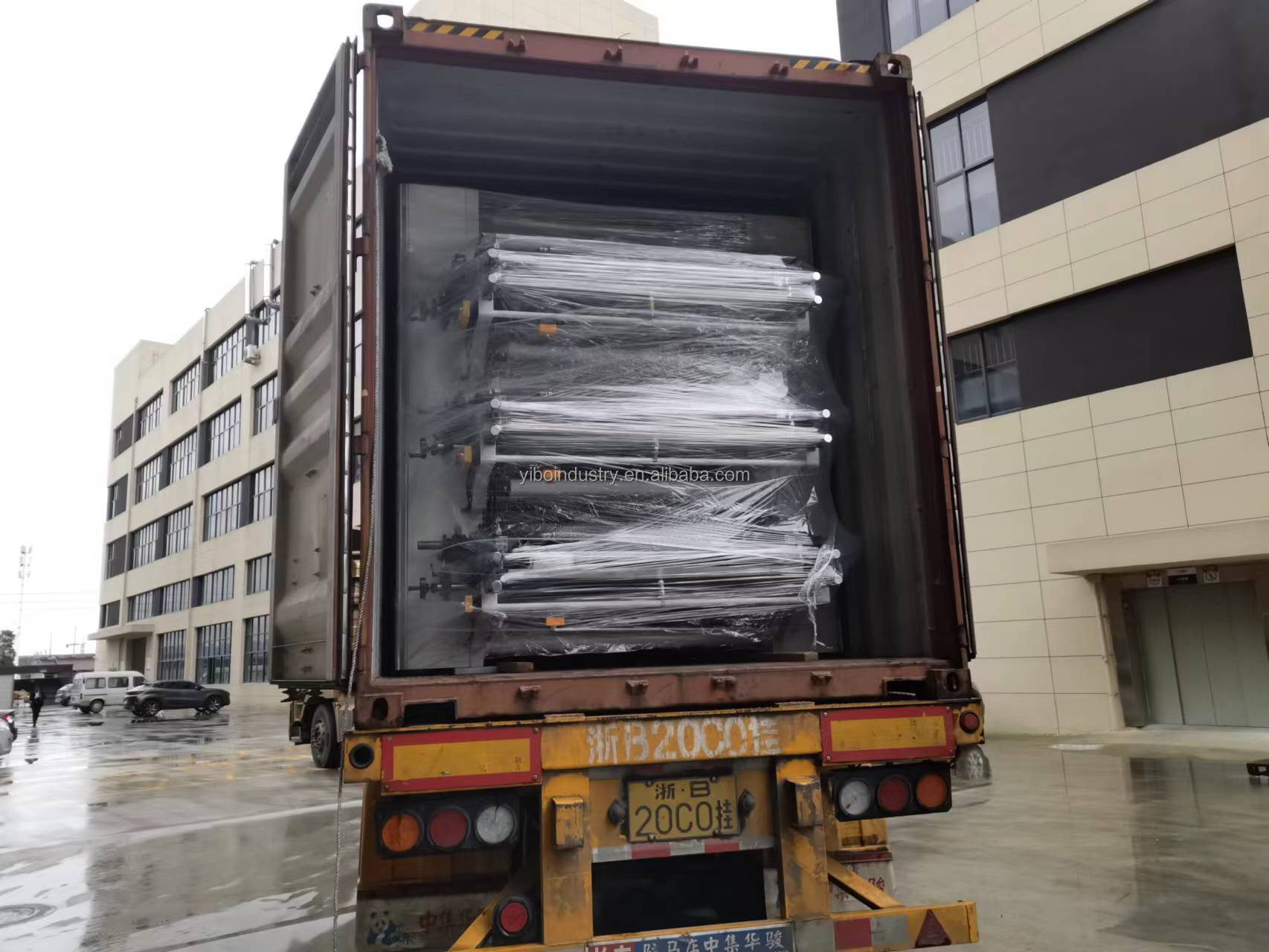

Loading process

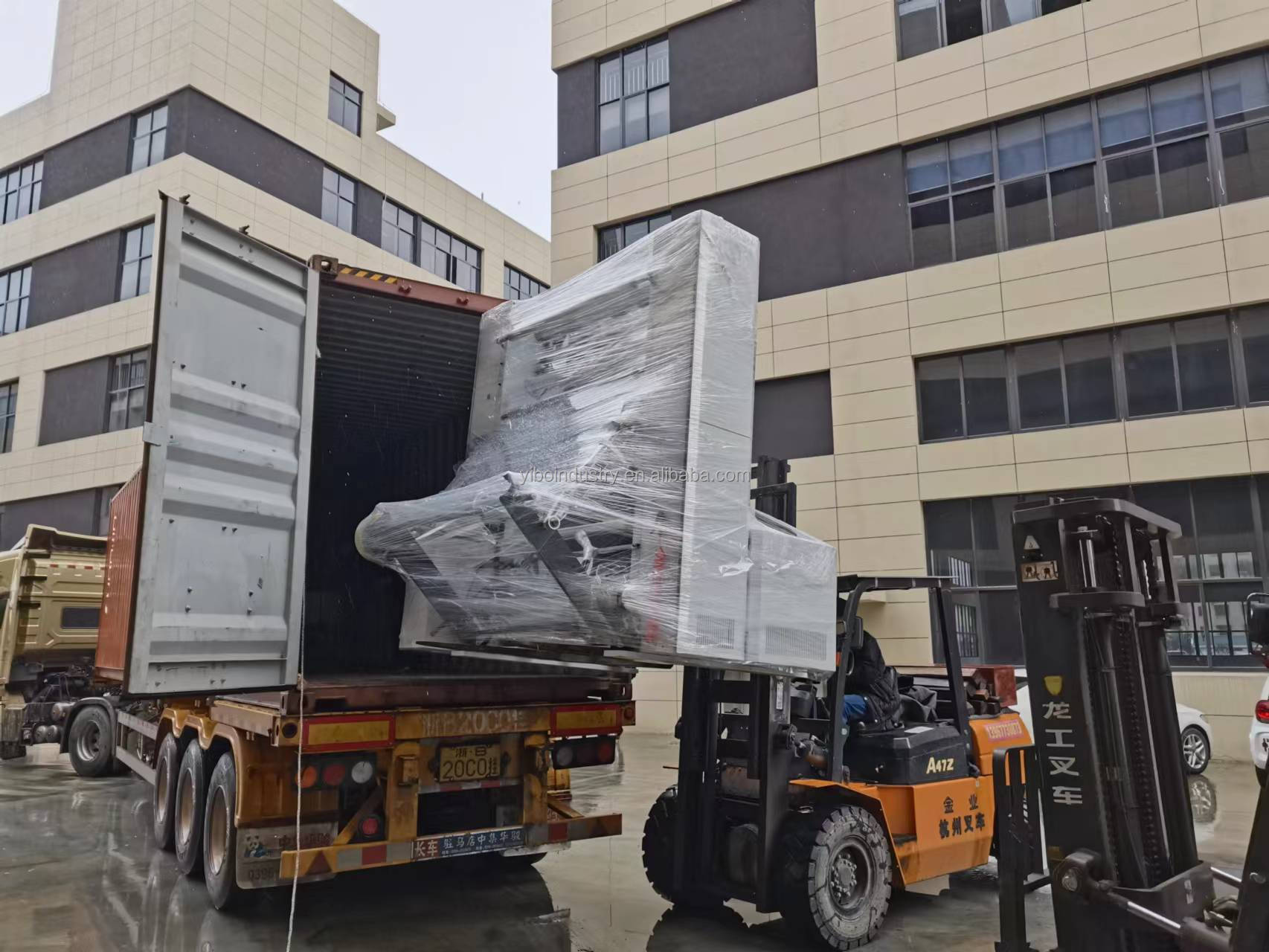

Secure fastening
Container preparation

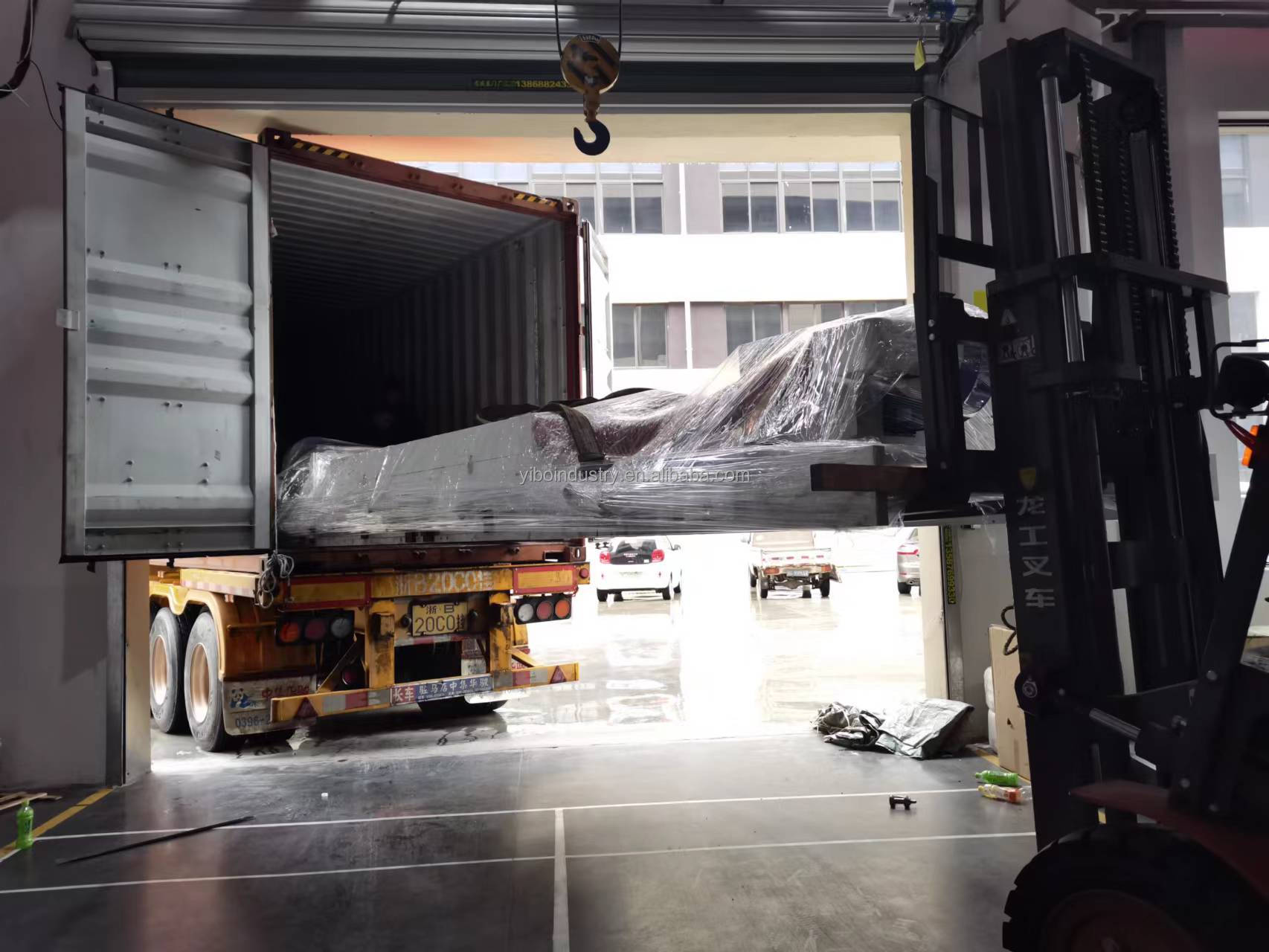

Crane loading

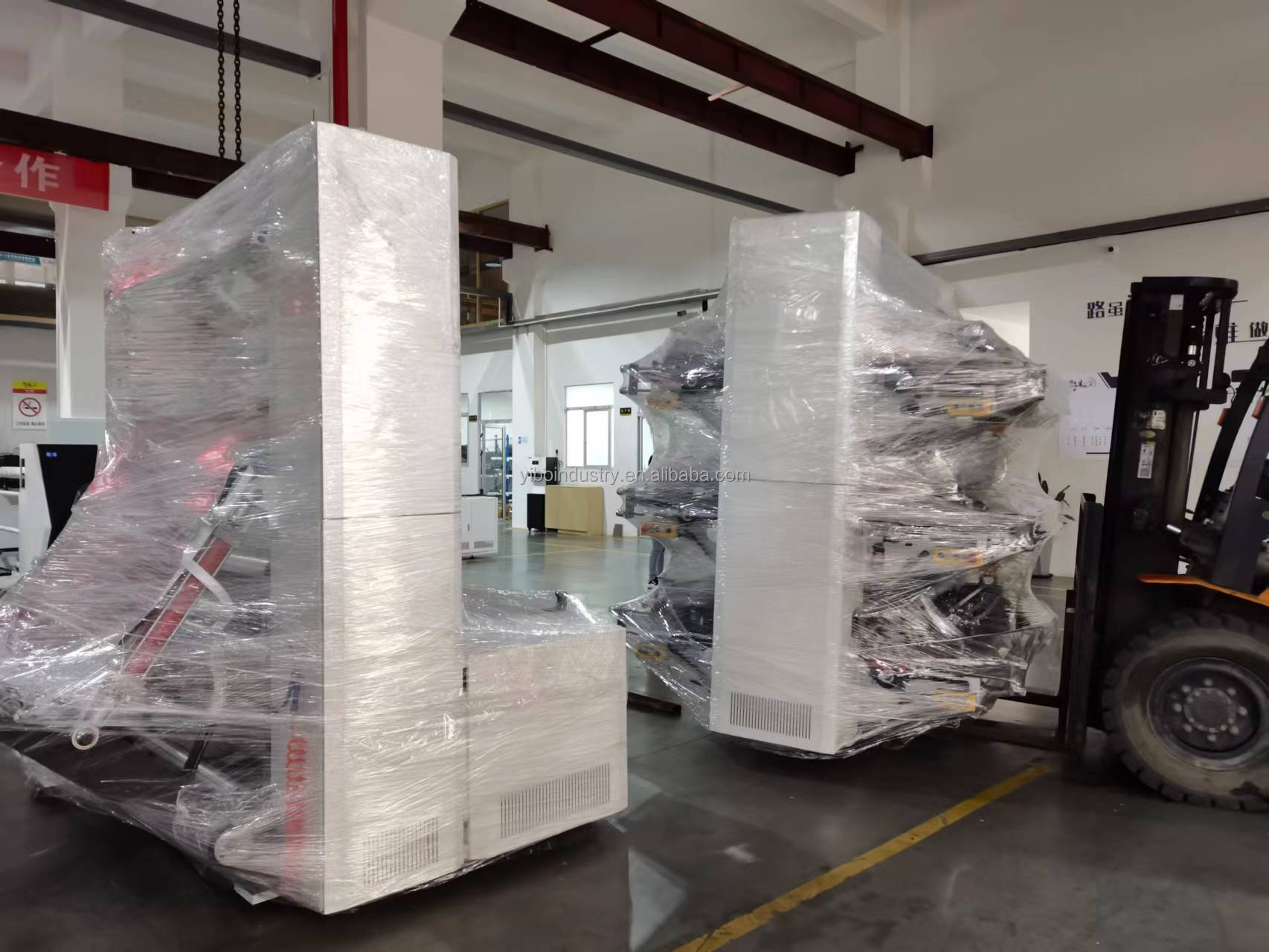

Containerized machinery

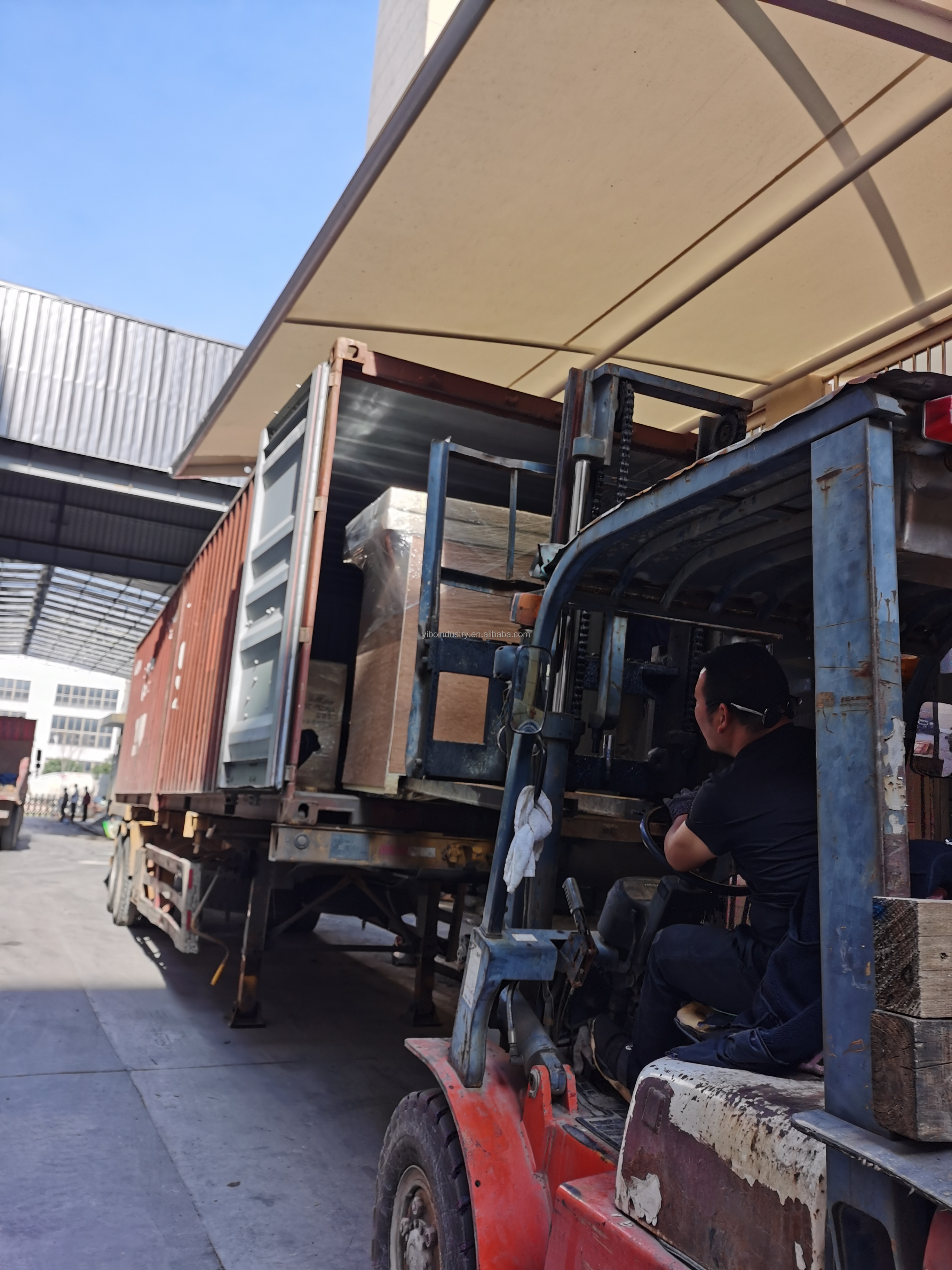

Logistics dispatch
Frequently Asked Questions (FAQ)
What materials are compatible with this flexographic printing machine?
This versatile machine supports a wide range of substrate materials, including Non-woven fabric (15-120g), Paper (15-400g/m²), Aluminum foil (30-150μm), Woven fabric (15-500g/m²), and various plastic films such as PVC, OPP, BOPP, PE, NY, PET, and CPP.
What is the printing speed and mechanical speed of the machine?
For the standard model, the mechanical speed is 10-120m/min, and the actual printing speed is 10-70m/min. For the YB-1200mm model, the printing speed can reach up to 20-100m/min depending on the ink, thickness, and properties of the specific substrate materials being used.
What type of ink does the equipment support?
The machine is highly compatible with both water-based ink and solvent-based ink, allowing you to choose the formulation that best matches your production specifications, material requirements, and environmental standards.
What are the differences in plate thickness configurations?
The standard plate thickness including double-sided adhesive tape is 2.28mm or 1.7mm. Customers can choose either thickness configurations according to their project requirements and existing plate-making setup.
Does the machine use a ceramic anilox roller?
Yes, the machine comes equipped with a high-performance ceramic anilox roller. Ceramic anilox rollers ensure much more precise, consistent ink transfer, finer print resolution, and extended service life.
What are the power requirements to run the machinery?
The standard operating power supply for the machine requires a 3-phase, 380V, 50HZ configuration. The total power is approximately 45KW (with 35KW allocated for the drying and heating system).
