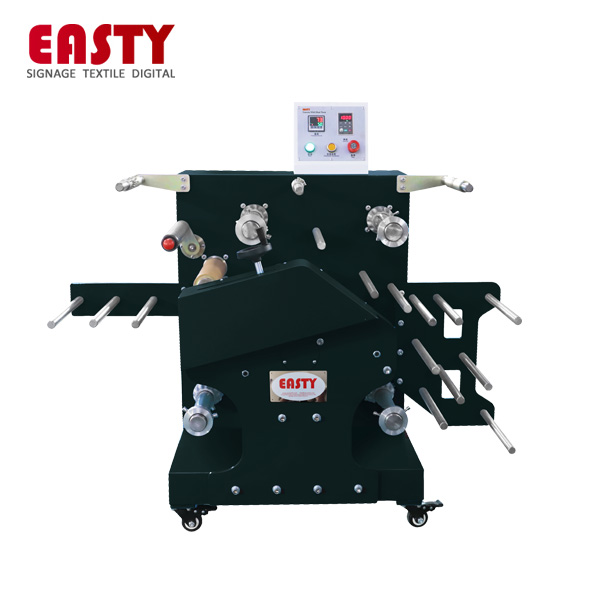

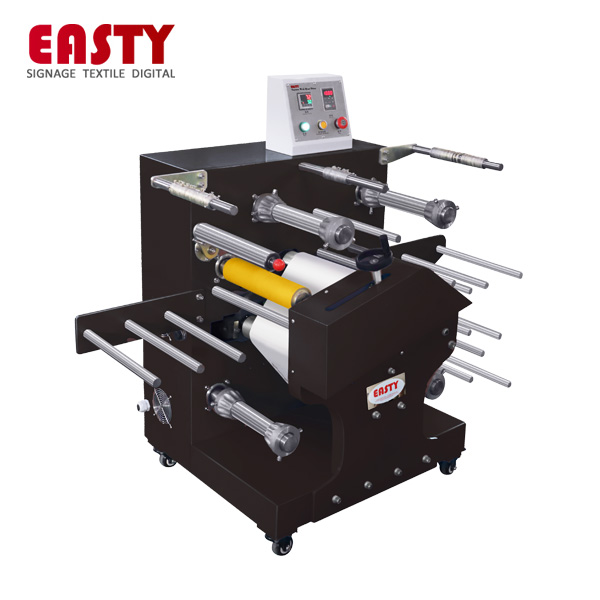

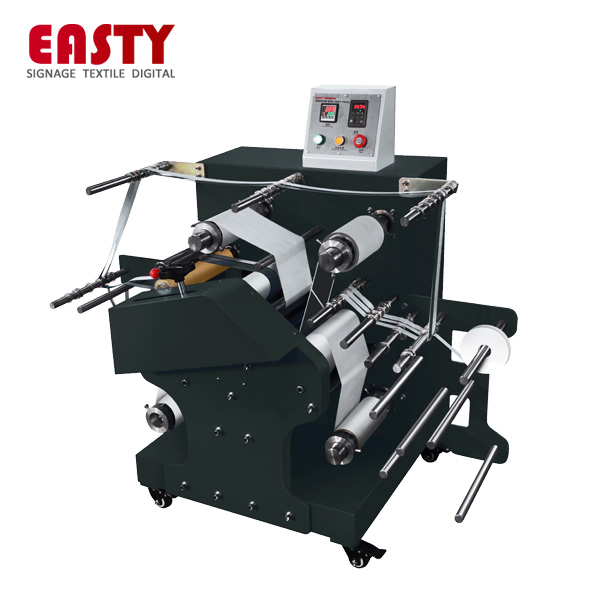

ELT-0321 Narrow Web Rotary Heat Press Roller Lanyard Ribbon Heat Transfer Machine for Dye Sublimation Printing Reliable Motor
Introducing the ELT Mini Narrow Web Calender Heat Press - the latest and greatest in sublimation equipment for narrow webbings. With its innovative double-sided printing design and oil-filled system, it offers true solid state heat control, producing constant and even color transfer for high-speed, continuous fabric sublimation.
ELT Mini Narrow Web Calender Heat Press brings together decades of engineering and design expertise to create the most reliable heat press machine on the market. Its unique design includes a dual unwind system for loading media without stopping, keeping jobs rolling for as long as you need and saving time and money.
But the real ingenuity of the ELT Mini Narrow Web Calender Heat Press lies in its convenient and unitized design. It's compact, portable, and durable without separate pieces that can loosen or break over time. The cantilevered design also allows for easy access to the rolls, making it incredibly user-friendly.
Discover the unparalleled efficiency and advanced technology of the ELT Narrow Web Calender Press - the ultimate solution for all narrow webbing sublimation needs.
Operation System Features
Operation Panel
Full Separation Hand Crank
Spacers Roller
Webbing Fixing Roller
100% Nomex Felt
Calendar Press Applications
Transfer Printing
Direct inks reactivation
Thermosetting – heatsetting
Calendar Press Features
Auto shut-down (when cooled down to 100℃)
Oil filled heating system with Sealed switch
Dual-layer hard chrome drum
Stronger heating elements (resistors)
Nomex felt with manual tension adjustment
Felt can be fully released from drum in case of blackout
Capable of dual side transfer & pre-shrink in the same process
Space-saving, power-saving, high-safety design
Silicon-controlled rectifier frequency conversion for advanced speed control.
Calendar Press Specifications
Calendar Press Parameter
Specification Details (ELT-0321)
Heating Media
Heating Oil, Sealed Oil Filled
Power (KW)
4KW, Single Phase 110V/220V
Drum Diameter
Hard Chrome Drum 210mm (8.27”)
Transfer Speed
1.1m/min (43.3”/min)
Temperature
Up to 240℃ (464℉)
Heat Element
6pcs
Drum width
300mm (11.81”)
Spacers
10pcs
Application
Roll-to-roll (ribbon, lanyard, belt, garment, etc.) Feeding in through bottom of drum
Parts are eligible for a 1-year warranty under proper use (from EXW-factory time), excluding consumables, felt & drum
Other machine sizes are available upon request
Machine produced according to CE rules
HS Code: 8443399000
Our partners benefit from quality products, excellent service and sourcing in various areas. Having a combination of technology and complementary products, many of which are tested and harmonized to be applied to particular markets.
Frequently Asked Questions
Q: What products do you provide?
A: We offer a wide range of signage, textile, and digital printing solutions, as well as welding, roofing, and personal care equipment.
Q: How long have you been in this industry?
A: Our technical staff and support teams have been serving this industry since 2002.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer with integrated trading branches to offer direct factory pricing along with professional global supply services.
Q: What is the warranty policy?
A: Our standard product warranty is 1 year. The warranty can be extended with an additional 5% coverage plan per year.
Q: What technical support could you offer?
A: We provide free technical consultation and ongoing online support. On-site overseas engineering support is also available subject to travel and labor costs.
Q: How long is your delivery time?
A: Standard machines generally take 5-10 days if in stock. For items out of stock, delivery is 15-20 days for small format machines and 30 days for large format industrial machines.
