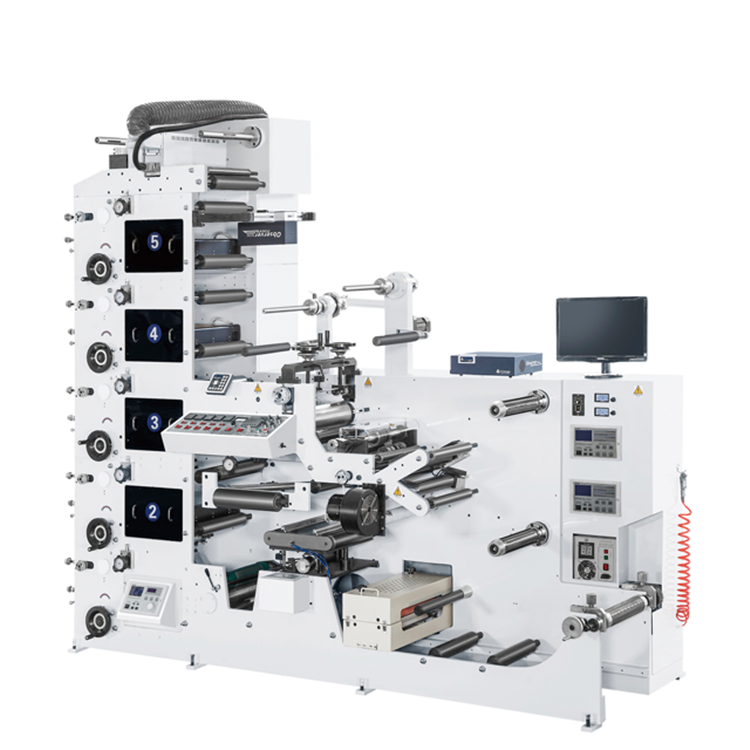

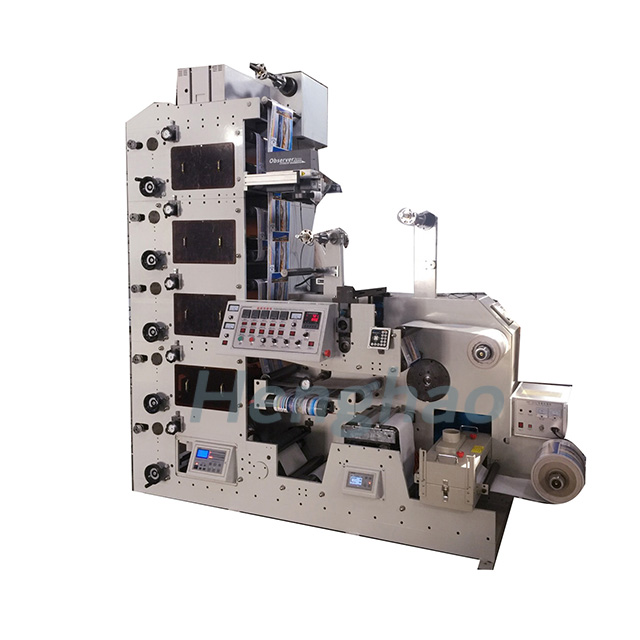

| Model name | RY320-5c |
| Printing speed | 50m-60m/min |
| Print max width | 320mm |
| Unwind roll width | 330mm |
| Unwind roll max diameter | 600mm |
| Rewind roll max diameter | 600mm |
| Printing length | 175-380mm |
| Registering accuracy | ±0.15mm |
| Voltage | 380V±10% |
| Weight | 3800kg |
| Machine dimension | 2600mmX1300mmX2250mm |

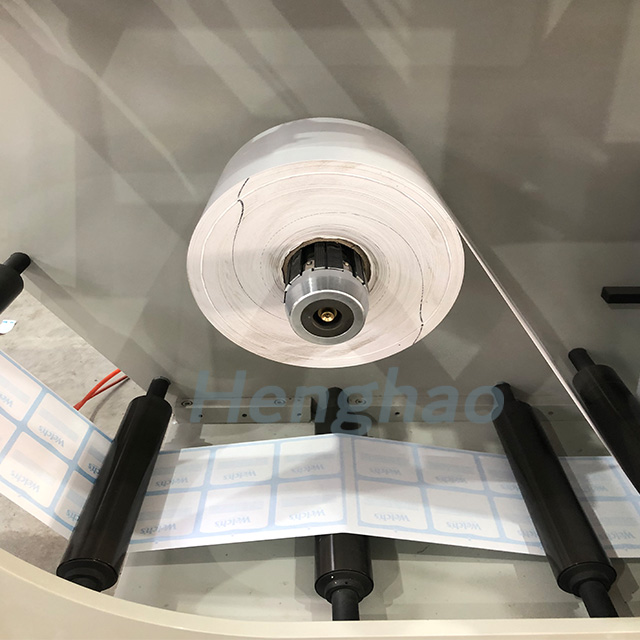

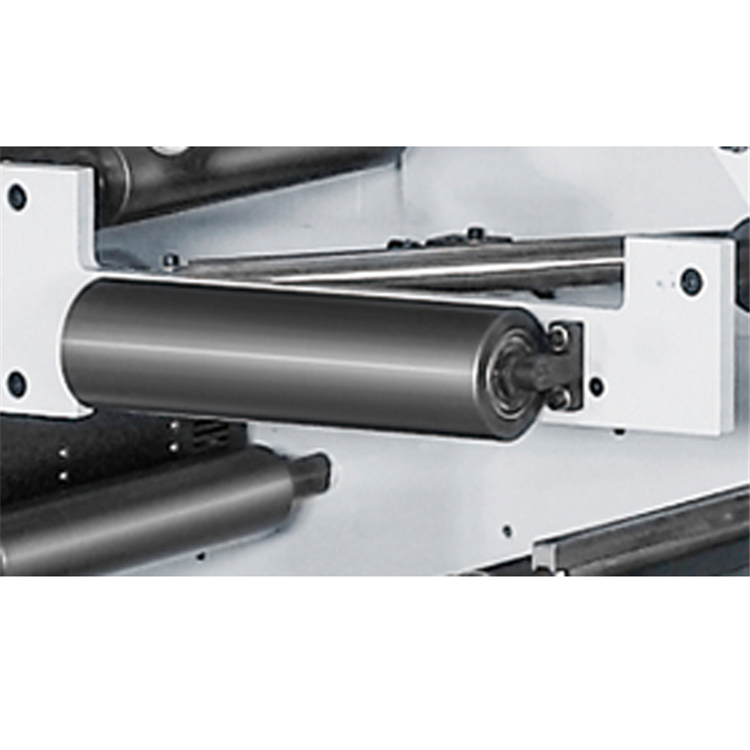

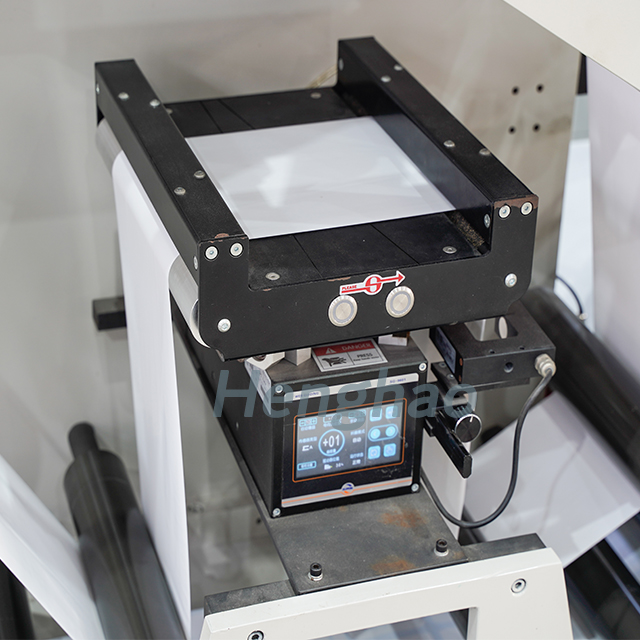

Control paper move straightly

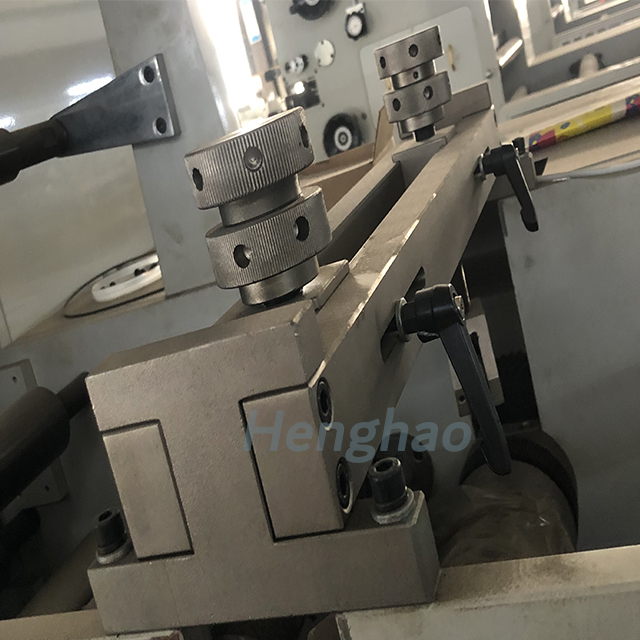

It can use flexible die and magnetic cylinder to cut various type shape of adhesive sticker

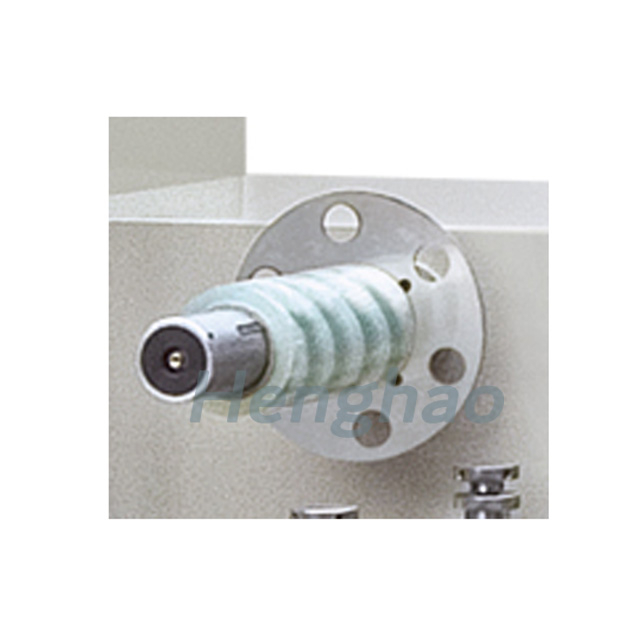

Laminating material on printing material after printing is finished

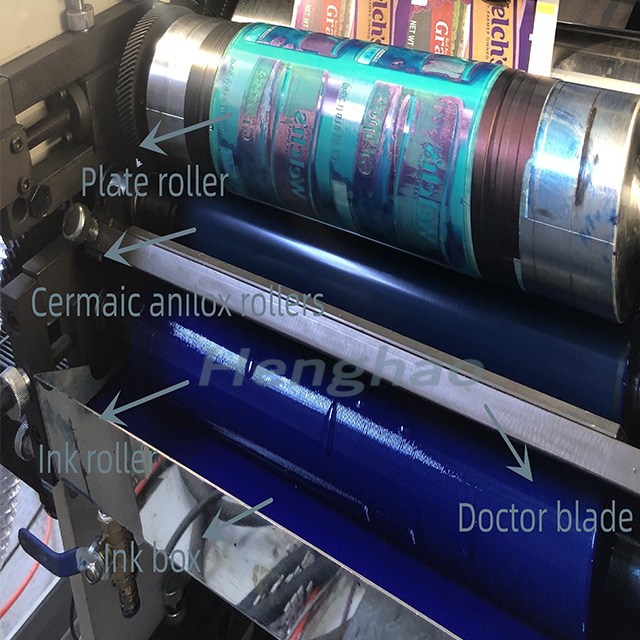

Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container, depend roller, with Helical Gear

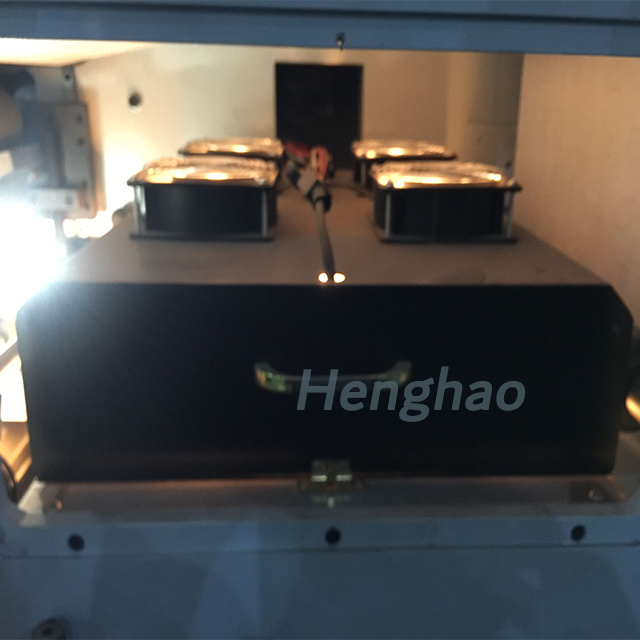

1) Each printing unit is equipped with an infrared heating oven.
2) Two Imported heating lamps fix inner each oven. Heated air feeding by one axial fans.
3) Hot air was fast blew to the printing ink by higher power axial fan, reducing the contact time between the material and the heated air, avoiding material deformation, and improving the registration quality.

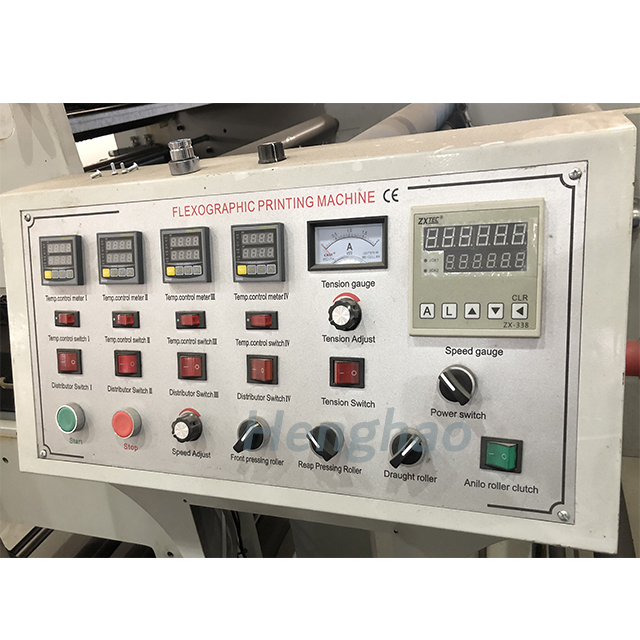

1). Power Supply, Stop Button, Start Button and Emergency Stop.
2). Temperature Controller for each Heating Oven.
3). Anilox Roller Rotation Button for each Printing Station.
4). Length Counter and Speed Controller

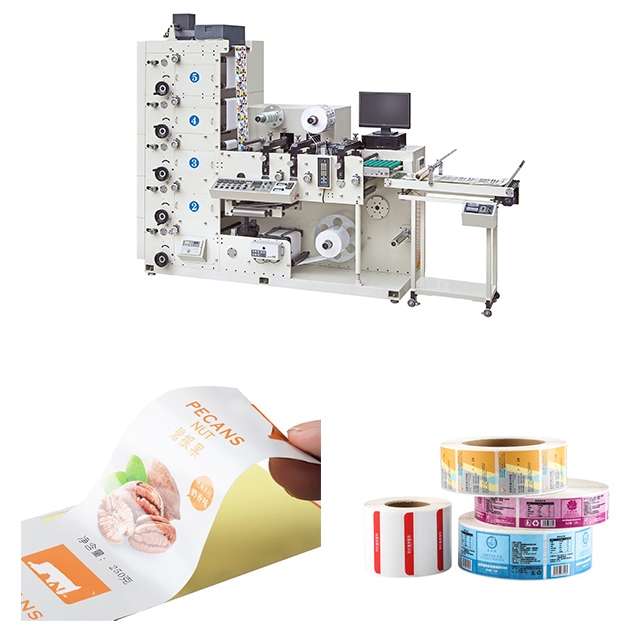

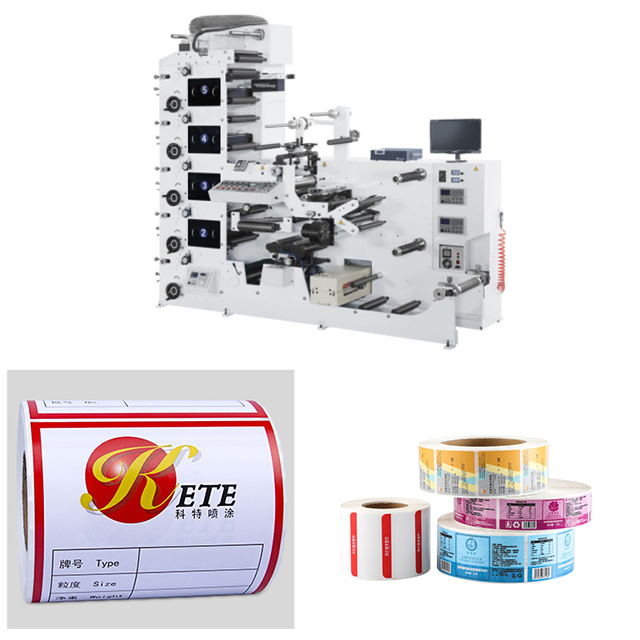

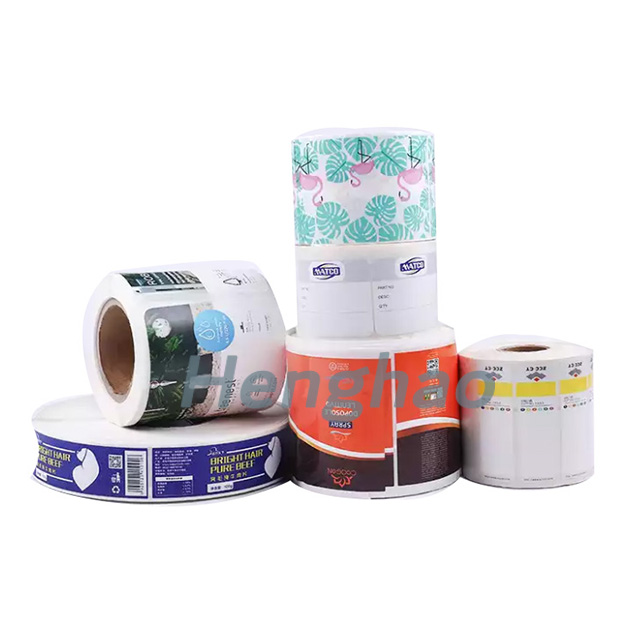

This machine is suitable for roll materials including paper, plastic film, aluminum foil, and adhesive-paper labels, making it ideal for the commercial label printing industry.
The machine operates at a high-efficiency printing speed ranging from 50 meters to 60 meters per minute.
Yes. The machine supports unwinding, printing, varnishing, IR drying, laminating, and rewinding processes, which can all be finished in a single cycle.

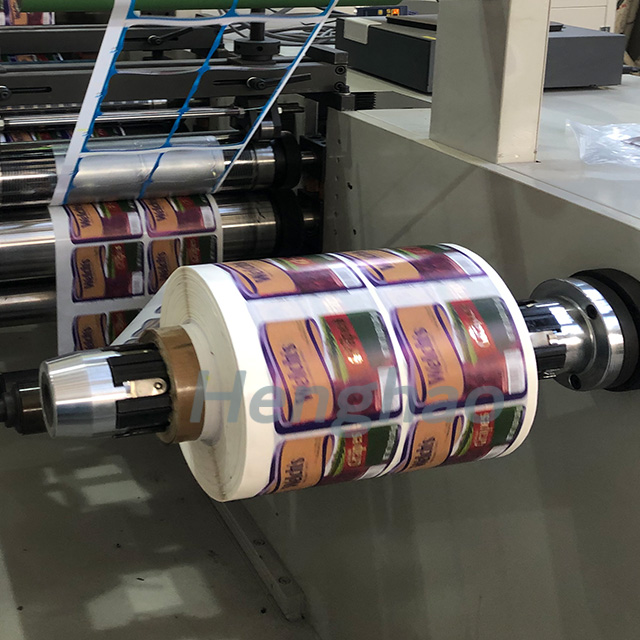

Both unwinding and rewinding are controlled by a magnetism power brake and clutch system, supported by an automatic constant tension controller.
Each printing unit is equipped with a standard infrared (IR) heating oven containing imported heating lamps. An optional ultraviolet (UV) dryer is also available depending on requirements.
The machine maintains a precise registering accuracy of ±0.15mm, ensuring consistent high-quality print alignment.
