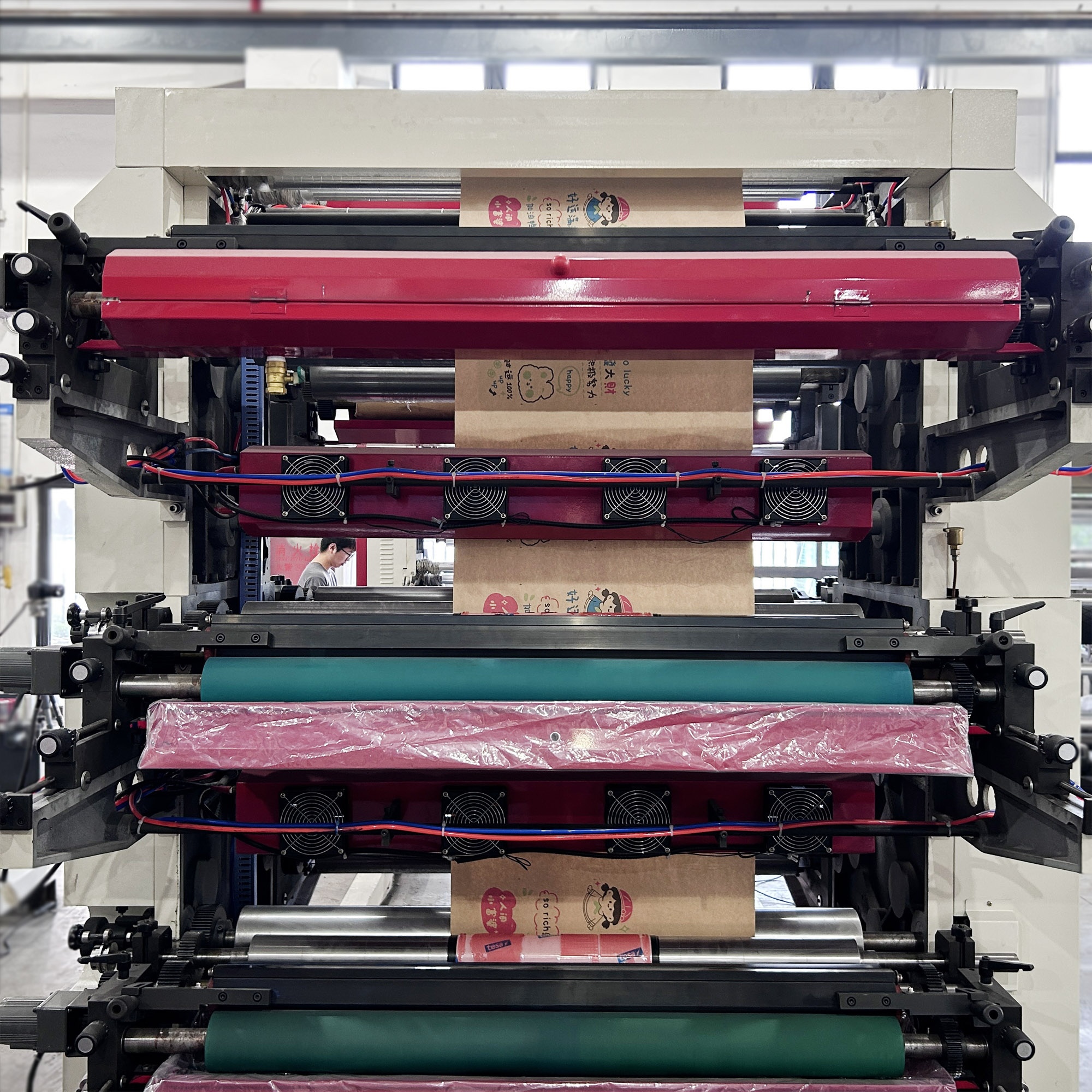

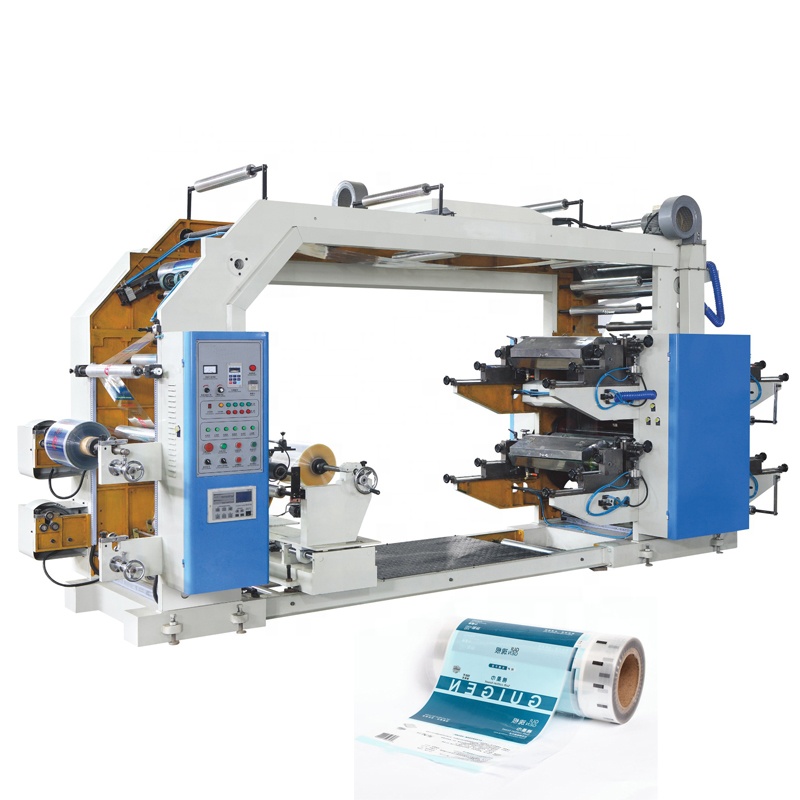

YT-61200 6 color 1200mm wide web roll flexible letter press is suitable for printing such packing material as ploythylene, polypropylene bag, cellophane and roll paper, etc.
It is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Key Features & Characteristics
Easy operation, flexible starting, accurate color register.
The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

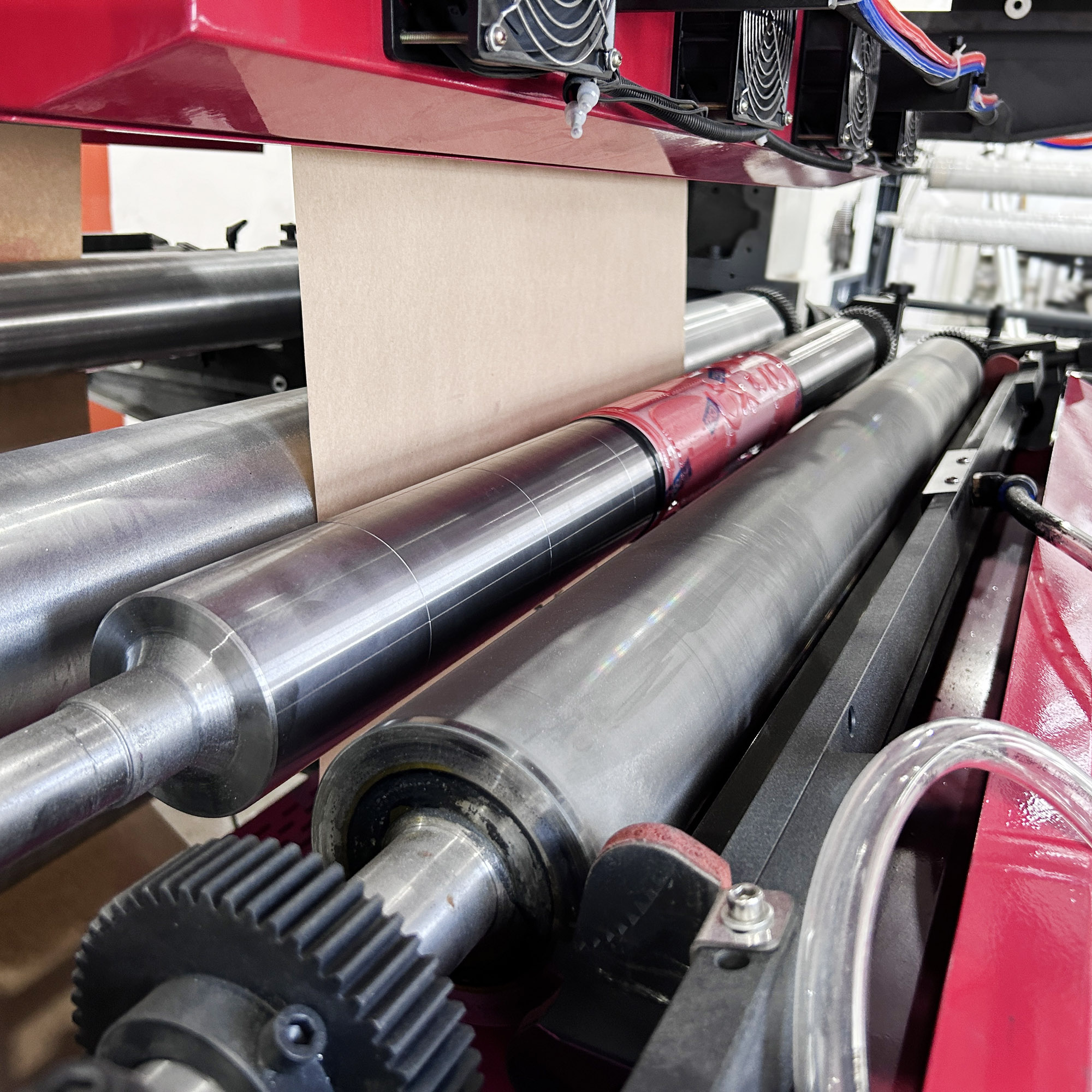

The printing ink is spread by the anilox cylinder with even ink color.
Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
360° continuous and adjustable longitudinal register device.

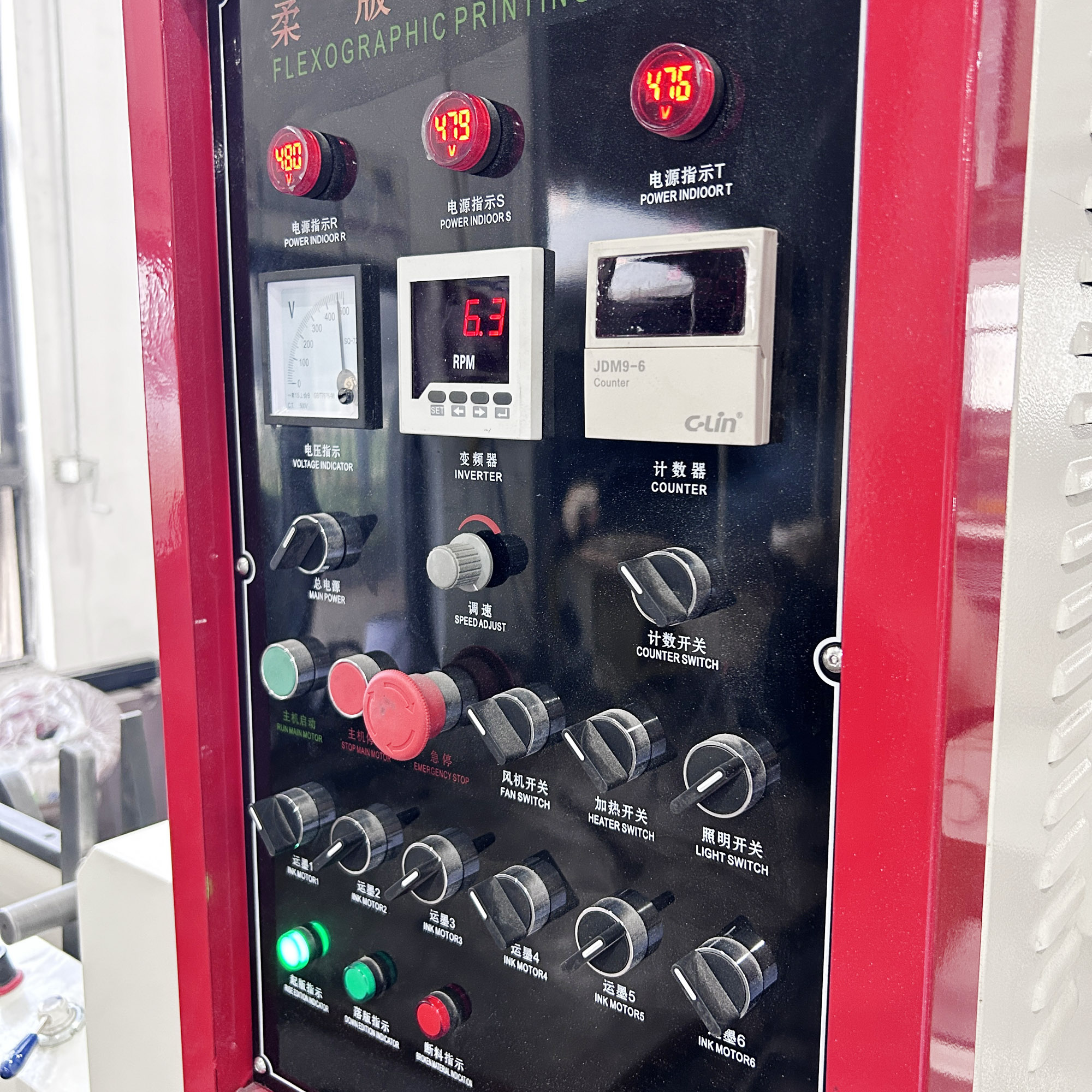

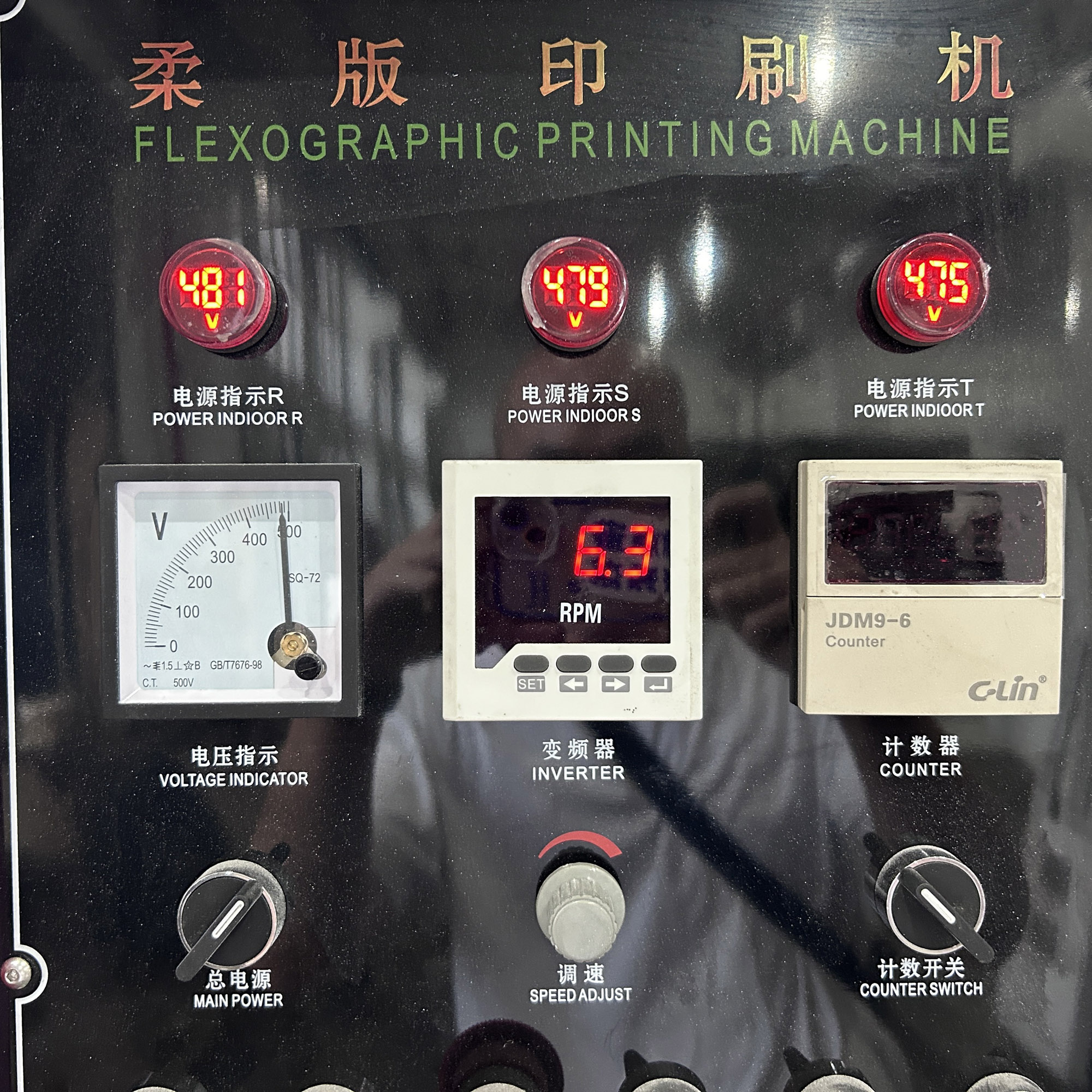

The frequency control of motor speed adapts to different printing speeds.
There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Magnetic powder brake for unwinding tension control, magnetic powder clutch for rewinding tension control.
Unwind with auto deviation correction system.
Technical Specifications
Model
LSYT-61200
Max. printing material width
1200mm
Max. printing width
1160mm
Printing length range
191~914mm
Max. unwinding diameter
500mm
Printing speed
5~50m/min
Plate thickness (include two-sides glue paper)
2.38mm
Total power
22Kw
Machine weight
3000 kg
Overall Dimensions
4.5m * 2.2m * 2.7m

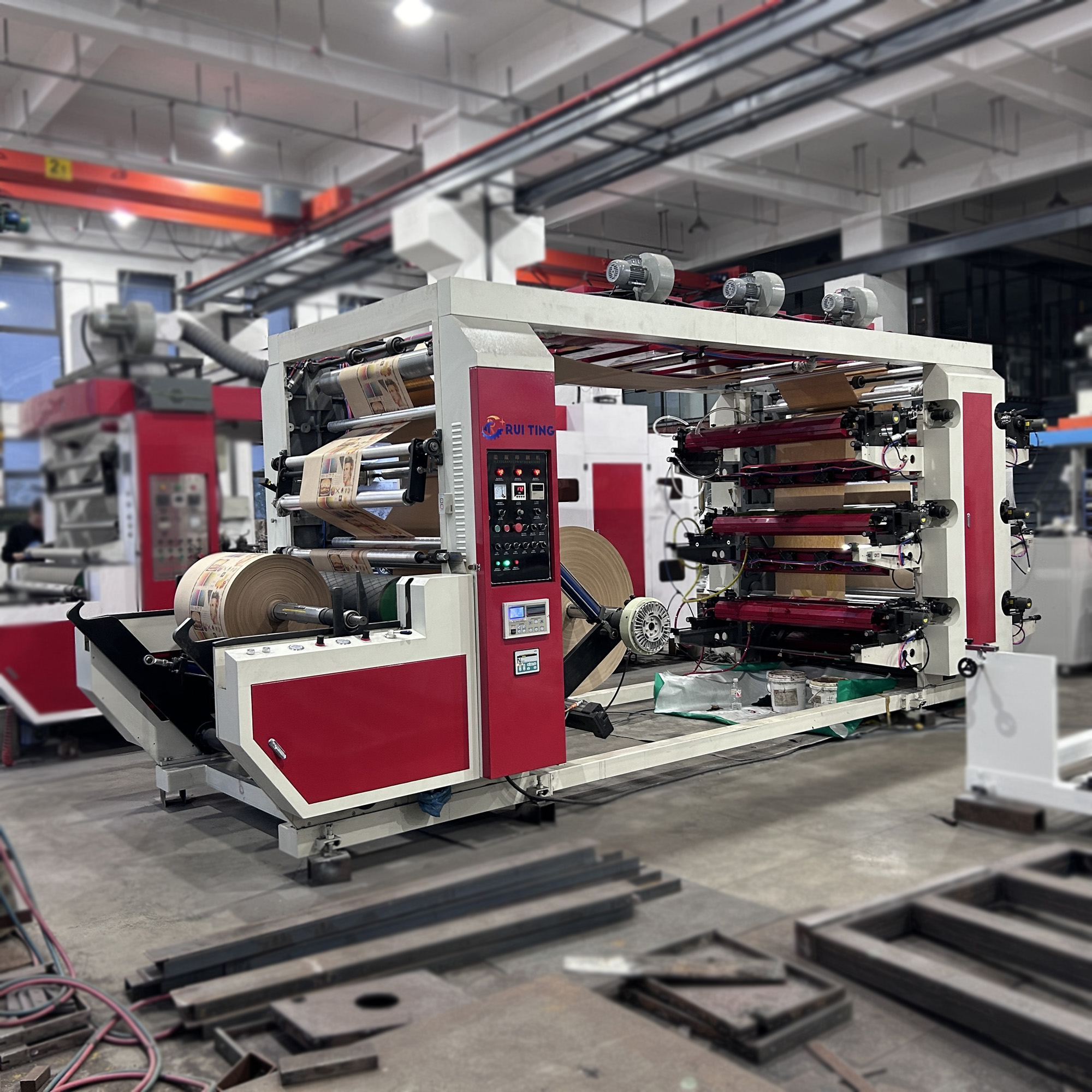

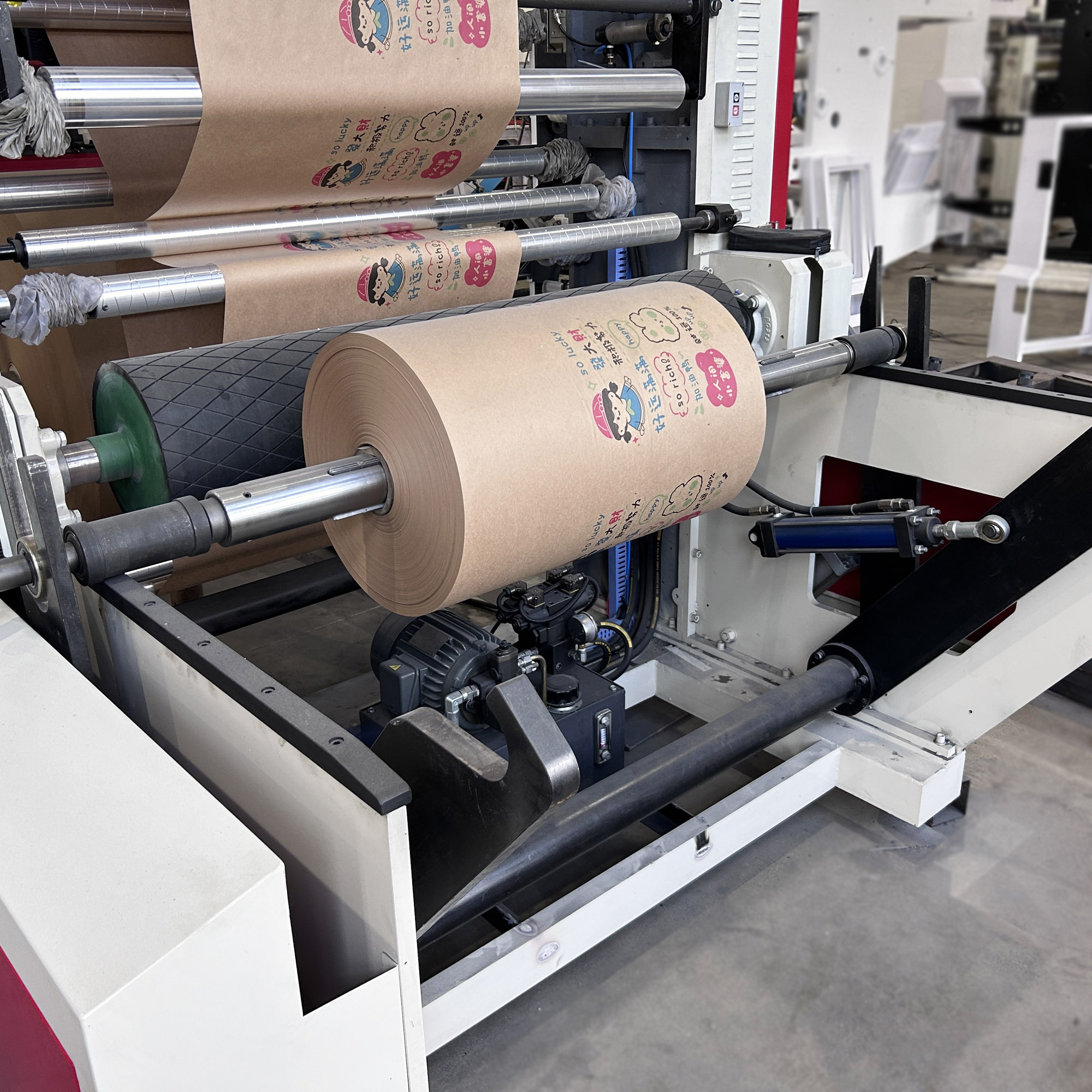

Product Showcase
Frequently Asked Questions
What materials can the LSYT-61200 flexo printing machine print on?
The machine is highly suitable for printing web-roll materials such as polyethylene (PE), polypropylene (PP) bags, cellophane, and roll paper, among other flexible packaging substrates.
How is tension controlled during the printing process?
It utilizes a magnetic powder brake for unwinding tension control and a magnetic powder clutch for rewinding tension control, combined with an automatic deviation correction system to ensure precise material feeding.
What is the maximum printing speed and width?
The machine has a maximum printing material width of 1200mm (with a maximum printing width of 1160mm) and operates at a stable printing speed ranging from 5 to 50 meters per minute.
Does the drying system shut down automatically when the machine stops?
Yes. The machine is designed with a reliable drying system coordinated with high-speed rotation, which automatically breaks the circuit when the machine stops running.
Is it easy to register colors accurately?
Yes, it features a 360° continuous and adjustable longitudinal register device and offers easy operation and a flexible starting mechanism for highly accurate color alignment.
