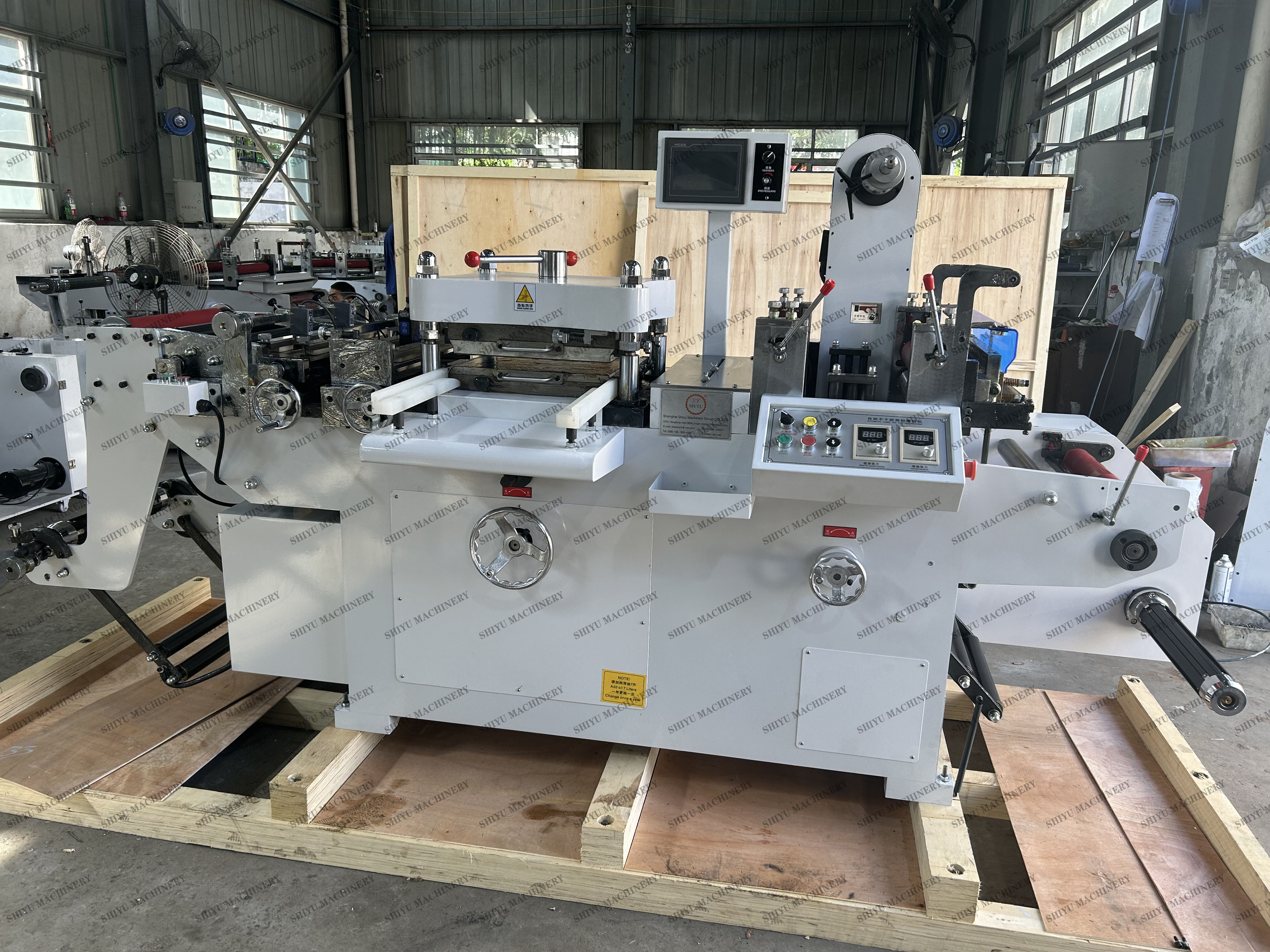

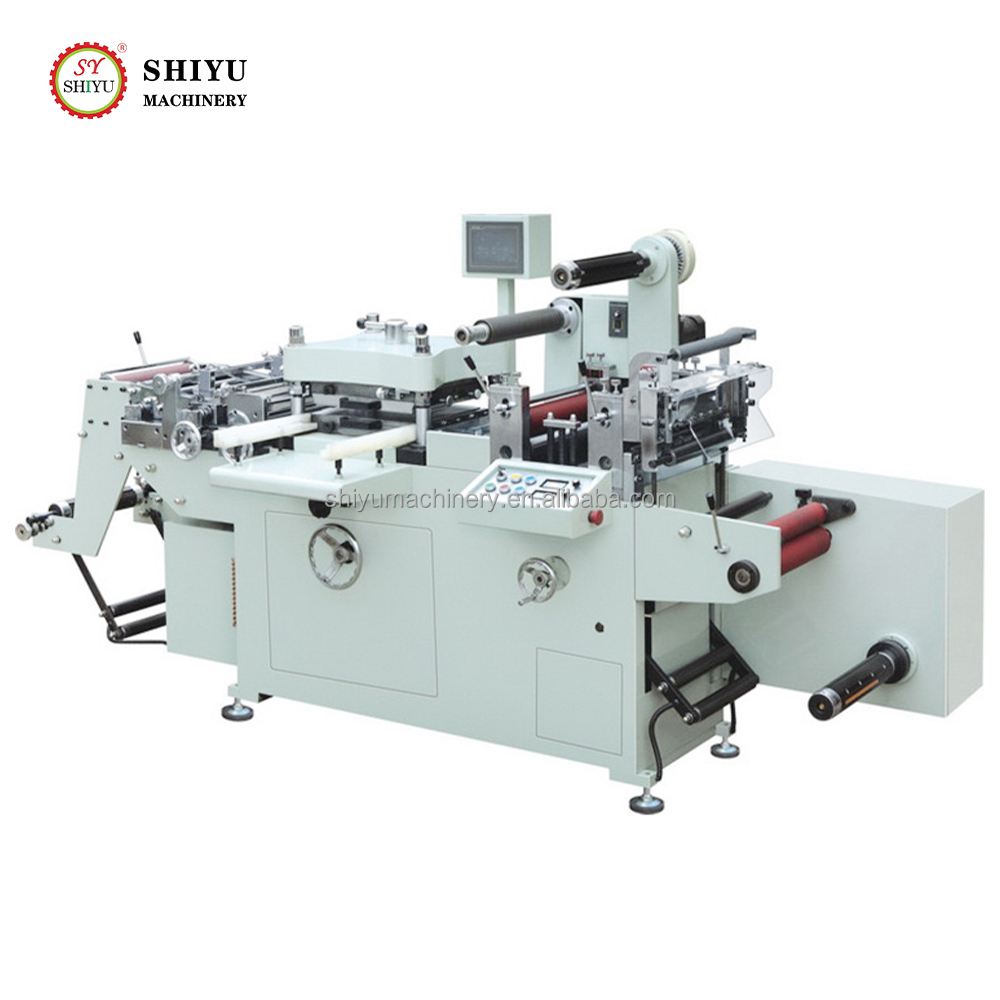

Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
1 / 5
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting
Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting

Automatic Roll to Roll Rotary Adhesive Label Flat Bed Die Cutting Machine Hot Stamping Lamination Punching Slitting

Send Inquiry

Product Description

Die Cutting Machine Overview

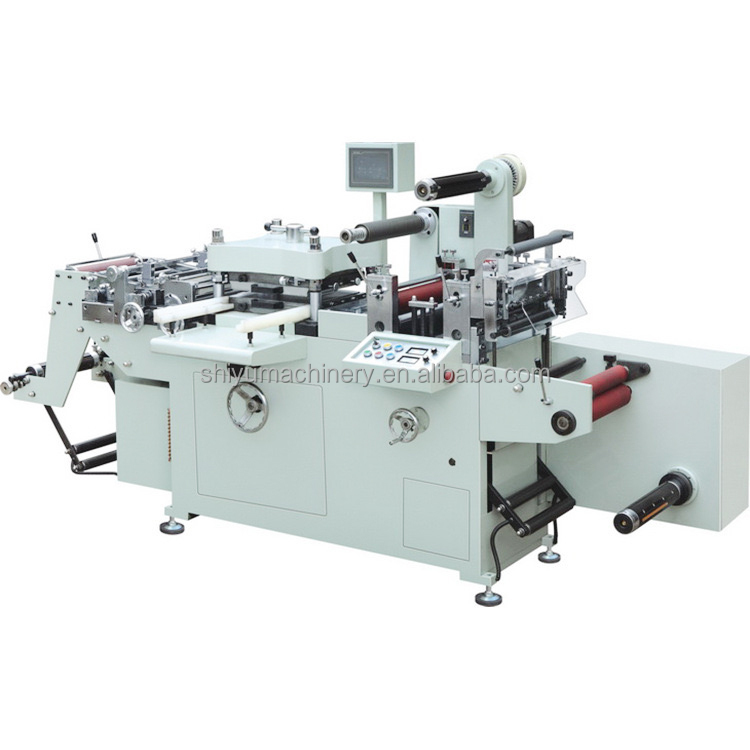

Machine Configuration
Standard & Expanded Functions

Standard Functions: Material feeding - Die cutting - Waste disposal - Slicing - Roll up

Expanded Functions: Lamination, hot stamping, punching

Scope of Application
The die-cutting machine for paper sticker trademarks, nylon film trademarks, and laser anti-counterfeiting trademarks is the best supporting equipment for full rotation high-speed roll trademark printing machines, flexographic printing machines, continuous screen printing machines, gravure printing machines, and anti-counterfeiting trademark molding machines. It is also the most ideal model for various trademark printing factories, suitable for die-cutting and forming in the electronics industry and adhesive tape products industry.
Performance Characteristics
The machine has a flat and flattened structure, and the computer private server system pulls paper. The material is tracked and positioned on both sides and vertically by photoelectric eyes. Material feeding, die-cutting, waste disposal, slicing or winding are all controlled by a computer and completed in one go.
Technical Parameters
Parameter Item Specification Details (SY-350Z)
Model SY-350Z
Max. material width 320mm
Cutting area 310*350mm
Max. Cutting speed 300 press/min
Position accuracy ±0.10mm
Max. Length of meter 45m/min
Unwinding/rewinding diameter 550mm
Voltage 380v (3 phase, 380v)
Total power 6kw
Weight 2000kg
Dimension (L*W*H) 3000*1300*1400
Key Machine Components

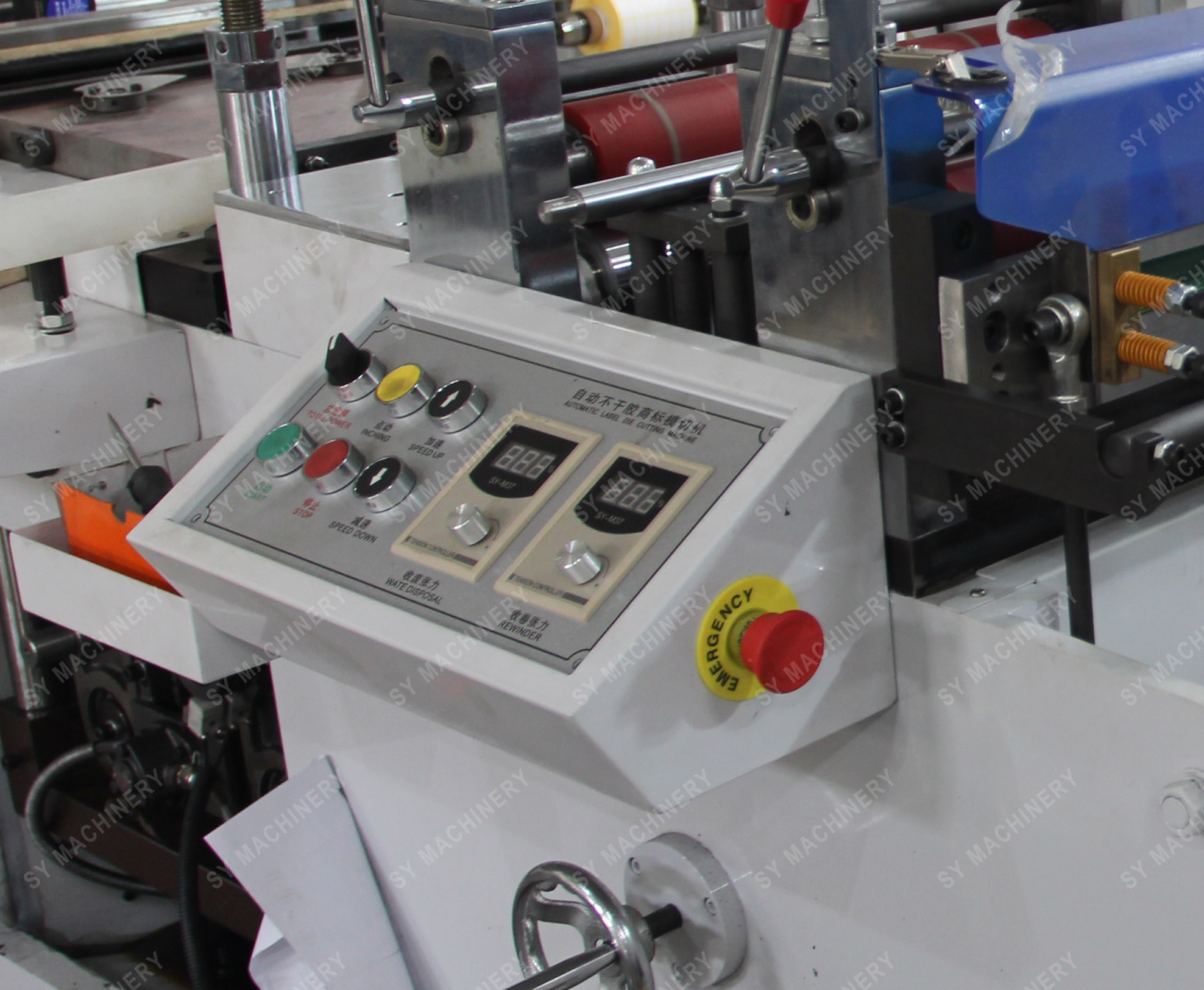

Main control
Main control

PLC and man-machine interface, with functions such as tracking detection and tracking detection

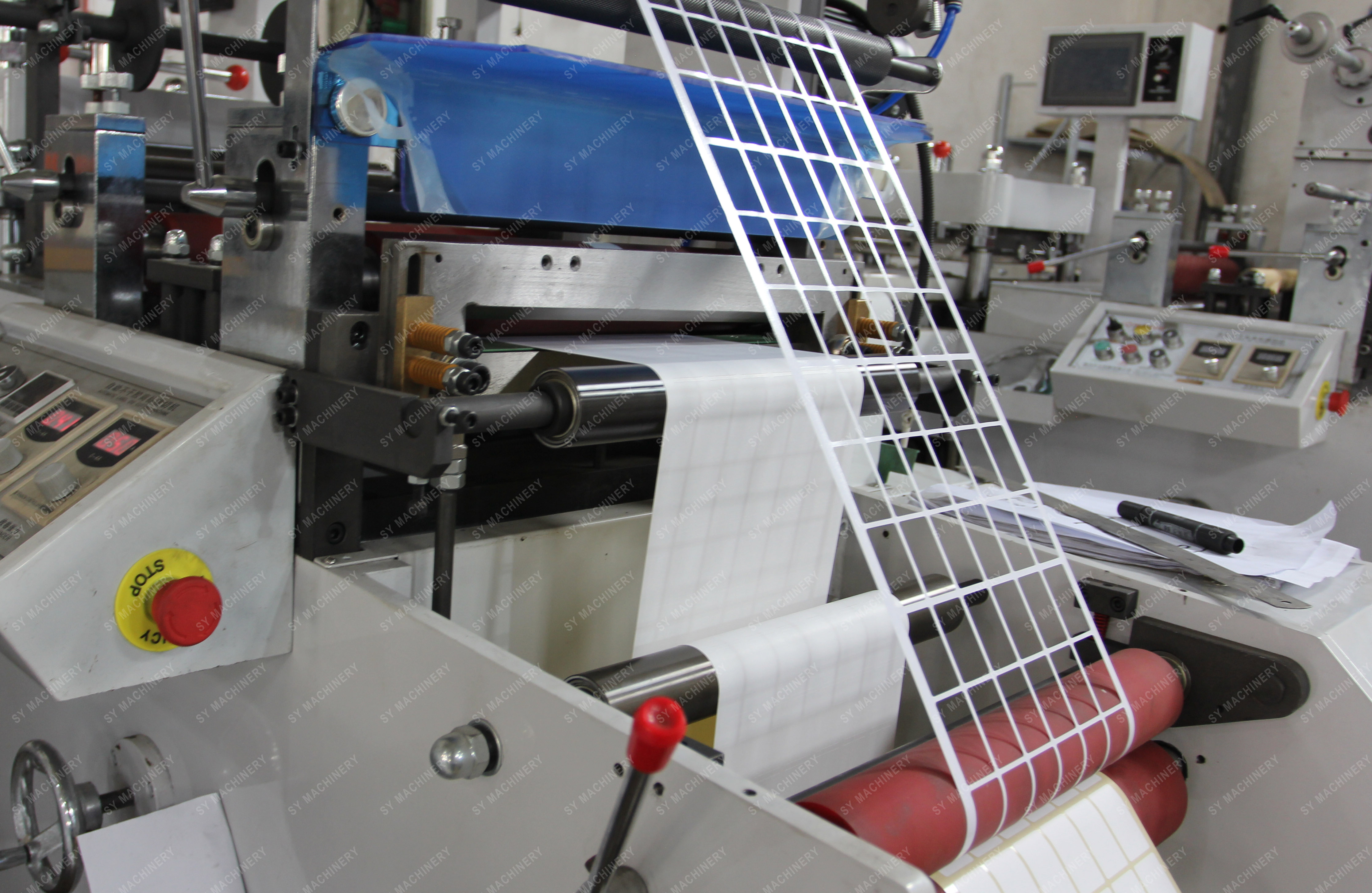

Sheet Cutting unit
Sheet Cutting unit

Use magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting

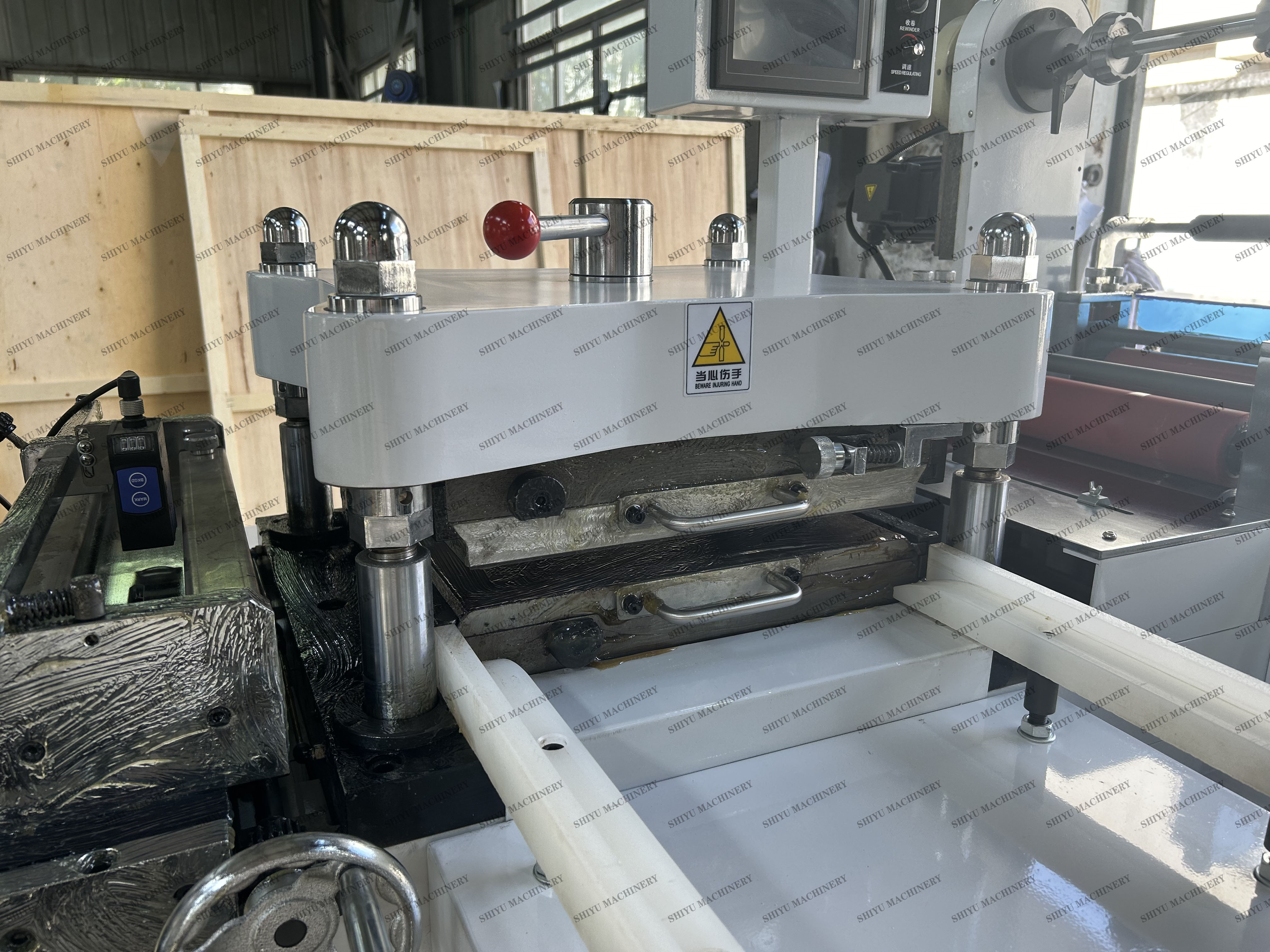

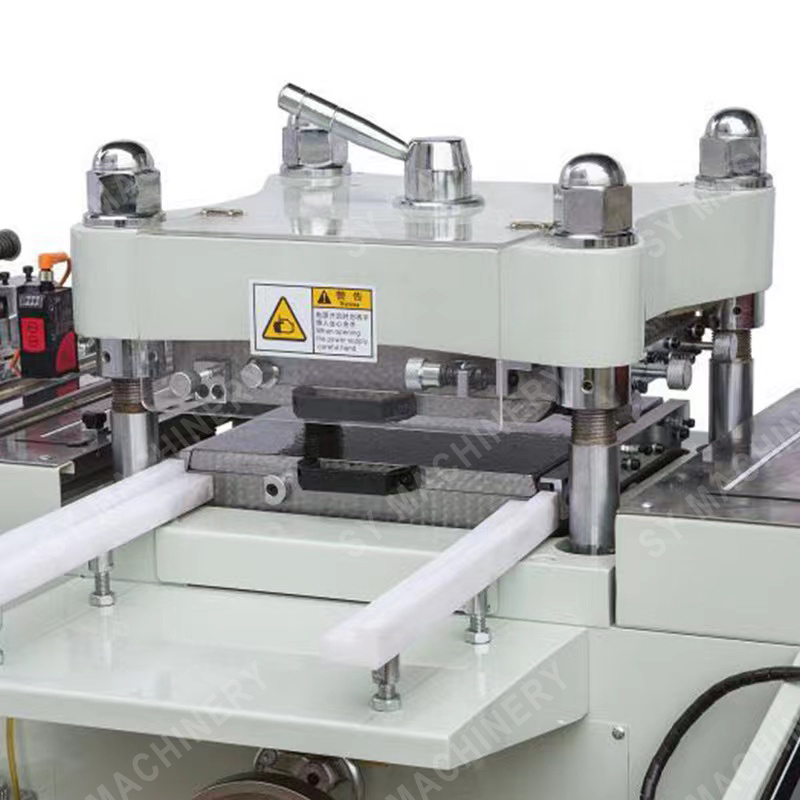

Die Cutting Unit
Die Cutting Unit

Integrated design no splicing, Thick aluminum light and stable, The Speed can reach 260m/min

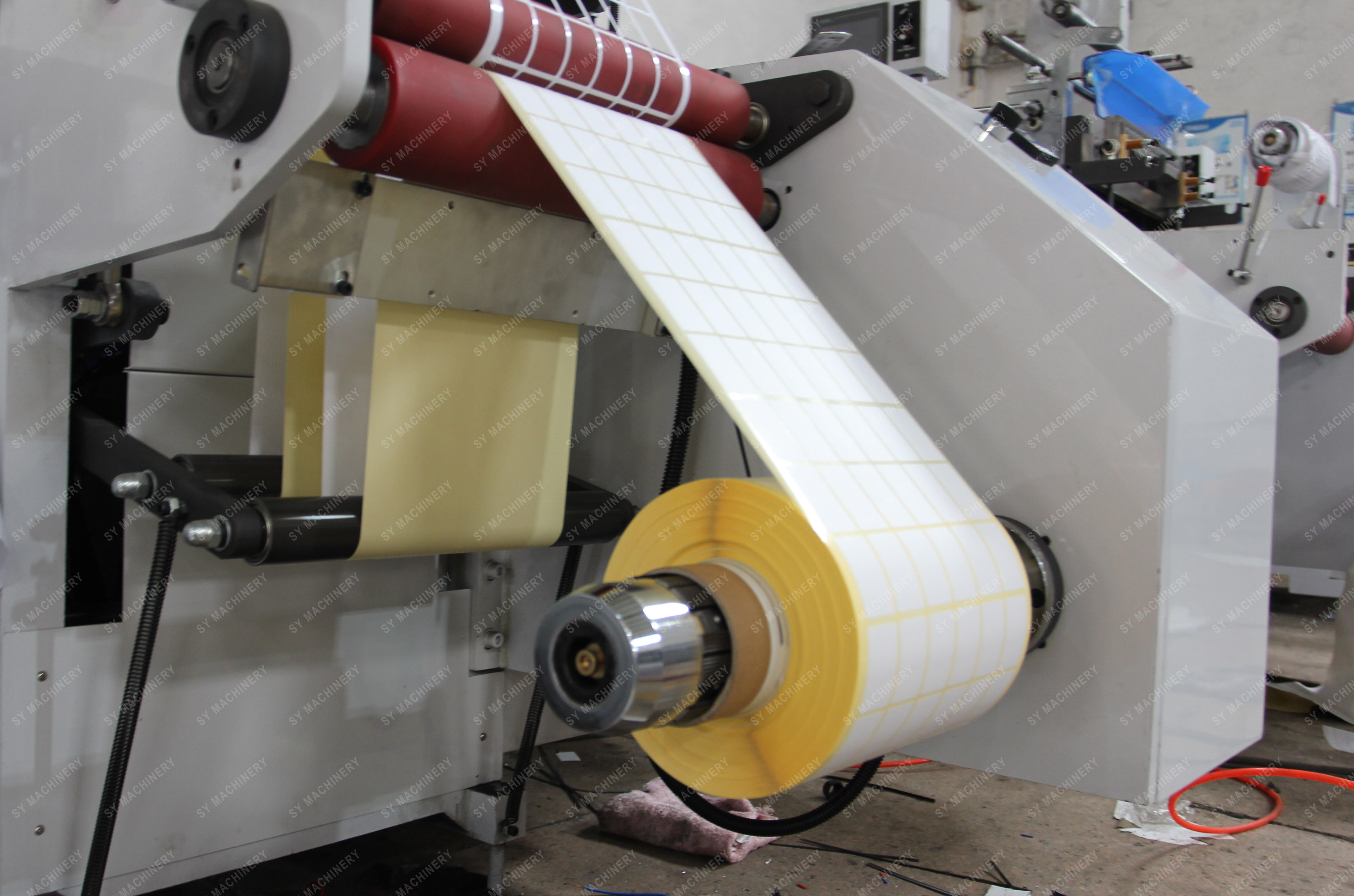

Rewinding Unit
Rewinding Unit

Rewinding Unit Max.dia 500mm, 3-inch shaft support, with Turbo motor

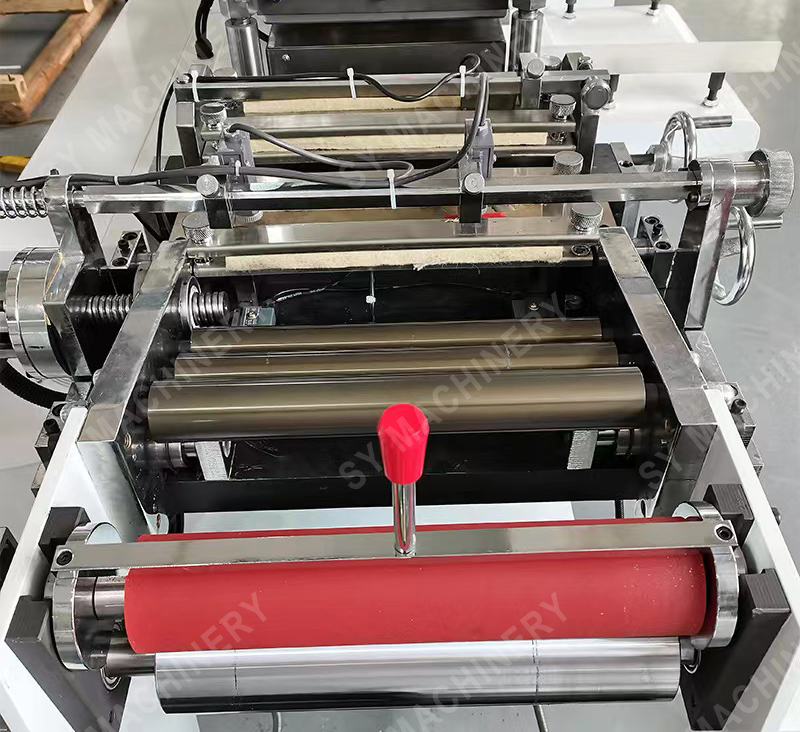

Web Guide
Web Guide

Mitsubishi plc control, Three modes to switch

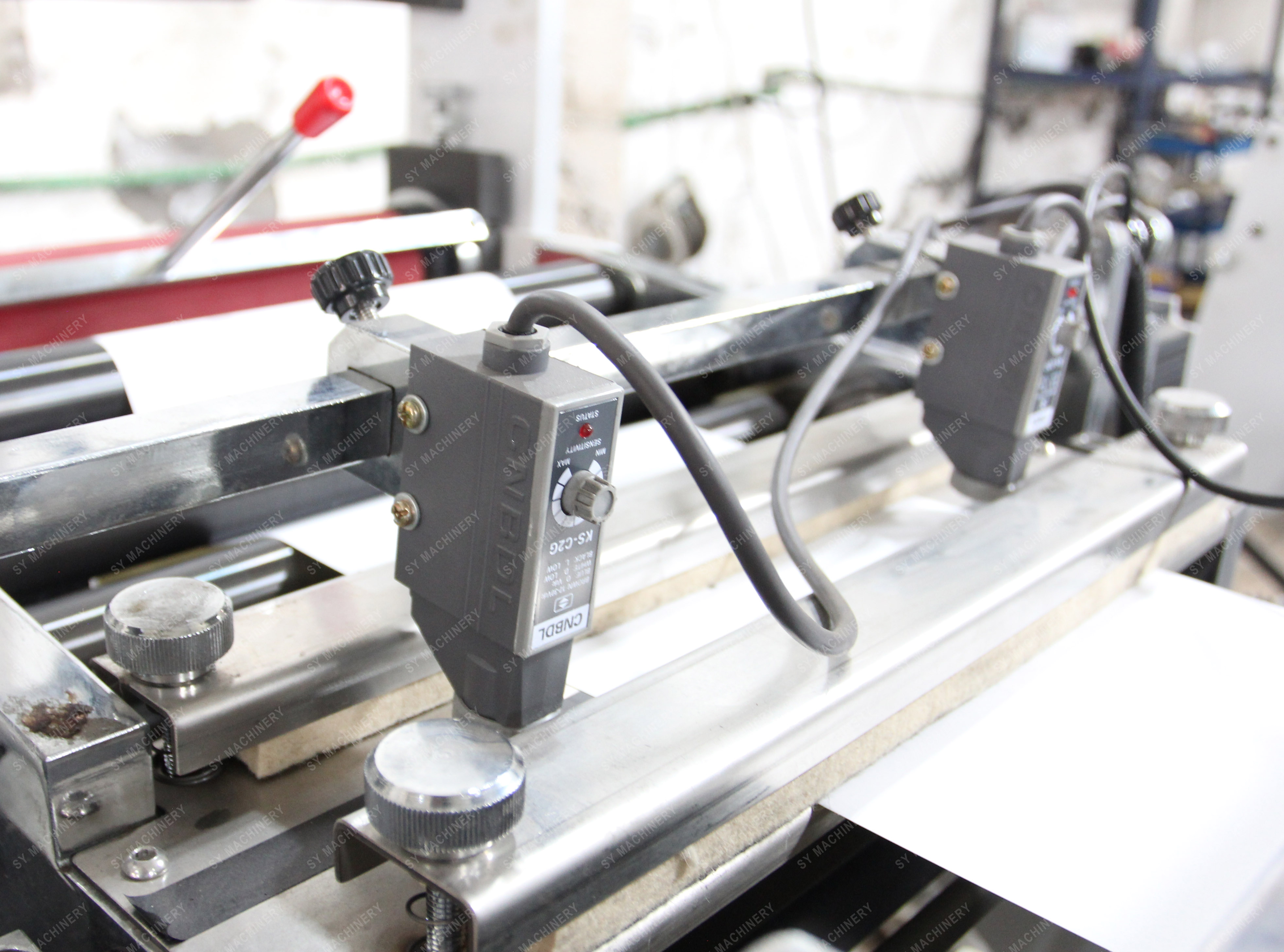

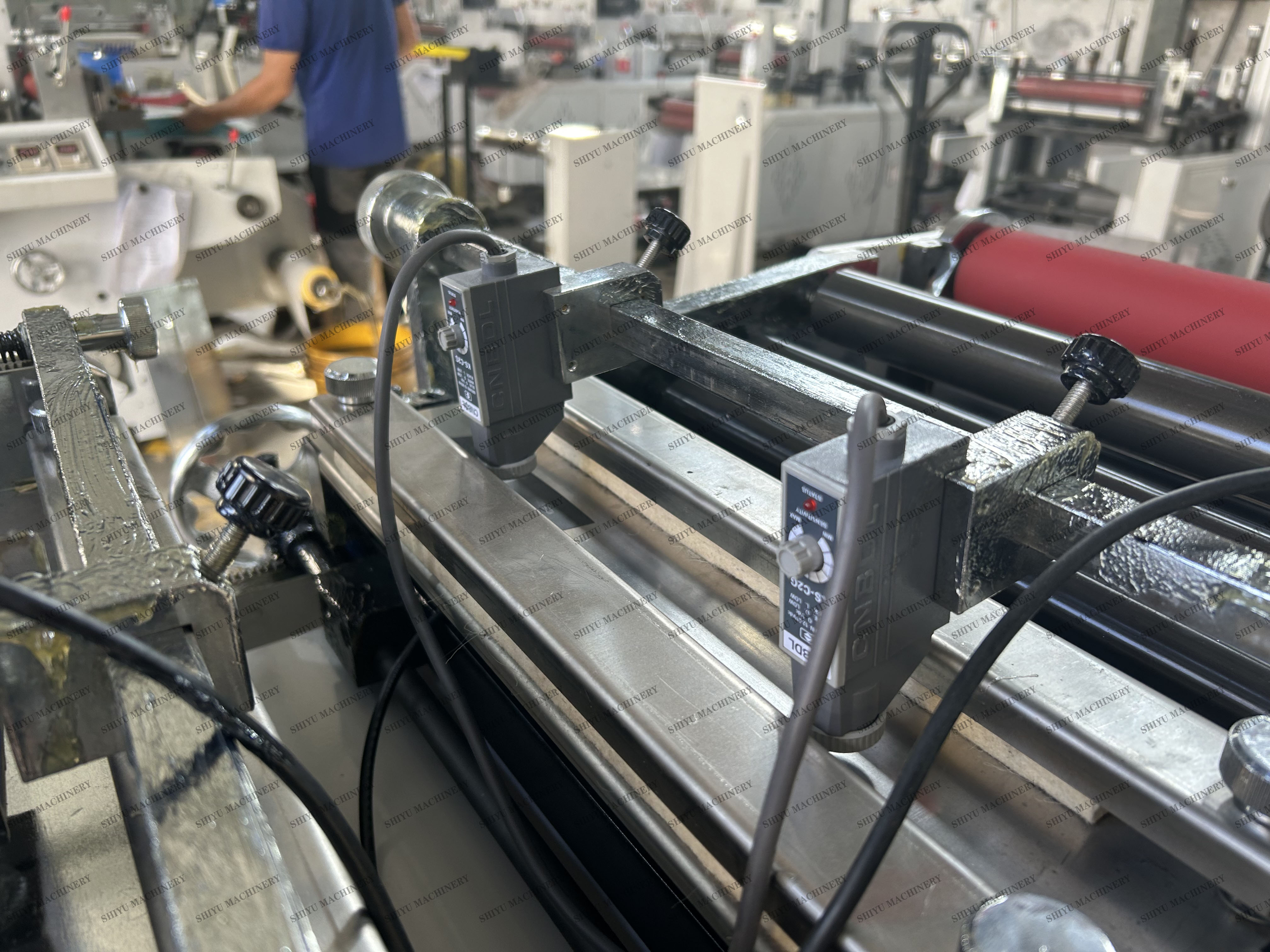

Tracking Location
Tracking Location

Die-cutting positioning more accurate

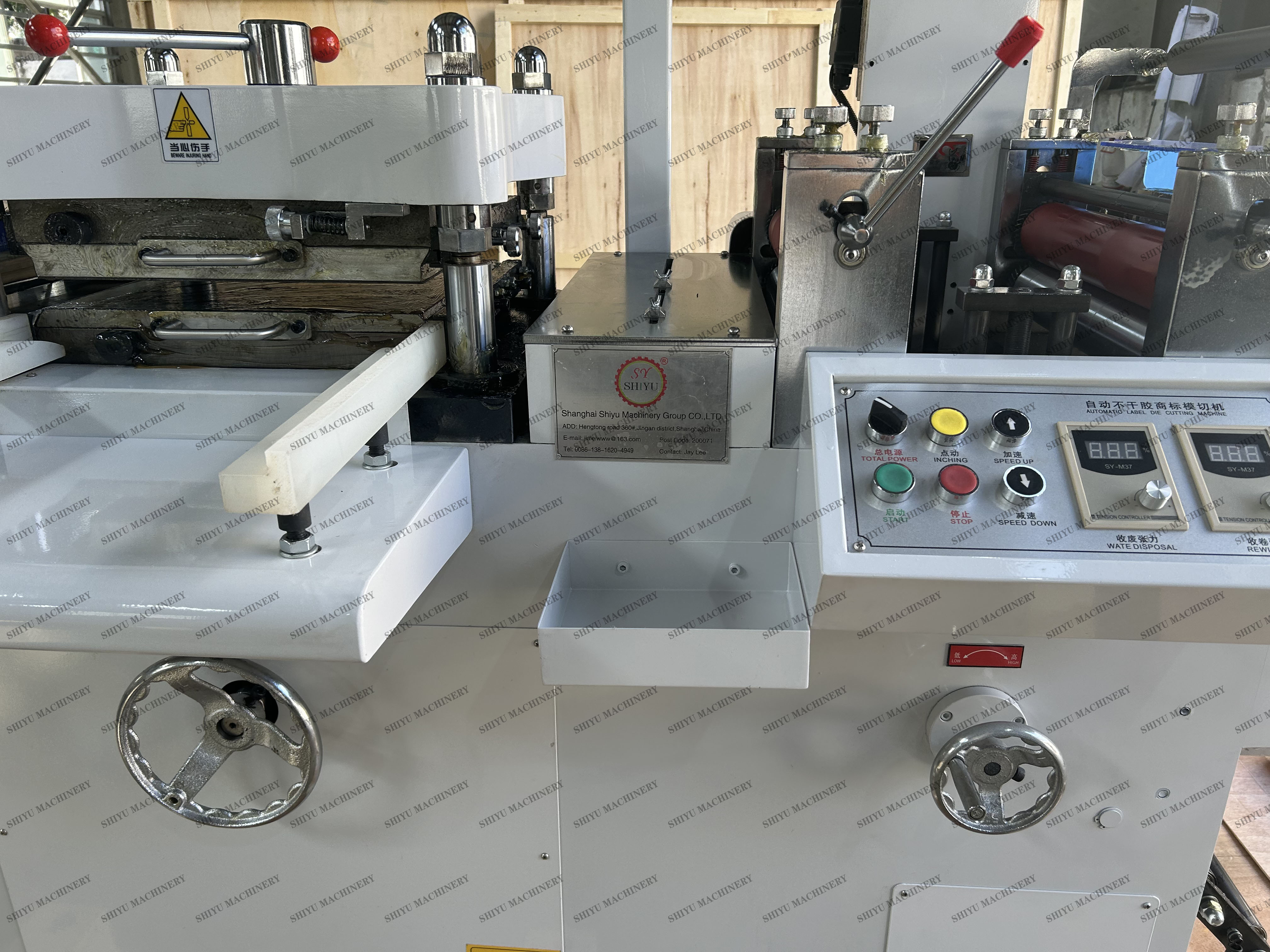

Machine Details Gallery

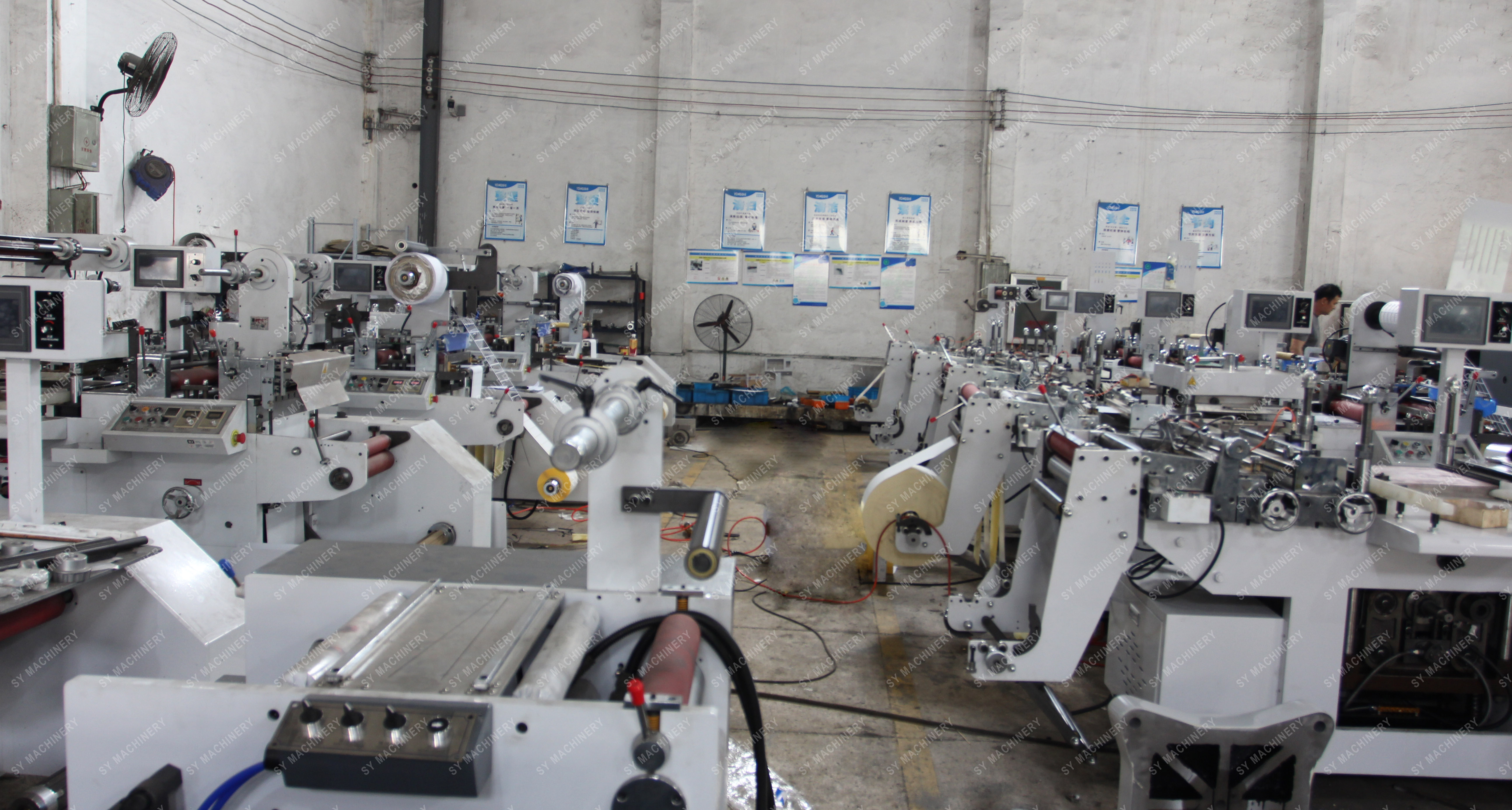

Machine Details 1

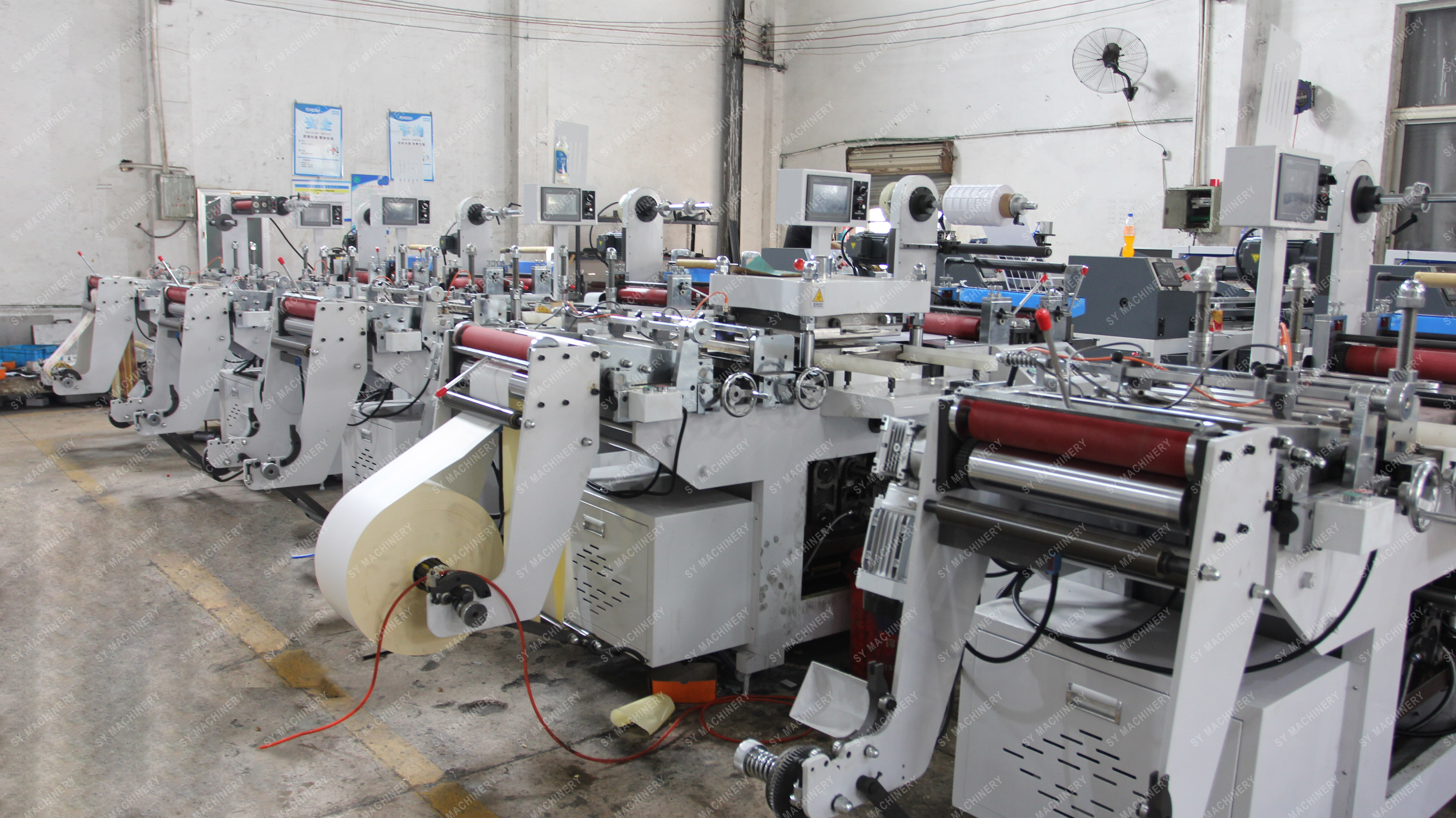

Machine Details 2

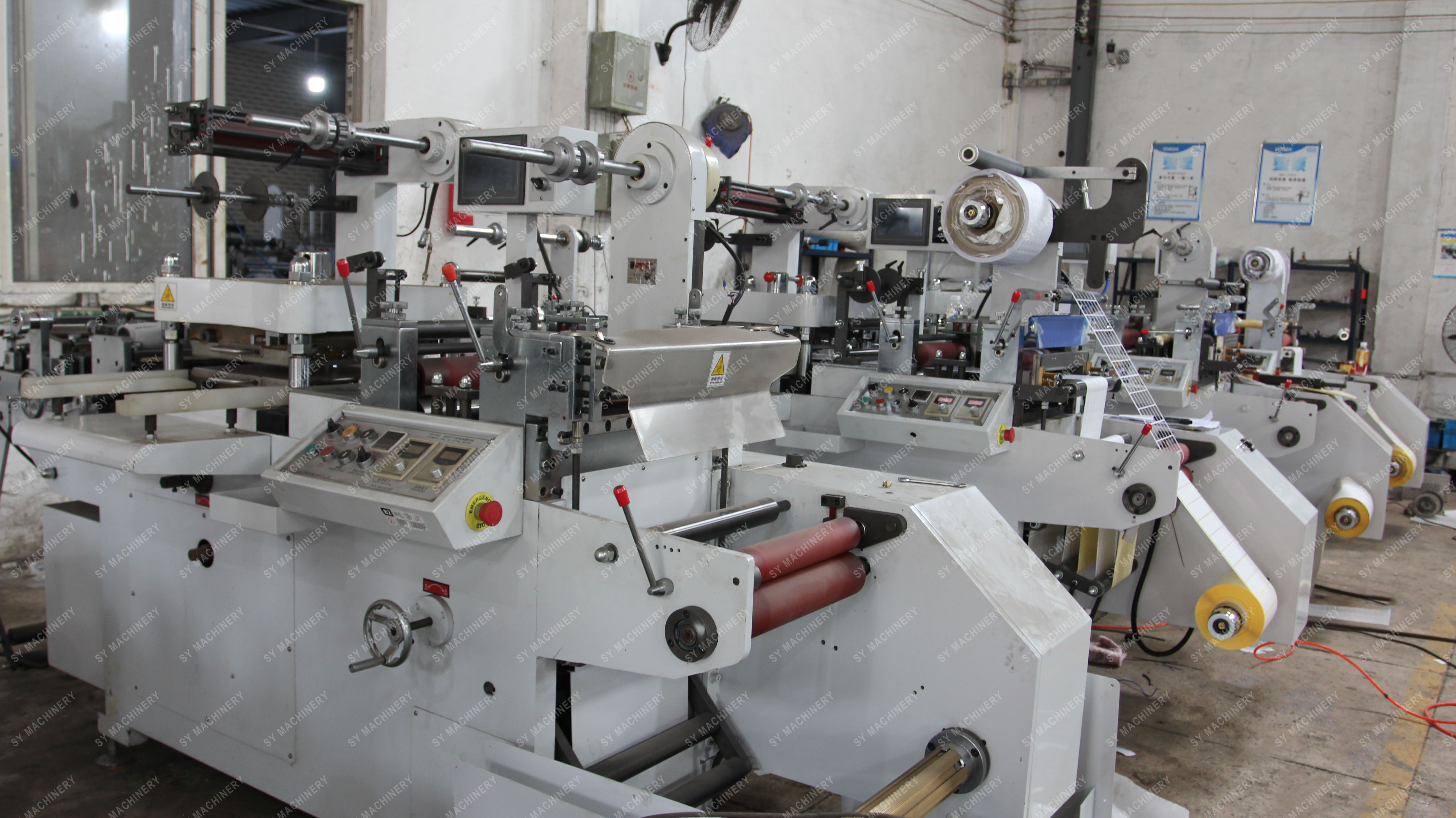

Machine Details 3

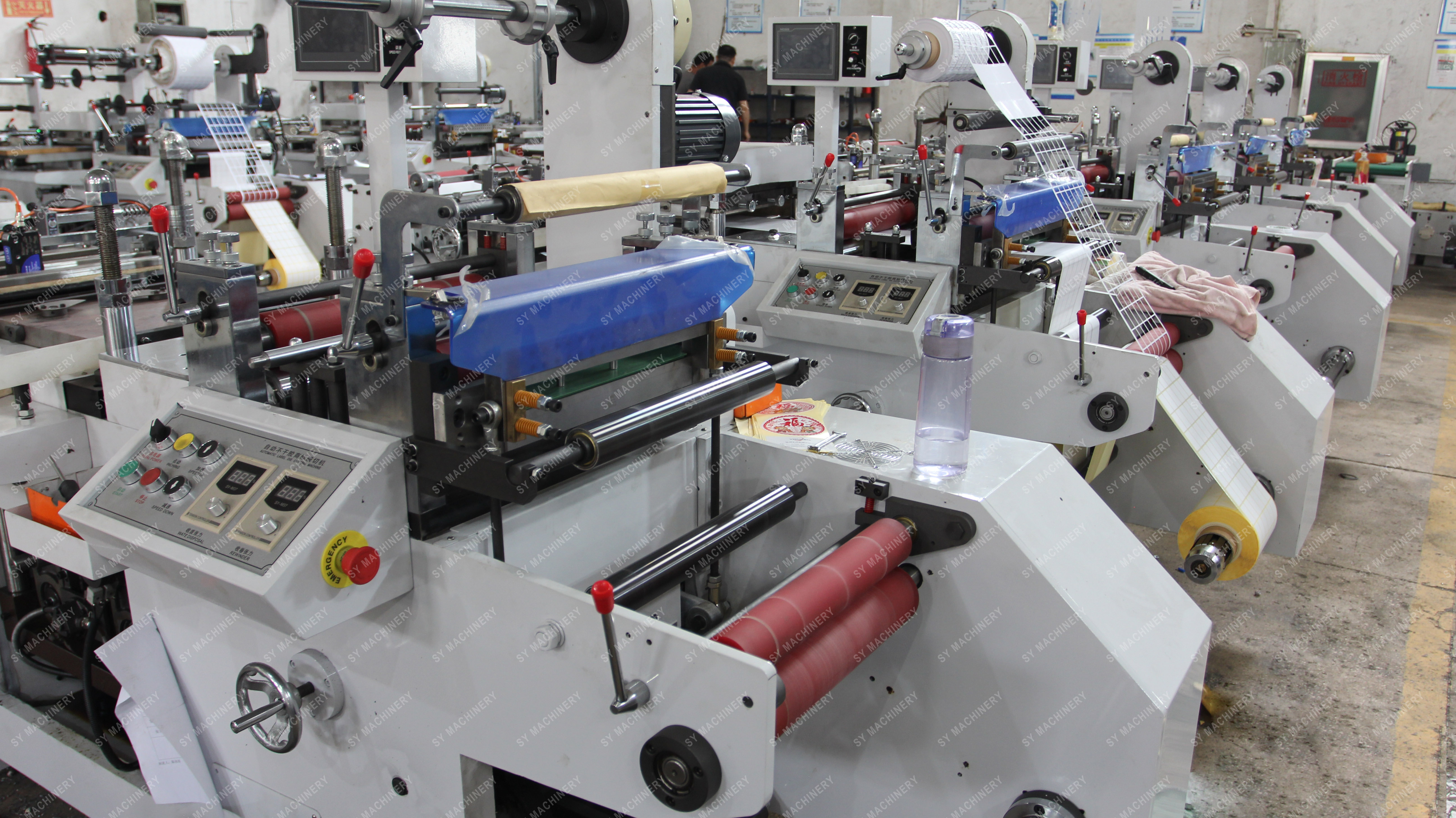

Machine Details 4

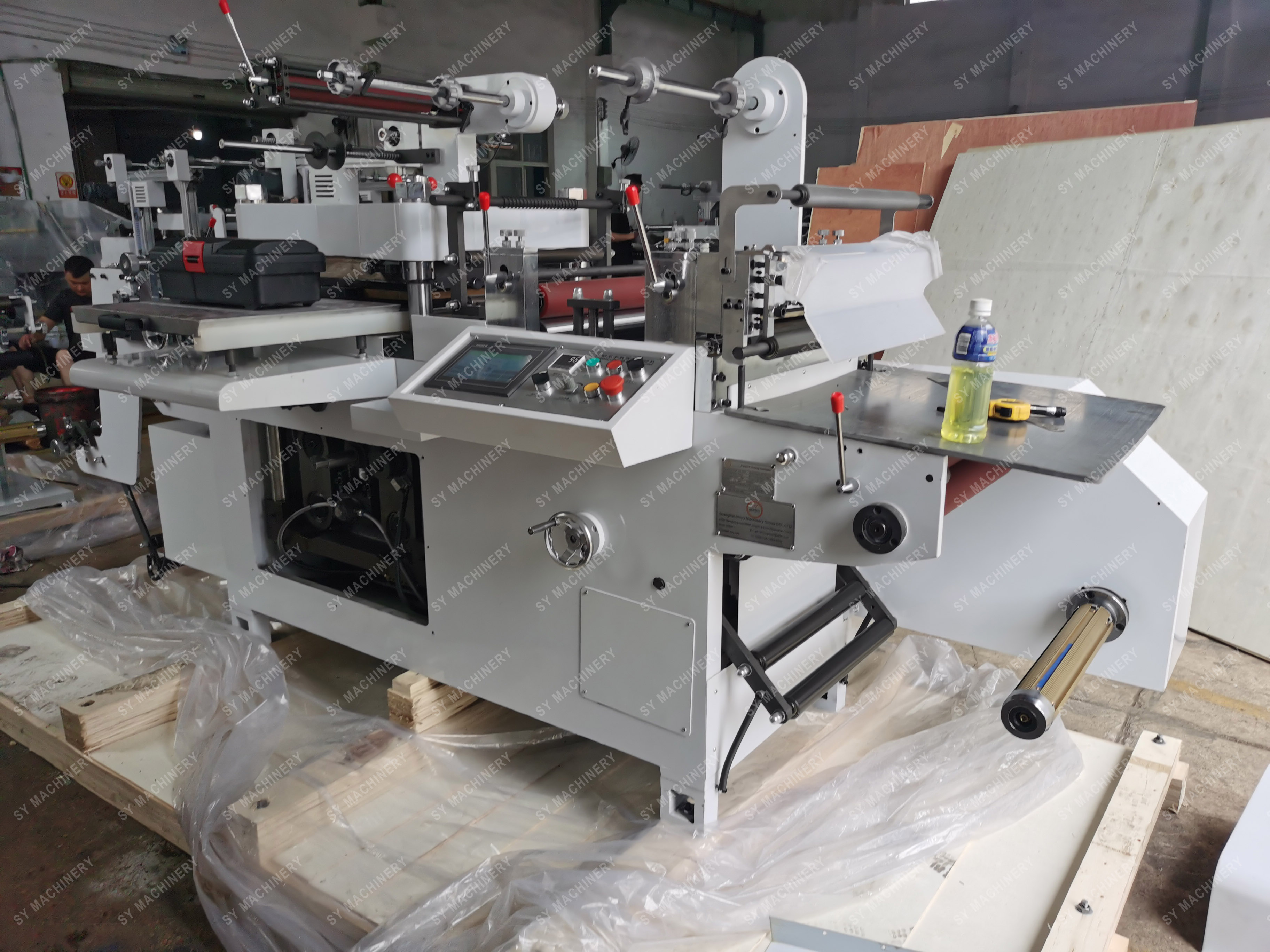

Machine Details 5
Machine Details 6
Machine Structure Detail
Detail Configuration A
Detail Configuration B
Structure Layout 1

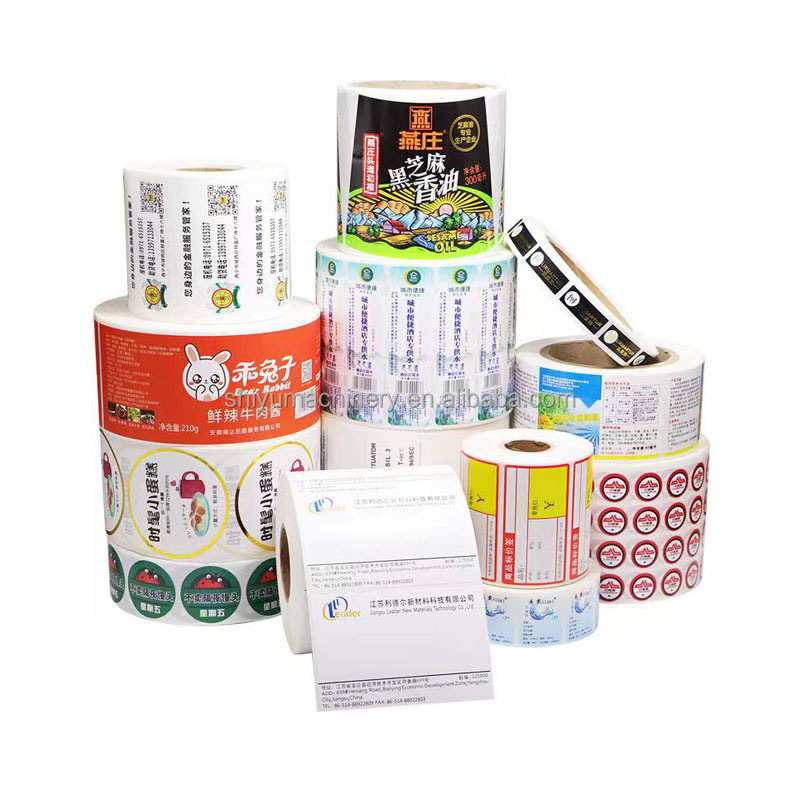

Structure Layout 2
Complete View of Machine
Related Machinery

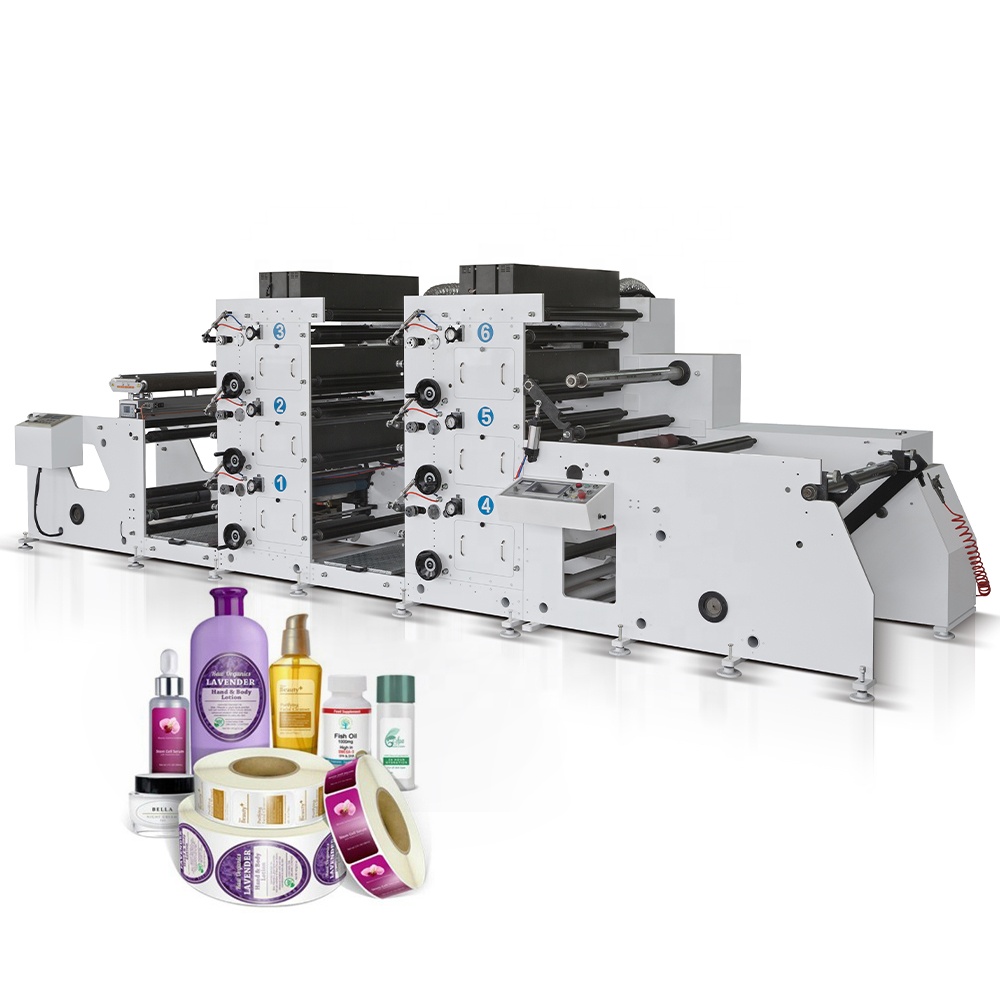

paper label printing machine
paper label printing machine

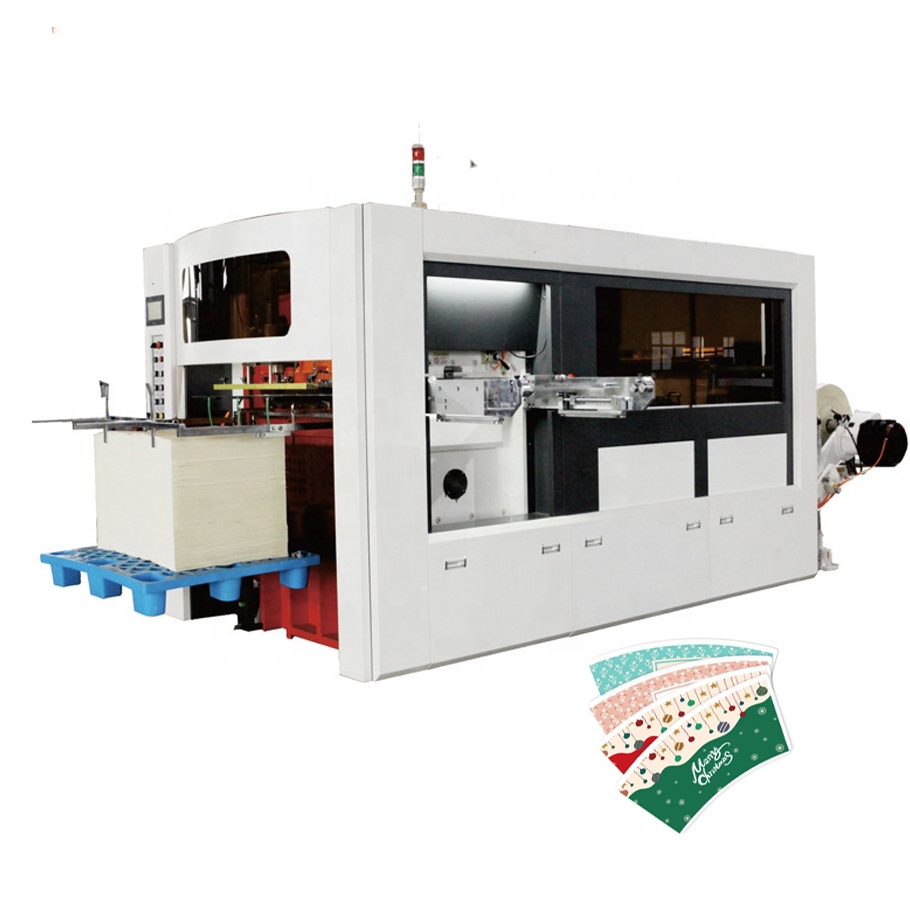

paper die cutting machine
paper die cutting machine

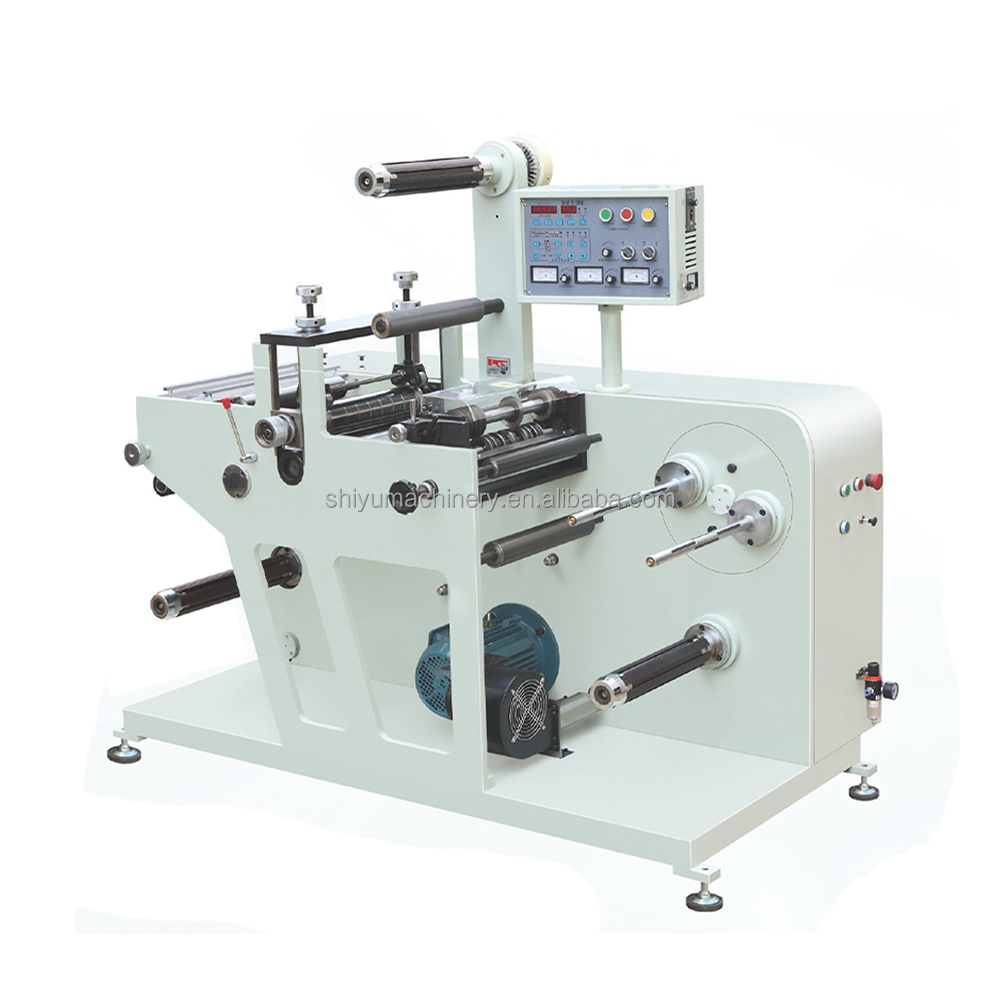

slitting die cutting machine
slitting die cutting machine
Processing & Production Show
Factory Overview 1
Factory Overview 2
Factory Overview 3
Factory Overview 4
Factory Overview 5
Factory Overview 6
Processing Layout End
Frequently Asked Questions
Q1: What materials are suitable for this die-cutting machine?
A1: This machine is suitable for paper sticker trademarks, nylon film trademarks, laser anti-counterfeiting trademarks, as well as electronic materials and adhesive tape products.
Q2: What standard functions does the SY-350Z model support?
A2: Standard functions include material feeding, die cutting, waste disposal, slicing, and roll-up.
Q3: Can the machine carry out lamination or hot stamping?
A3: Yes. You can configure expanded functions such as lamination, hot stamping, and punching based on your production needs.
Q4: What is the maximum cutting speed and positioning accuracy of the machine?
A4: The SY-350Z model has a maximum cutting speed of 300 presses per minute and a high positioning accuracy of ±0.10mm.
Q5: How is the web guide and positioning system controlled?
A5: It utilizes Mitsubishi PLC control with three switchable modes. Materials are tracked and positioned horizontally and vertically by high-precision photoelectric eyes.
Q6: What is the power and voltage requirement for installation?
A6: The machine has a total power of 6kw and operates on a 380v (3 phase, 380v) voltage system.
