Moveco Machine
1 / 4
| Parameter Item | Specification Details |
|---|---|
| Max size of flexible blade | 620mm*650mm |
| Min size of flexible blade | 160mm*160mm |
| Max size of sheet | 470 × 400 mm |
| Feeding Pile Height | / |
| Delivery Pile Height | 1200mm |
| Max. Die-Cutting Size | 1290 × 970 mm |
| Inner Chase Size | 1330 × 992 mm |
| Die Cutting Plate Size | 1320 × 982 mm |
| Cutting Rule Height | 23.8mm |
| Cutting Plate Thickness | 7mm |
| Stock Range (Paperboard) | > 1 mm |
| Stock Range (Corrugated paper) | < 8 mm |
| Die-Cutting Accuracy | ≤ ±0.2 mm |
| Max. Die-Cutting Pressure | 350 T |
| Max. Machine Speed | 5000 S/H |
| Min Gripper Margin | 8mm |
| Air Supply | 0.6-0.7Mpa, 0.36m³/Min |
| Power Requirement | 3 phases 380V 50HZ |
| Main Motor Power | 11KW |
| Total Power | 17.8kw |
| Total Machine Weight | 15.5 T |
| Total Machine Weight(with stripper) | 17 T |
| Overall Dimension (mm) | 3300(+2800) × 2350(+1900) × 2350 |
| Overall Dimension (with stripper) (mm) | 4550(+2800) × 2350(+1900) × 2350 |
| Package Item | Details |
|---|---|

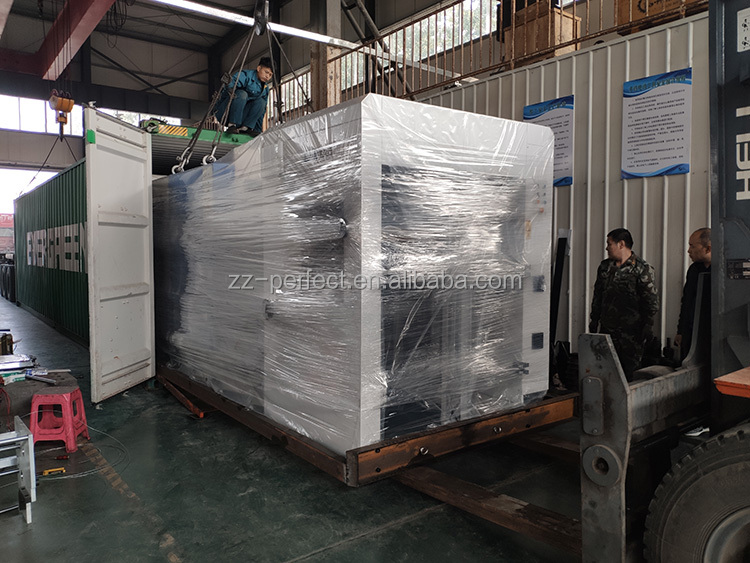

| Package detail | Wooden case |
| Package size | 3300(+2800) × 2350(+1900) × 2350 mm |
| Gross weight | 17 T |
We are a manufacturer of packaging and printing machinery with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials’ printing, coating, die cutting, slitting, embossing and others on the products including cigarettes and wines, food, cosmetics, and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
We have our own factory and export team. You are welcome to visit our factory, and we can arrange to pick you up at the airport.
Yes, so far we have CE, ISO, etc. We can also issue CO, Form E, etc., if you need.
We accept TT (Telegraphic Transfer), Western Union, MoneyGram, LC, and other standard payment methods.
Sure, we test every machine before packing and provide a test video for verification.
It depends on the machine model and quantity. Some stock machines can be shipped within 3 working days after payment. Other customized machines will start production after the deposit is received.
Our machines have a two-year warranty and lifetime technical support. Help is always just one call or email away, and we provide suitable solutions within 8 hours. Remote training and door-to-door services are also available.
