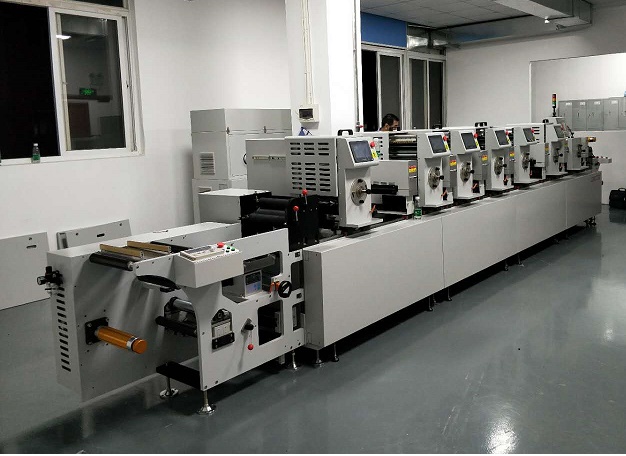

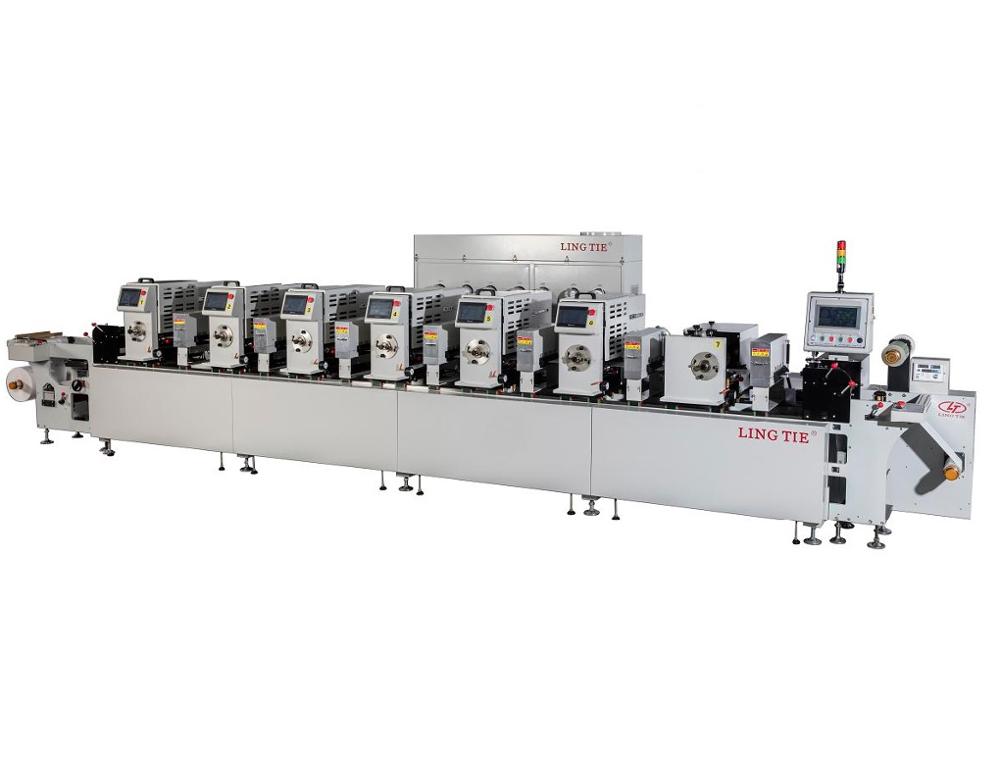

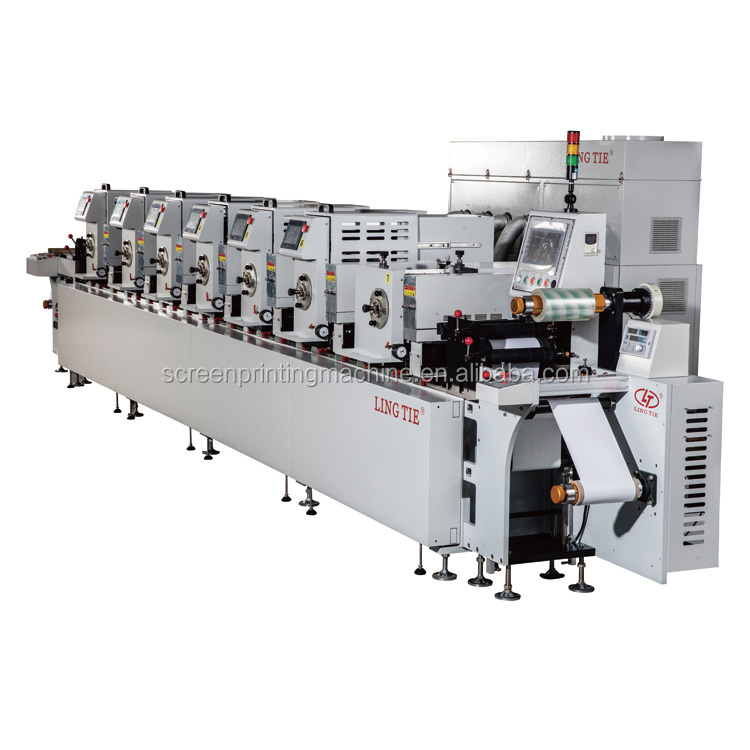

Automatic Intermittent Rotary Letterpress Printing Machine
Automatic registration Function (patented product)
1. The operator can set the size in the touch screen, according to the size of the printing material, and then press the auto. registration button in the touch screen. The machine can automatically calculate the coordinates of each printing section according to the set print size (Automatically The accuracy of the plate can reach ± 0.5mm). Then the Servo Motor automatically enters into a locked state to prevent human driving or mechanical vibration during printing process, the paper tension, causing printing plate to shift.
2. After the machine started, the operator can make fine adjustments through the manual printing station movement according to the actual printing effect (the printing speed can be set on the touch screen), and the adjustable precision can reach 0.01-0.02 mm.
Frequently Asked Questions
Q1: How does the Automatic Registration Function work?
A1: The operator sets the size via the touch screen based on the printing material size, and presses the auto registration button. The machine automatically calculates coordinates for each station with accuracy up to ±0.5mm, locking the Servo Motor to prevent shifting from mechanical vibration or paper tension.
Q2: What is the maximum speed and web width of the LTAC-280 printing machine?
A2: The machine supports a maximum web width of 350mm and operates at a maximum speed of up to 12,000 imp/hr (RPH).
Q3: Can the operator adjust the printing alignment during operation?
A3: Yes. After startup, the operator can manually fine-tune the printing station movement on the touch screen based on the print result, achieving high adjustment precision of 0.01-0.02 mm.
Q4: What standard components are included in the UV system?
A4: The machine features a UV Dryer with 6 stations and a dedicated UV Center Control Case that includes an exhaust system.
Q5: What are the installation dimension and power requirements?

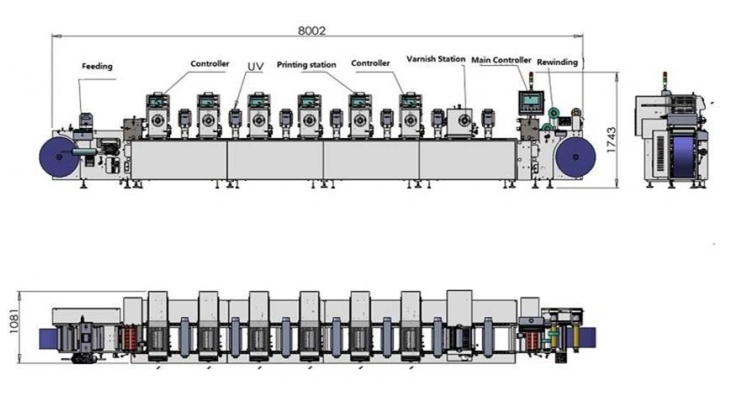

A5: The mechanical installation dimensions are L8000 x W1100 x H1750 mm. It requires a 3-phase, 60A, 15kw power supply, and has a net weight of 3500KG.
Q6: What optional upgrades are available for this letterpress machine?

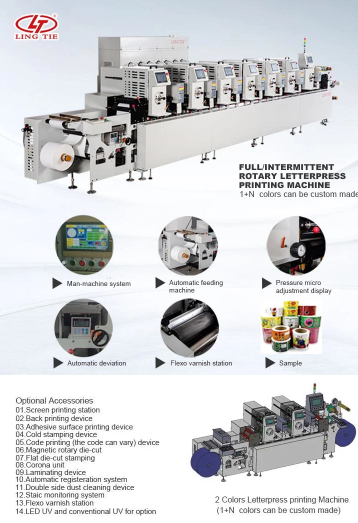

A6: Available options include a Corona Device, Round Knife Die-cut Seat, Flexo Varnish Station, Laminating Rewinder, CCD Registration Station, Electrostatic Eliminator, Slitter & Rewinder, Back Printing Station, Cold-stamping Station, Rewinding Machine, and Flat Press die-cutting.
