Product Description

FK603 Semi-Automatic Round Bottle Labeling Machine

  • Equipment adopts pneumatic type automatic bottle pressing for labeling.
  • Compatible with different sizes of products, simple and fast adjustment.
  • It can realize the function of labeling one label, labeling two labels, fixed-point positioning labeling, etc.
  • Touch screen human-machine interface operation.
  • Automatic induction labeling, no manual operation.
  • The equipment is small and light, easy to place and install on the production line.
  • Adopt pneumatic bottle pressing, automatic induction labeling design; easy manual operation.
  • Adopt Panasonic PLC, German label sensor, the stability of the equipment in the process of operation is higher.
  • New design of label winding, foolproof operation, more humane operation of the traction mechanism.

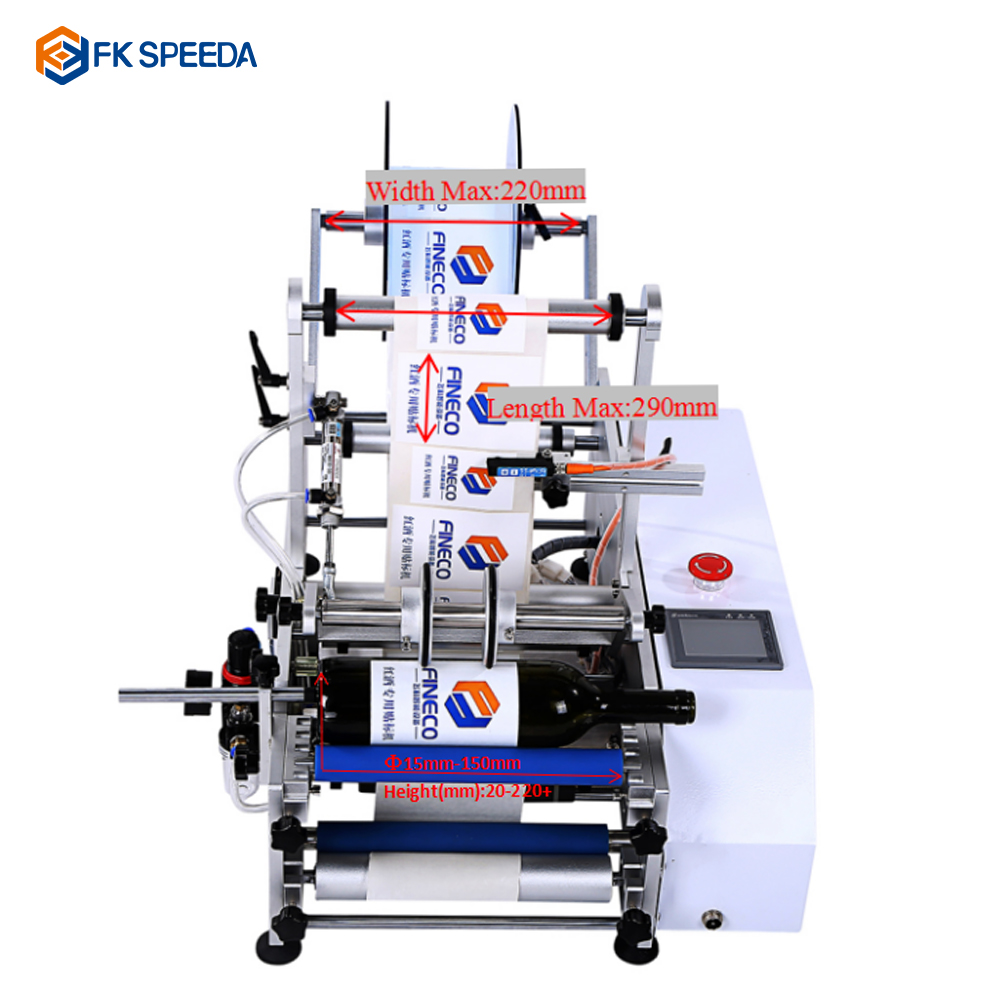

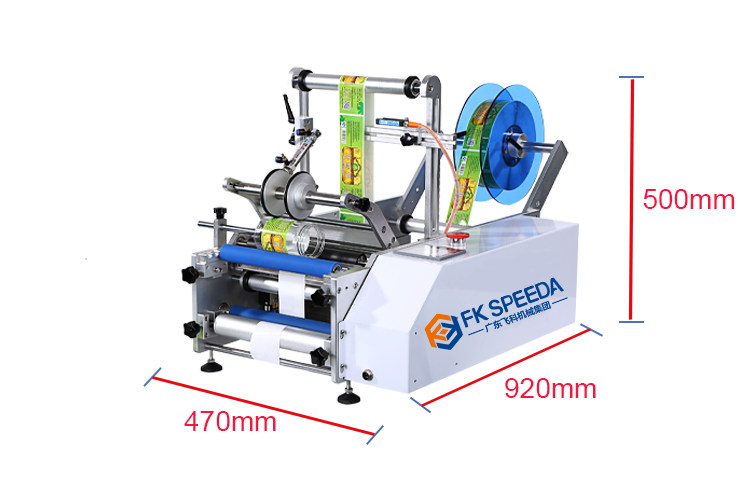

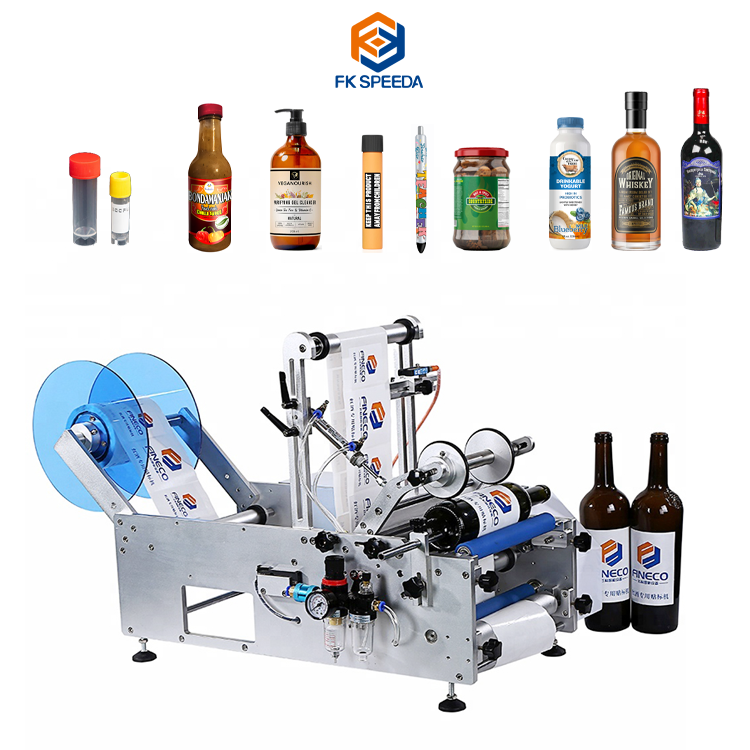

FK603 Semi-Automatic Round Bottle Labeling Machine Front View

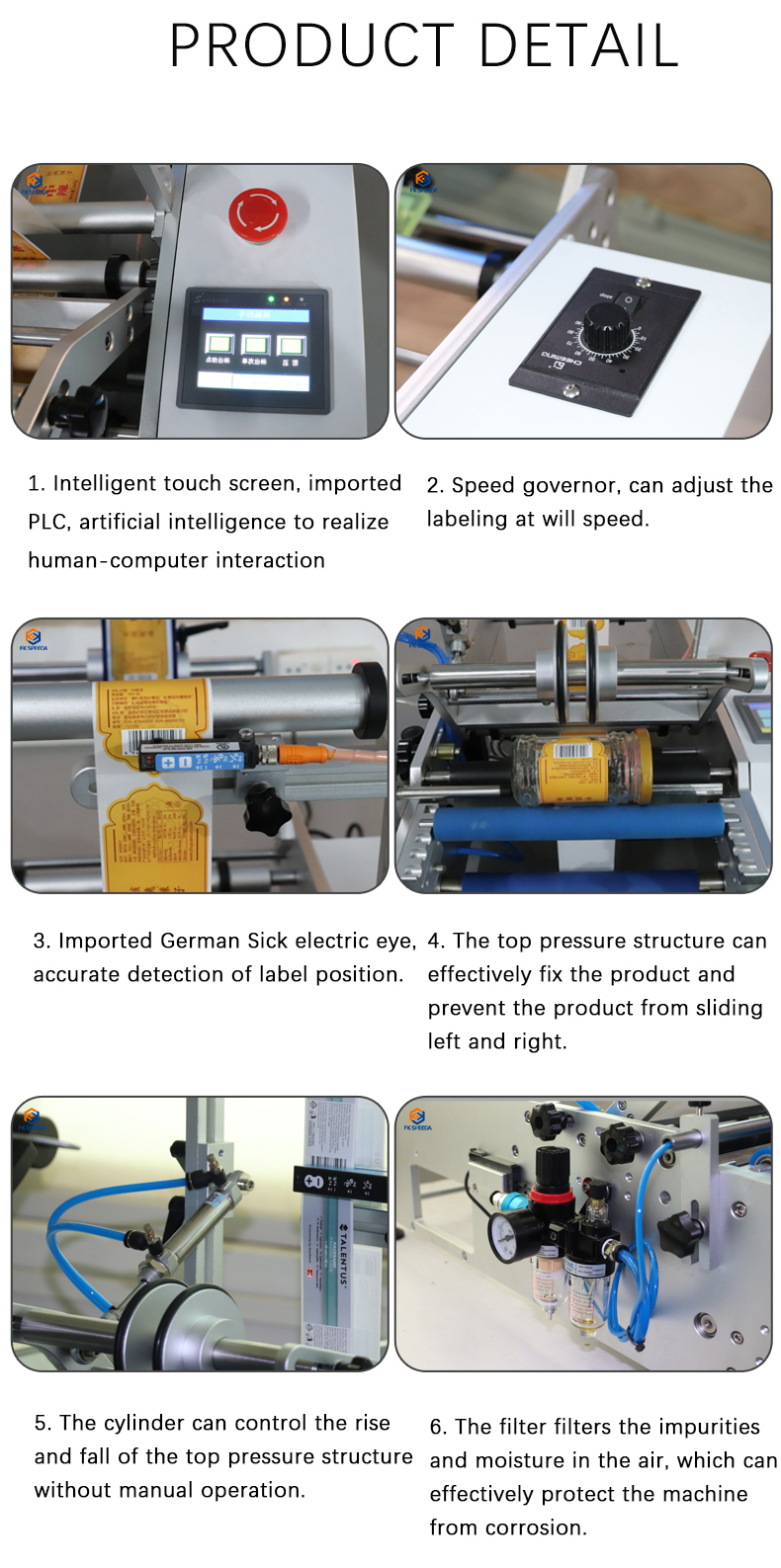

FK603 Labeler Details

Product Parameter

Parameter Data
Label Specification adhesive sticker, transparent or opaque
Labeling Tolerance ±0.5mm
Capacity(pcs/min) 15 ~ 45
Suit bottle size(mm) Ø15~Ø150; Can be customized
Suit label size(mm) L: 20-380; W(H): 20-220
Machine Size(L*W*H) ≈920*470*560 (mm)
Pack Size(L*W*H) ≈1020*660*740 (mm)
Voltage 220V/50(60)HZ; Can be customized
Power 120W
N.W (KG) ≈45.0
G.W(KG) ≈67.5
Label Roll ID: Ø76mm; OD:≤300mm
Air Supply 0.4~0.6Mpa
Basic Application *For all kinds of cylindrical, tapered objects labeling, such as xylitol, cosmetics bottles, wine bottles.
*Can do One Label Wrapping Around Labeling, Two Labels in Front and Back Side Labeling, and Orientation Labeling.
*Date printer can be added to print production date, batch lot and expiry date while labeling.
*Widely used in food, cosmetic, chemical, and other industries.
*Support customization. Machine has in stock.

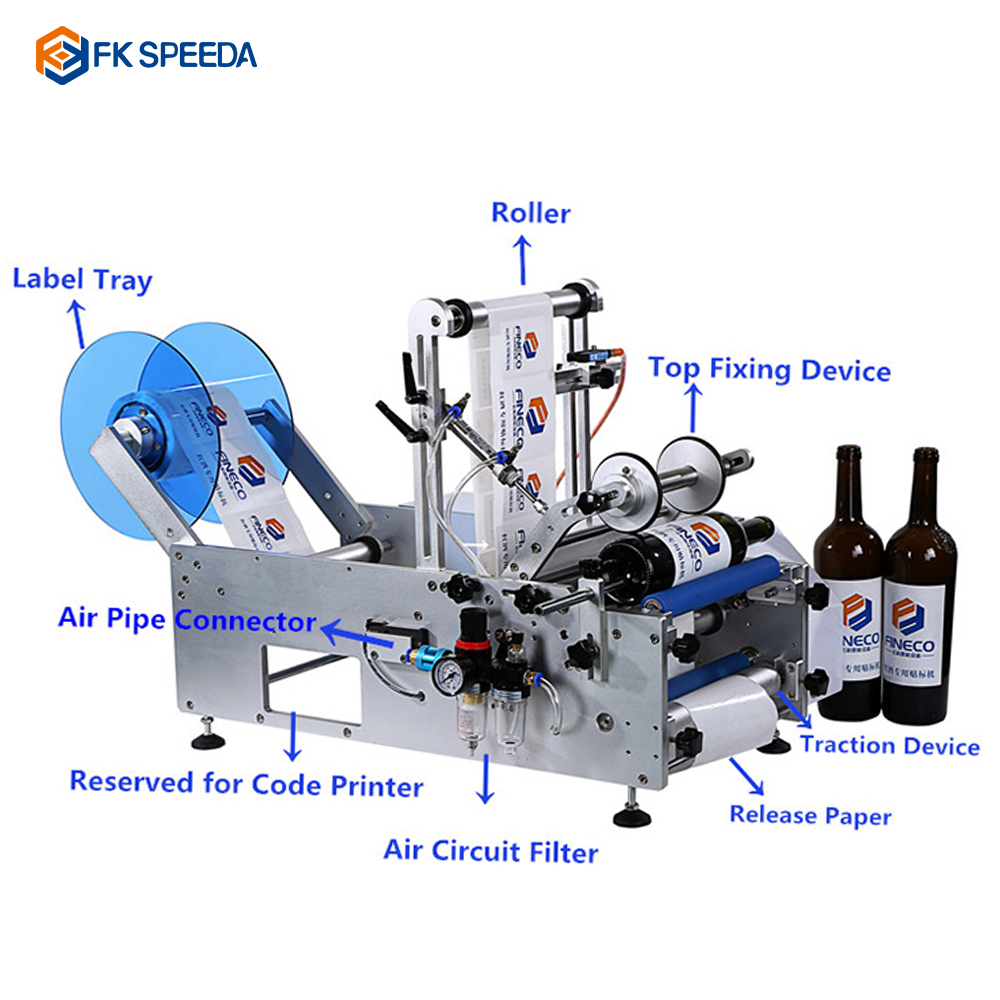

Labeling Machine Structure
Pneumatic Bottle Pressing Component

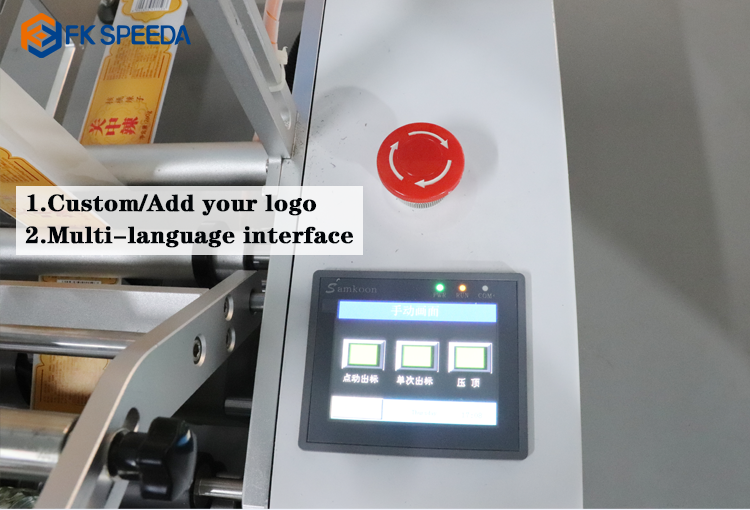

Touch Screen Panel

Application

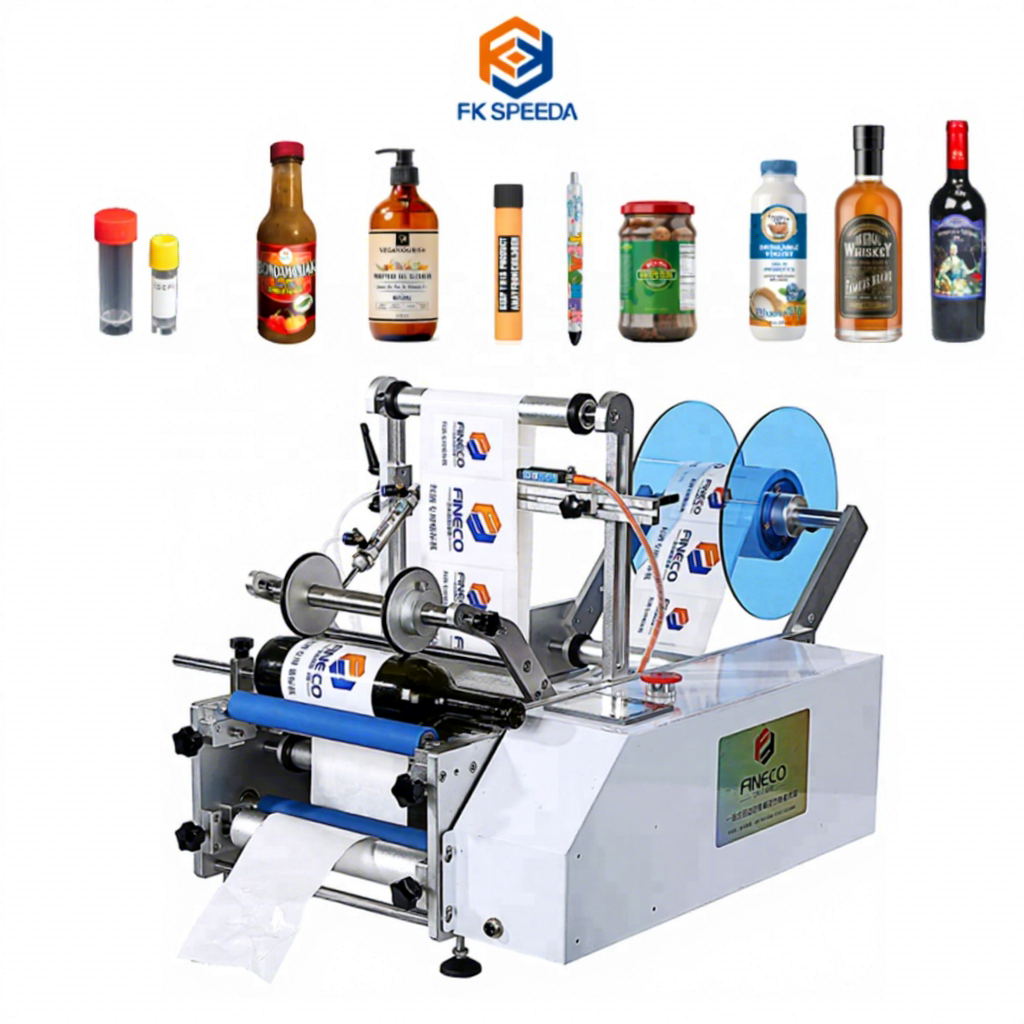

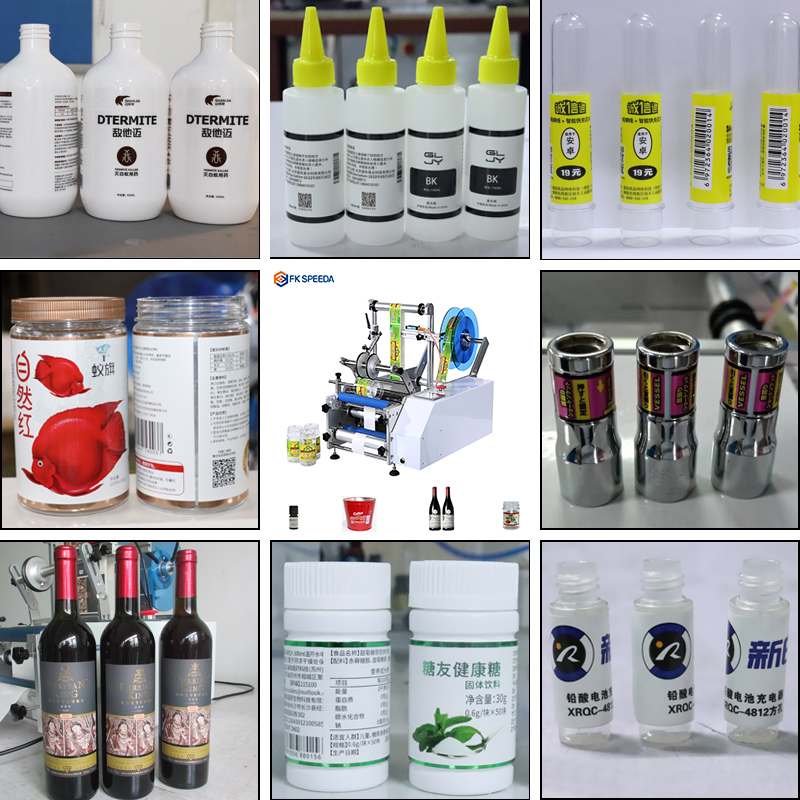

Application Range for Bottles

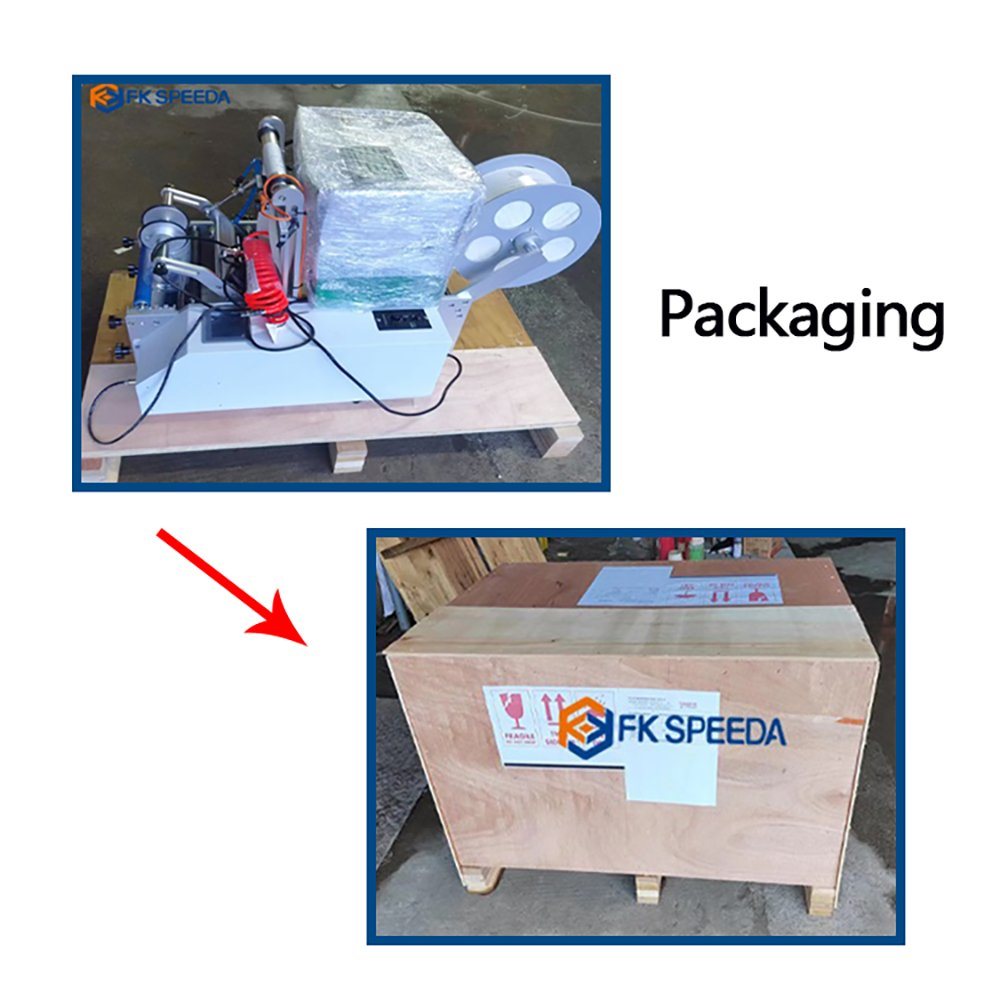

Packing & Delivery

In order to ensure the transportation safety of the products to the greatest extent, the machine is carefully protected by stretching film and the outer packaging is reinforced by wooden boxes.

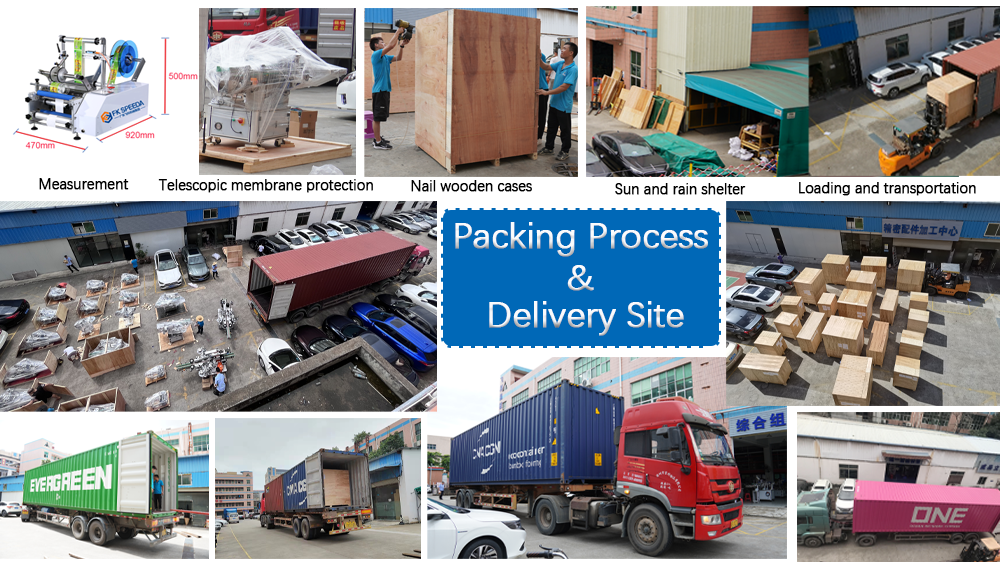

Stretching Film Wrap Packing
Wooden Box Outer Packaging
Production Facility Details 1
Production Facility Details 2
Production Facility Details 3
Label Winding Mechanism
Finished Product Quality Check
Machine Testing Stage
Warehouse Storage
Packing Ready for Shipment

Frequently Asked Questions (FAQ)

What types of bottles can the FK603 labeling machine process?
The FK603 is ideal for all kinds of cylindrical and tapered objects, such as cosmetics bottles, wine bottles, beverage bottles, and jars within the diameter range of 15mm to 150mm.
Does this machine support front and back labeling simultaneously?
Yes, it features flexible capabilities supporting one label wrapping, two labels on the front and back, and fixed-point orientation positioning labeling.
What is the labeling accuracy of this semi-automatic labeler?
The FK603 provides highly precise labeling with a tolerance of just ±0.5mm, ensuring clean and professional product packaging.
Can transparent stickers and labels be used?
Yes, the machine works with both transparent and opaque adhesive sticker labels. For transparent labels, it uses specialized detection sensors.
Can I print expiry and production dates while labeling?
Absolutely. A date printer can be integrated into the machine to print production dates, batch numbers, and expiry dates dynamically during the labeling process.
Is the FK603 compatible with custom container sizes?
Yes, the machine supports customization configurations for different dimensions and shapes beyond standard specifications.
