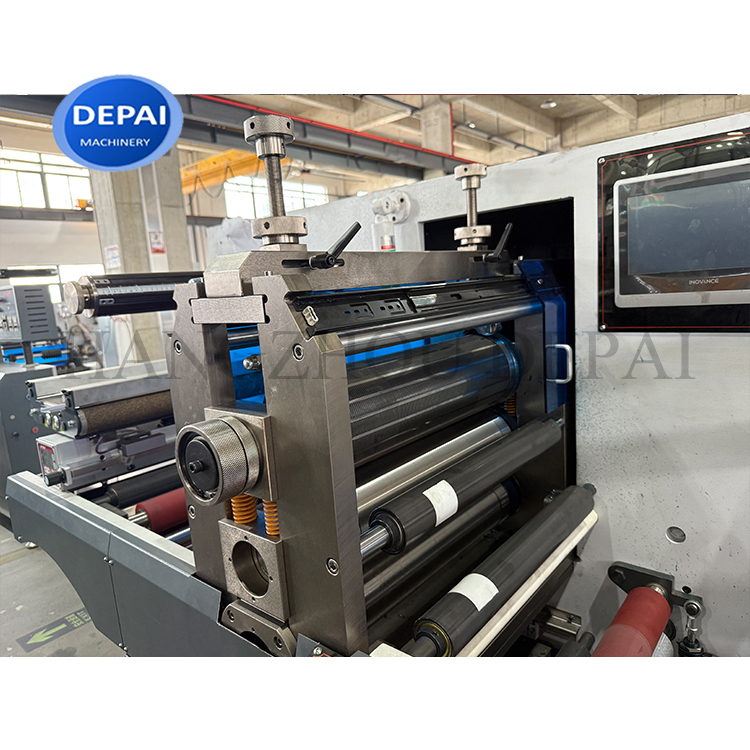

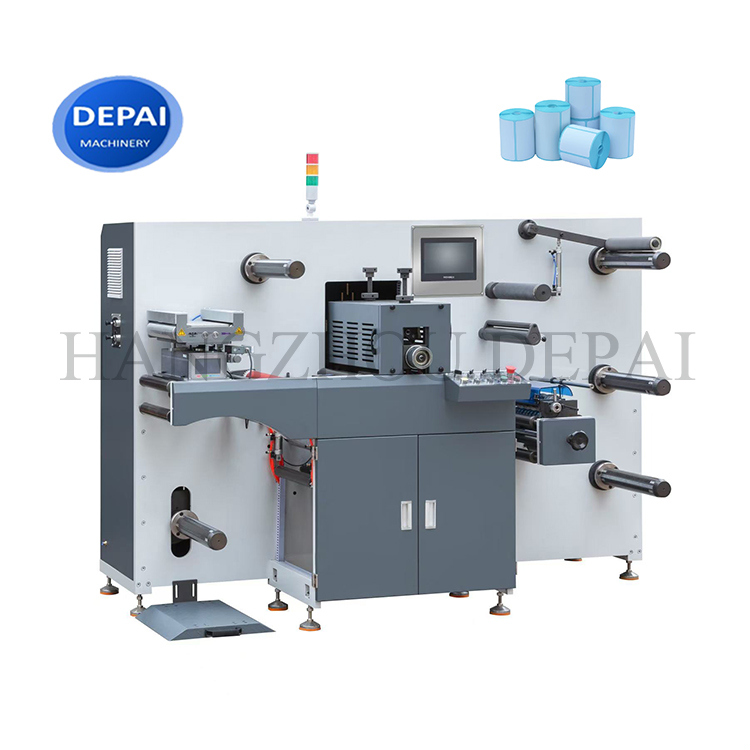

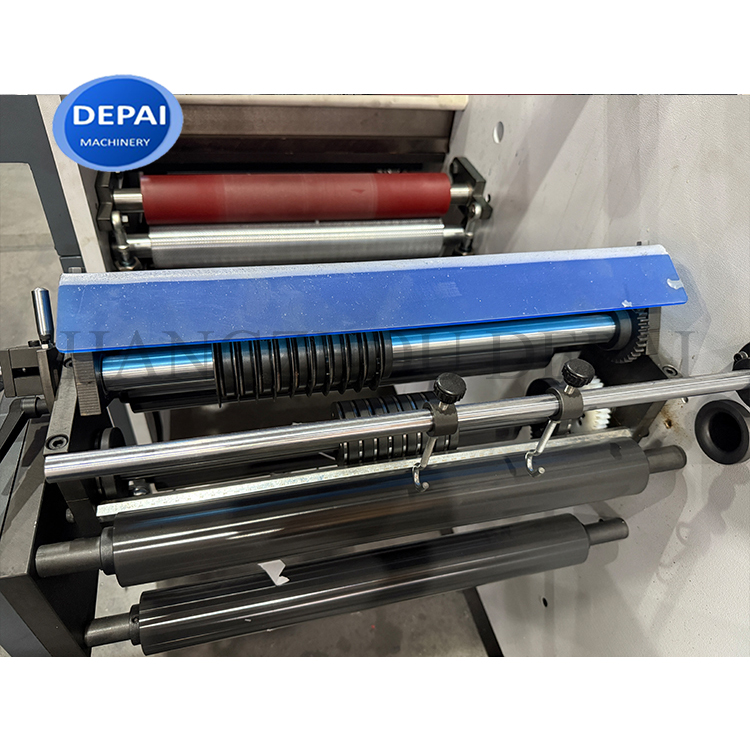

DEPAI 350 Model Intermittent Flexo Printing Labels Semi-Rotary Printed Label Die Cutting Machine

Product Description

350 Model Intermittent Flexo Printing Labels Semi-Rotary Printed Label Die Cutting Machine

Product Description

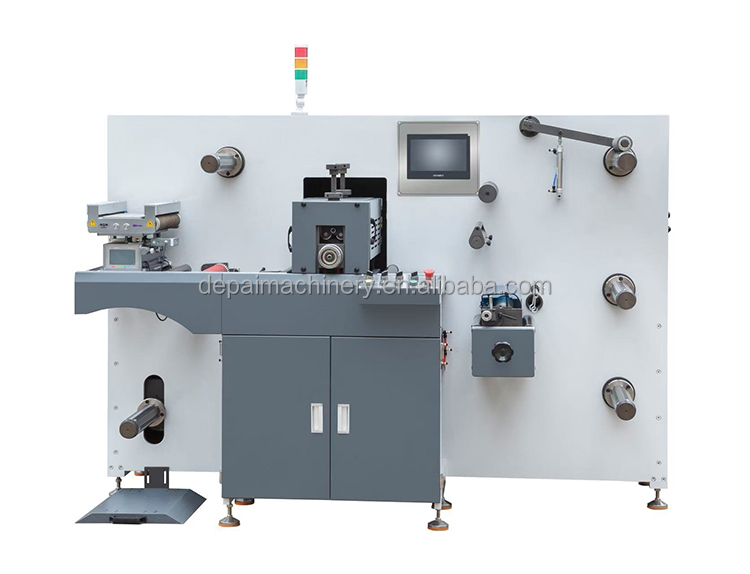

Model 350 Semi-Rotary Die Cutting Machine
Semi-rotary die cutting with slitting machine is a new product, it equipped with motion control system, and register sensor to arrange high accurate rotary die-cutting system. This machine is applicable to pre-printed labels. Unwinder, rotary die-cutting, slitting and rewinding can be finished in one process. It can run with semi-rotary mode as well as full rotary mode. With semi-rotary time, the machine doesn’t need to change different magnetic cylinders for different labels because it can go backward. Only flexible die is required to be changed. The machine was equipped with web guide to guide the material smoothly. The machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, steady running etc.

Specification

Parameters DP-DES350I DP-DES450I
Slitting speed 120m/min
Die-cutting speed 60m/min (intermittent) / 120m/min (full-rotary)
Max web width 350mm 450mm
Max unwinding diameter 700 mm
Max rewinding diameter 700 mm
Die cutting length 200mm-450mm (intermittent) / 250mm-550mm (full rotary)
Overall diameter 2300*1300*1500mm 2300*1500*1500mm
Machine weight 1000kg 2000kg
Voltage 380V, 3P
Power 12KW 12KW

Configuration & Machine Details

One rotary die cutting station with waste rewinder shaft

One Lamination station with waste rewind for over-lamination film with liner

With 1pc 3’’ unwinding shaft with tension controller

With 2pcs 3'' air shaft for rewind

With meter/number counter

With one register sensor

With 8 pcs rotary knife

Machine has blower fan to blow away the trimmed sides

With auto web guiding

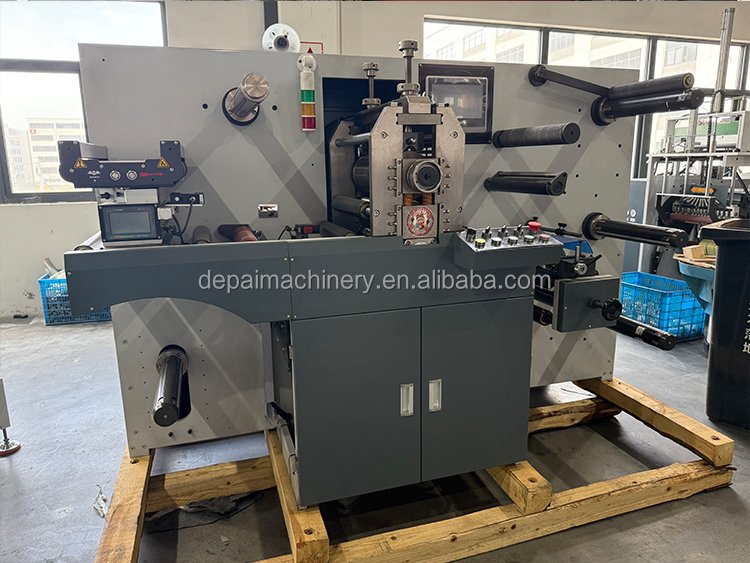

Machine appearance

Machine appearance

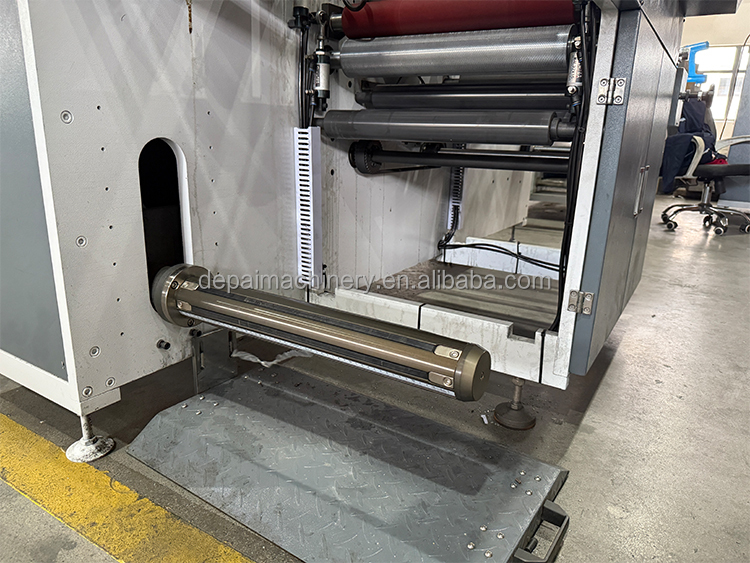

Unwinding with air shaft

Unwinding with air shaft

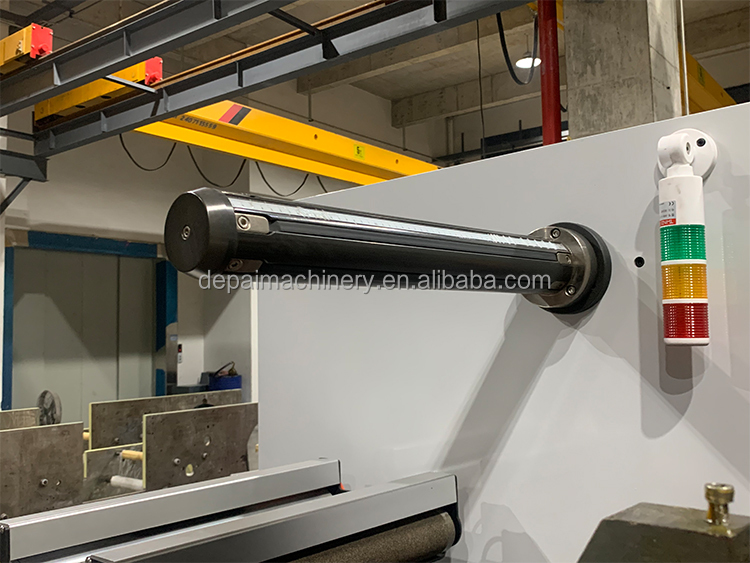

Laminating unit

Laminating unit

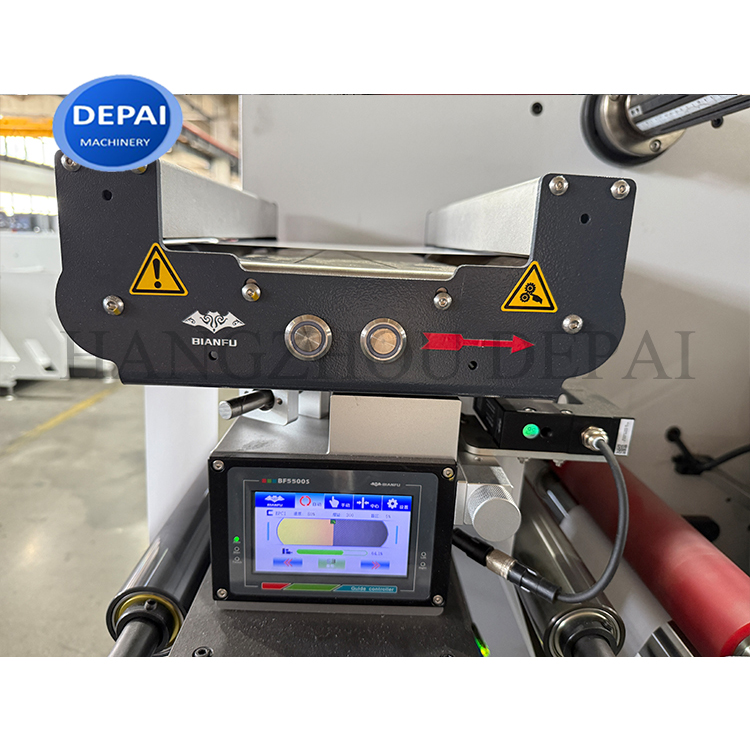

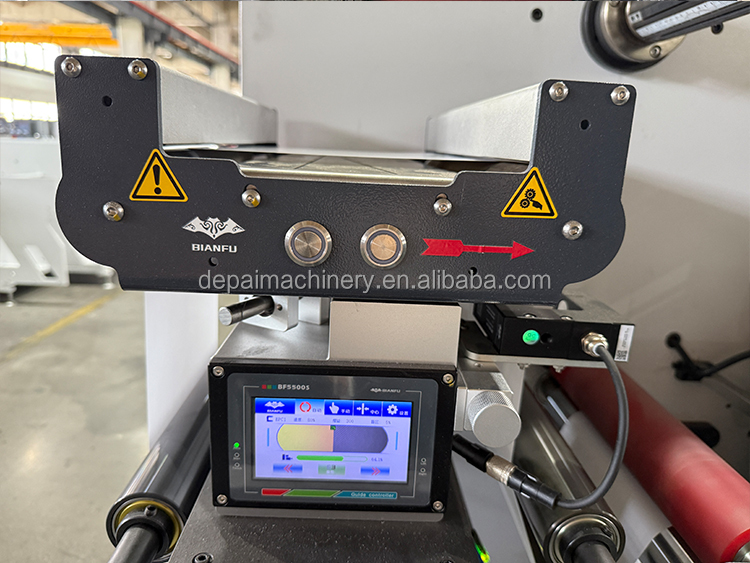

Web guiding system

Web guiding system

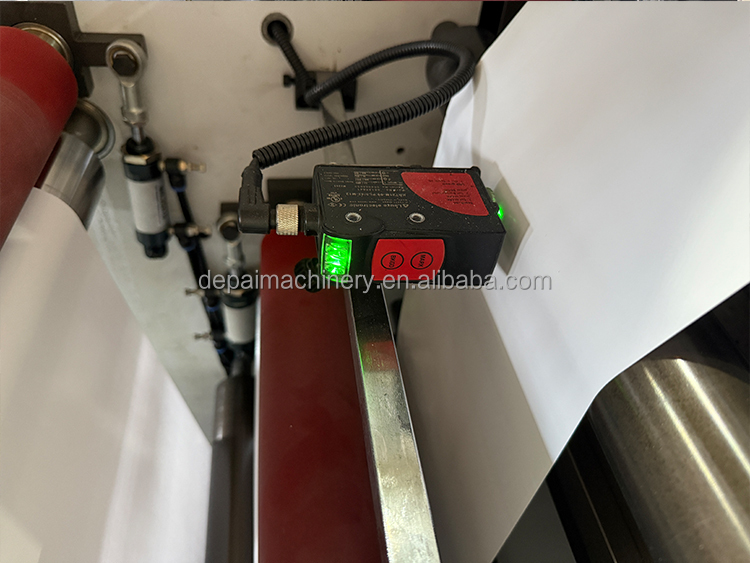

Color tracking system

Color tracking system

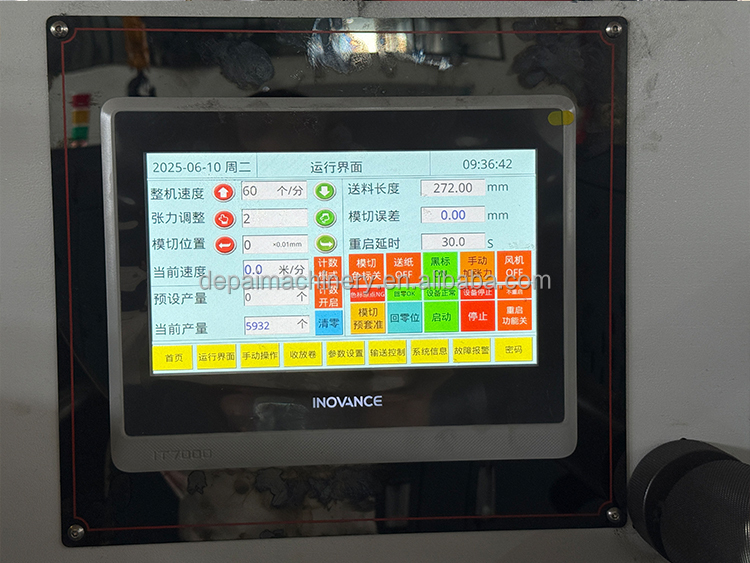

Touch screen

Touch screen

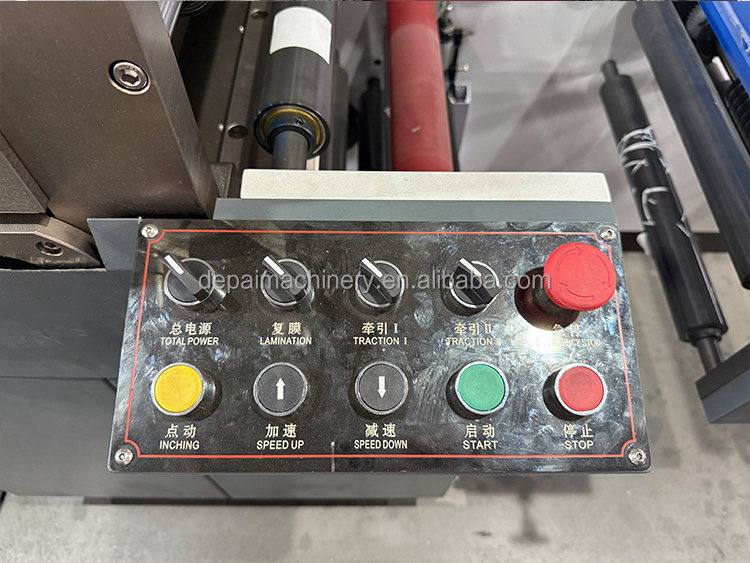

Control panel

Control panel

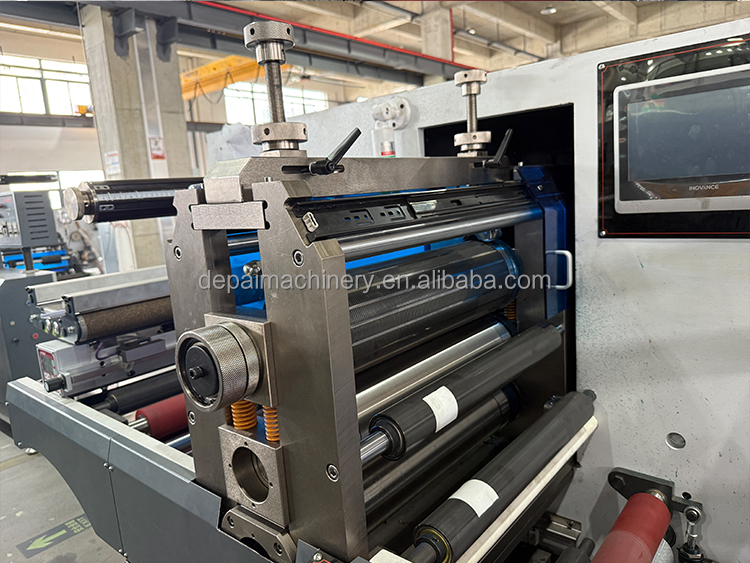

Die Cutting Station

Die Cutting Station

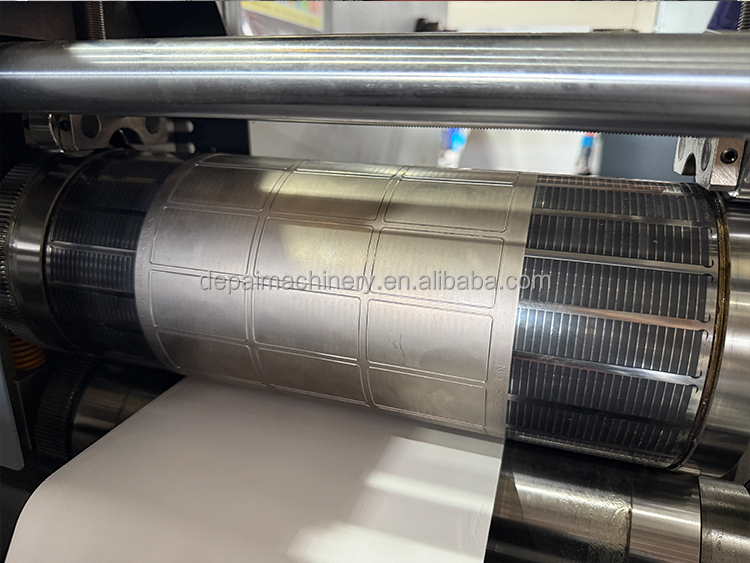

Magnetic roller and flexible die

Magnetic roller and flexible die

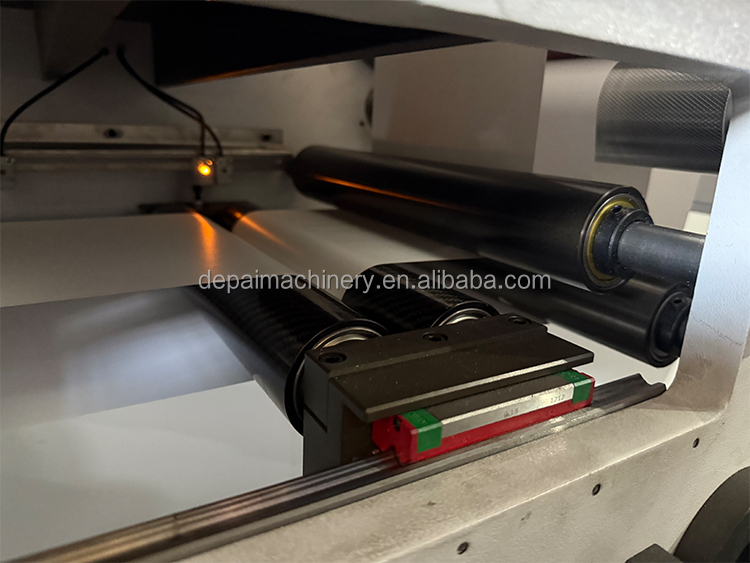

Swing rod

Swing rod

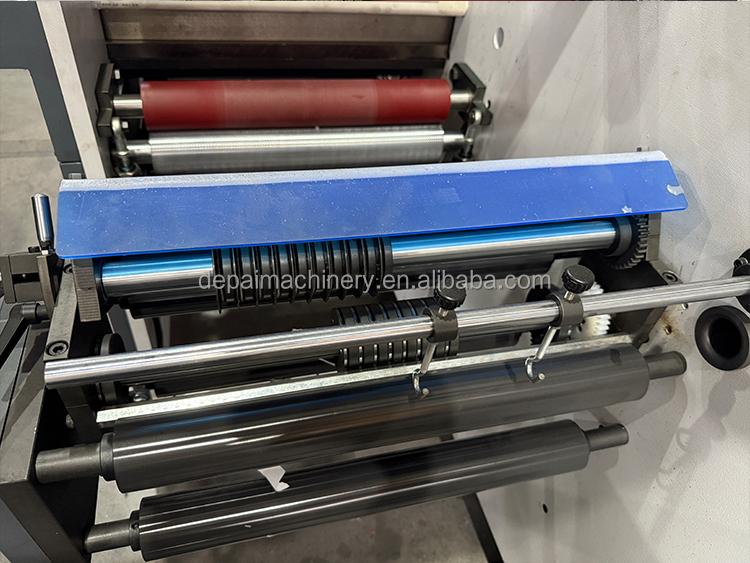

Slitting Station

Slitting Station

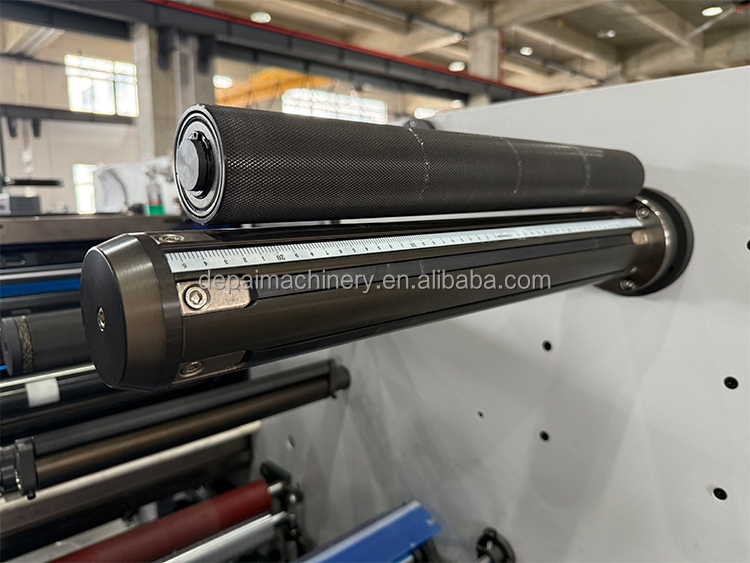

Waste collection unit

Waste collection unit

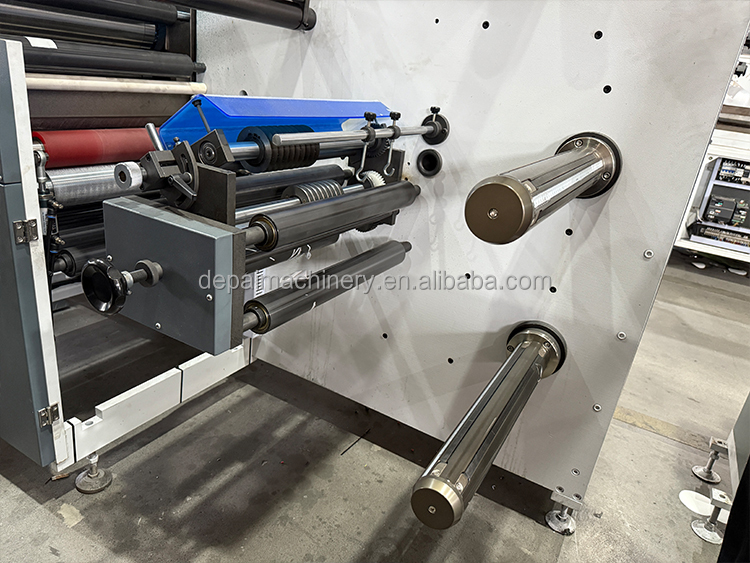

Rewinding unit

Rewinding unit

Samples

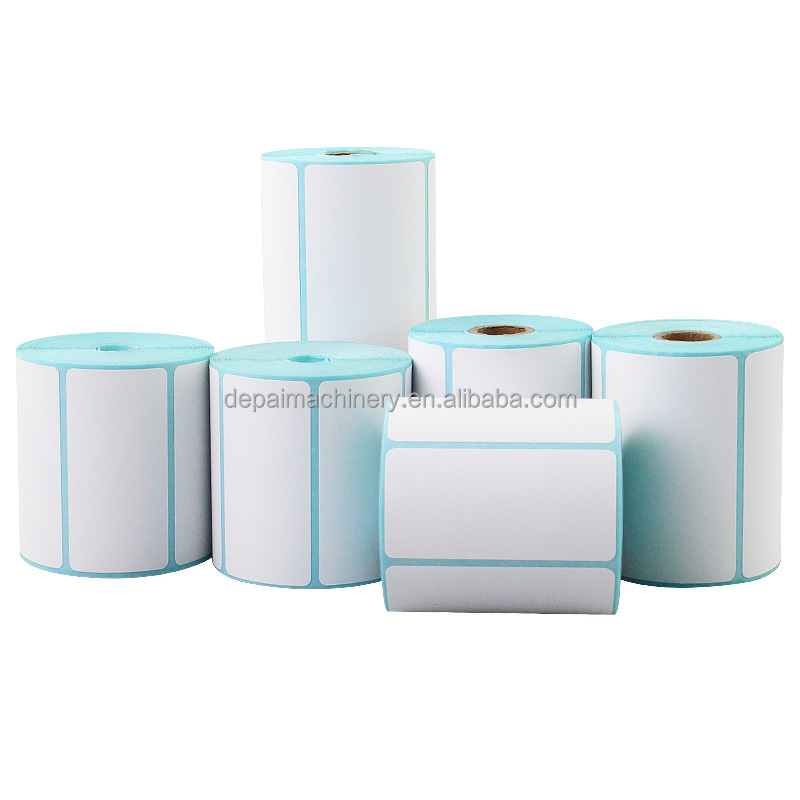

Sample 1

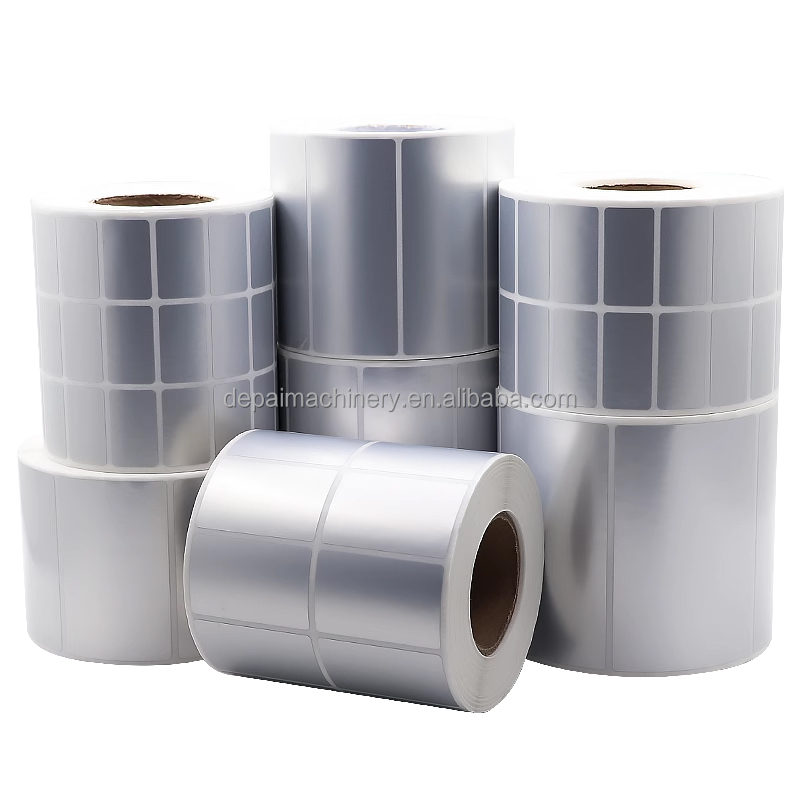

Sample 2
Sample 3

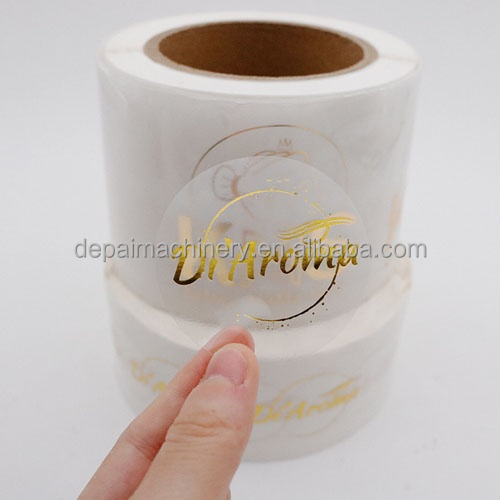

Sample 4

Manufacturing Facility

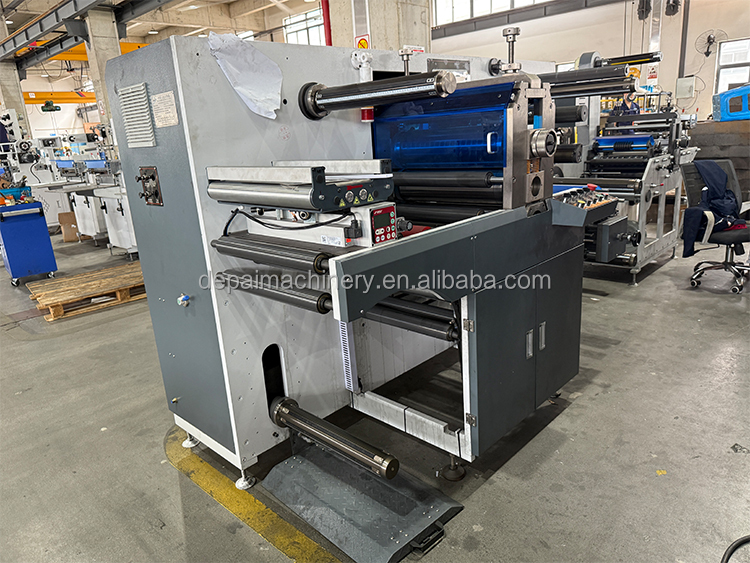

Factory Workshop 1

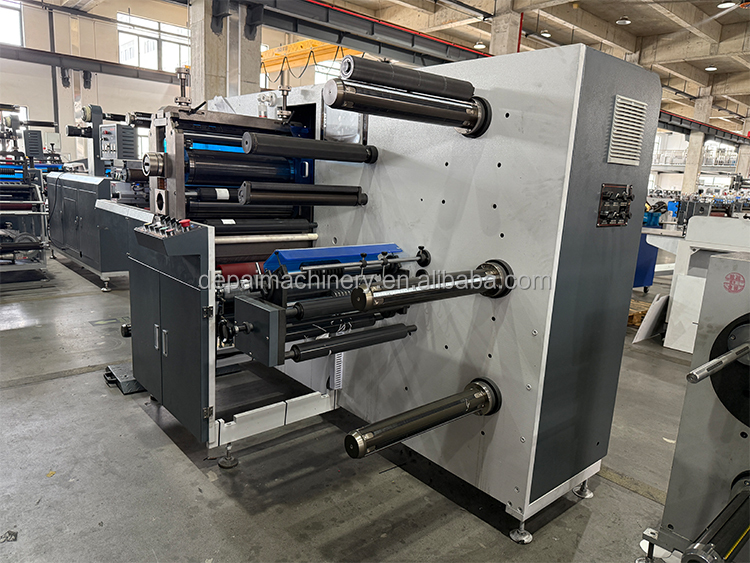

Factory Workshop 2

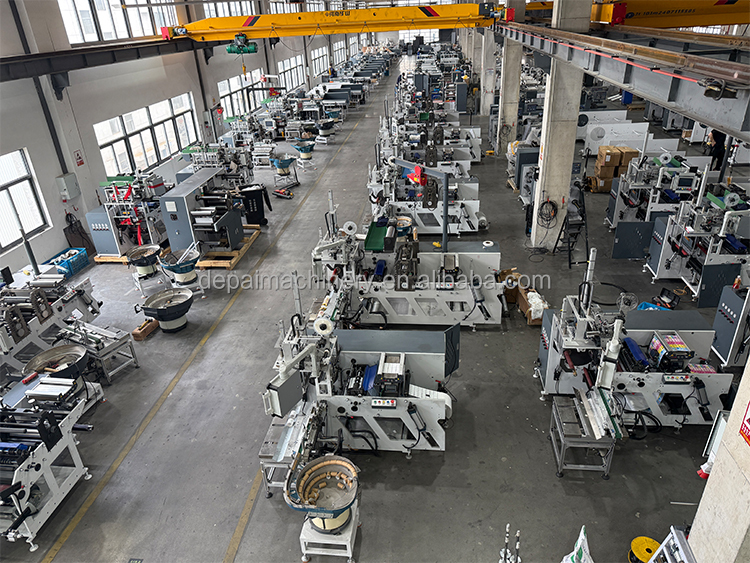

Factory Workshop 3

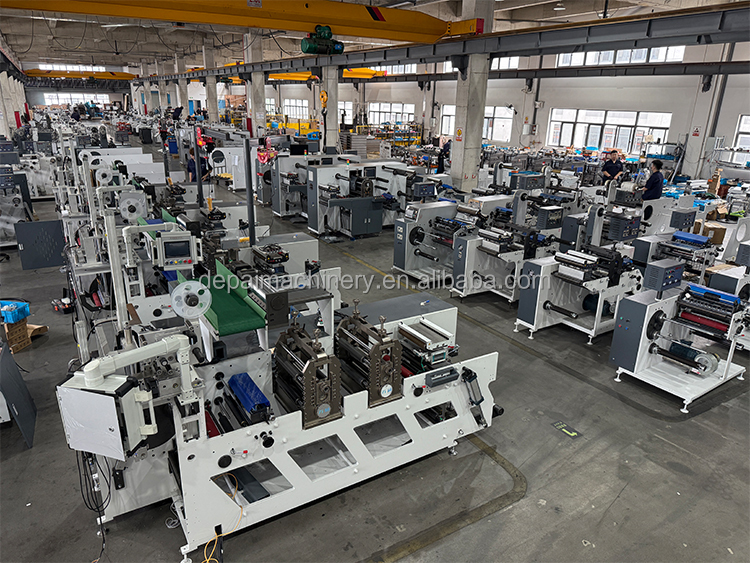

Factory Workshop 4

Packing & Delivery

Packing Process
Delivery Loading

FAQ

Q1 How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
Q2 What is your after-sales service?
Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural factors and not by humans, we can send the new parts to you for free.
Q3 What are the terms of payment you accept?
30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
Q4 Can this machine handle both semi-rotary and full rotary modes?
Yes, this machine features a dual-mode system. It can run in semi-rotary mode for varying label sizes without changing the magnetic cylinder, or switch to full-rotary mode for high-speed, continuous running.
Q5 What materials can be processed by this die-cutting machine?
The machine is designed for processing adhesive paper, pre-printed labels, film, and other composite roll packaging materials efficiently.
Q6 How do I change magnetic cylinders for different label sizes?
When running in semi-rotary (intermittent) mode, there is no need to change magnetic cylinders for different label lengths. You only need to replace the flexible die, which significantly cuts tooling costs and setup time.
