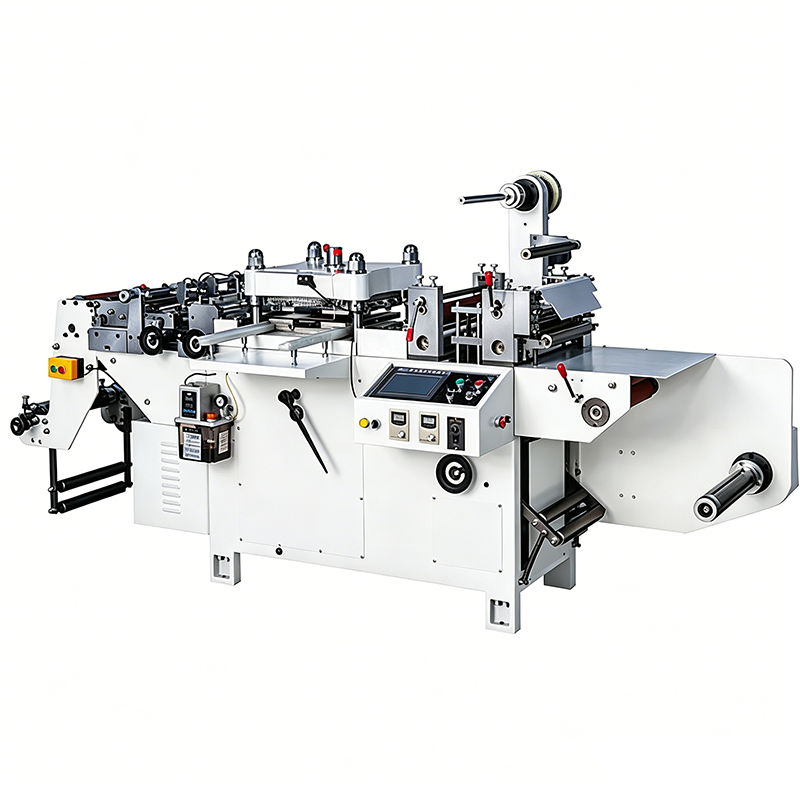

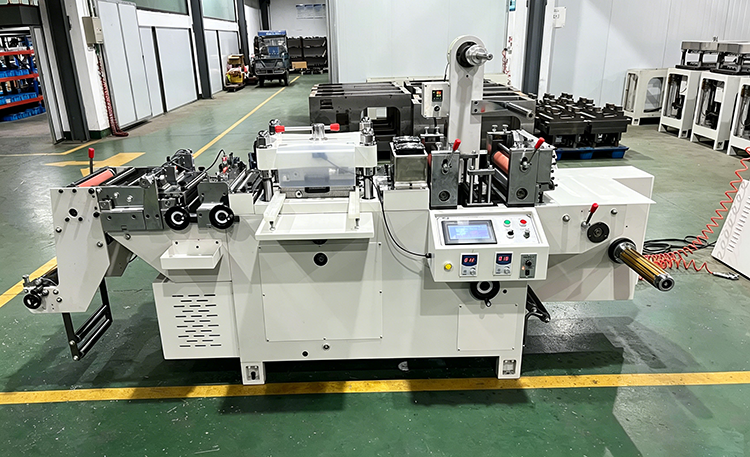

Roll to Roll high-speed die-cutting machine is built on the concept of delivering high efficiency, superior quality and low cost to customers, and we strive to offer affordable solutions for your business. Designed to address common pain points of label printing enterprises — such as the inability of traditional equipment to handle label die-cutting and low production efficiency — this machine integrates two interchangeable working modes:
1. Full rotary die-cutting for mould labels
2. Intermittent die-cutting for self-adhesive materials (also suitable for small-batch internal standard mould production)
It features an independent servo-driven color mark alignment system for precise registration, and supports both magnetic rolls and engraved rolls for both intermittent and full rotary die-cutting. A variety of optional configurations (including flexographic units, stripping units, etc.) are available to meet diverse production process requirements.
| Model | LKS-360 | LKS-460 |
| Die cutting speed | 350 times/min | 350 times/min |
| Maximum web width | 360mm | 460mm |
| Maximum unwinding diameter | 700mm | 700mm |
| Maximum rewinding diameter | 700mm | 700mm |
| Maximum die cutting width | 350mm | 450mm |
| Maximum die cutting length | 350mm | 450mm |
| Positioning precision | ±0.15mm | |
| Main motor power | 12KW | 15KW |
| Power supply | 220V+10% | |
| Overall dimension | 2100*1200*1500mm | 2300*1200*1500mm |
| Machine weight | about 2500KG | about 3500KG |

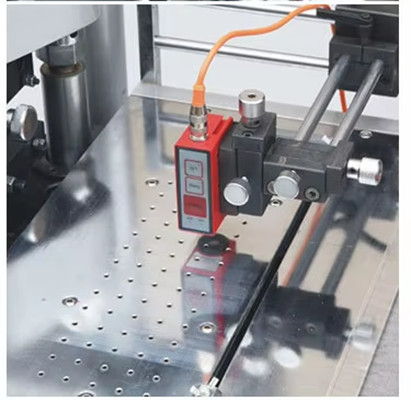

Used for pre-printed material to track color mark position to avoid cutting wrong.

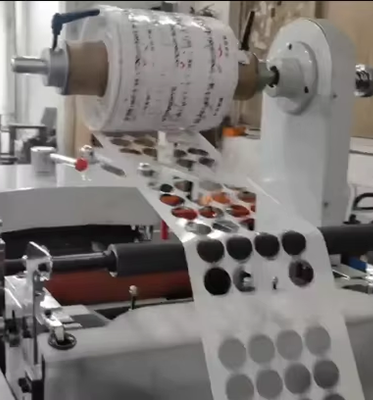

With magnetic clutch to control waste rewinding tension and independent motor.

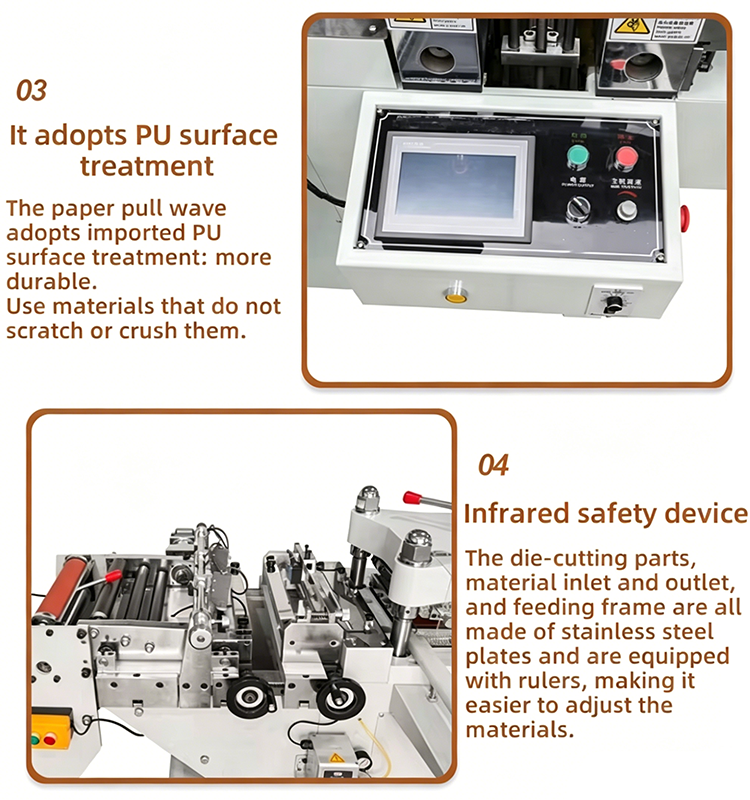

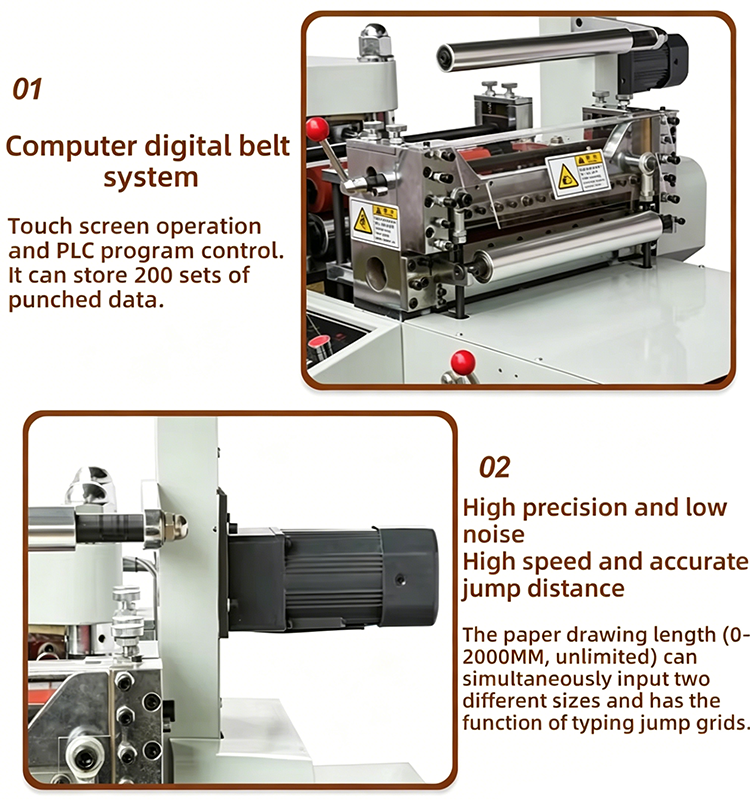

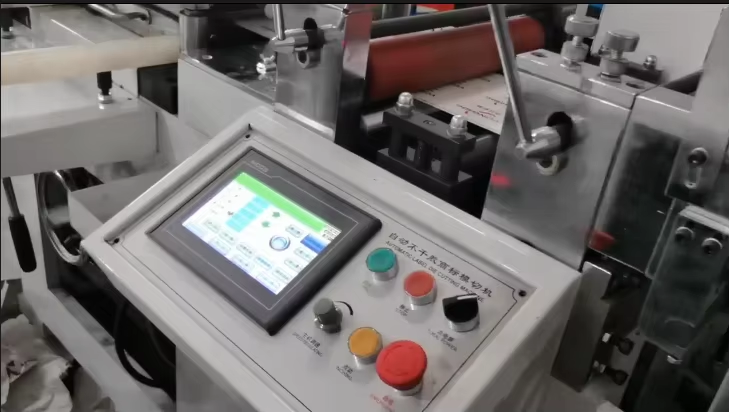

Power supply, data setting and display will be on touch screen

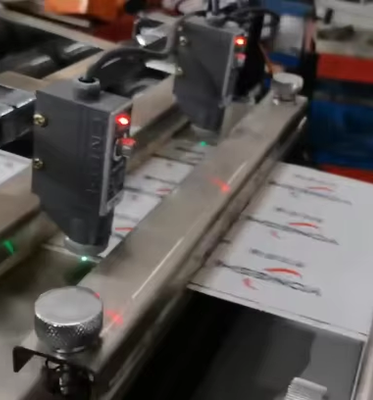

Control material move straightly.

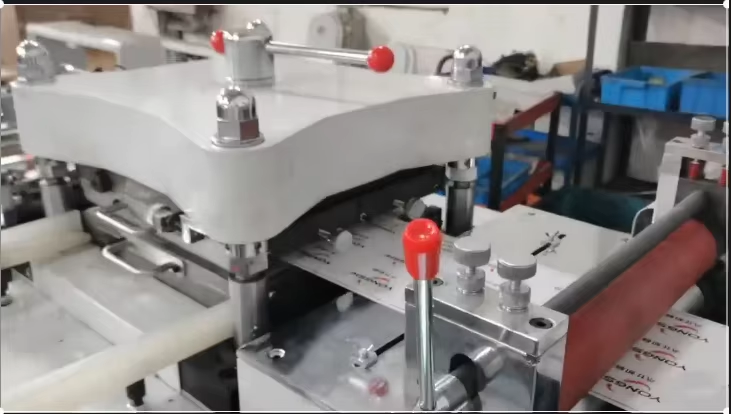

Need cooperate with wooden die, and this wooden die will display material shape whose required by client

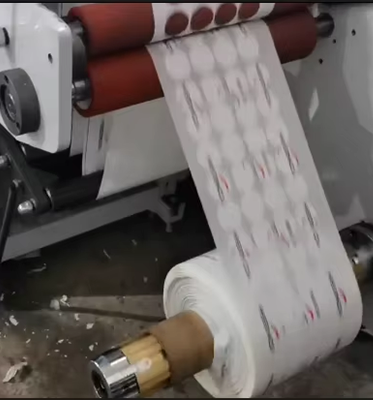

With 3 inch air shaft and magnetic clutch to control rewinding tension

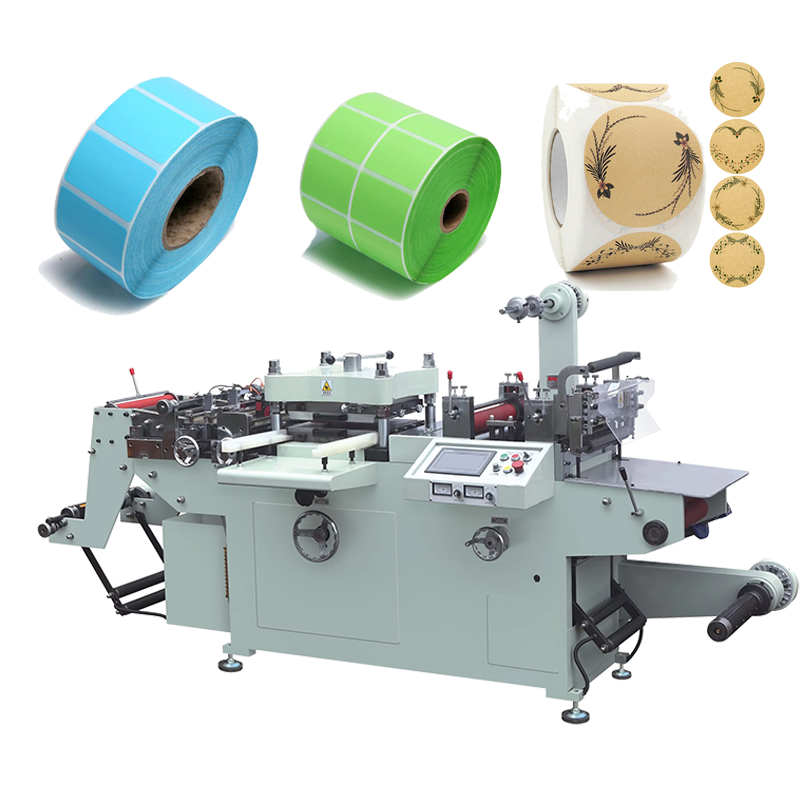

Die cutting of paper adhesive labels, nylon film labels, and laser anti-counterfeiting labels. This machine is a full wheel high-speed roll trademark printing machine, flexographic printing machine, continuous screen printing machine, and gravure printing machine. The best matching equipment for anti-counterfeiting trademark molding machines.
It is also the most ideal model for various trademark printing factories, suitable for die-cutting in the electronics industry and adhesive tape products industry.
