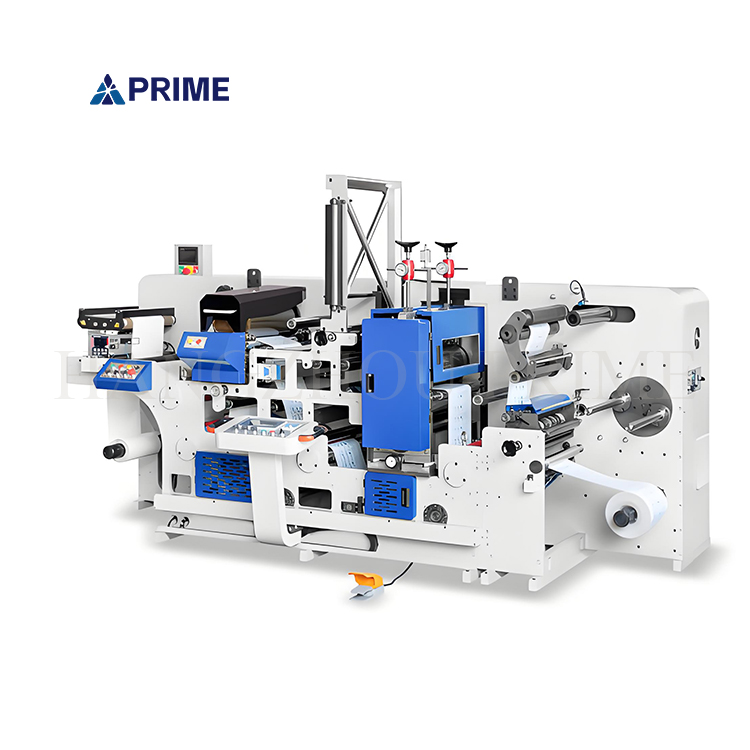

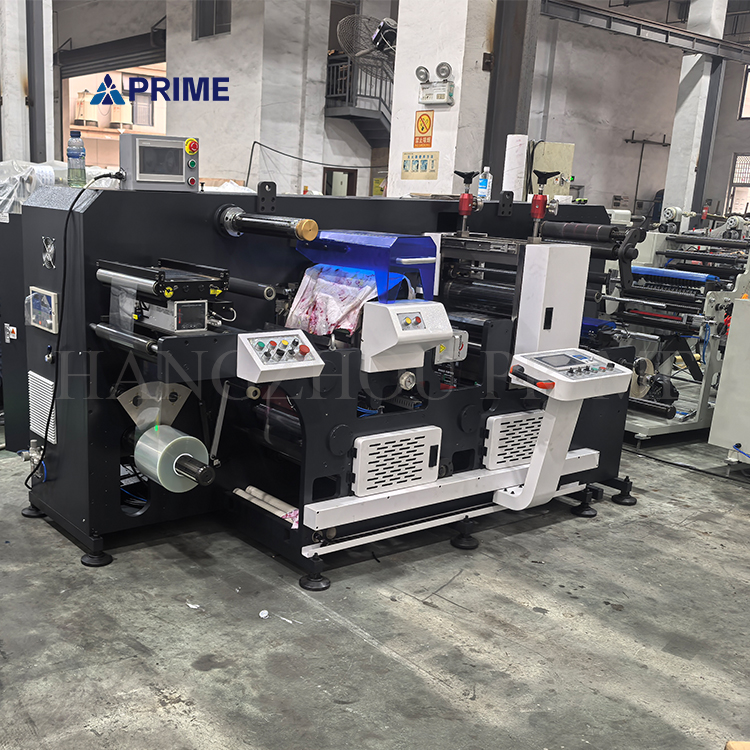

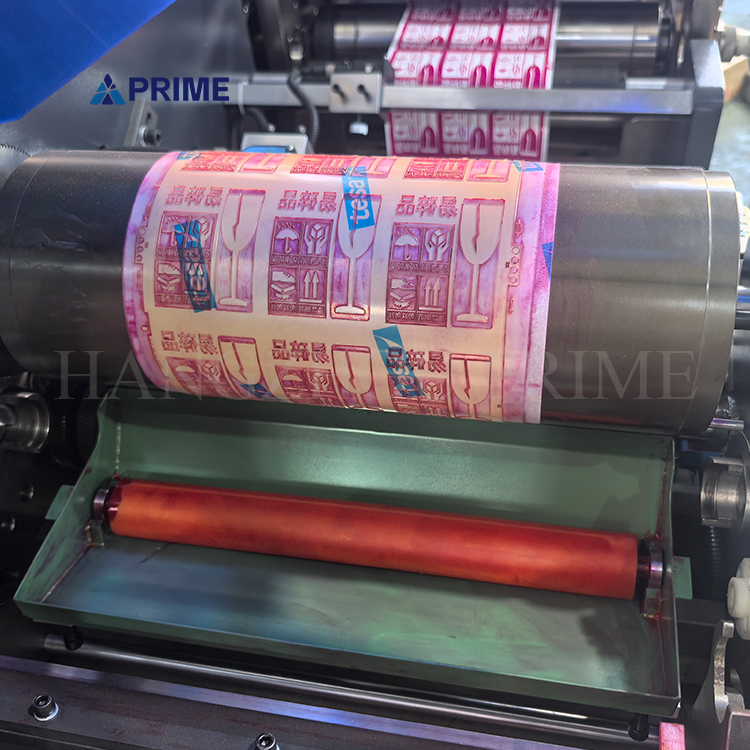

Semi Rotary Intermittent Printing and Die Cutting Machine for High Efficiency Label Production

Product Description

Semi Rotary Intermittent Printing and Die Cutting Machine for High Efficiency Label Production

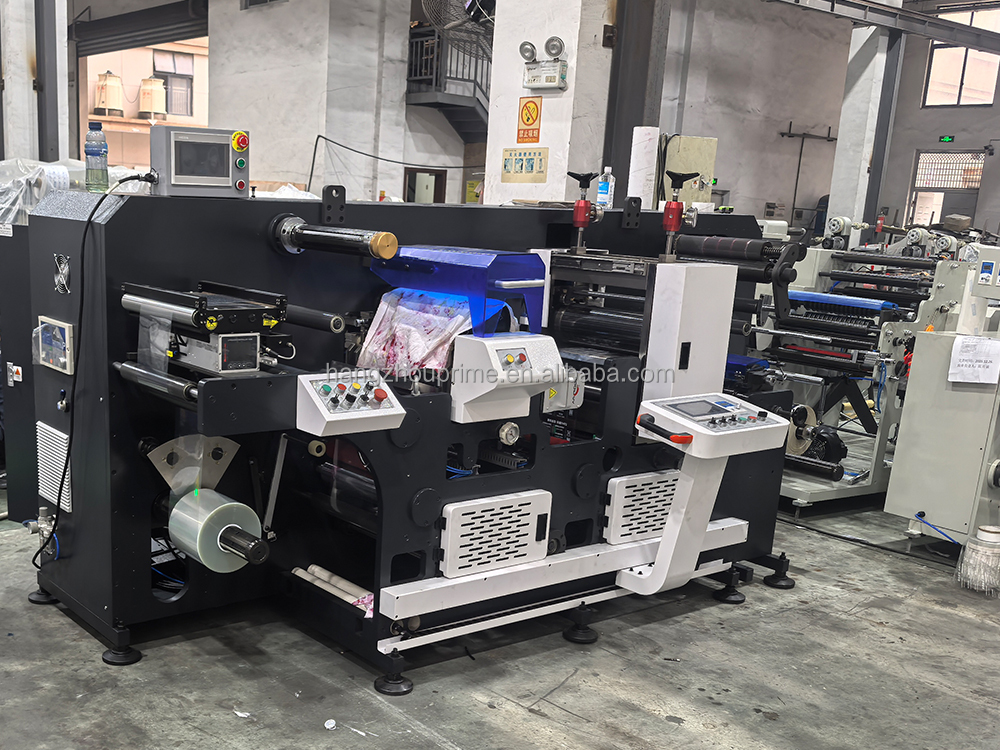

Product Overview
Product Overview

This equipment can complete a full in-line process including unwinding, printing, die-cutting, slitting, and rewinding, eliminating the need for multiple machines in series and greatly improving efficiency. It can also switch between intermittent die-cutting and full rotary modes, enhancing versatility to accommodate different production volumes and product specifications. The machine is controlled by a high-end servo system, which is easy to operate and user-friendly. The machine adopts a modular design, and various units can be freely combined to diversify the process.

Full In-line Process Intermittent & Full Rotary Modes High-end Servo Control Modular Design
Product Specifications
Model PM-350 PM-450 PM-520
Intermittent speed 60m/min 60m/min 60m/min
Max.web 360mm 460mm 530mm
Printing girth 200-360 200-360 200-360
Printing width 350mm 450mm 520mm
Full rotation speed 110m/min 200-360 200-360
Max unwinding diamter 700mm 700mm 700mm
Max rewinding diameter 700mm 700mm 700mm
Power supply 3ph+N+PE 3ph+N+PE 3ph+N+PE
Weight 3000kg 3800kg 4600kg
Dimension 3250*1700*1600mm 3250*1800*1600mm 3250*1900*1600mm
Power 28kw 32kw 37kw
Machine Details
Standard Configuration

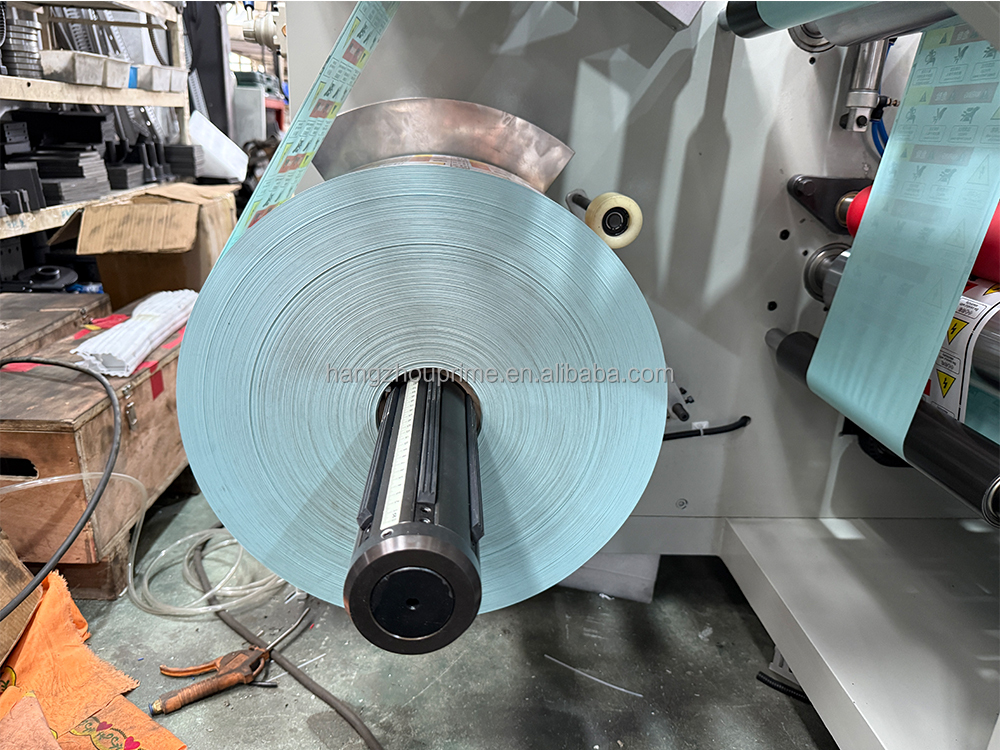

Unwinding Unit
Unwinding Unit

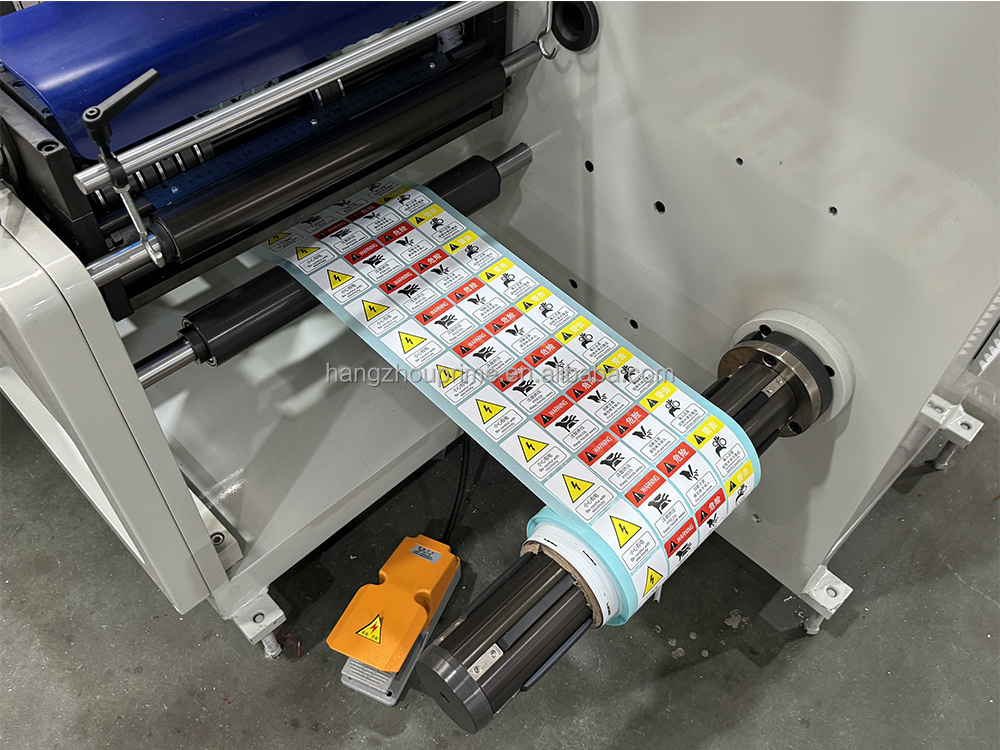

Rewinding Unit
Rewinding Unit

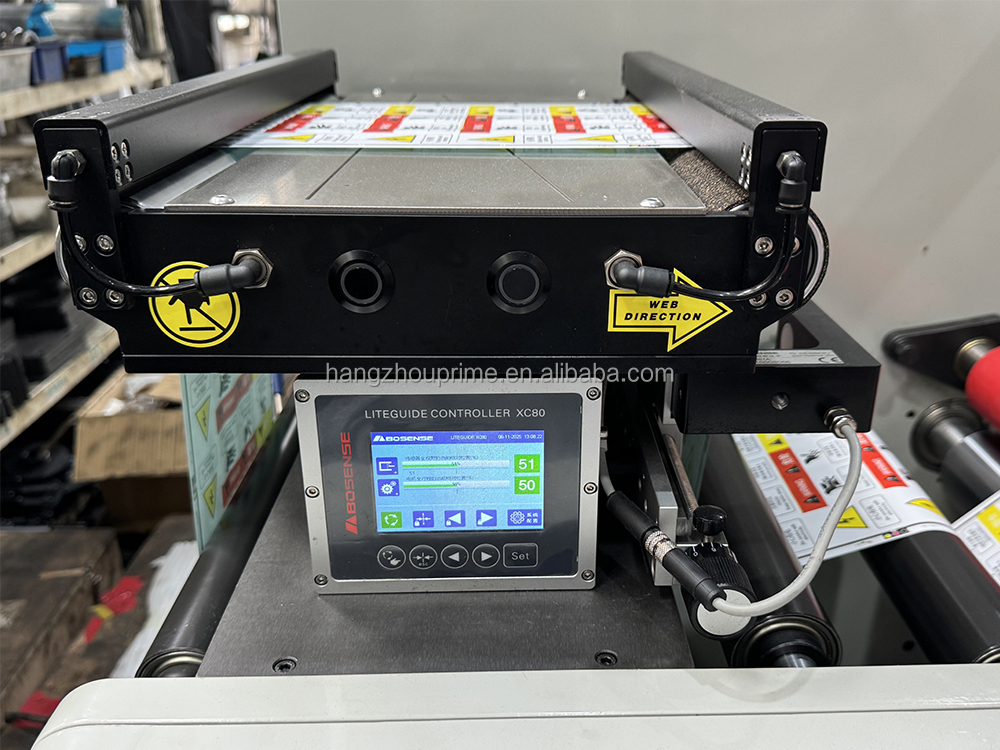

Auto Web Guide
Auto Web Guide

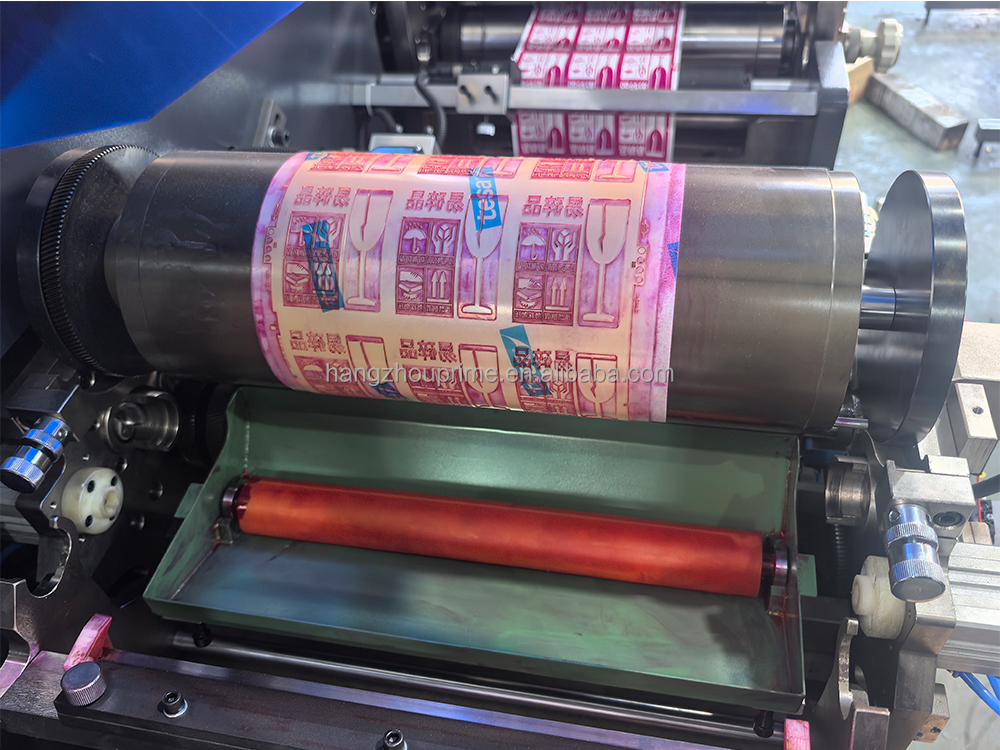

Printing Unit
Printing Unit

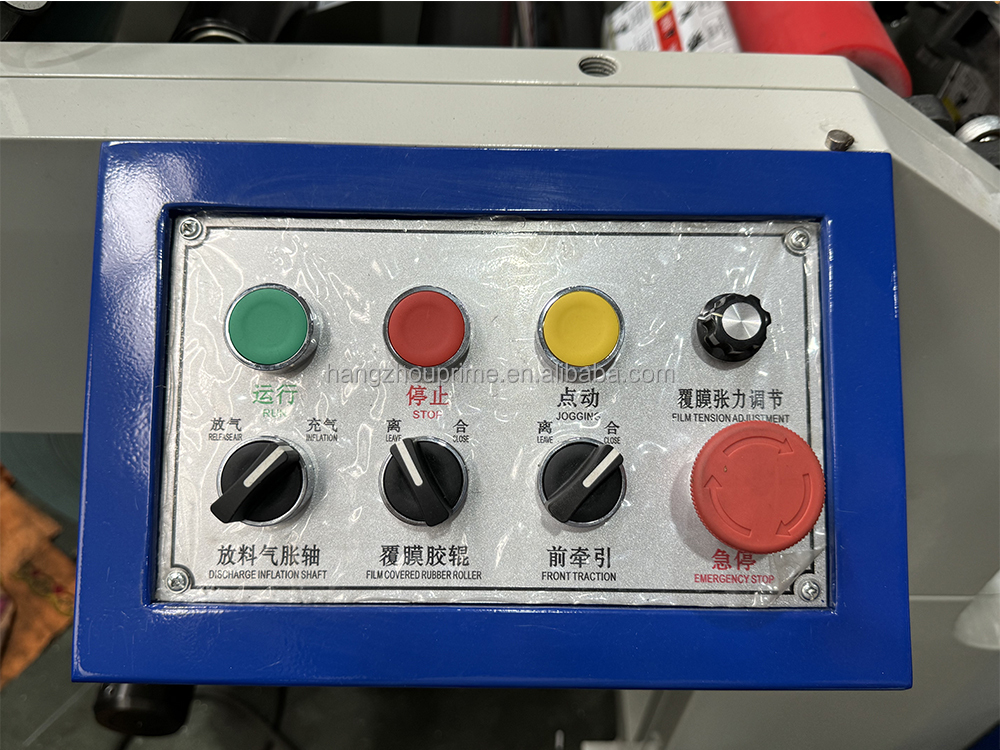

Tension Control System
Tension Control System

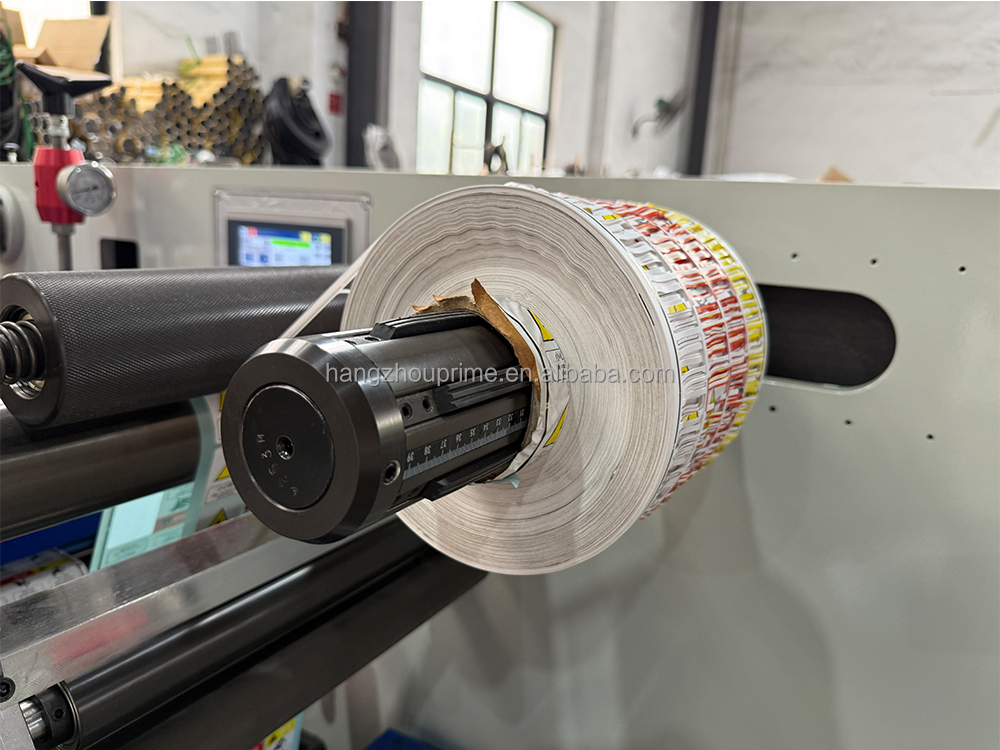

Waste Discharge
Waste Discharge

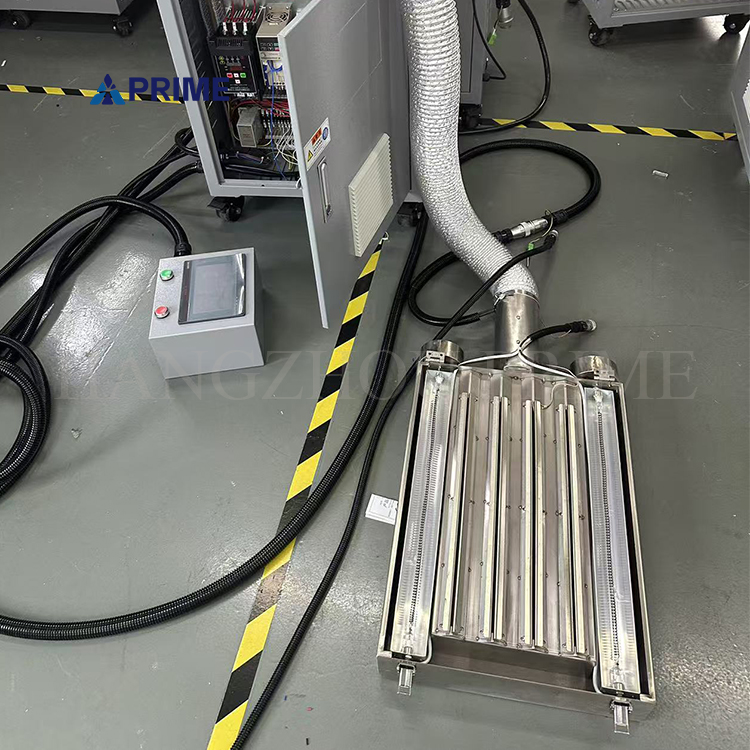

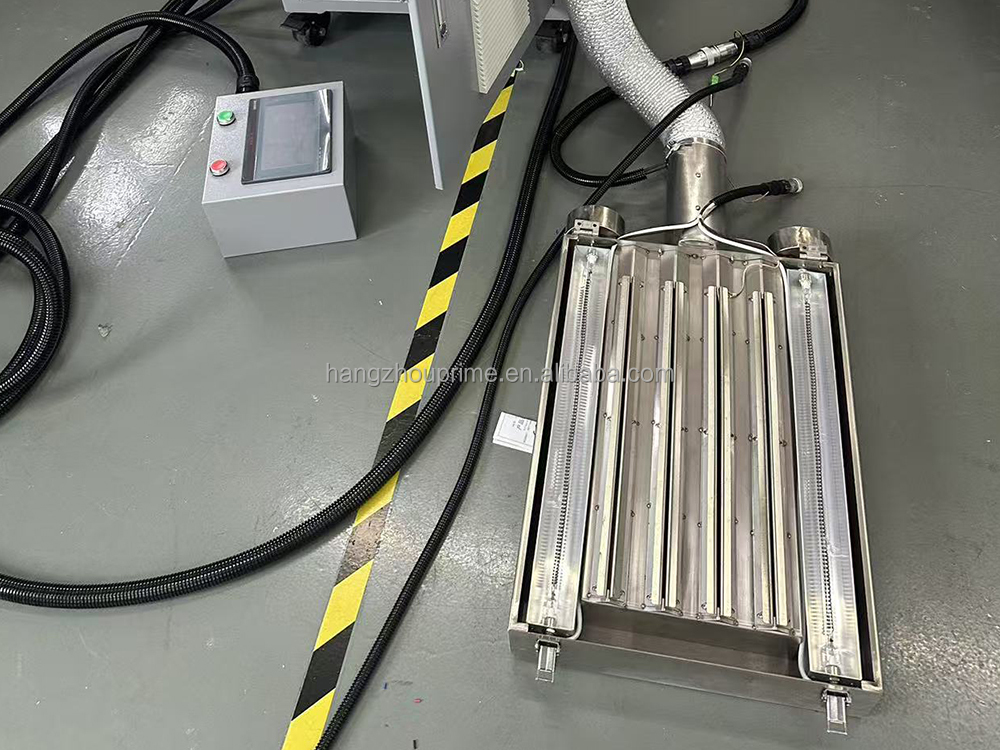

IR Dryer
IR Dryer

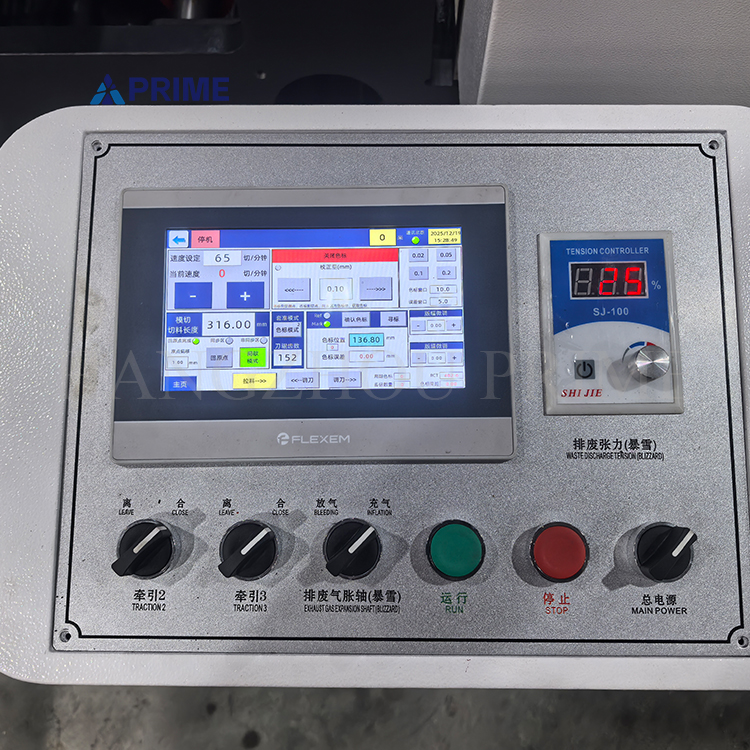

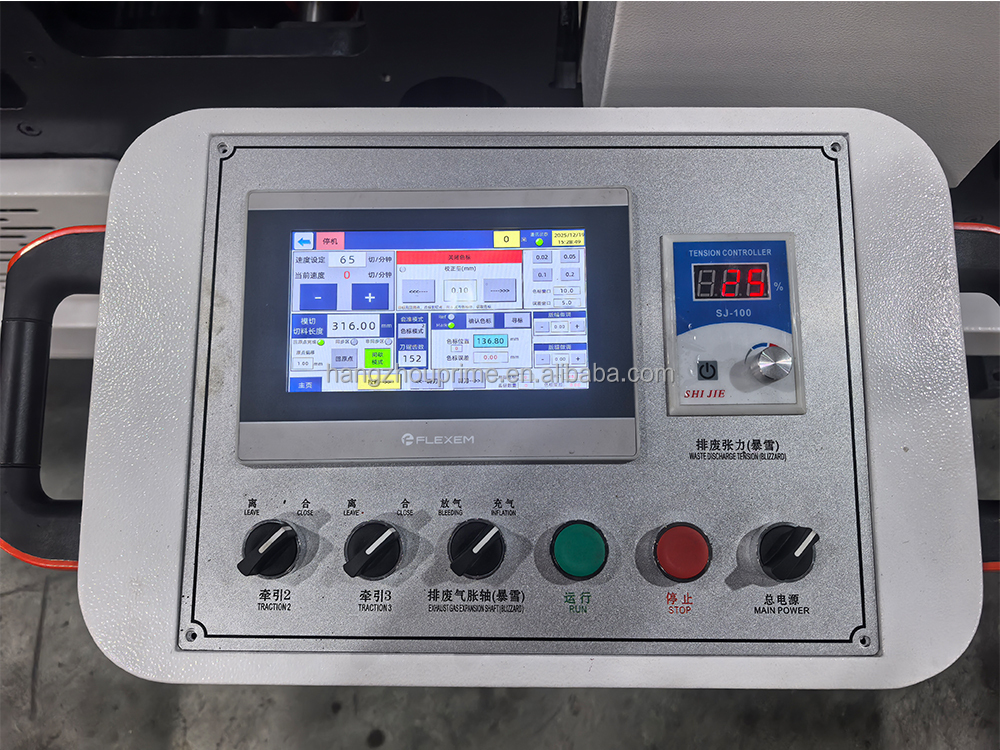

Control Panel
Control Panel

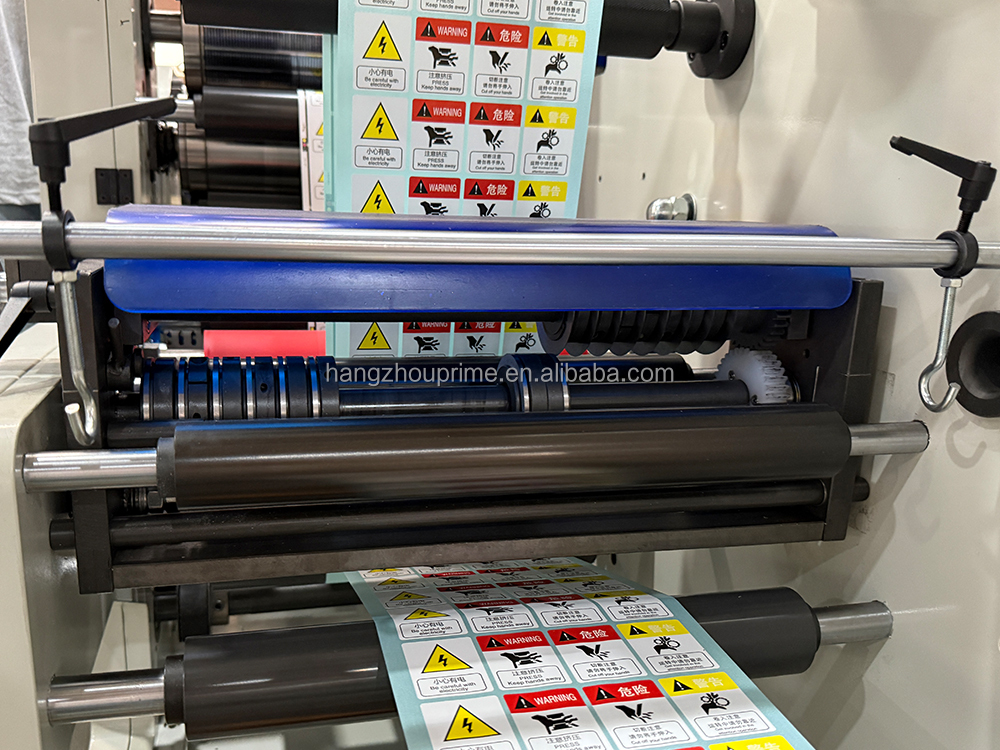

Slitting Unit
Slitting Unit

Cut large rolls of material into small rolls.

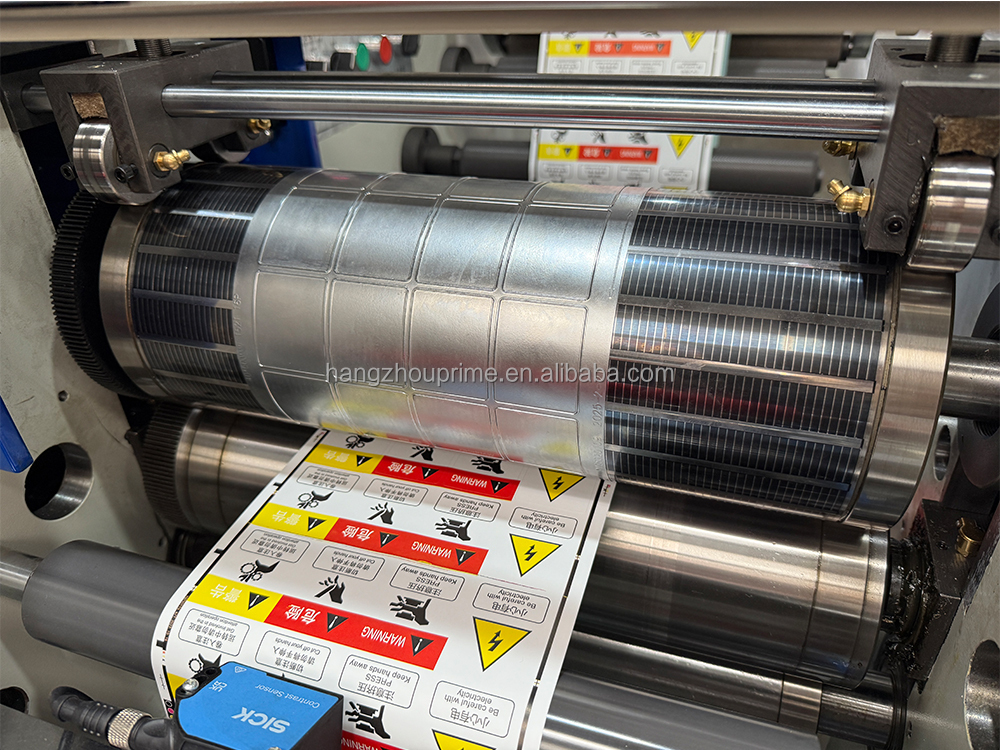

Die Cutting Unit
Die Cutting Unit

Include 1 set 152T magnetic cylinder

Optional Configuration

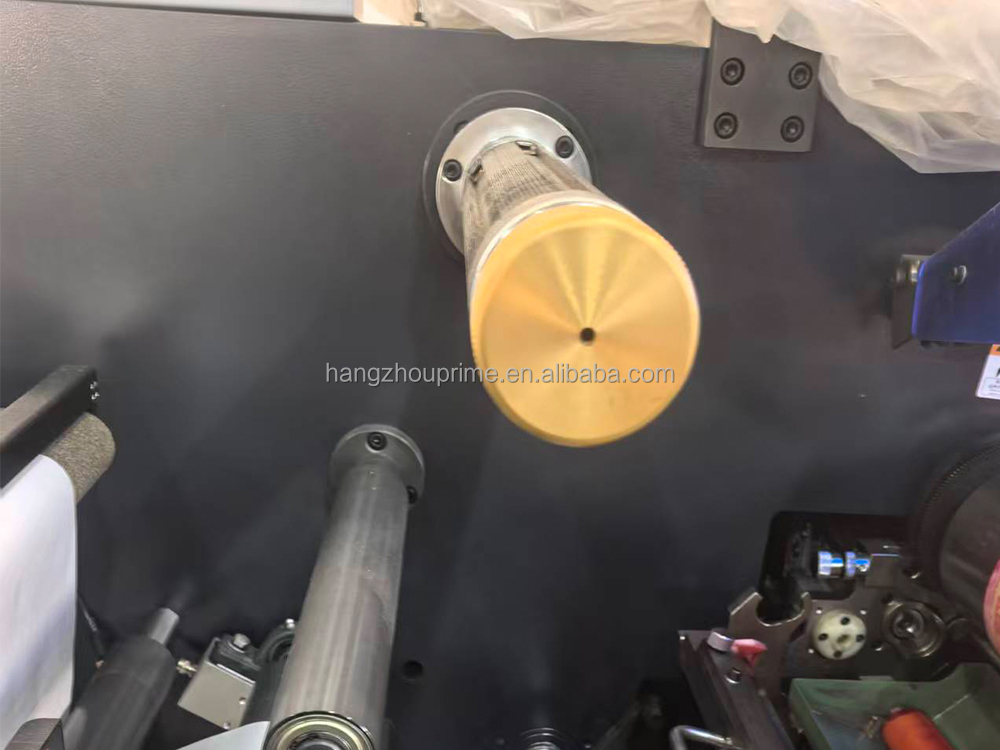

Laminating
Laminating

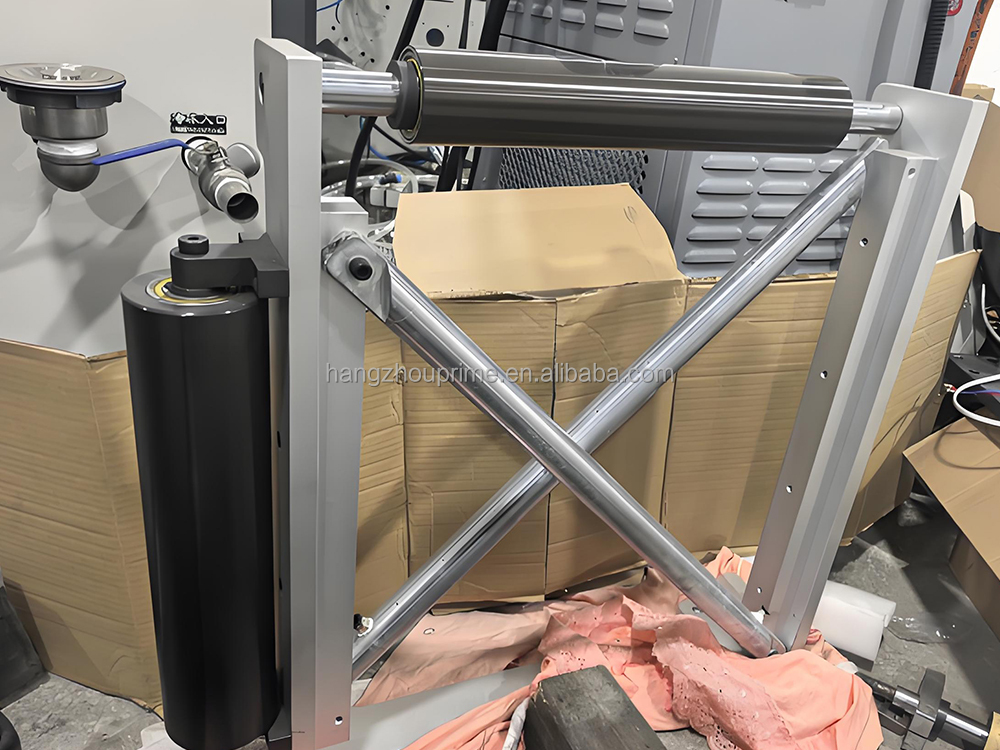

Turn Bar
Turn Bar

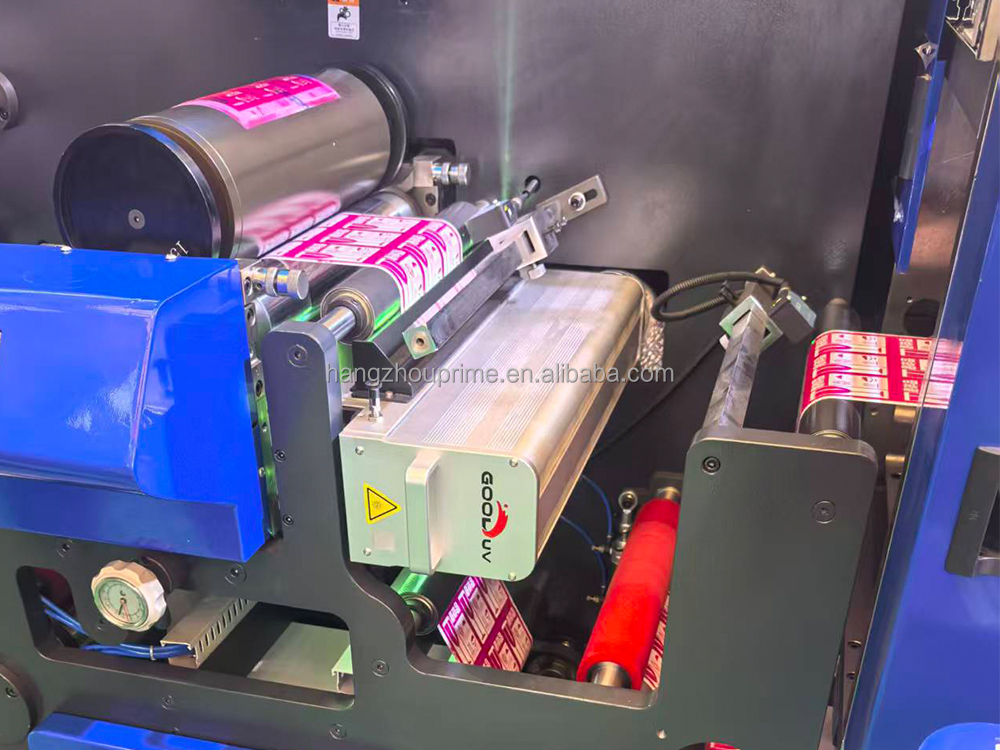

UV Dryer
UV Dryer

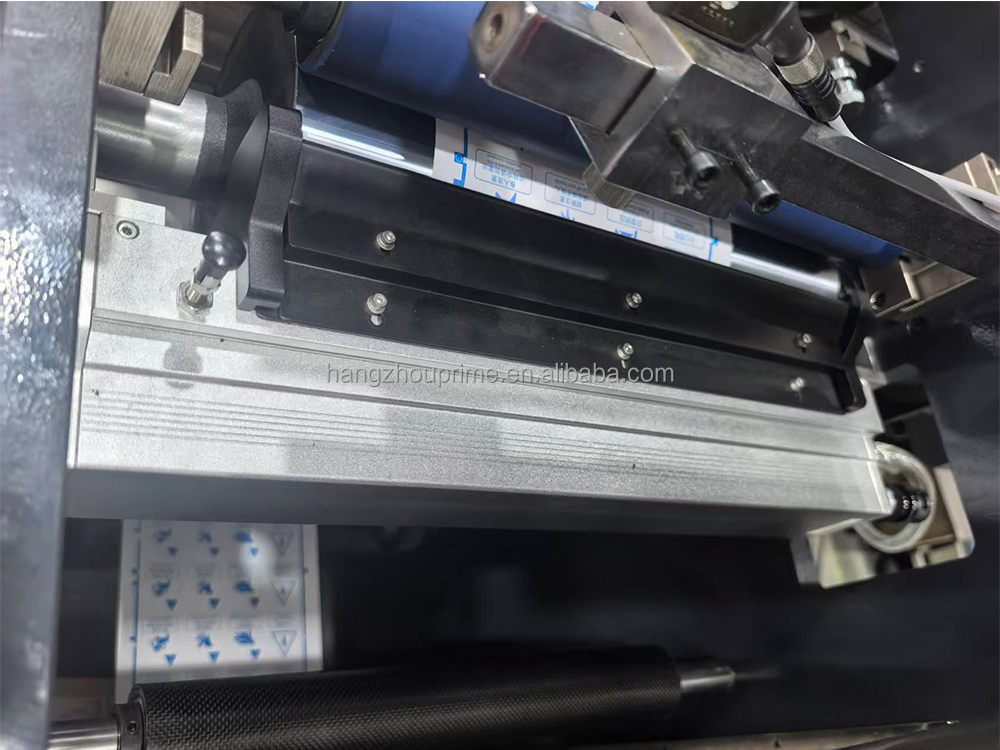

LED UV Dryer
LED UV Dryer

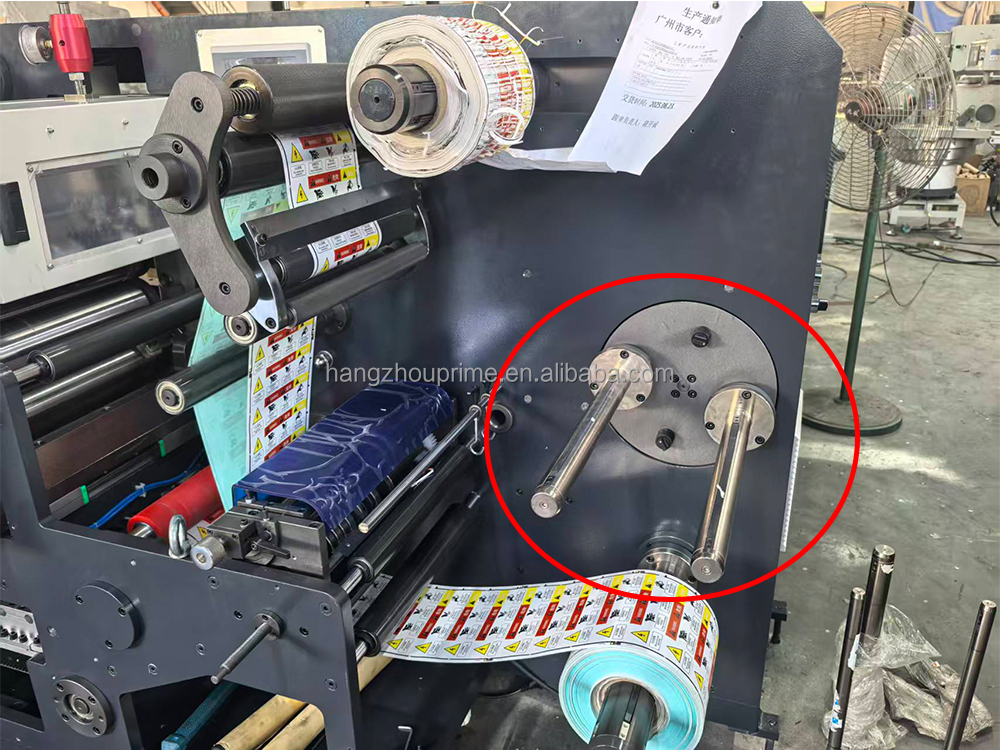

Turret Rewinding
Turret Rewinding
Samples

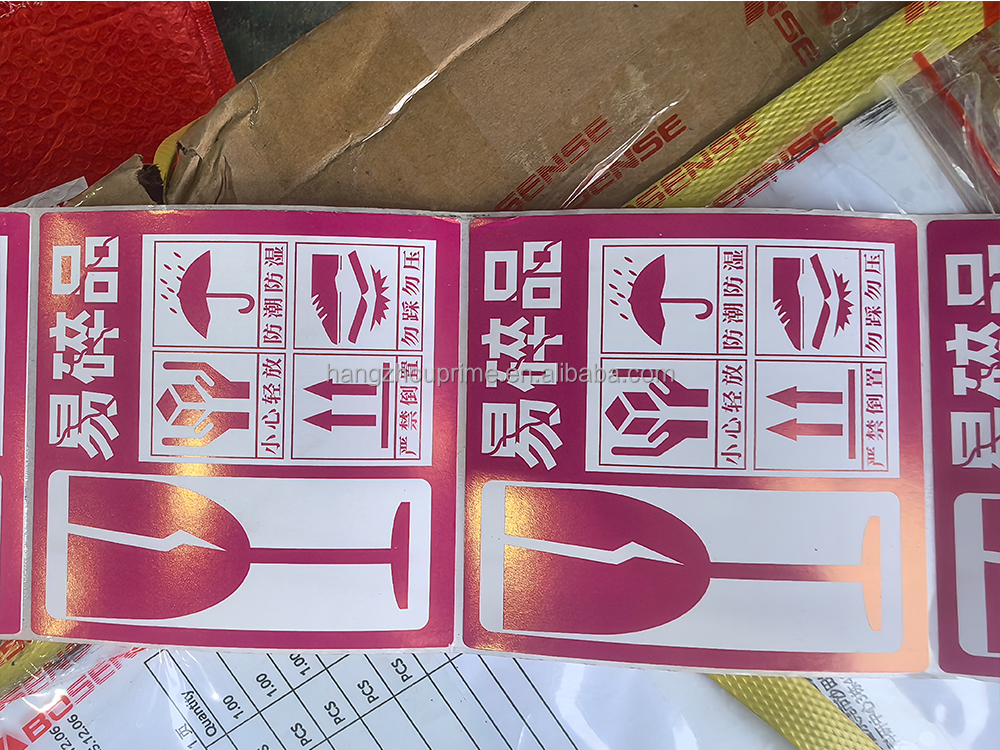

Sample 1

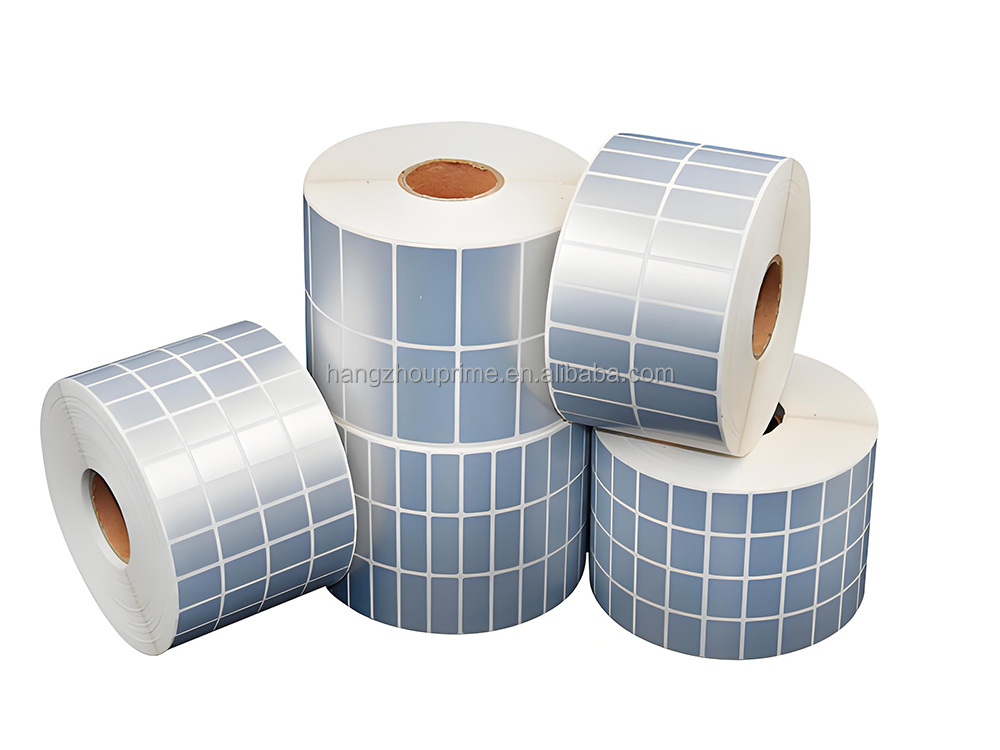

Sample 2
Our Factory

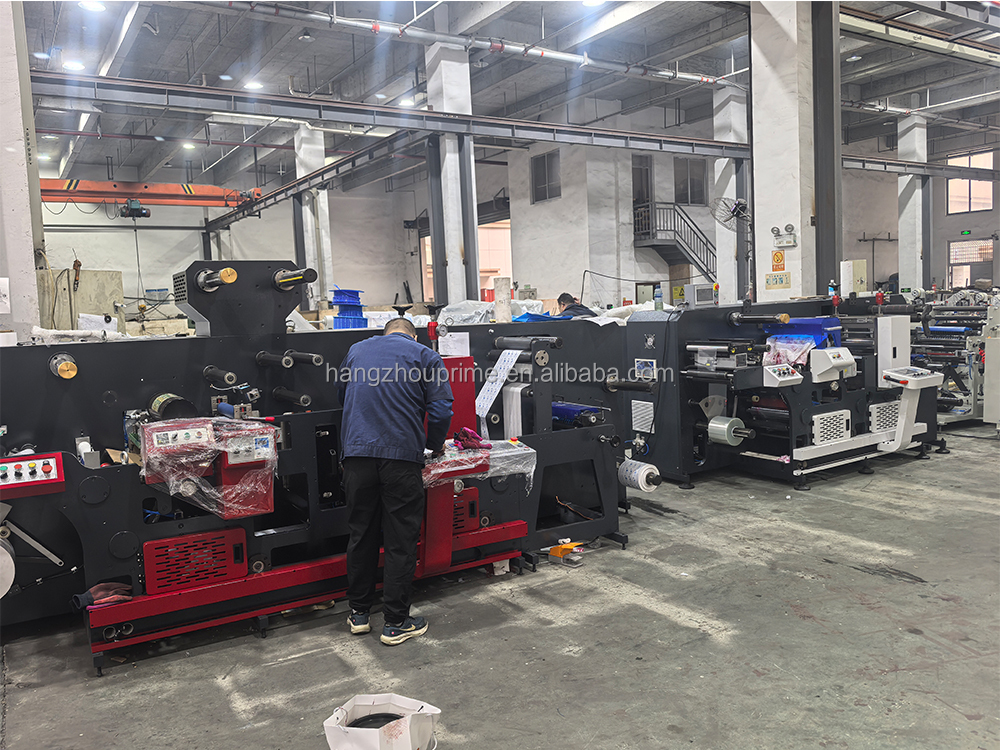

Factory Environment 1

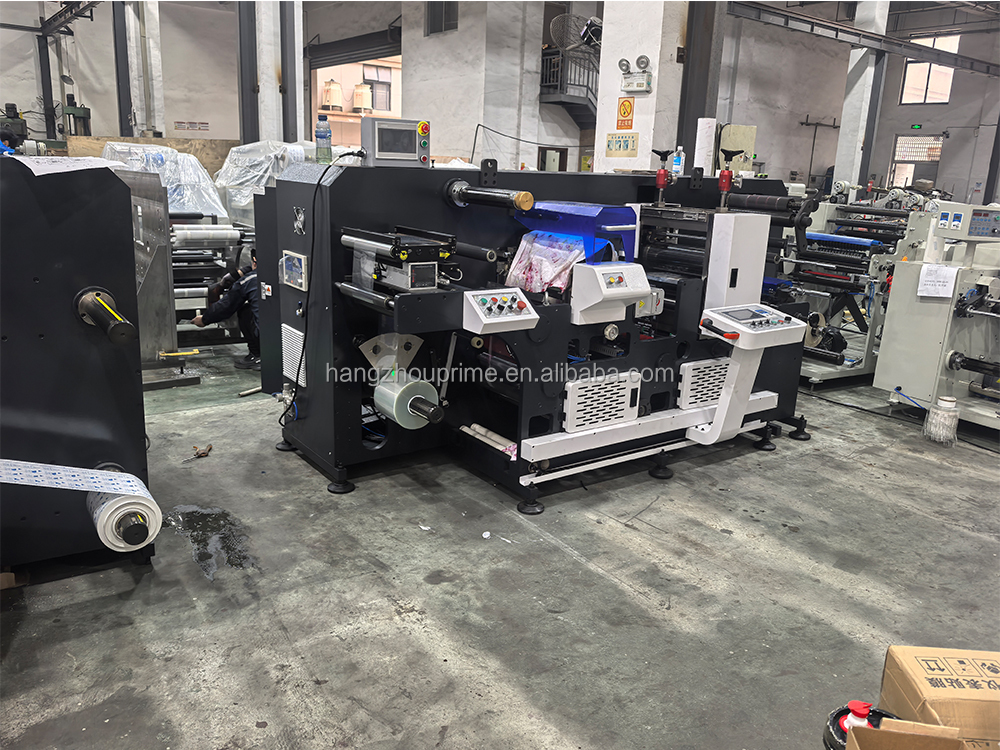

Factory Environment 2

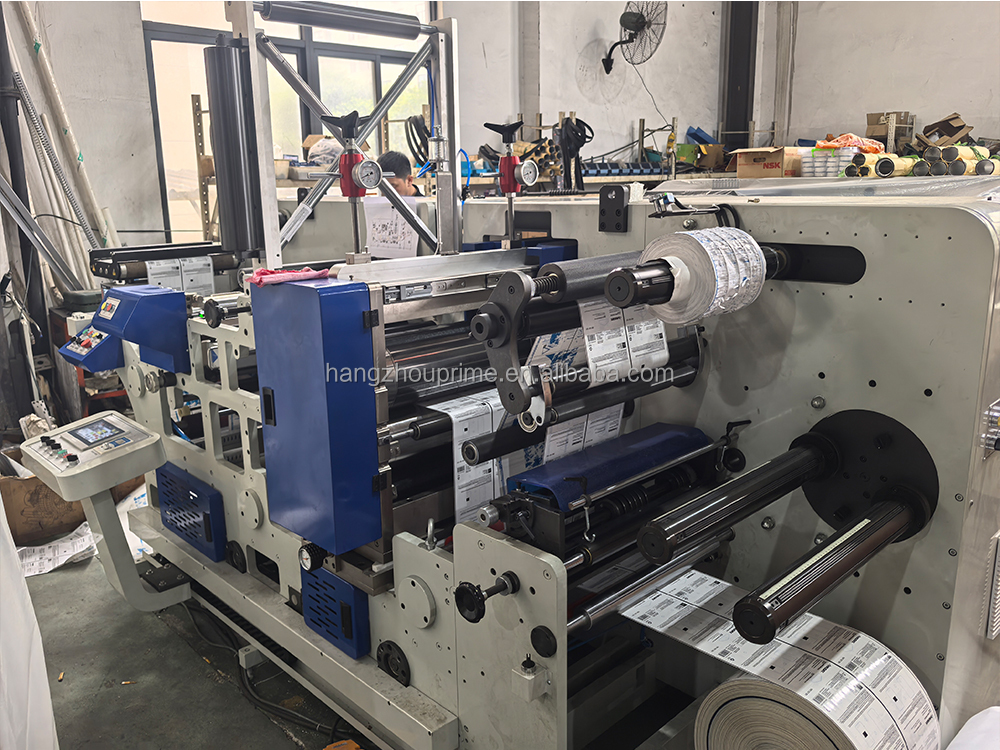

Factory Environment 3

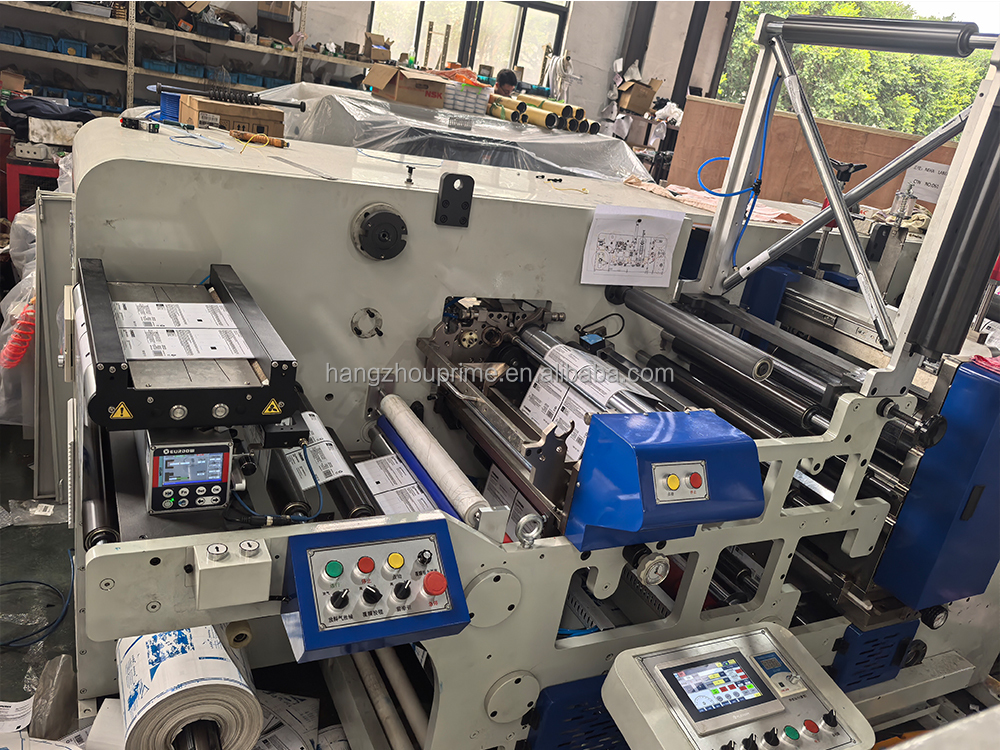

Factory Environment 4
Product Packaging

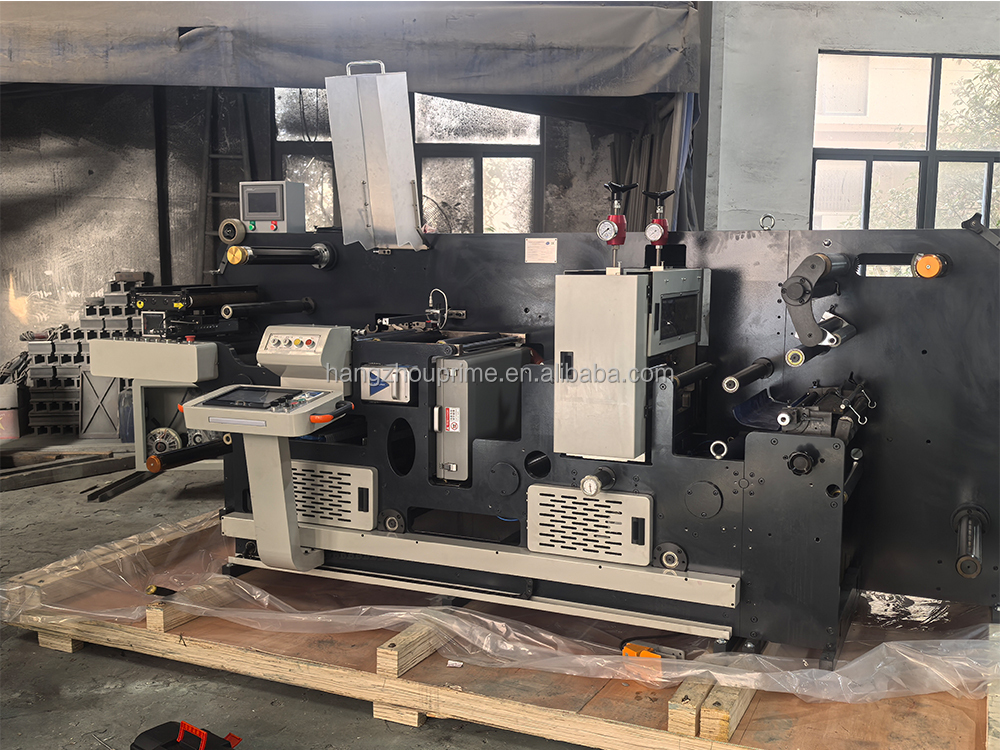

Packaging Detail 1
Packaging Detail 2
Frequently Asked Questions
Q1: How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
Q2: What is your after-sales service?
Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
Q3: What is the terms of payment you accept?
30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
Q4: What full in-line processes can this machine complete?
This equipment can complete a full in-line process including unwinding, printing, die-cutting, slitting, and rewinding in a single continuous operation.
Q5: Can this machine switch between different operation modes?
Yes, it can easily switch between intermittent die-cutting and full rotary modes, enhancing its versatility to handle different production volumes and product requirements.
Q6: How is the machine controlled and configured?
The machine is controlled by a high-end servo system, making it easy to operate and user-friendly. It also features a modular design, meaning various units can be freely combined.
