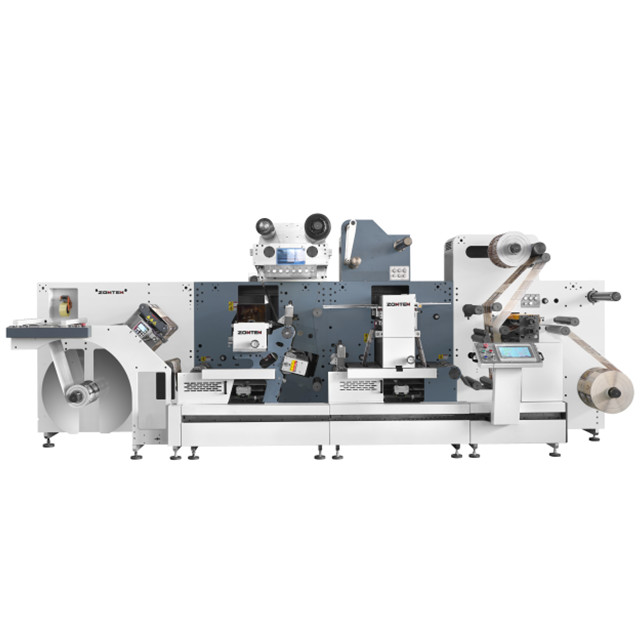

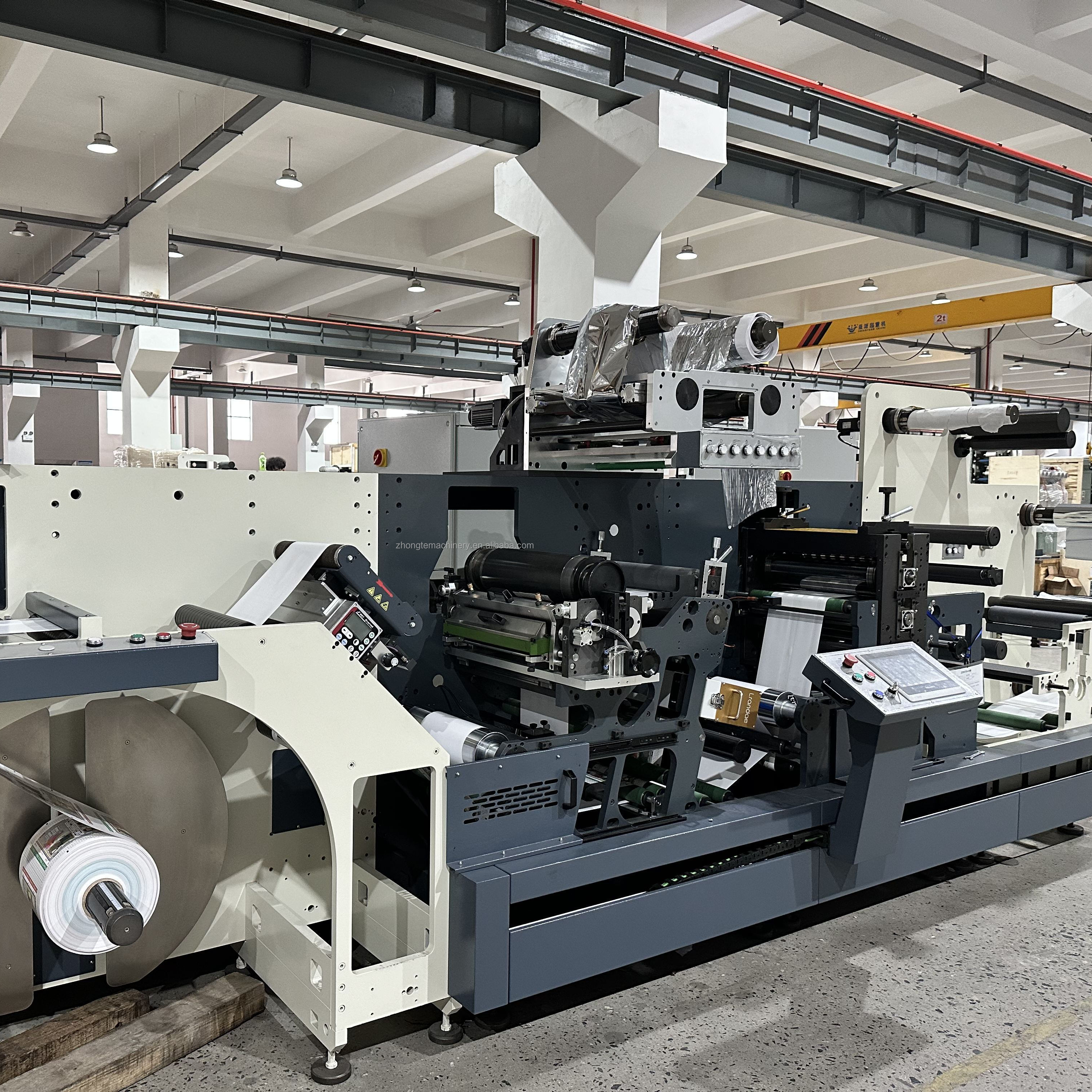

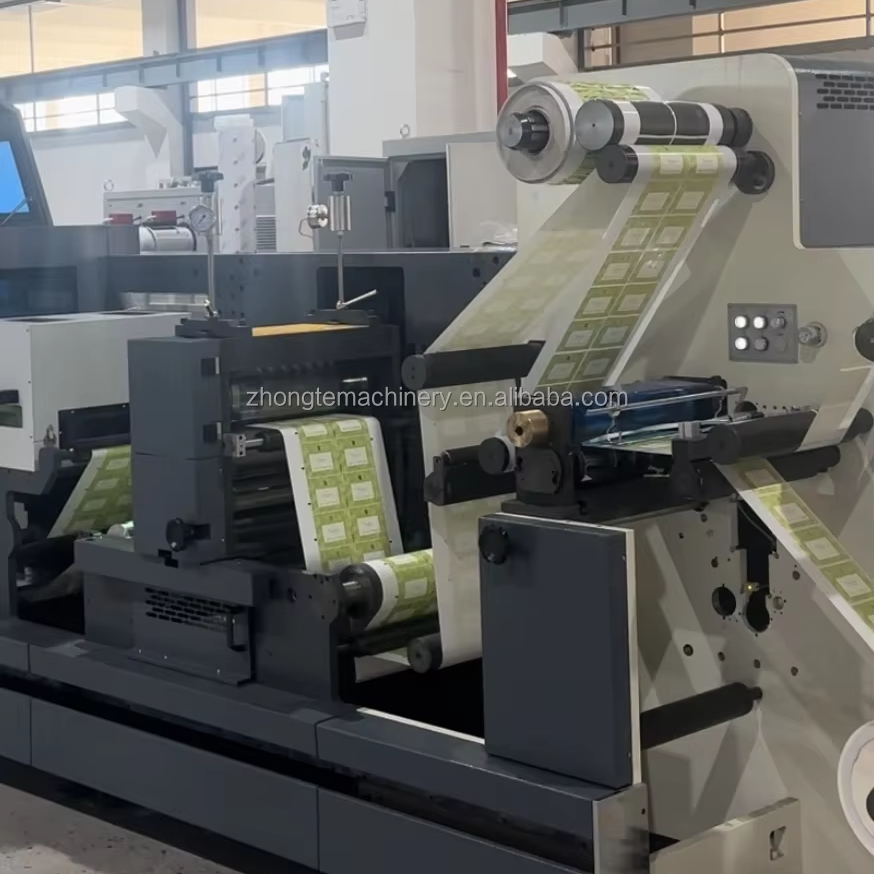

ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
1 / 5
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine
ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine

ZMQ High Speed Factory Price Label Hot Stamping Foil Semi Rotary Auto Die Cutting Machine

Send Inquiry

Product Description

Products Description
Product Overview 1
Product Overview 2
Details Images
Paper connect platform
Paper connect platform
BST web guider
BST web guider
Semi rotary die cut unit
Semi rotary die cut unit
Snow ball waste collect rewind
Snow ball waste collect rewind
Slit unit
Slit unit
Rewind finish rolls
Rewind finish rolls
Movable control panel -touch screen
Movable control panel -touch screen
Optional: flexo unit with uv dryer
Optional: flexo unit with uv dryer
flexo print cylinder
flexo print cylinder
Optional: Cold foil unit
Optional: Cold foil unit
Optional: flat bed hot foil stamping unit
Optional: flat bed hot foil stamping unit
Optional: IML die cut unit
Optional: IML die cut unit
Optional: rotary lamination
Optional: rotary lamination
Optional: cut sheet conveyor
Optional: cut sheet conveyor
Optional: silk screen unit
Optional: silk screen unit
Feature Image 1
Feature Image 2
Feature Image 3
Feature Image 4
Feature Image 5
Feature Image 6
Production Process 1
Production Process 2
Production Process 3
Production View 1
Production View 2
Machine Configuration 1
Machine Configuration 2
Machine Configuration 3
Machine Configuration 4
Product Parameters
MACHINE RANGE:
----1). Printing Machines:
ZTJ-330/520 intermittent offset label printing machine
Super-320 intermittent letterpress label printing machine
LRY 330/450 stack flexo label printing machine
RY-330/450 flexographic label printing machine
flexo plate making machine
----2). Die Cutting Machines:
MQ-320 die cutting machine
FQ-330/450R rotary die cutting and slitting machine for blank label
ZMQ-320 semi rotary die cutting machine
----3). Slitting Machines:
FQ-320/450 label slitting and rewinding machine
----4). Inspecting Machines:
ZJP inspecting machine
ZMQ-370 high speed auto sticker flat bed hot foil stamping semi rotary die cutting slitting machine with flexo unit
ZMQ-370/450/520 is the newly developed equipment for die cutting and slitting. It adopts a servo-control system to achieve optimization control of the machine which assures high accuracy and the stability of the die cutter. Automatic paper feeding, web guider, lamination, UV flexo coating, die cutting, and slitting can be completed in one pass. The machine has many advantages such as smaller floor space, lower noise, and high speed. ZMQ-370/450/520 is an ideal option for die cutting and shaping in label printing factories, the electronic industry, and the viscose products industry.
Model ZMQ-370
Max. Speed 300cycle/min
Max. full rotary speed 130m/min
accuracy adhesive cutting +-0.10mm
Accuracy of IML cutting +-0.25mm
Max. die cutting area 400mm*350mm
Max. unwinding Dia. 700mm
Max. rewinding Dia. 700mm
Paper width 100-370mm
magnetic cylinder 152T
Die cutting repeat length 50-400mm
Main power 10kw
Overall dimension(around) 3200*1310*1700MM
Machine weight(around) 2750kg
Product packaging
Packaging View 1
Packaging View 2
Packaging View 3
Exhibition

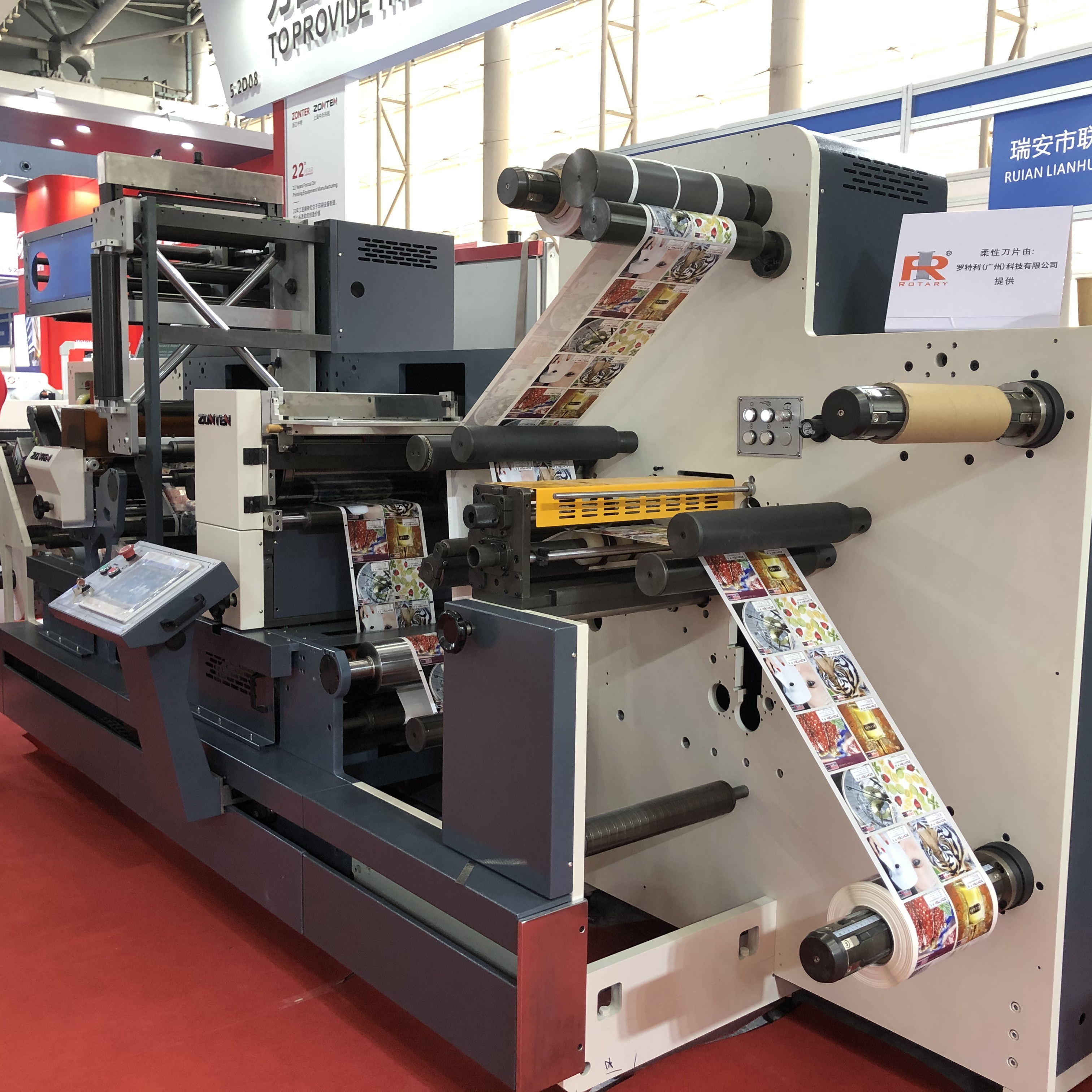

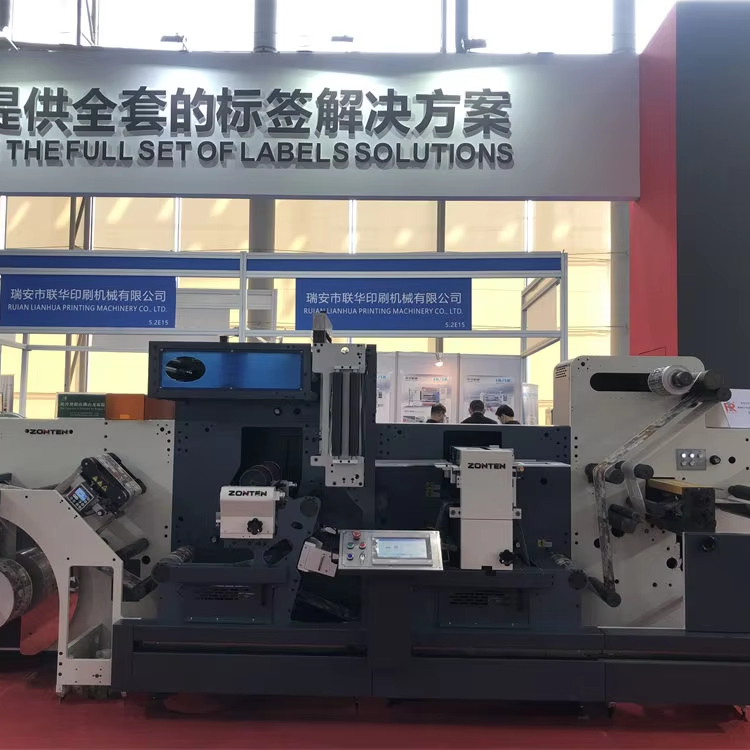

Exhibition Presence
FAQ
Are you a factory or a trading company?
We are a factory in this field for nearly 20 years, focusing on the research, development, and manufacturing of label printing and die-cutting machines.
How does your factory control quality?
Quality is our absolute priority. We implement a strict quality control system that monitors and tests every machine detail and component from the initial build stage to final dispatch.
How long is the machine warranty period and what support is provided?
We offer a one-year warranty on all machines. Along with the warranty, we provide our customers with continuous, full-time online support and an active after-sales service network.
How many operators are required to run the machine?
The machine is designed for high automation and user convenience; a single operator can easily handle the setup and production process.
What types of applications is this semi-rotary die cutting machine suitable for?
It is highly suitable for processing adhesive labels, IML (In-Mold Labels), and various viscose products used in the label printing, packaging, and electronics industries.
Can this equipment complete multiple processes in a single pass?
Yes, processes such as automatic paper feeding, web guiding, lamination, UV flexo coating, die cutting, and slitting can all be completed inline in a single pass.
