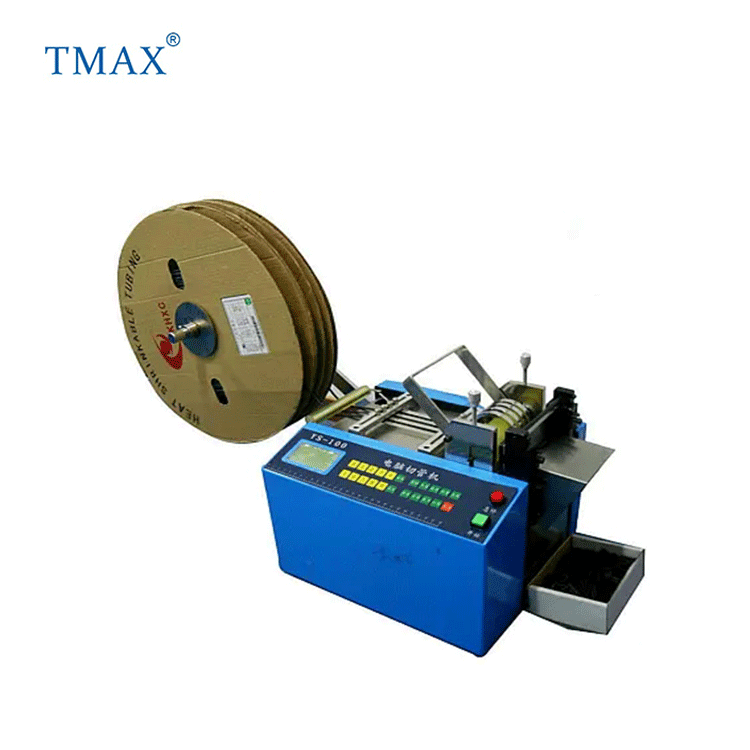

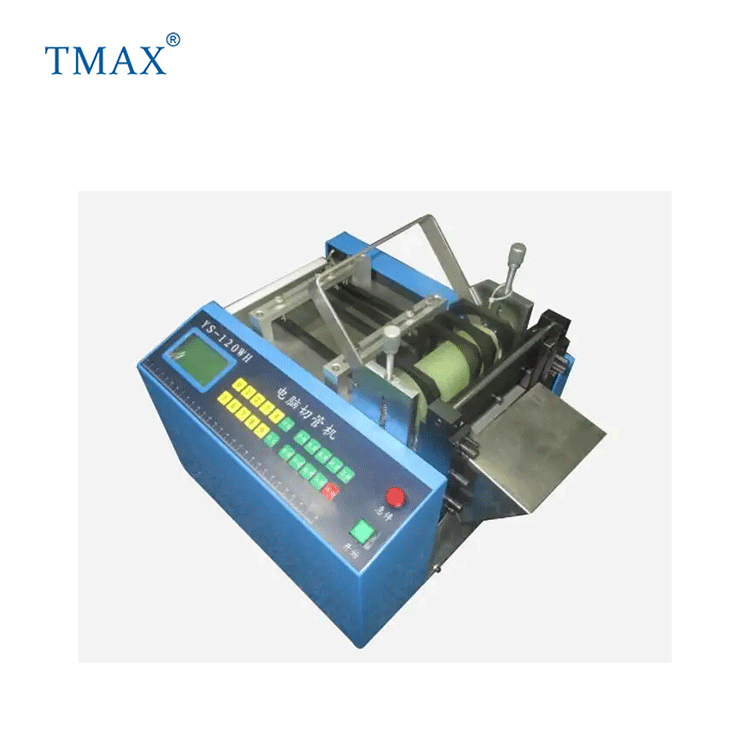

It can cut 100~120 cut per minute. (50mm long)
Cut-length is accurate, cut length can be set between 0.1-9999.9mm.
For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.
It works automatically only by setting length and quantity. Save labor, high efficiency.
It stops automatically if materials run out during operation.
Set-length, set-q'ty & set-speed are not erased even if power off & on.

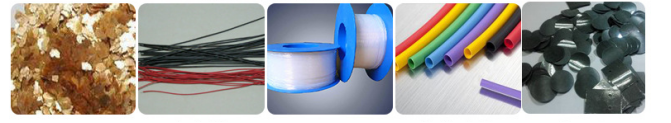

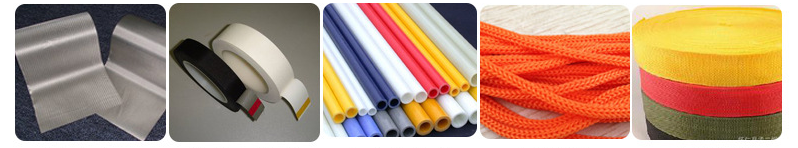

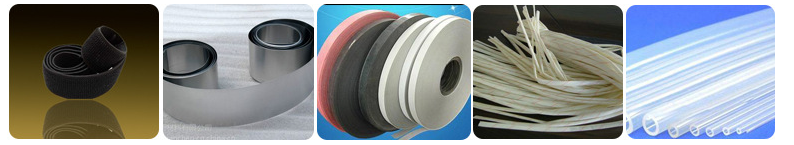

The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.
High speed, high accuracy, designed specifically for cutting non-adhesive materials.
The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.
PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, corrugated tube, etc.
Flat cable, copper wire, etc.
Nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape, foam, etc.
Battery separator, Nickel sheet, diffuser sheet, plastic/rubber sheet, pvc sheet, etc.
Plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper, etc.
| Model | Cutting Length | Cutting Width |
|---|---|---|
| YS-100 | Customized | 100mm |
| YS-200 | 200mm | |
| YS-300 | 300mm | |
| YS-400 | 400mm | |
| YS-500 | 500mm | |
| YS-600 | 600mm | |
| YS-700 | 700mm | |
| We can accept the cutting width from 100mm-1600mm according to your request. | ||

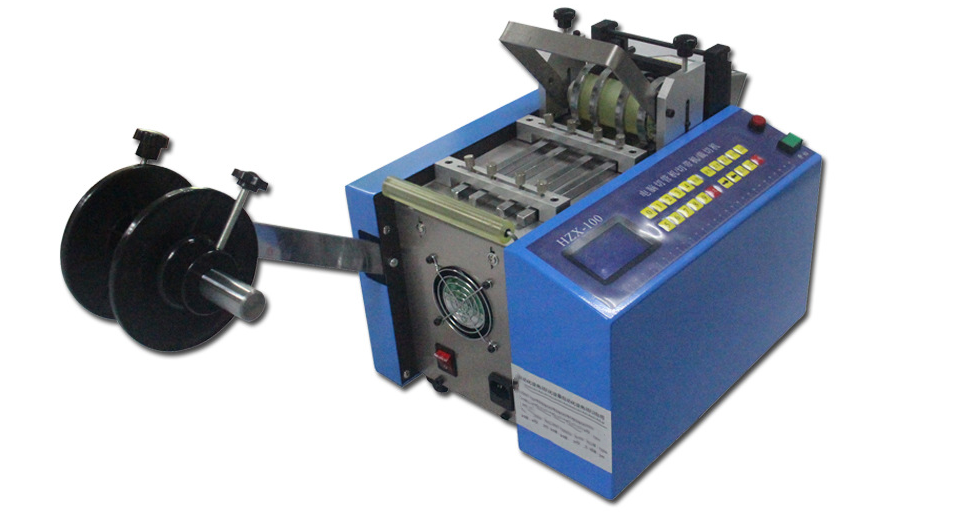

| Model | Nickel Cutting Machine YS-100 |
| Source voltage | AC 220V/110V, 50/60HZ, Customized |
| Power | 200W |
| Warranty | One year limited warranty with lifetime support |
| Advantages |
1. In automatic stop without materials, unattended 2. With a knife or blade adjustment conveniently 3. Automatic grouping and total cumulative count 4. Suitable for all kinds of metal and no-metal strip materials, such as copper foil, aluminum foil, copper foil tape, batteries nickel belt and so on |
| Cutting speed | 0-130times/min |
| Cutting length | 0.1mm-9999.9mm |
| Cutting width | 0.1-100mm, according to model customer choose |
| Dimension(L*W*H) | 360*300*350mm |
| Weight | About 30kg |
