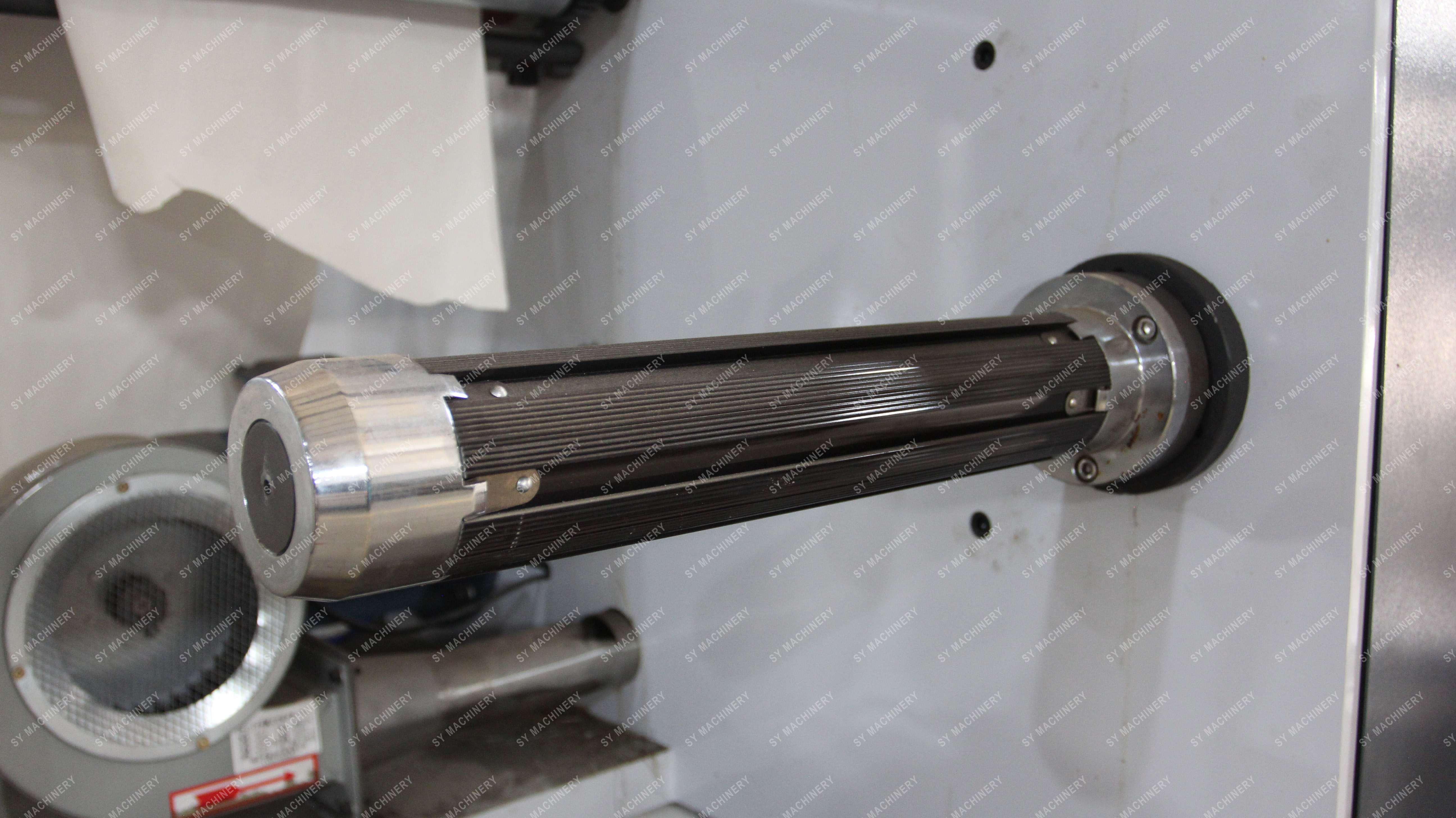

Our self-developed products include a narrow label high-speed slitting machine, a high-end fully servo winding and unwinding taper tension system, an imported famous brand process correction system, a dual winding shaft fully automatic rotation and displacement device, and a preparation shaft that greatly improves production efficiency. We support the free exchange of various specifications of inflatable shafts, including meter counting, counting, electrostatic treatment, material reduction or parking.

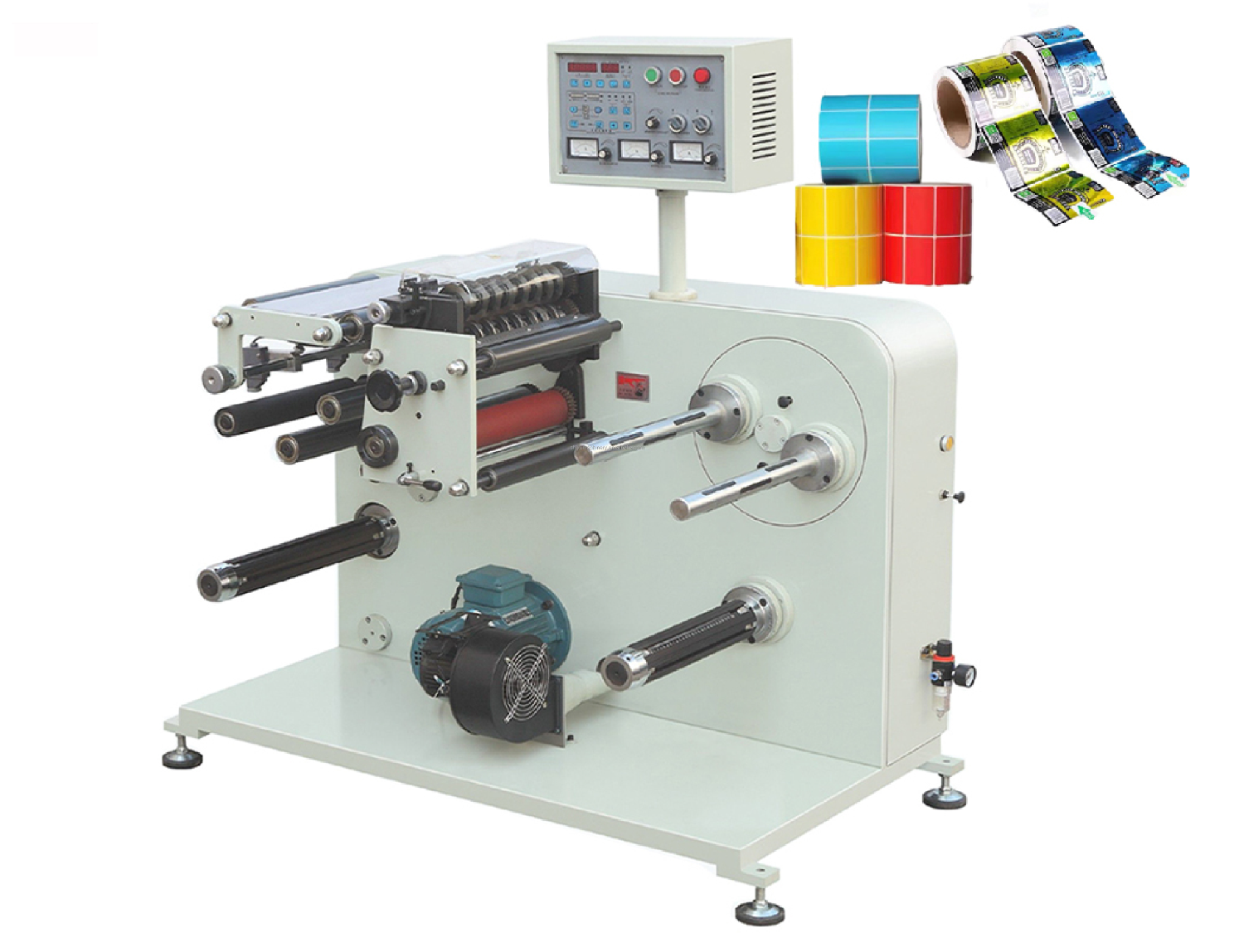

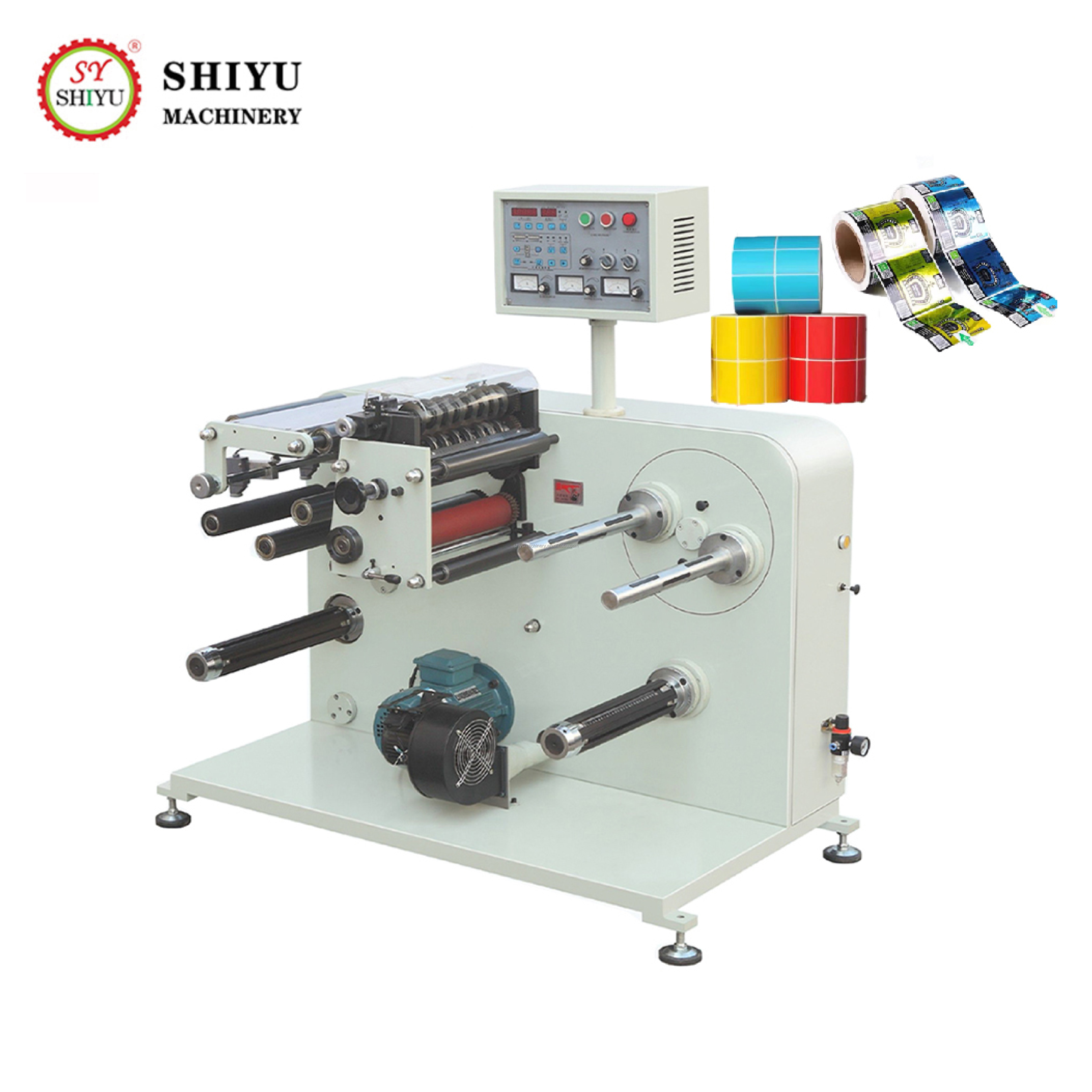

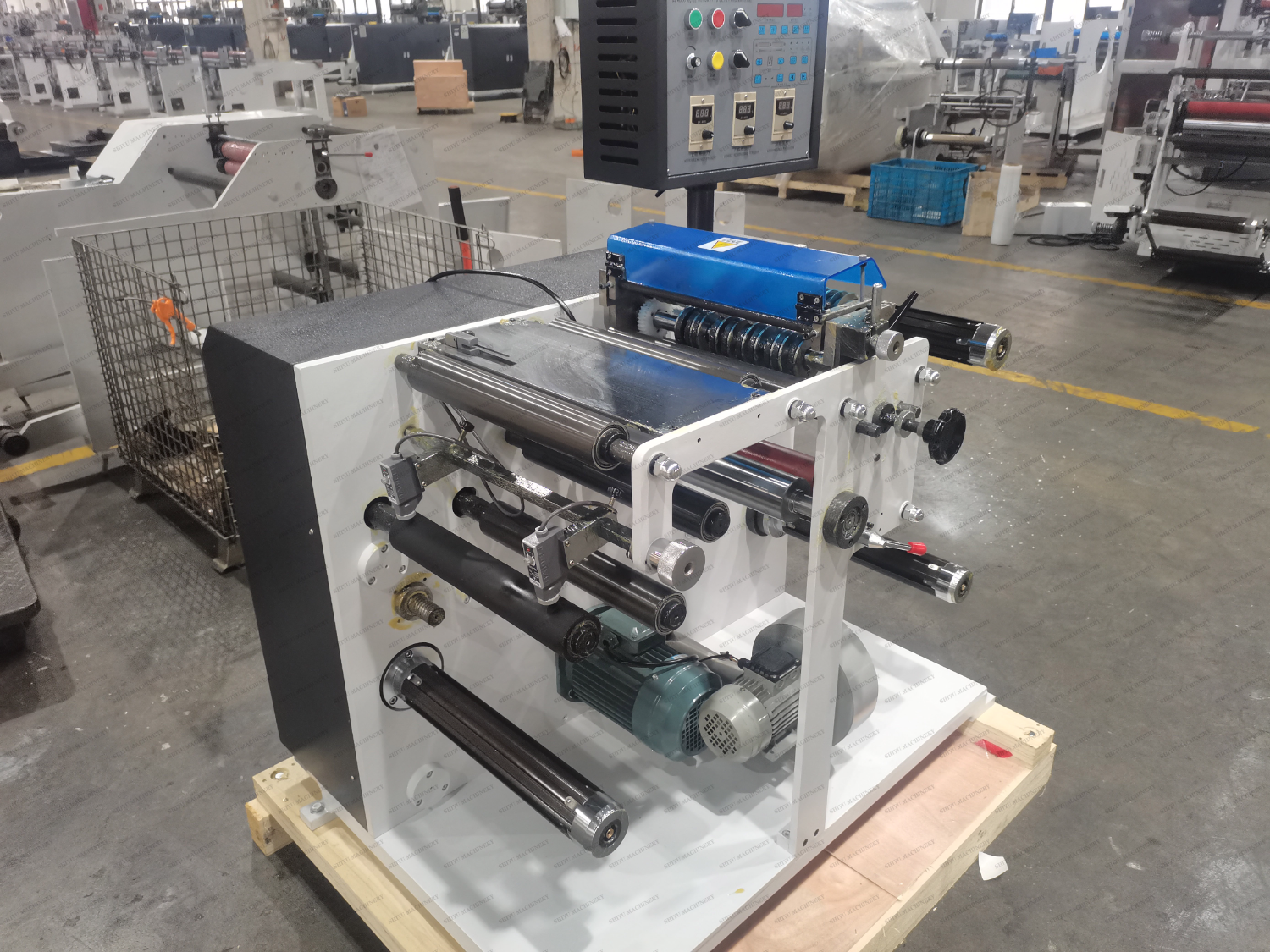

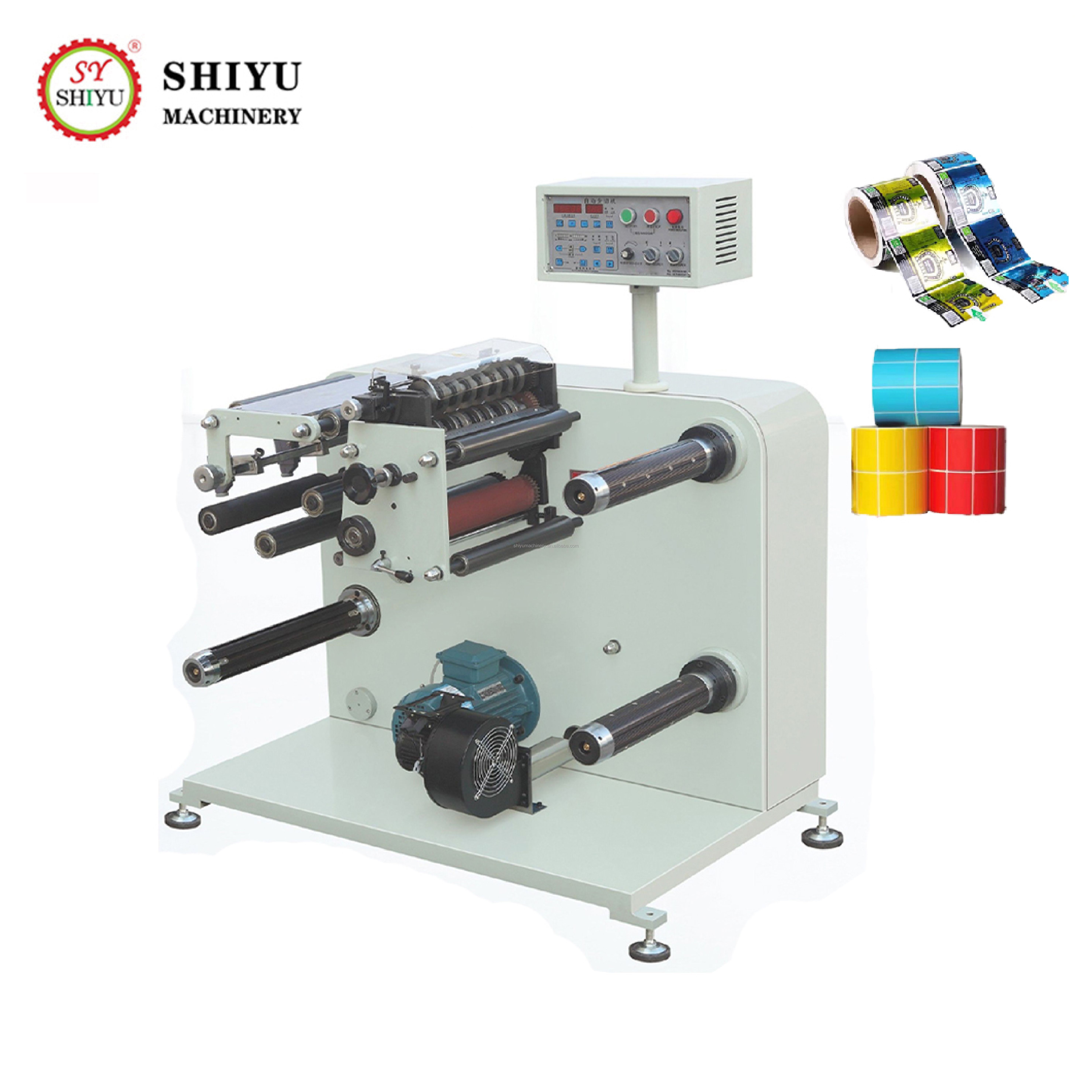

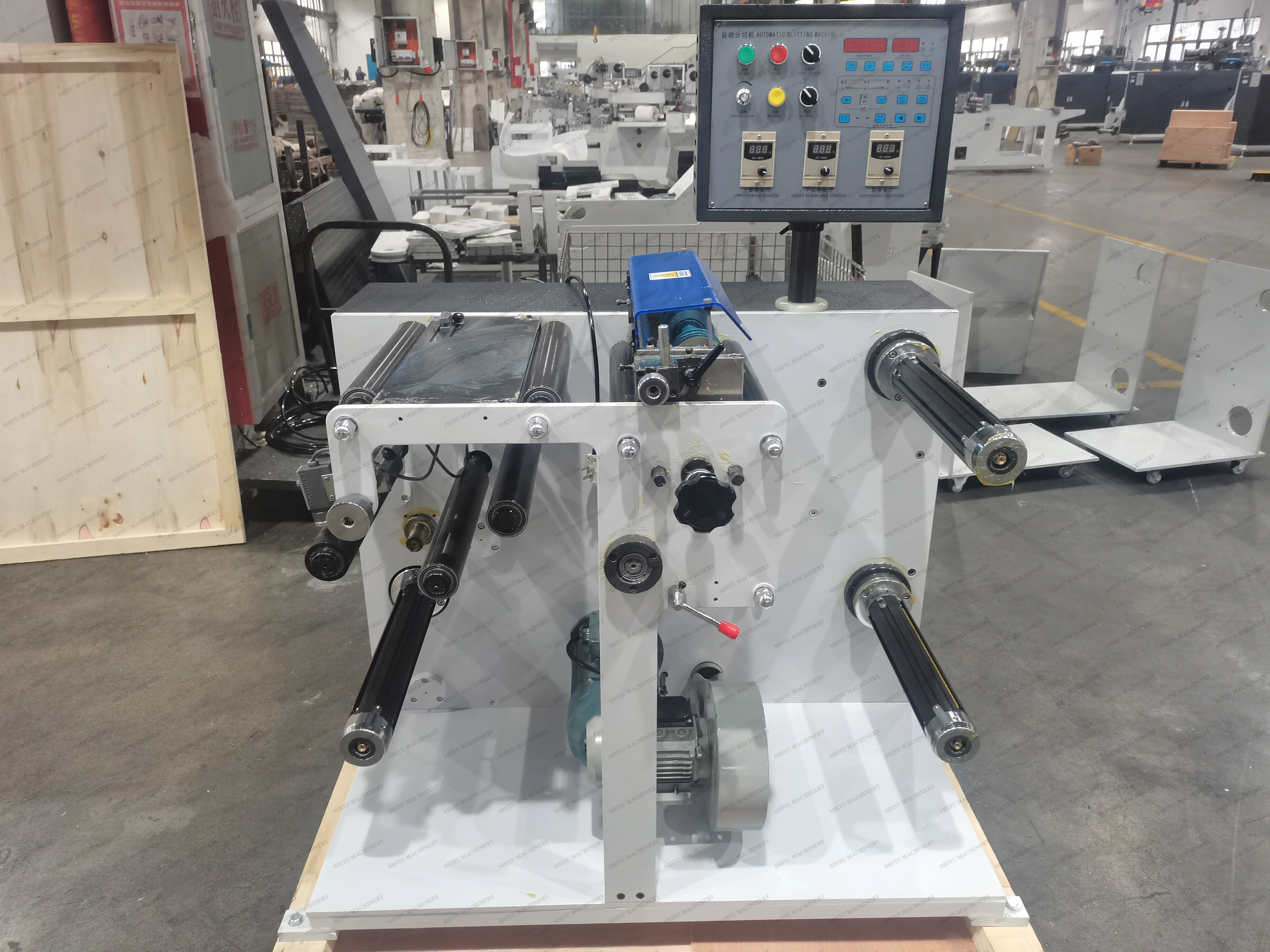

SY-350A/450A automatic slitting machine is a supporting product of automatic die-cutting machine, which is suitable for cutting narrow width paper. It has functions such as automatic meter setting, automatic shutdown, and automatic deviation correction. The entire machine is characterized by compact structure, fast speed, high efficiency, accurate cutting, simple operation, and smooth operation.
| Model | SY-350A | SY-450A |
|---|---|---|
| Slitting speed: | 120m/min | 120m/min |
| Max.web.width: | 350mm | 450mm |
| Max unwinding diameter: | 500mm | 500mm |
| Max rewinding diameter: | 500mm | 500mm |
| Positioning accuracy | ±0.10mm | ±0.10mm |
| Machine weight: | 570kg | 620kg |
| Overall diameters: | 1340*965*1330mm | 1340*1125*1330mm |

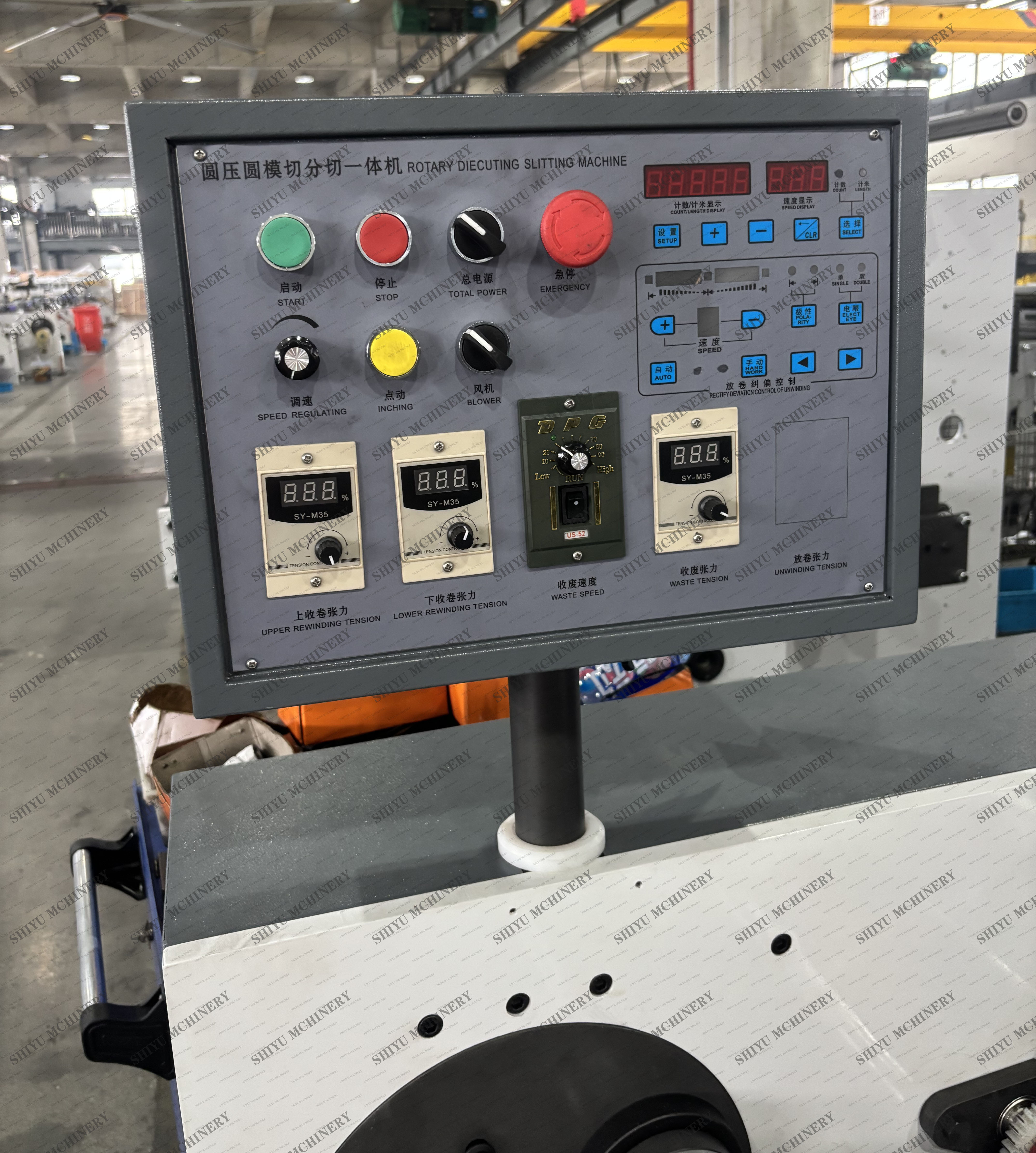

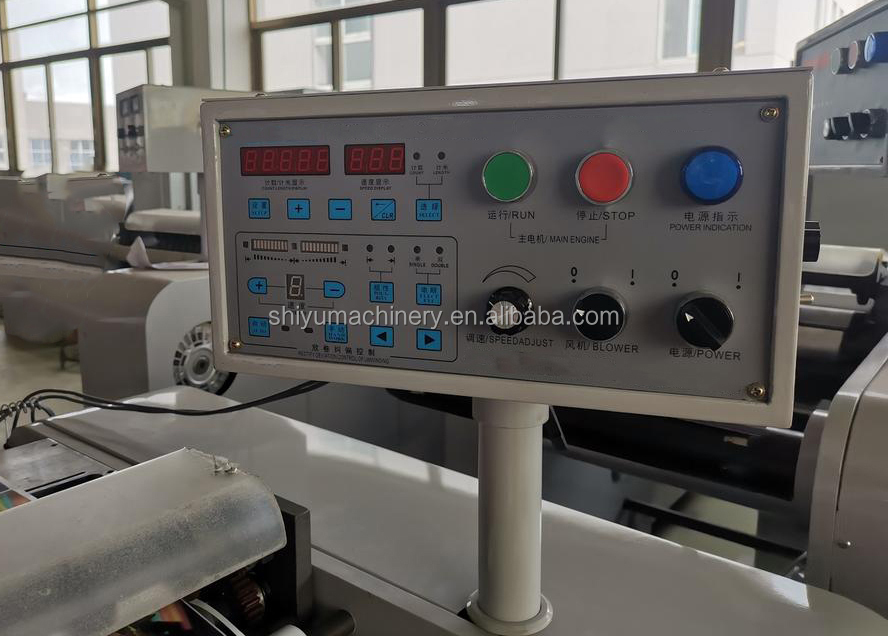

Simple and clear. Can quickly adjust the speed and tension of the machine, improving operational efficiency.

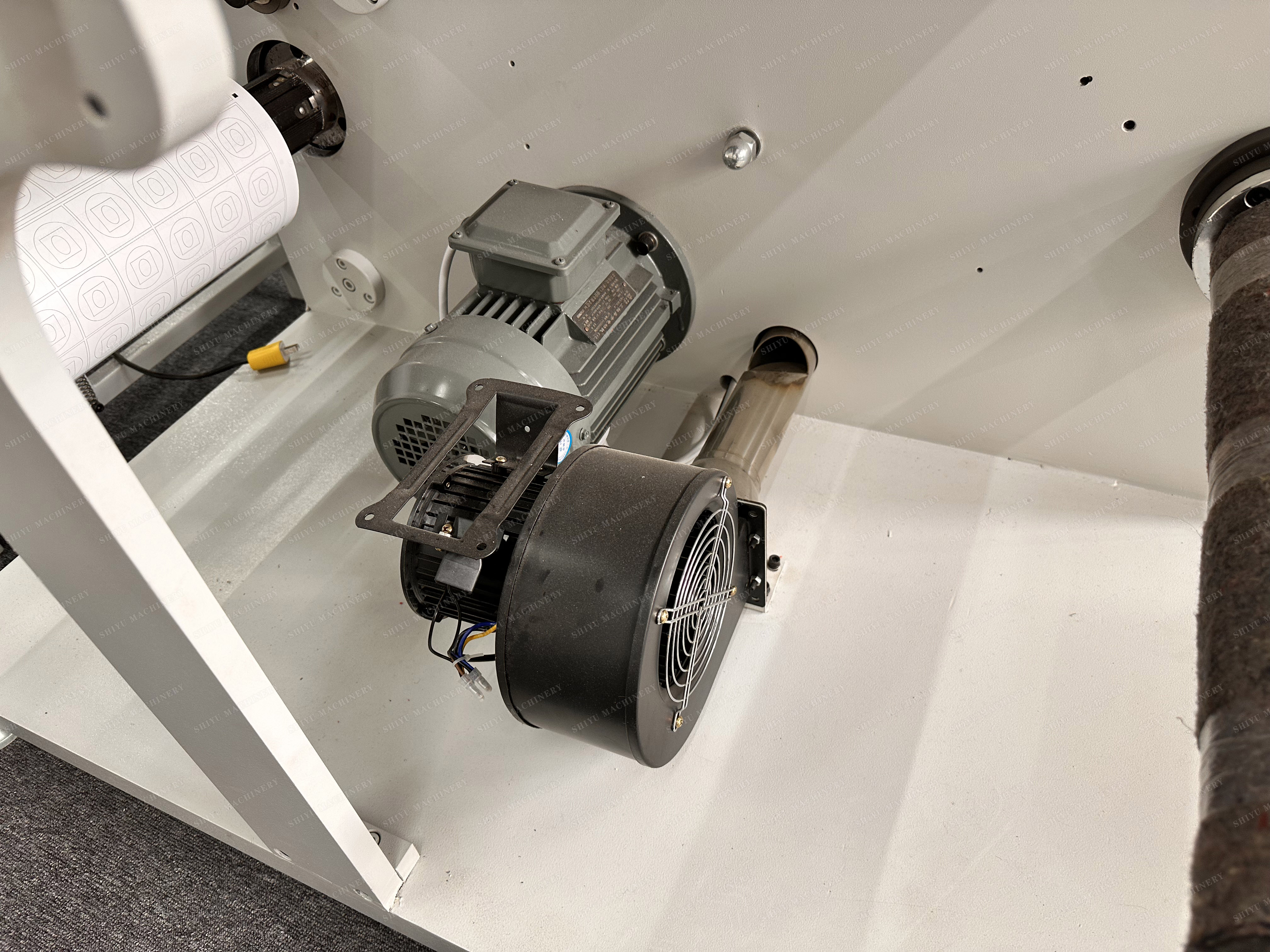

The machine features a built-in blower fan to blow away the trimmed sides for easy collection of waste.

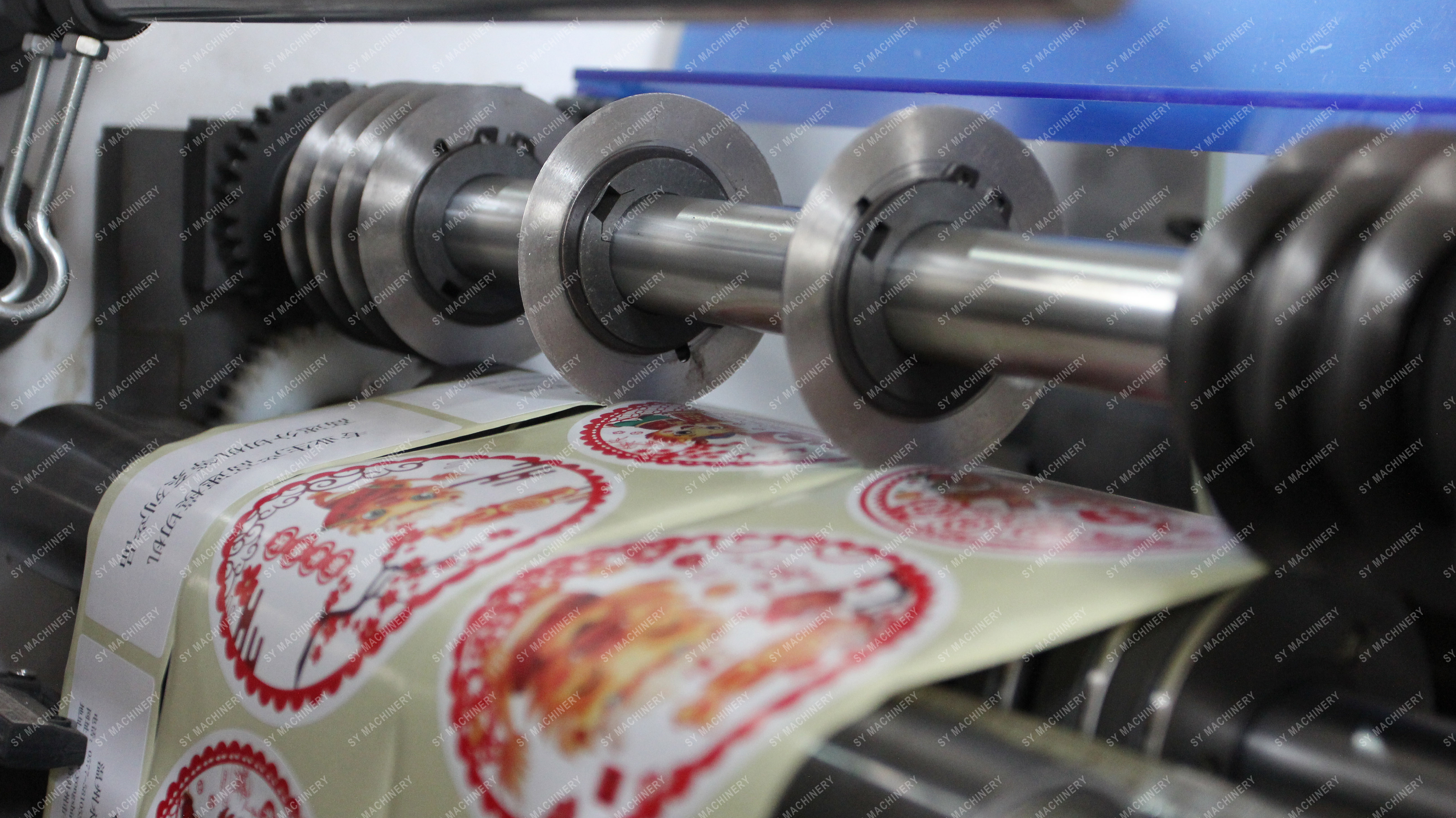

This machine is standard equipped with 8 sets of slitting blades. The minimum slitting width is 20 mm. Custom self-locking knives are available. It is easy to adjust the slitting width based on your products.
These electrical photo cells are used to guide uneven materials, ensuring excellent slitting quality. The photo eyes focus on the edge of the material, with options for single eye or double eyes.
