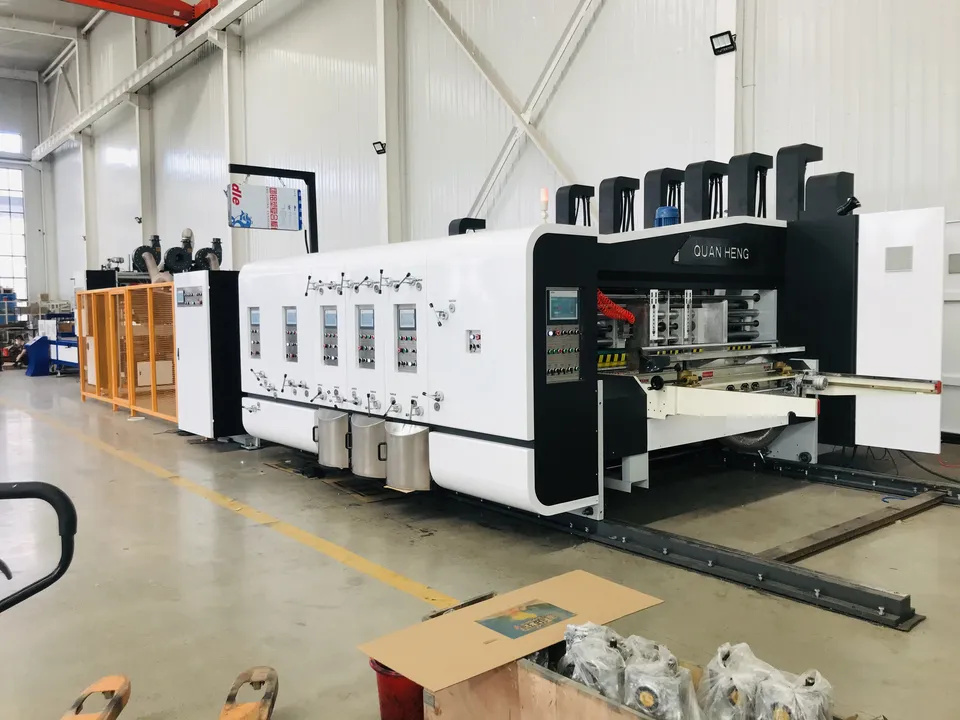

Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
1 / 5
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine
Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine

Factory Supplies Automatic Carton Box Flexo Printing Slotting Die Cutting Machine FFG Inline Machine

Send Inquiry

Product Description

Product Description

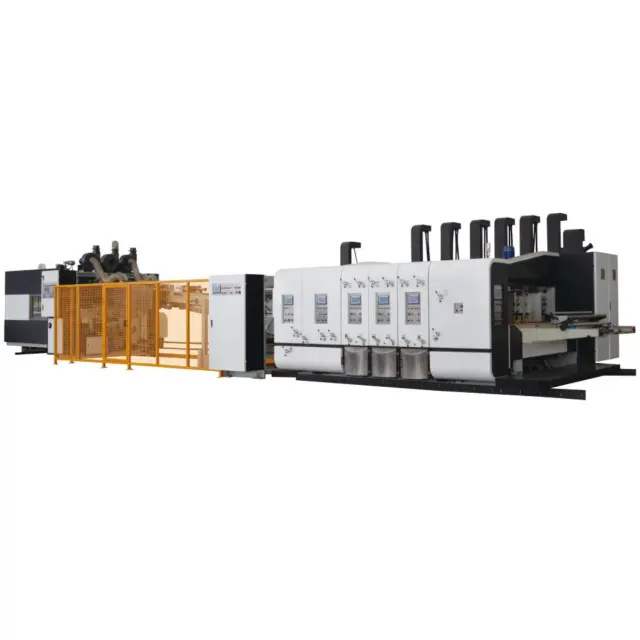

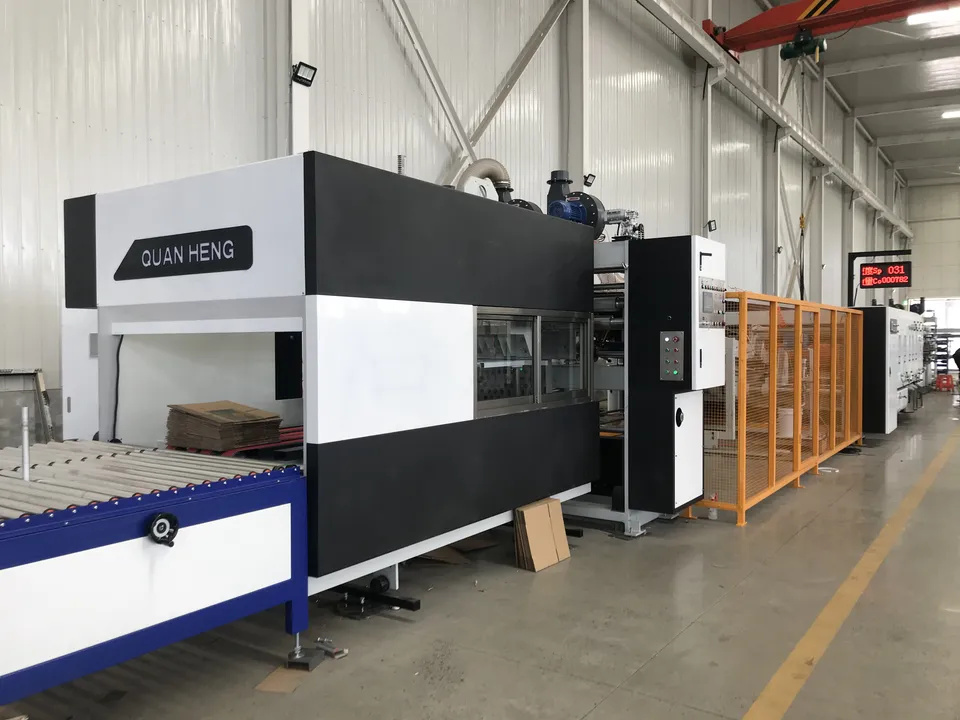

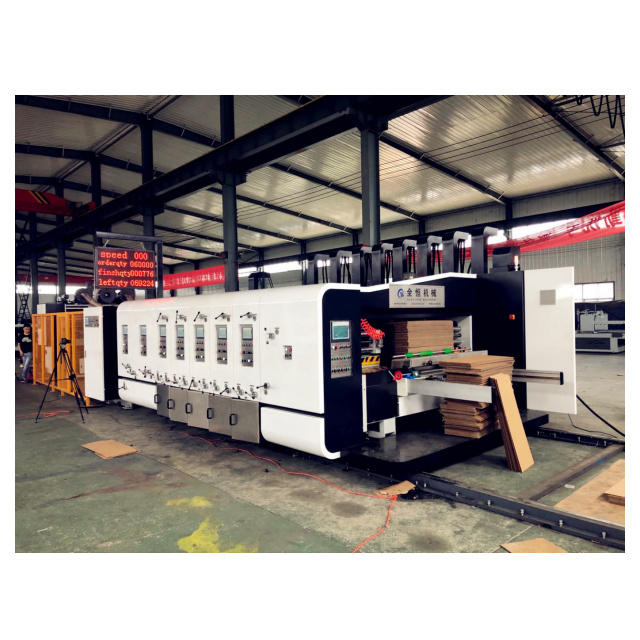

QHFFG1224 Model High Speed Flexo Folder Gluer Machine is for standard carton box big quantity production. It is equipped with Lead edge vacuum feeder unit, printing unit, slotting unit, rotary die cutting unit, folder gluer unit, and automatic bundling unit.

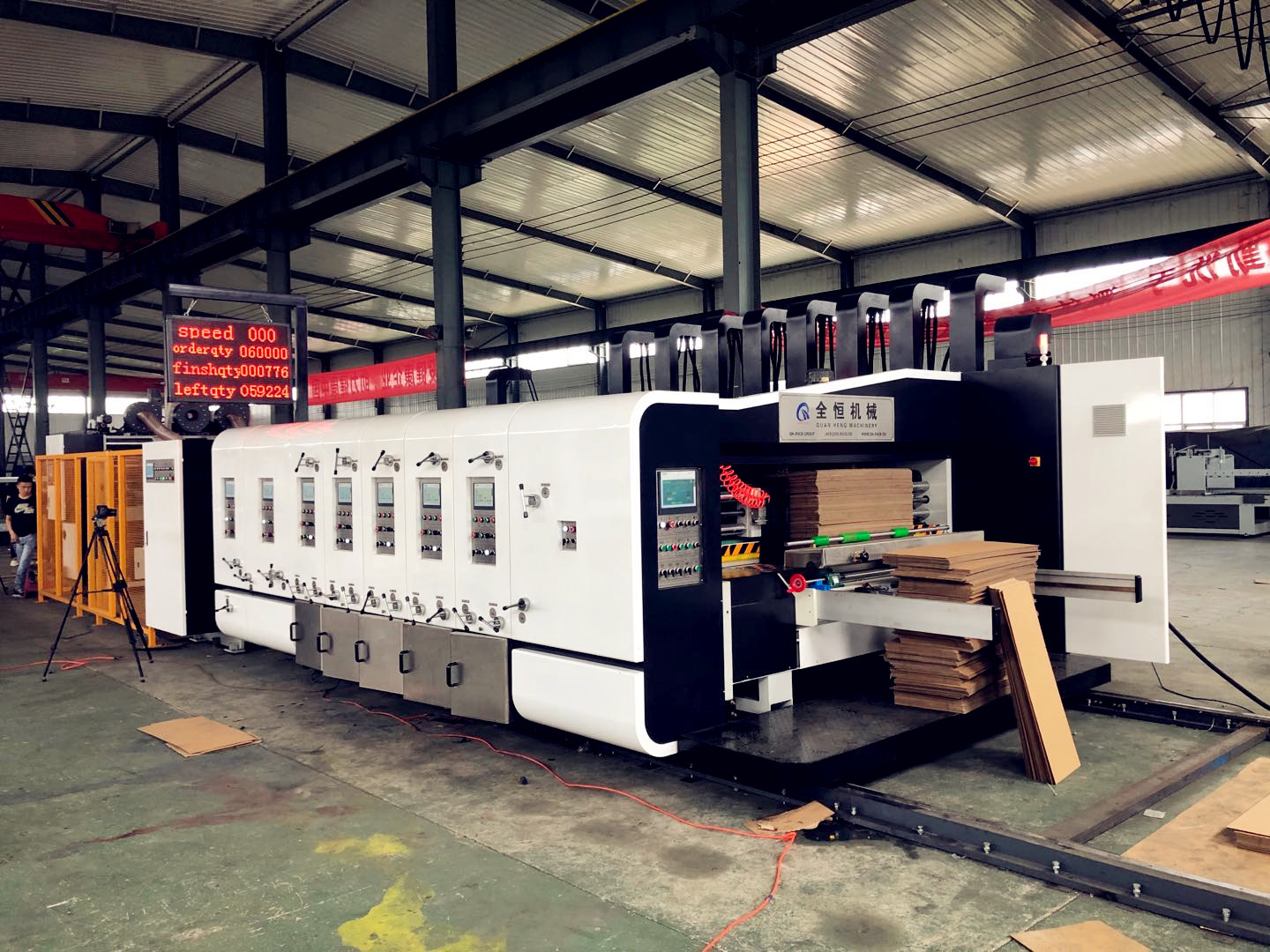

QHFFG1224 Model
Item Data
max paperboard size 1200x2400mm
min paperboard size 400x800mm
max printing area 1200x2200mm
max die cutting area 1200x2300mm
max slotting depth 300mm

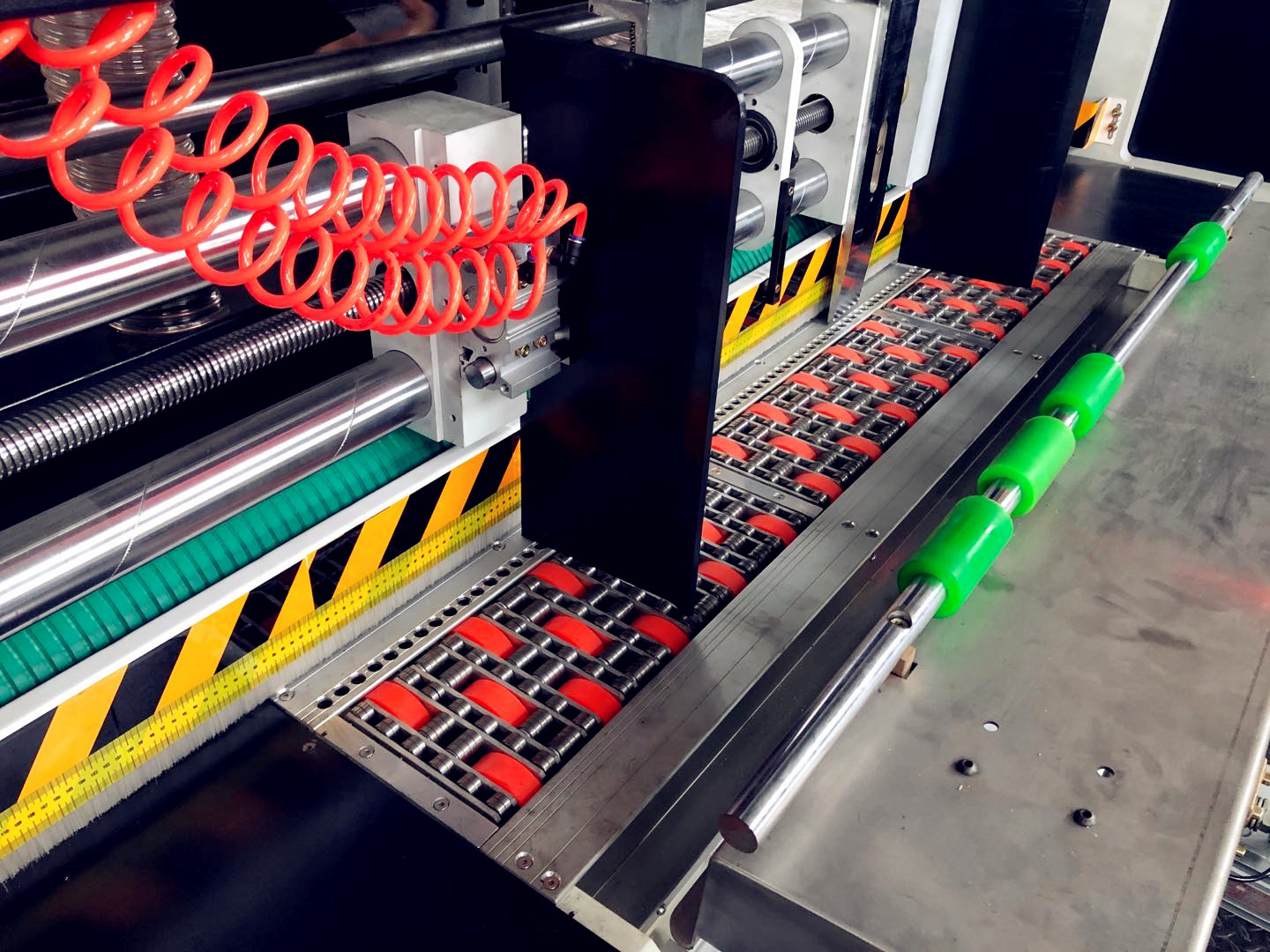

Feeder Unit
Feeder Unit
  • Electric control machine clutch attached to an alarm, warning road between the continuous ringing, to ensure the safety of workers.
  • Equipped with high effective brush roller and rows of brushes dust removal device.
  • Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller, brush roller, and electrostatic dust.
  • Carton use automatic zero device, two test print can be adjusted to the correct position, reduce the waste of cardboard.

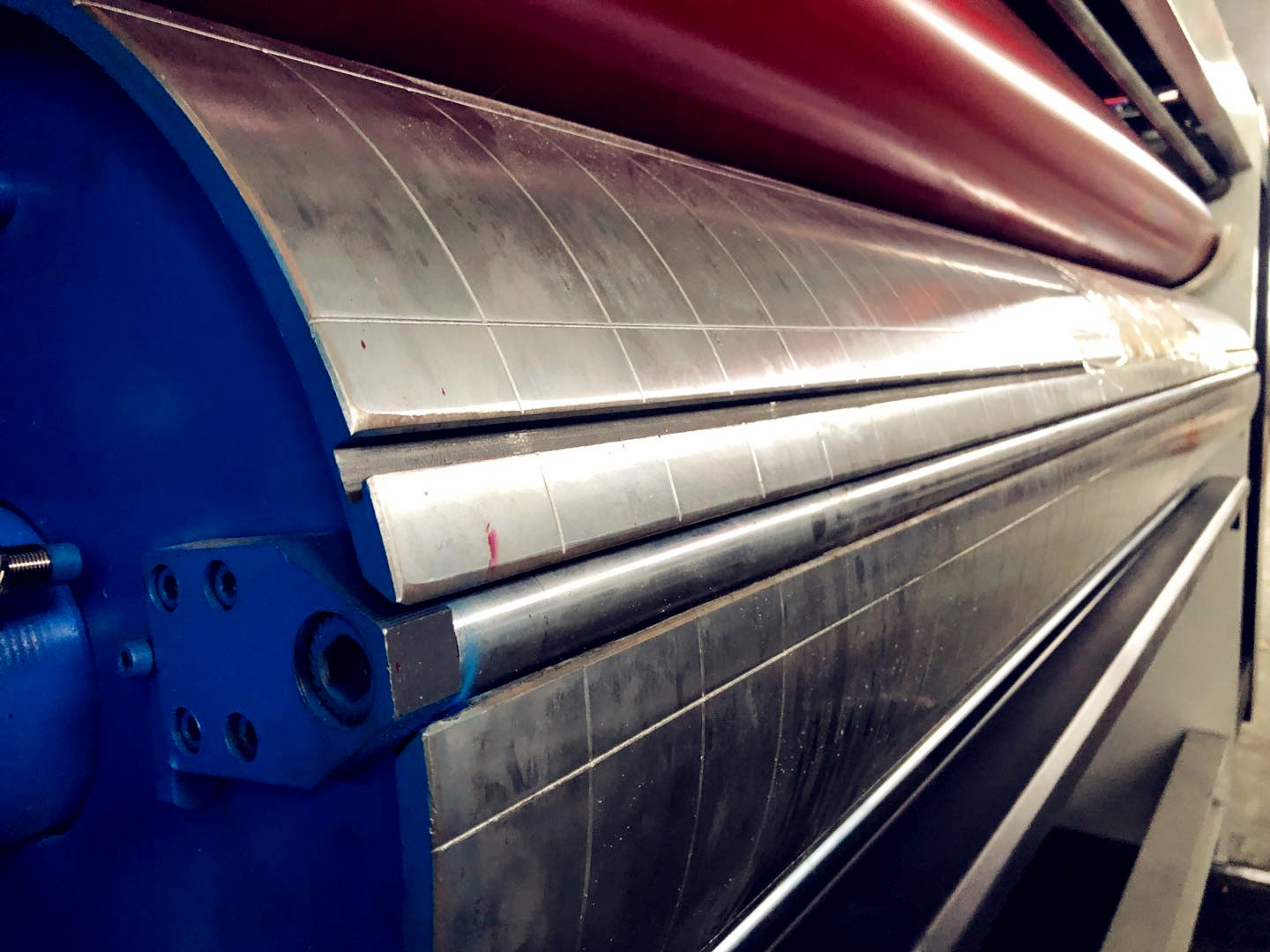

Print Unit
  • High quality ceramic anilox printing roller with doctor blade.
  • The anilox roller with quick-change structure, convenient maintenance and service of the machine.
  • Full vacuum transfer type with blower, high precision transfer vacuum box.
  • The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
  • Automatic induction ink detection system, including warning lights and alarm bells.
Print Unit

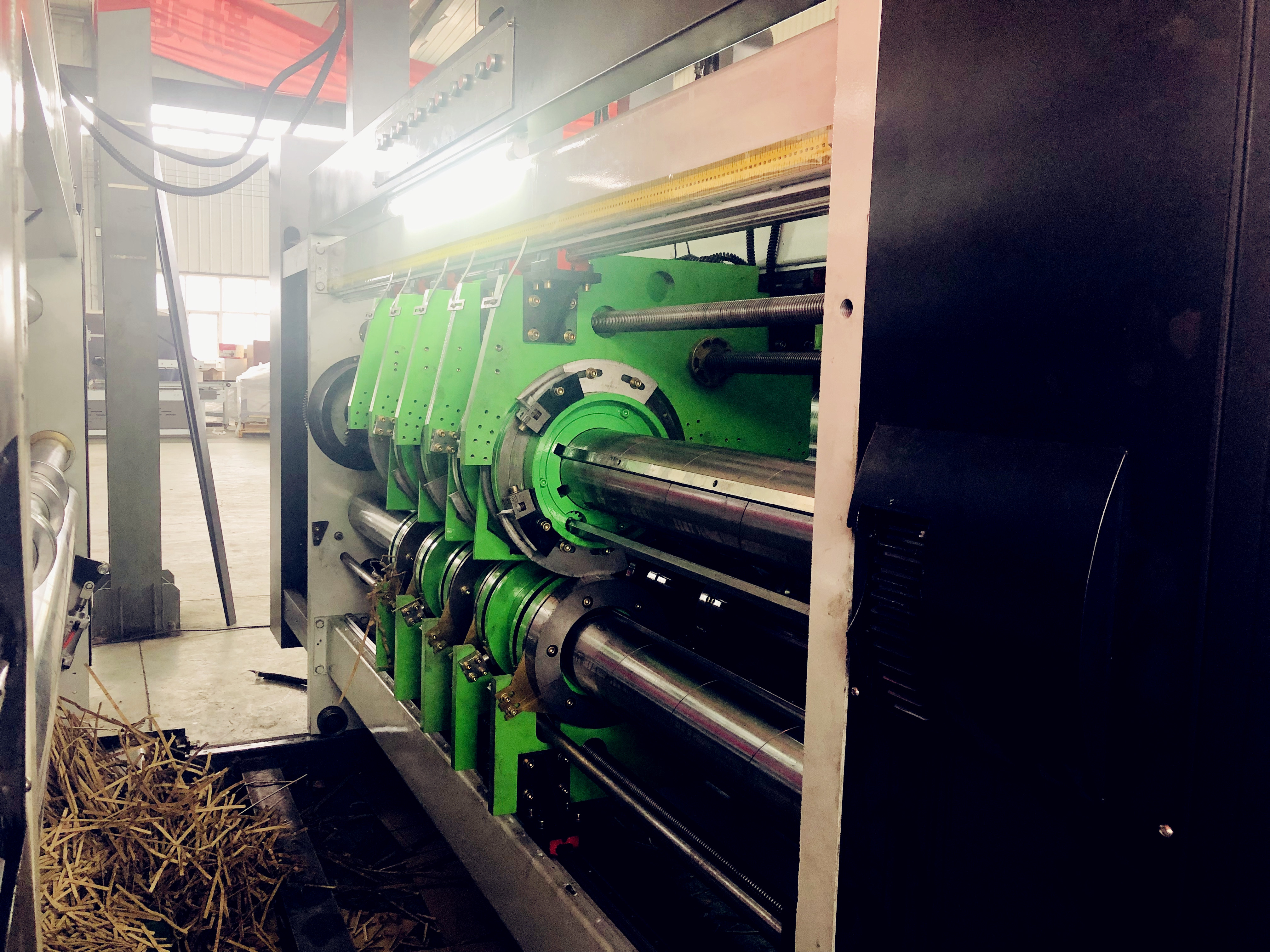

Slotter Unit
Slotter Unit
  • The device self-locking function, the preload and quick adjustment mechanism ensures the long-term accuracy between the disc and the shaft, and reduces the cracking of the paper when pressing.
  • There are buttons, left and right synchronous intersections, electric axial movement, so that the upper and lower pressure line wheels, the upper and lower grooved knives are adjusted synchronously, and the electric adjusting box is highly functional.
  • A planetary gear type phase adjustment mechanism with digital display function is used for electric adjustment of the slotting phase and the height of the slotting box.

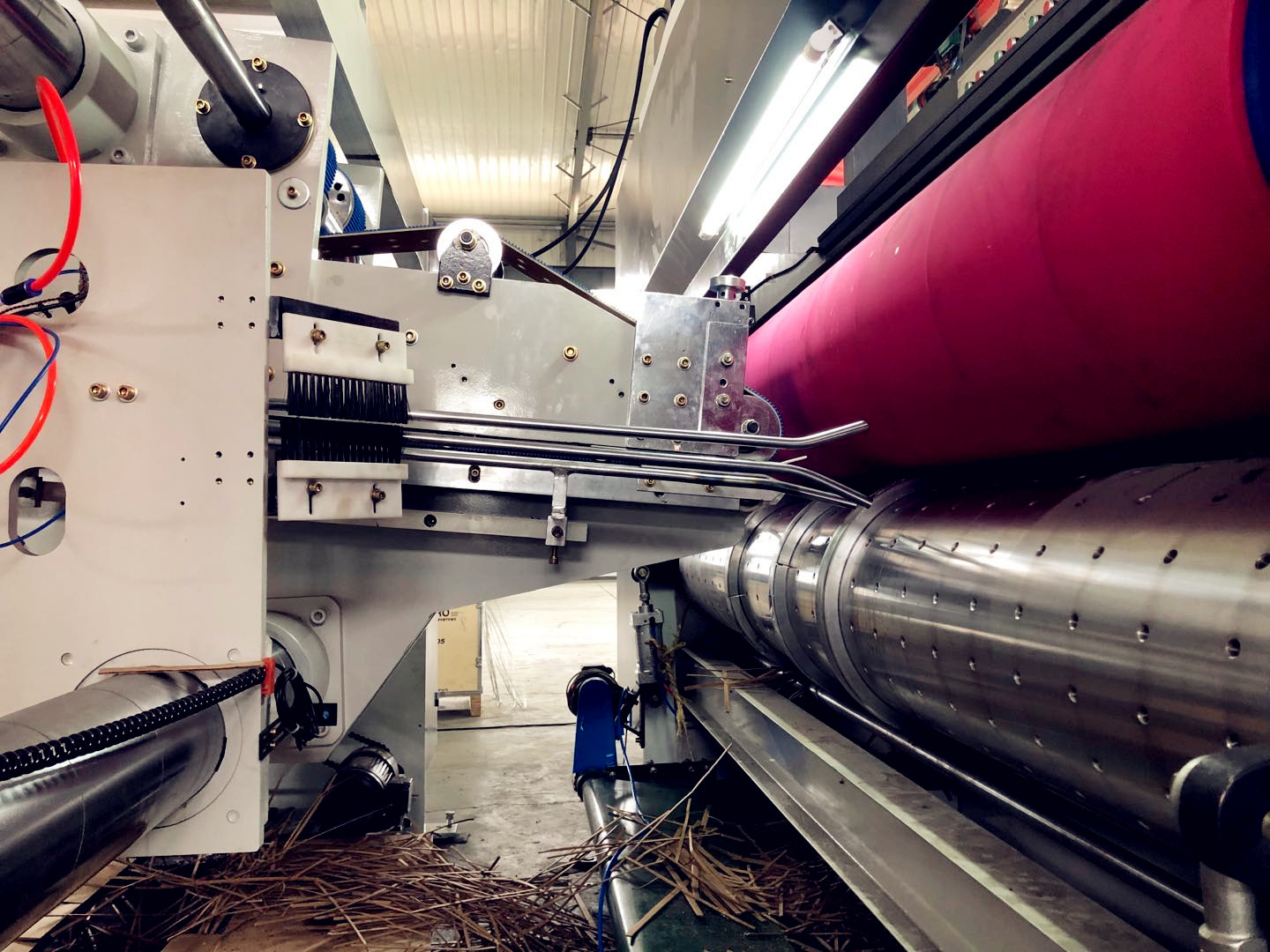

Rotary Die Cutter Unit
  • Die cutter phase adopt gear system, can be electric adjust 360 degree.
  • If stop feeding, the roller auto lifting, less damage.
  • Rubber plate roller can be lift right adjust 30mm, each blade cut in different position.
  • Up and down roller diameter different, but the line speed is same. Can control the die knives no stop working, make the plate grinding uniform.
  • Line speed compensation device, when the rubber roller diameter changes, the line speed will be compensated use this system.
Rotary Die Cutter Unit

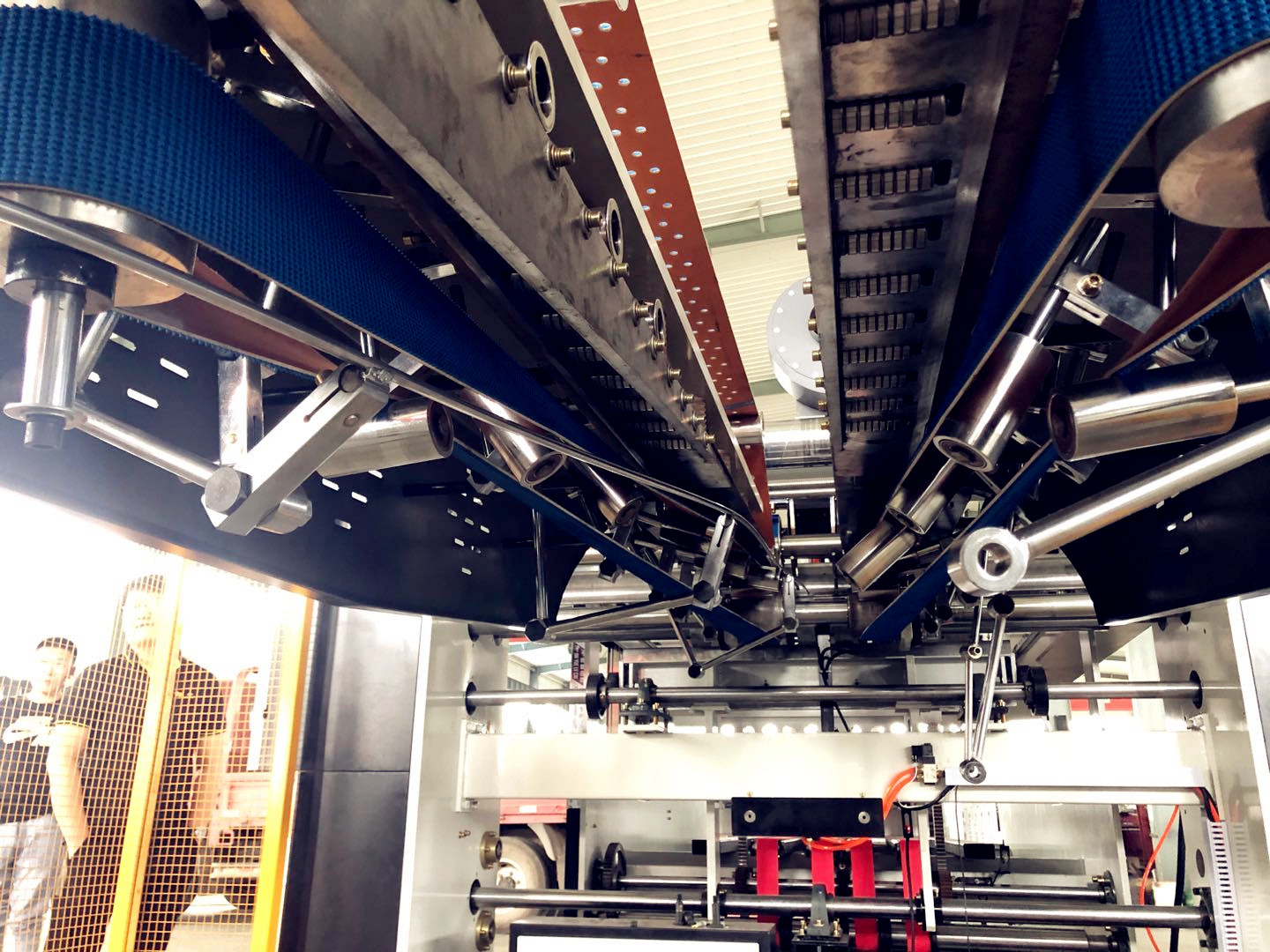

Folder Gluer Unit
Folder Gluer Unit
  • The front section of the origami is conveyed by the precise stereotyped guide wheel system, and the rear section is transported by the adsorption belt and does not appear to be deviated.
  • High-strength folding beam arm, precision traverse guiding system.
  • The origami beam adjusted left and right is controlled by computer, and can also be electrically adjusted.
  • The transmission and adsorption motor is controlled by electric motor.
  • The size of cardboard scissors is adjusted by belt differential.
Product Layout
Details 1
Details 2
Details 3
Detailed Images
QHFFG1224 Model High Speed Flexo Folder Gluer Machine is for standard carton box big quantity production. It features Lead edge vacuum feeder unit, printing unit, slotting unit, rotary die cutting unit, folder gluer unit, and automatic bundling unit.

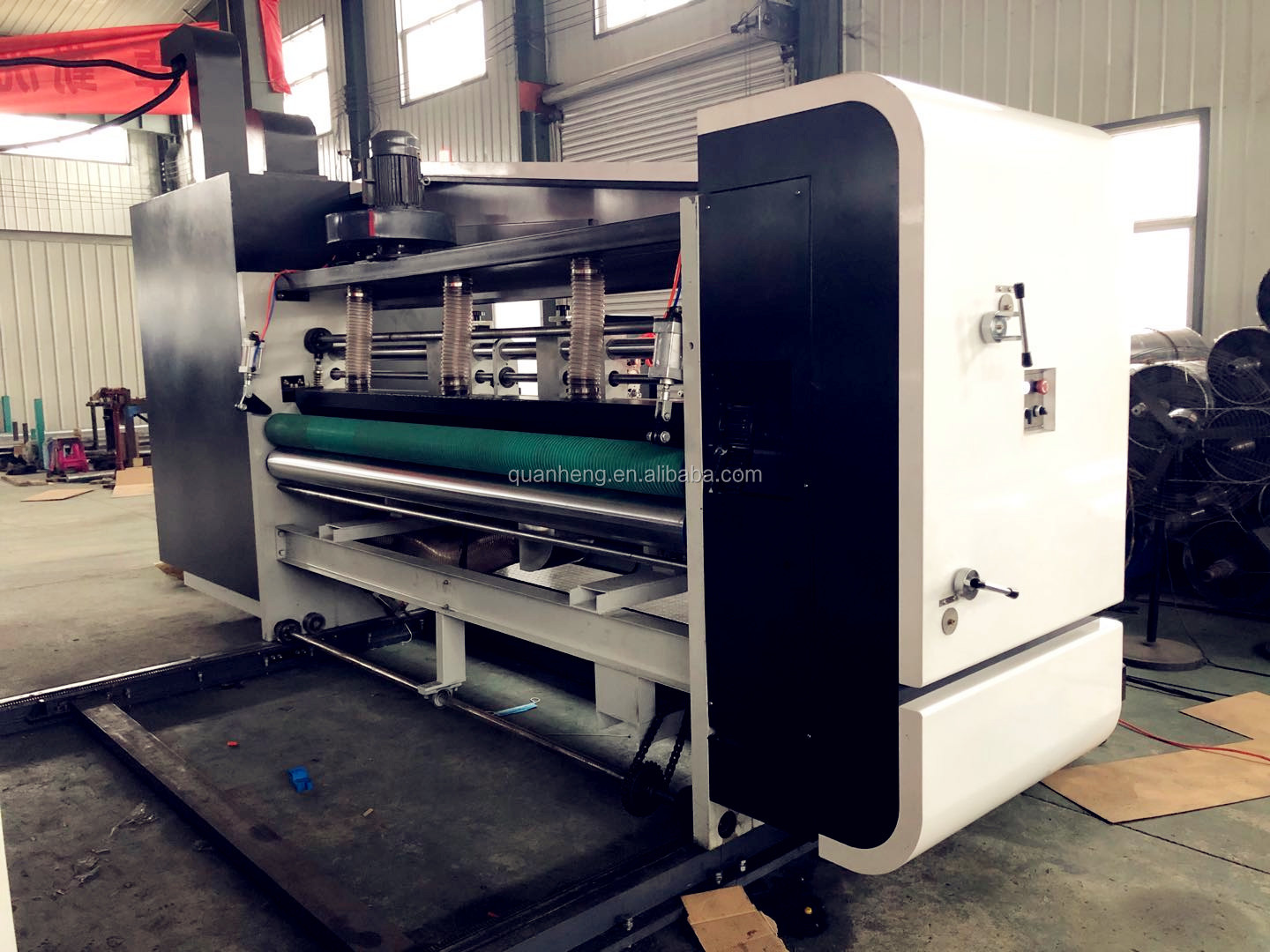

Details Image A1

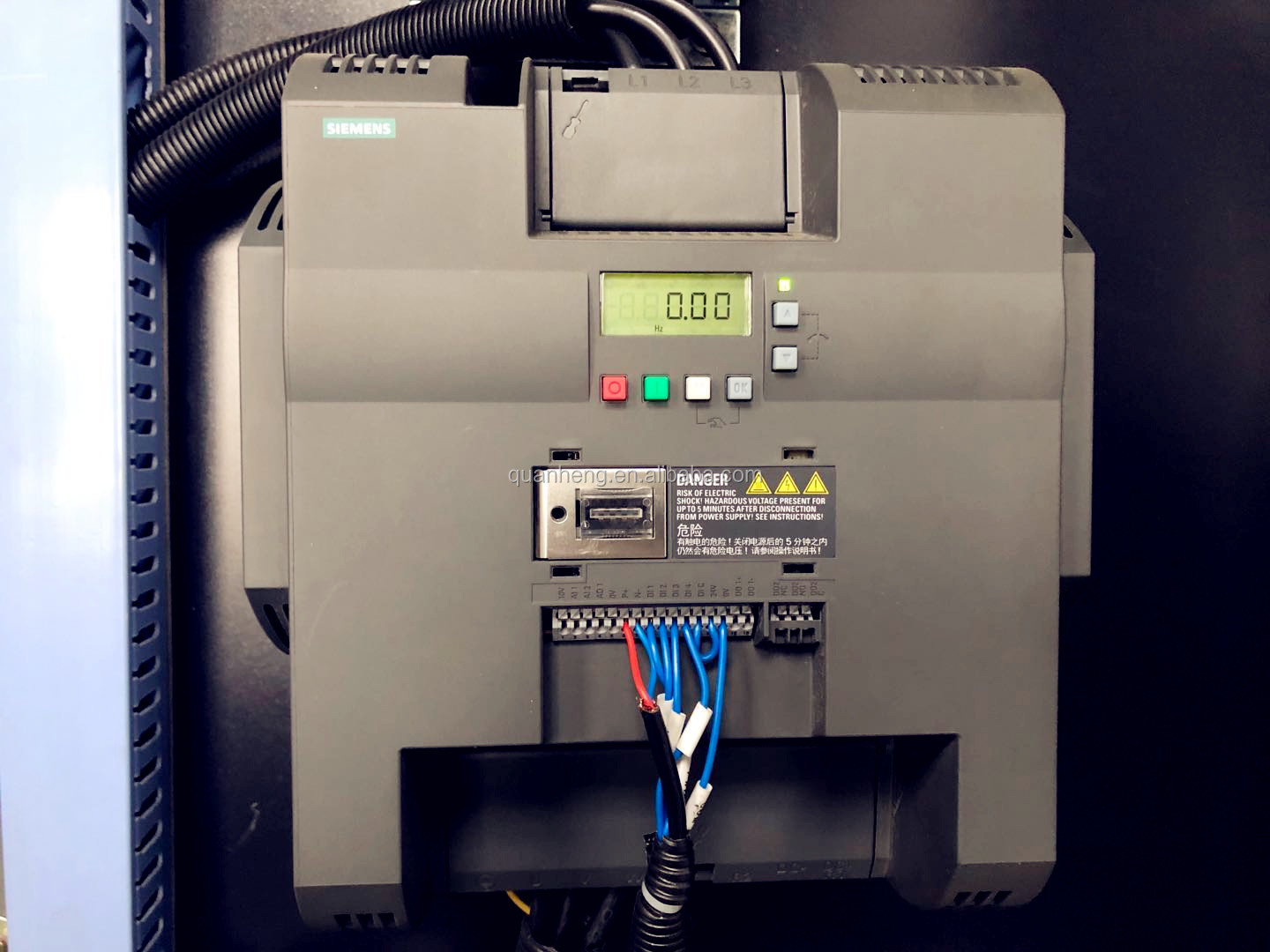

Details Image A2

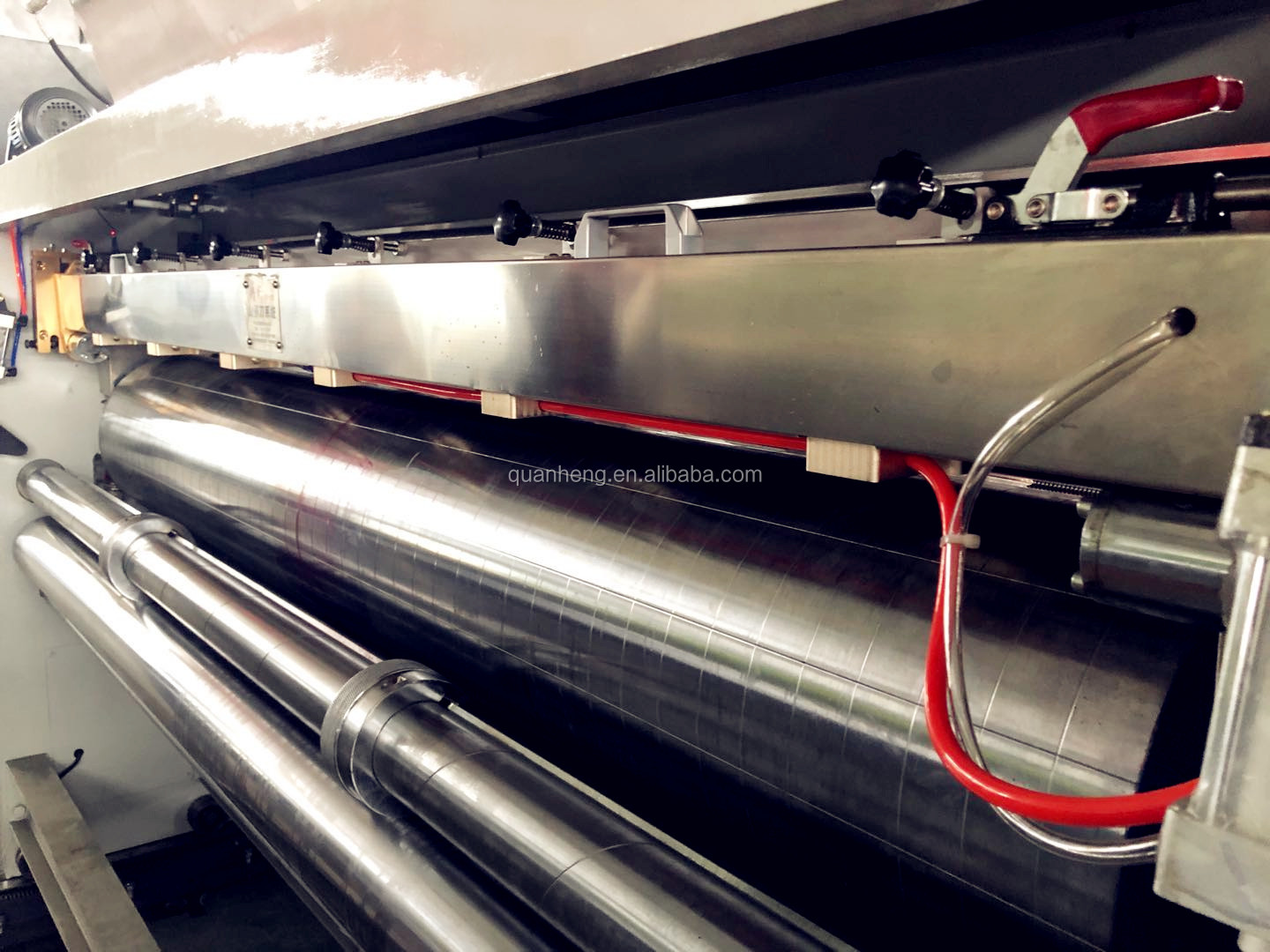

Details Image B1

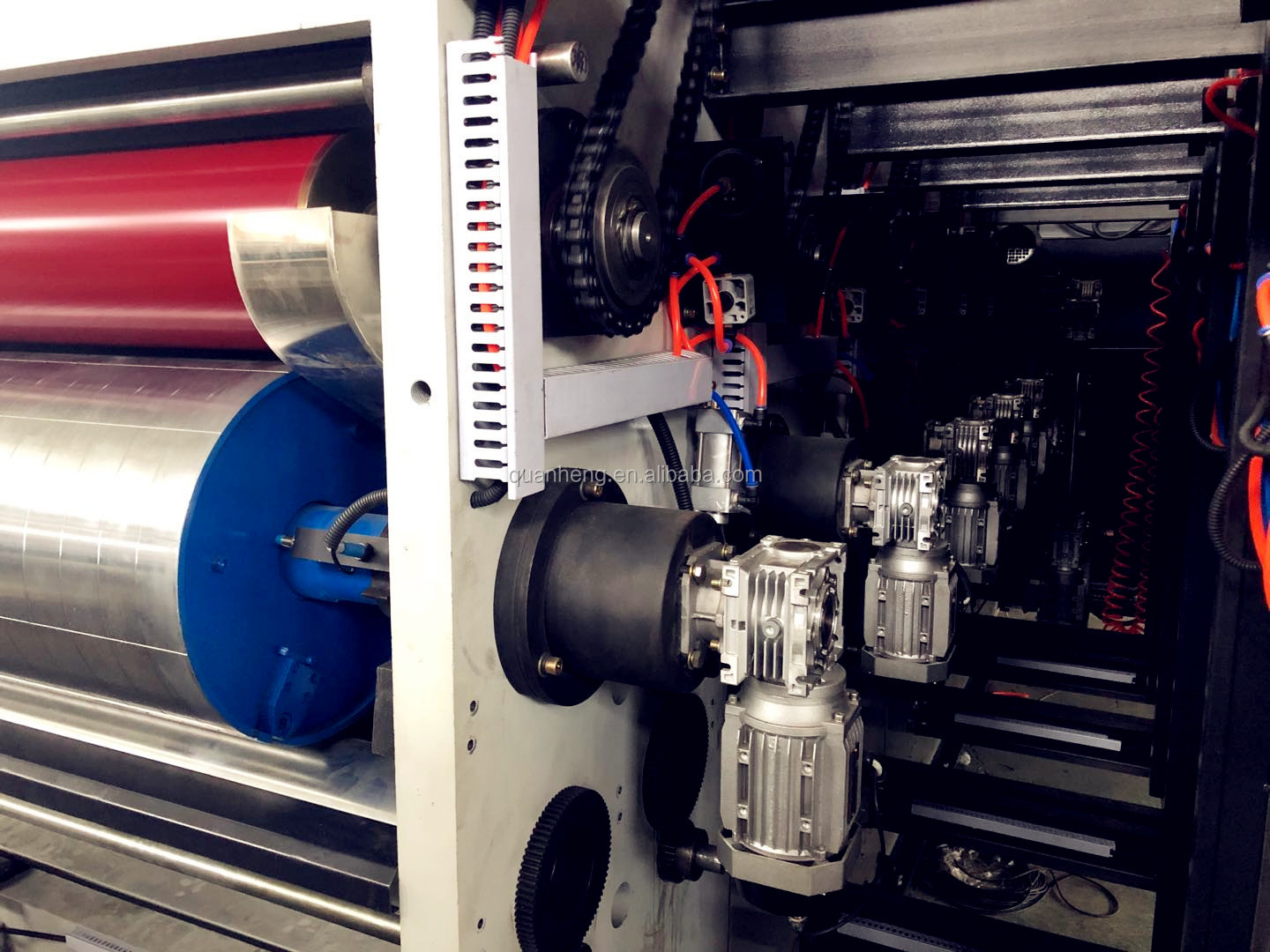

Details Image B2

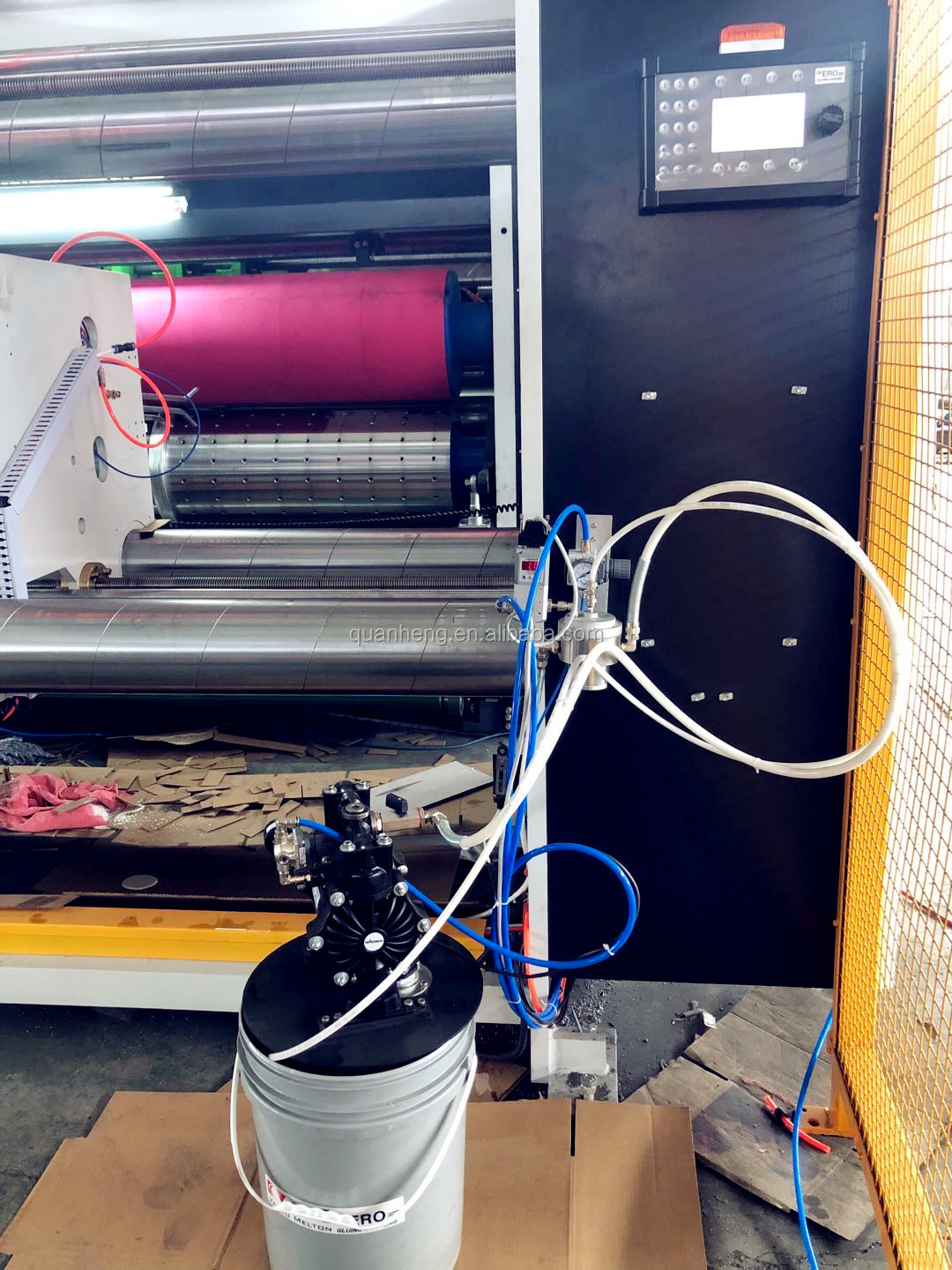

Details Image C1

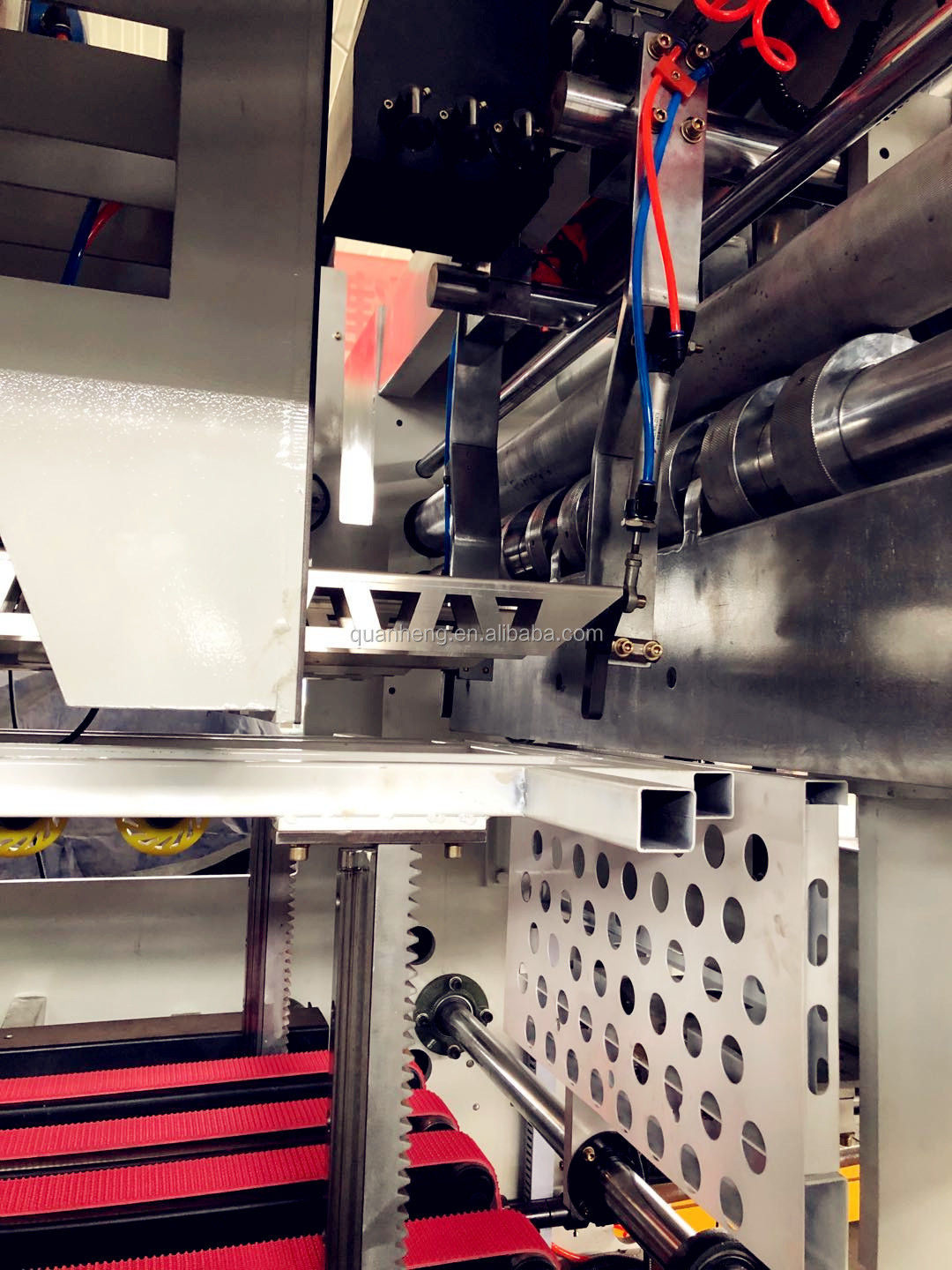

Details Image C2

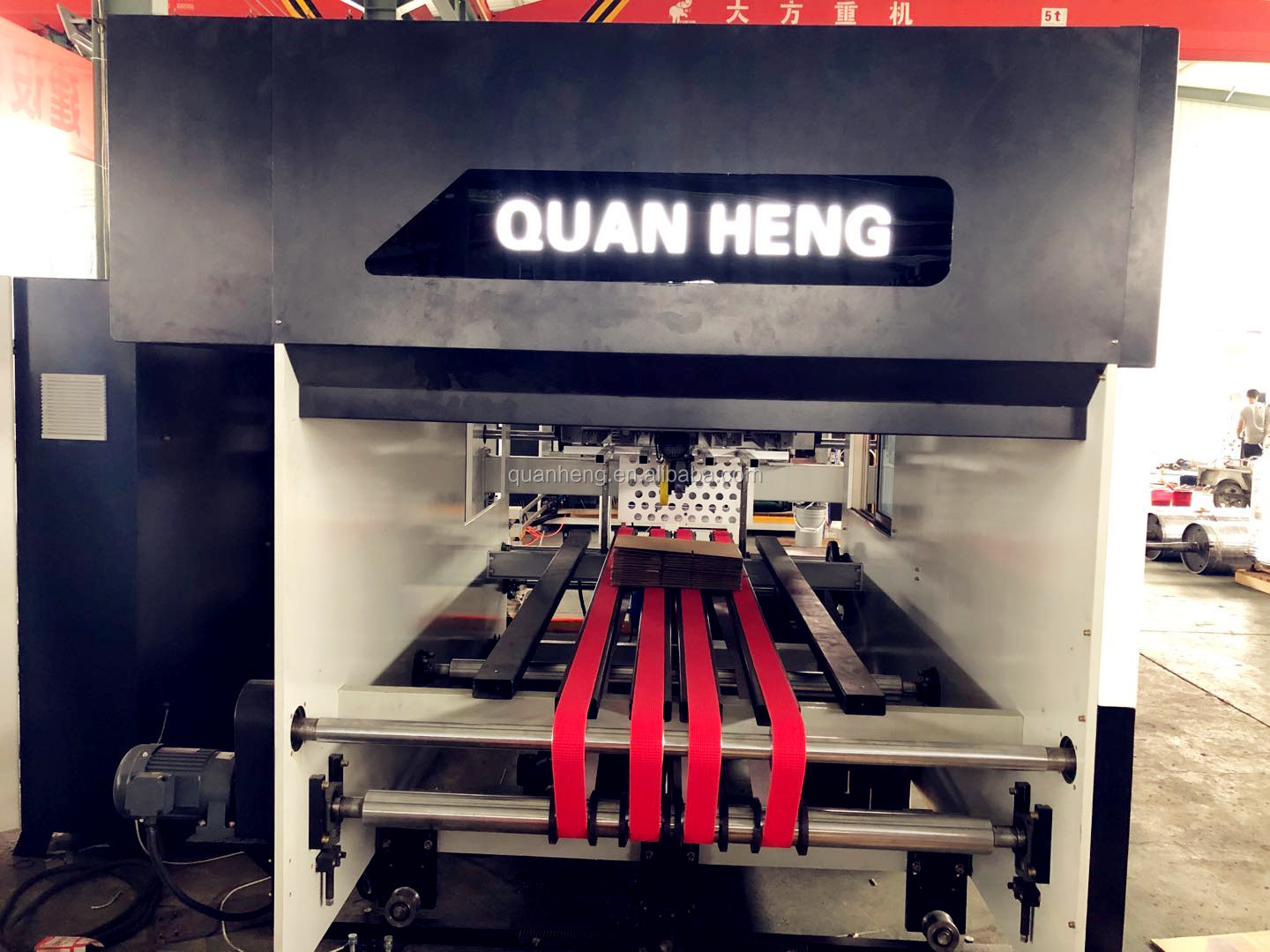

Details Image D1

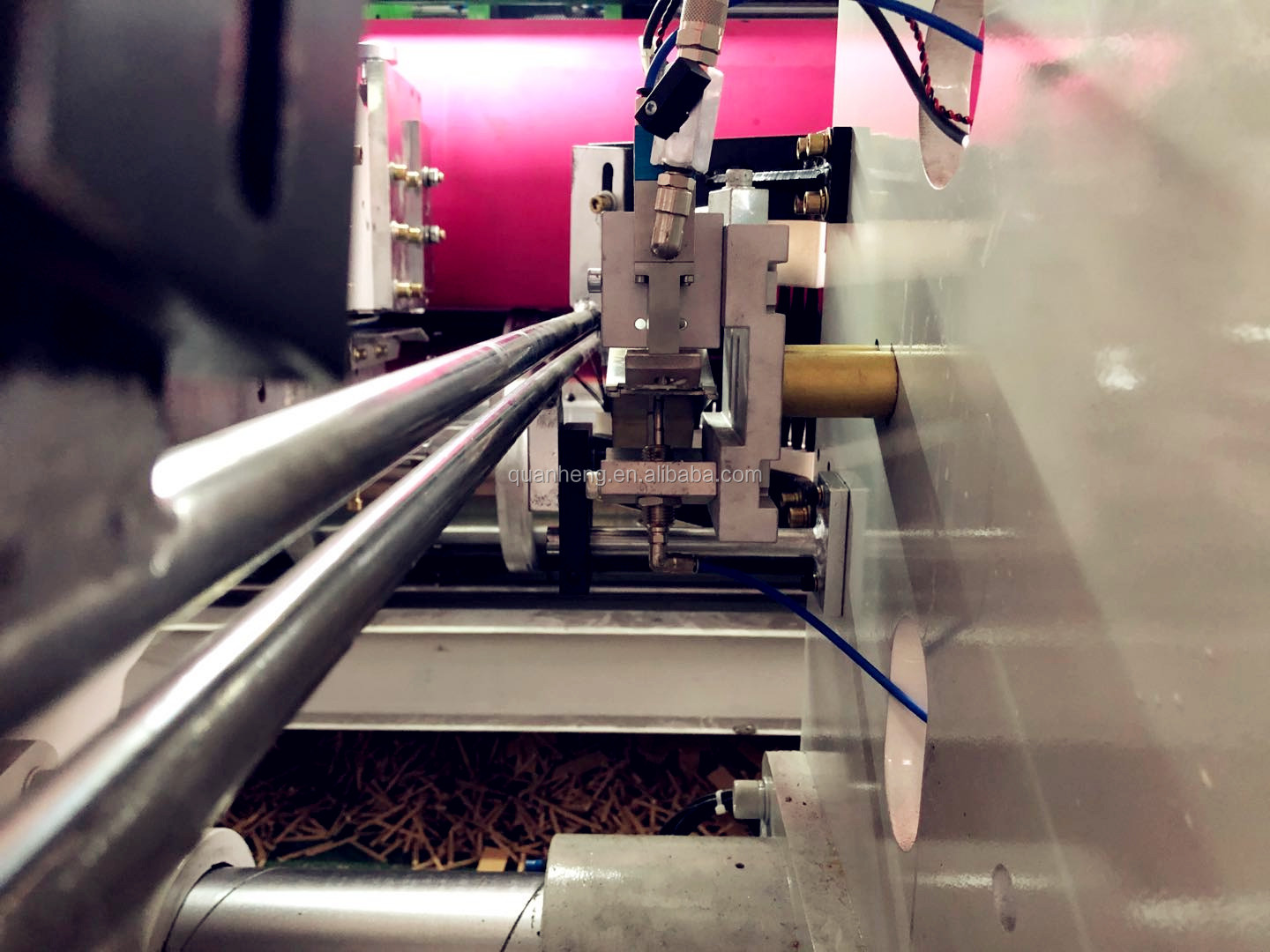

Details Image D2
Packing & Shipping

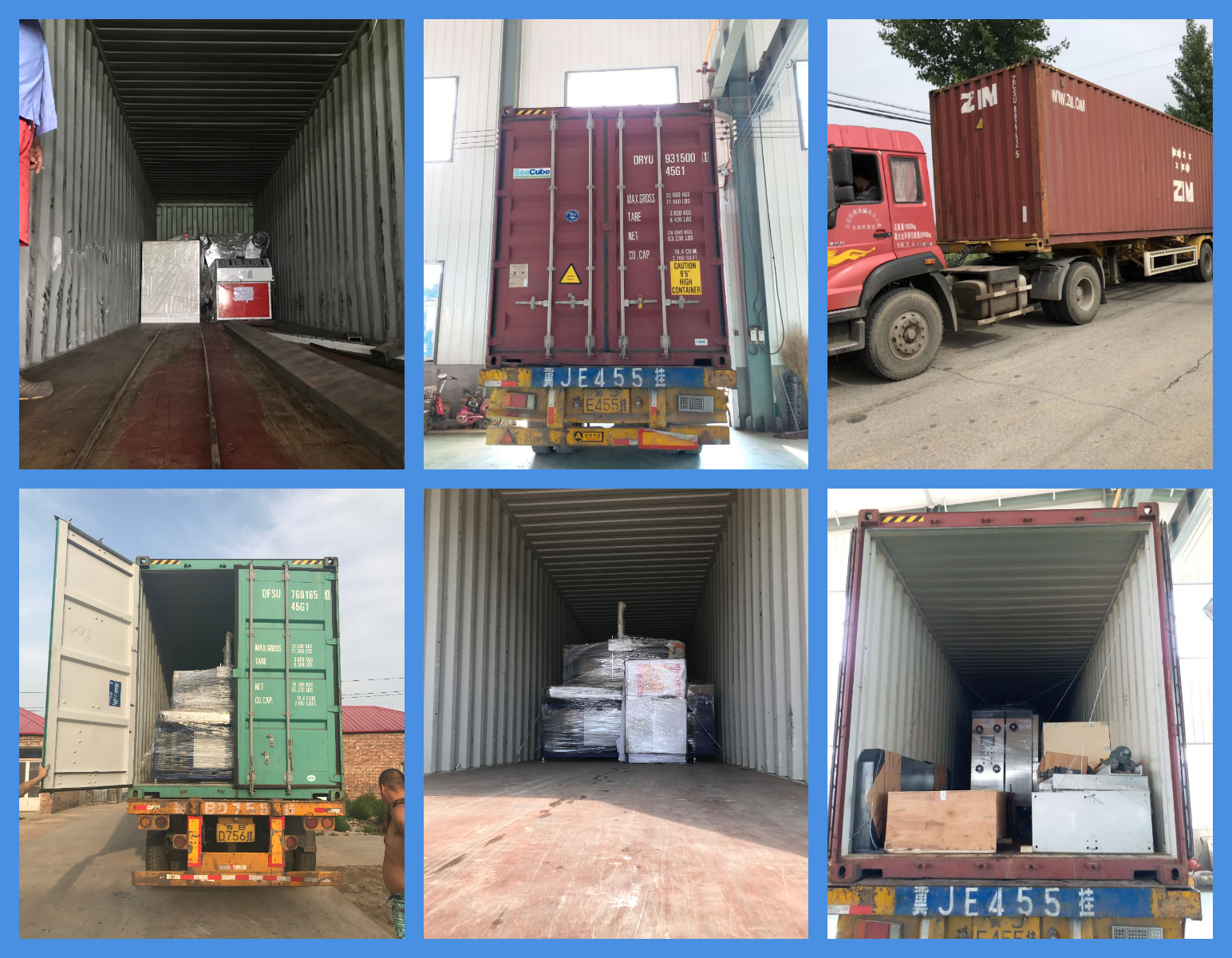

Standard export packaging, securely fixed in containers. Before packaging, all machine parts are coated with anti-rust oil.
Packing and Shipping Process
After Sales Service
Training and Service
Training and Service

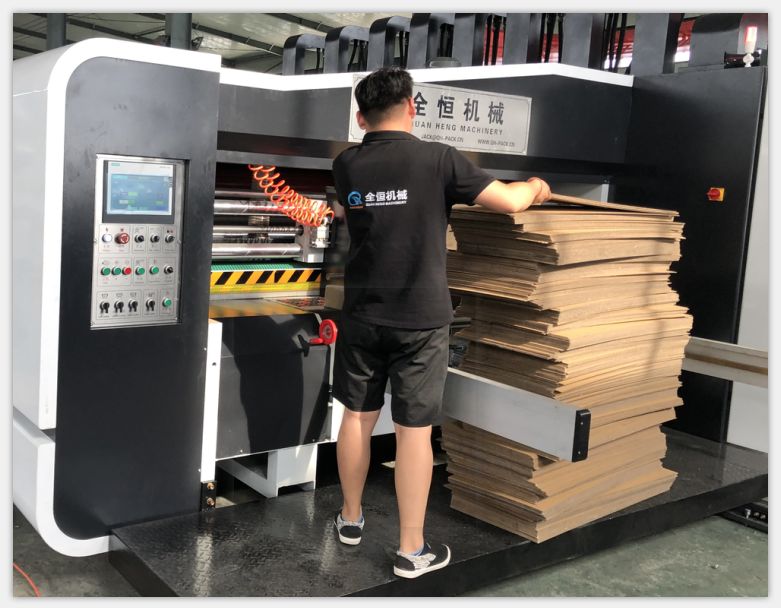

We provide free training in our factory or in the user's factory, covering operation, maintenance, and cleaning of the machine.

We will provide user manuals and operation videos for customers. Following the step-by-step videos, running the machine is easy and fast.

The machine includes lifelong service support. Should any issue arise, we will provide assistance immediately!

Company Introduction
With 20 years of experience in international trade and professional manufacture, plus a professional management and sales team, our group has been dedicated to offering our customers advanced equipment, competitive prices, speedy delivery, and comprehensive after-sales service, to create value and competitive advantages for our customers. Backed by strong financial support, talented personnel, a solid reputation, and a high level of commitment, our turnover has been rising rapidly and heading towards strategically healthy development. Businesses have covered CIS, Latin America, Middle East, Europe, North America, Southeast Asia, and many other markets.

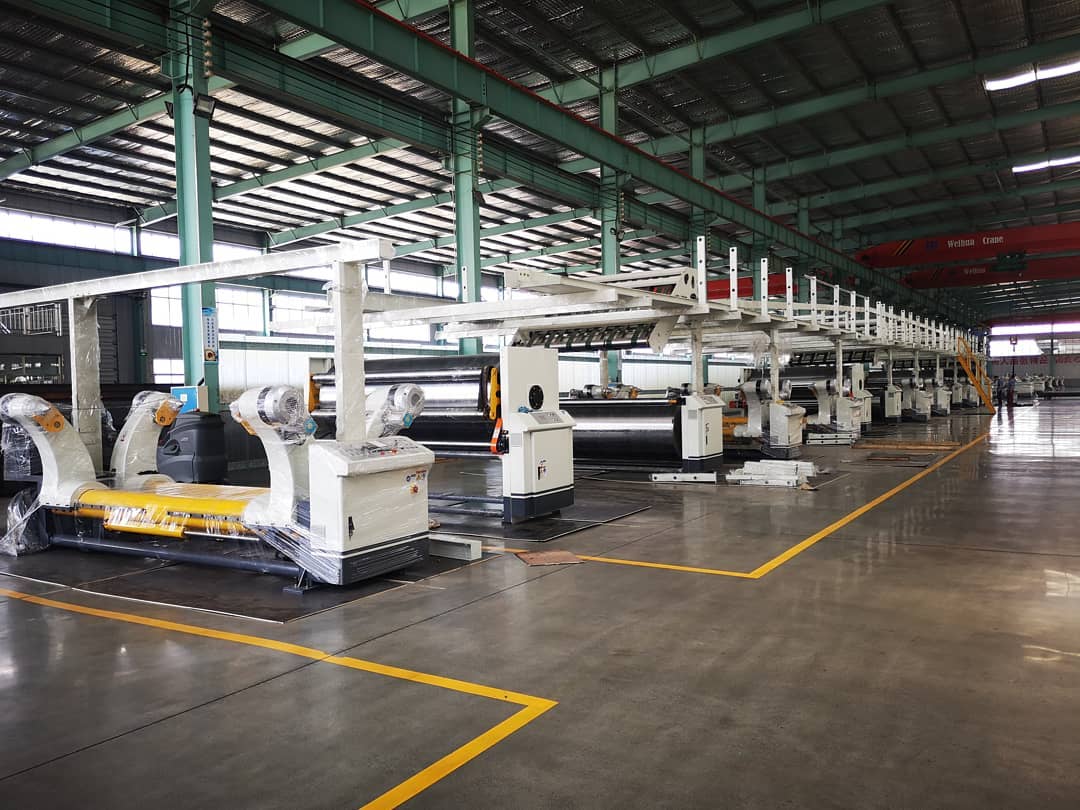

Production Facility
Team Work

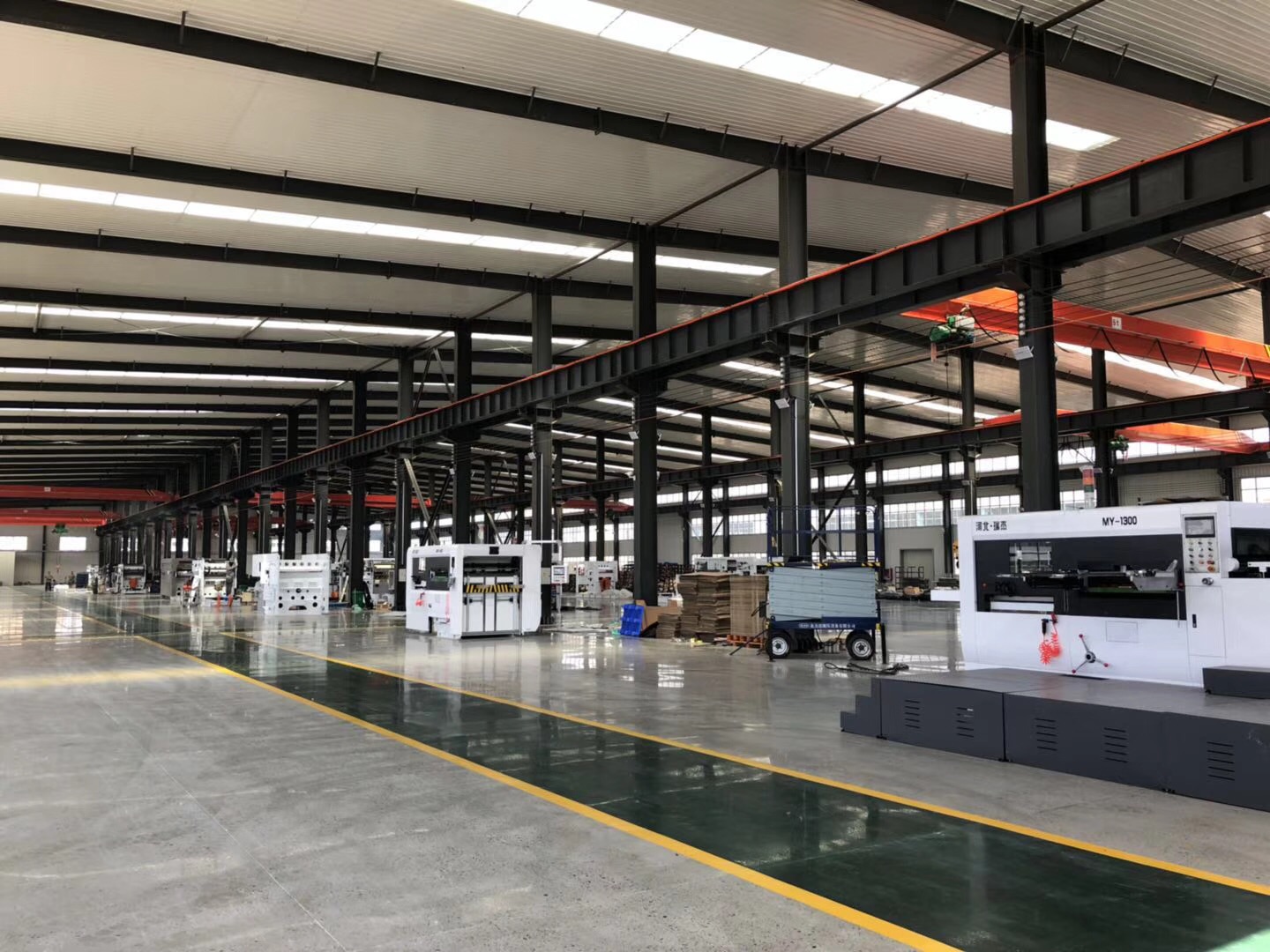

Company Display
Product Lines
We specialize in manufacturing and export distribution of:
  • Corrugated Cardboard Production Line (Corrugator for cardboard making)
  • Computerized High Speed Flexo Printer Slotter Die-Cutter (Carton box machine)
  • Other Conversion Machines (folder gluer, laminator, stitcher, flatbed die cutter)
  • Paper Making Machines (kraft paper, flute & testliner, coating paper, tissue paper)

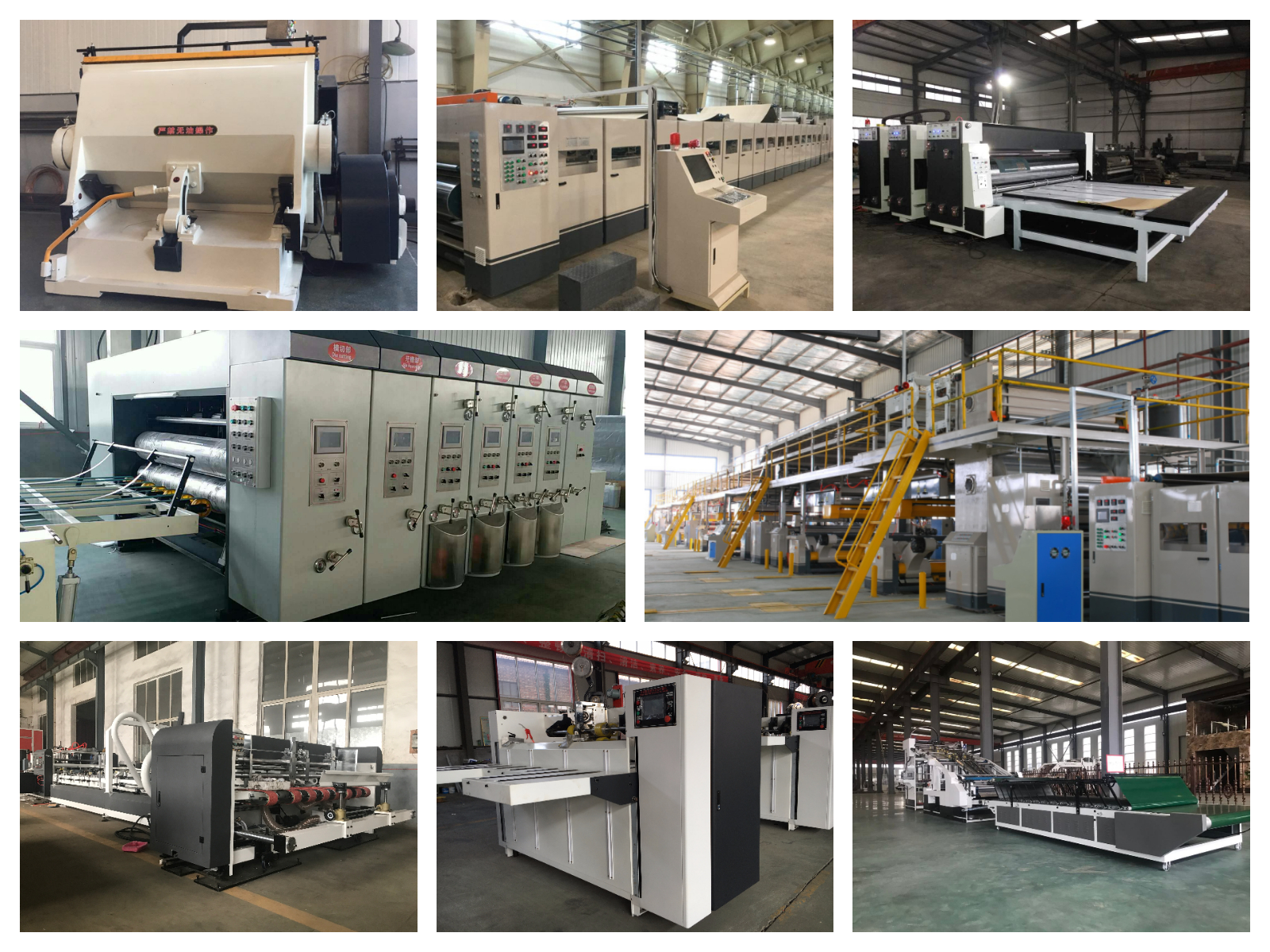

Equipment Overview
FAQ
Q1: What is the main purpose of the QHFFG1224 Model machine?
A1: The QHFFG1224 High Speed Flexo Folder Gluer Machine is designed for high-volume, standard carton box production. It integrates feeding, printing, slotting, die-cutting, folding, gluing, and automatic bundling.
Q2: What sizes of paperboard can this machine handle?
A2: The machine supports a maximum paperboard size of 1200x2400mm and a minimum paperboard size of 400x800mm.
Q3: How does the printing unit ensure precision?
A3: The printing unit features a high-quality ceramic anilox printing roller with a doctor blade, a full vacuum transfer type box with blower, and worm electric adjustment with a digital display.
Q4: Does the company offer training for new users?
A4: Yes, we provide free training either in our factory or in the user's factory. User manuals and detailed operational videos are provided to make the setup and operation easy and fast.
Q5: How is the machine prepared for export and shipping?
A5: We use standard export packaging where the machine is securely fixed in containers. To prevent damage, all machine components are treated with anti-rust oil prior to packaging.
Q6: What other types of machinery do you produce?
A6: In addition to the flexo folder gluer, we specialize in corrugated cardboard production lines, computerized high speed flexo printer slotter die-cutters, conversion machines (stitchers, laminators, flatbed die cutters), and paper making machines.
