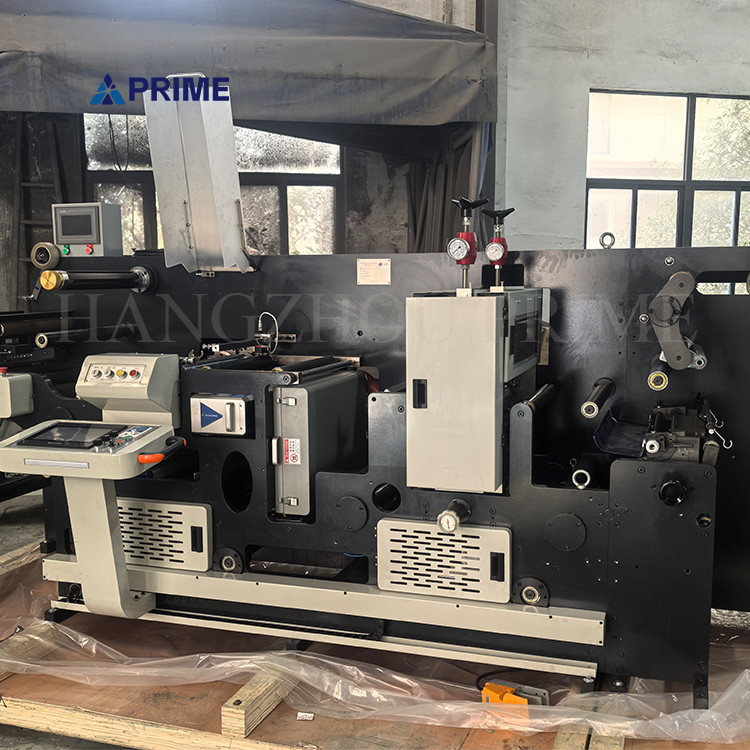

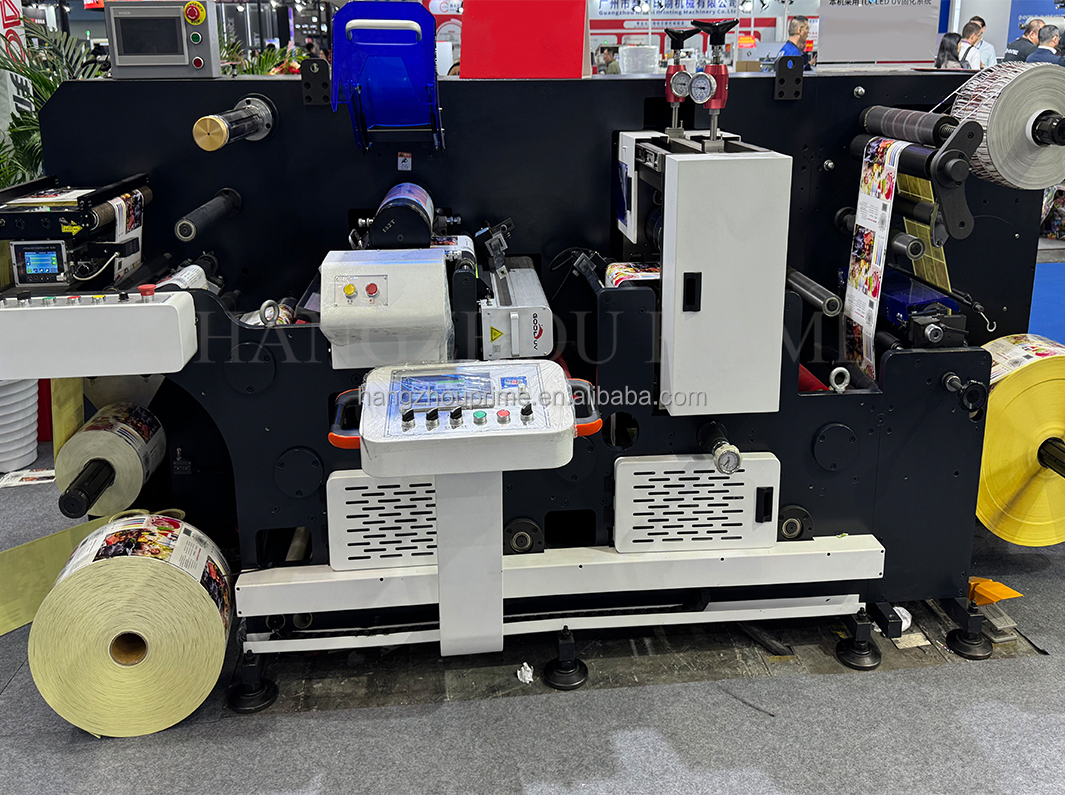

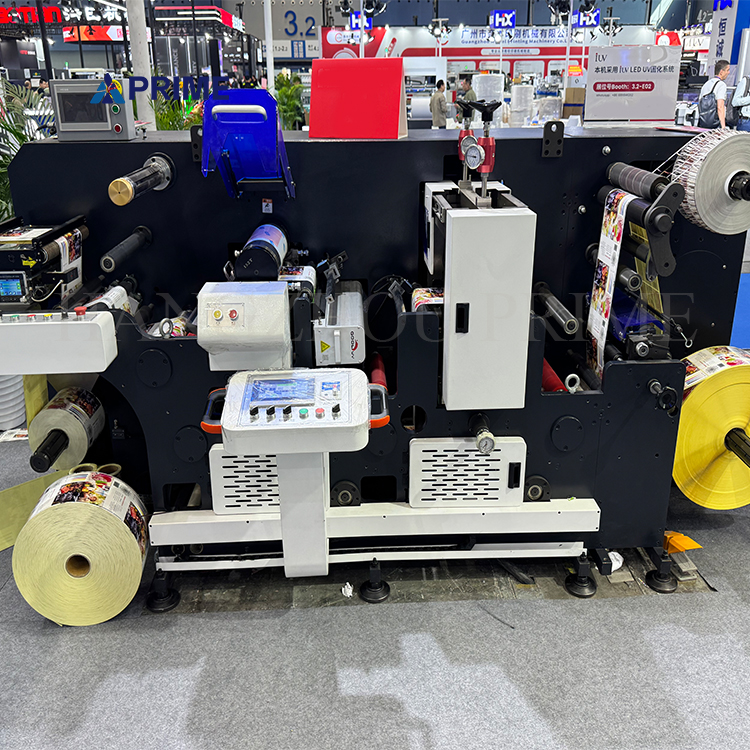

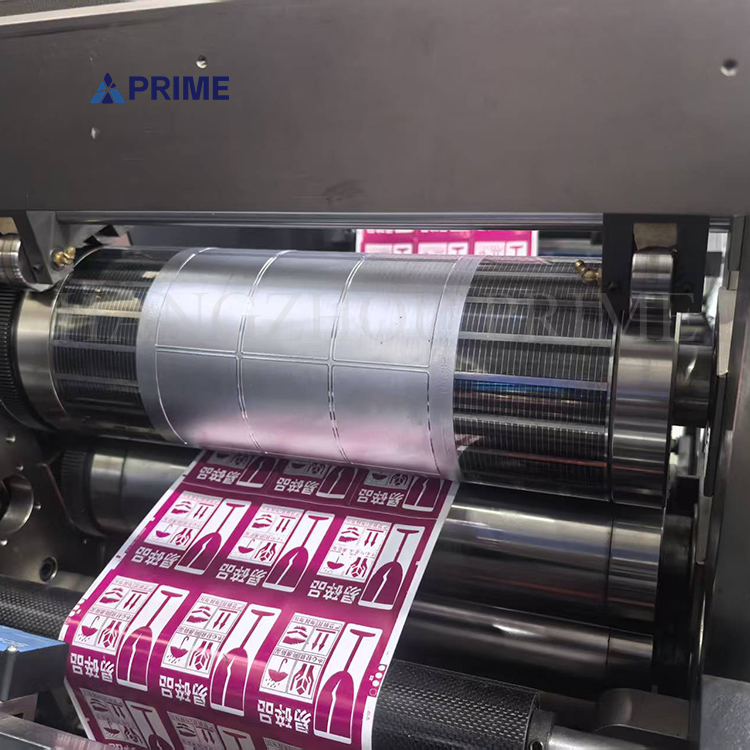

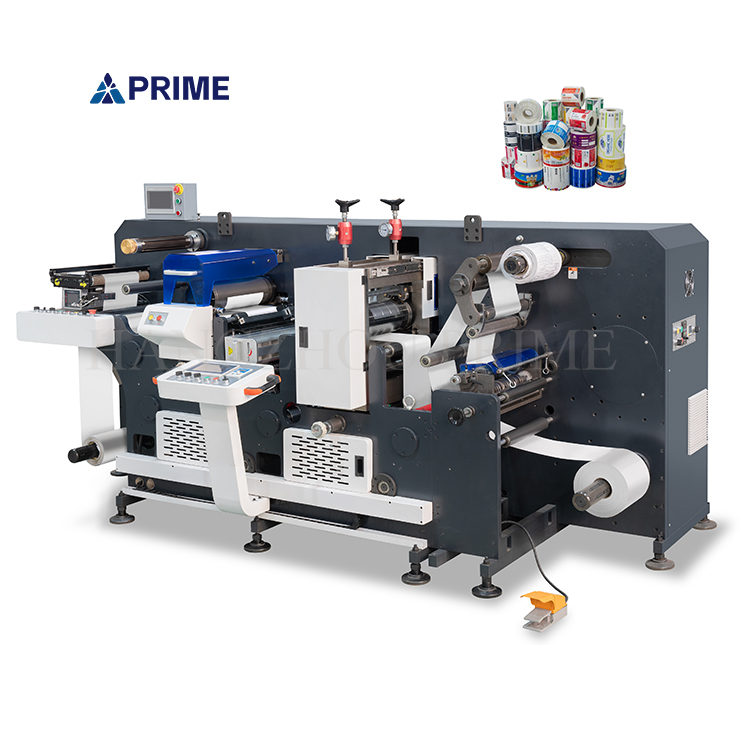

Best Price Automatic Flexo Printing Intermittent Rotary Die Cutting Machine
This equipment can complete a full in-line process including unwinding, printing, die-cutting, slitting, and rewinding, eliminating the need for multiple machines in series and greatly improving efficiency. It can also switch between intermittent die-cutting and full rotary modes, enhancing versatility to accommodate different production volumes and product specifications. The machine is controlled by a high-end servo system, which is easy to operate and user-friendly. The machine adopts a modular design, and various units can be freely combined to diversify the process.
| Parameter |
PM-350 |
PM-450 |
PM-520 |
| Model |
PM-350 |
PM-450 |
PM-520 |
| Intermittent speed |
60m/min |
60m/min |
60m/min |
| Max.web |
360mm |
460mm |
530mm |
| Printing girth |
200-360 |
200-360 |
200-360 |
| Printing width |
350mm |
450mm |
520mm |
| Full rotation speed |
110m/min |
110m/min |
110m/min |
| Max unwinding diameter |
700mm |
700mm |
700mm |
| Max rewinding diameter |
700mm |
700mm |
700mm |
| Power supply |
3ph+N+PE |
3ph+N+PE |
3ph+N+PE |
| Weight |
3000kg |
3800kg |
4600kg |
| Dimension |
3250*1700*1600mm |
3250*1800*1600mm |
3250*1900*1600mm |
| Power |
28kw |
32kw |
37kw |
Standard Configuration

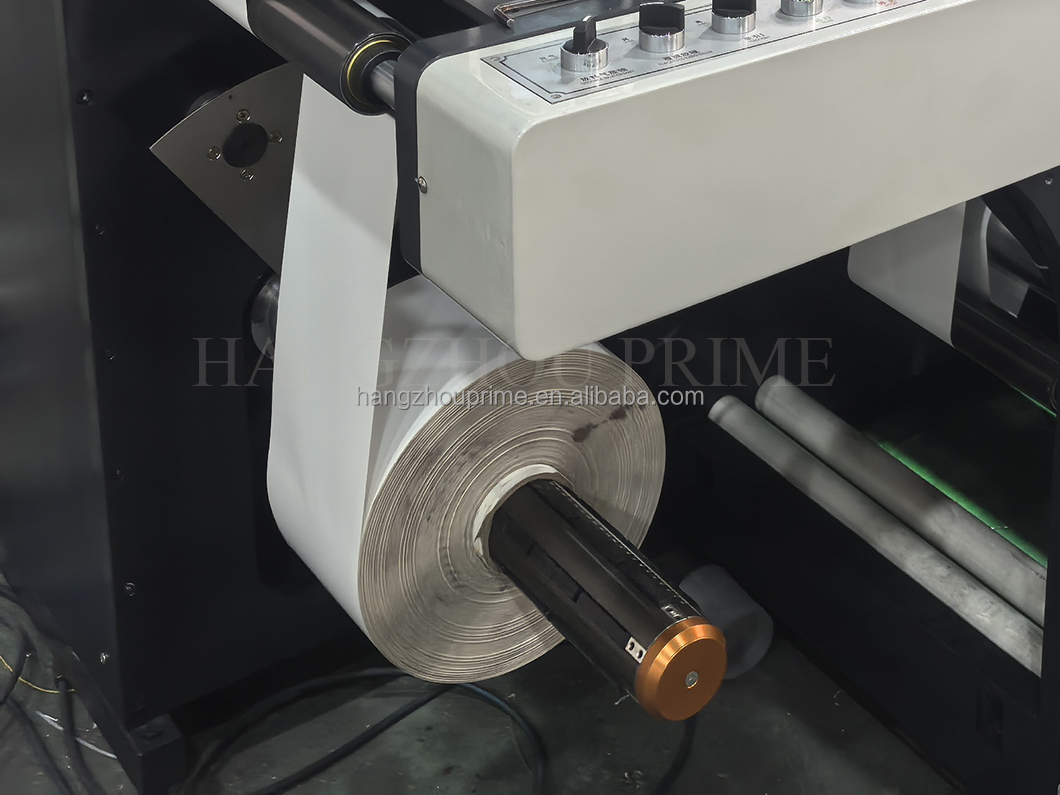

Unwinding unit

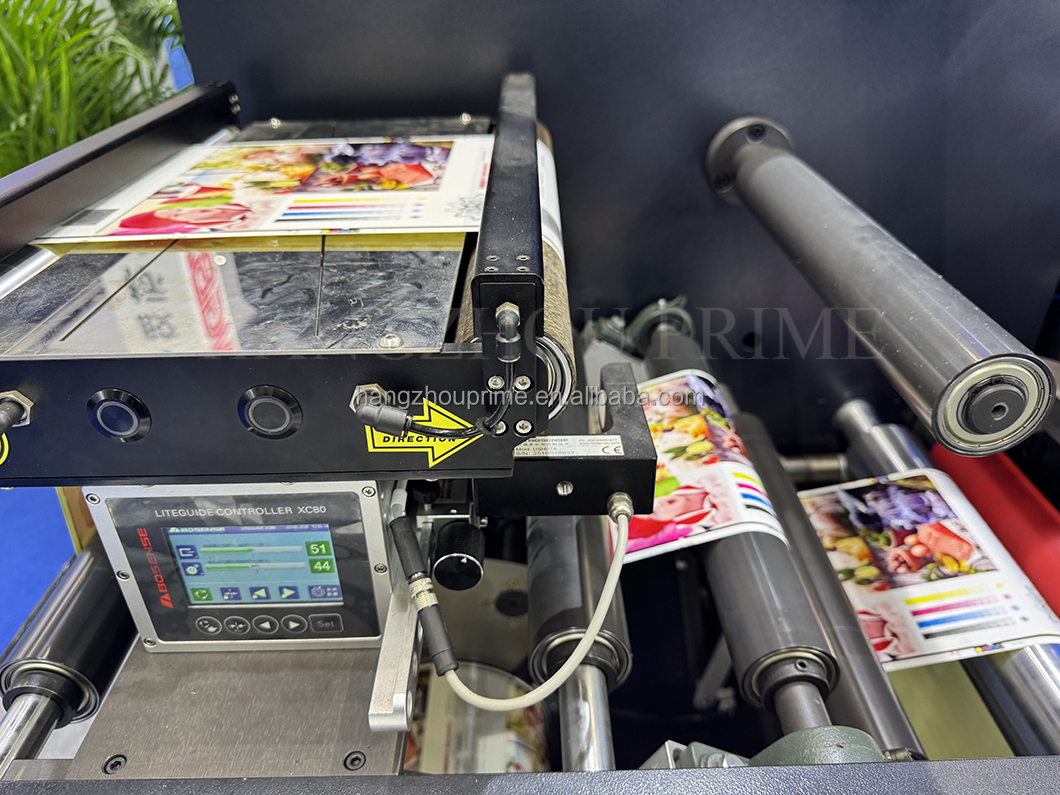

Web guide system

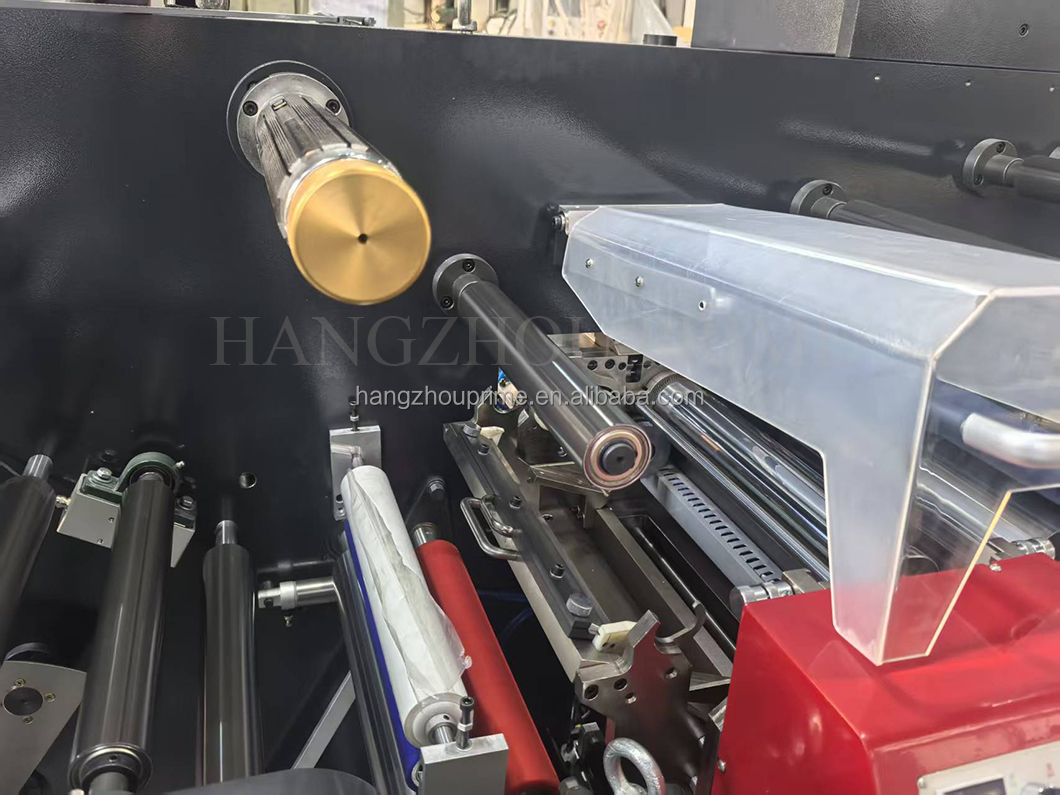

Laminating unit

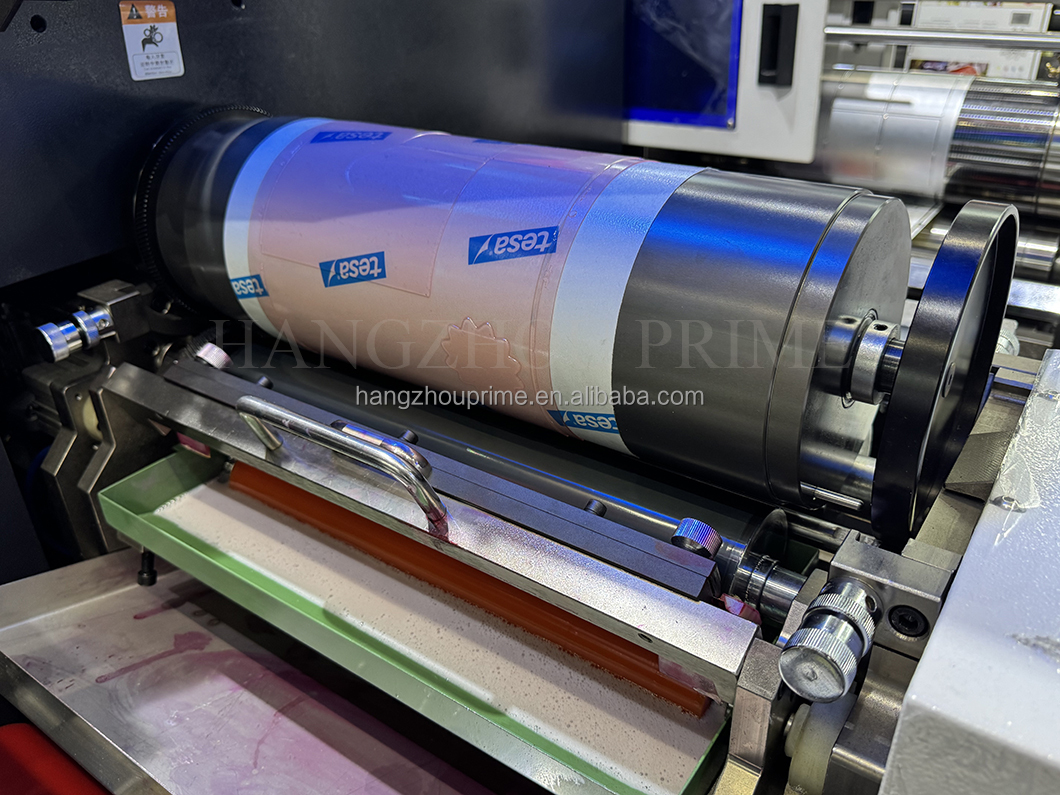

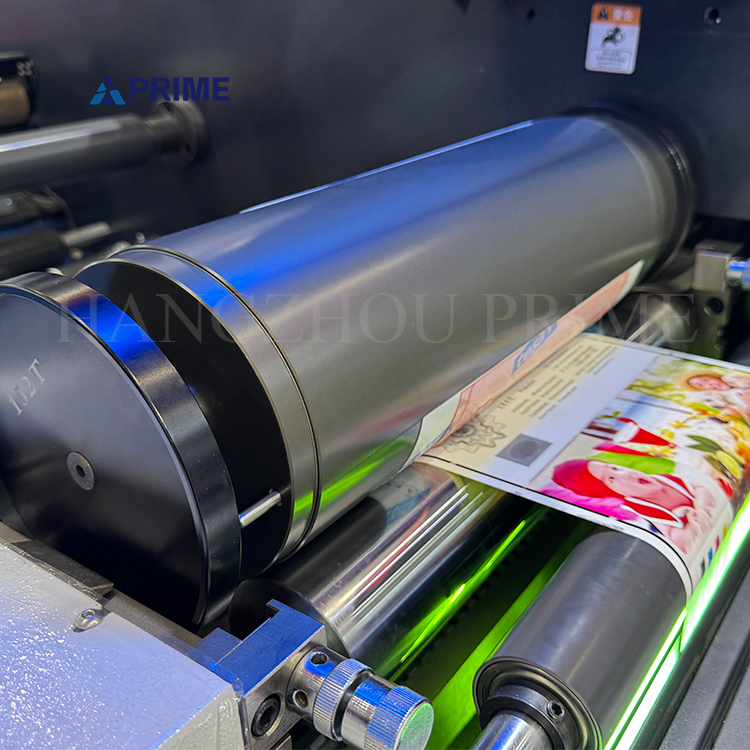

Printing unit

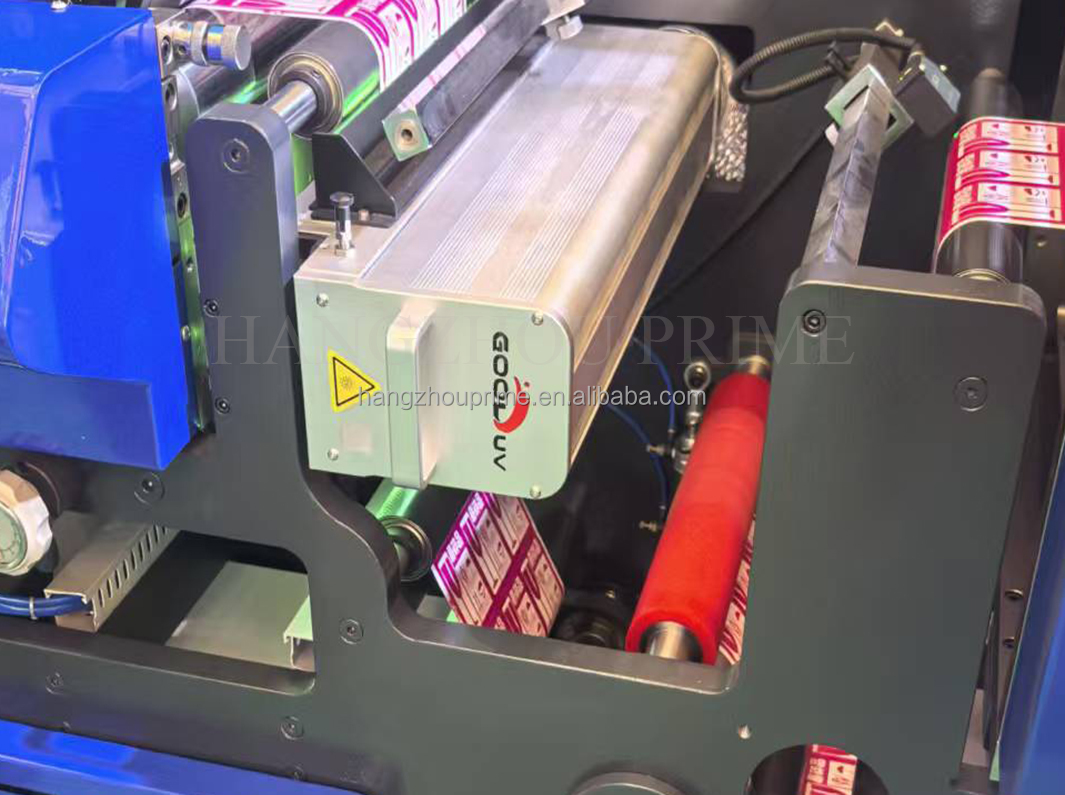

UV dryer

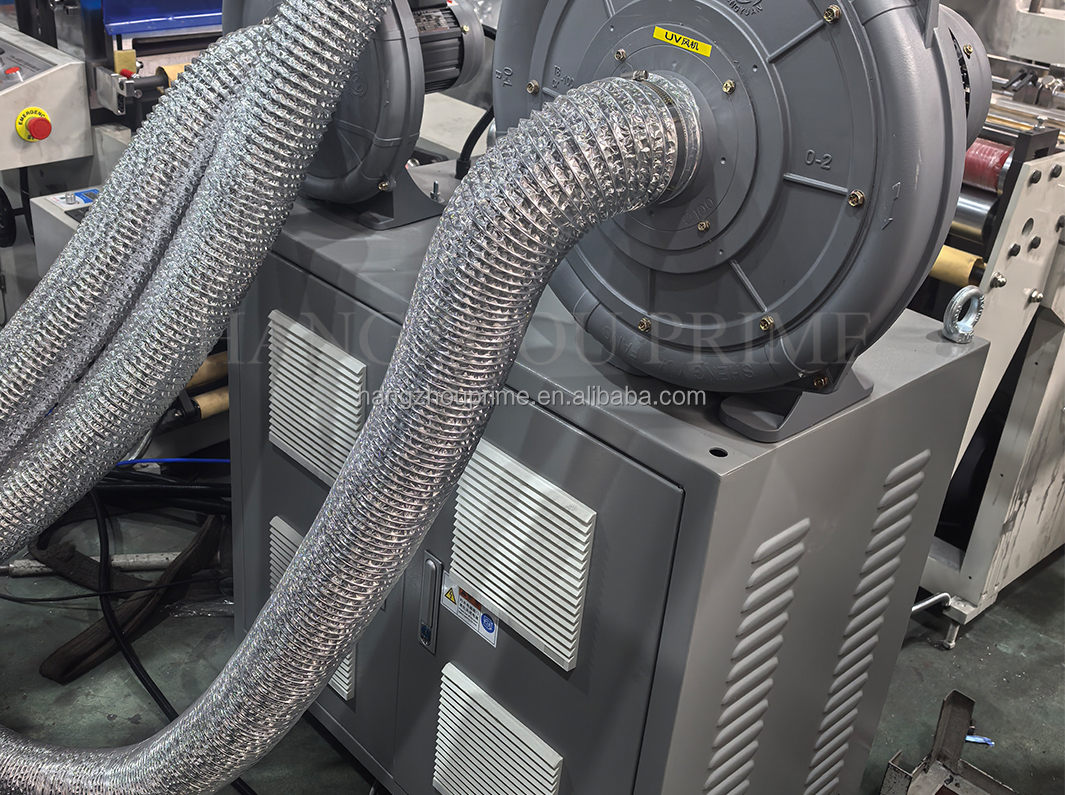

UV control cabinet

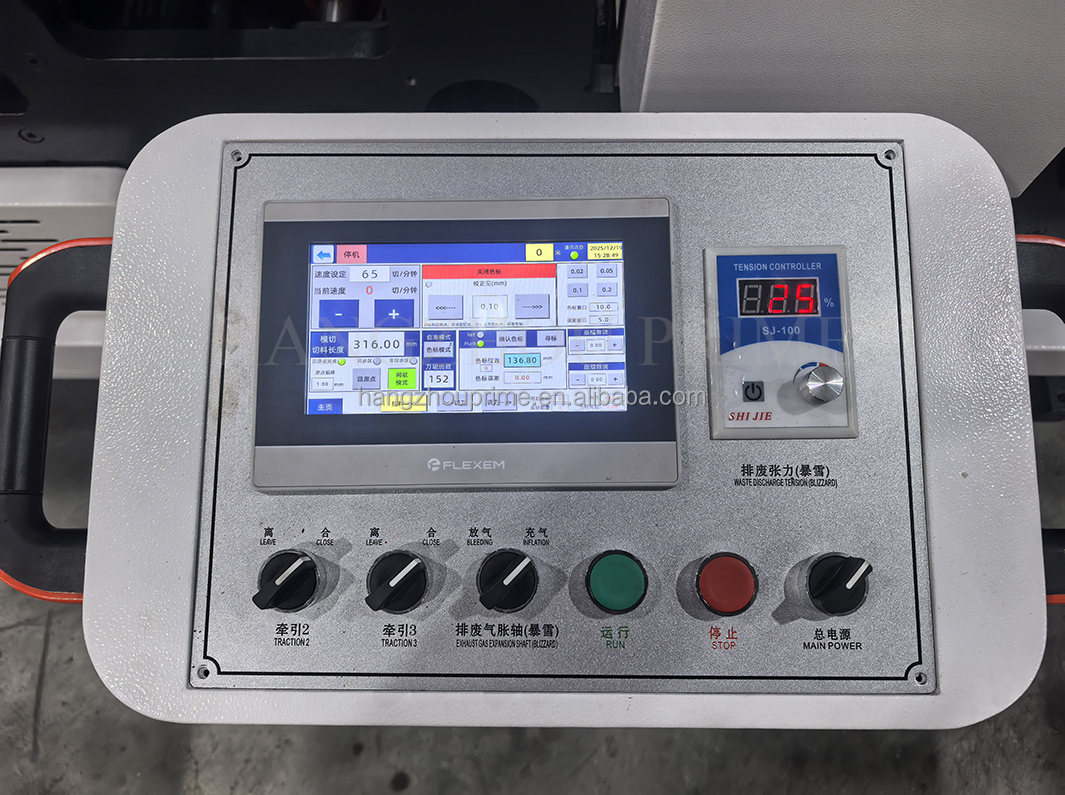

Control panel

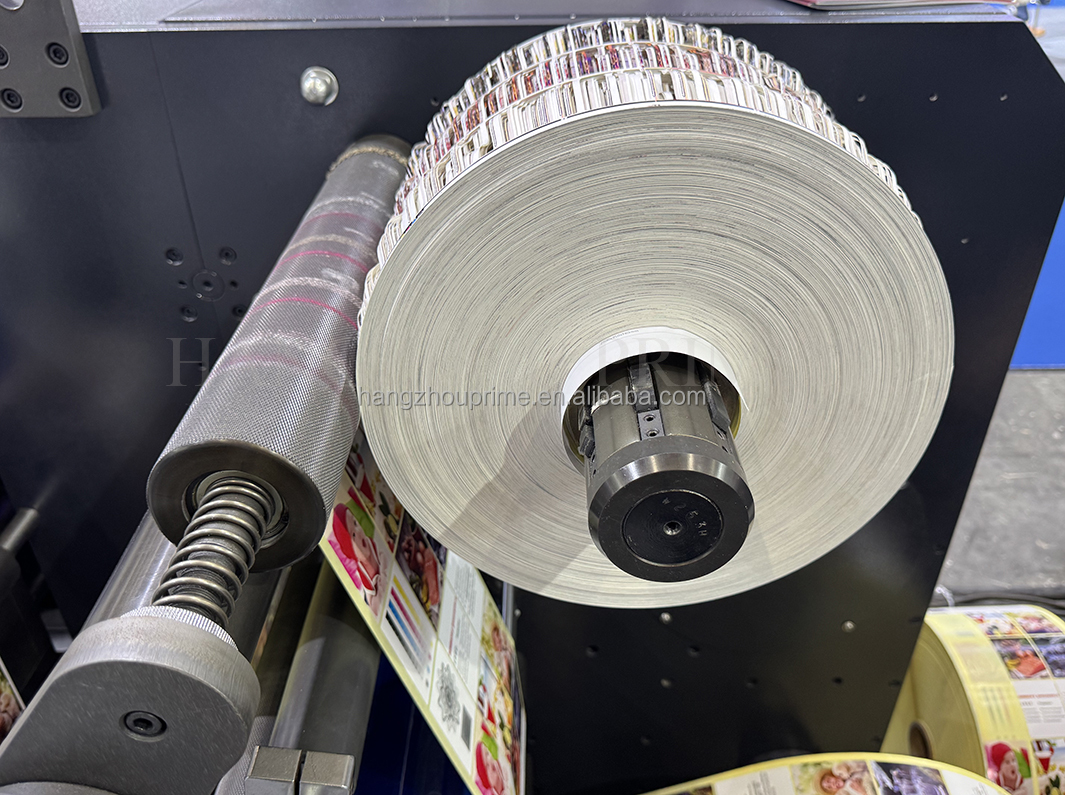

Waste discharge

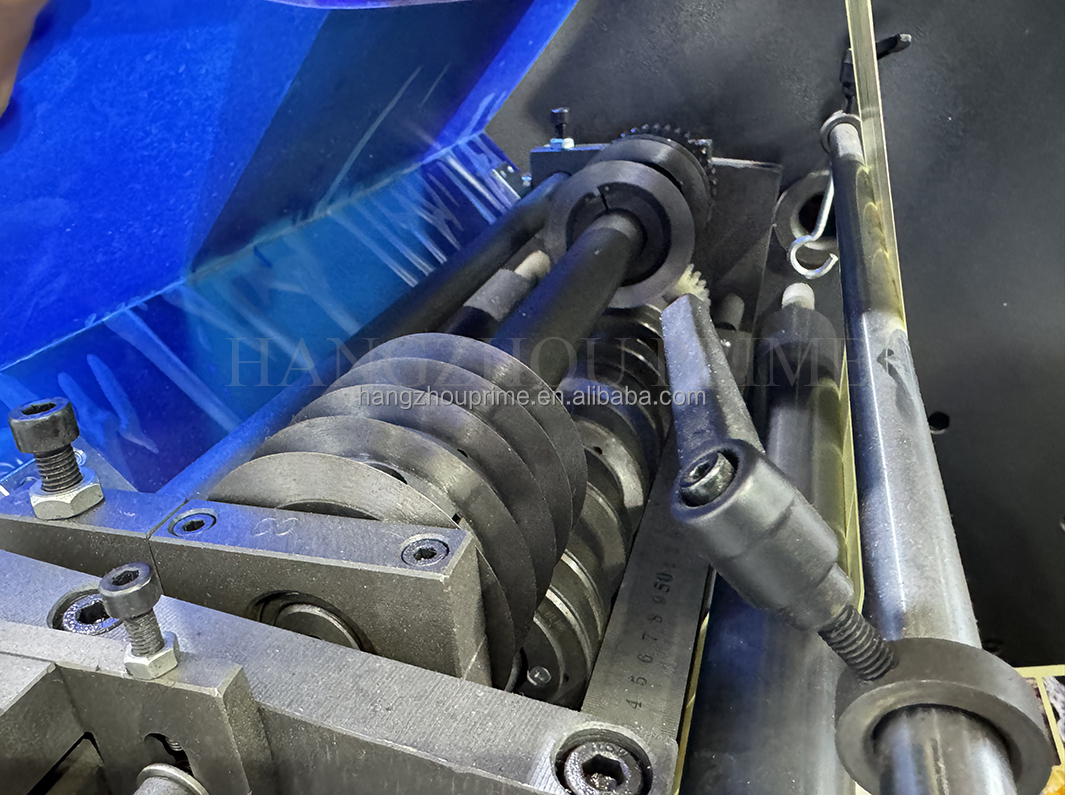

Rotary knives

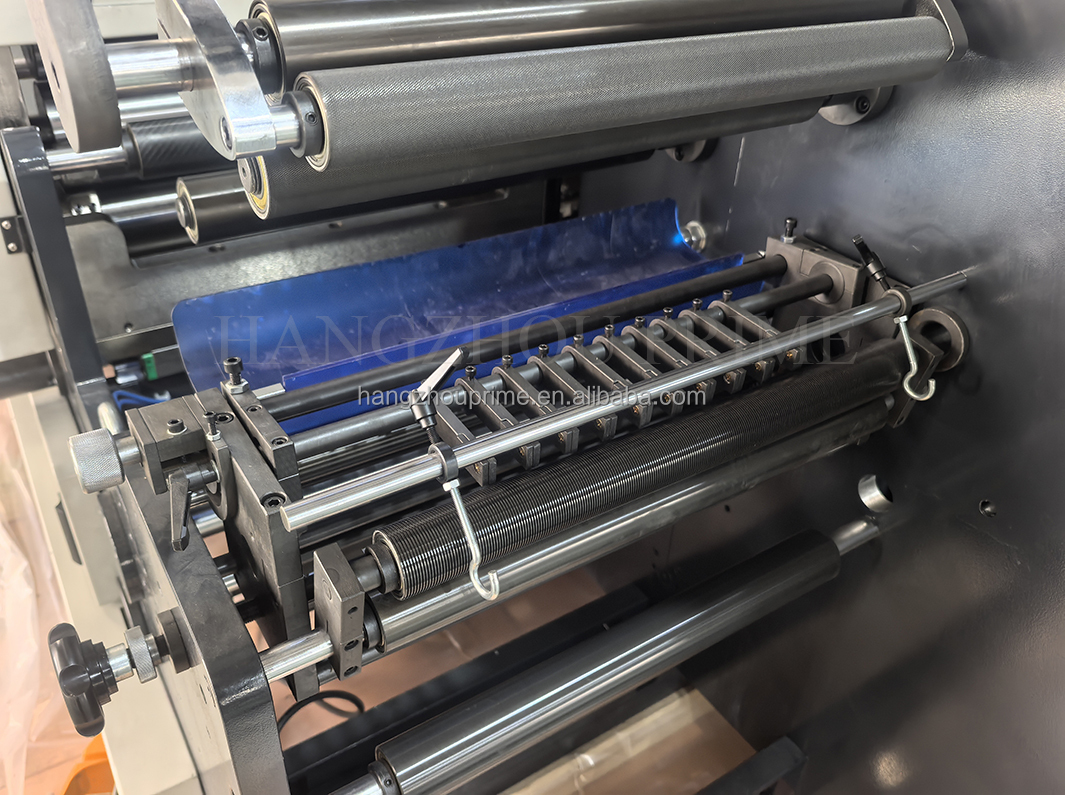

Straight knives

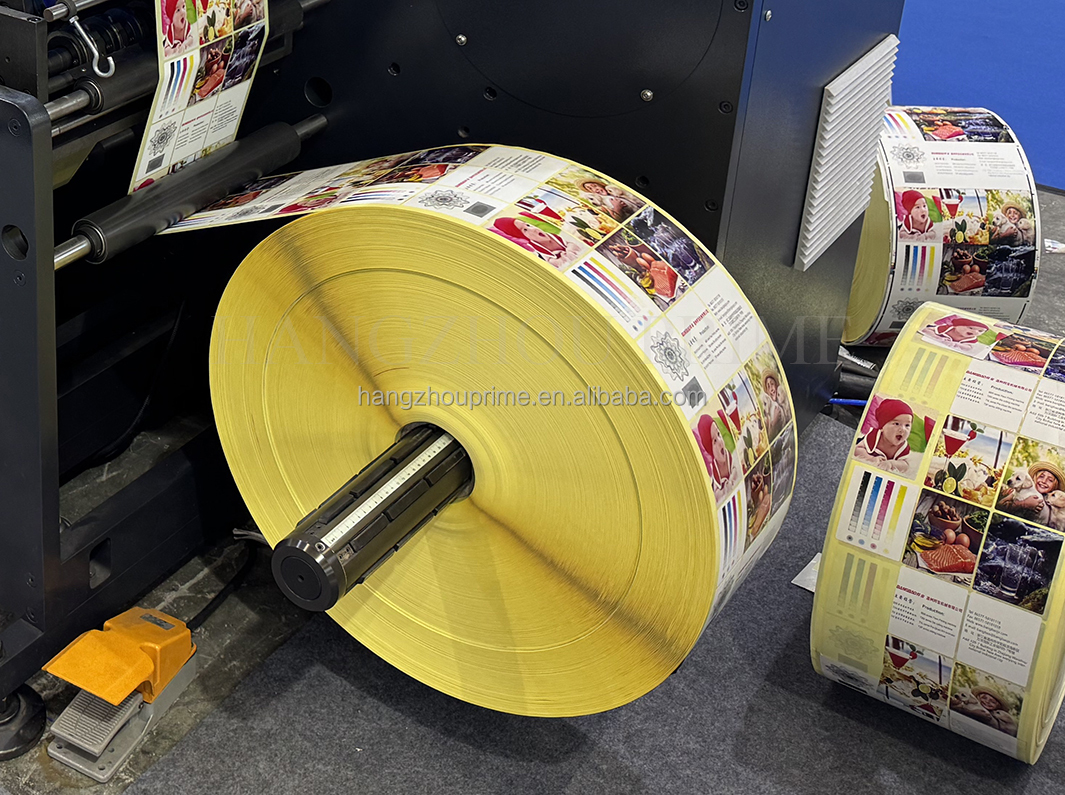

Rewinding unit

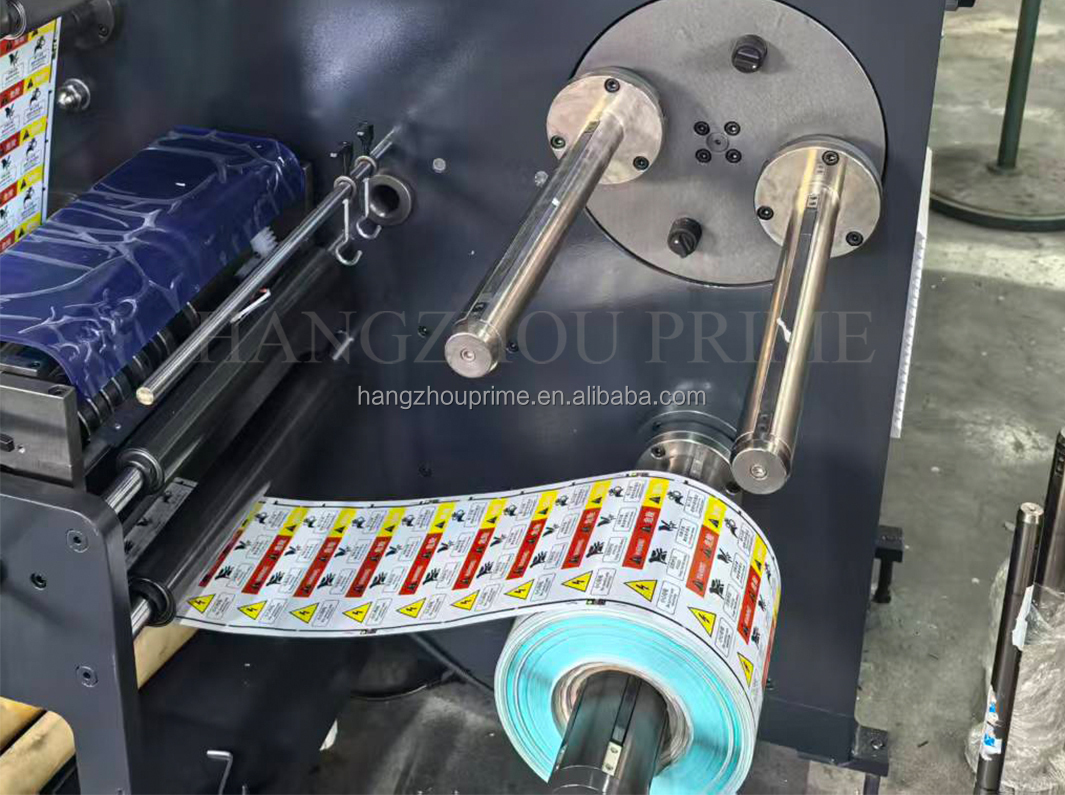

Turret rewinding unit
Optional Features

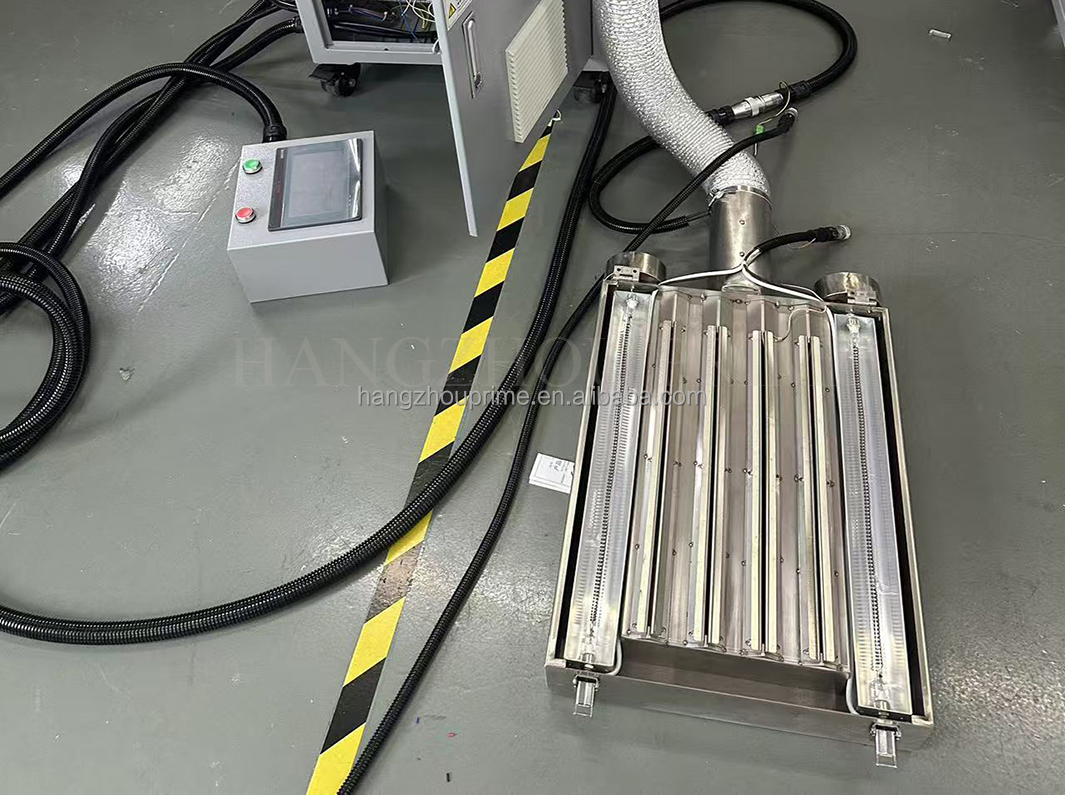

IR dryer

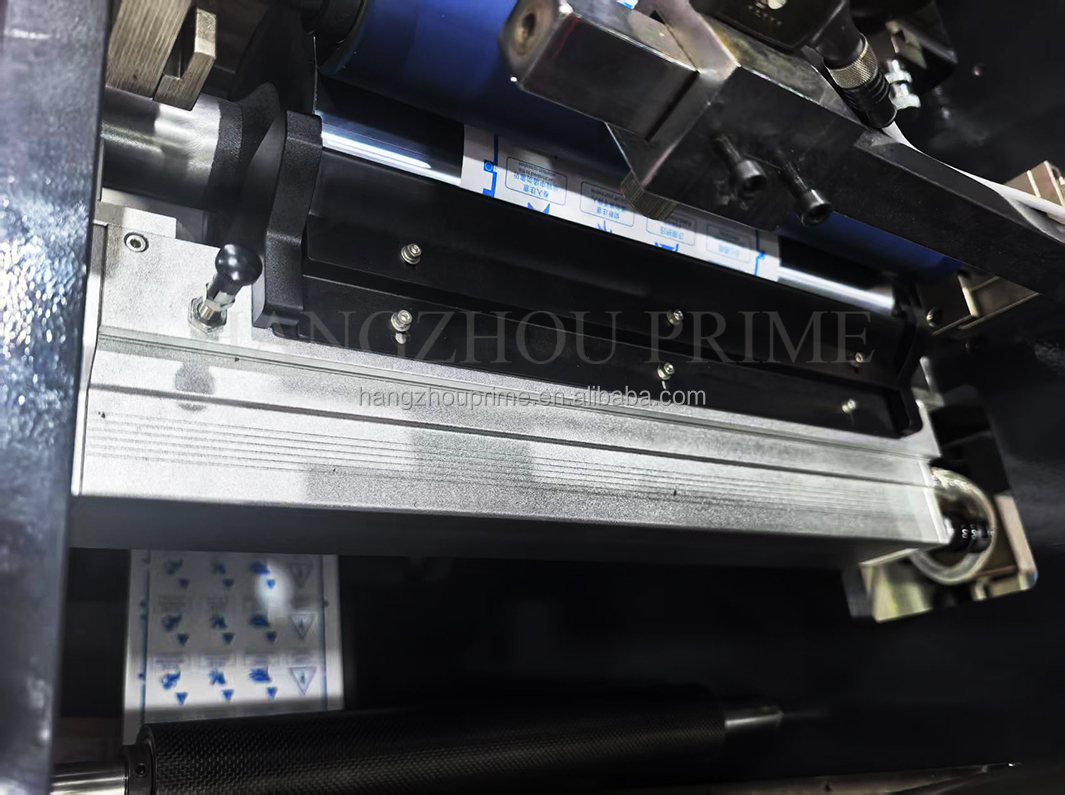

LED UV dryer

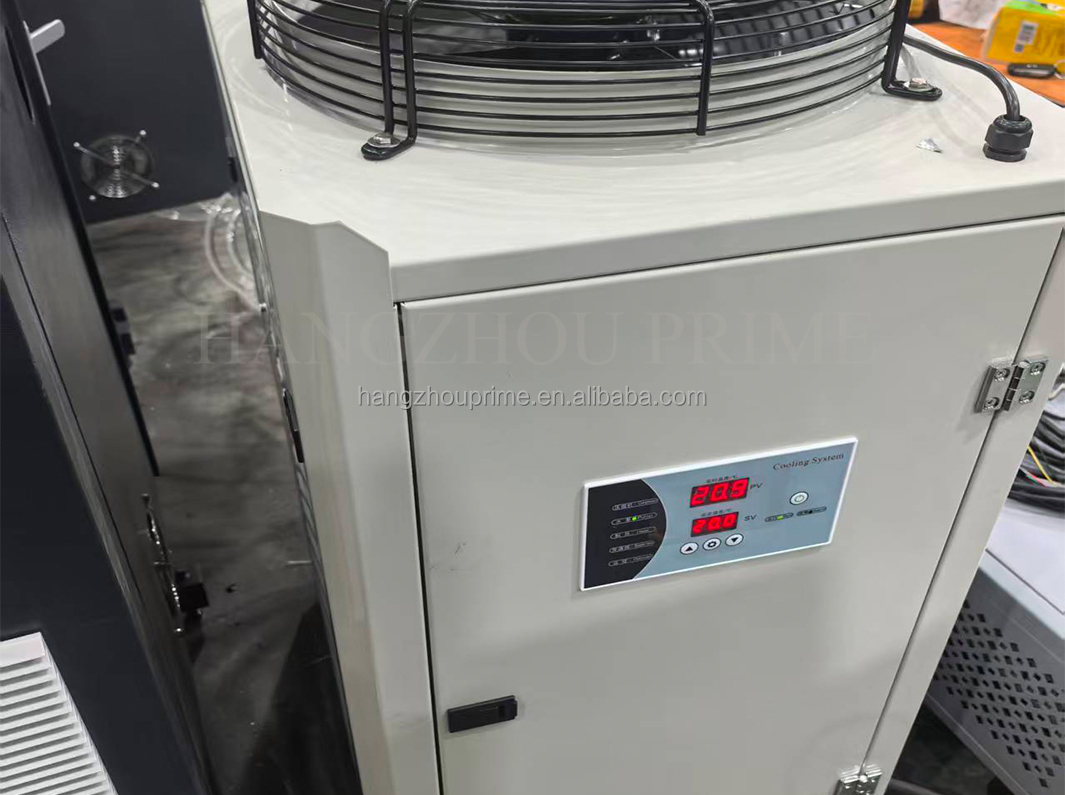

Water chiller machine

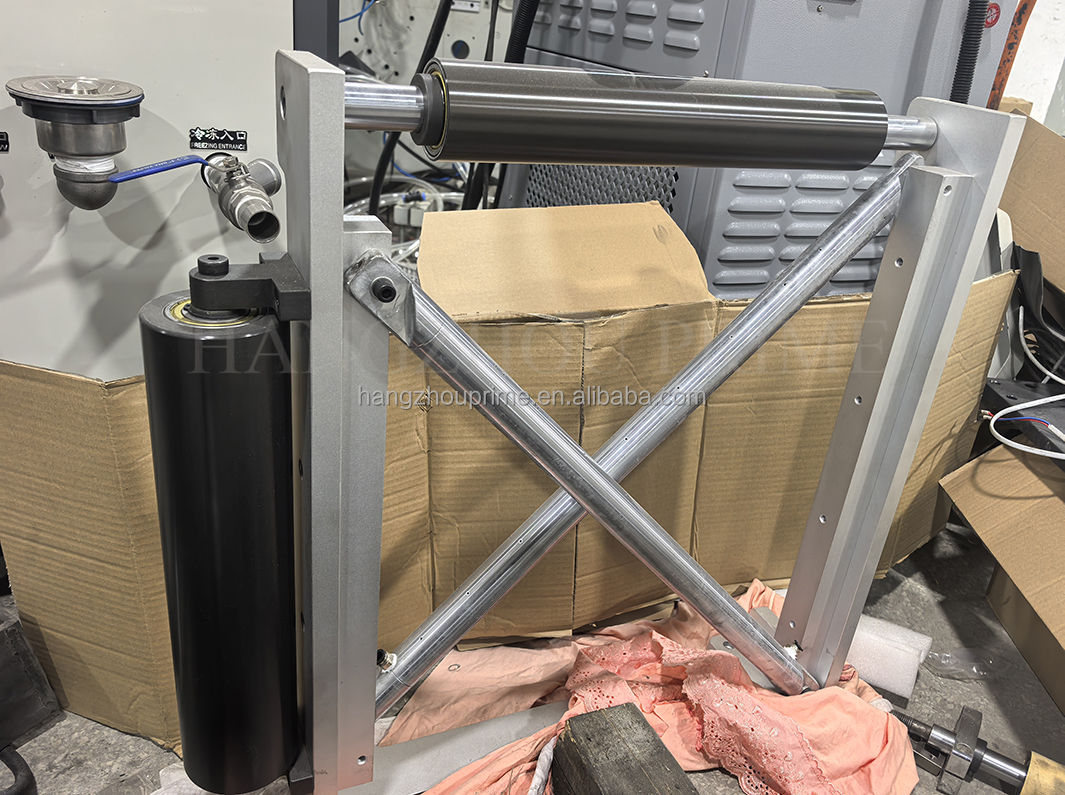

Turn bar
1Are you trading company?
We are the professional manufacture for printing machines.
2How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
3What is your after-sales service?
Our after-sales service is first class. We have a powerful team to help you solve problems. The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
4What is the terms of payment you accept?
30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
5Can the machine be customized according to specific requirements?
Yes, the machine adopts a modular design, allowing various configurations, printing widths, and dry units (IR, UV, LED UV) to be customized according to specific production needs.
6What is the typical production and delivery time?

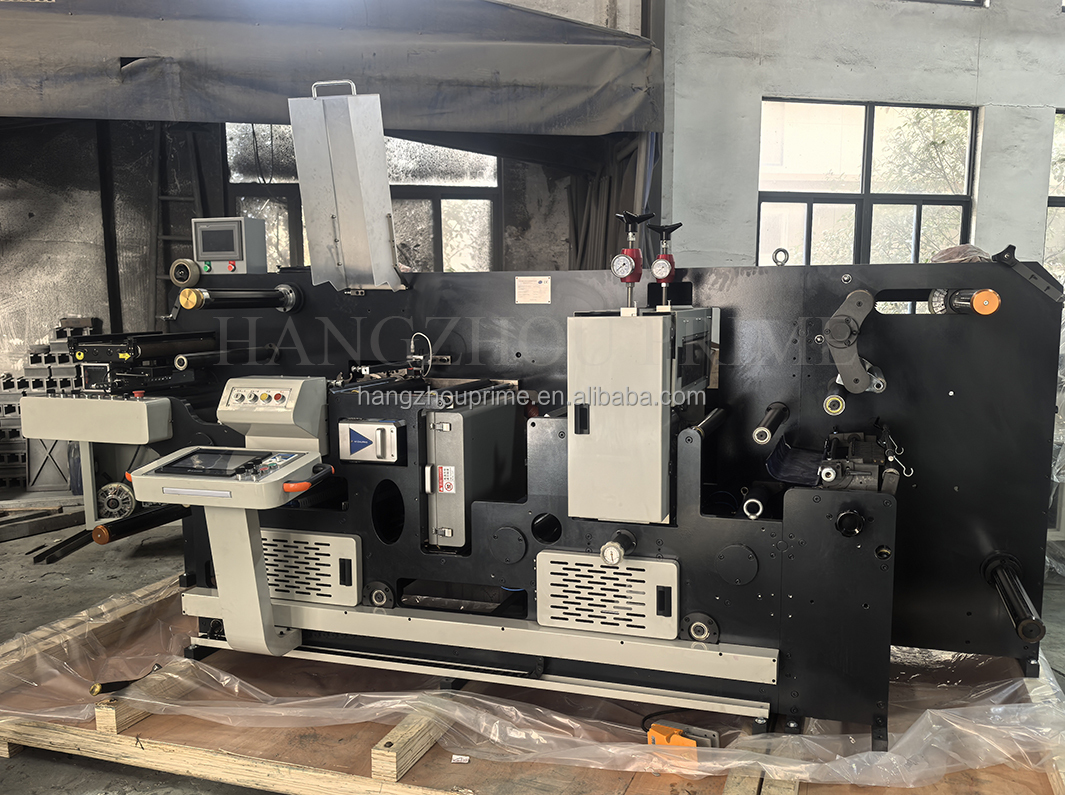

The production time usually takes around 30 to 45 working days depending on the customization and specific model configuration. Shipment setup is handled securely as shown in the packaging details.
