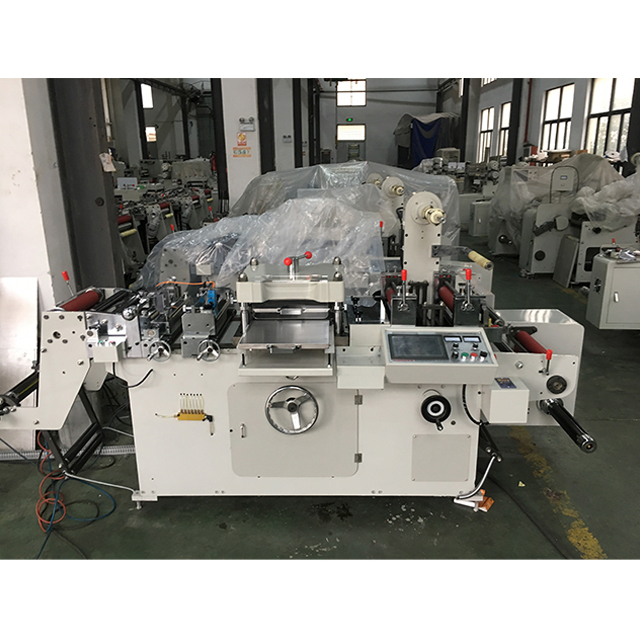

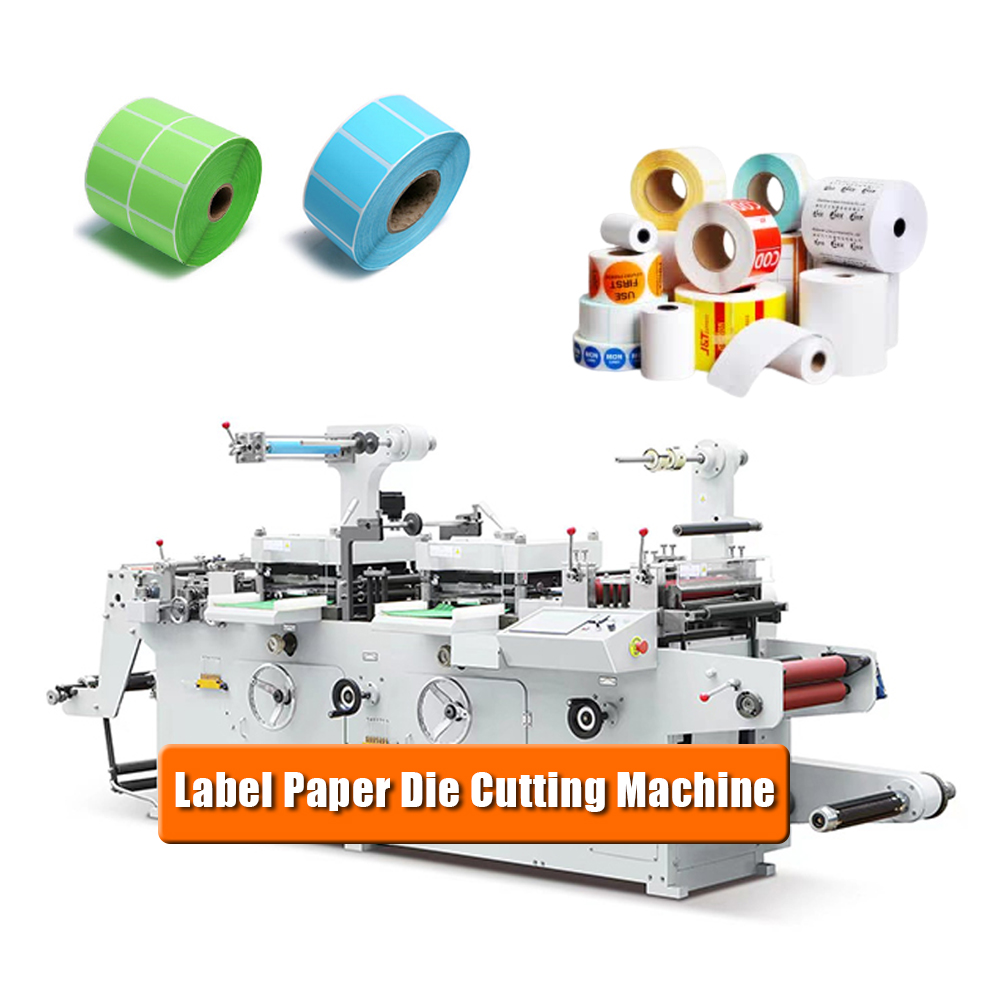

This machine adds one gold stamping station on the basis of one station flatbed die cutting machine, whose can achieve die cutting and stamping to be finished in one process, also can finish twice die cutting.

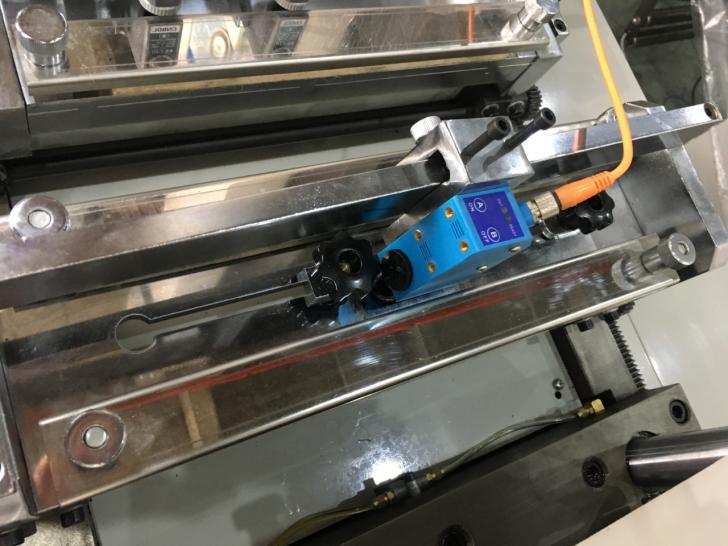

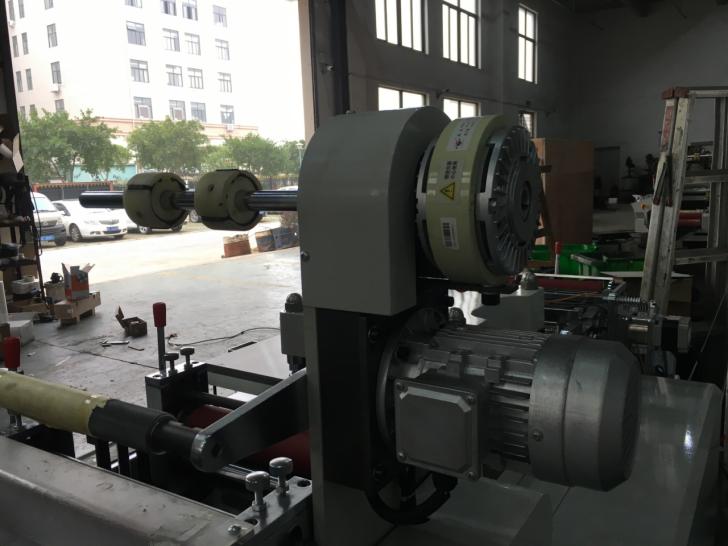

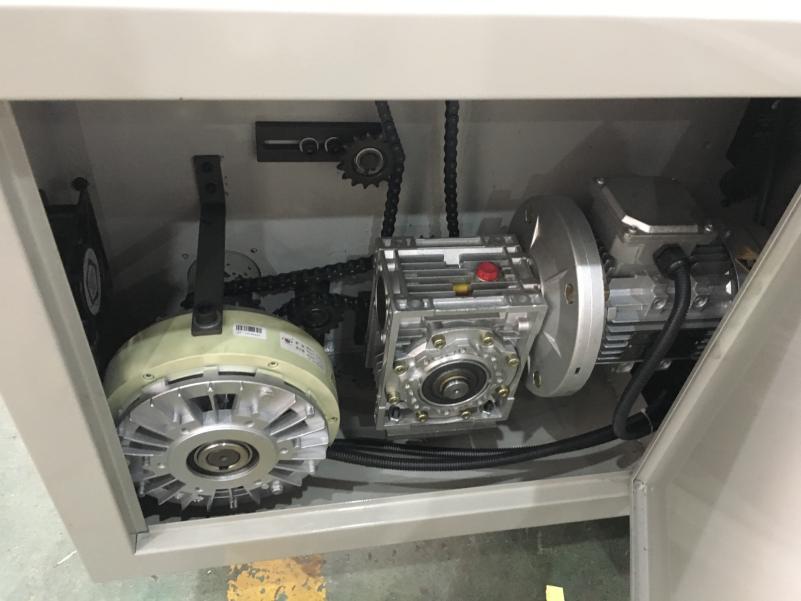

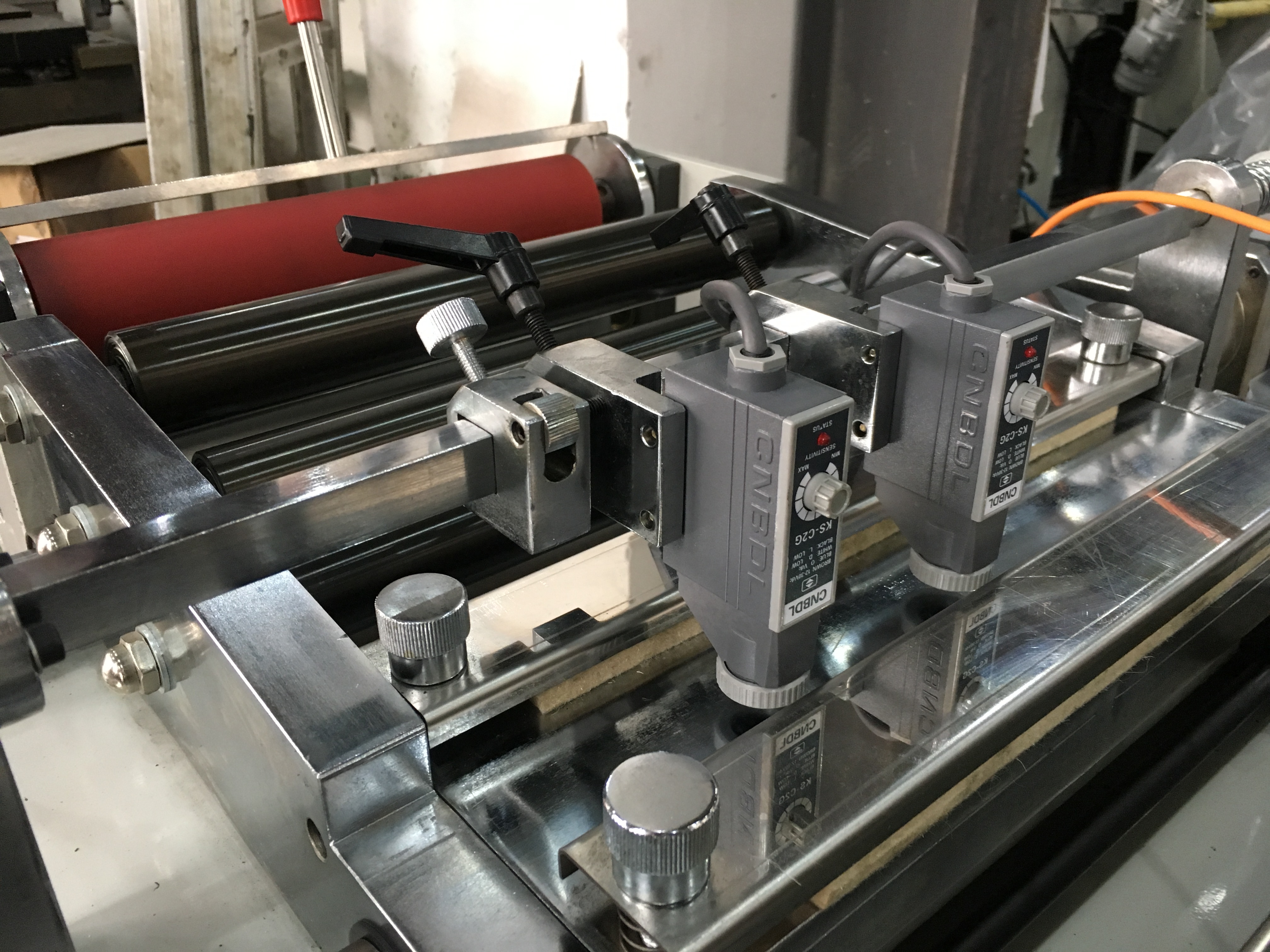

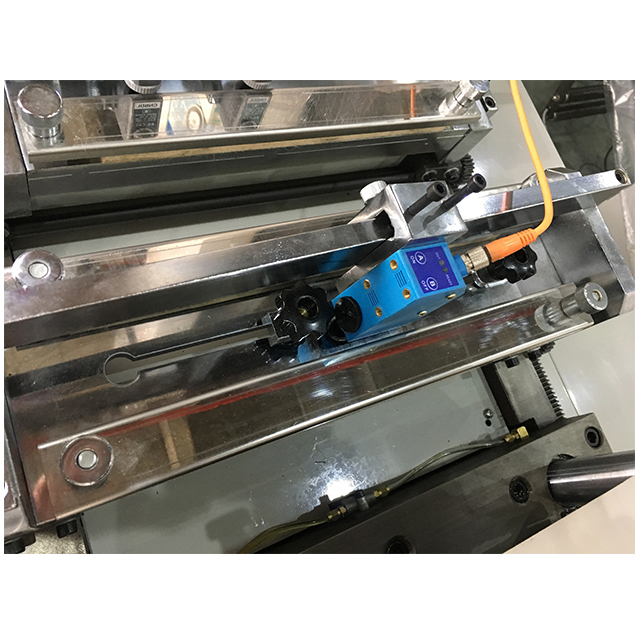

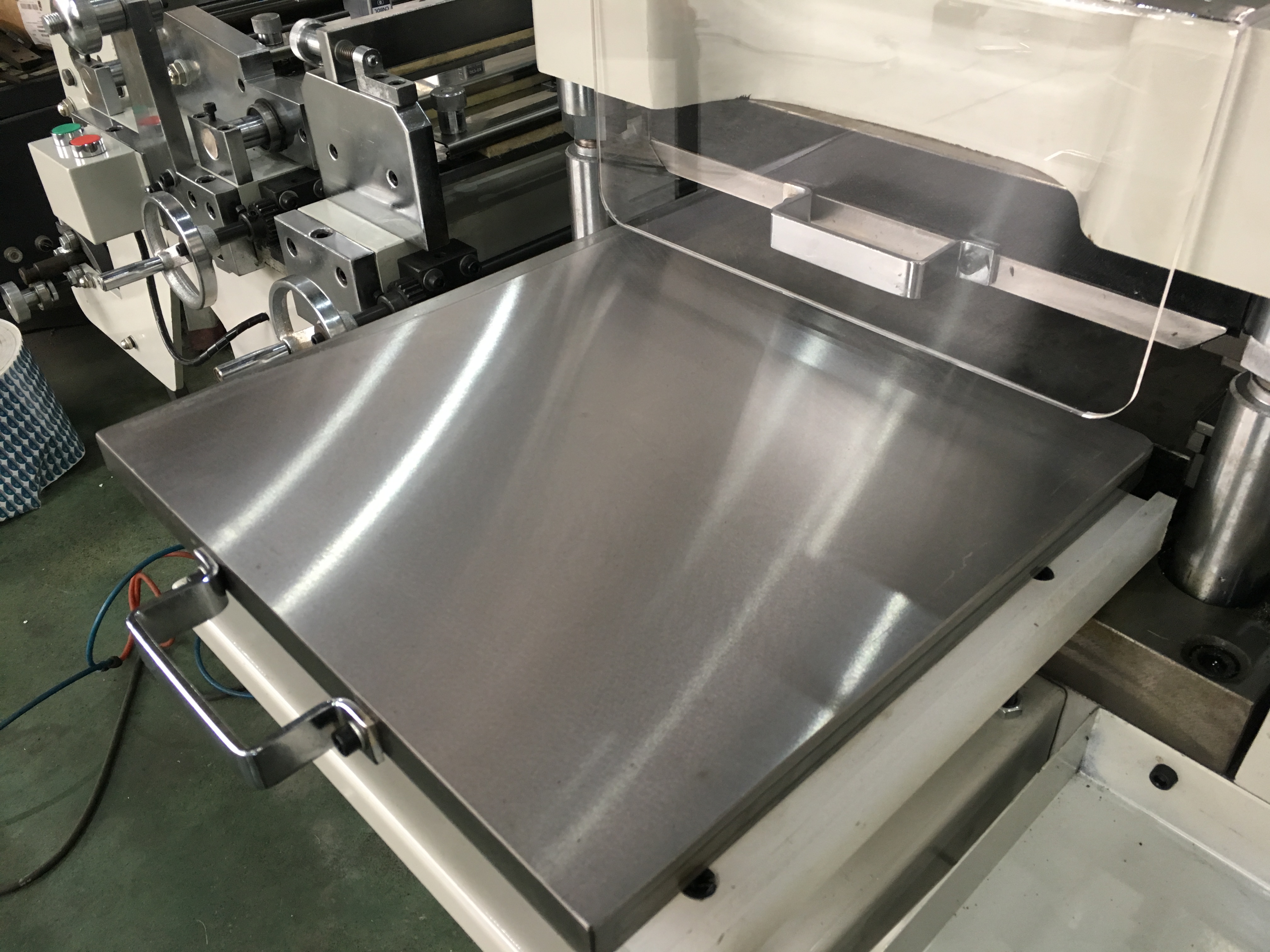

This machine adopt accurate flatten die cutting system, material traction is controlled by servo motor, color mark on material both sides and vertical color mark be tracked position by three photocells. die cutting, waste rewinding, rewinding(sheeter) or roll rewinding used on labeling machine can be finished in one process.

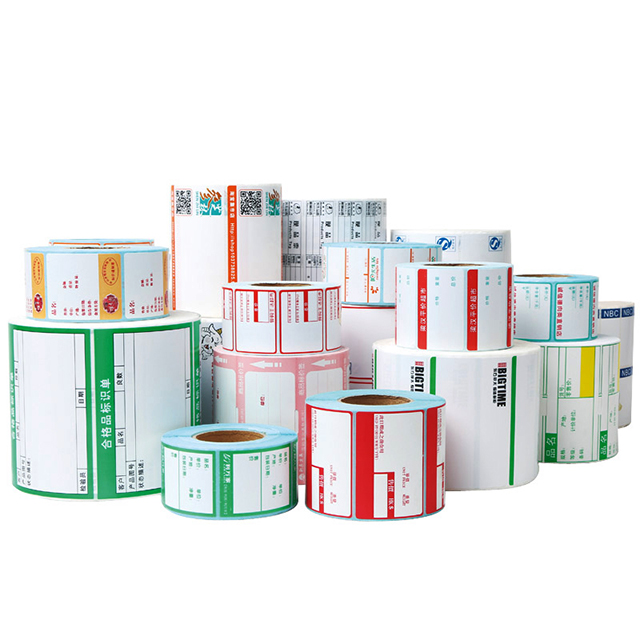

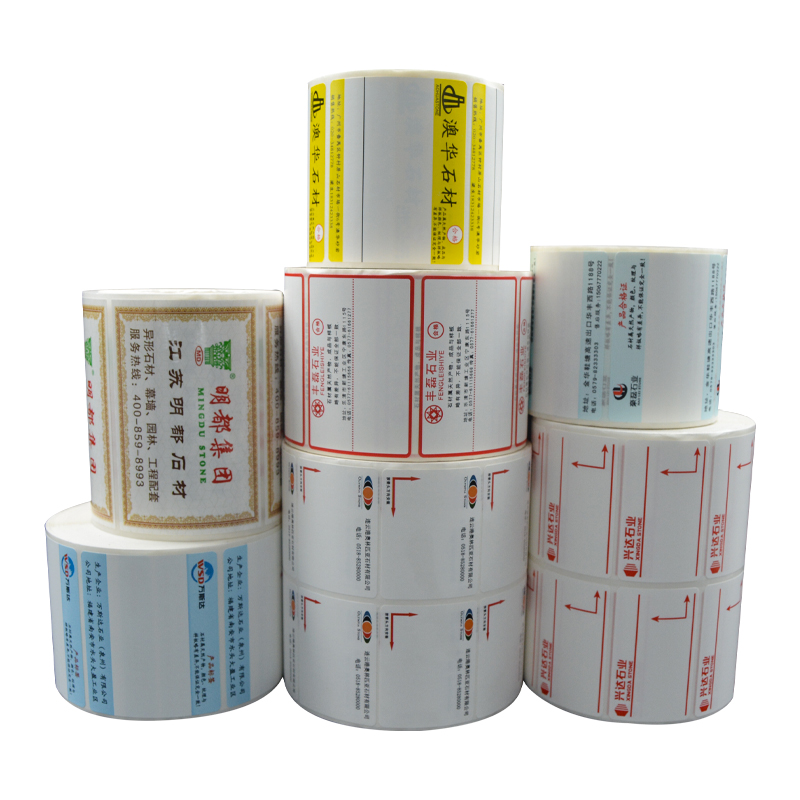

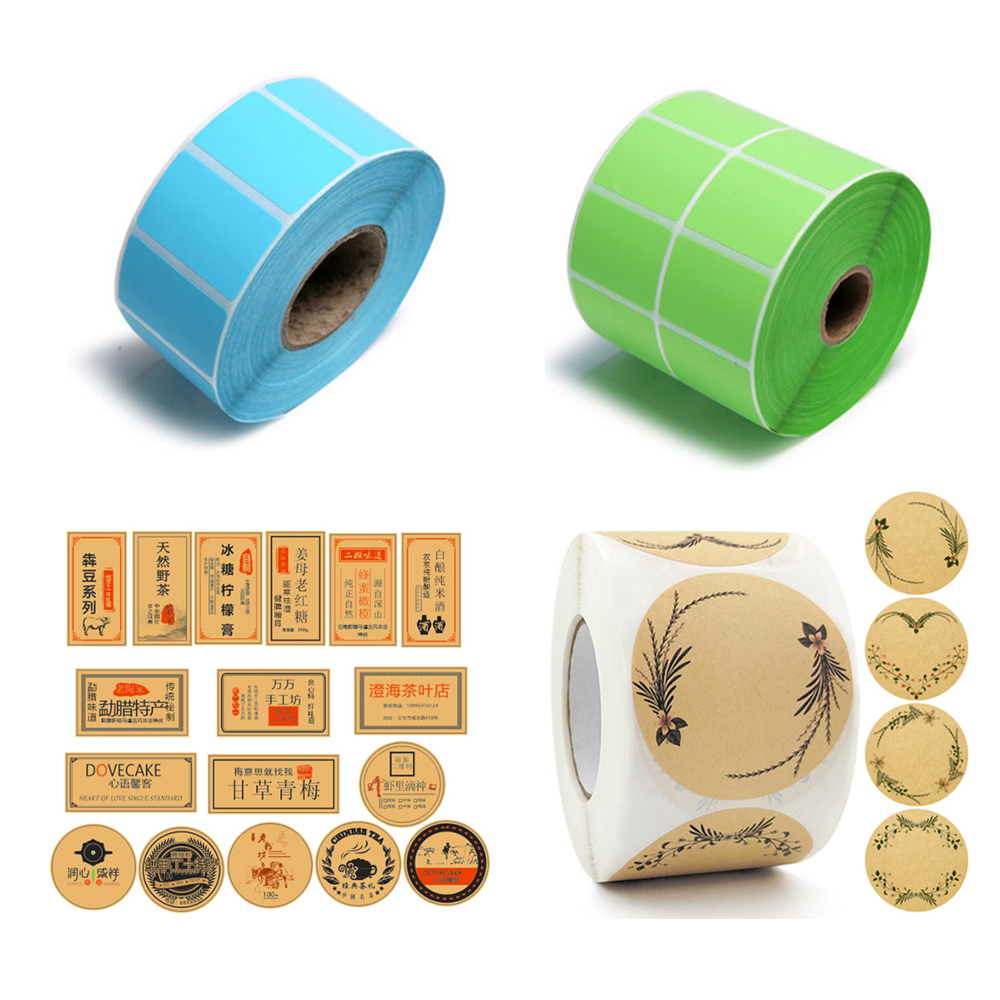

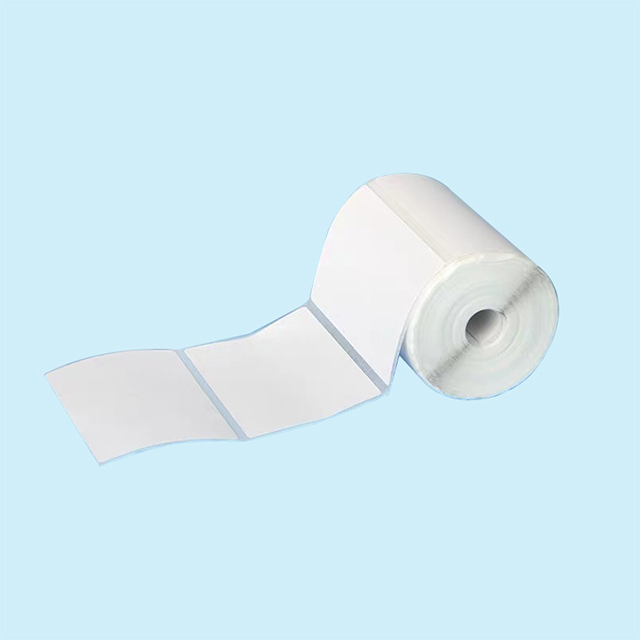

It’s suitable for die cutting adhesive paper, dacron label and laser hologram mark. This is the ideal association equipment for high speed full rotary roll label printing machine, flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine. It’s most efficient machine for printing house. Also it’s suitable for electronic industry and the best equipment of the adhesive tape products industry die cutting forming.
| Parameter | Value / Specification |
|---|---|
| Model | HH-TXM320D |
| Max. Feeding width | 320mm |
| Maximum die cutting size | 300*300mm |
| Maximum Unwinding diameter | 500mm |
| Maximum Rewind diameter | 500mm |
| Cutting speed | 20-200 times/minute |
| Position accuracy | ±0.10mm |
| Total power | 5.5kw |
| Voltage | 380v, 3phase |
| Weight | 2800kg |
| Machine dimension (L*W*H) | 3700*1200*1600mm |
Q1: Are you a factory or trading company?
A1: We have more than 15 years of experience in the line of printing & package, so we are an actual professional factory. We welcome you to visit our factory and see our machines running.
Q2: Where is your factory located and how can I visit?
A2: Our factory is located in Zhejiang Province, China. It takes about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: How about the payment terms?
A3: For new customers, our payment terms are 30% T/T in advance before production, and the balance 70% should be paid before delivery.
Q4: Which industries widely use your machines?
A4: They are mainly used for printing, die cutting, and stamping on various raw materials such as paper cups, paper bags, plastic bags, plastic film, adhesive tape, and more.
Q5: What are your main markets?
A5: Our products sell well across China and we have a strong reputation. We also focus on expanding in overseas markets, including Europe, Russia, Southeast Asia, Middle & South America, Africa, and beyond.
Q6: What after-sales service and warranty do you offer?
A6: We provide a one-year warranty. If the machine runs into any issues, our engineers are available to support online or travel abroad to train your operators. We strive to reply within 12 hours to help resolve any questions.
