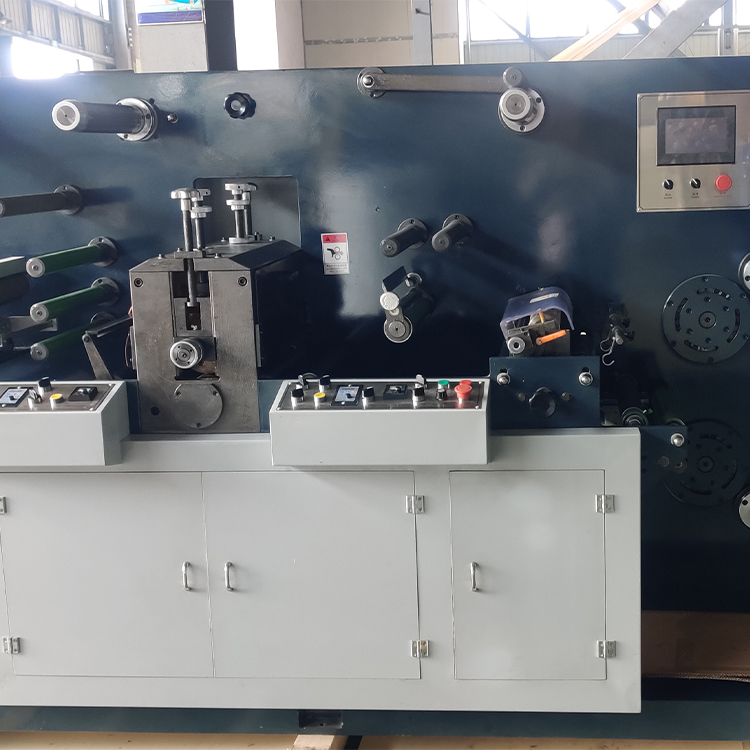

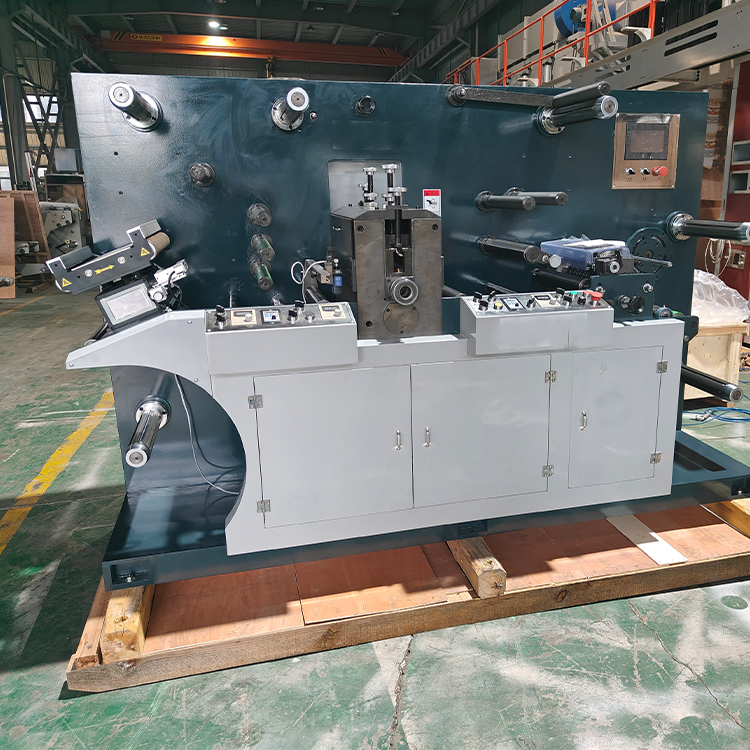

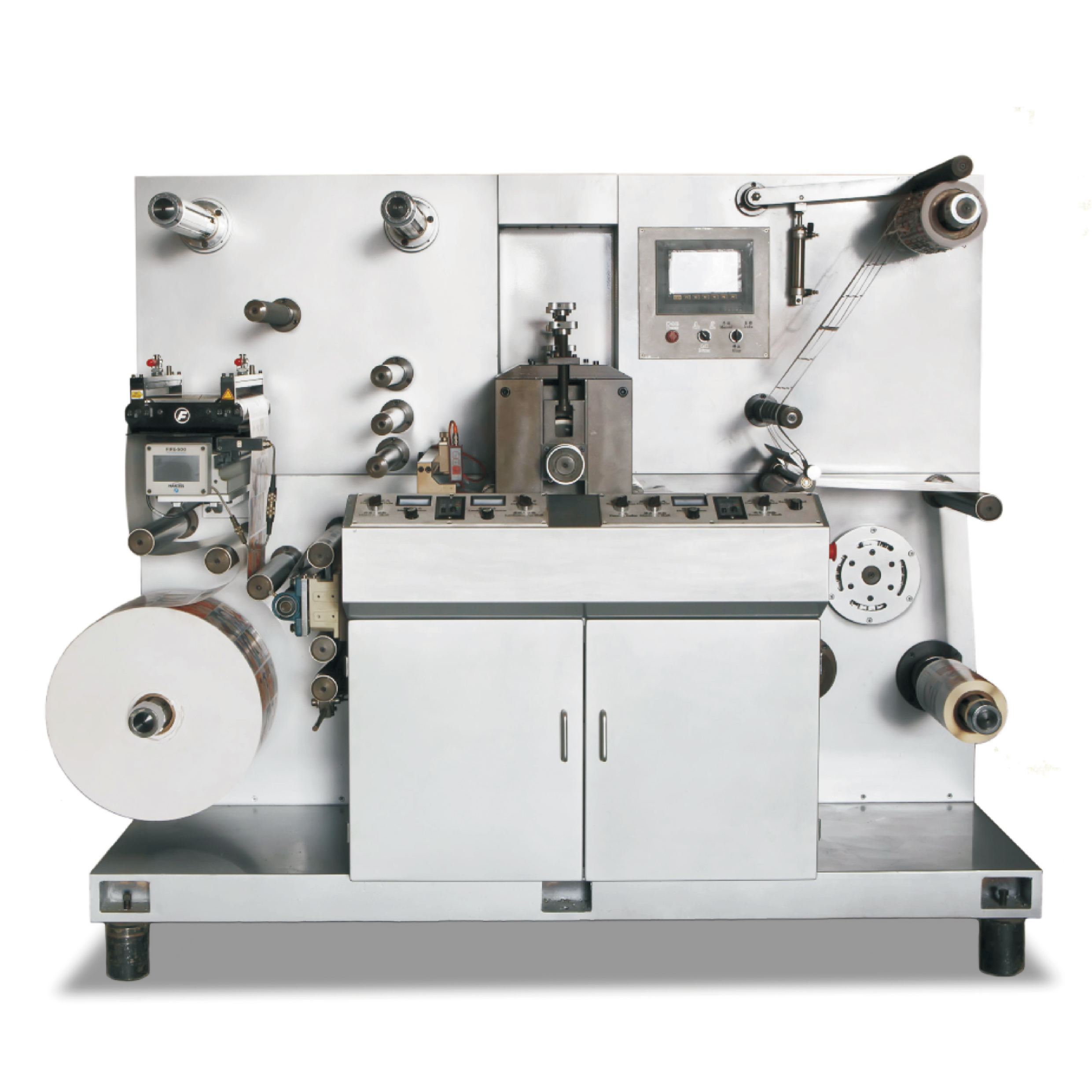

INTERMITTENT JXMQ550 Semi-Rotary-label Die Cutting Machine Roll to Roll 3 Years Warranty V0012

Main Technical Parameter

Slitting speed	100m/min
Die cutting speed	70m/min (intermittent) 90m/min (full rotary)
Max web width	550mm
Max unwind diameter	700mm (Customizable)
Max rewinding diameter	700mm (Customizable)
Die cutting length	200-450mm (intermittent) 250-550mm (full rotary)
Machine weight	About 3500kg
Dimensions	2.61m * 1.5m * 1.88m (LWH)
Voltage	380V , 3P
Power	15KW

INTRODUCTION

JXMQ550 Type Rotary Die Cutting Machine is mainly designed for label die cutting, e.g. Adhesive labels, PVC labels, PET Labels, PE Labels, Aluminum Labels, Blank Labels, Trade mark Labels die cutting.

Especially, It can process IML (In Molding Label), which is famous for its advanced functions, such as: Novel and beautiful appearance, security features, Environment friendly, Difficult to drop off and damage, High efficiency and so on. IML is widely chosen on packaging containers of Health & Beauty, Food & Beverage, Wine & Spirits.

FEATURES

Machine runs full rotary mode, equipped with conveyor and collection table.

It's also suitable for labels lamination, die-cutting, waste matrix and rewinding.

Machine adopts full servo motors driven, re-register system, solid and durable structure design, leading to clean edge of processed materials and non damage of both sides of labels.

Key Components

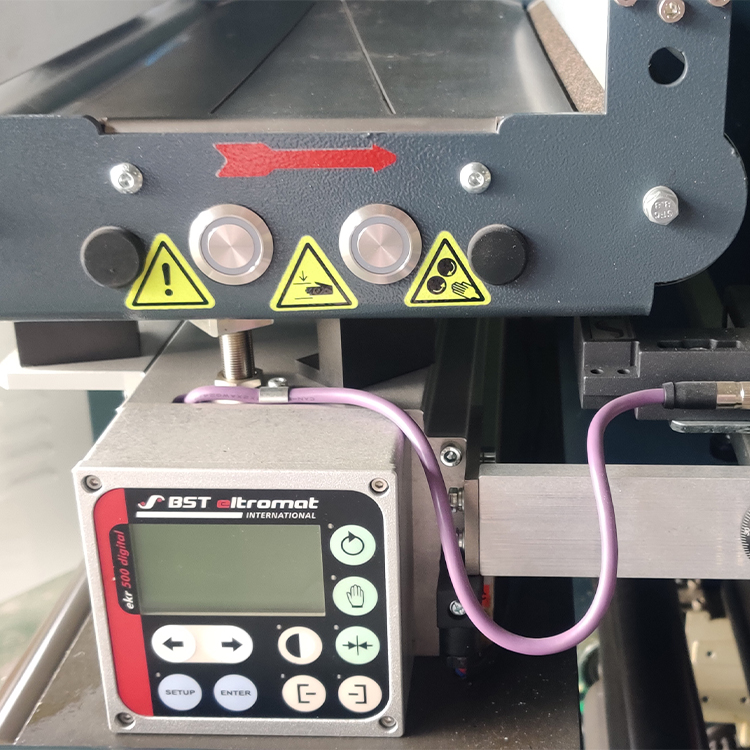

1. WEB GUIDING SYSTEM

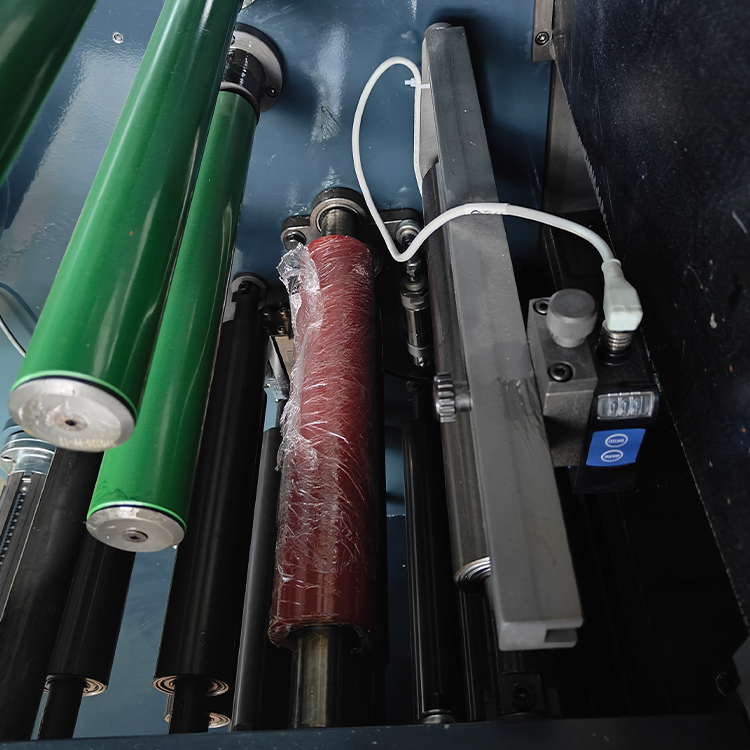

2. ELECTRIC EYES

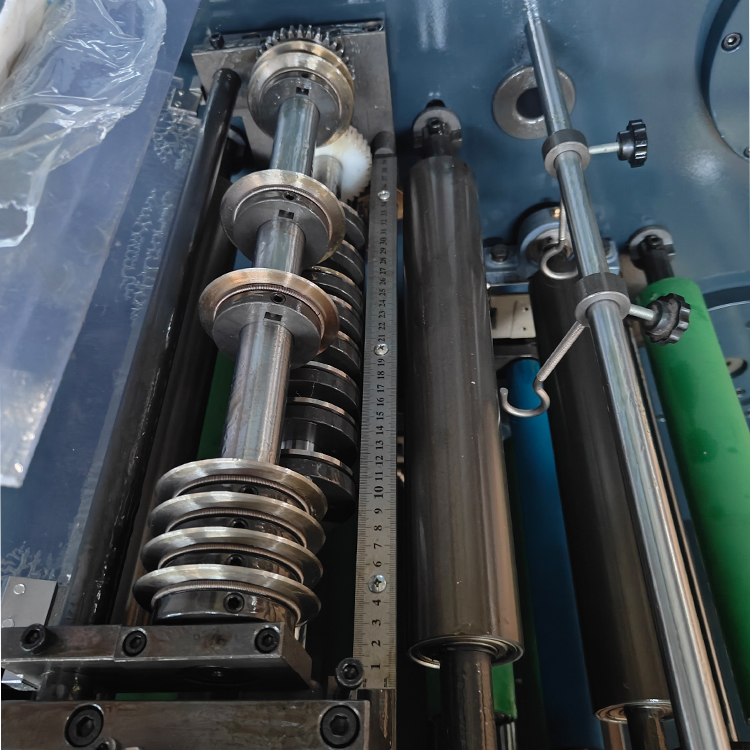

3. SLITTING UNIT

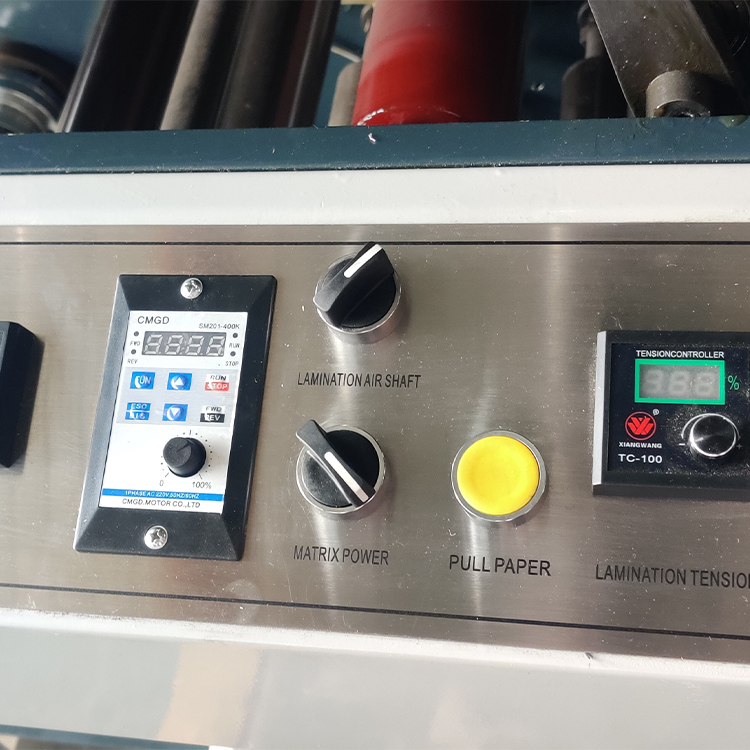

4. CONTROL PANEL

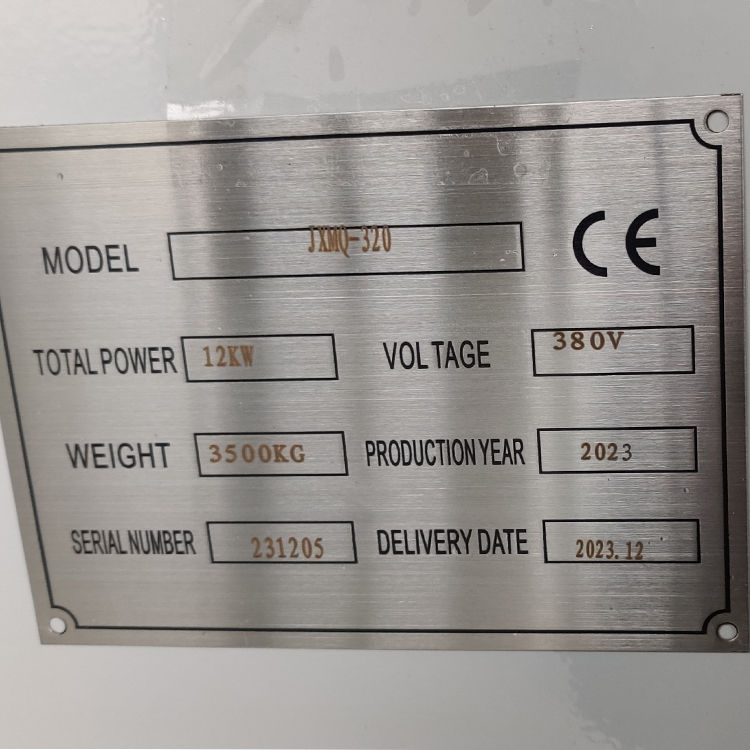

5. METAL TAG

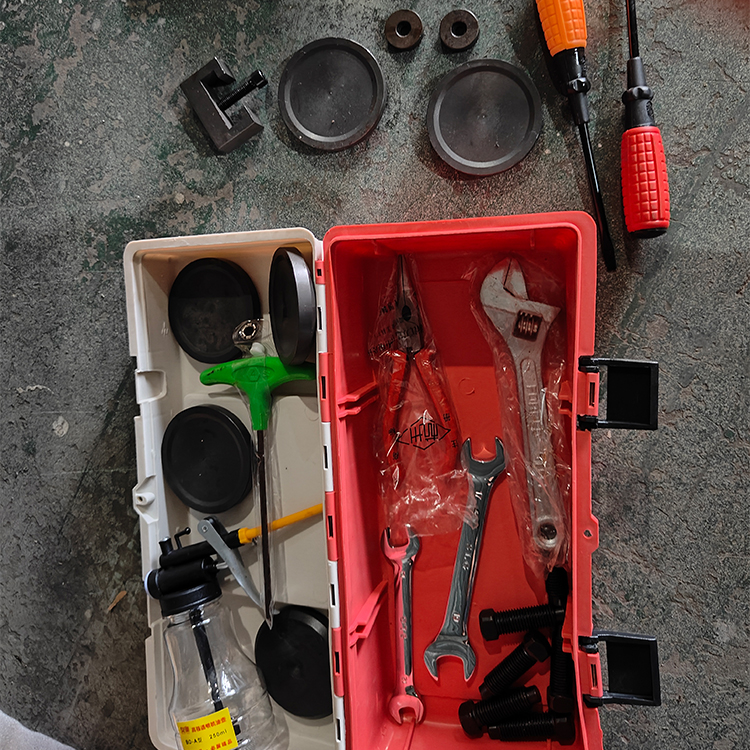

6. TOOL CABINET

Product Gallery

Frequently Asked Questions (FAQ)

Q1. What materials can the JXMQ550 Rotary Die Cutting Machine process?

The machine is designed to die cut a wide variety of labels including adhesive labels, PVC labels, PET labels, PE labels, aluminum labels, blank labels, trademark labels, and specifically In Molding Labels (IML).

Q2. What are the speed capabilities of this machine?

It reaches a maximum slitting speed of 100m/min. For die cutting, it runs at a speed of 70m/min under intermittent mode and 90m/min under full rotary mode.

Q3. What is the advantage of using this machine for In Molding Labels (IML)?

It supports IML's high-efficiency processing. IML provides packaging containers with a novel and beautiful appearance, enhanced security features, environmental friendliness, and a structure that is difficult to drop off or damage.

Q4. What driven technology does the machine feature?

The JXMQ550 adopts a full servo motor driven design, combined with a re-register system and solid structure, ensuring clean material edges and no damage to either side of the processed labels.

Q5. Are the unwind and rewind diameters adjustable?

The standard maximum unwind and rewind diameters are both 700mm, and they can be customized according to your production requirements.

Q6. What are the installation requirements in terms of voltage and dimensions?

The machine operates on a 380V, 3-Phase power supply with 15KW power. Its physical dimensions are 2.61m * 1.5m * 1.88m (L*W*H), and it weighs approximately 3500kg.
