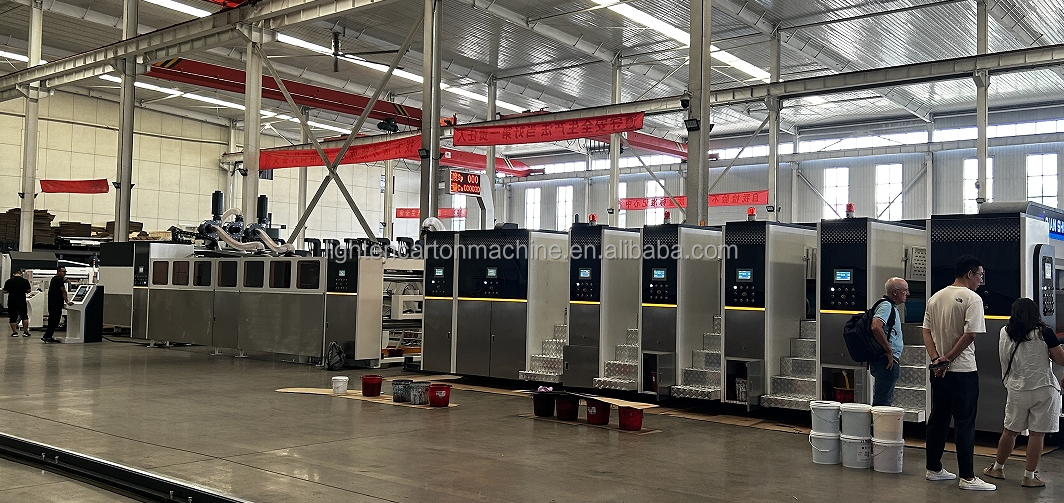

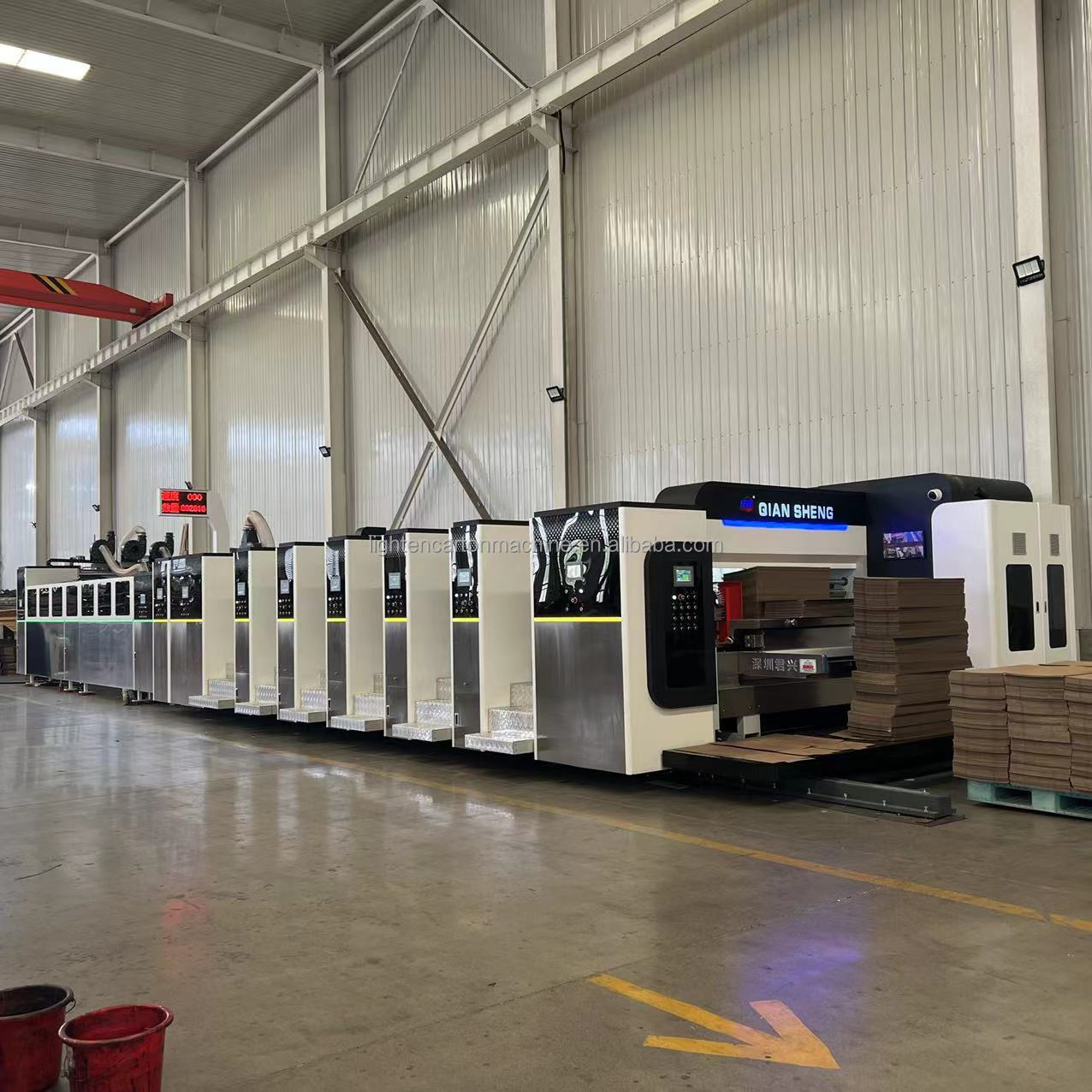

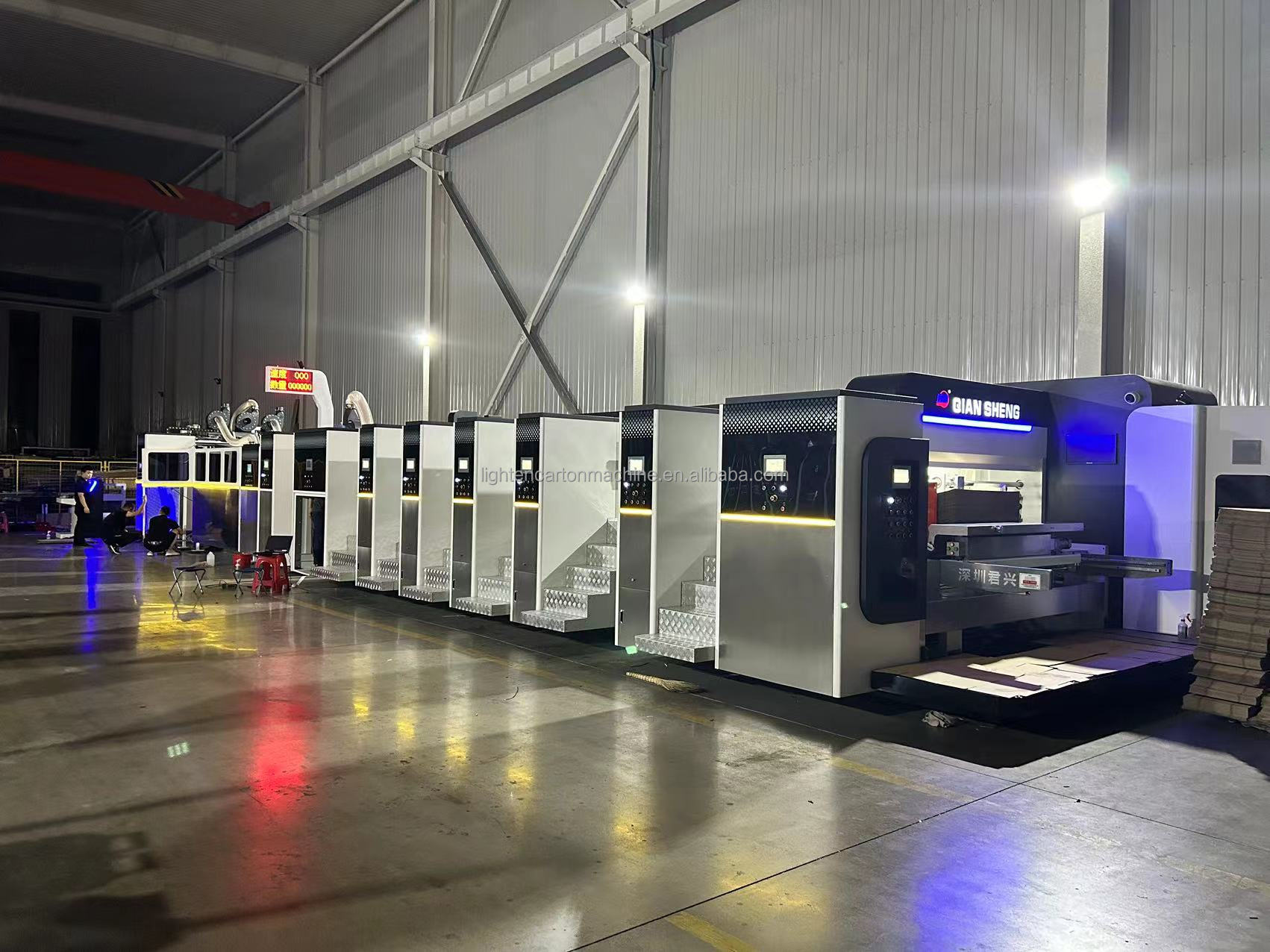

Fixed Stationery Type Flexo Printing with Folder Gluer Strapping Inline -- FFG Inline (Non-Stop Changing Order )

1 / 5

Fixed Stationery Type Flexo Printing with Folder Gluer Strapping Inline -- FFG Inline (Non-Stop Changing Order )

Send Inquiry

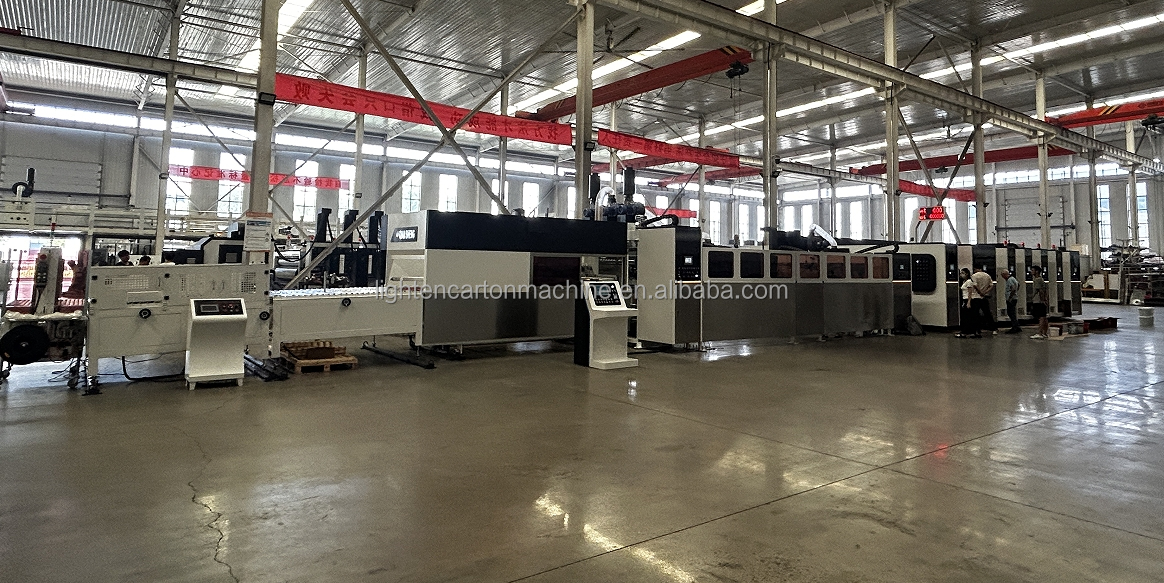

Product Description

Fixed Stationery Model Automatic Carton box Flexo Printing With Folder Gluer Strapping inline

Overall Performance

Design Speed : 350Pecs/Min
The electrical system adopts Full Germany Siemens high-Level system
Non-Stop Changing Printing-Plate Function, greatly reduce change printing-plate waiting time and no need stop machine.
Feeding System Adopt Servo Control Dual-Suction Feeding System
Printing Unit Full Vacuum Suction Transfer, Suction box, Printing Cylinder and Anilox roller all Independent Servo Controls.
Printing Unit Ceramic Anilox Roller with Doctor blade, Printing Quality high and Save Ink Consumption.
Slotting Unit Double Slotting Knife Structure, No limit of Max and Min Box Height Slotting.

Technical Parameters

Technical Specifications
Machine inner width:	2000 / 2400 / 2600 / 2800mm	Running speed:	200-350 p / m
Printing size:	900 x 2000 / 1200 x 2400 mm	Minimum box size:	300 x 800 mm
Printing colors:	3 / 4 / 5 / 6 colors optional	Printing precision:	±0.5 mm
Printing plate thickness:	7.2mm	Suitable paperboard:	2-12mm ( A/B/C/E Flute )
Max. Slotting depth:	650mm	Die cutting thickness:	3-10 mm
Print roller axial adjustment:	±10 mm	Lead edge feeder system:	Servo Motor drive Feeding
Frequency converter:	SIEMENS Germany	Electrical parts:	SIEMENS Germany
PLC:	SIEMENS Germany	Bearing:	NSK Japan
Transmission Gear:	40 Cr	Main frame thickness:	60-80mm
Machine Weight:	60 Tons	Power consumption:	220 kw / h

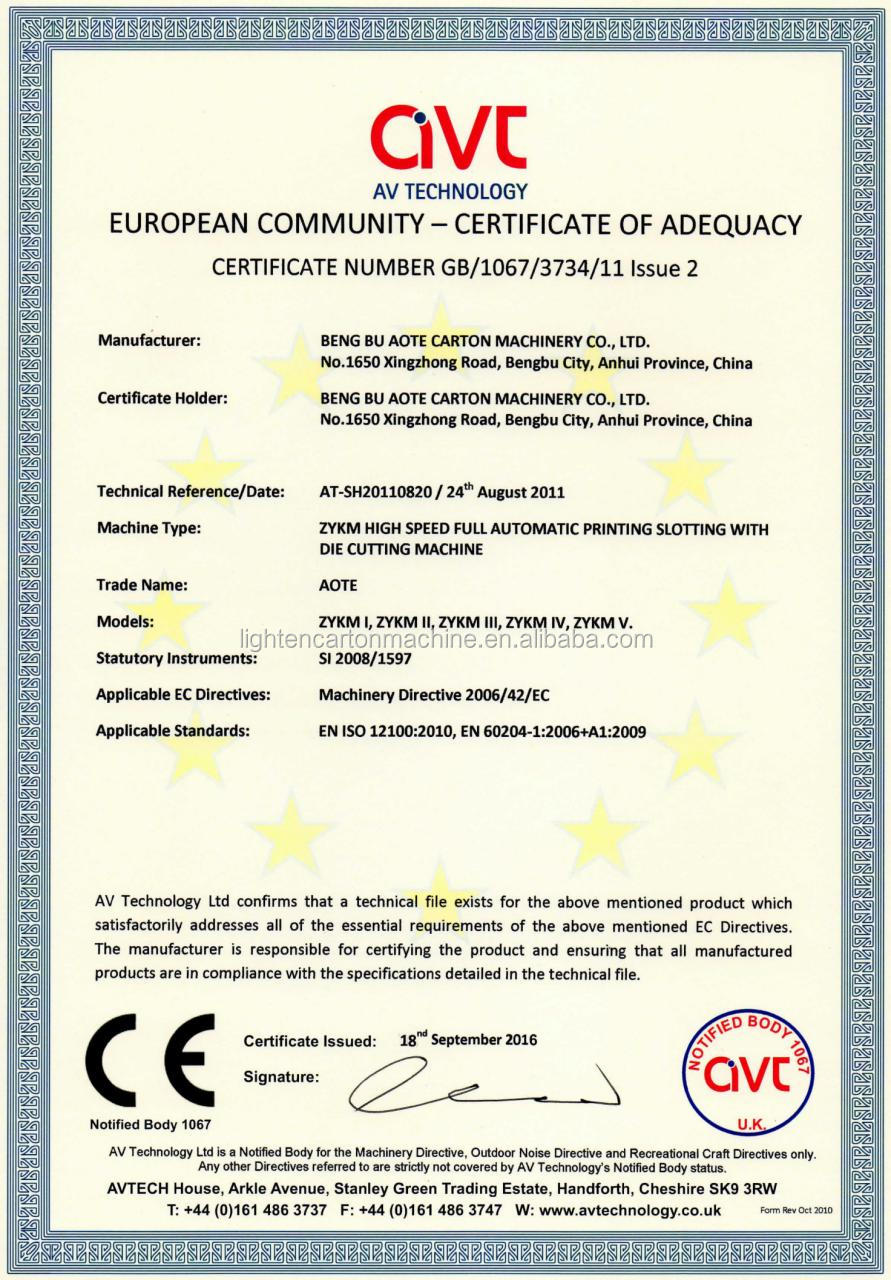

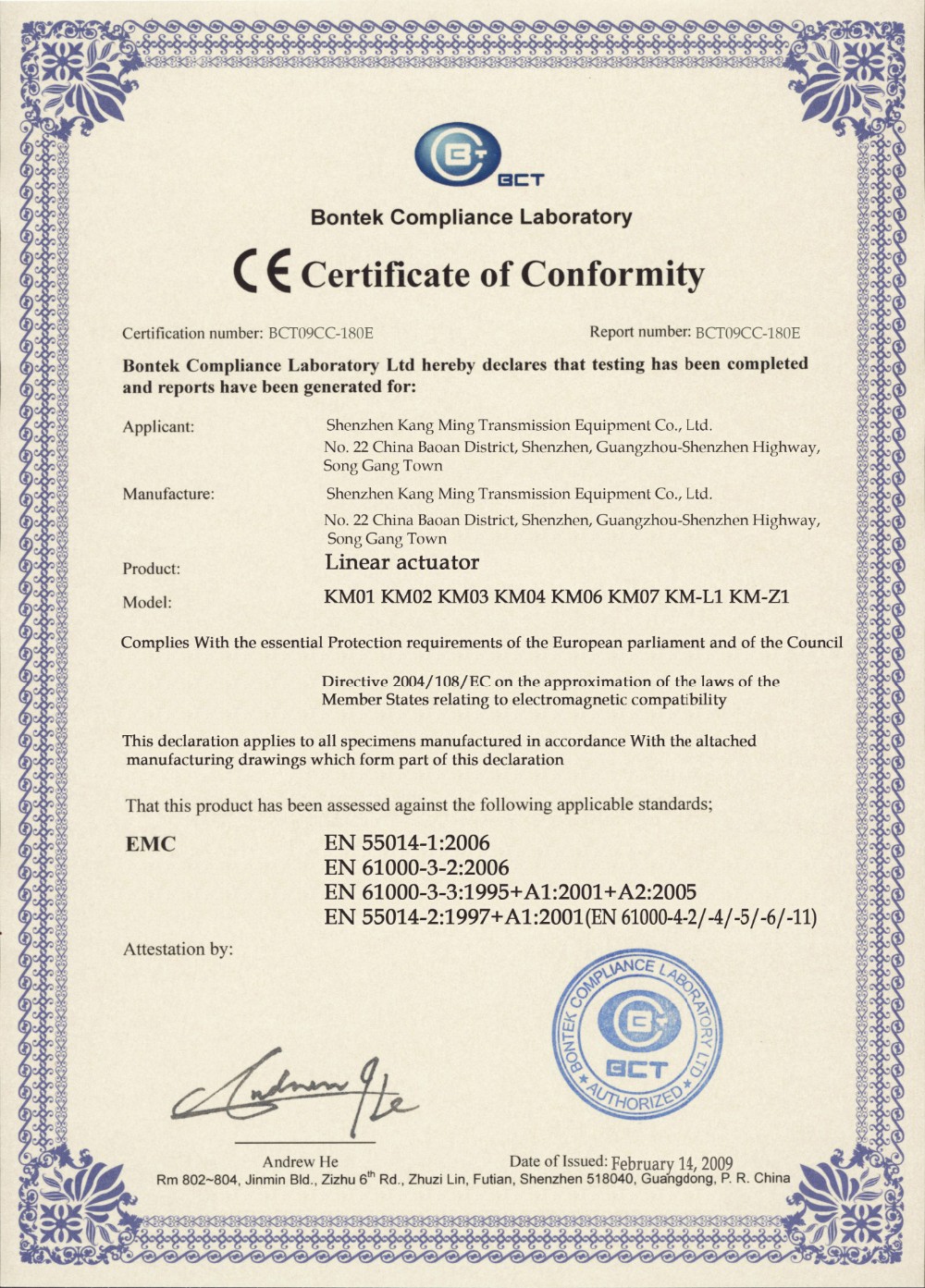

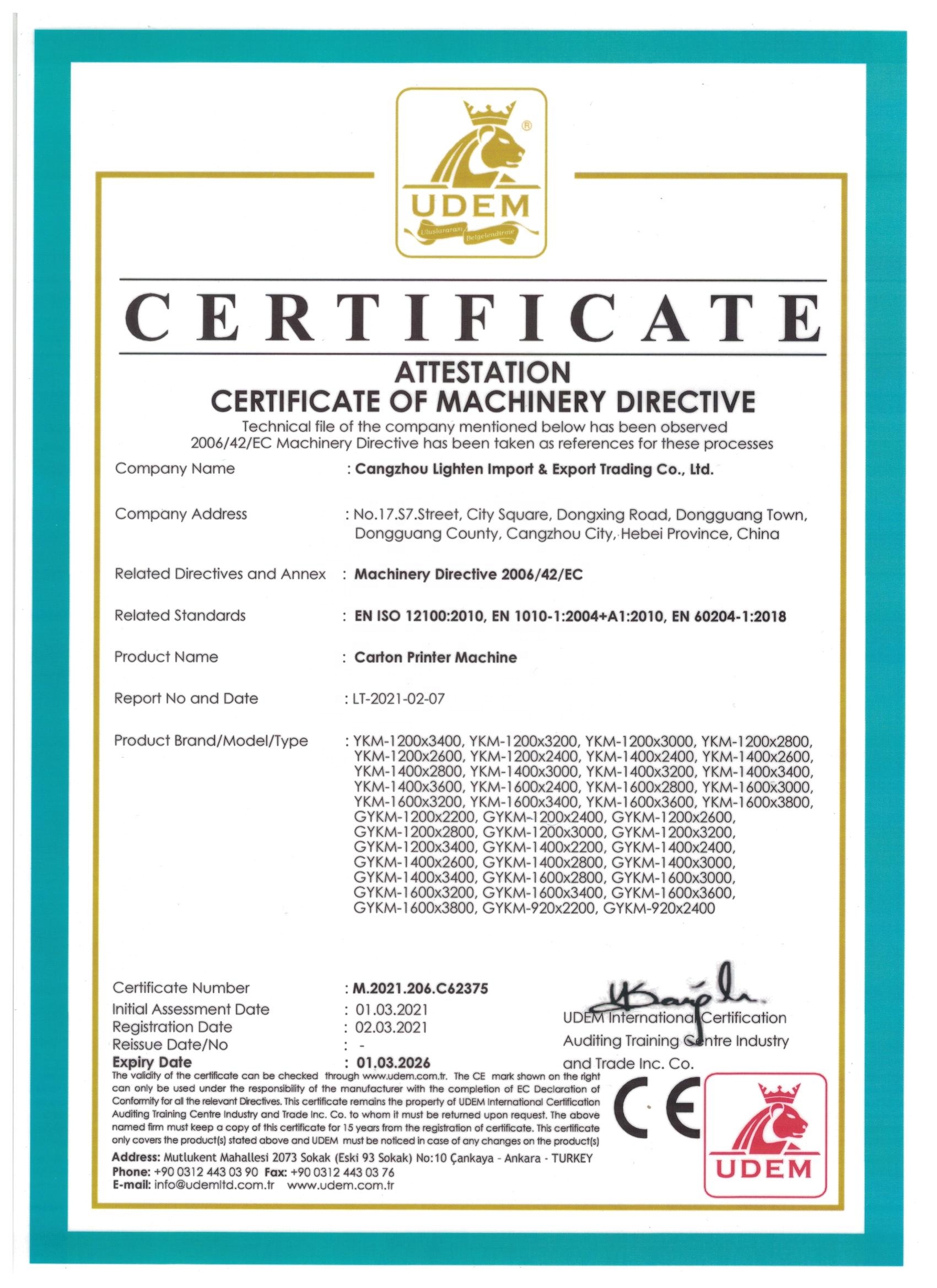

Certifications

Detailed Images & Subsections

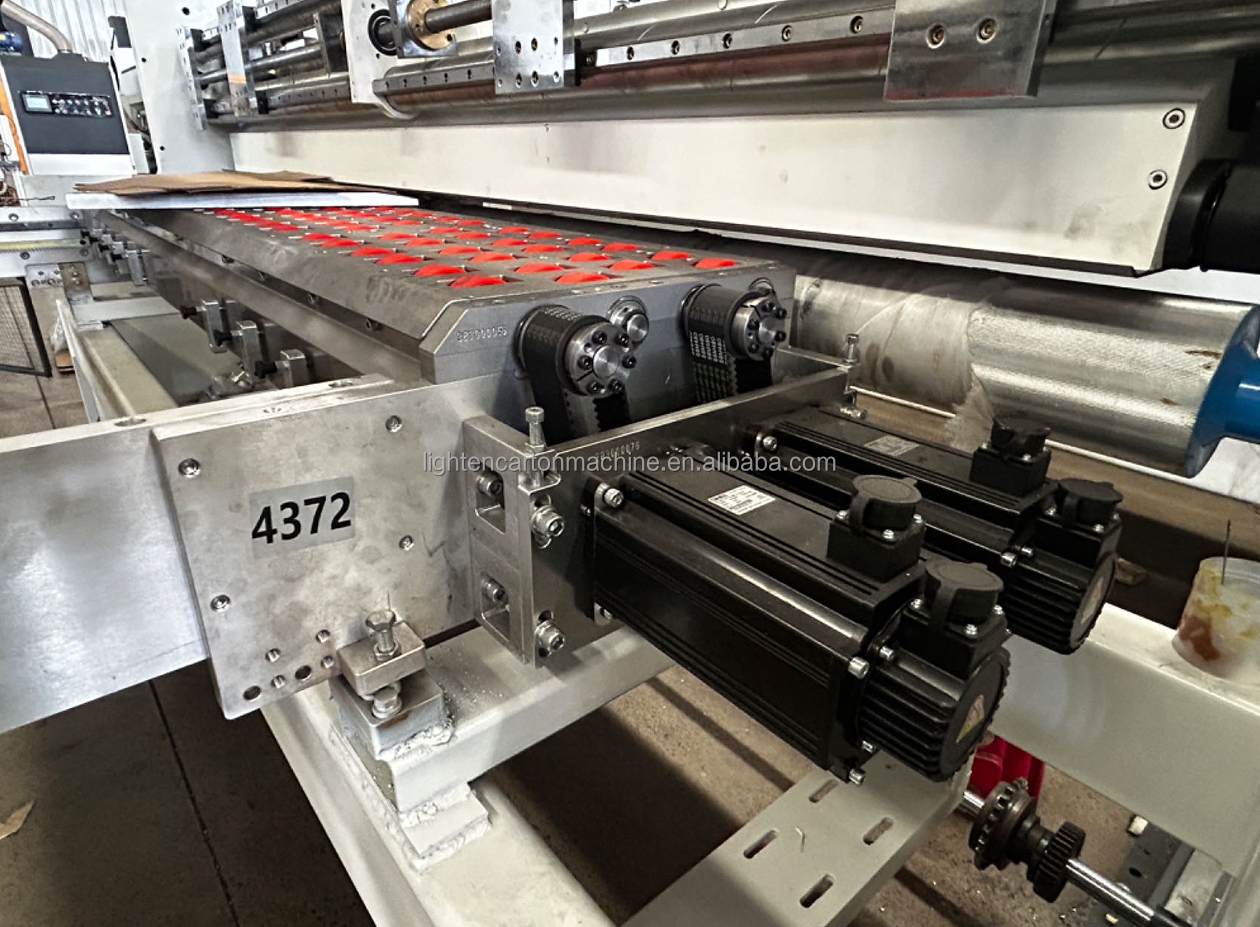

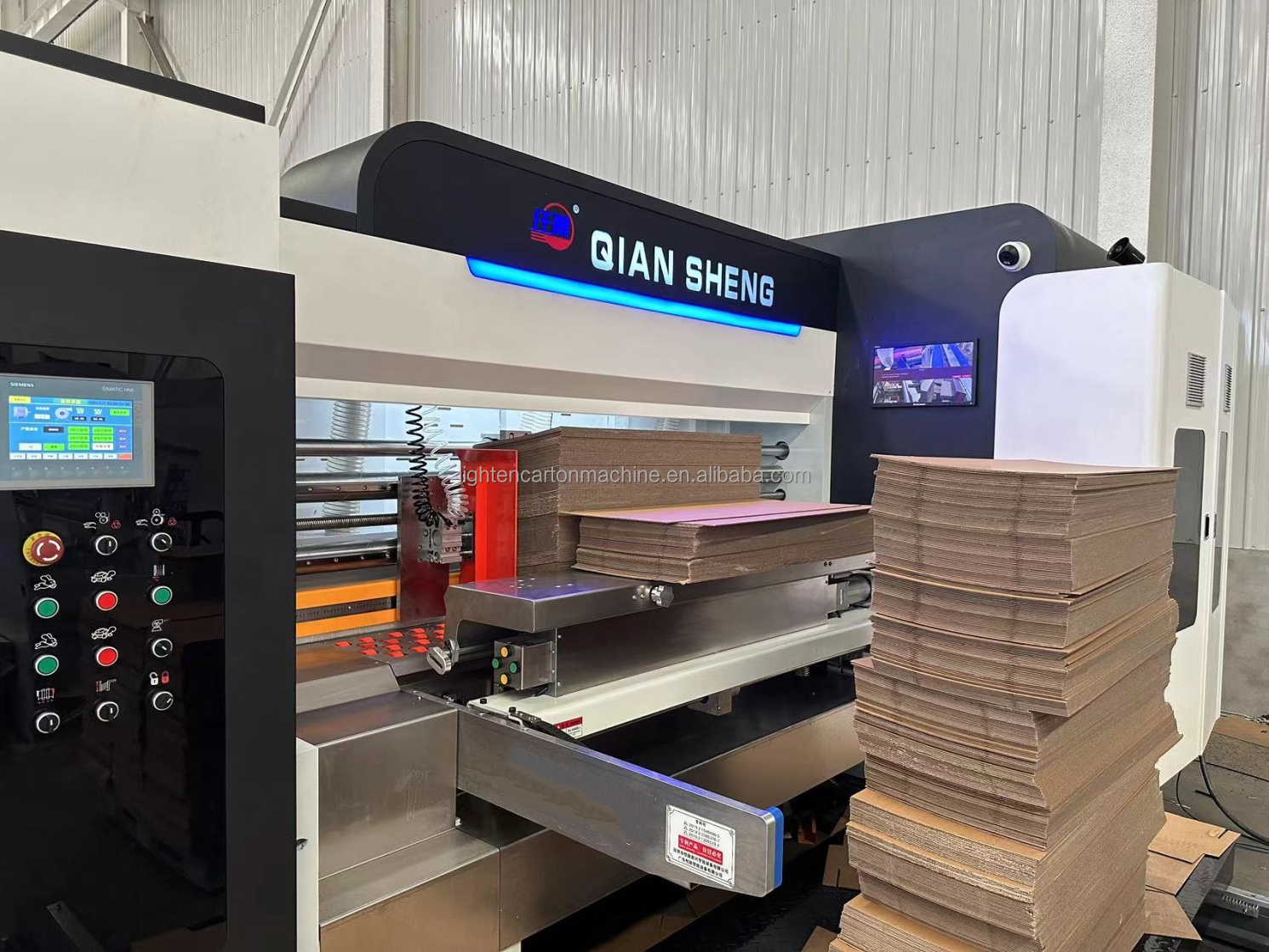

Servo Control Feeding System

Servo motor drive each feeding rolls
Dust extraction device

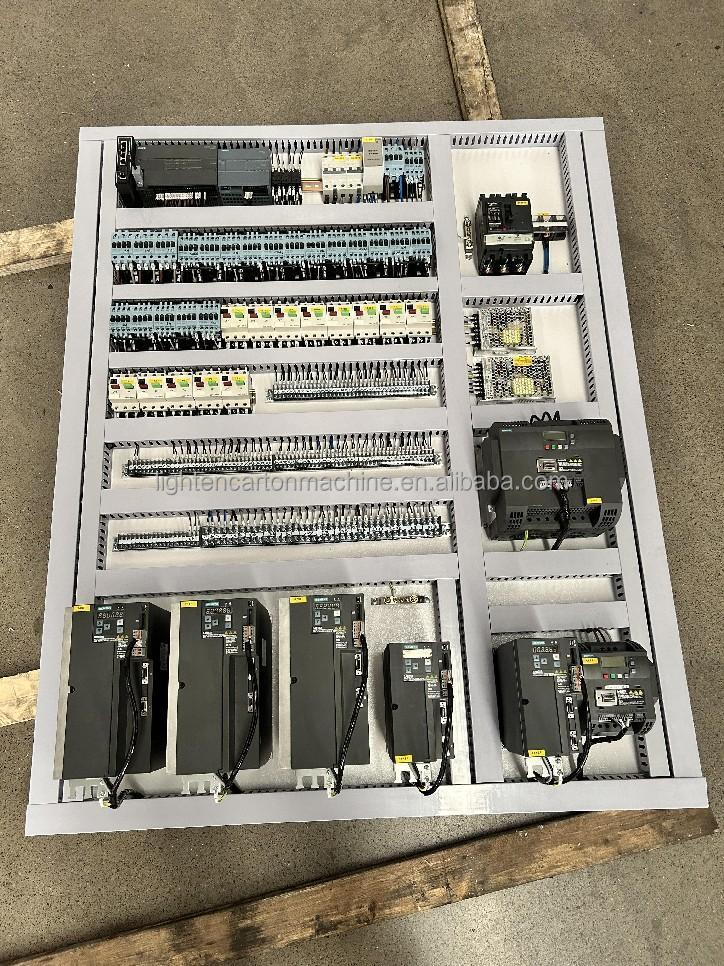

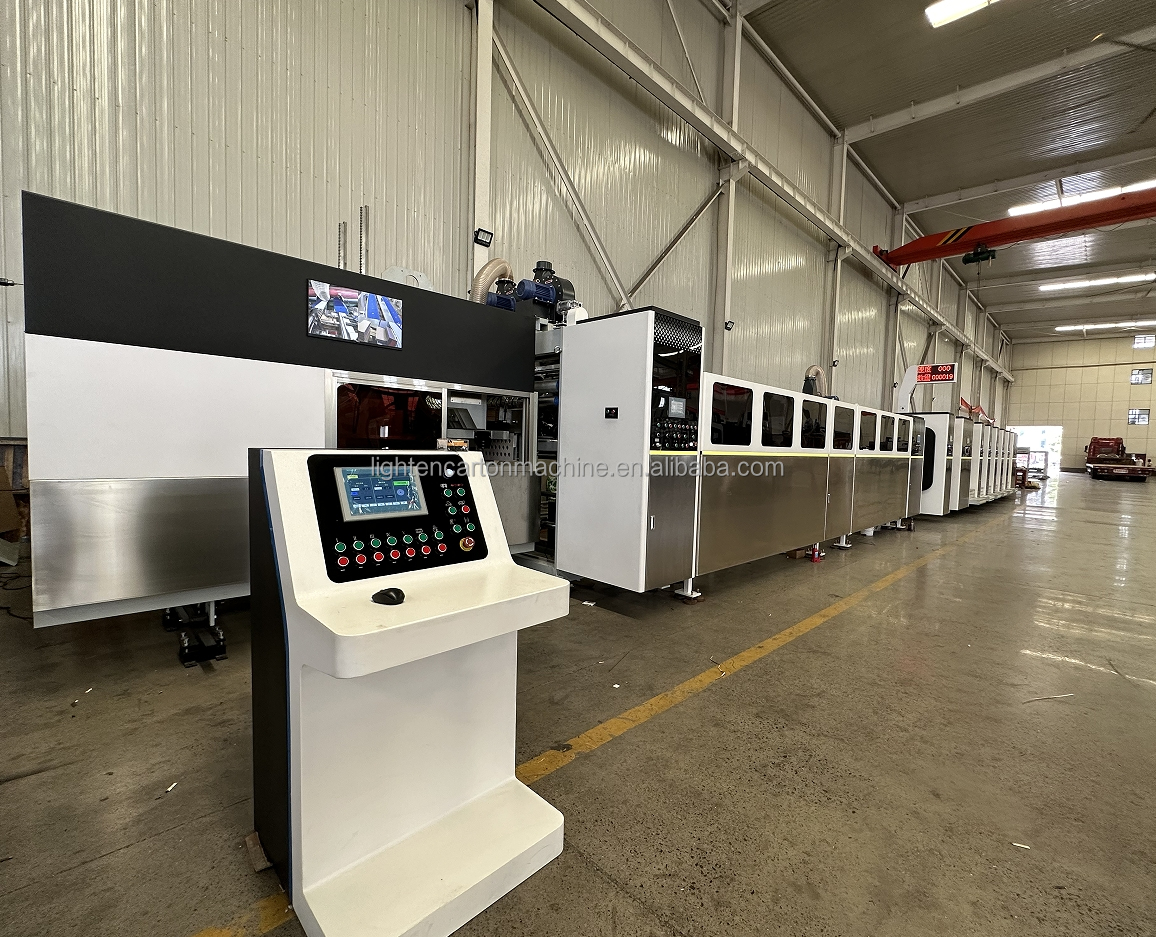

Operation control switch (PLC computer control)
Automatic zero device
Phase adjustment mechanism by HMI screen and PLC
SIEMENS high class servo controller

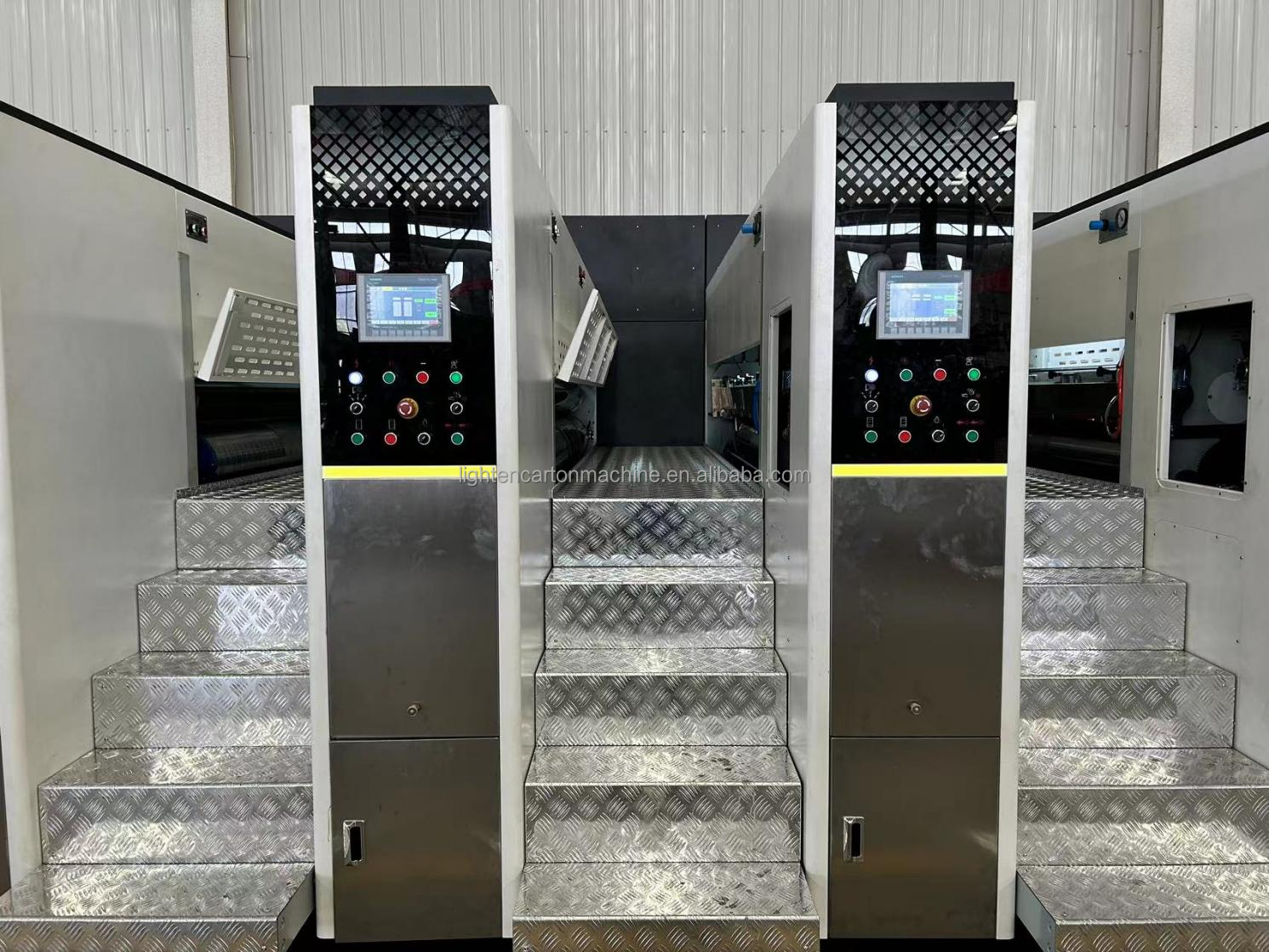

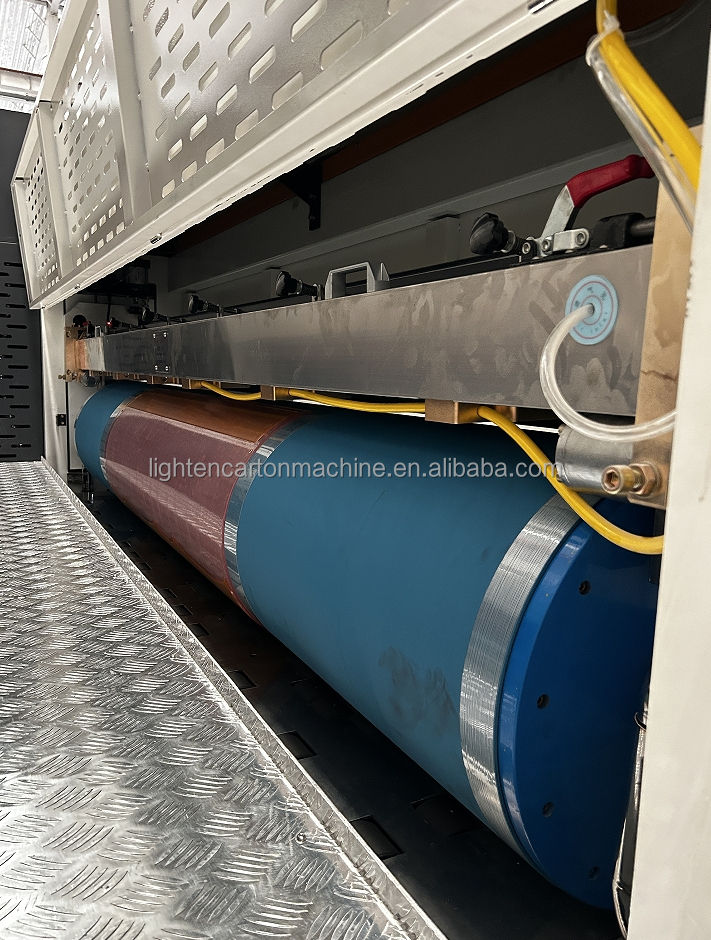

Printing Unit

Each group of printing rollers is driven by a 7KW GERMANY SIEMENS servo driver
Full Servo Drive No Gear transmission
Full Vacuum Suction transfer
Ceramic Anilox rolls with doctor blade
Non-Stop Changing order, machine can change each printing unit polymer in running condition

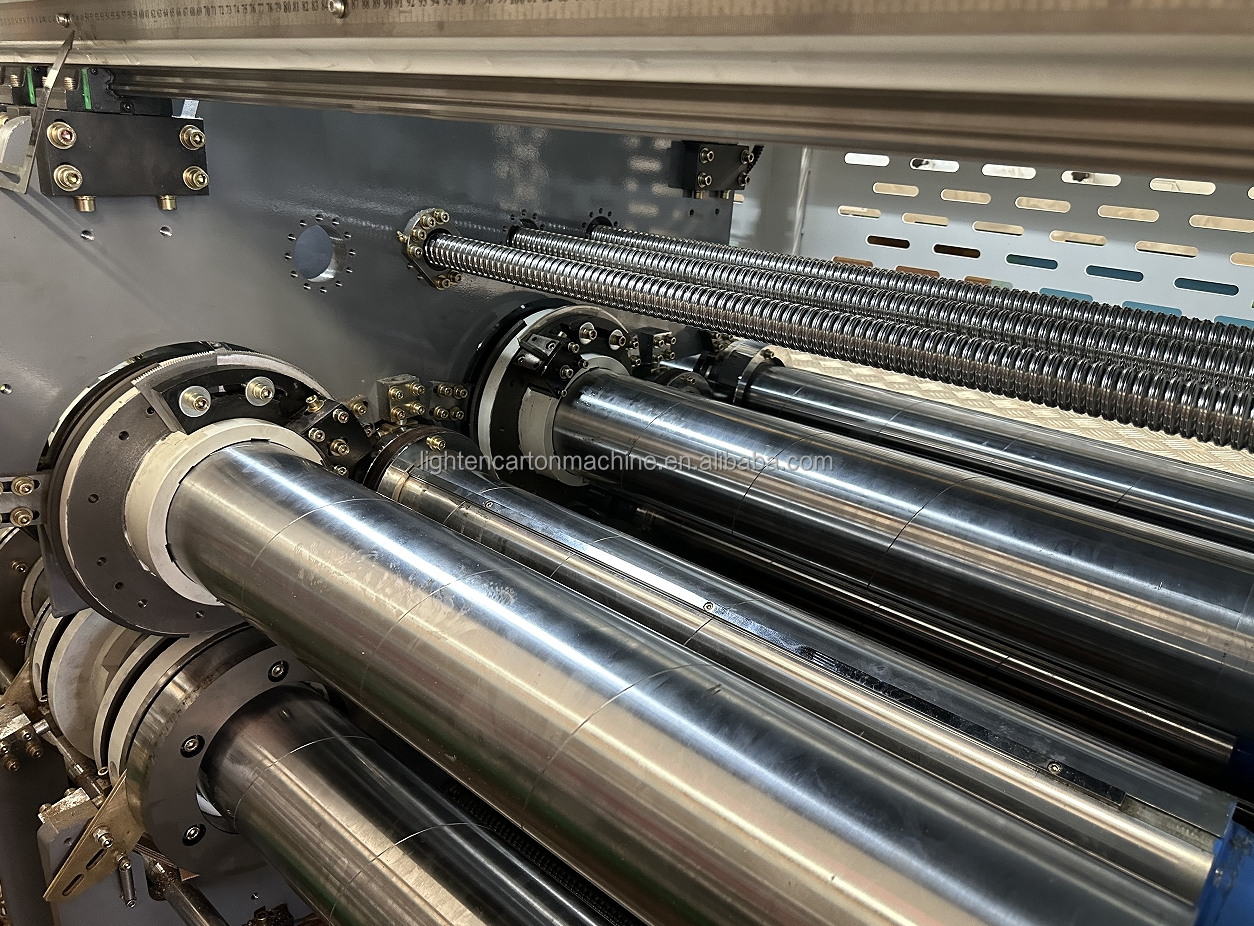

Slotting Unit

Double blades design, using two 11KW GERMANY SIEMENS servo drives for independent drive
The pre pressing and creasing devices are driven by a 7KW GERMANY SIEMENS servo driver
Operation control by full computer control
All Pressure adjustment by computer control

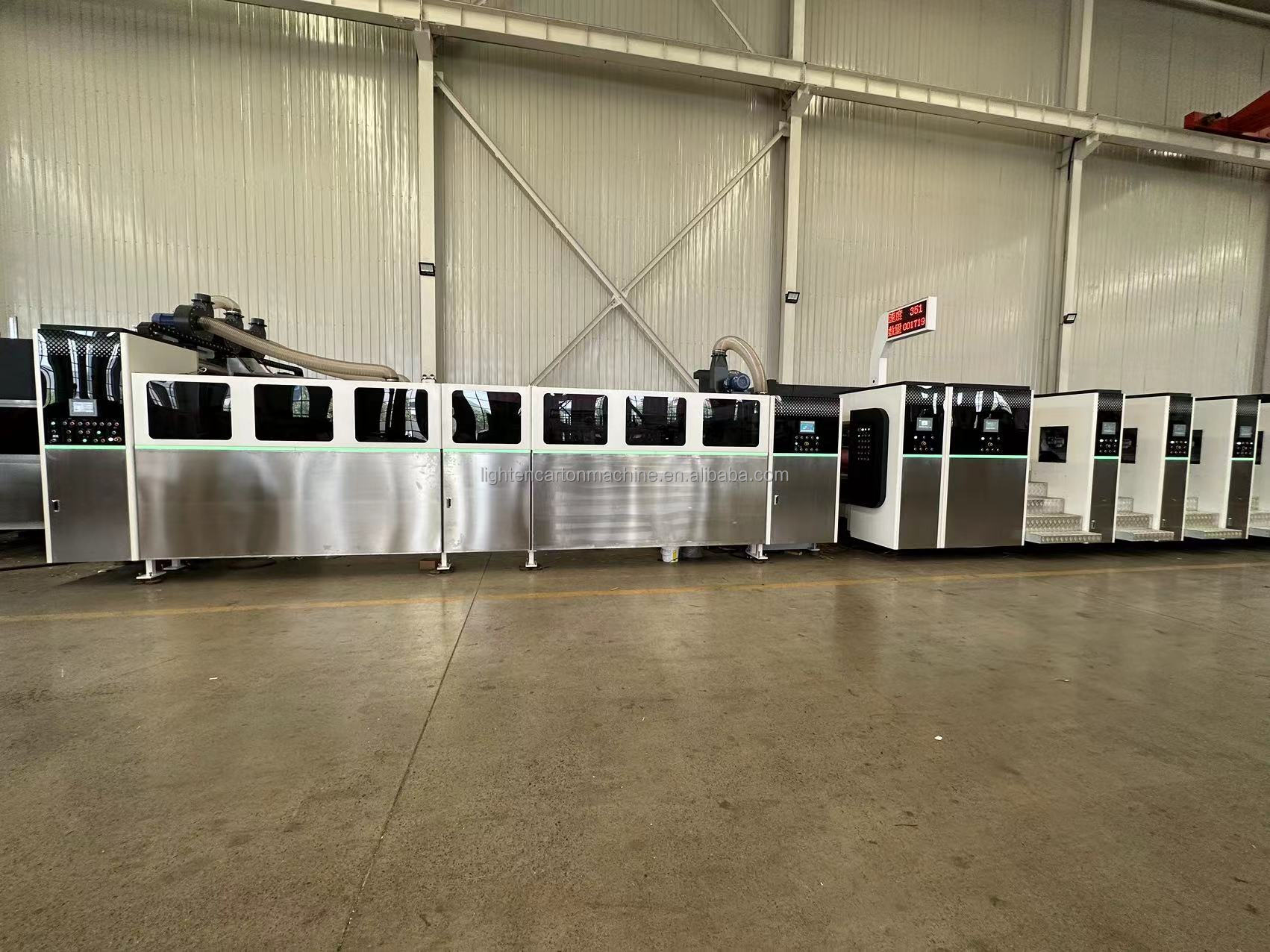

Automatic Folding Gluing Section

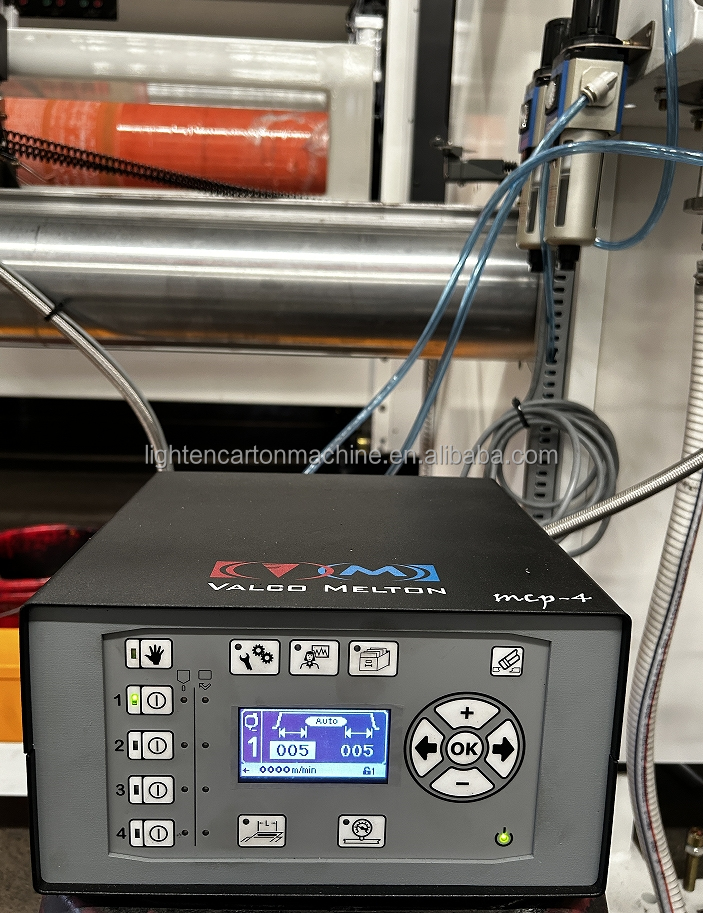

Gluing unit (American VALCO glue spray system)
Precision finalizing guide roller system/rear segment adsorption belt transmission
High strength bridge arm, precision traverse guide system

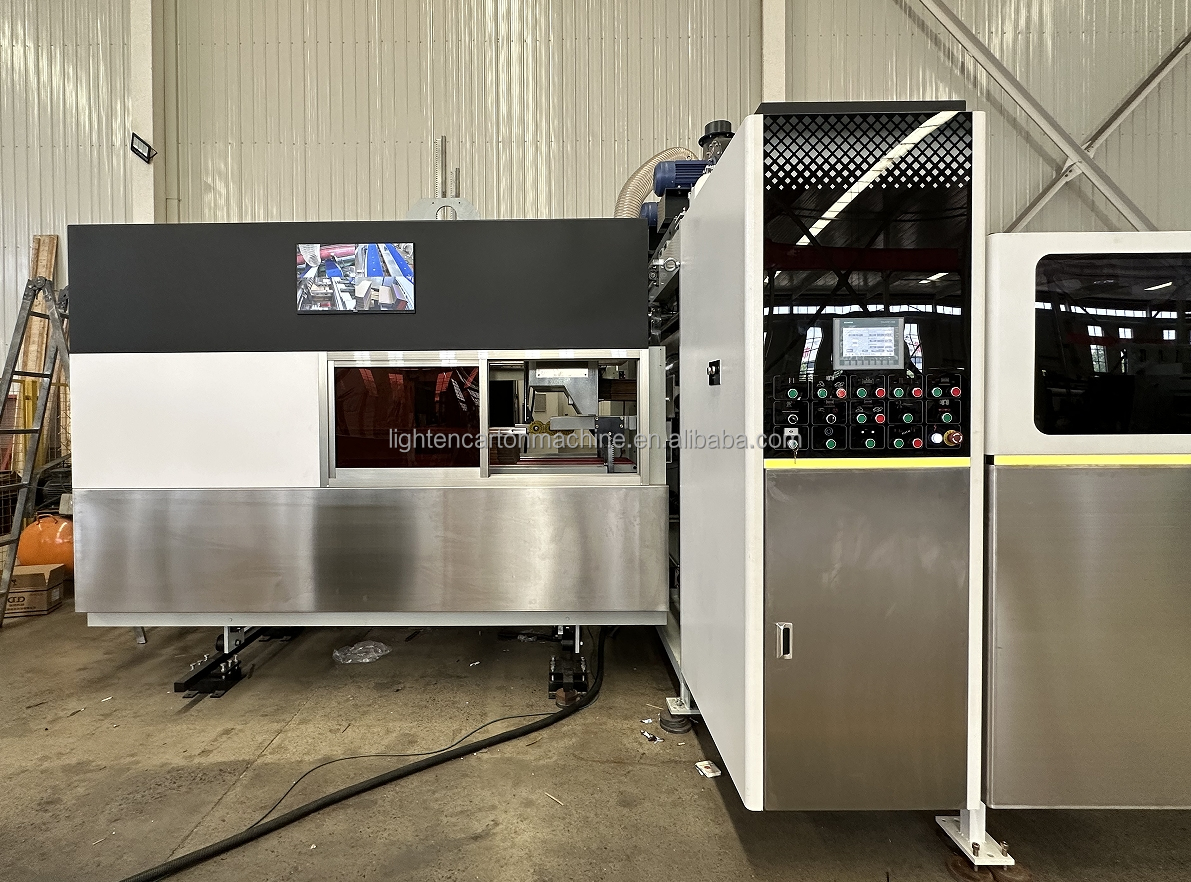

Counter Ejecting Section

Three SIEMENS servo motors constitute the accurate counting function for stacking output at high speed
Pneumatic aid blank taking bar is able to make stacked blanks flat and neat
Pneumatic stacking unit ejects out the stacked blanks neatly

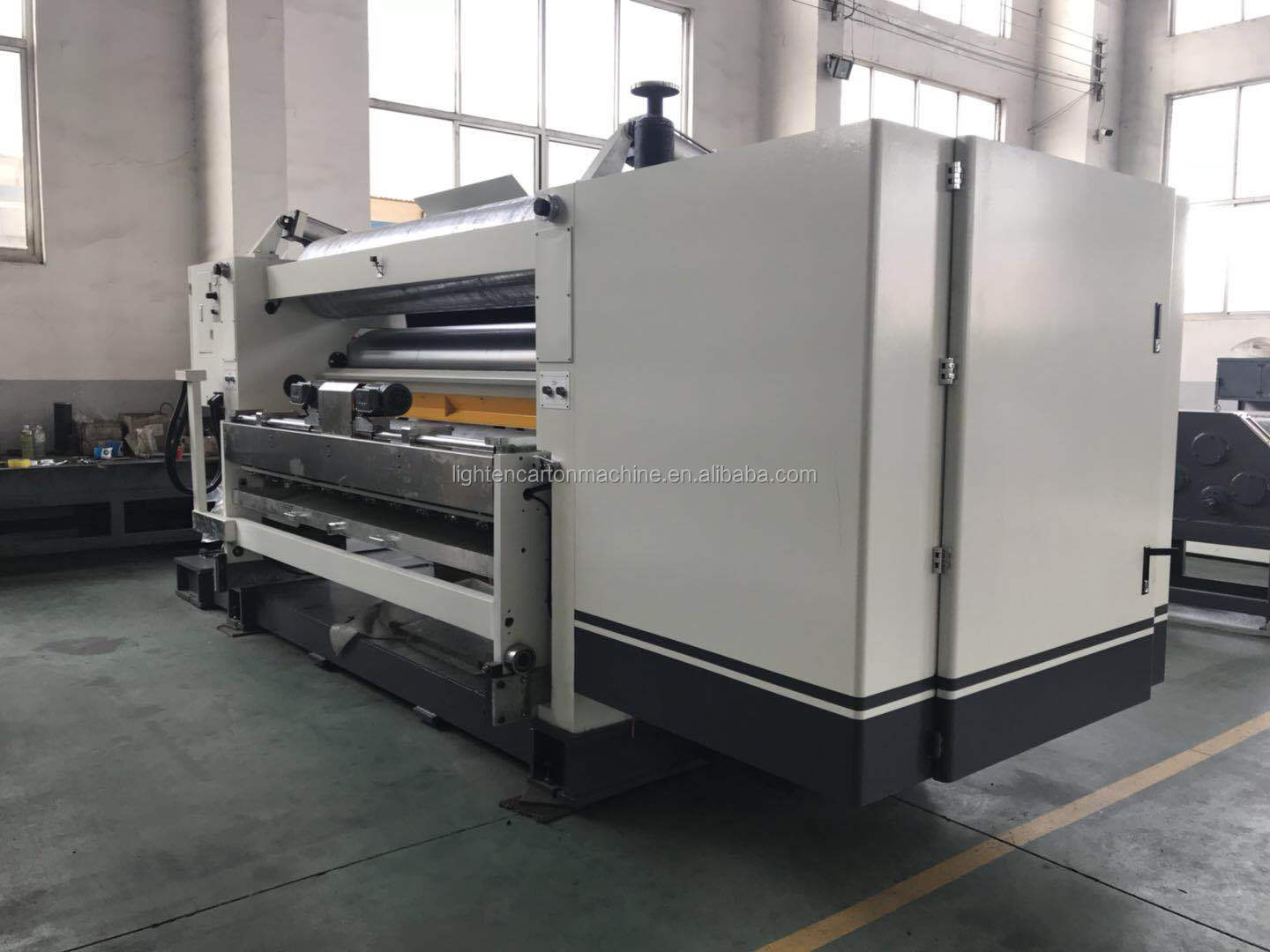

High speed cassette type single facer corrugator machine

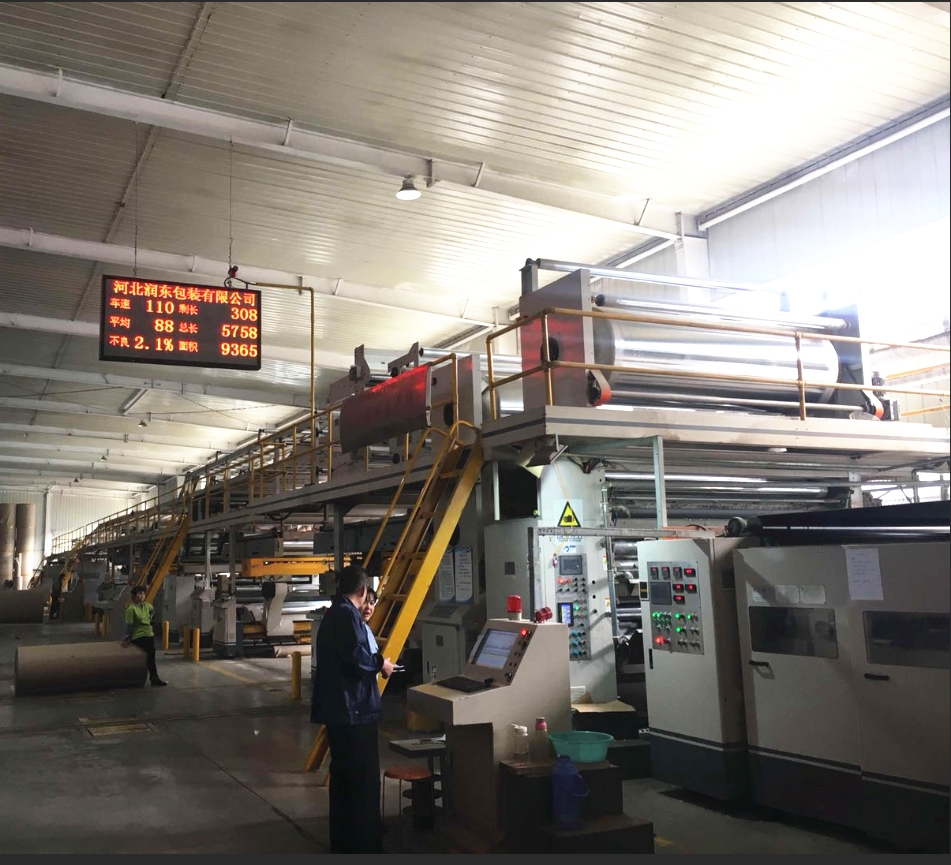

Automatic 2/3/5/7 layers corrugated production line

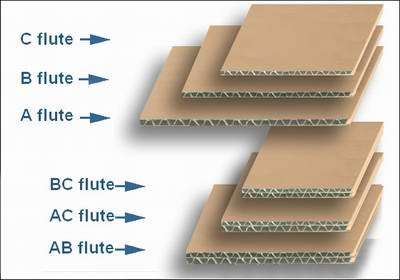

Corrugated carton complete machinery solution

Frequently Asked Questions (FAQ)

What is the design and running speed of this machine?

The machine features a design speed of up to 350 pieces per minute, with a normal running speed range between 200 and 350 pieces per minute.

What control and electrical systems are integrated into the machine?

The system utilizes a high-level German SIEMENS control and electrical system, including SIEMENS PLC, frequency converters, servo controllers, and servo drivers. Key bearings are sourced from NSK Japan.

Does the machine support non-stop plate changes?

Yes, the machine features a Non-Stop Changing Printing-Plate function, which allows operators to change the polymer printing plate on each printing unit while the machine is running, minimizing downtime.

What thicknesses and flute types of paperboard can this equipment process?

This equipment handles suitable paperboard thicknesses ranging from 2mm to 12mm, accommodating A, B, C, and E flute sizes.

How is the slotting height adjusted in the slotting unit?

Due to the advanced double-slotting knife structure controlled by independent German SIEMENS servo drives, there are no limitations on the maximum and minimum box height for slotting operations.

What gluing system does the automatic folder gluer employ?

The folding and gluing section is equipped with an American VALCO glue spray system for high-precision adhesive application.
