| Parameter Item | Specification Value |
|---|---|
| Model | RZFD-190 |

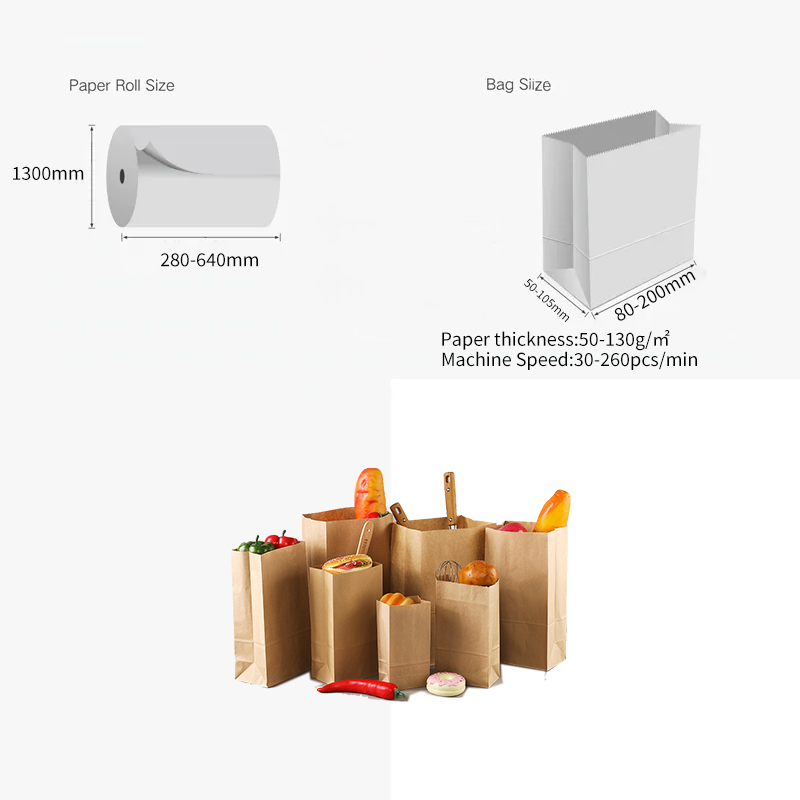

| Cutting length | 190-370mm |
| Paper bag width | 80-190mm |
| Paper bag bottom width | 50-105mm |
| Paper thickness | 50-130g/m² |
| Paper bag speed | 30-200 pcs/min |
| Paper roll Maximum width | 620mm |
| Roll paper diameter | 1200mm |
| Machine power | 3phase 4line 380V 12kw |
| Machine weight | 5800 kg |
| Machine size (mm) | 8200x3200x1900 |

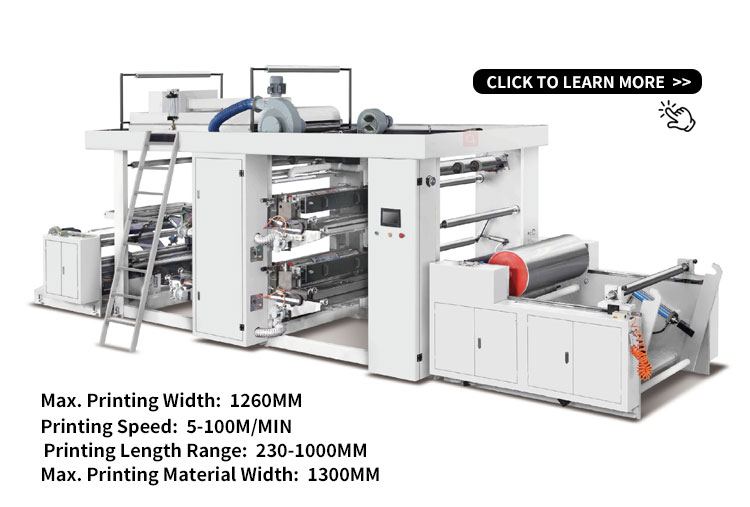

| Specification Item | Value details |
|---|---|
| Max. Printing material width | 1200mm |
| Max. Printing width | 1160mm |
| Printing length range | 200-710mm |
| Printing speed | 5-100m/min |
| Register precision | ≤ ±0.15mm |
| Thickness of plate (thickness of double sides glue: 0.38mm) | 2.28mm |
| Printing cylinders | 1 set |
| Component Name | QTY | Original Country | Brand Name |
|---|---|---|---|
| Control System | |||
| PC Program Controller | 1 | Germany | REXROTH |

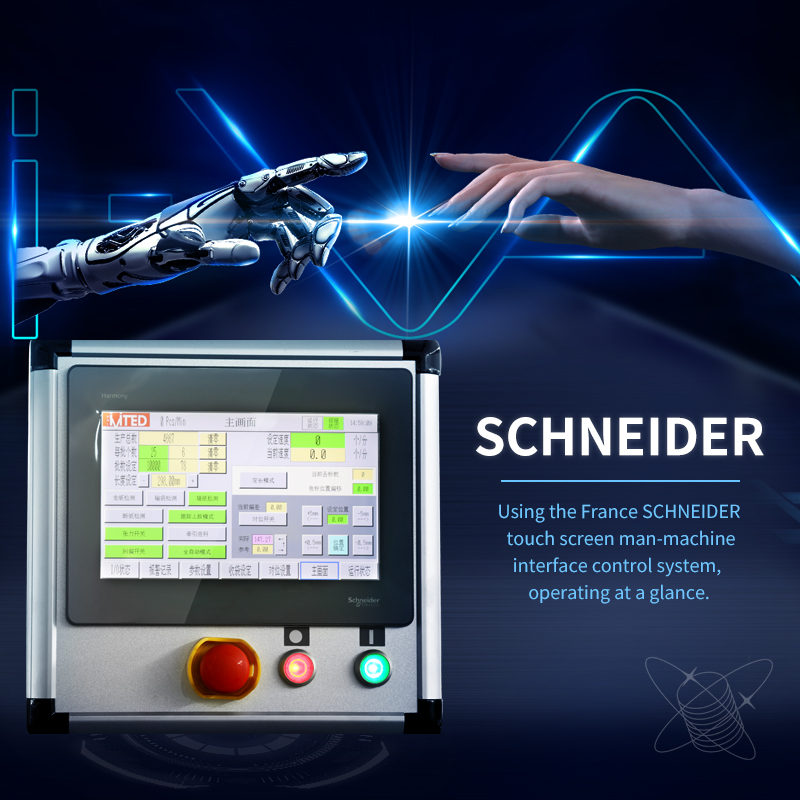

| Human computer touch screen interface | 1 | France | Schneider |

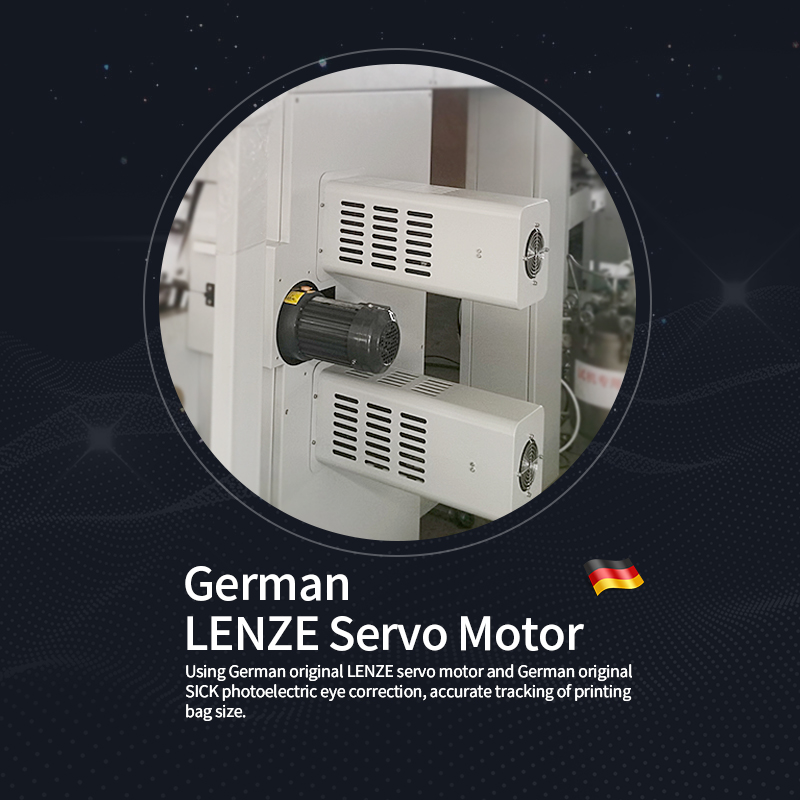

| Servo Motor | 1 | Germany | REXROTH |
| Servo Driver | 1 | Germany | REXROTH |
| Host servo and servo drive | 1 | Taiwan | DELTA |
| Chasing The Photoelectric Eye | 1 | Germany | SICK |
| Low Voltage Electrical Apparatus | 1 | US | EATON |
| Deviation correction and tension control system | |||
| EPC Controller | 1 | Italy | SELECTRA |
| Servo EPC Motor | 1 | Italy | SELECTRA |
| Ultrasonic Sensor | 1 | Italy | SELECTRA |
| Magnetic Powder Brake | 1 | China | WEIZHENG |
| Printing Area | |||
| Frequency transformer | 1 | Switzerland | ABB |
| Main motor | 1 | China | - |
| Ink motor | 1 | China | - |
| low-voltage apparatus | 1 | Germany | EATON |
| Main roller bearing | 1 | Japan | - |
| Guide Roller bearing | 1 | China | - |

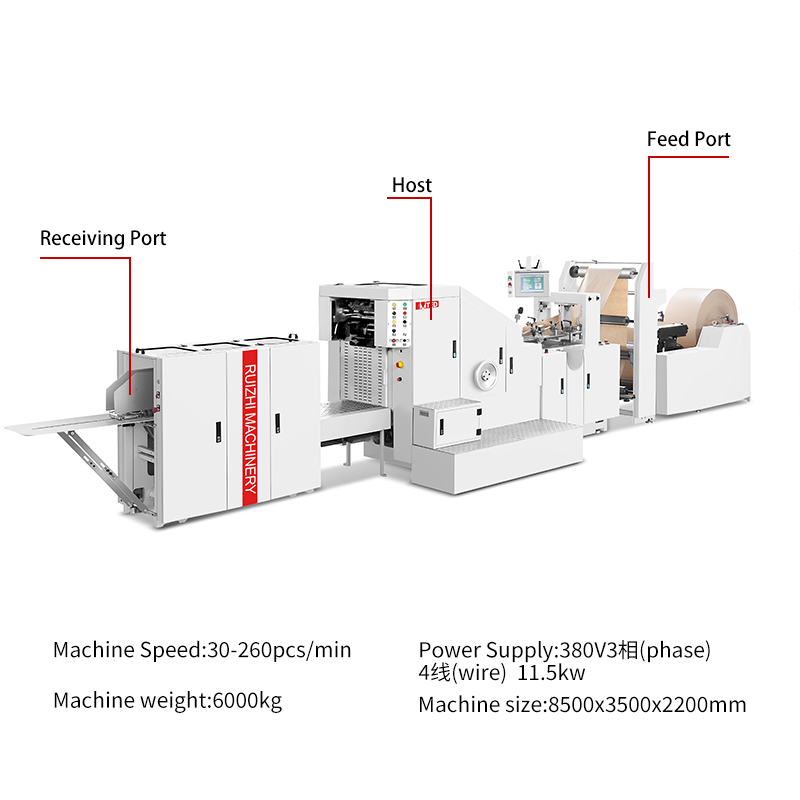

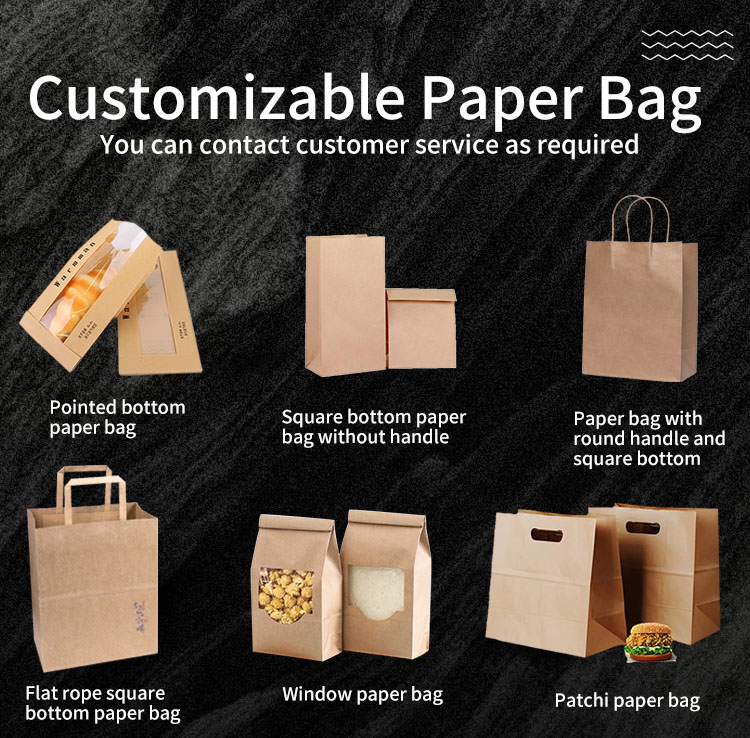

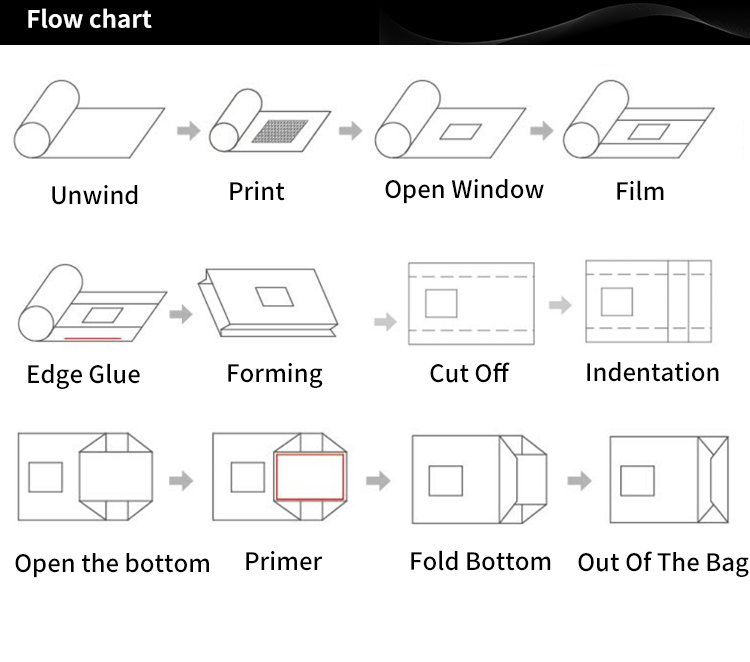

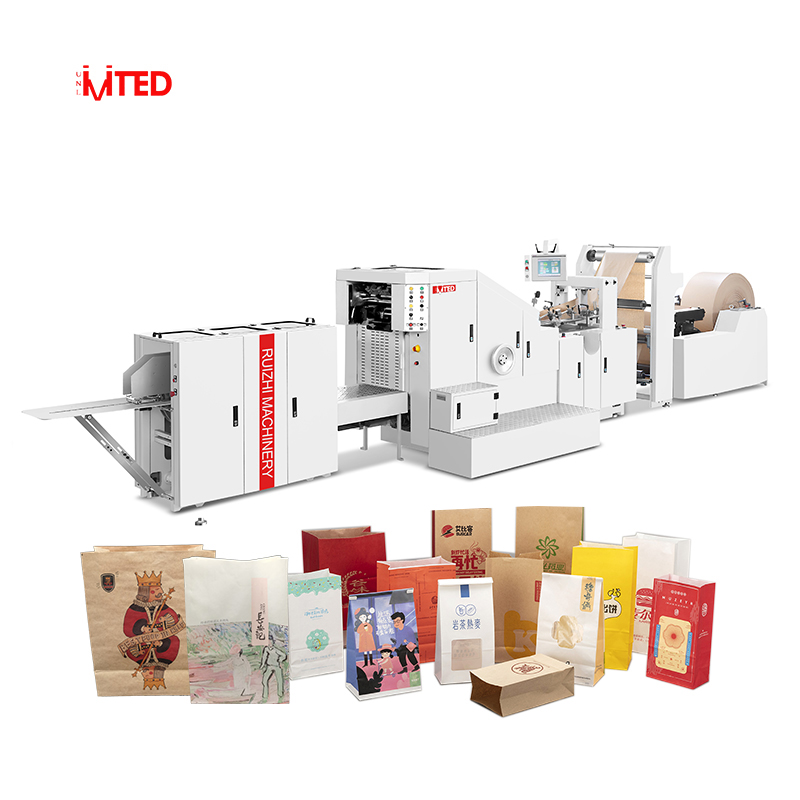

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. Consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time. The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly paper bags for you.
We have a professional QC department in charge of products' quality.
12 months calculated from the date of shipment from our factory. During the warranty period, except for artificial factors, the spares are free to replace. Beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
We will send a technician to your factory to install the machine and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
We will provide transportation service during your visit at our factory.
First, Paper raw material: Reel paper or Sheet Paper. Second, sizes of the paper bag, thickness of paper. Send sample bag pictures if available. Then we will recommend the right machine to you!
