| Model | HX-360JXS | HX-500JXS | HX-600JXS |
|---|---|---|---|
| Voltage | 380V | 380V | 380V |
| Power | 4P | 4P | 4P |
| N.W. | 520kg | 580kg | 620kg |
| G.W. | 560kg | 600kg | 650kg |
| Cutting Length | 0.1-9999.9mm | 0.1-9999.9mm | 0.1-9999.9mm |
| Cutting Width | 1-360mm | 1-500mm | 1-600mm |
| Measurement | 1700*840*1750mm | 1850*1200*1750mm | 2000*1400*1750mm |

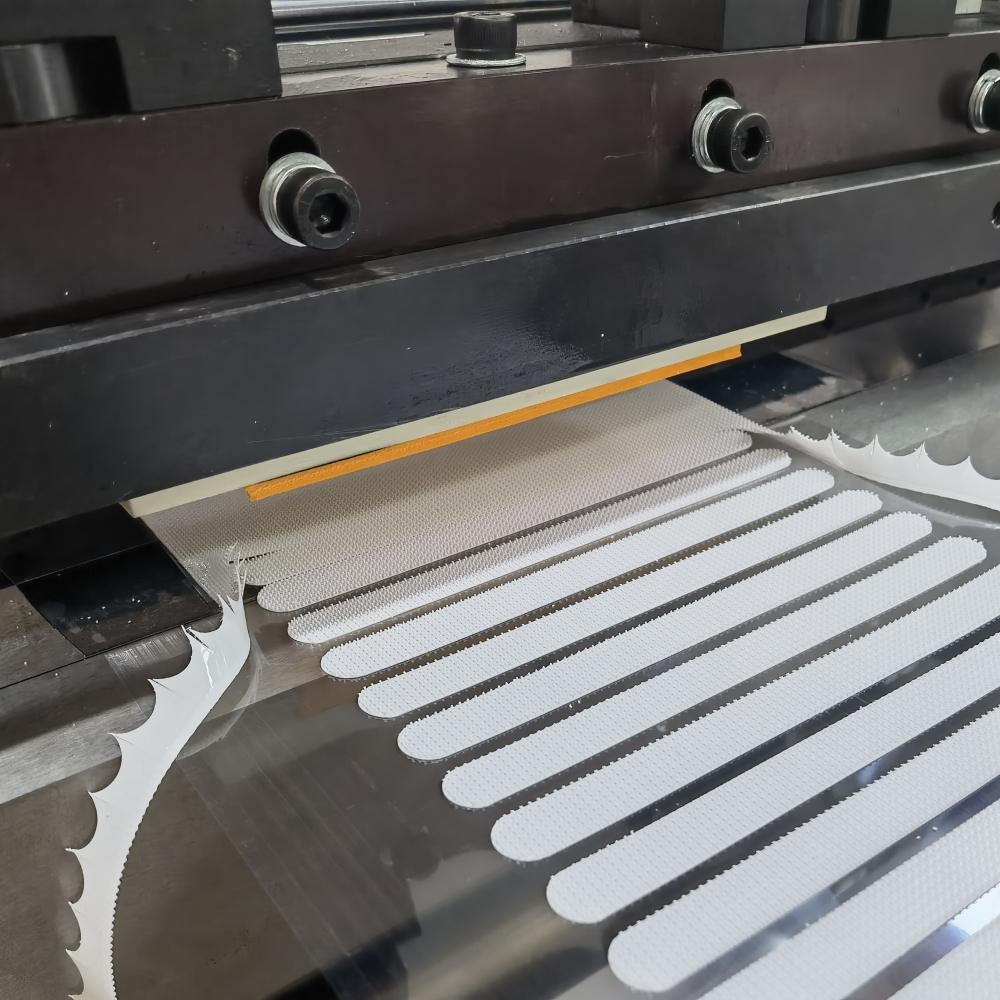

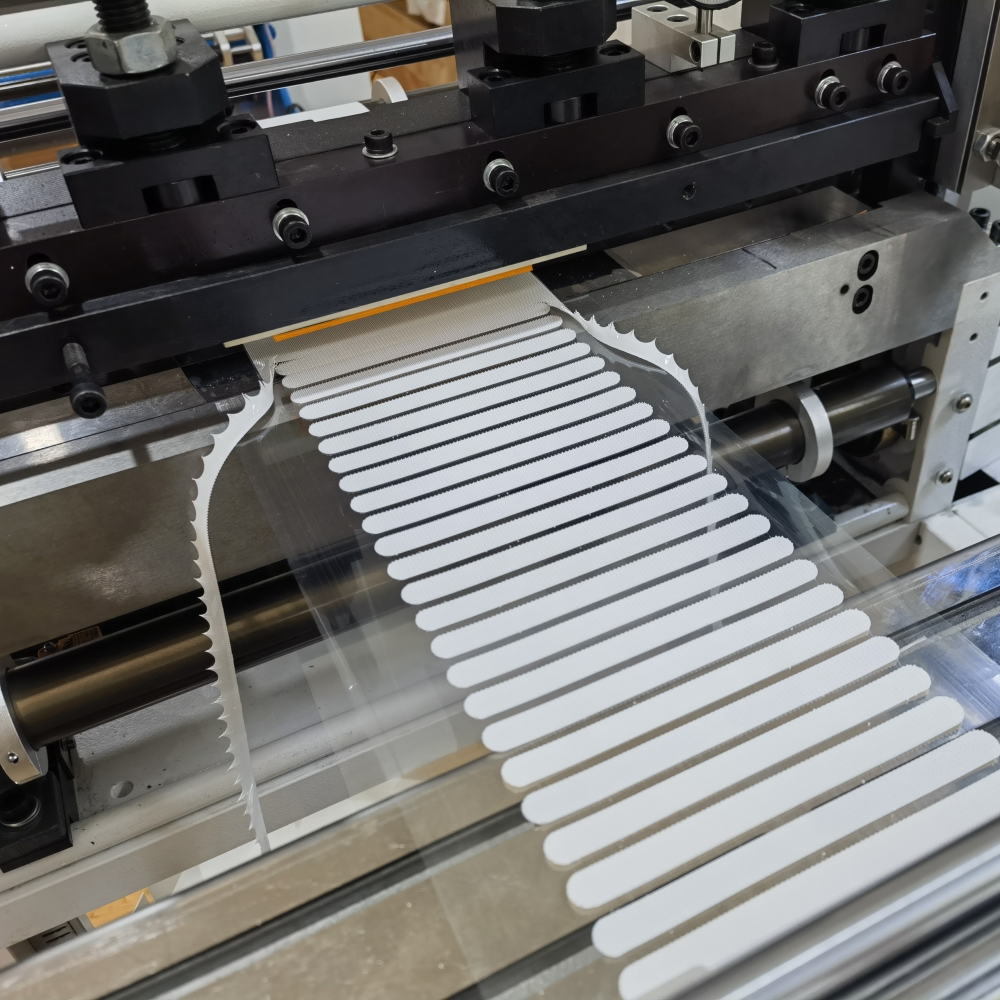

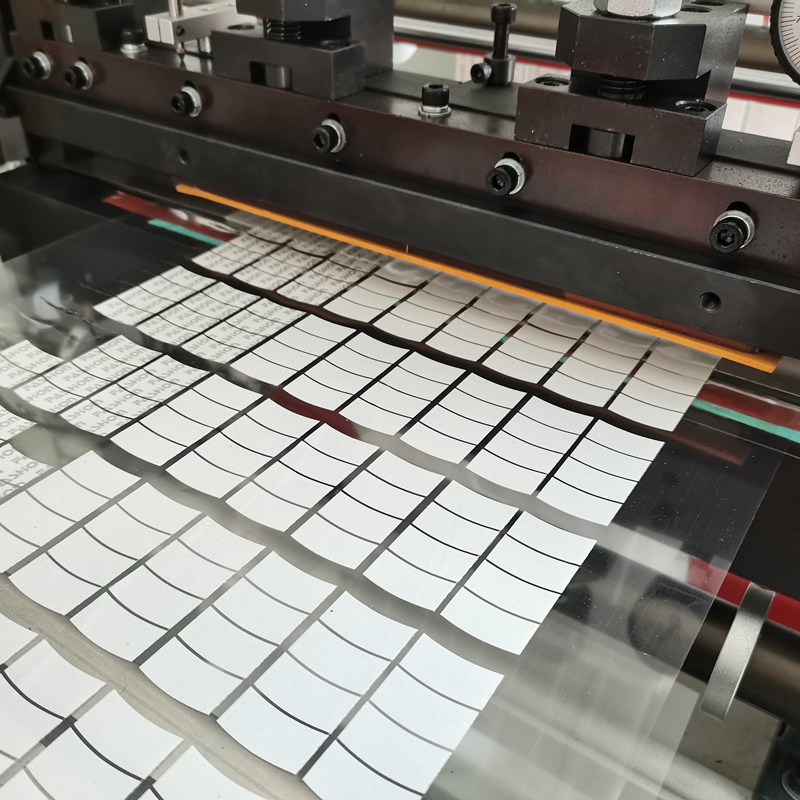

The machine supports 6 different cutting methods: (1) Several intermittent kiss-cutting + one through-cutting, (2) Several kiss-cutting + one through-cutting, (3) Kiss-cutting + rewinding, (4) Intermittent kiss-cutting + rewinding, (5) Through-cutting, and (6) Intermittent through-cutting.
Yes, laminating and cutting processes can be completed simultaneously in a single, synchronized operation, which significantly reduces processing time.

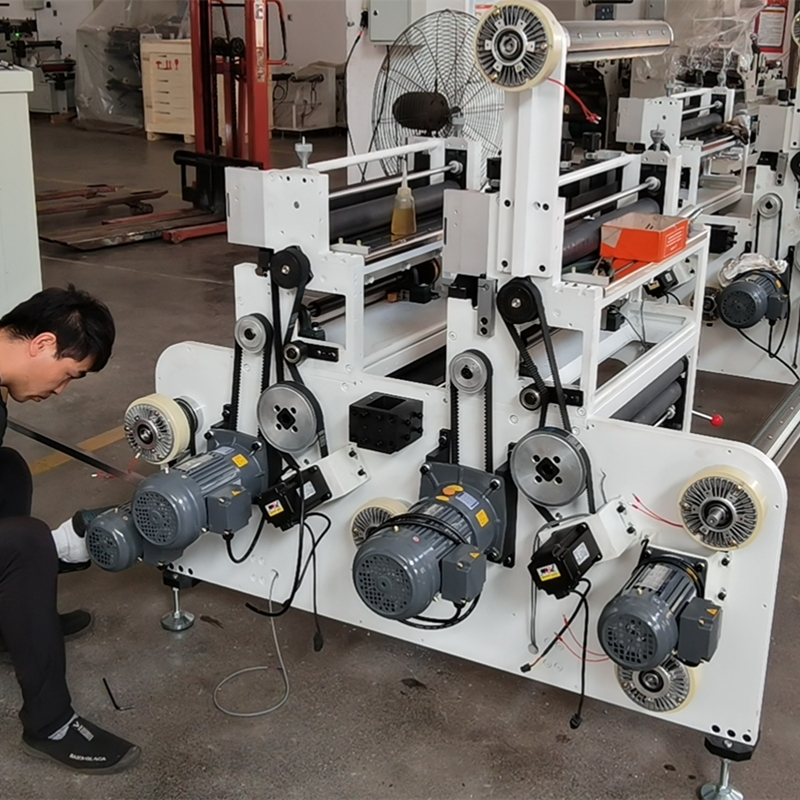

The machine uses a programmable logic controller (PLC) combined with an easy-to-use human-machine touch screen interface and two high-precision servo motor controllers for pulling material.
Yes, both the cutting length and cutting speed are fully adjustable. Operators can easily modify and save these parameters directly on the touch screen interface.
Yes, the unwinding roll material diameter can be fully customized according to your raw material requirements and production setup.
The primary difference is the maximum cutting width. The HX-360JXS supports widths up to 360mm, the HX-500JXS supports up to 500mm, and the HX-600JXS supports up to 600mm. Weight and overall dimensions also scale accordingly.
