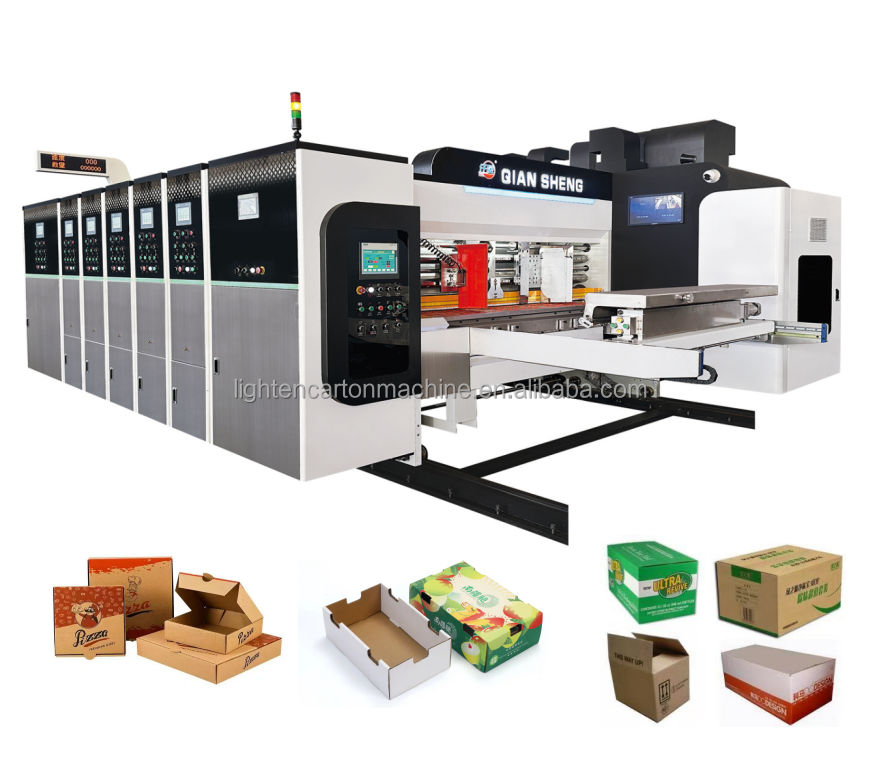

GYKM- High speed flexo printing slotting rotary die cutting with vibrating stacker machine
(We can custom-made the machine size for you)
  • Maximum Paper Feeding size: 920×2100mm | 1200×2400mm | 1400×2600mm
  • Machine running speed: 150~300 pieces/minutes
  • The main wall body: Processed via Japan Mitsubishi five-sided machining center.
  • Transmission gear: High precision grinding teeth.
  • Printing roller: 45# steel rolling welding, computer dynamic balance correction, grinding and hard chromium plating.
  • Anilox roller: Dynamic balance correction.
  • Electrical parts: Siemens, Schneider, Delta, Fatek.
  • Lead edge feeder unit: Vacuum sucking feeding cardboard.
  • Auto ink circulation system.
  • Fully electric control slotting creasing slitting knives (easy to change order).
  • Machine gear: Auto lubrication with oil.
  • Machine body thickness: 60mm.
  • Automatic separate, pneumatic lock up.

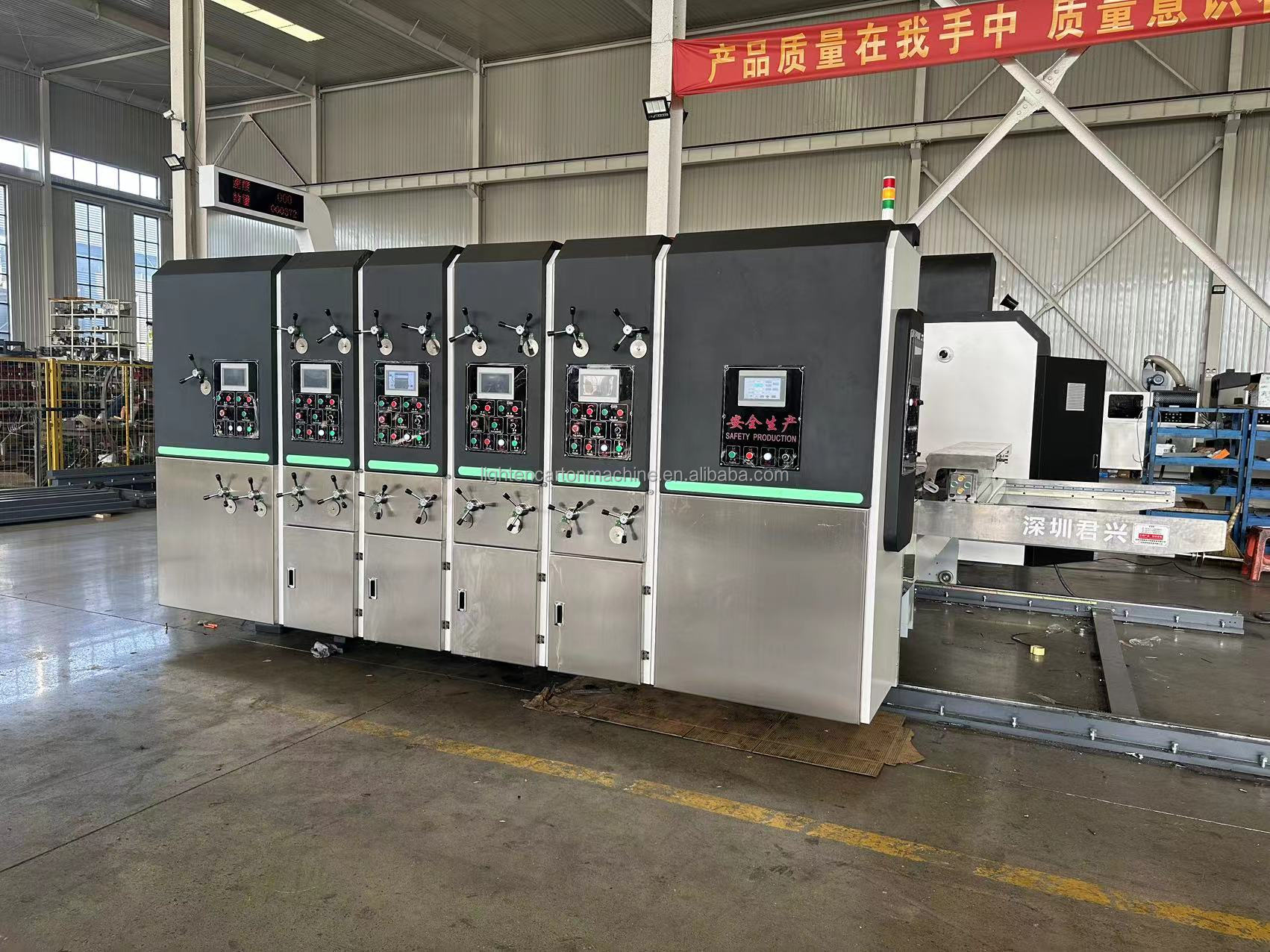

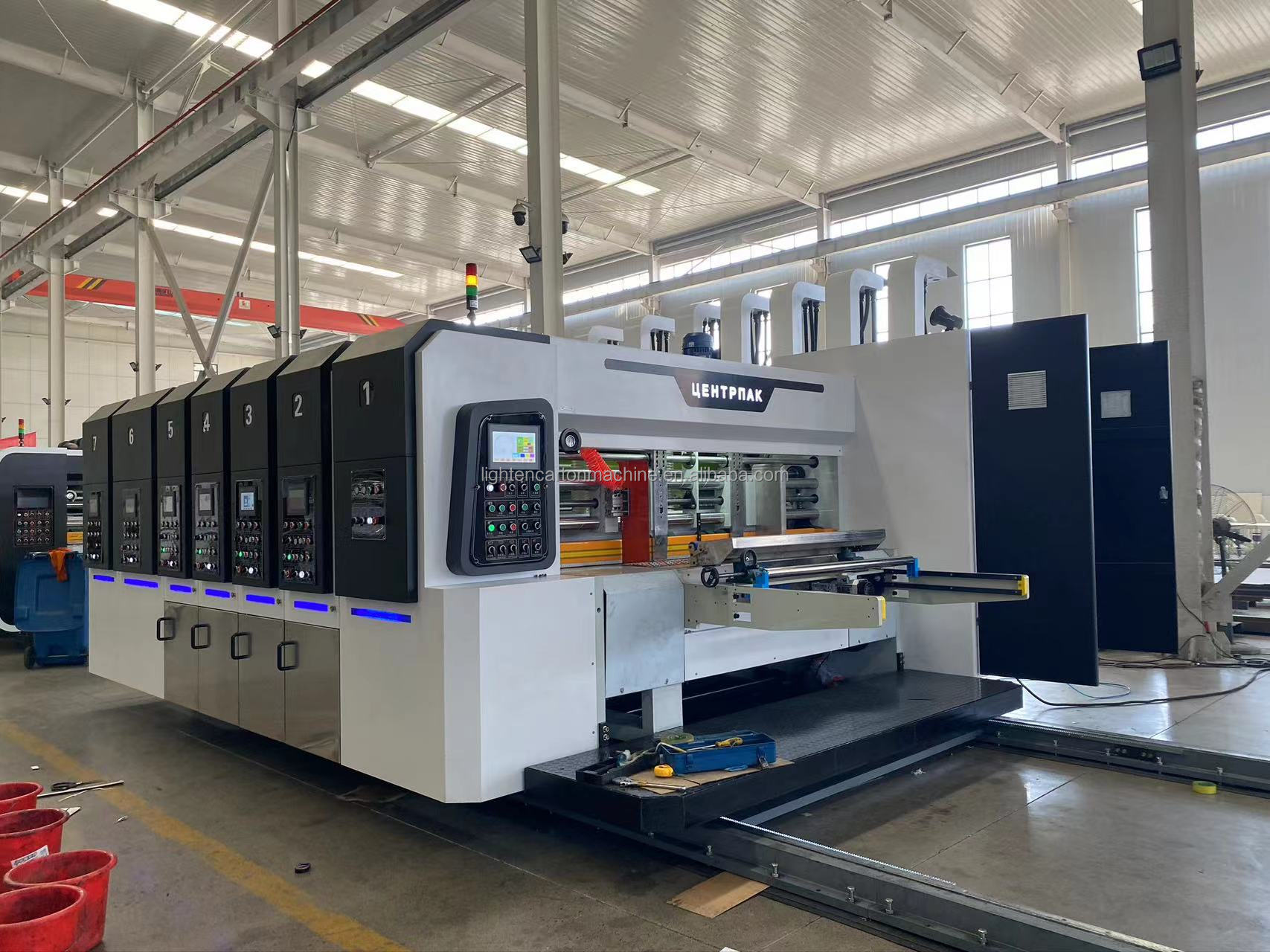

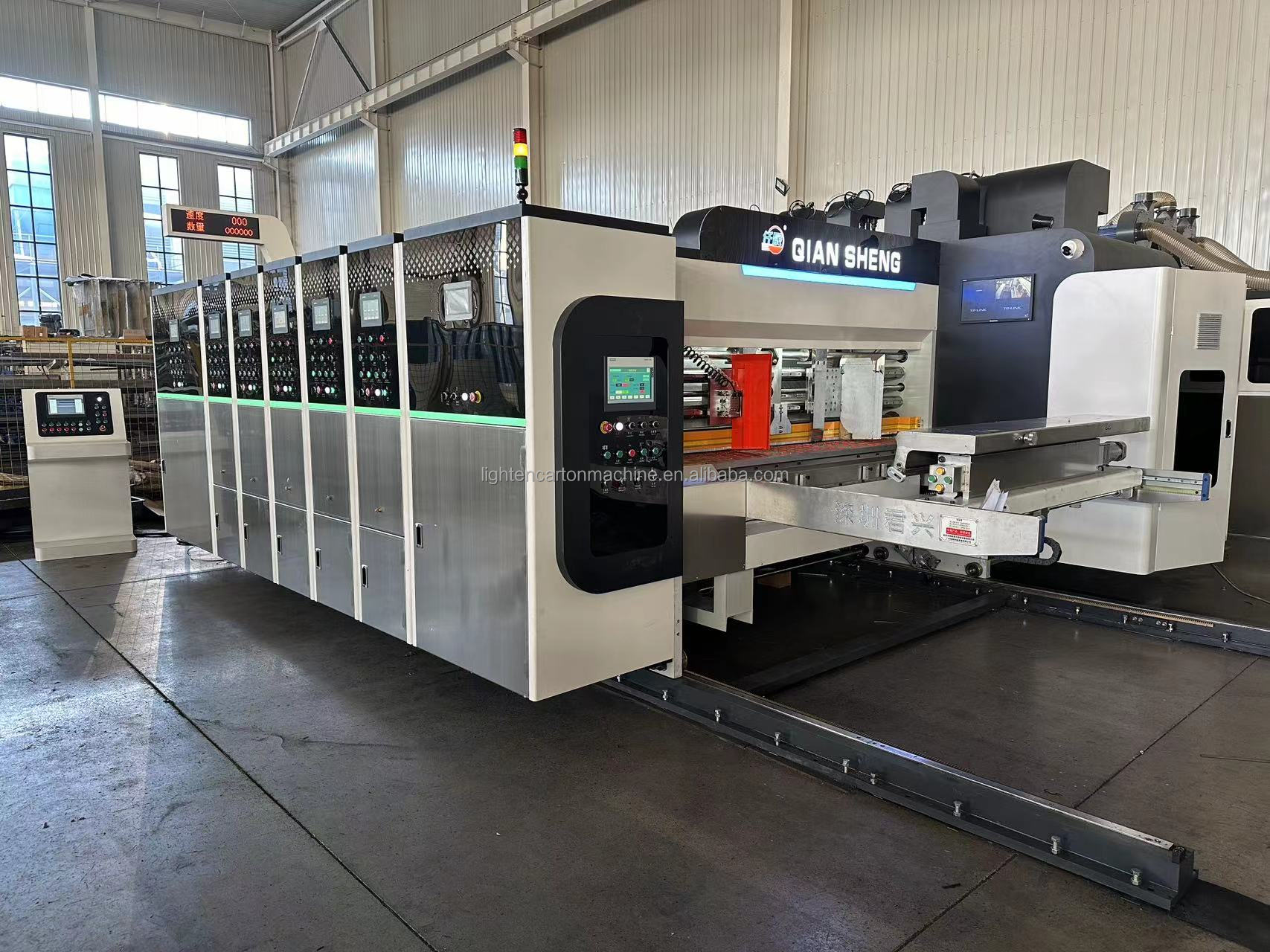

Machine Overview 1

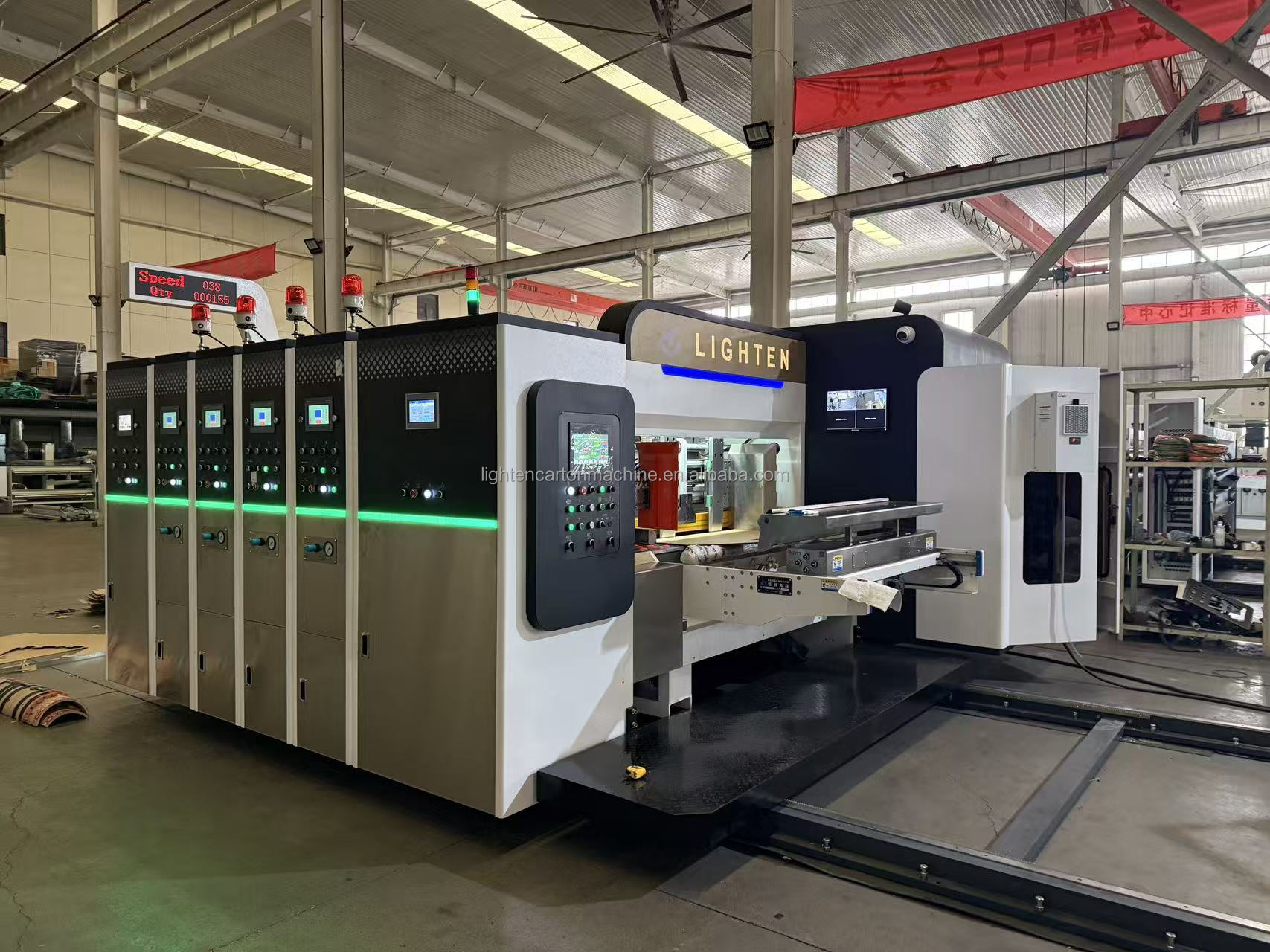

Machine Overview 2

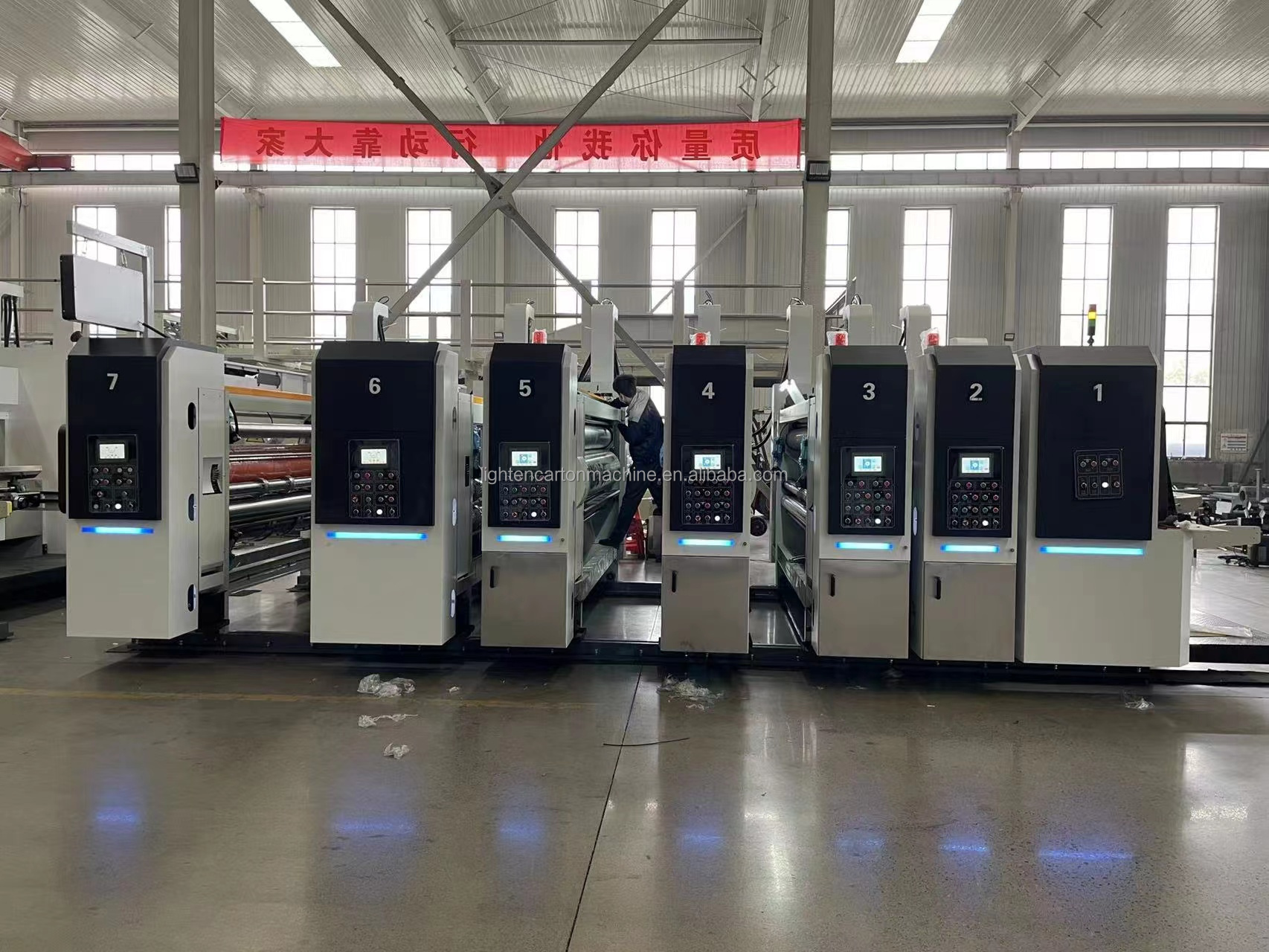

Machine Overview 3

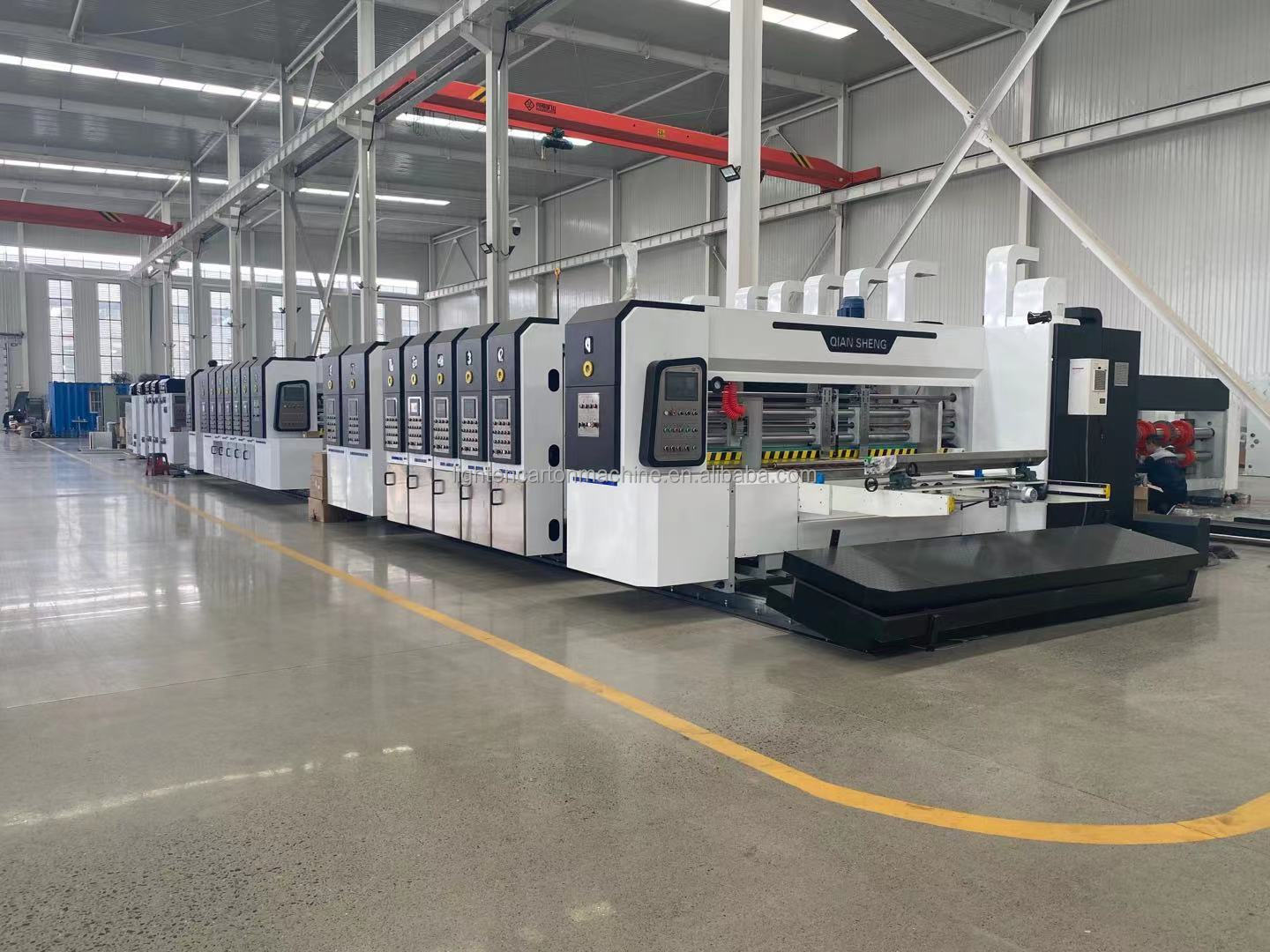

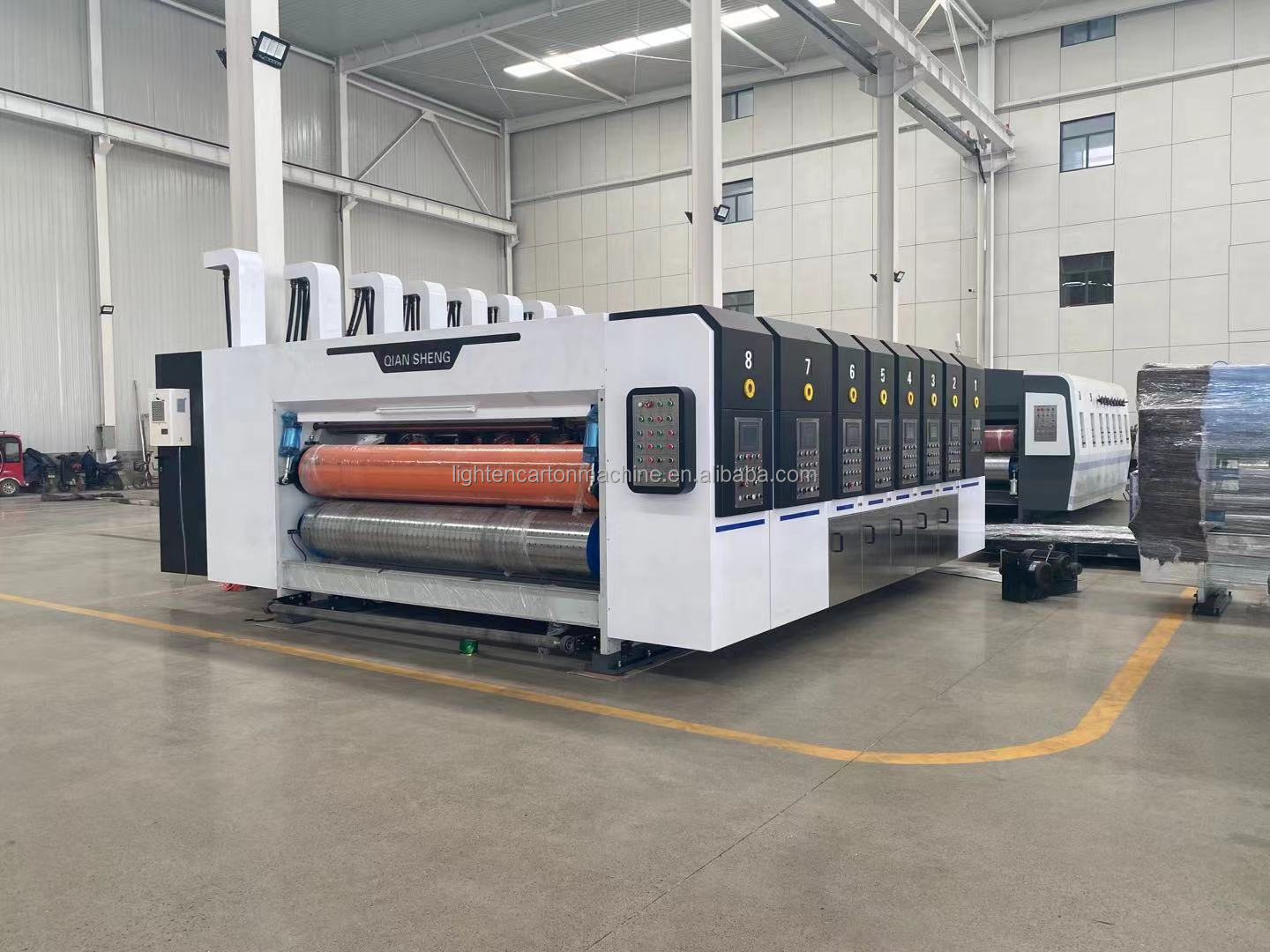

Machine Detail 1
Machine Detail 2
Technical Specifications
No. Parameter Unit Model: GYKM-1224 Model: GYKM-1428 Model: GYKM-920
1 Machine size (inner side) mm 2600 3000 2400
2 Max. Design speed pieces/min 250 180 250
3 Economical speed pieces/min 0-230 0-160 0-240
4 Max. Paper Feeding size mm 1200×2400 1400×2800 920×2400
5 Min. Paper feeding size mm 320×800 350×800 280×700
6 Max. Printing size mm 1200×2200 1400×2600 1200×2400
7 Minimum slotting distance mm Negative knife: 300×100×300×100mm
Positive knife: 180×180×180×180mm		 Negative knife: 300×100×300×100mm
Positive knife: 180×180×180×180mm		 Negative knife: 280×80×280×80mm
Positive knife: 160×160×160×160mm
8 Skip paper feeding size mm 1400×2400 1600×2800 1200×2400
9 Precision of printing mm ±0.5 ±0.5 ±0.5
10 Standard print plate thickness mm 7.2 7.2 7.2
11 Paperboard thickness mm 2-10 2-10 2-10
12 Max. Die cutting size mm 1200×2300 1400×2700 920×2300
13 Precision of die cutting mm ±1 ±1 ±1
14 Die cutting paperboard thickness mm 2-10 2-10 2-10
15 Print roller axial direction adjustment mm ±10 ±10 ±10
Lead Edge Feeder Unit
  • Adsorption lead edge feeding system.
  • Equipped with dust extraction device.
  • PLC computer control (10-inch touch screen control panel interface for lead edge feeding, printing, slotting, and die cutting units).
  • Automatic zero device.

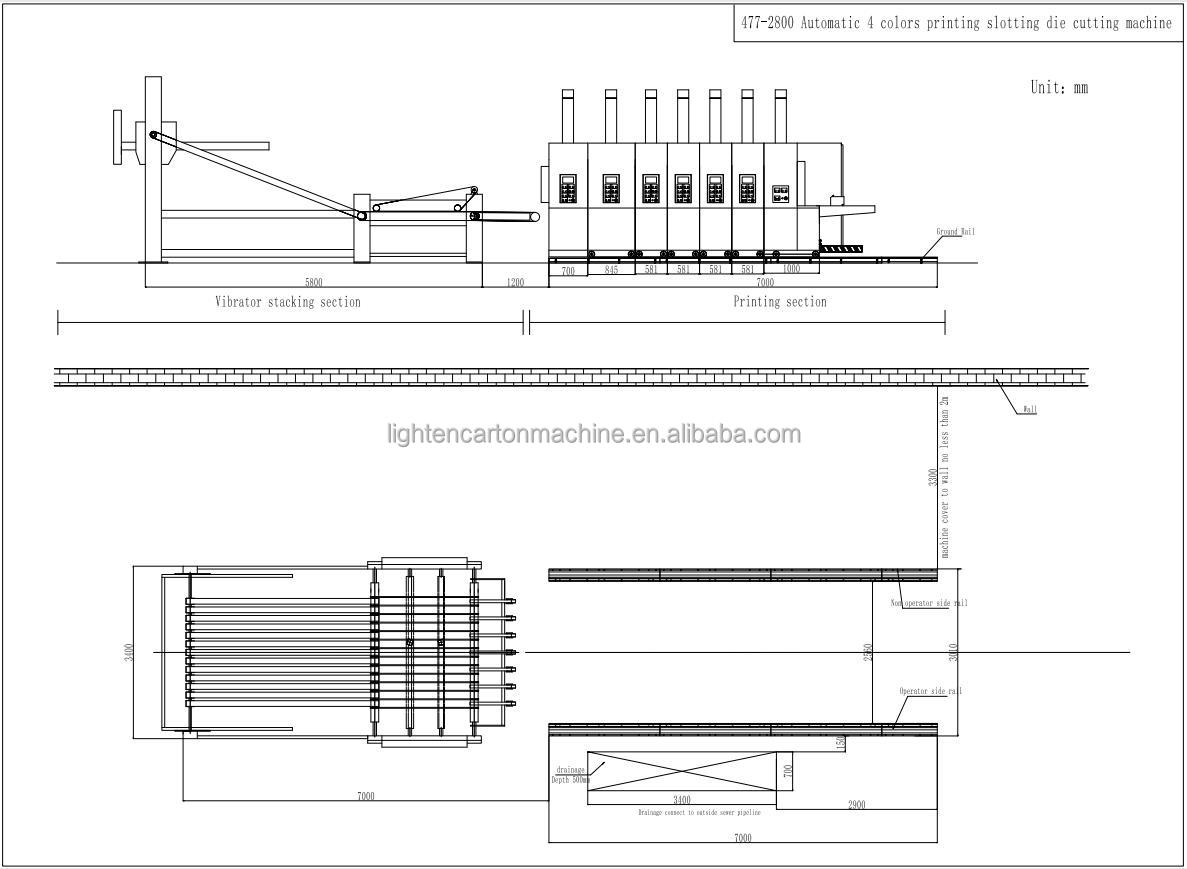

Lead Edge Feeder

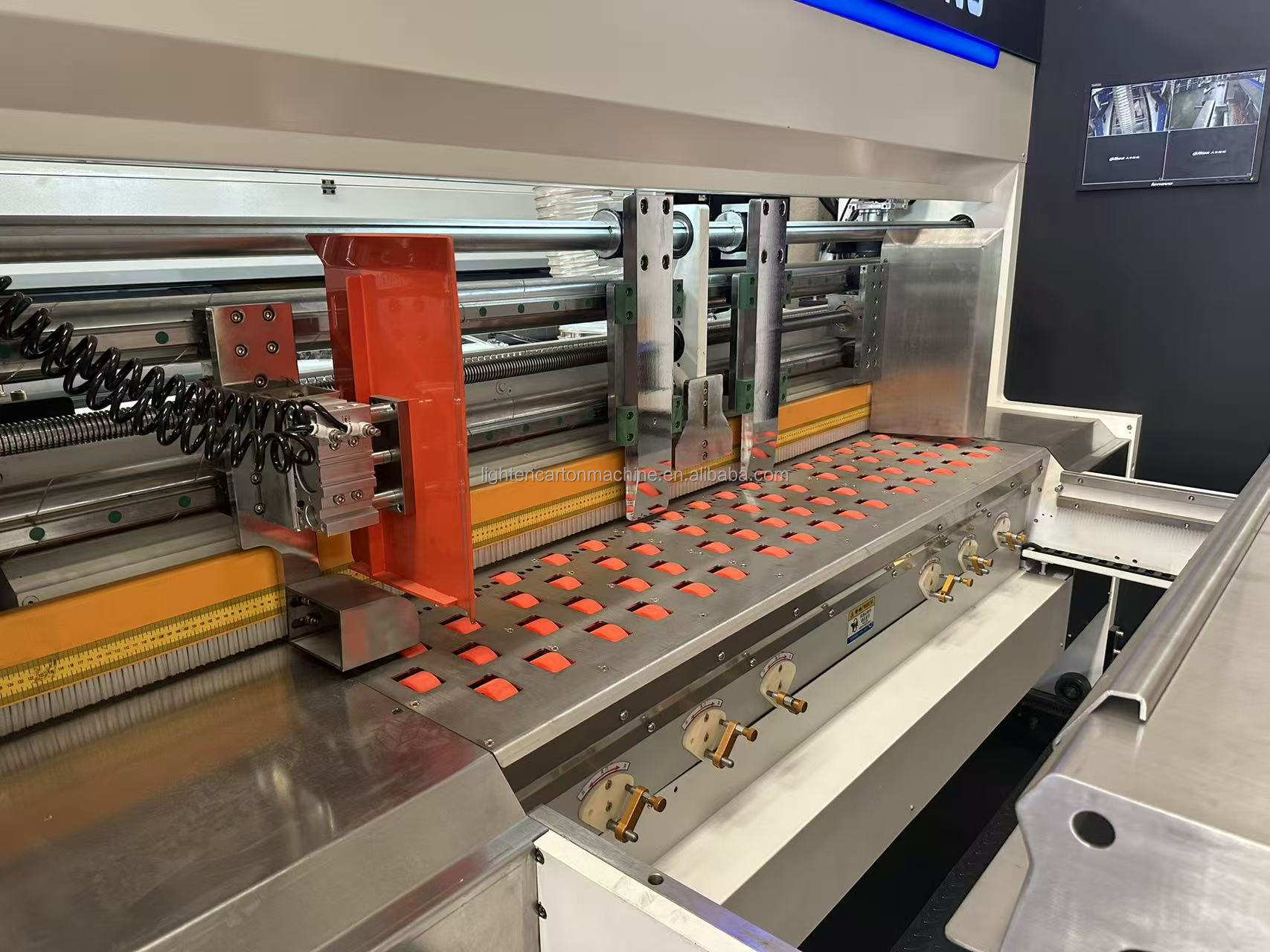

Feeder Detail 1

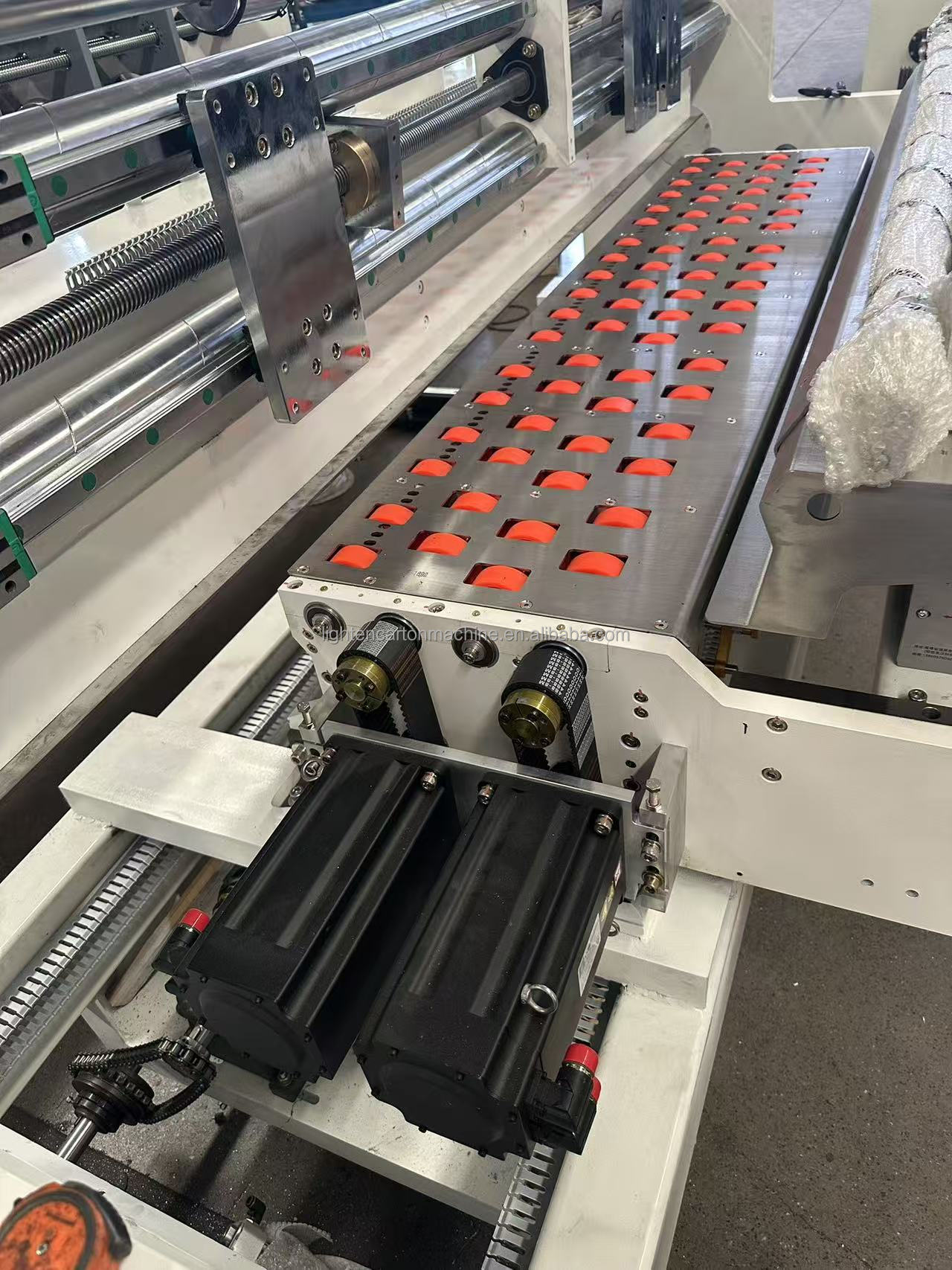

Feeder Detail 2

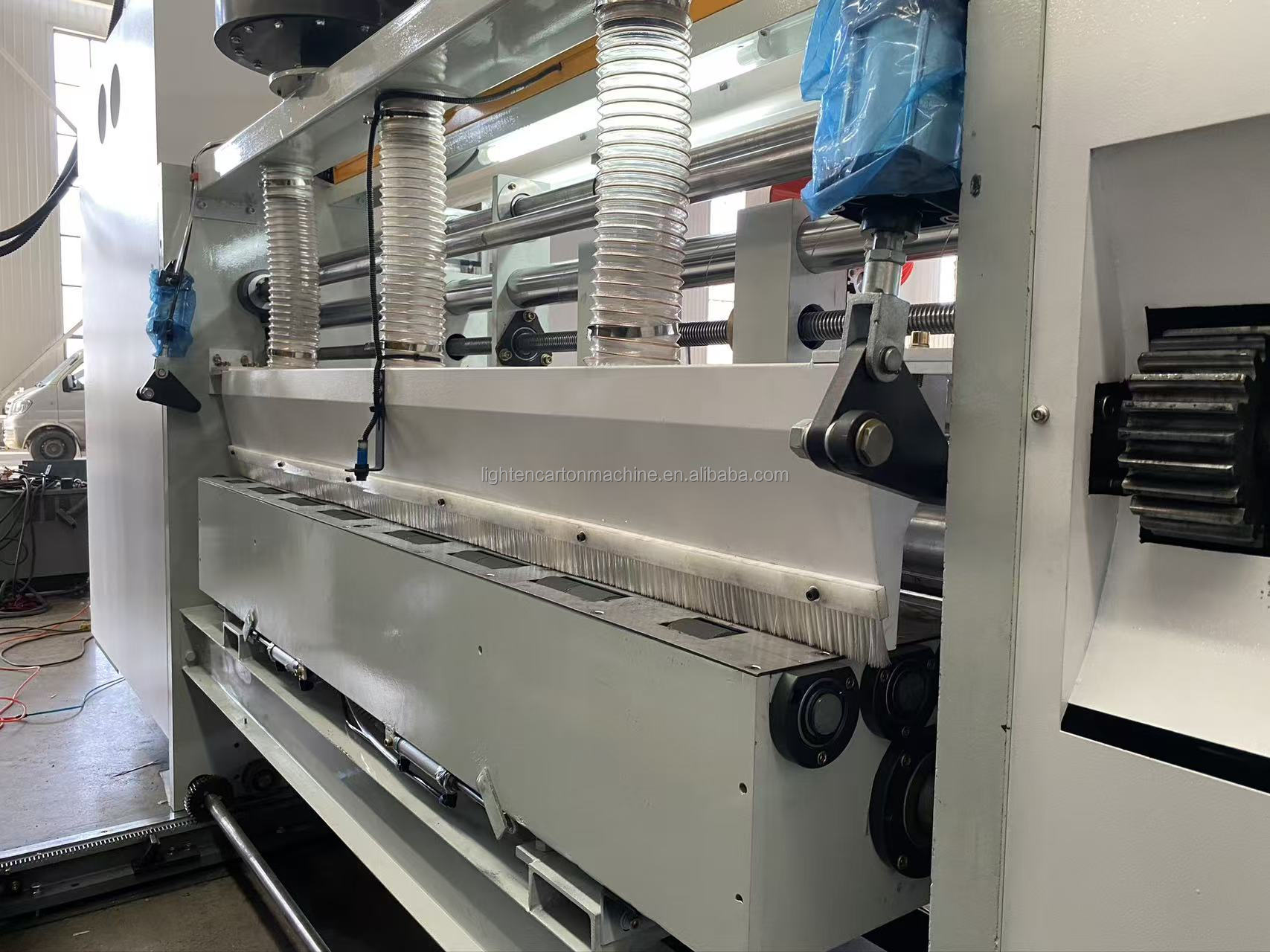

Feeder Detail 3
Printing Unit
  • Metal anilox roller with rubber roller (Dpi: 220~280).
  • Ceramic anilox roller with doctor blade (Dpi: 300~450).
  • Printing plate roller: Uses frequency converter to adjust phase, quick zero return, and high adjustment precision.
  • Vacuum transfer system.

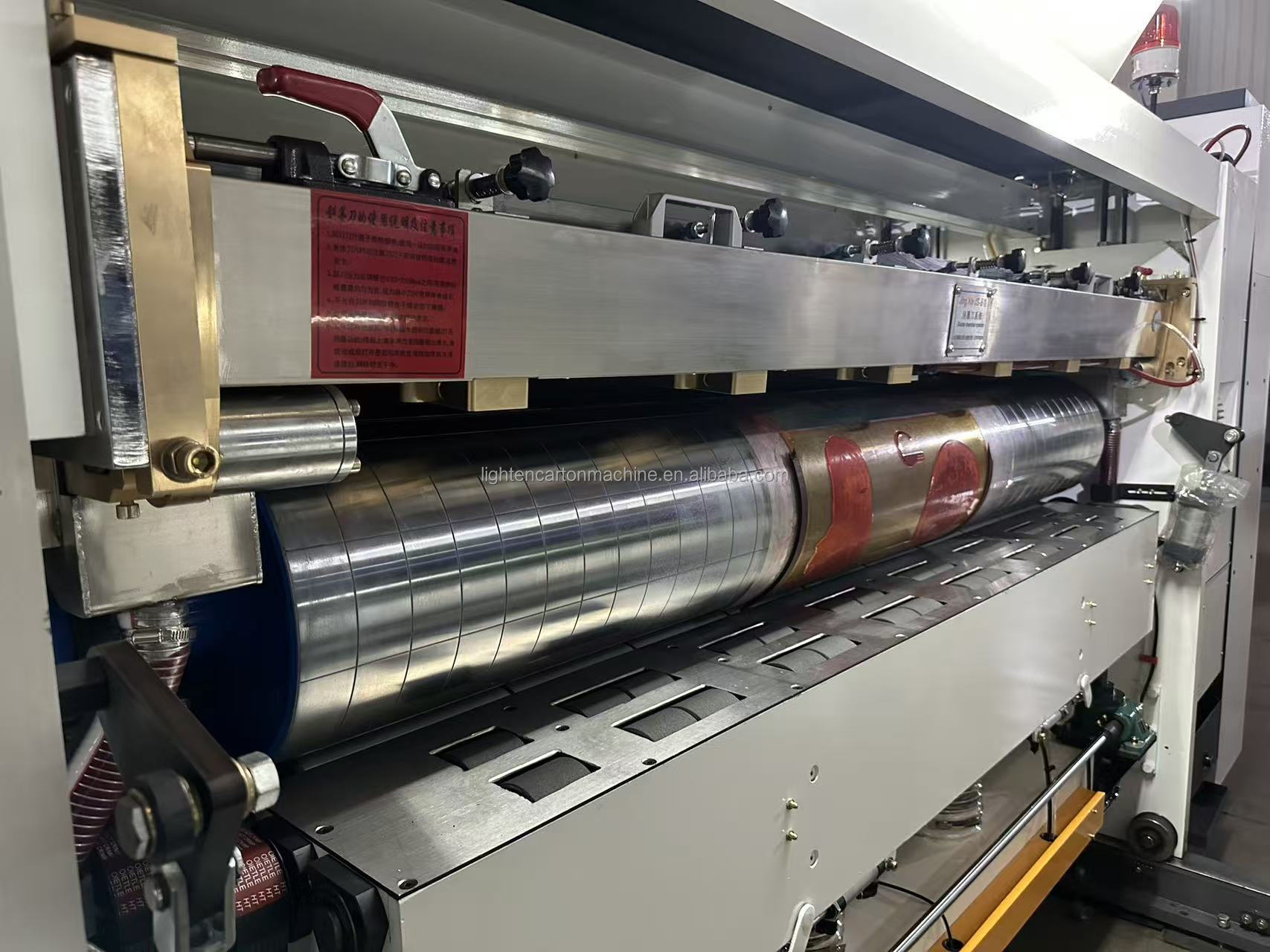

Printing Roller

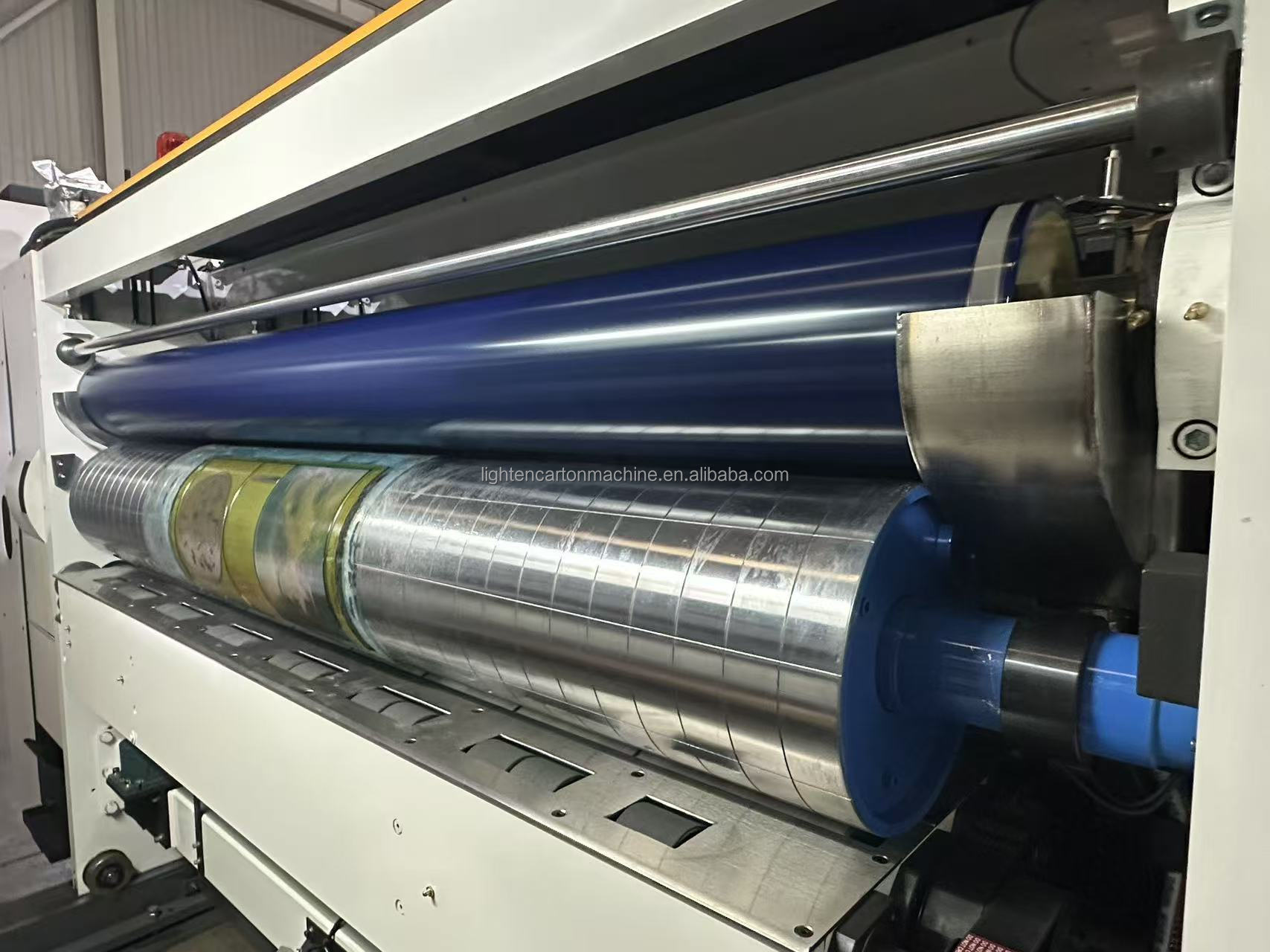

Printing Unit Structure

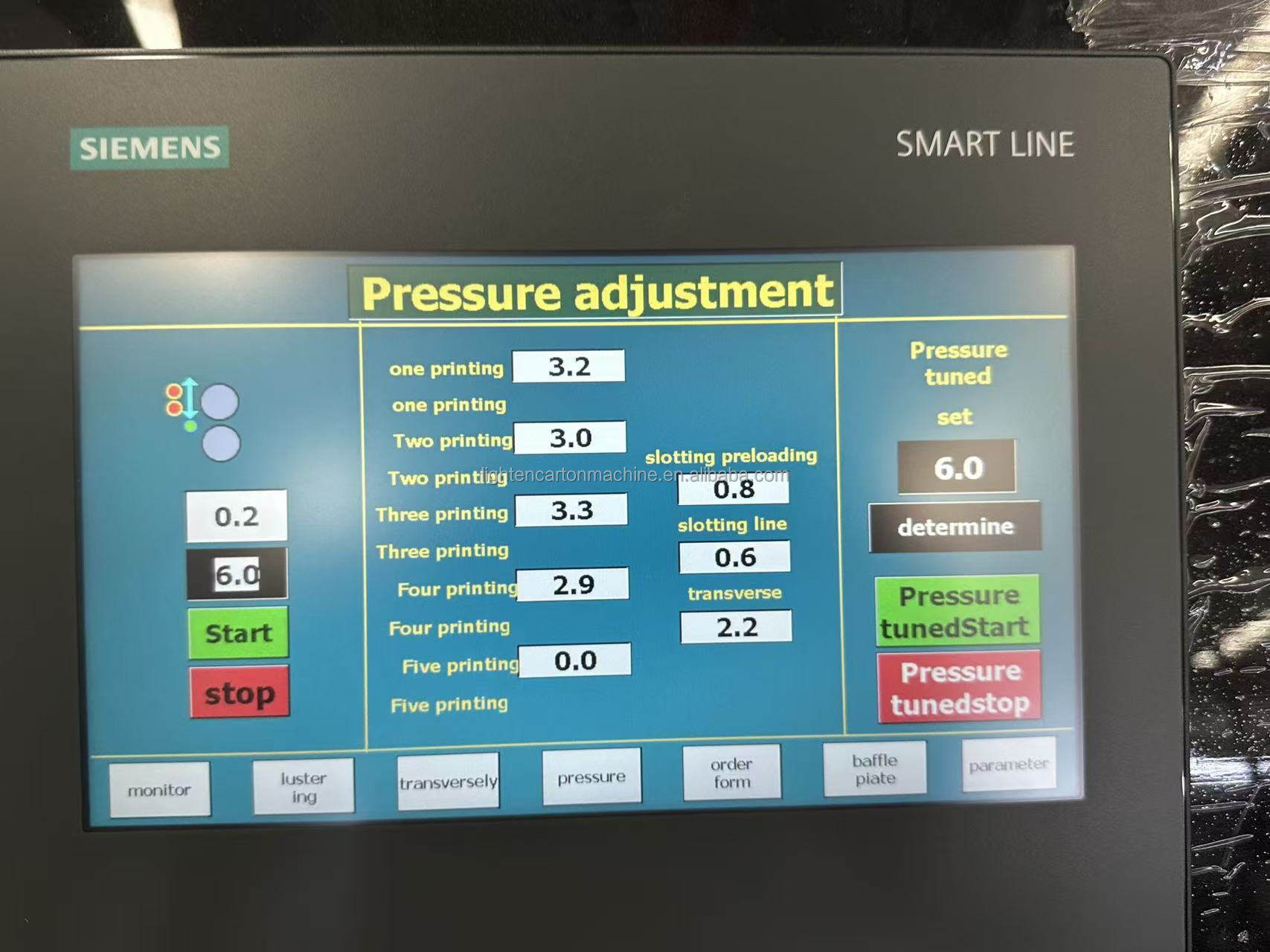

Anilox Roller Detail

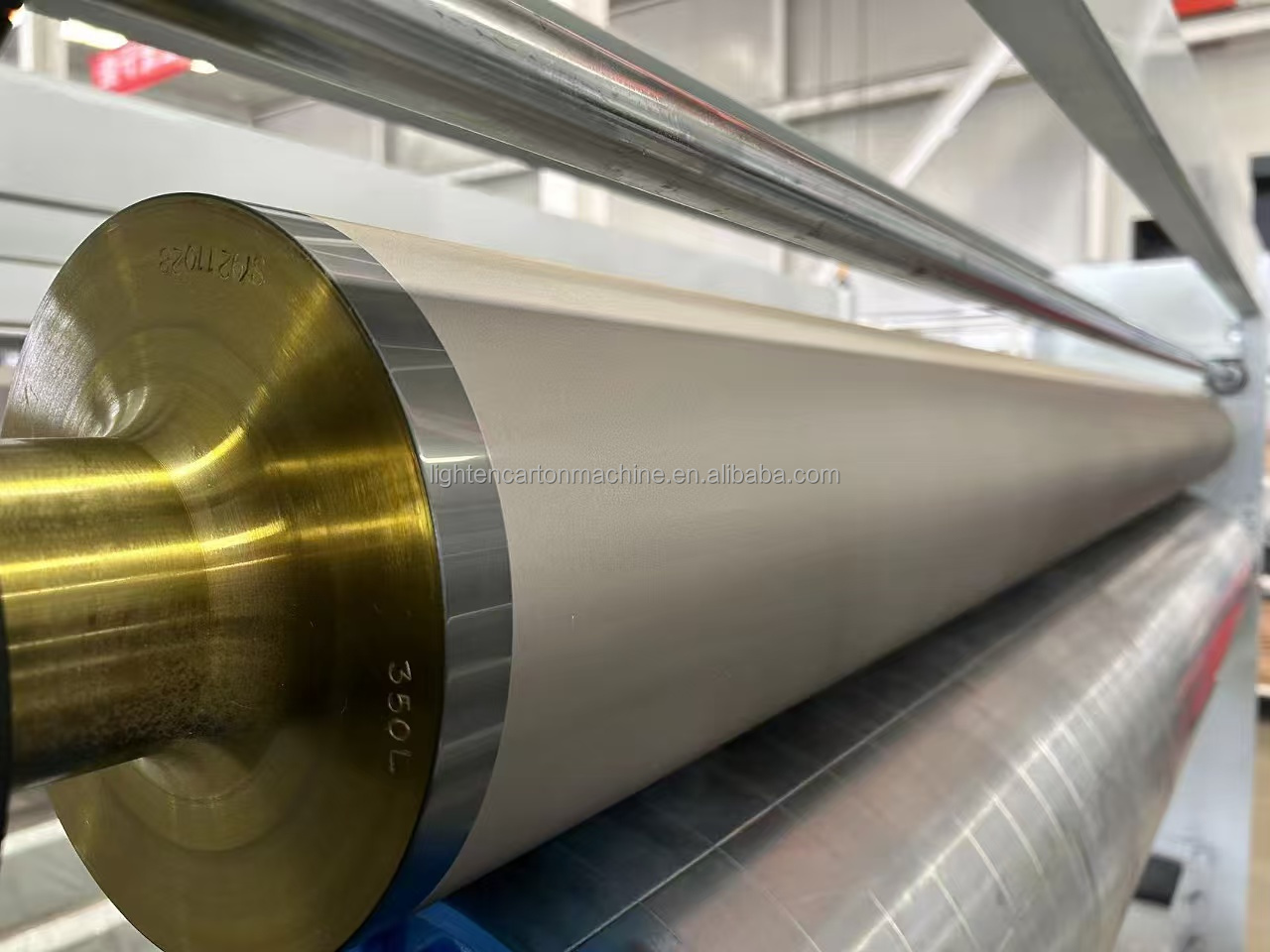

Rubber Roller Detail
Slotting Unit (Computer Adjustment)
  • PLC programmable control: Synchronizes the axial movement of left/right transport, creasing wheels, and slotter knives.
  • Automatic computerized knife adjustment and automatic correction.
  • Groove interval, box height, PLC and rotary encoder automatic controls (change order via touchscreen).
  • Quick alignment and menu storage options.
  • Two sets of pre-creasing wheels and one set of main creasing wheels to prevent paperboard damage.

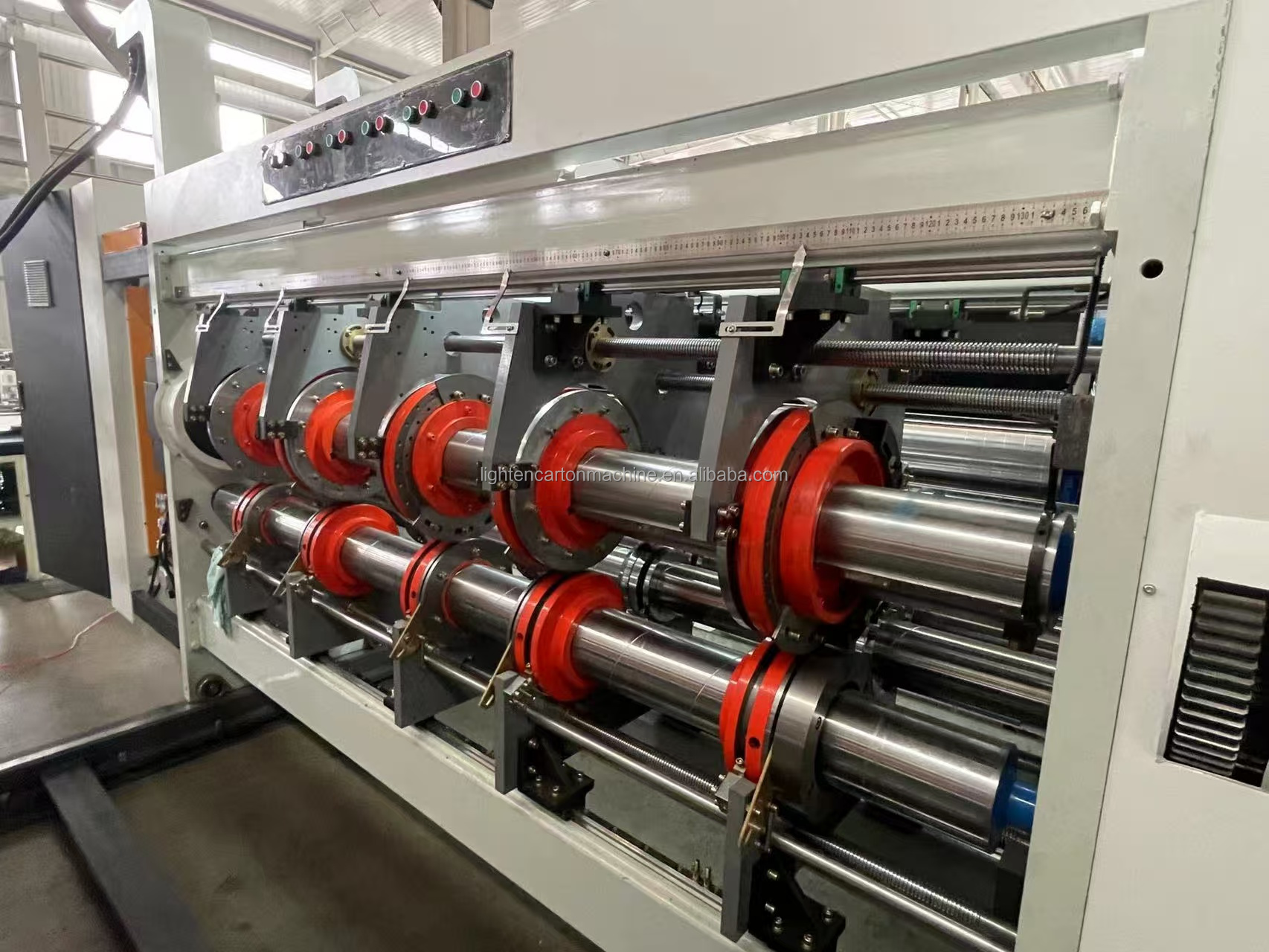

Slotting Knives

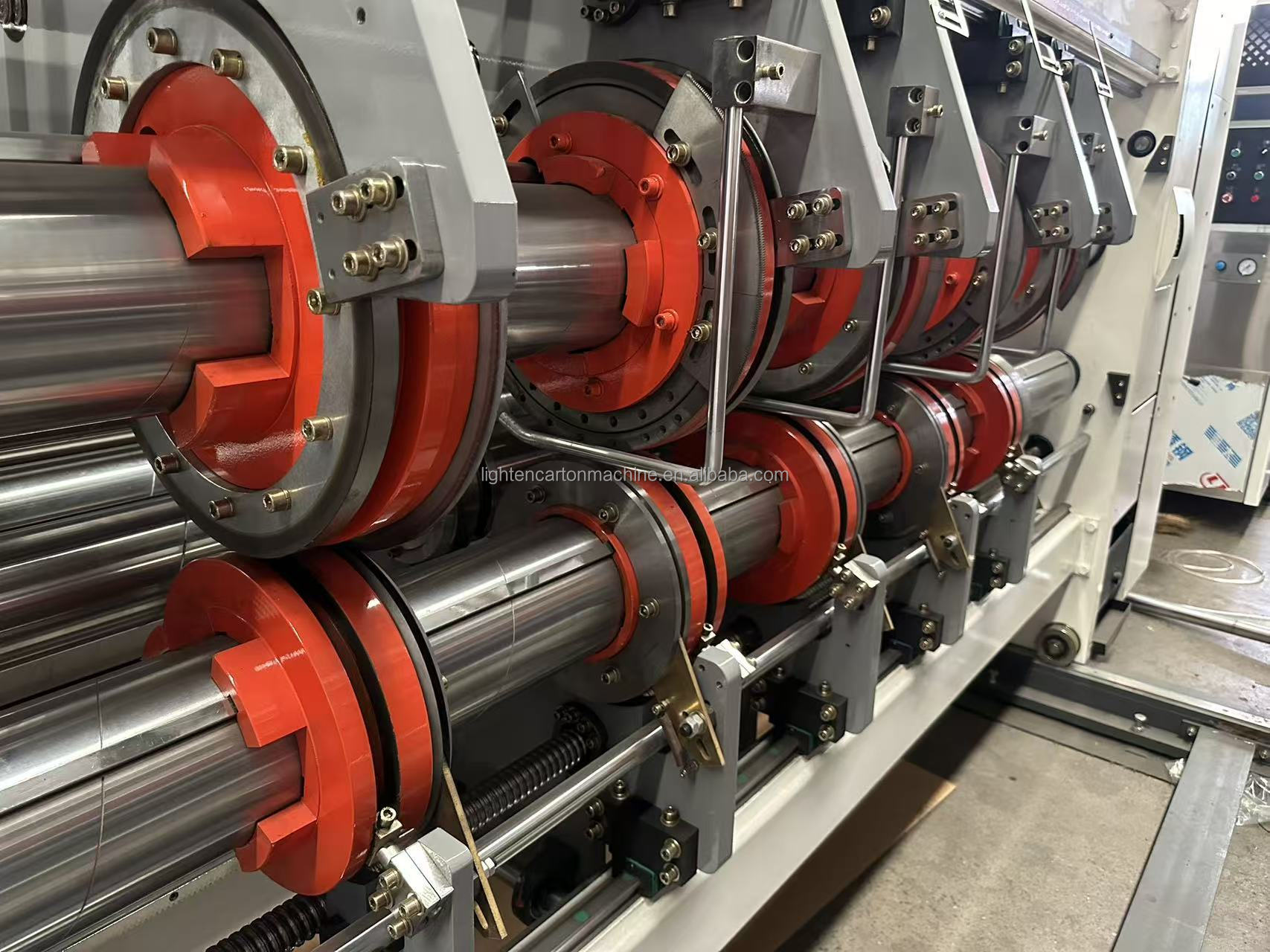

Creasing Wheels

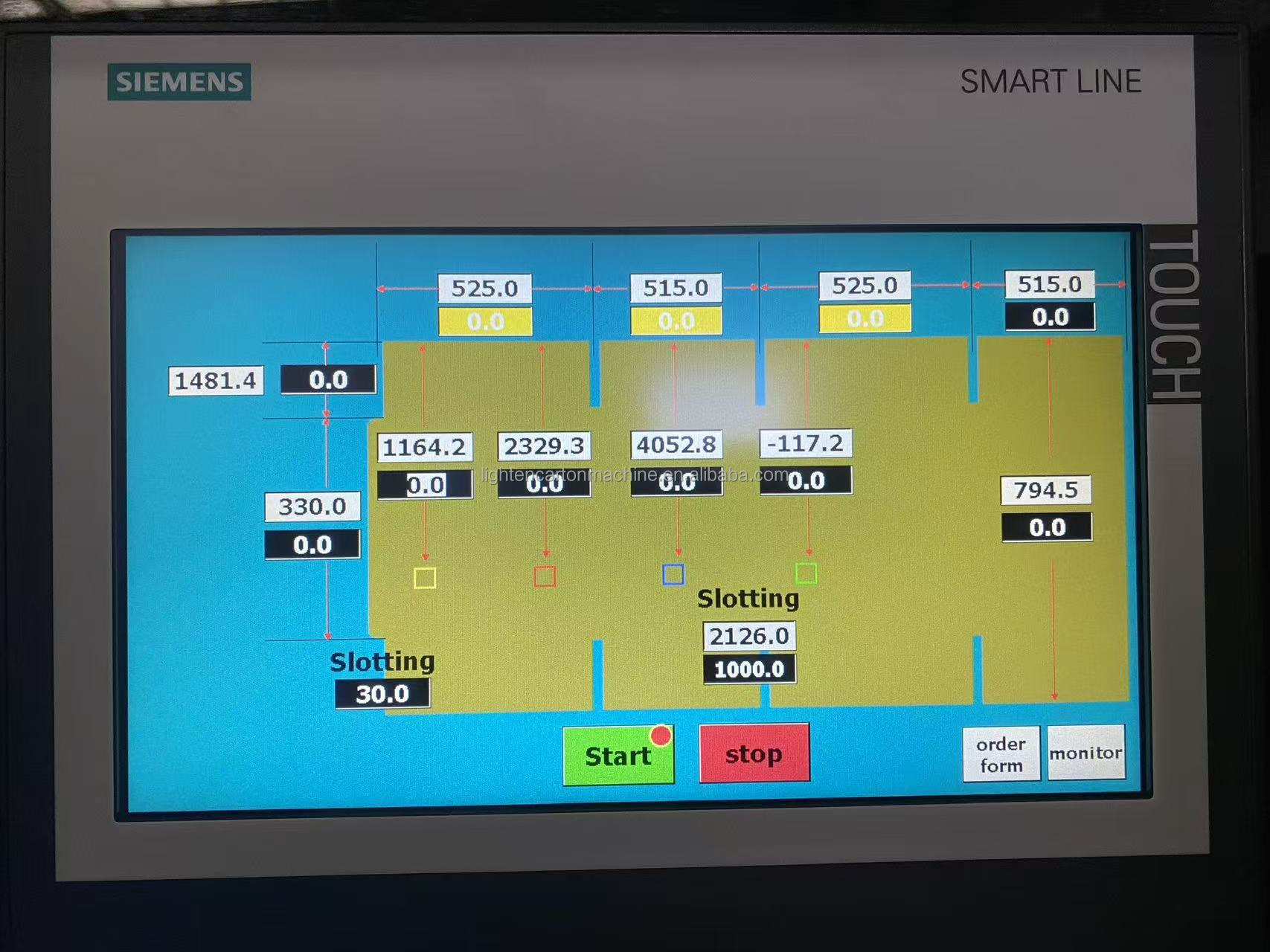

Slotting Mechanical Adjustment

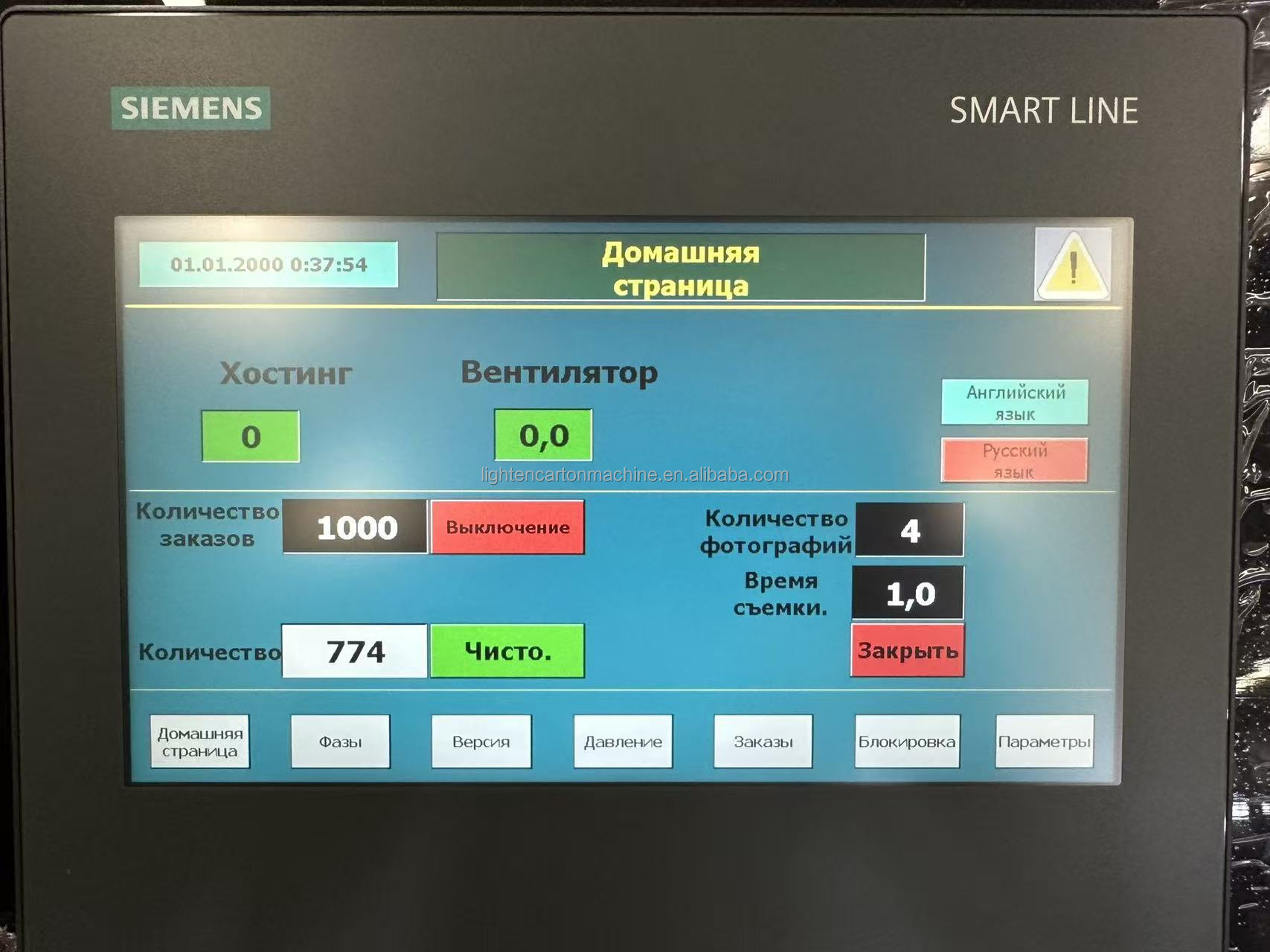

Slotting Knives Operation
Rotary Die Cutting Unit (Computer Adjustment)
  • Automatic soft roll rise system during paper pauses to reduce rubber wear.
  • Electric gap adjustment between knife mould roller and rubber padding roller (displays adjustment data parameters).
  • Die cutting roller adopts a three-planetary structure for high precision, large bearing capacity, and 360° electric digital operation.

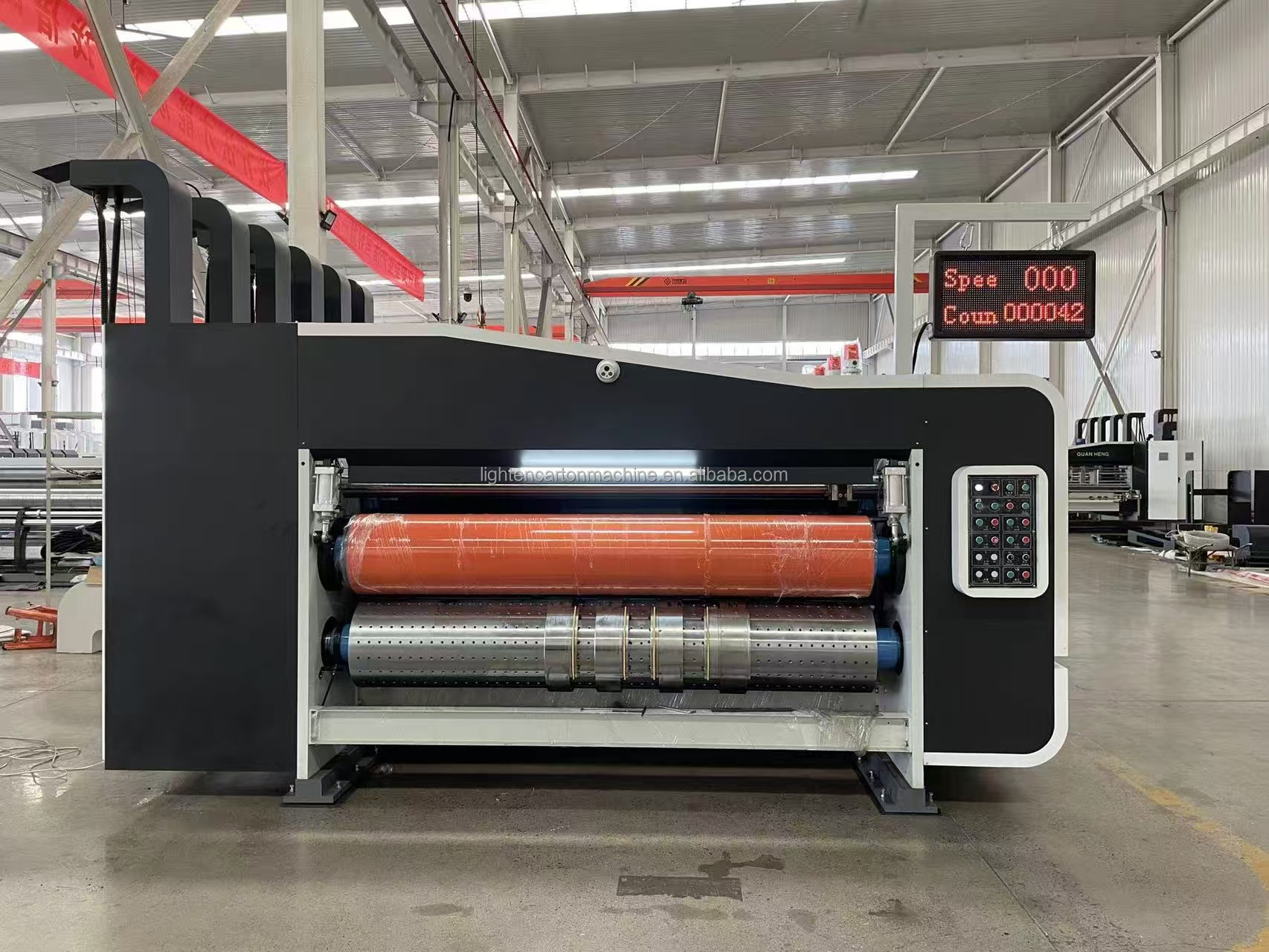

Die Cutting Roller

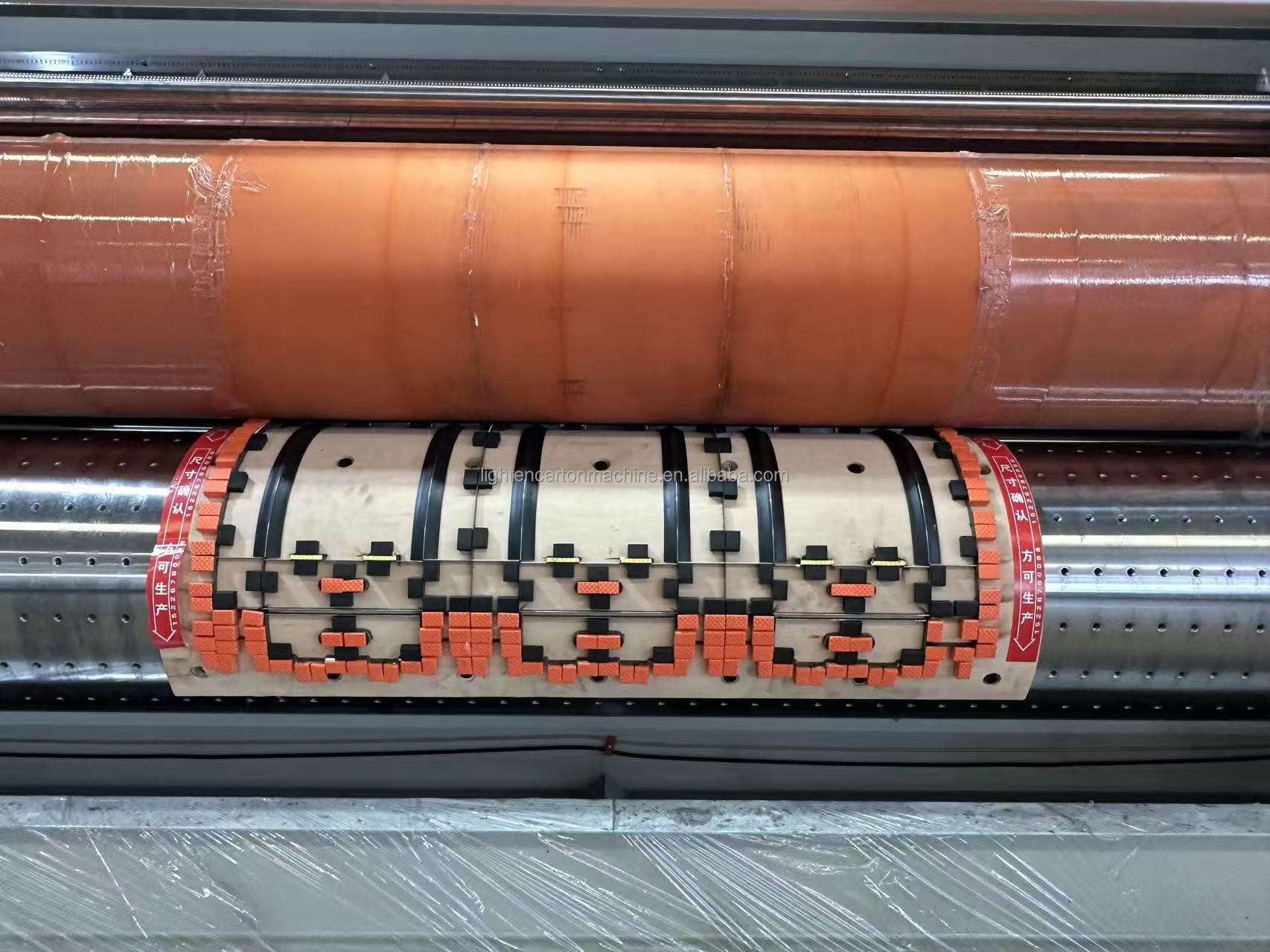

Rubber Cushion Roller
Materials and Component Brand Details

Transmission Gear

High precision grinding teeth.

Transmission Gear

Printing / Anilox / Rubber / Bottom Printing Roller

Computer dynamic balance correction, grinding, and hard chromium plating.

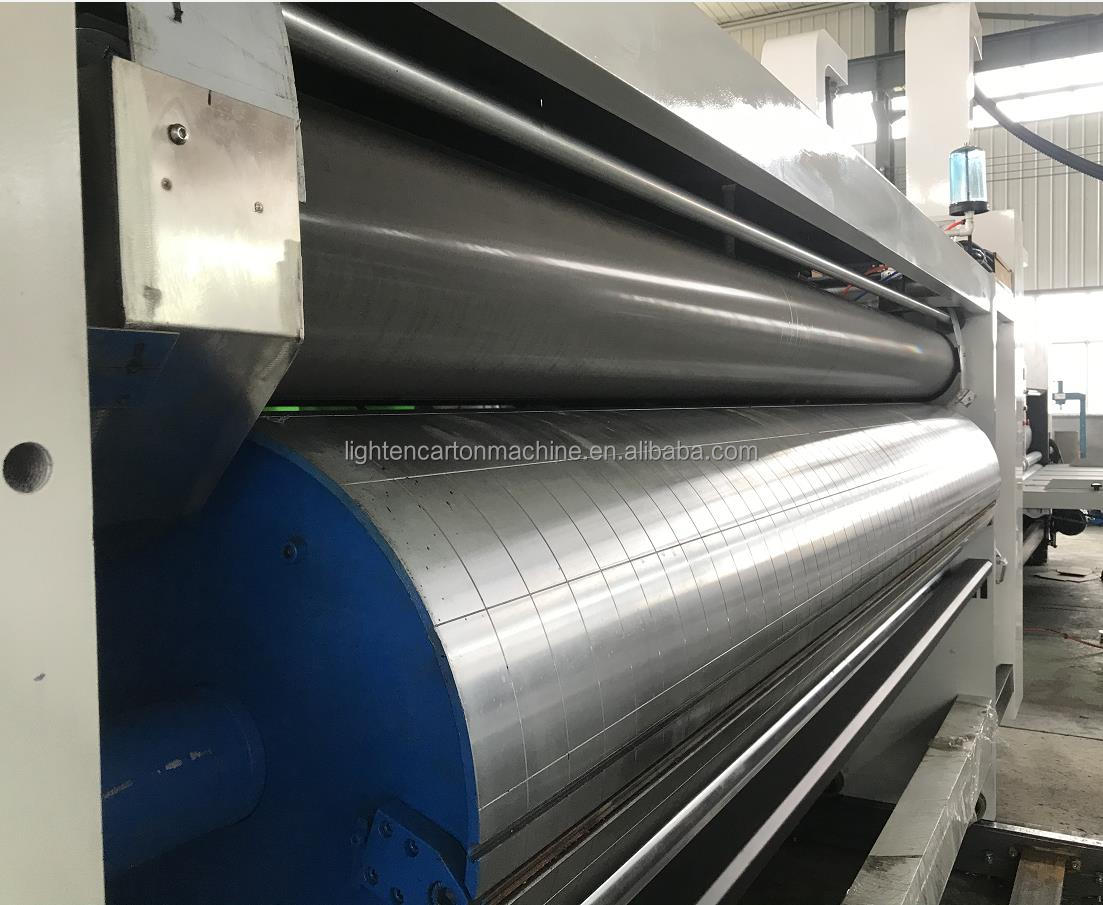

Printing Roller Parts

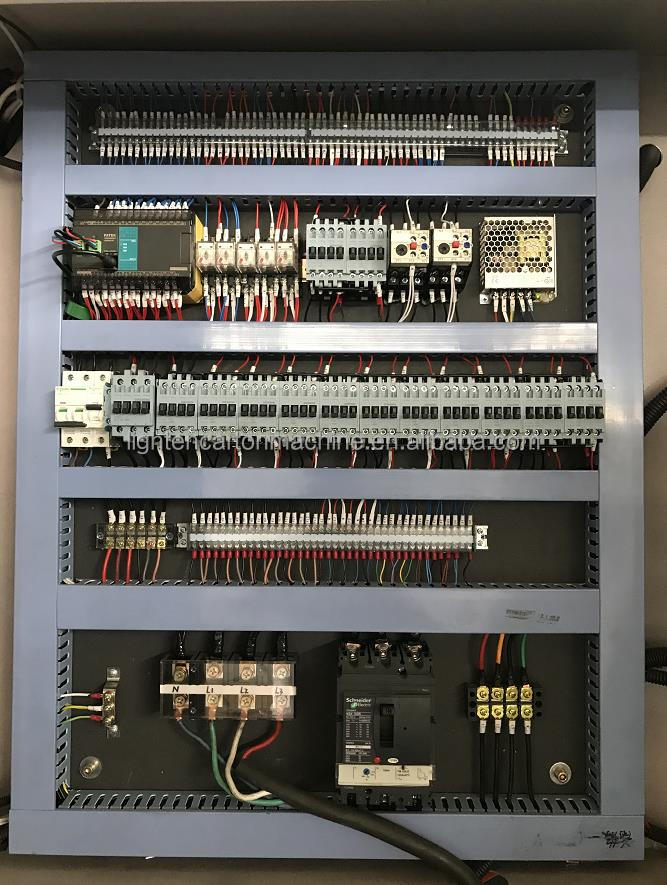

Electrical Parts

Siemens (Germany), Schneider (Germany), Delta (Taiwan).

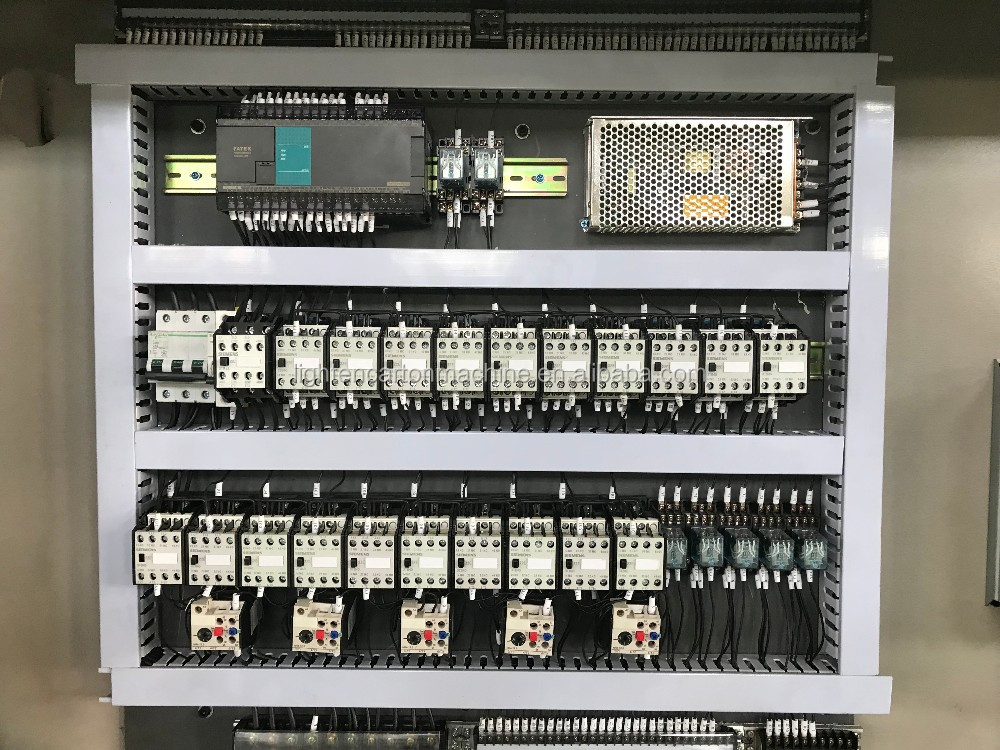

Electrical Parts

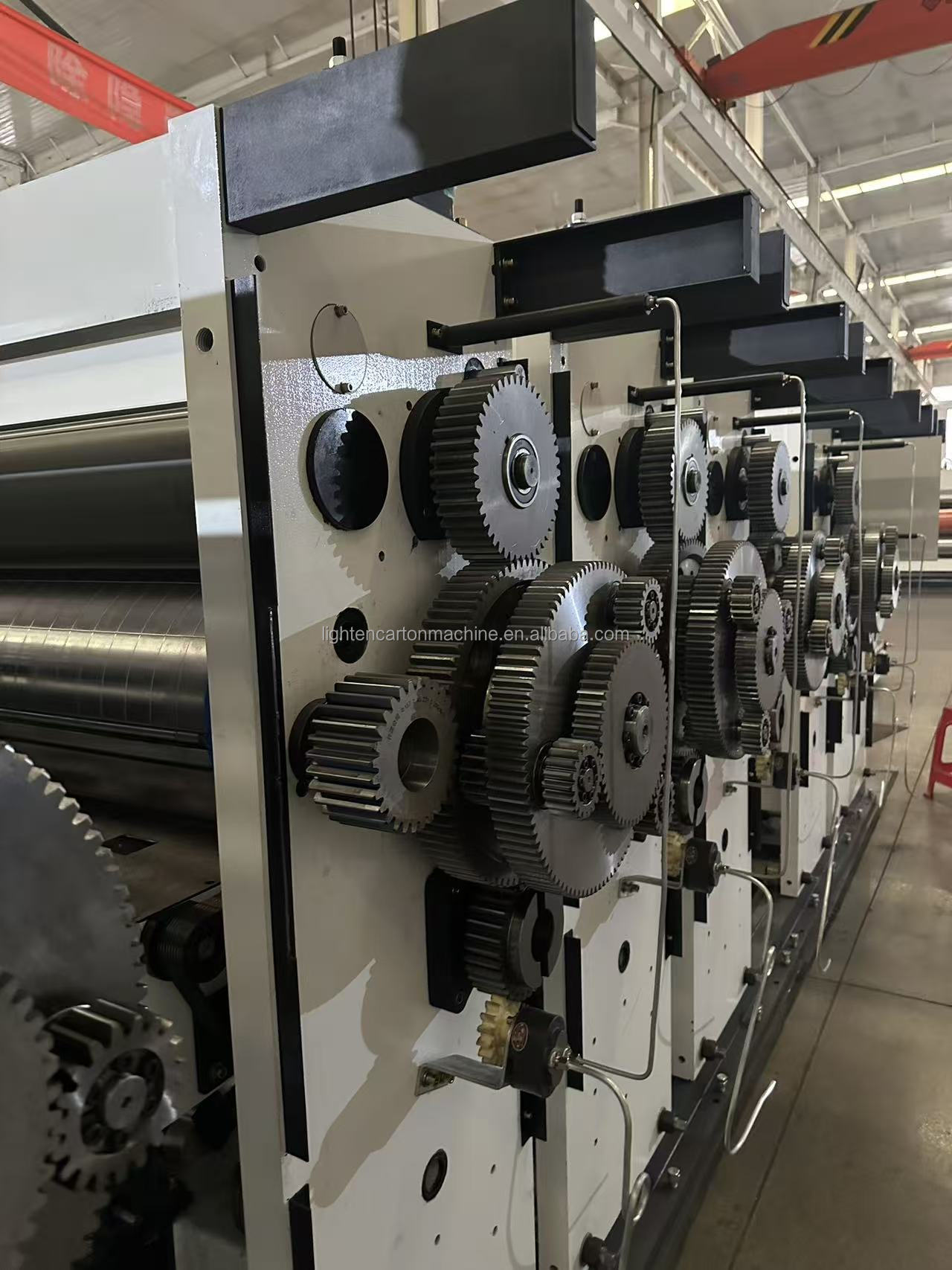

Gear Material 1
Gear Material 2
Printing Samples
Printing Sample Overview
Printing Sample 1
Printing Sample 2
Printing Box 1
Printing Box 2
Printing Quality Detail 1
Printing Quality Detail 2
Factory & Customers
Factory Overview
Customer Visit 1
Customer Visit 2
Customer Visit 3
Guarantee & Service
  • GUARANTEE: We provide 5-year guarantee with spare parts for free. Parts damaged under normal operation during this period will be replaced.
  • OVERSEAS SERVICE: Engineer service teams are available in overseas countries. We provide 24-hour convenient service.
  • INSTALLATION: Technicians will be dispatched to install the machine for the customer.
  • SUPPORT: 24 hours online service, providing free quick-wear parts. Product certificated by CE and other standards.
  • SERVICE OFFICES: Overseas service offices in 13 countries to provide after-sales support.
CE Certification
Payment & Delivery
Delivery Packaging 1
Delivery Packaging 2
Frequently Asked Questions
Q1: What is the maximum production speed of this machine?
A: The machine running speed is between 150 to 300 pieces per minute, depending on the model and the configuration chosen.
Q2: Can you custom-made the size of the machine to fit our needs?
A: Yes, we can custom-manufacture the machine dimensions to suit your specific production requirements.
Q3: Which brands of electrical components are utilized in the machine?
A: The electrical integration system features highly reliable components from Siemens, Schneider, Delta, and Fatek.
Q4: What is the thickness range of the paperboard that this machine can process?
A: The machine can efficiently process paperboard with a thickness ranging from 2 mm to 10 mm.
Q5: What is the duration of the guarantee and what does it cover?
A: We provide a 5-year guarantee that includes replacement parts at no cost for items damaged under normal operating parameters.
Q6: Do you offer installation and engineering services on-site?
A: Yes, we dispatch skilled technicians to install machines for our customers and offer reliable 24-hour service supported by overseas offices in 13 countries.
