| Item | Specification |
|---|---|
| Printing Method | Thermal Transfer |
| Print Head | 53 mm or 32 mm, Resolution: 300 dpi |
| Print Resolution | 200-600 dpi (High-resolution models up to 600 dpi) |
| Print Area |
Intermittent Mode: 53mm (W) * 75mm (L) for R53 / 32mm (W) * 75mm (L) for R32 Continuous Mode: 53mm (W) * 1000mm (L) for R53 / 32mm (W) * 1000mm (L) for R32 |
| Standard Ribbon | R53 Model: 55mm (W) * 600m (L) R32 Model: 35mm (W) * 600m (L) |
| Print Speed |
Minimum: 100 mm/s (Intermittent) / 30 mm/s (Continuous) Maximum: 500 mm/s (Intermittent) / 600 mm/s (Continuous) (Typical speed range: 10-500 mm/s) |
| Print Frequency | Intermittent Mode: 200 prints/minute Continuous Mode: 350 prints/minute |

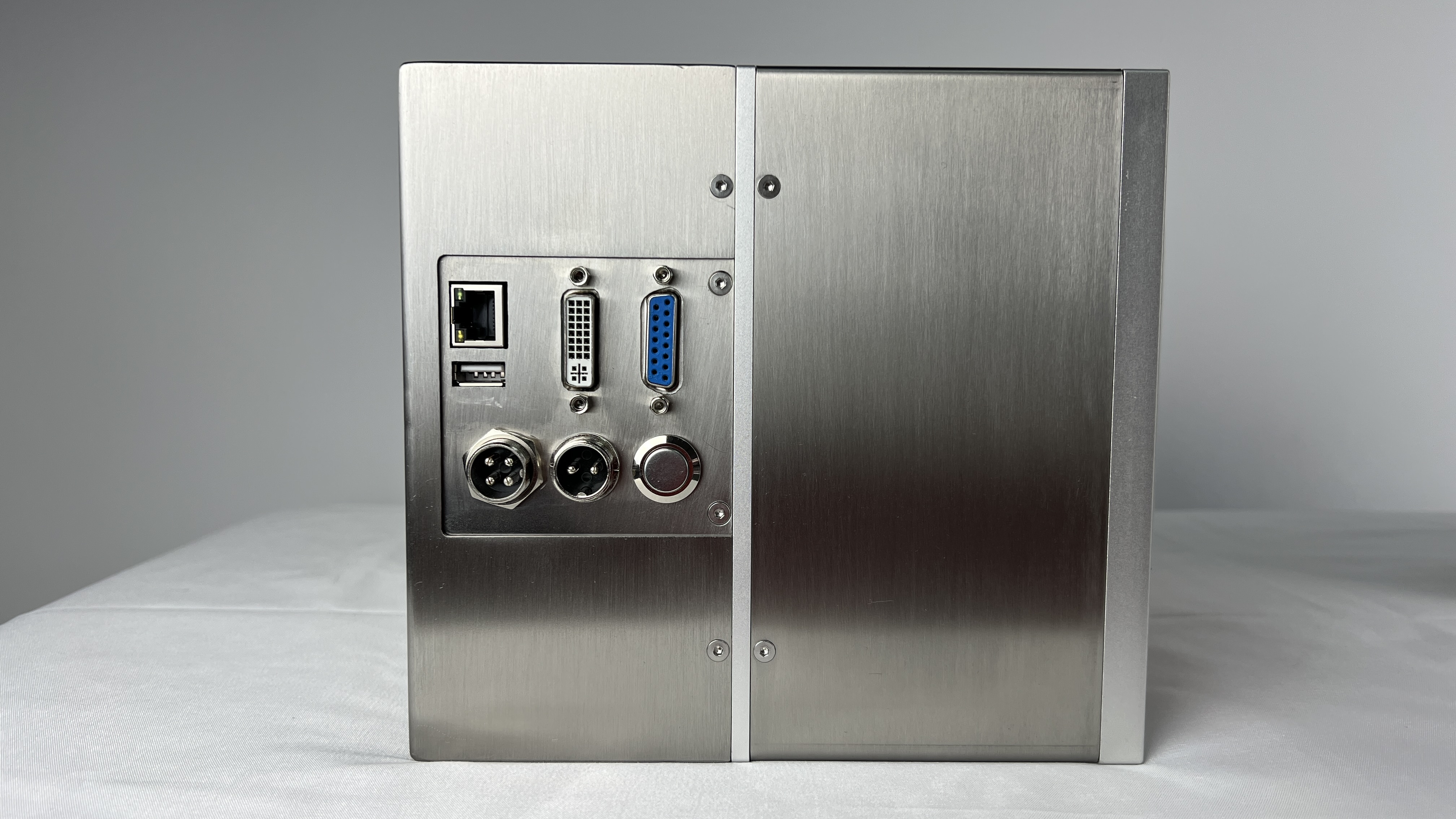

| Communication Interface | Typically equipped with RS232, USB, Ethernet, and other interfaces for easy integration |
| Applicable Materials | Can print on various materials including PE, PP, PET, aluminum foil, etc. Temperature and pressure parameters require adjustment for different materials. |
| Ribbon Saving Mode | Supports interlace, radial, multiple print signals, digital ribbon saving, ribbon back, and other saving modes; Minimum line spacing ≤ 0.5mm |
| Input / Output |
Input: 4 Opto-isolated Inputs (including "Print Start" and 1 configurable input) Output: 4 Custom 24V PNP Outputs (including fault, warning, and 2 configurable outputs) |
| Power Supply | 36V Power Adapter |
| Power | Max. 200W |
| Environmental Conditions |
Operation: 0°C to 40°C @ 10% to 90% humidity, non-condensing Storage: -40°C to 60°C @ 10% to 90% humidity, non-condensing |

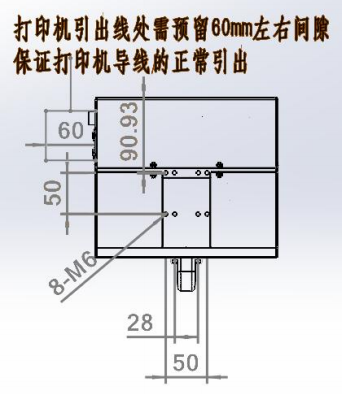

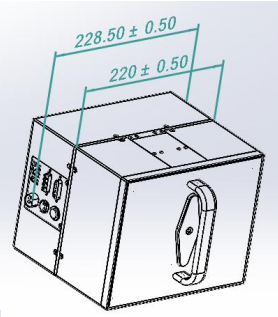

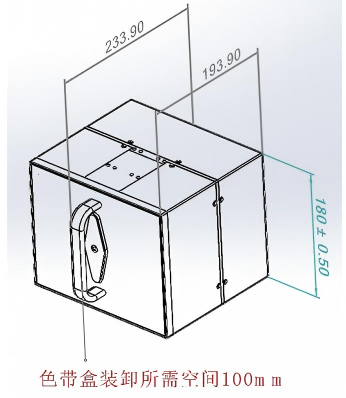

| Machine Dimensions |
Printer: H 193.9mm, W 233.9mm, D 180.00 ± 0.50 mm Controller: H < 170mm, W < 263mm, D < 190mm |
| Machine Weight |
Printer: < 8 kg (Approx. 7.93 - 8 kg) Controller: < 2 kg (Approx. 1.72 - 2 kg) |
