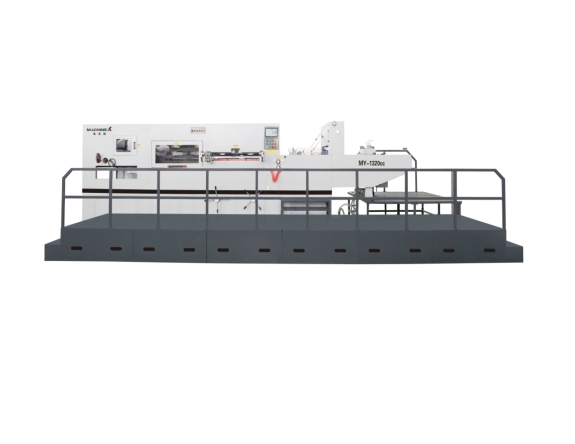

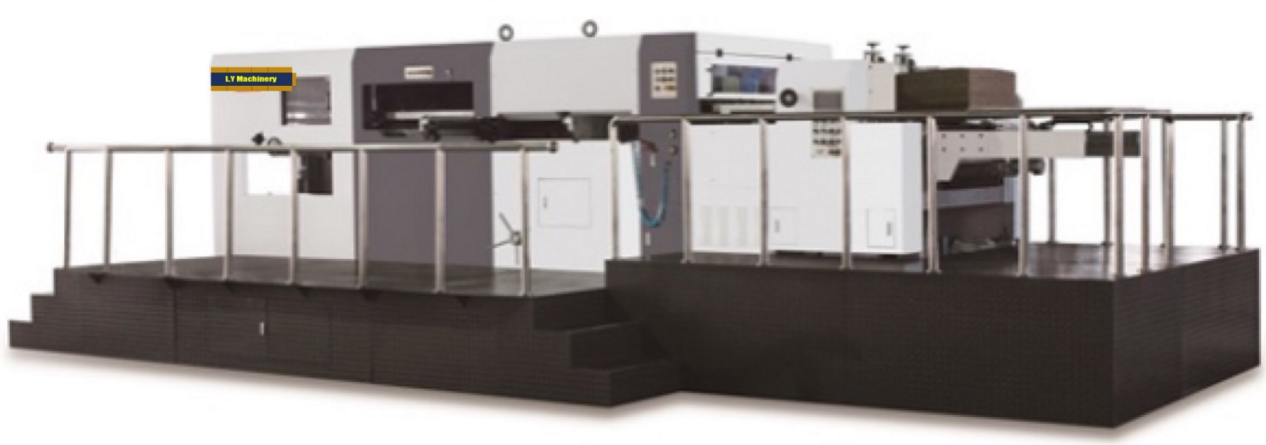

MYP-1320E Automatic Die-Cutting & Stripping Machine

Machine Specification Details

Model	MYP-1320E
Max. Paper Size	1320×960mm
Min. Paper Size	450×400mm
Max. Cutting Size	1300×940mm
Max. Pressure	340 Tons
Sheet Thickness	Cardboard: 200-2000g/m² Corrugated Board < 8mm (Max. thickness)
Max. Cutting Speed	6000 sheets/h
Max. Stripping Speed	5500 sheets/h
Die-Cutting Precision	±0.15mm
Min. Gripper Edge	8mm
Max. feeding Pile Height	1650mm
Max. Delivery Pile Height	1500mm
Total power	27KW
Weight	20 Tons
Air requirement	0.8Mpa, ≥0.36m³/min
Overall Dimension	8600×4530×2920mm

Configuration / Parts Information

NO.	Name	Brand	Producing area & comment
1	Main worm & worm wheel	M10	Korean bearing steel, after quenching, wear to worm, Taiwan-owned processing
2	Intermittent mechanism	CAMINDEXER	Taiwan
3	Die cutting steel plate	7mm	Korean material 75Gr1
4	Main chain	Iwis	Germany
5	Pneumatic clutch	OMPI	Italy
6	High-speed joint	OMPI	Italy
7	Screws	12.9 level	Taiwan
8	Bearing 30311	SKF	Sweden
9	Bearing 32016	SKF	Sweden
10	Bearing 57941/10	SKF	Sweden
11	Bearing 6016-2Z	SKF	Sweden
12	Bearing 6212-2Z	SKF	Sweden
13	Bearing 6214-2Z	SKF	Sweden
14	Bearing 6218-2Z	SKF	Sweden
15	Bearing 6219-2Z	SKF	Sweden
16	Bearing 63202-2Z	SKF	Sweden
17	Bearing 80202	SKF	Sweden
18	Bearing 80208	SKF	Sweden
19	Bearing 80209	SKF	Sweden
20	Bearing 80210	SKF	Sweden
21	Bearing 80216	SKF	Sweden
22	Bearing 80307	SKF	Sweden
23	Bearing 6311	SKF	Sweden
24	Other Bearings	NSK	Japan
25	Joint bearing POS12L	SF	Korea
26	Linear bush LM12UU	HHY	Korea
27	Linear guide rail	HIWIN	Taiwan
28	Encoder	OMRON	Japan
29	Frenquency converter	TOSHIBA	Japan
30	Programmable logic controller	OMRON	Japan
31	Human-computer interface	WEINVIEW	Taiwan
32	Photoconductive switch	OMRON\KEYENCE	Japan
33	Approach switch	AUTONICS	Korea
34	A.C. contactor	Schneider Electric	France
35	Thermorelay	Schneider Electric	France
36	Air switch	LS	Korea
37	Button	Schneider Electric	France
38	Give paper motor	WANSHSIN	Taiwan
39	Receive paper motor	WANSHSIN	Taiwan
40	Main Motor	DEDONG	China
41	Lubrication system	GOLDKA	China
42	Pneumatic system	SNS	China
43	Solenoid valve	SNS	China
44	Vacuum pump	EUROVAC	Taiwan
45	Relay	OMRON	Japan
46	Foil control Servo motor	YASKAWA	Japan

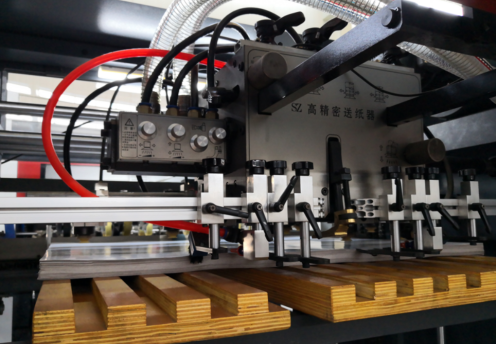

Machine Technical Data Drawing

Paper Feeding Unit

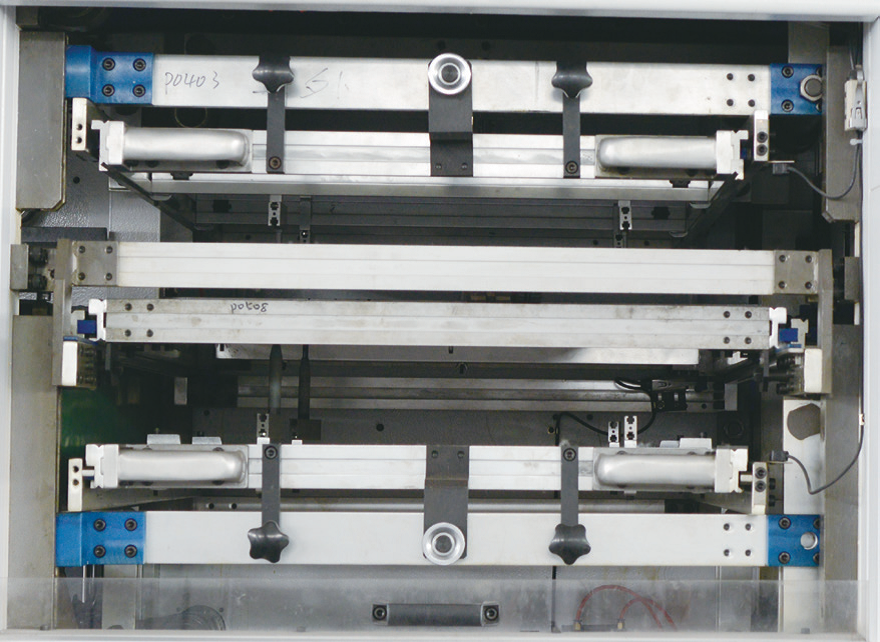

The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper-feeding nozzles, which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles, which can move up and down in a large stroke especially applicable for small-corrugated paper. The large power compressor provides a high suction force. It can be conveniently adjusted; paper can be divided reliably, and it runs fast and stable.

By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding.

To improve the working efficiency, paper feeding and collecting are realized by Taiwan Chenggang dual-speed reduction motor, which provides a long service life and a high torsional force, and it saves time due to its high lowering speed.

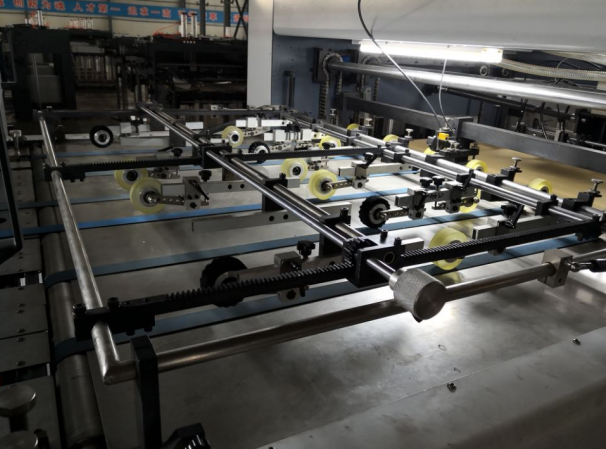

Paper Conveying Unit

The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.

Paper is positioned by a pushing unit and a pulling unit, which can be shifted, conveniently for different specifications of paper.

Die-cutting Unit

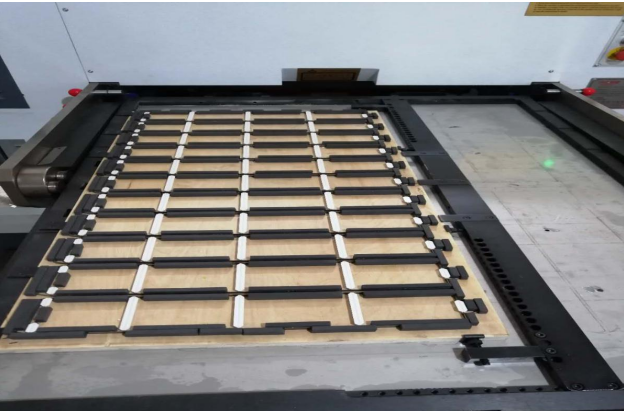

The steel wall plate is applied (rejecting cast wall plates because of their low pulling force and high deformation). The pulling/pressing force is enlarged, becoming firm and endurable without any deformation.

Upgraded to automatic pressure regulation and automatic front scale regulation, upgrading it into a convenient and favorable digital device with high controlling speed.

The oil route is forcibly lubricated by a high-pressure oil pump made in Taiwan to reduce wear. An oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely.

The novel transmission mechanism provides high-speed die-cutting, and the highly precise swing link platform improves the padding speed.

The pneumatic plate locking unit fixes the upper frame firmly and quickly. The front, back, left, and right are pneumatically locked simultaneously.

The paper holding rack chain is imported from Germany, providing a long service life and stable precision.

The Japanese intermittent mechanism improves the die-cutting speed and precision while reducing device noise.

The torque limiter is equipped with overload protection. The Italian pneumatic brake and clutch with SMC rotary joint comply with the European standard, providing fast clutching and low noise.

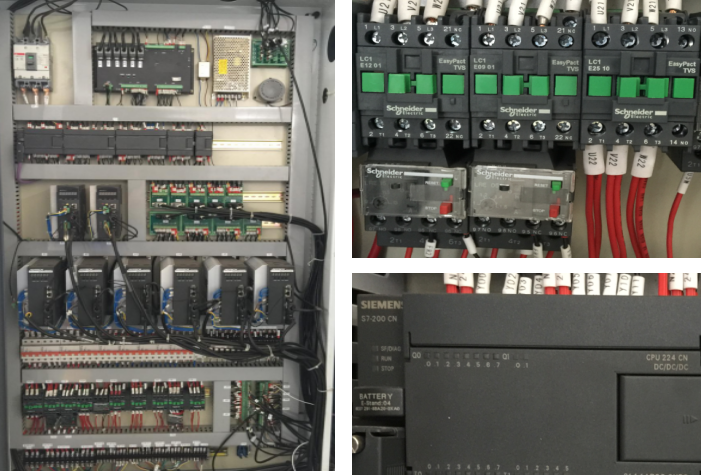

Electrical Control Unit

The electrical control system features Japan Omron PLC computer automatic control for full detection, alongside a Japan frequency converter with Taiwan main motor.

The human-machine interface displays working conditions, fault positions, and solutions.

Equipped with multiple safety protection units. A visible and audible alarm is triggered at any fault, automatically shutting down the machine.

Paper Stripping Unit

One-time stripping system strips all irrelative paper scraps and waste edges (except held margins) in die-cutting.

The up, down, and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading.

The stripping frame is pneumatically lifted with a centering unit, shortening the preparation time.

The preliminary loading platform is equipped with a centering unit to facilitate the mounting of stripping plates.

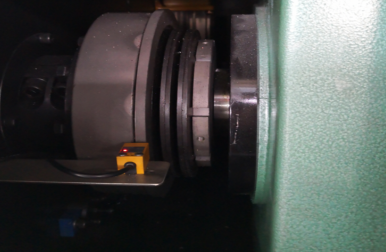

Torque Limiter

Adopt the imported torque limiters to ensure the safety of the machine, reduce damage, and improve service life. It provides high protection for the gripper bar and helps the operator during operations.

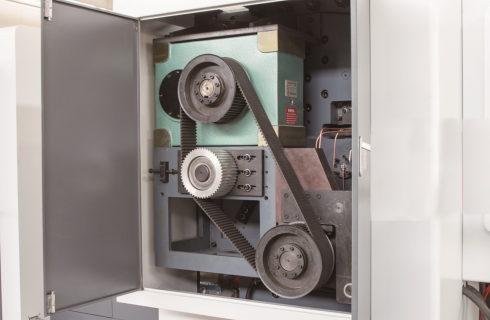

Main Transmission Section

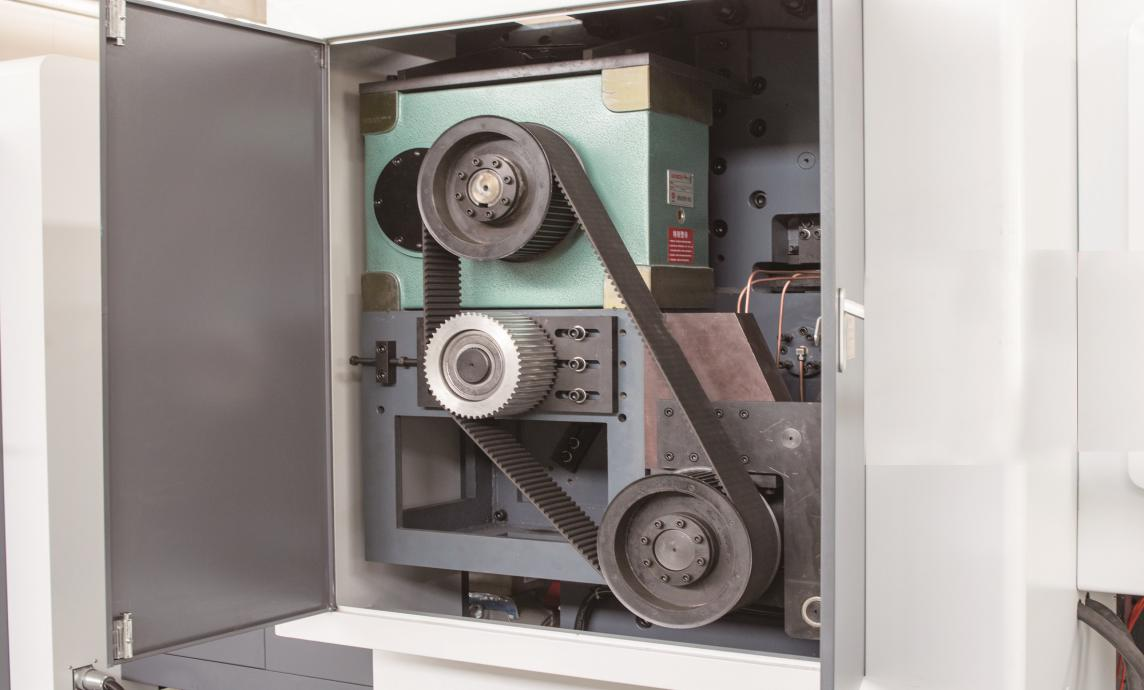

This machine design adopts the advanced technology of the gear type synchronous belt drive, comparable to high-grade German designs. Compared with chain designs, performance is greatly improved. It offers stable, safe, low-noise, and long-life operations while avoiding defects like vibration and stretch common in chain designs.

Standard Accessories & Tools List

Name	Quantity	Specification
Flat screw driver	1 piece	150
Cross screw driver	1 piece	150
Monkey wrench	1 piece	300
Allen wrench	1 set	-
Socket spanner	1 set	6-27
Sway spanner	1 piece	-
Steel plate handle	1 piece	-
Hammer	1 piece	-
Engine oil can	1 piece	-
Pressing oil gun	1 piece	-
Tool box	1 piece	-

PET Bottle Blowing Machine Section

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Why Choose Us

Profile Overview

Established in 2010. As a professional manufacturer we not only manufacturing, but also researching, marketing and offering after sell service. We manufacturer and sell the board and paper converting machines more than 10 years, we produce the machine with Europe standard, use the best material and best brand electric parts to make sure our machine can work long life.

We can produce the machine as below:

2/3/5 layers solid paper board laminator

slitter rewinder

paper corner protector machine

paper tube winding machine

printer slotter die cutter

corrugator

folder gluer

Reference Images

Frequently Asked Questions

What are the maximum and minimum paper dimensions handled by the MYP-1320E?

The machine handles a maximum paper size of 1320×960mm and a minimum paper size of 450×400mm, with a maximum cutting size of 1300×940mm.

What kinds of paper thickness and board types can this machine process?

It processes cardboard weighing between 200g/m² and 2000g/m², and corrugated board up to a maximum thickness of less than 8mm.

What are the maximum working speeds for die-cutting and stripping?

The MYP-1320E has a maximum die-cutting speed of 6,000 sheets per hour and a maximum stripping speed of 5,500 sheets per hour.

Which brands are used for key electronic and mechanical components?

Key components are sourced from globally renowned brands, including SKF bearings (Sweden), Omron PLC and encoders (Japan), Toshiba frequency converters (Japan), and Schneider Electric AC contactors and buttons (France).

How does the automatic safety system function in case of overload or fault?

The machine is equipped with imported torque limiters for overload protection. When an overload occurs, the units separate. Additionally, the Omron PLC detects faults, displays solutions on the HMI screen, and initiates visible and audible alarms while automatically shutting down the system to ensure safety.

What is the advantage of the gear-type synchronous belt drive over chain drives?

The gear-type synchronous belt drive reduces operational noise, increases stability, and extends the service life of the transmission system. It avoids common issues like stretching and vibration associated with traditional chain drives.
