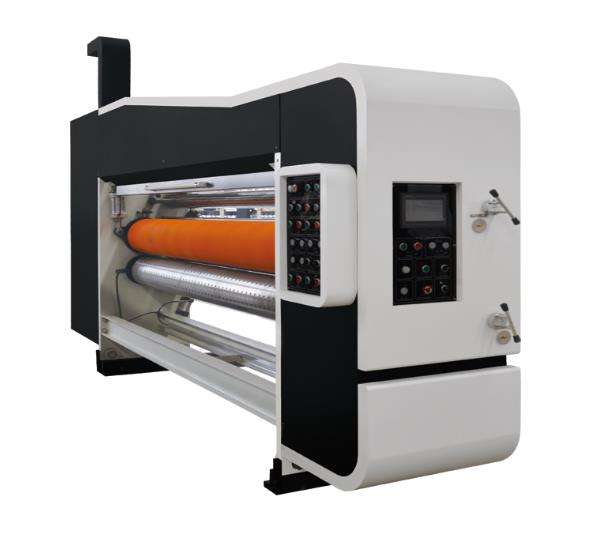

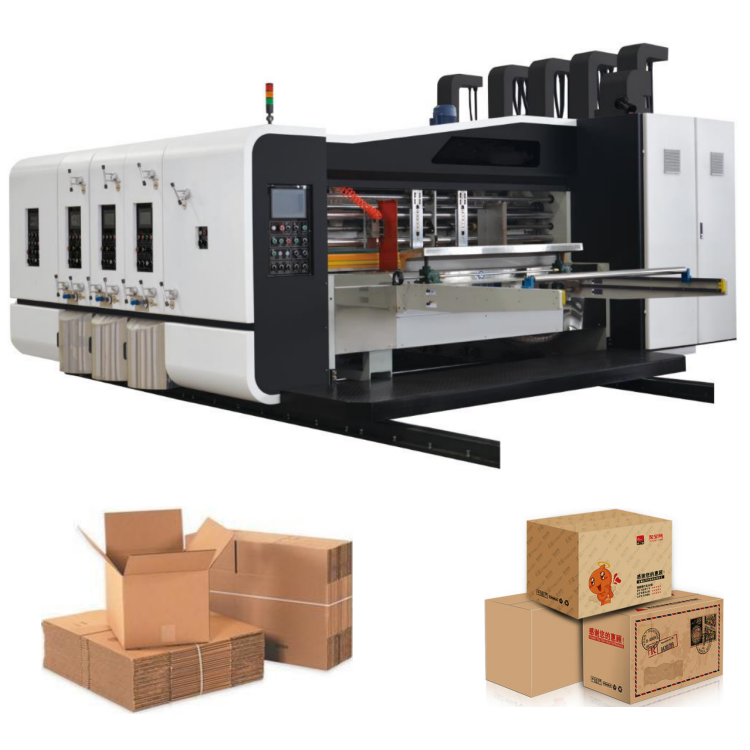

QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
1 / 5
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box
QHPACK Automatic Flexo Printing Machine For Carton Box

QHPACK Automatic Flexo Printing Machine For Carton Box

Send Inquiry

Product Description

Product Highlights
  • High Speed Automatic Flexo Printing Machine: Produces standard carton boxes efficiently for large quantities.
  • Perfect Feeding System: Includes dual vacuum suction transmission boxes, feeding roller, brush roller, and electrostatic dust removal for optimal performance.
  • Durable and Easy to Clean: Constructed with a stainless steel bowl for longevity and ease of maintenance.
  • Flexible Printing Area: Capable of printing areas up to 1200x2400mm, accommodating various carton sizes.
Flexo Printing Machine
Machine Detail View Control Panel
QHFFG1228 Model High Speed Flexo Printing Slotting Die cutting Machine is designed for standard carton box high-quantity production. It features a Lead edge vacuum feeder unit, printing unit, slotting unit, and rotary die cutting unit.

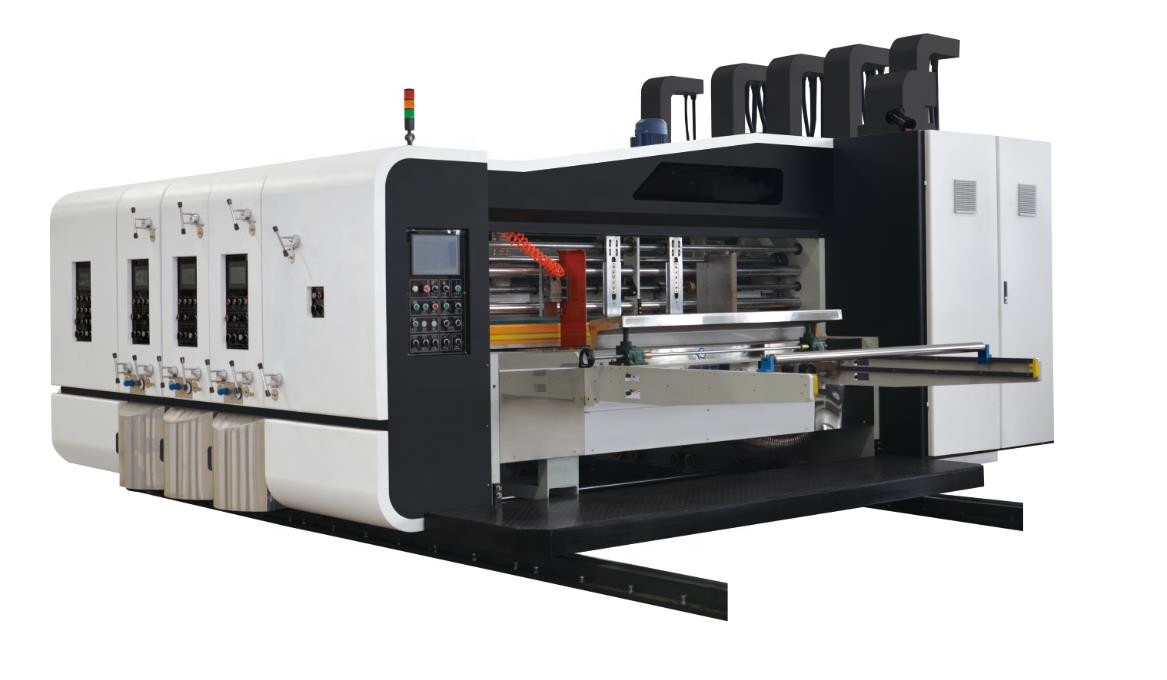

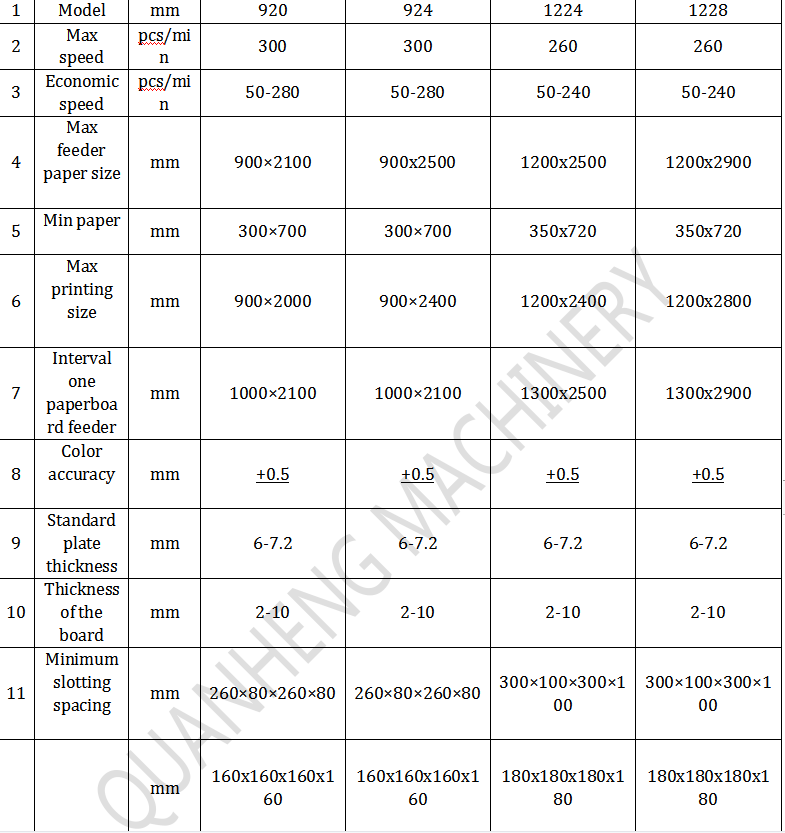

Technical Specifications Setup
Item Data
Max paperboard size 1200x2500mm
Min paperboard size 350x720mm
Max printing area 1200x2400mm
Max die cutting area 1200x2500mm
Max slotting depth 300mm
Flexo Printer Slotter Machinery

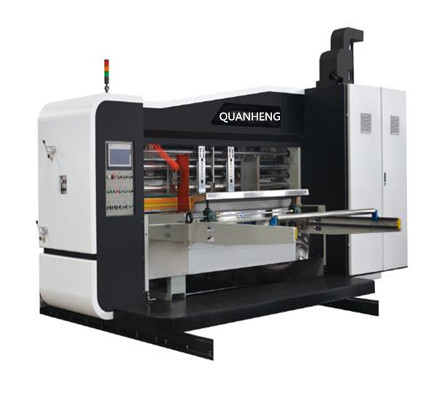

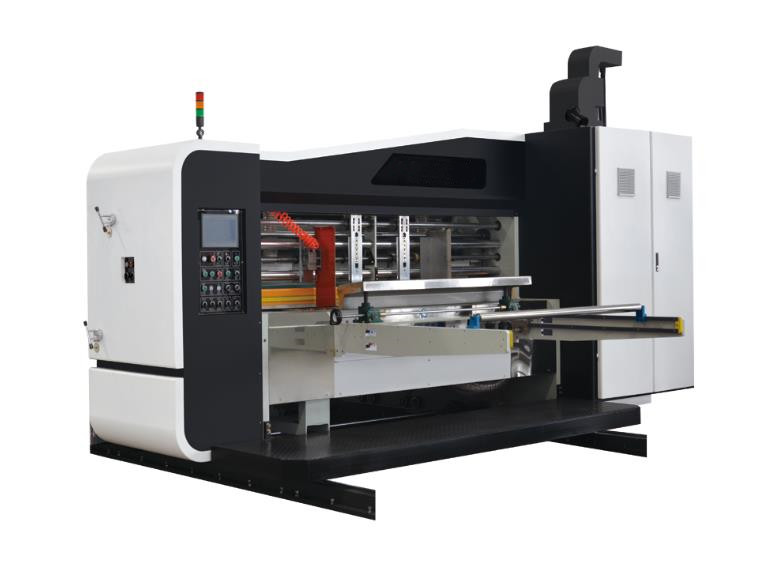

Feeder Unit
Feeder Unit
1. Electric control machine clutch attached to an alarm with a continuous warning bell to ensure the safety of workers.
2. Equipped with highly effective brush roller and rows of brushes for dust removal.
3. The feeding system features dual vacuum suction transmission boxes, a feeding roller, a brush roller, and electrostatic dust cleaning.
4. Automatic zeroing device allows correct position adjustment within two test prints, reducing cardboard waste.

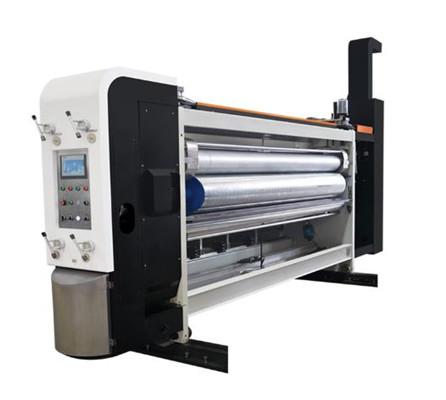

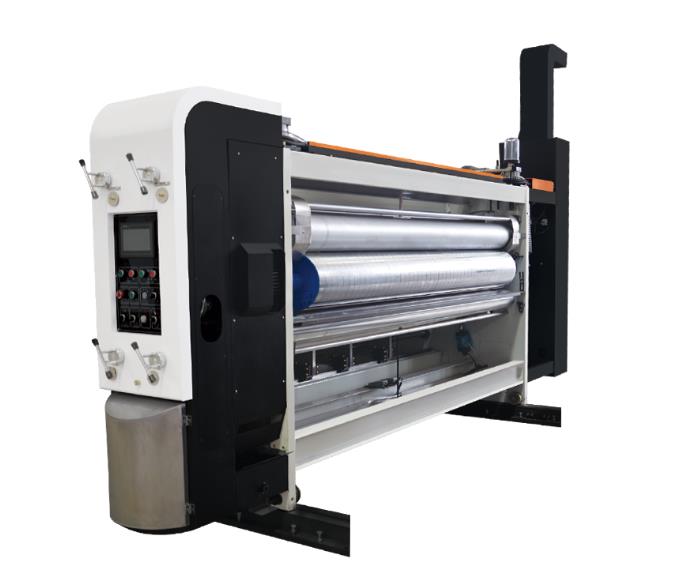

Print Unit
Print Unit
1. High-quality ceramic anilox printing roller equipped with a doctor blade.
2. Quick-change structure for the anilox roller, facilitating convenient machine maintenance.
3. Full vacuum transfer system with blower, utilizing a high-precision transfer vacuum box.
4. Worm-drive electric adjustment of the printing nip with digital display, adjustment range of 0-12mm.
5. Automatic induction ink detection system complete with warning lights and alarm bells.
Computer Slotter Unit
Computer Slotter Unit
1. Self-locking functionality; the preload and quick adjustment mechanism ensures long-term accuracy between the disc and the shaft, reducing paper cracking during pressing.
2. Synchronized left and right intersections, axial movement, enabling simultaneous adjustment of upper/lower pressure line wheels and slotting knives via the functional control panel.
3. Planetary gear phase adjustment mechanism with digital display for electric adjustment of slotting phase and height.

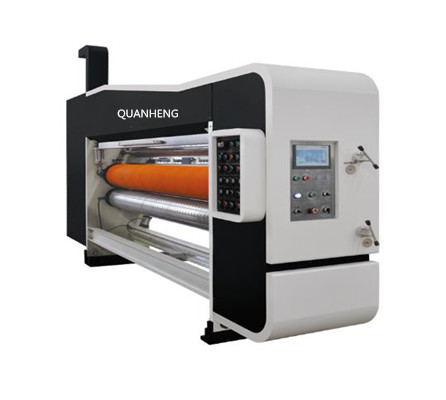

Rotary Die Cutter Unit
Rotary Die Cutter Unit
1. Die cutter phase employs a gear system with 360-degree electric adjustment.
2. Automatic roller lifting mechanism when feeding stops to reduce wear and damage.
3. Rubber plate roller can adjust laterally by 30mm, ensuring blades cut in different positions.
4. Designed with different diameters for upper and lower rollers but identical line speed to keep die knives running smoothly, ensuring uniform plate grinding.
5. Line speed compensation system compensates for rubber roller diameter changes.
Component Details

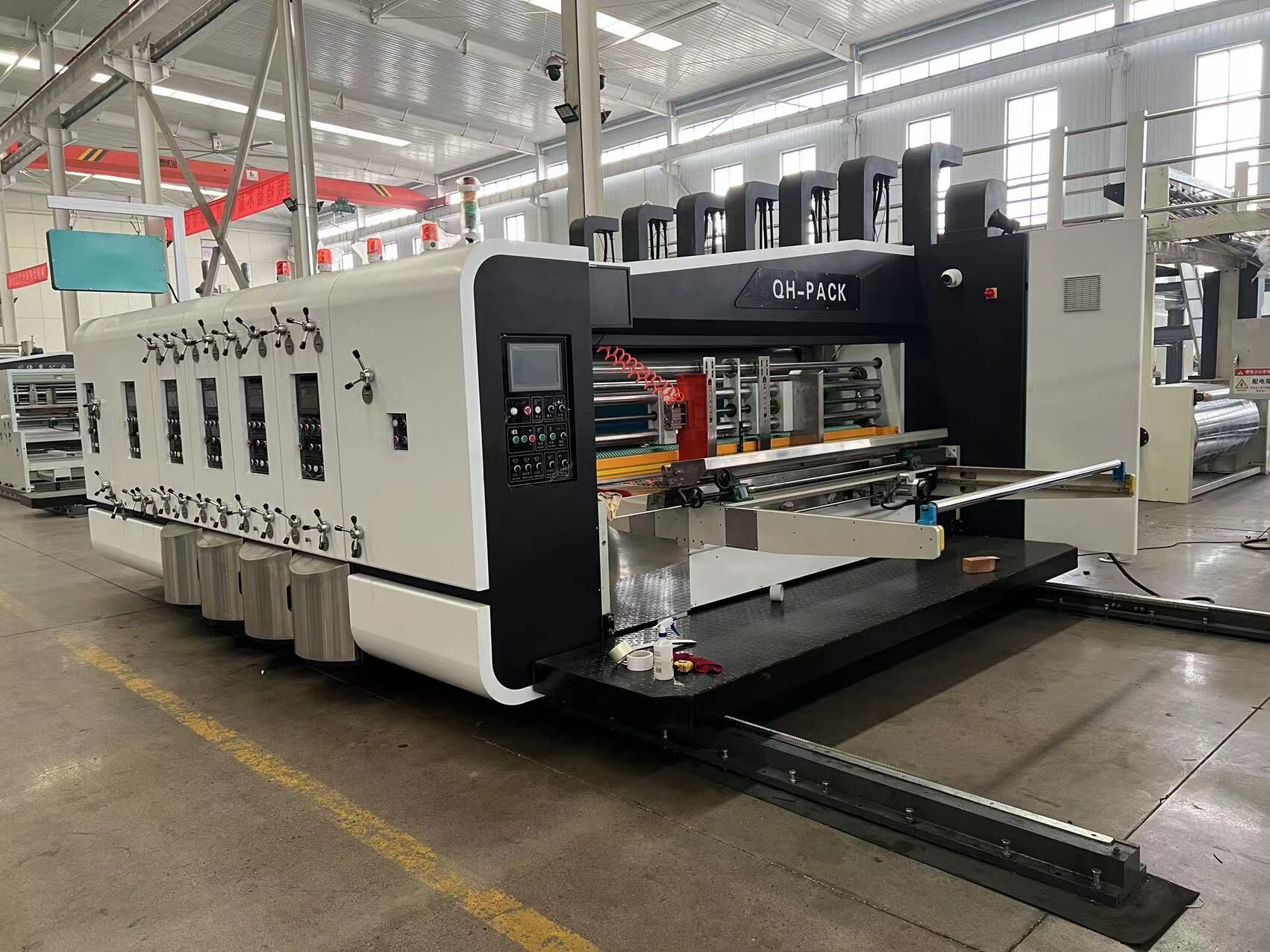

Detailed Component View

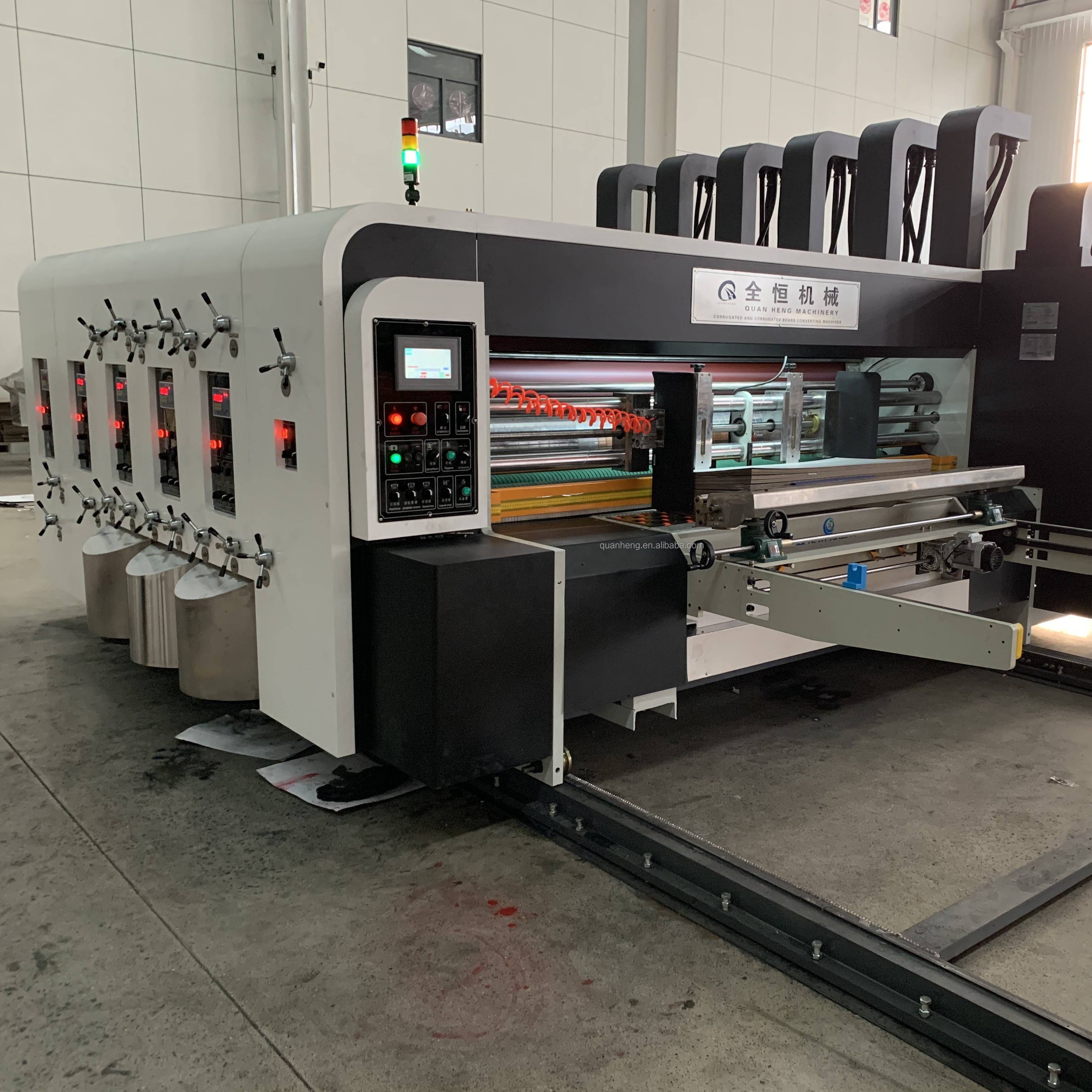

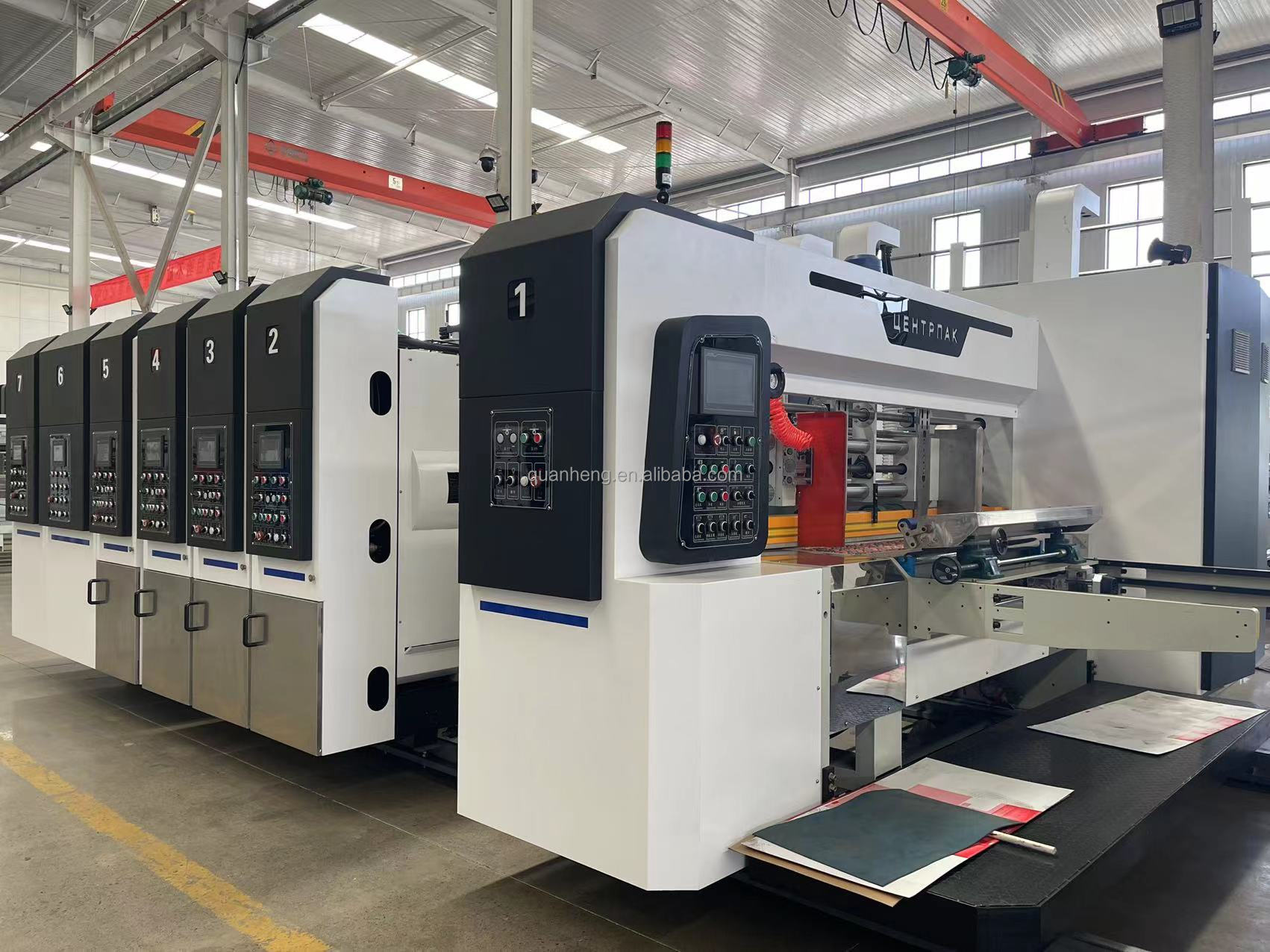

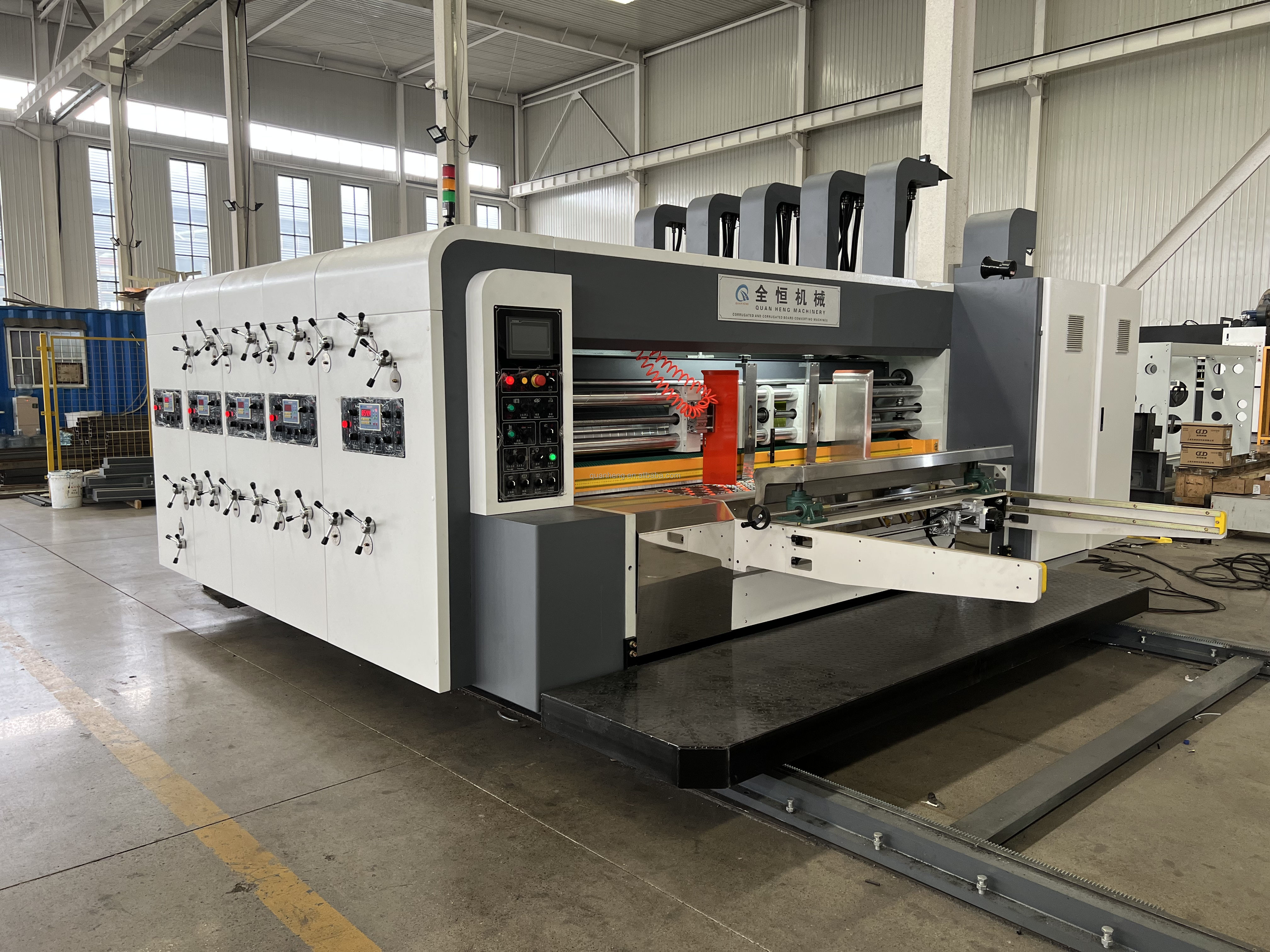

Internal Component 1 Internal Component 2 Internal Component 3

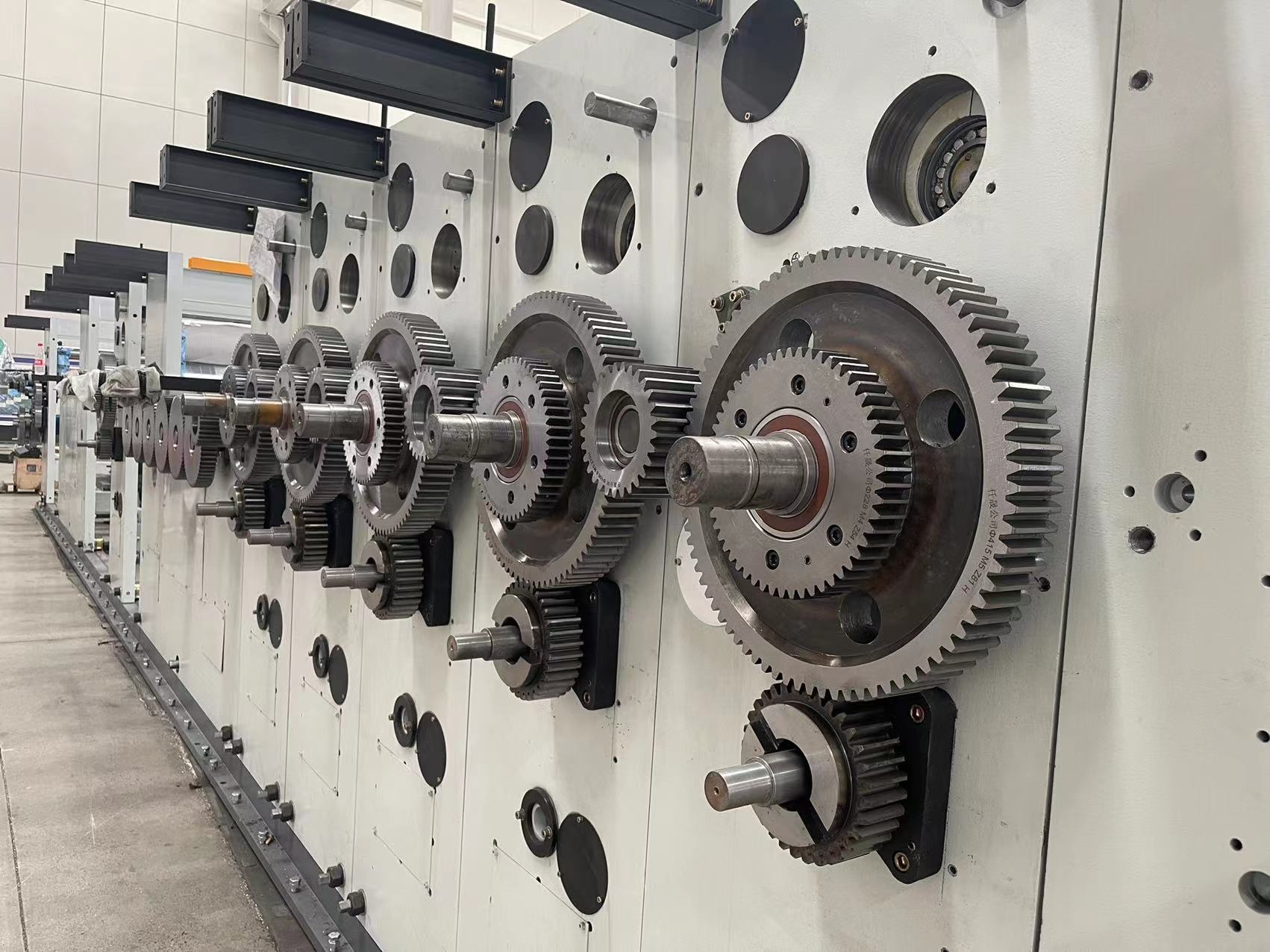

Operation Phase 1 Operation Phase 2

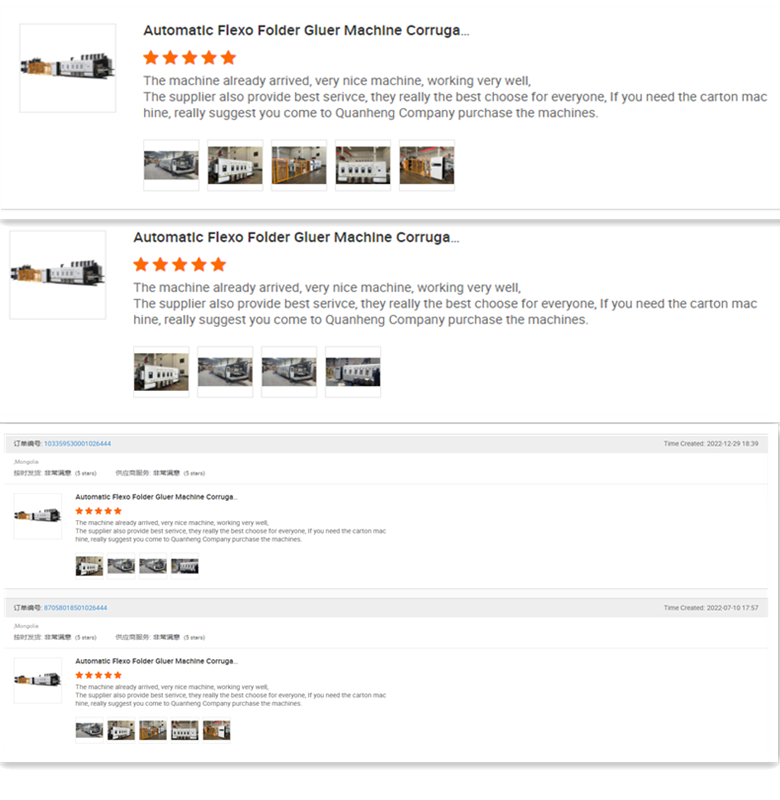

Customer Reviews
Client Feedback and Reviews
Packaging & Delivery

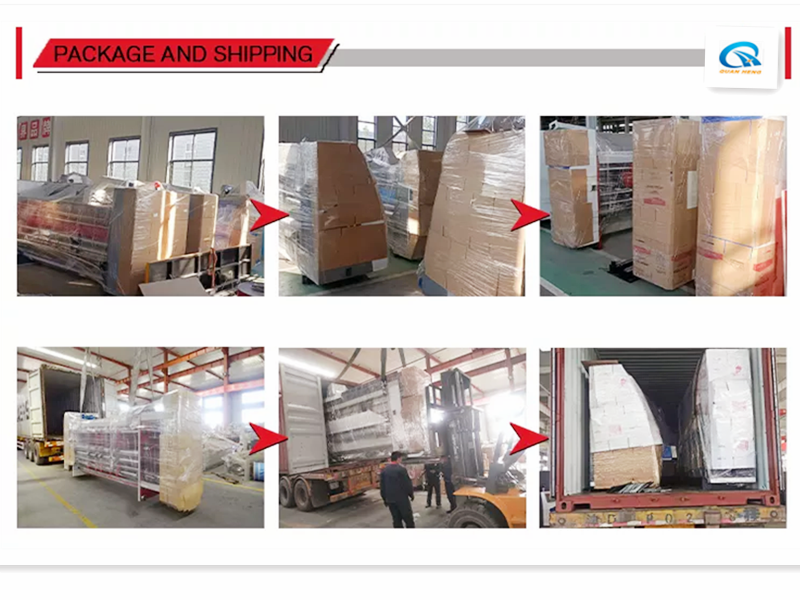

Standard export packaging, securely fixed inside containers. All machines are treated with anti-rust oil before packaging.
Packaging Step 1 Packaging Step 2 Packaging Step 3
Production Ranges
Production Machinery Line
  • Corrugated Cardboard Production Line: Integrated corrugator systems for cardboard manufacturing.
  • Computerized High Speed Flexo Printer Slotter Die-Cutter: Advanced carton box printing and converting machines.
  • Other Conversion Machines: Including folder gluers, laminators, stitchers, and flatbed die cutters.
  • Paper Making Machines: Systems for kraft paper, flute & testliner, coated paper, and tissue paper production.

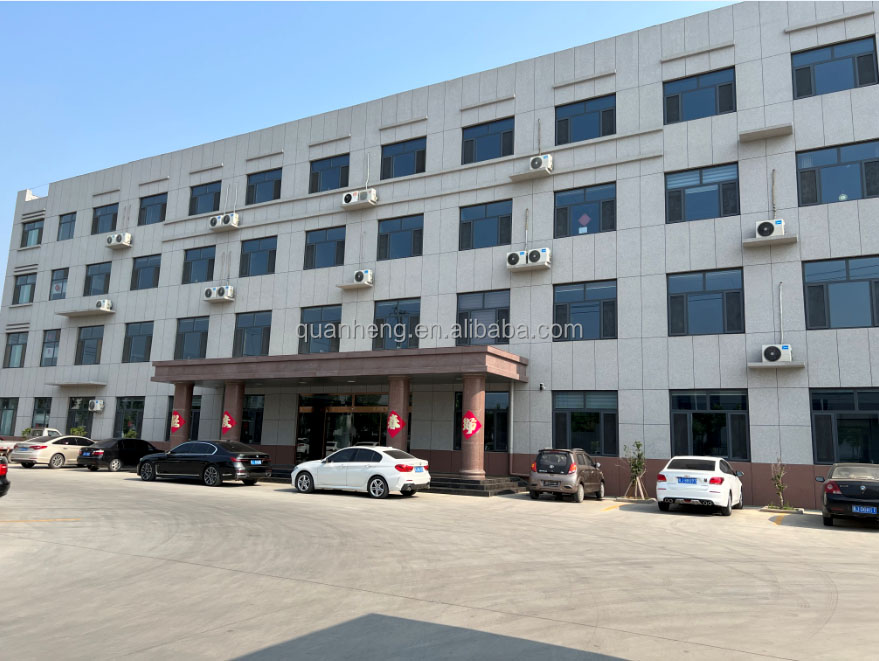

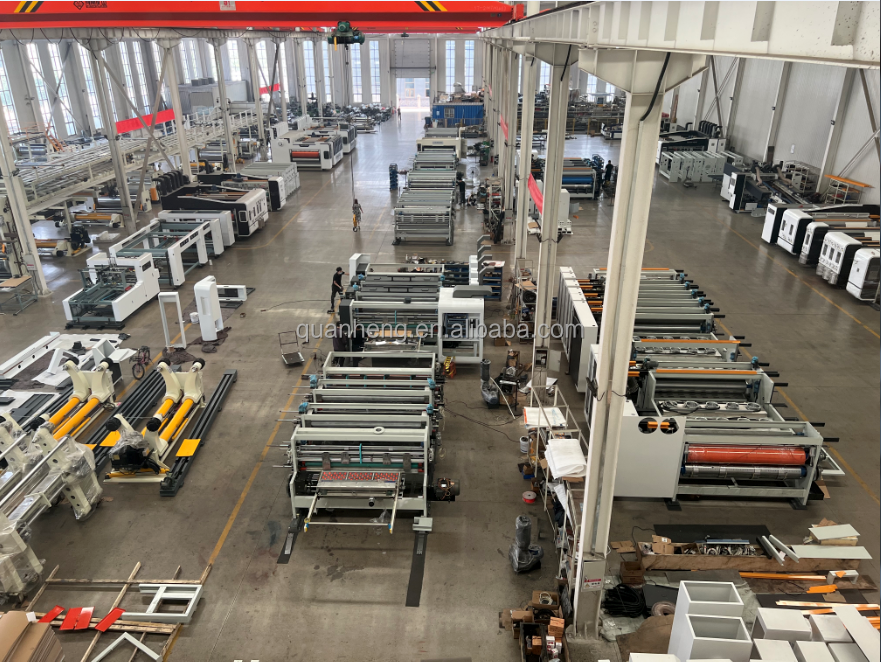

Factory Facility View Workshop Assembly
Product Setup Control System Showcase
Quality Inspection standard Certificates
Frequently Asked Questions
Are you a manufacturing company or a trading company?
We are a manufacturer, and our factory was established in 1999. Before we exported, our products were mainly supplied to trading companies, so we are a source factory. Welcome to become our agent.
Do you inspect finished products?
Yes, we have a quality control department that will inspect the machines before shipment to ensure that there are no issues.
Is the packaging sturdy?
Yes. All of our export packaging uses sturdy wooden pallets that meet standard export packaging specifications.
How is the after-sales service process?
When there is a problem with your machine, please contact our sales staff and we will resolve your issue as soon as possible. We have after-sales offices in multiple locations globally to serve you.
Do you have import and export rights?
Yes, we do, so we can directly export the cardboard box machine to you without the need for any trading company agents.
