• Plate cylinder diameter setup support
• Supports varied characters of Substrate
• Highly adaptable to characters of ink and additives
• Configured for precise Printing Quality Request
• Compatible with standard Flexo plate and tape

• Job save/recall: stores necessary setup data for easy repeats
• Automated warning alarms for procedural deviations
• Real-time status monitoring of the entire machine
• Automatic alarm for lack of air pressure
• Camera-based advanced registration system
• Pre-register capability
• Remote control system for long-distance diagnosis

• Power: 380V 3PH 50HZ
• Compressed air demand: 0.6MPa (Air Compressor Unincluded)
• Compressed air consumption: 2 m³/min

• Filtration clarity: less than 20 Micron
• Min pressure: 2 bar | Max pressure: 3 bar
• Inlet temperature: 15°C - 18°C
• Hardness (CaCo2): 2.5 - 4mg/lt
• pH range: 7 – 8.2
• Central impression drum conditioning: closed loop conditioning unit

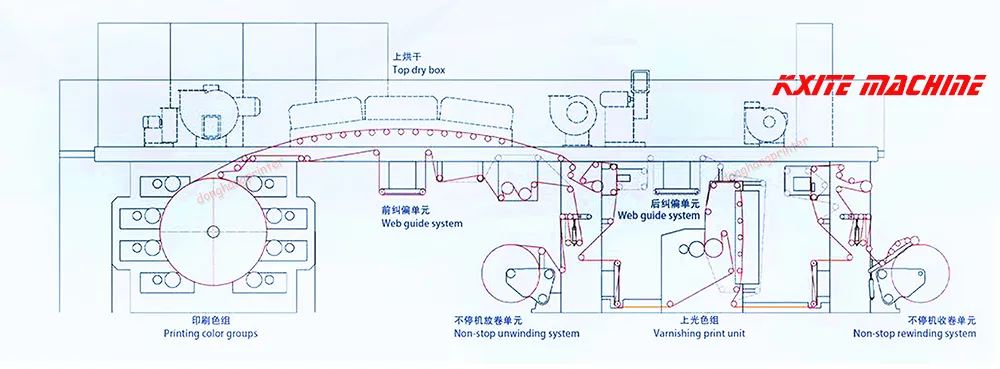

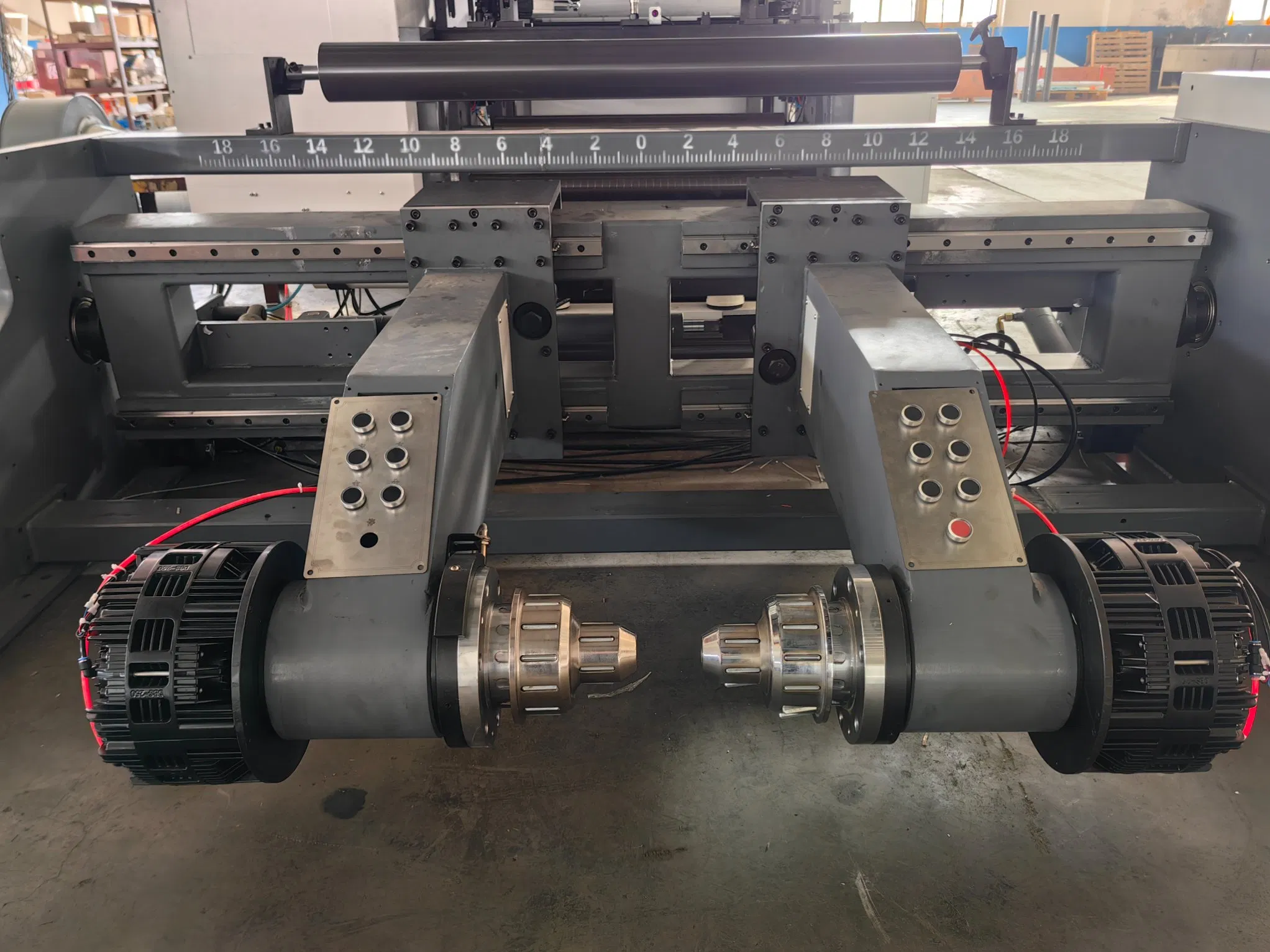

• Twin axis, shafted type, unwinder for reels of max diameter 800 mm (film).
• Unwinder for reel mandrel of external diameter 96 mm (3" air shaft).
• Frames complete with base for jacking screws and levelling/securing holes.

• Winding axis are center driven by A.C. motors.
• Tension control of the unwind axis by dancer roller system with pneumatic reaction.
• Web detector in dancing roller, auto stop when paper is broken.
• Hand wheel for axial adjustment (max 20mm).

• Composed of a lay-on roller to stick new reel to current substrate, and cross knife.
• Reel change sequence activated by operator via remote controls near unwind section.
• Min external diameter of reel permitted for the splice is 500 mm.

• Automatic edge guiding system mounted before the printing section.
• The system includes 1 (one) sensor for "left or right guiding".

• Nip roller: steel roller covered with rubber (65/70 shore hardness) to lay film.
• Mounted on sealed ball bearings, pressed laterally by two pneumatic cylinders.

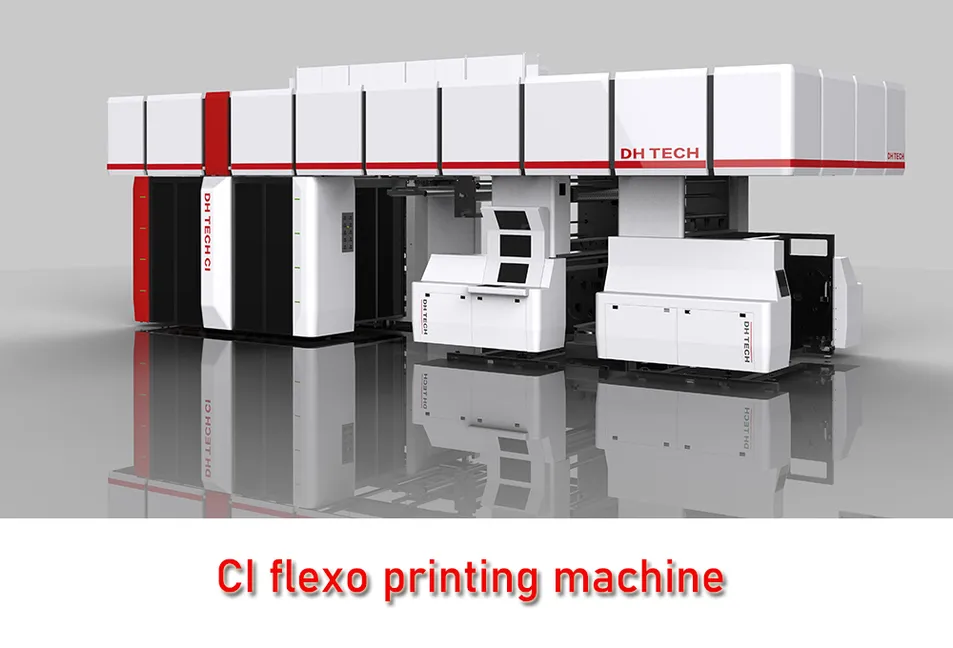

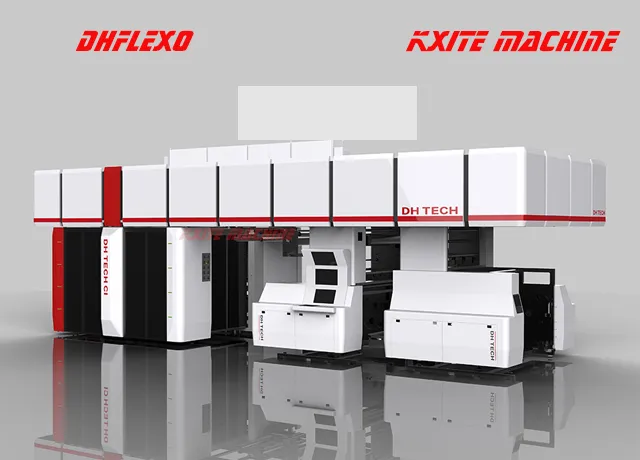

• Central impression type, prepared for maximum 8 printing units.
• Frames of stabilized HT250 cast iron, 120 mm thickness, connected by spacers.

• Chrome plating drum protects from external corrosion.
• Supported laterally by tapered-roller bearings.
• Centralized manual lubrication of supporting bearings.
• Closed loop water conditioning system for the drum.

• Plate and anilox roller sleeve mandrel driven by separate servo motors.
• Pressure engage/dis-engage of plate and anilox roller driven by separate servo motors.
• Horizontal adjustment of plate roller driven by a servo motor.

• Enclosed chambered doctor blade system with ink circulation inlet/outlet.
• Special sealing blocks prevent fast wear at high speeds.
• Split design allows the knife holder part to separate easily for quick blade replacement.

• Drying fans, heat units, tunnel and ducting mounted on a top steel framework.
• Integrated walkway accessible from ground by ladder for easy servicing.

• Air box distributors mounted after each printing unit (excluding the last one).
• Air blown onto printed film by airstreams transversal to the web direction.

• Closed type drying tunnel composed of 3 sections with integrated distributing chambers.
• Exhaust cavity integrated for solvent air evacuation with rubber seal protection.

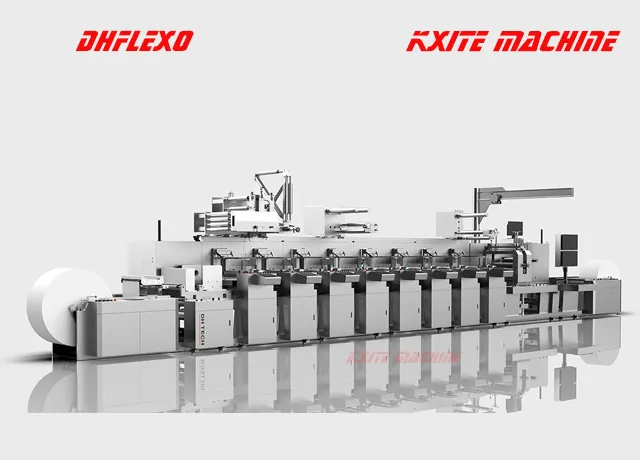

Features a unique printing platform, delivering the fastest set-ups and changeovers and shorter web path, together with the fastest make-ready times in the industry (4-color changeovers are complete in just 3 minutes!). Web paths are short and minimal ink usage requirements result in waste savings up to 50%. The max speed can reach 180m/min.

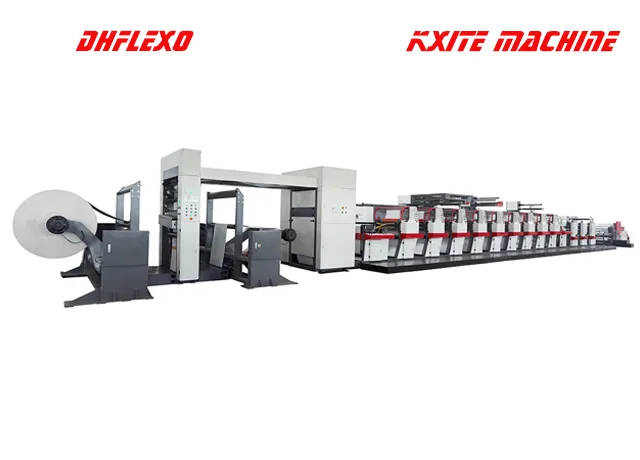

Delivers the fastest set-ups and changeovers, shorter web path and fastest make-ready times. Additional advantages over traditional presses include short web paths, pressure stability without adjustments after changeover, and minimal ink usage resulting in waste savings up to 50%. The max speed can reach 240m/min.

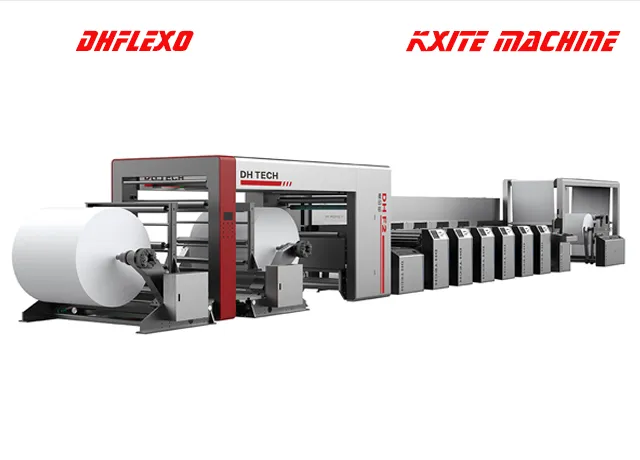

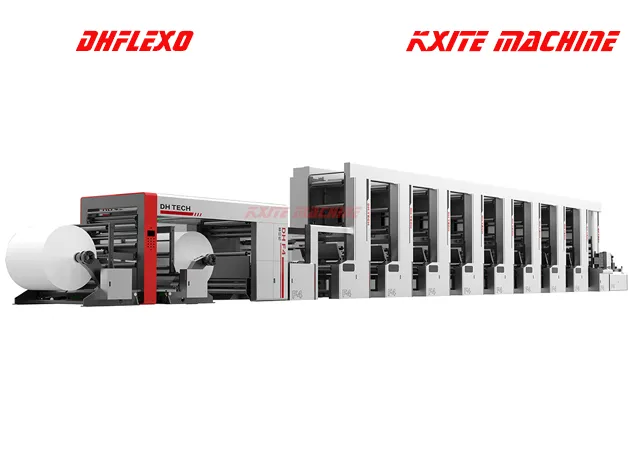

Maximum running speed is 240m/min. It adopts sleeve technology on plate cylinder with features like fast job change and low production cost. New designed mechanical structure efficiently reduces machine vibration to realize high printing quality, alongside pre-register functions.

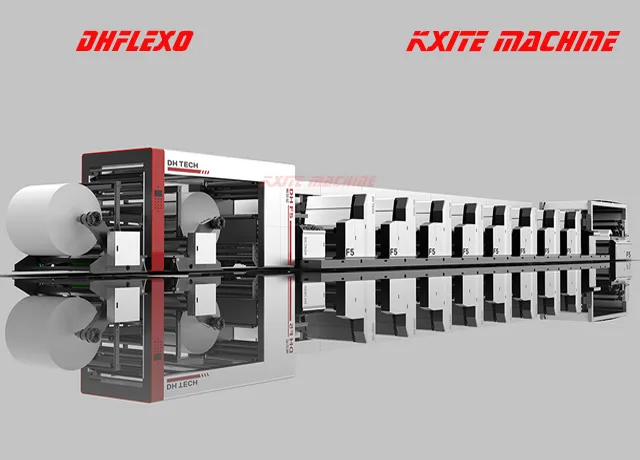

Designed for continuous printing of paper loaded in reels. The printing process uses liquid inks normally available on the market for high speed, continuous output.

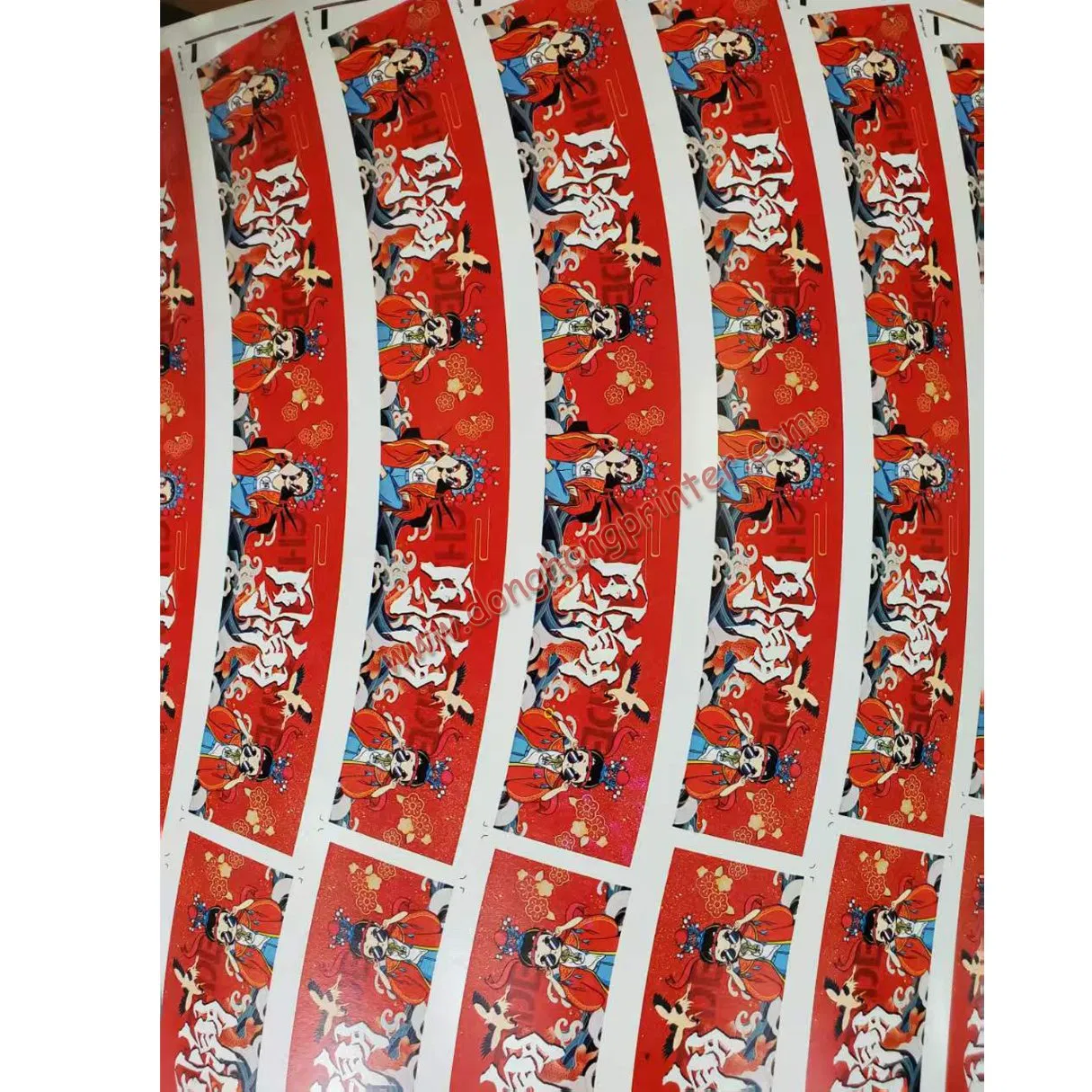

Widely used in light-weight coated paper, duplex board, coated paper, cardboard, non-woven fabric, Kraft paper, paper-plastic composite material, etc. Ideal for packaging paper, paper box/bag, paper cup, courier bag, beer carton, and food carton pre-printing fields.

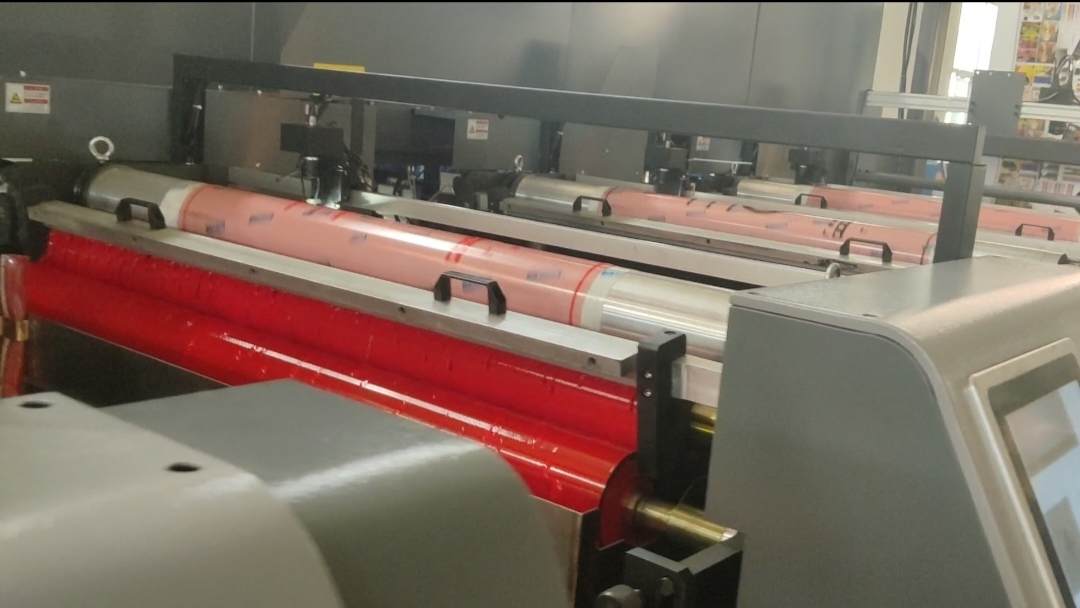

Adopts FDS door system and sleeve technology for printing plate and anilox roller, which can realize fast job change. Meanwhile, it is equipped with auto splicing unwinder and rewinder, pre-register function, printing unit positioning technology, auto inking system etc. Maximum running speed 500m/min.
