200m/min PVC Central Drum CI Flexographic/Flexo Printing Machine
1. Characteristics & Features
The machine introduces & absorbs European technology / process manufacturing, supporting / full functional features.
After mounting the plate and registration, no longer need registration, greatly improving yield.
Replacing 1 set of Plate Roller (unloaded 6pcs old roller, installed six new roller after tightening) only takes 20 minutes to complete registration and start printing.
Features first mount plate and pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
Maximum production machine speed up to 200m/min, with high registration accuracy of ±0.15mm.
The overlay accuracy does not change during lifting running speed up or down.
When the machine stops, tension can be maintained so the substrate does not shift or deviate.
The whole production line from reel to finished product achieves non-stop continuous production, maximizing product yield.
Precision structural design, easy operation, easy maintenance, and high degree of automation; only one operator is required.
Technical Characteristics
Suitable material: Rolling type of film, plastic
Print color options: 2, 4, 6, 8 colors
Print width: 600, 800, 1000, 1200 (mm)
Operating speed: 30 - 250m/min
Double unwind & rewind system
Servo motor rewind driver
Semi-automatic register colors
Video inspection integration
PLC controller system
Optional Configurations
Automatic loading system
Shaftless system for unwind
Non-stop unwind & rewind
Electrostatic treater before print
Automatic registration
E+L Image static monitoring system
Ink viscosity controller
E+L EPC (Edge Position Control)
Cooling water machine
Half width 6+6 color print on both sides

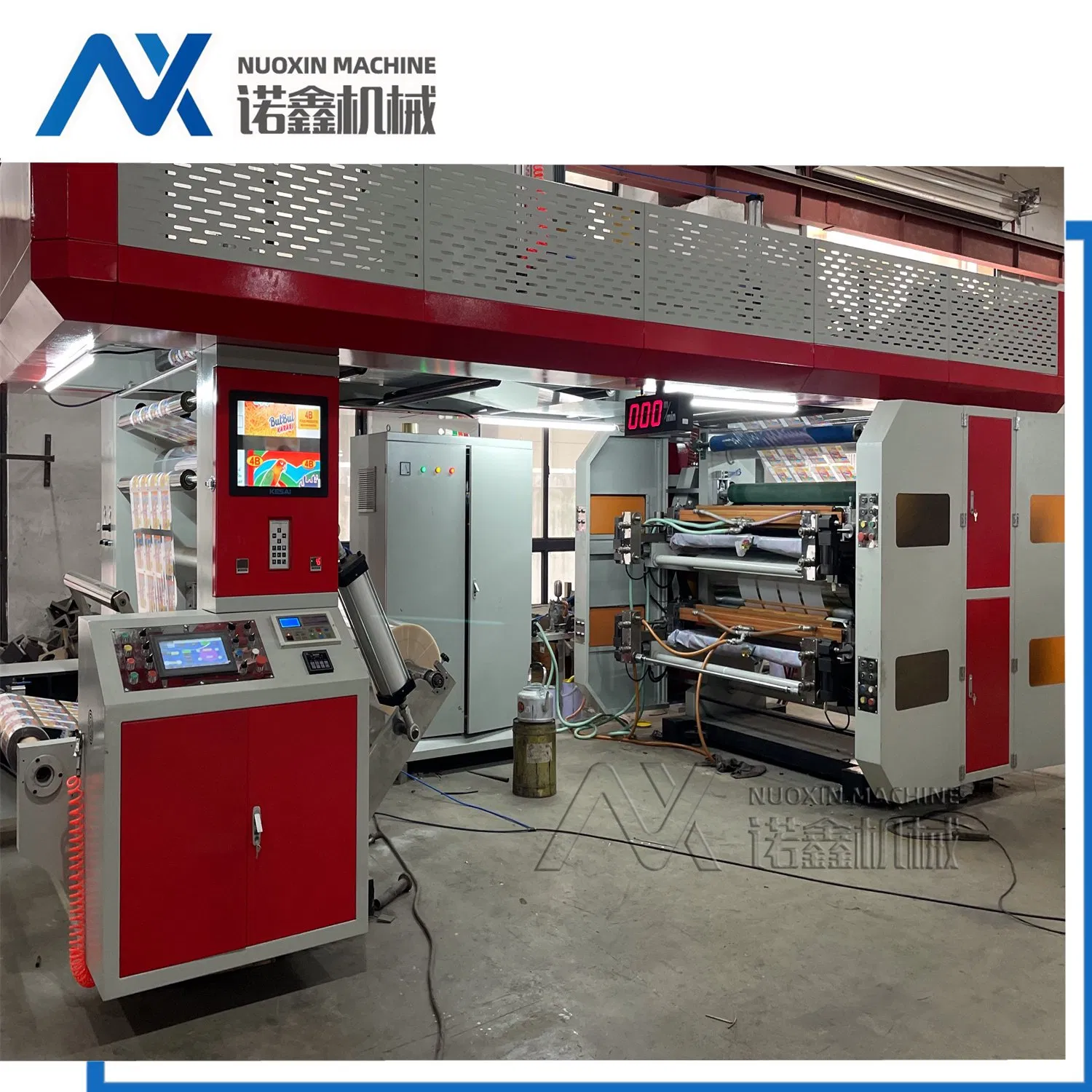

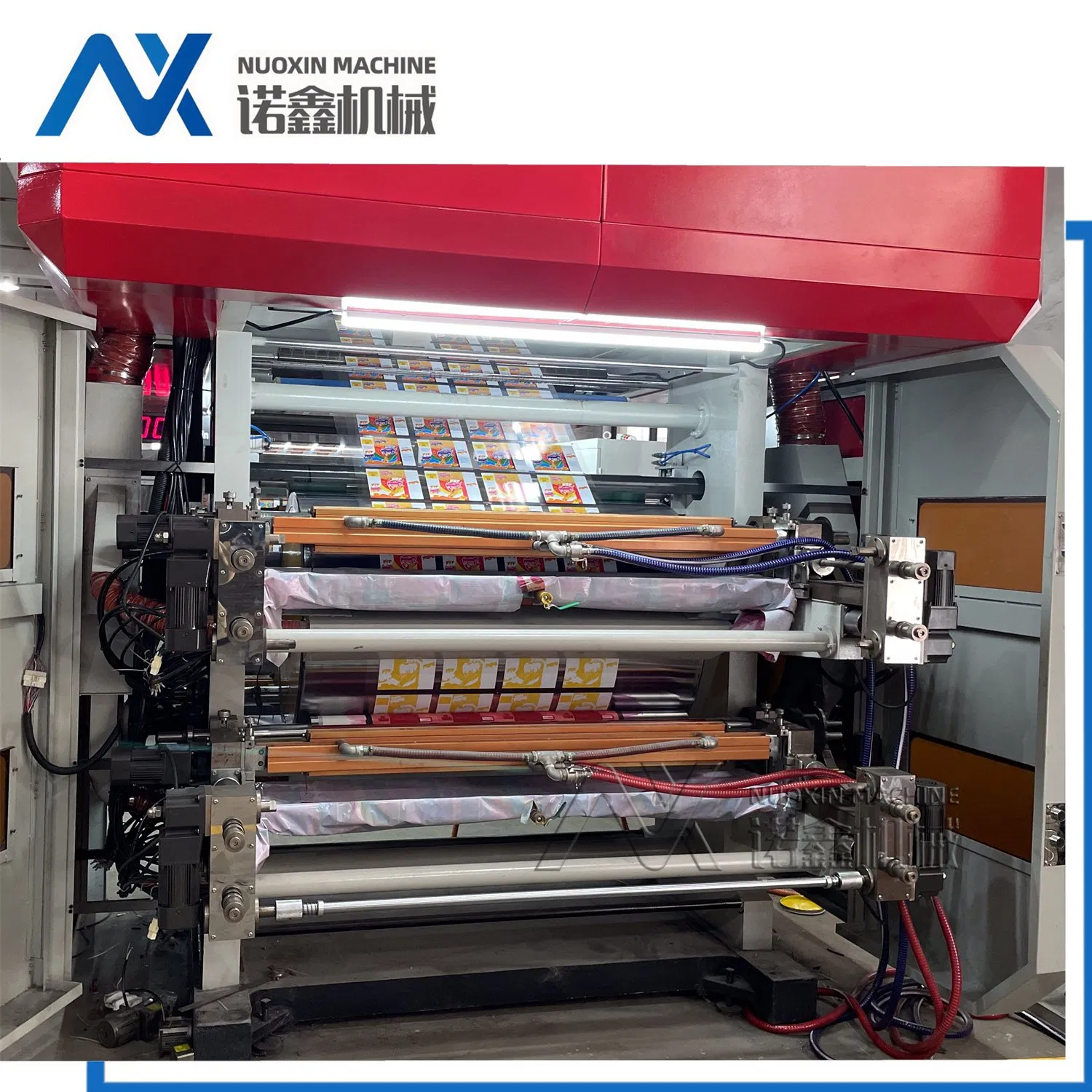

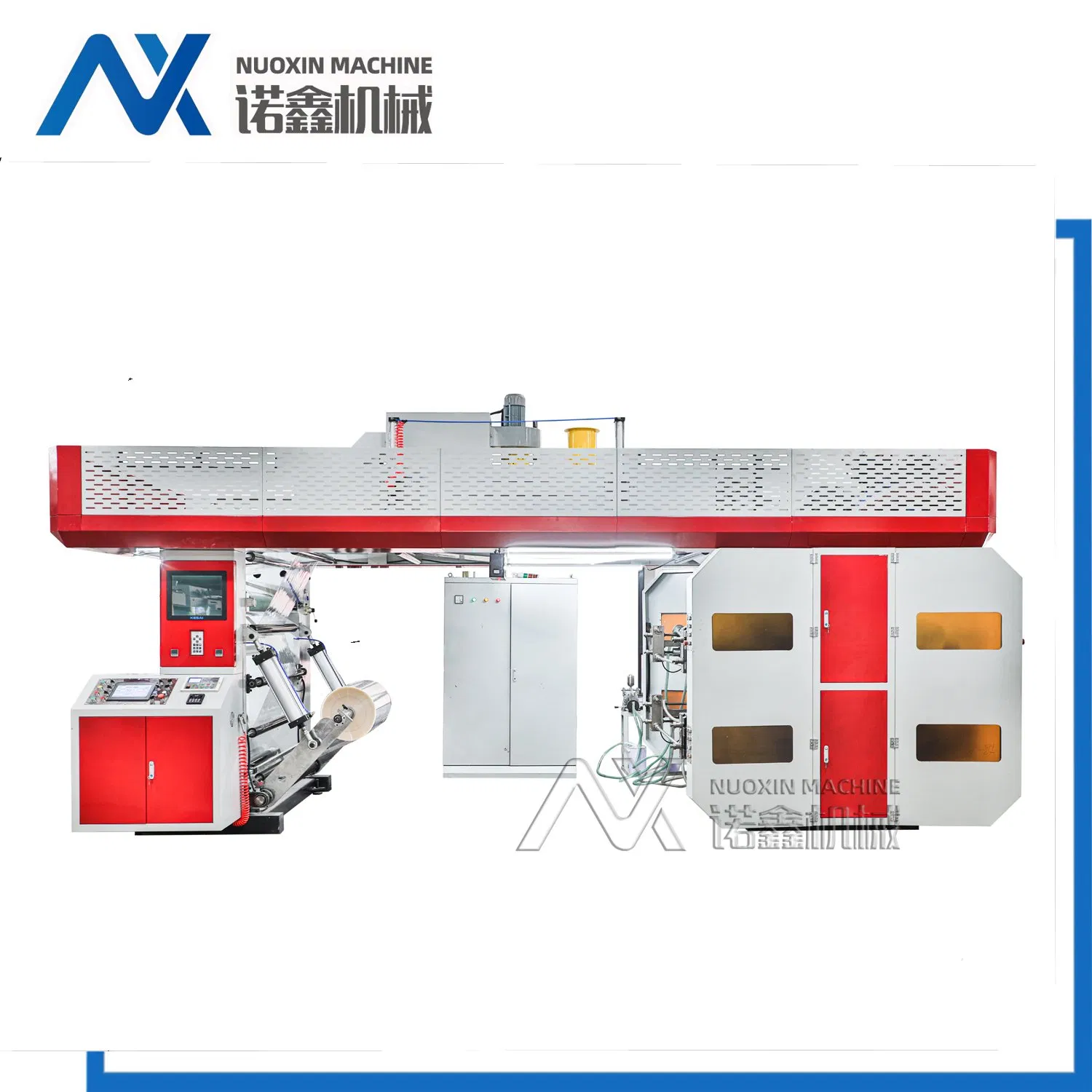

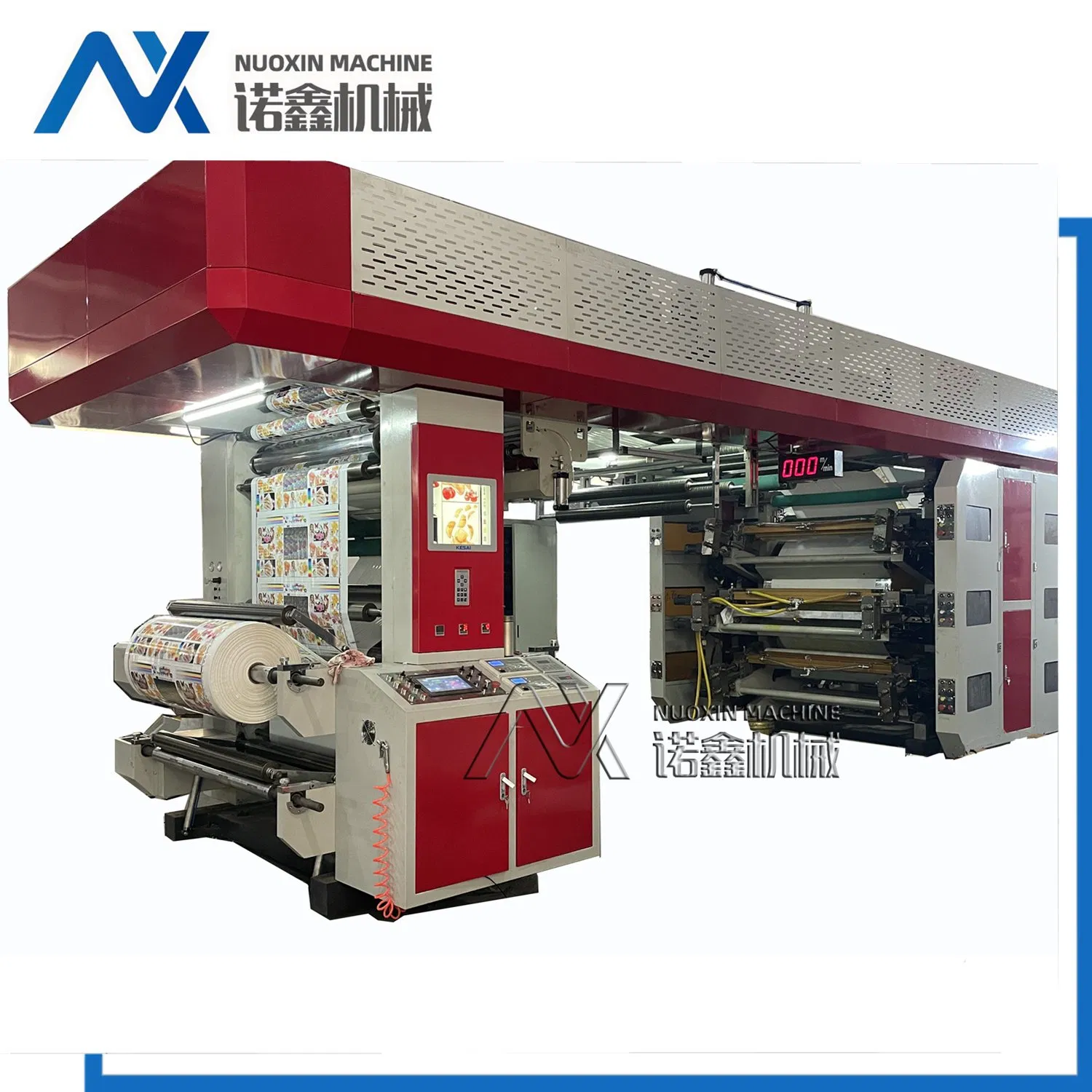

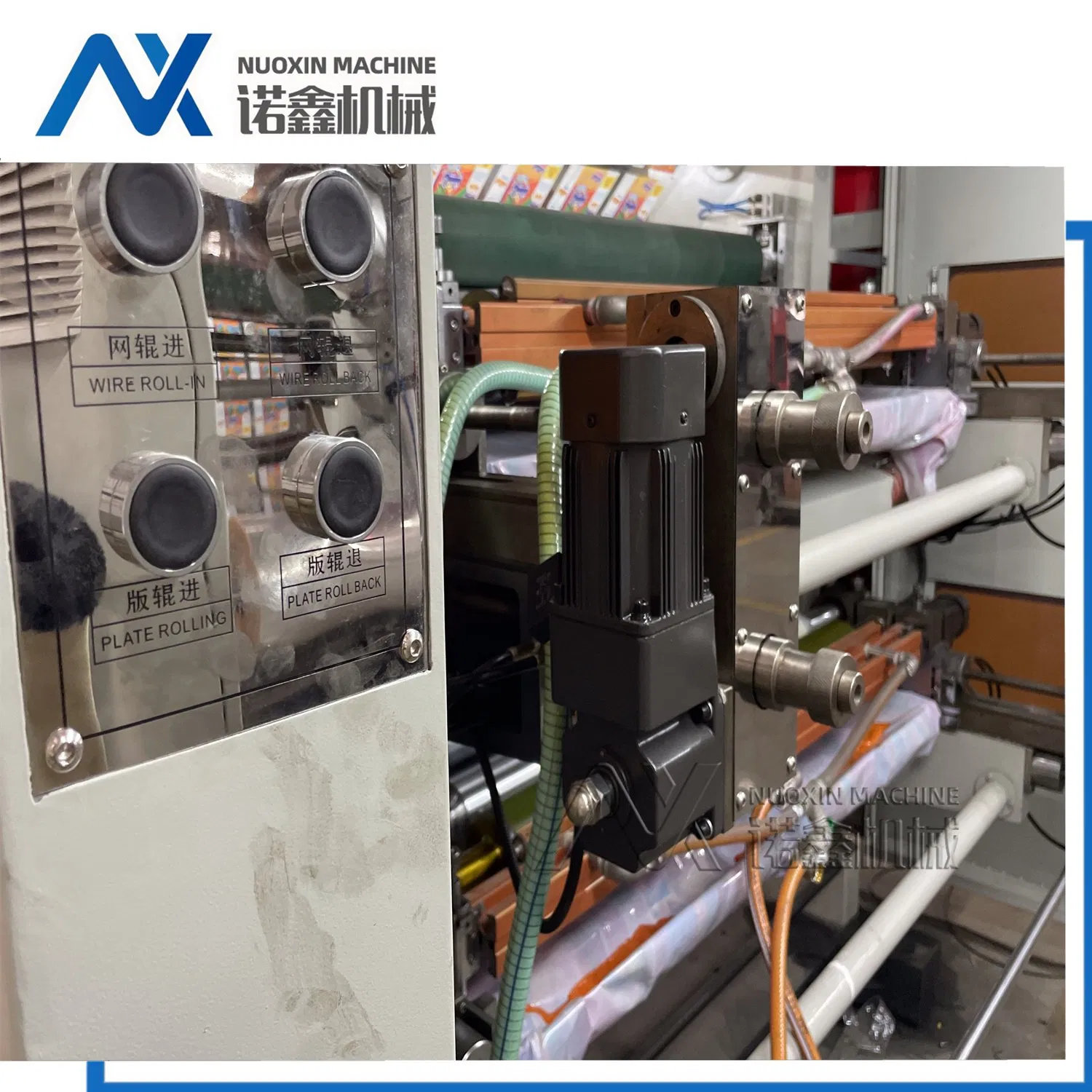

Machine Photos for Reference
Frequently Asked Questions
Q: What is the maximum production speed of this CI Flexo Printing Machine?
The machine can achieve a maximum production speed of up to 200m/min, with general speed parameters ranging between 30 to 250m/min depending on materials.
Q: How long does it take to replace the plate rollers and register?
Replacing 1 set of Plate Rollers (unloading 6 old rollers and installing 6 new ones after tightening) and completing registration can be done in only 20 minutes.
Q: What is the registration accuracy of this machine?
The registration accuracy is ±0.15mm, and the overlay accuracy does not shift or change during acceleration or deceleration.
Q: What materials can be processed by this printing machine?
This CI flexo printing machine is designed to work with rolling types of film and plastic materials.
Q: What happens to the tension when the machine stops?
When the machine is stopped, the tension is fully maintained to ensure that the printing substrate does not shift or deviate from its path.
Q: What optional features can be integrated into the configuration?
Optional features include automatic loading, shaftless systems for unwind, electrostatic treaters, automatic registration, E+L Image static monitoring, ink viscosity controller, E+L EPC, and half-width 6+6 color double-sided printing.
