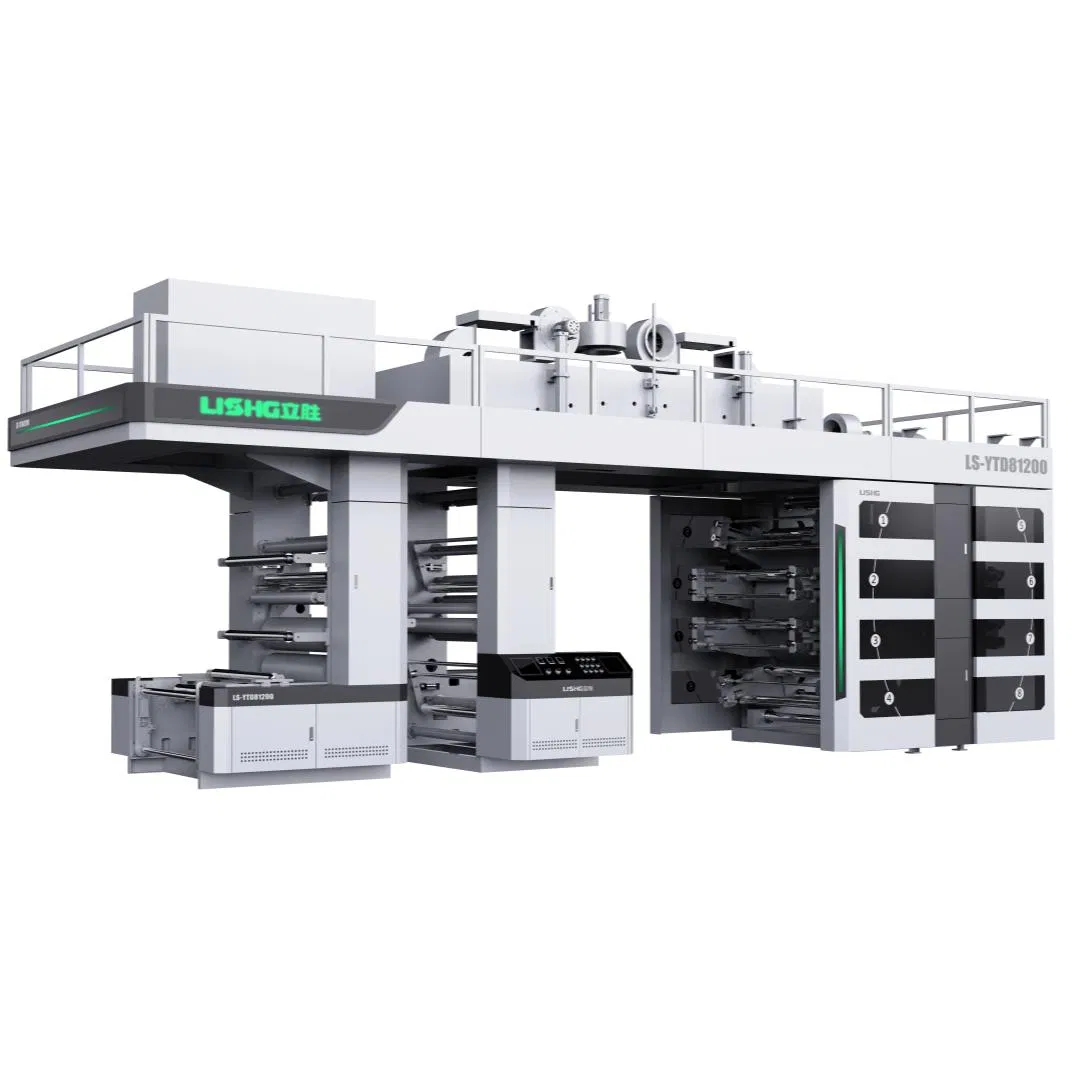

Lisheng 8 Colors Ci Central Drum Flexo Printing Machine

Overview & Basic Info

Model NO. YTD-81200

Printing Page Single Faced

Printing Color 8 Colors

Anilox Roller Ceramic Anilox Roller

Dryer Electrical Heater

Type Flexo Type

Embossing Structure Ci

Structure Satellite

Application Flexible Packaging Printing

Automatic Grade Semi-Automatic

Printing Speed 3000m/Min

Machine for Printing Plastic, Film, Paper, Nonwoven

Feeding Material Width 200~1800mm

Machine Frame Thickness 100mm

Printing Length 600-1000mm

Printing Width 10~1760mm

Register Precision Within 0.15mm

Gear Module 1.5mm

Web Fixing Method Safety Chuck+ Air Expanding Shaft

Suitable Ink Water Based Ink / Solvent Ink

Max. Oven Temp. Max. 80°C

Doctor Blade Chamber/Close Doctor Blade

Machine Transfer Way Big Gear

Ink Pump Pneumatic Double-Way Pump

Ink Transfer Way Ceramic Anilox Roller with Chamber Doctor Blade

Accessories Cooling Chiller

Origin China

HS Code 8443160090

Production Capacity 25sets/Month

Packaging & Delivery Info

Package Size 680.00cm * 250.00cm * 350.00cm

Package Gross Weight 9500.000kg

Transport Package Film or Wooden Box Package

Product Description

Technical Data

Number of Print Units 8 Colors
Printing Width Max. 1200 mm
Material Diameter Max. 600 mm
Print Repeat Range Min. 360 mm - Max. 1000 mm
Basic Shaft (Pneumatic) Ø 3 inch
Anilox Sleeves Ø 178 mm (Circumference 560 mm)
Basic Shaft for Anilox Ø 156.088 mm (With air supply)
Optional Anilox Brands ZECHER, SONDON, MURATA
Printing Cylinders Sleeves Fiberglass, Shaft Ø 105.158 mm

Winding System

Unwinding Type Turret type non-stop unwind (Max. 600 mm)
Rewinding Type Non-stop rewind (Max. 600 mm)
Core Inside Diameter 3/4/6 inch
Web Tension Range Min. 20 N - Max. 300 N (Servo motor control)
Web Guide System Edge guide with ultrasonic scanning head
Mechanical Speed Max. 500 m/min
Printing Speed Max. 400 m/min
Drying System Electric heating system

Central Drum

Central Cylinder Diameter Ø 2000 mm (Anti-corrosion plated)
Structure Design Double-wall structure for water flow temperature stability
Temperature Control System Closed-loop circuit (30°C +/- 1°C)
TIR (Total Indicated Runout) +/- 0.005 mm (+/- 0.0002")
Drive Device Direct drive torque motor (Color registration ±0.1mm)

Product Gallery

8 Colors Ci Central Drum Flexo Printing Machine Overview

8 Colors Ci Central Drum Flexo Printing Machine Mechanical Details

8 Colors Ci Central Drum Flexo Printing Machine Print Station

8 Colors Ci Central Drum Flexo Printing Machine Central Drum System

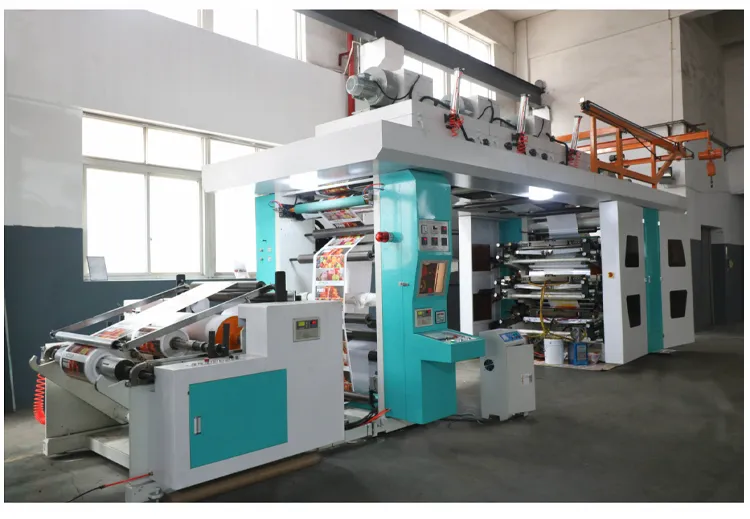

8 Colors Ci Central Drum Flexo Printing Machine Gear Setup

8 Colors Ci Central Drum Flexo Printing Machine Unwinding Part

8 Colors Ci Central Drum Flexo Printing Machine Roller System

8 Colors Ci Central Drum Flexo Printing Machine Rewinder

8 Colors Ci Central Drum Flexo Printing Machine Control Console

8 Colors Ci Central Drum Flexo Printing Machine Structure Diagram

Packaging & Shipping

8 Colors Ci Central Drum Flexo Printing Machine Container Loading

Frequently Asked Questions

8 Colors Ci Central Drum Flexo Printing Machine Technical Service

1. What materials are suitable for this Central Drum Flexo Printing Machine?

This machine is specifically designed for flexible packaging printing. It is highly suitable for printing on plastic films, paper, nonwoven fabrics, and various composite materials.

2. What is the maximum mechanical speed and practical printing speed?

The machine features a maximum mechanical speed of up to 500 m/min, with a maximum operating printing speed of 400 m/min, depending on the inks, printing plates, design layouts, and substrate materials used.

3. How does the direct drive torque motor improve performance?

By using a torque motor to directly drive the center impression drum, the system completely omits traditional transmission gear components. This achieves a color registration accuracy of within ±0.1mm and reduces maintenance costs by approximately 30%.

4. How is the temperature controlled on the central impression cylinder?

The central cylinder has a double-wall design that allows constant water flow throughout the CI surface. A closed-loop temperature control system regulates both heating and cooling to maintain a stable operating temperature of 30°C ± 1°C.

5. What type of ink systems and drying methods are supported?

The machine supports both water-based ink and solvent-based ink. It utilizes an electrical heating dryer system capable of reaching a maximum oven temperature of 80°C.

6. What are the key features of the unwinding and rewinding systems?

It features a turret-type non-stop unwinding and non-stop rewinding system that handles reels up to 600 mm in diameter. It is equipped with a floating roller device, low-friction cylinder, and encoder for constant tension control between 20 N and 300 N.
