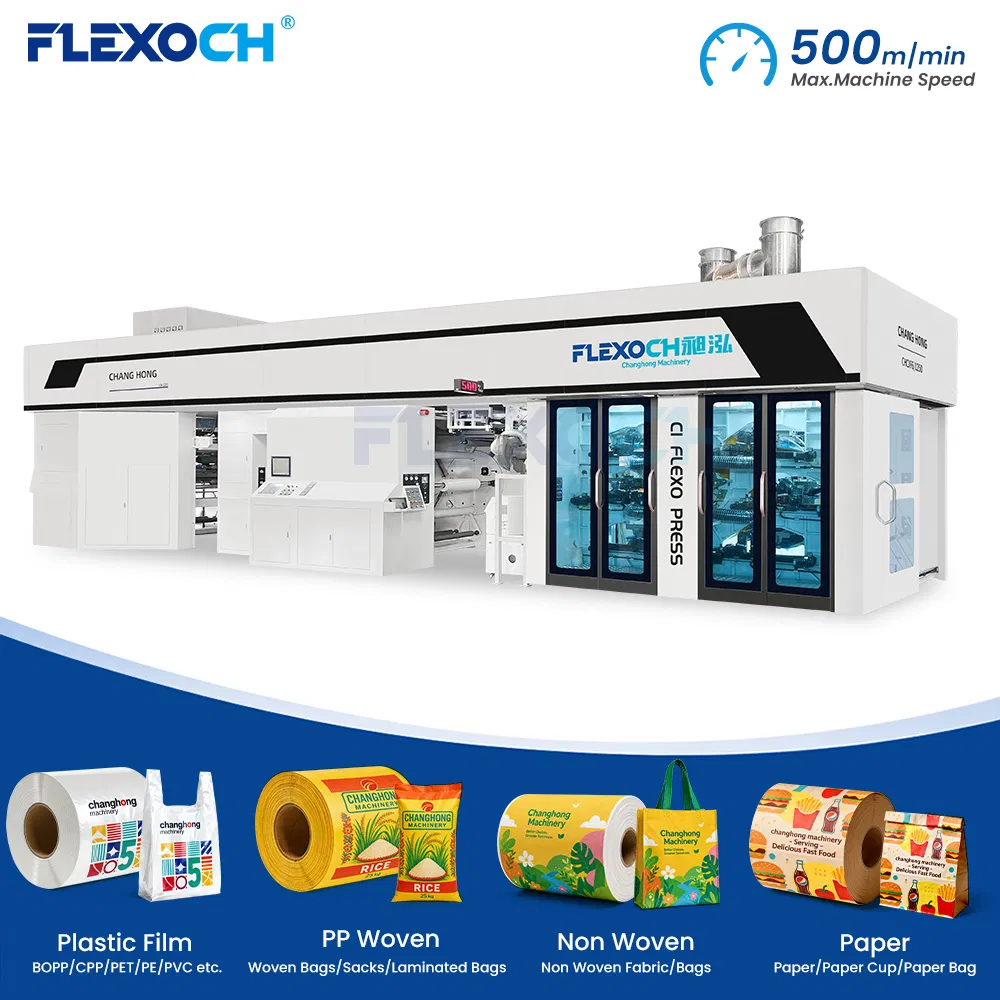

4 6 8 Color Central Drum Ci Plastic Film Bag Cup Gearless Flexographic/Flexo Printing Machine Pinter

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview

We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.
60,000 m² Two Modern Manufacturing Facilities
10+ R&D / 100+ Techs Experienced Engineering Team
200+ Machines Annual Production Capacity
Over 20 Years Manufacturing Experience (CE Certified)
1,500+ Clients Across 65+ Countries Globally
After-Sales Support On-site Commissioning & Operation Training
Central Drum CI Plastic Film Bag Cup Gearless Flexographic/Flexo Printing Machine

Basic Info.

Model NO.CHCI-F-S
Anilox RollerCeramic Anilox Roller
DryerUV& IR
TypeInk Jet
Embossing StructureRotary Letterpress
StructureSatellite
ApplicationPre Printed Carton
Automatic GradeAutomatic
Printing Speed350m/Min
MaterialFilm, Paper, Non-Woven Fabrics etc.
Printing Colors2-8 Colors
Weight6.5ton
VoltageAs Customer Requirement
After-Sales ServiceOnline Support, Free Spare Parts
Ceramic Anilox Roller200-800 Lpi
UnwinderWith EPC, Automatic Tension Controller
Material Width600-1600 mm
Core ComponentsBearing, Motor, Pump, Gear, PLC
Applicable IndustriesHotels, Garment Shops
Max. Printing Speed350m/Min
Local Service LocationEgypt, Canada, Turkey
Doctor BladesOpen Doctor Blade
Showroom LocationEgypt, Canada, Turkey
Dimensions(L*W*H)6.6m * 2.7m * 3.4m
Transport PackageFirstly Wrapped by Plastic Film
Production Capacity20 Set/Sets Per Month

Packaging & Delivery

Package Size5500.00cm * 2000.00cm * 2600.00cm
Package Gross Weight9000.000kg

Machine Features

#01

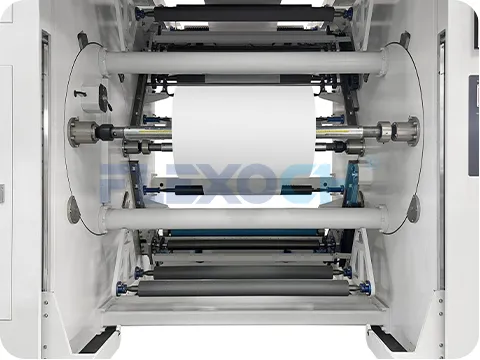

Unwind System

Servo Motor Driven, Dual-Station Non-Stop, Shaftless Unwind System, Automatic Tension Control, Edge Position Control System.

Servo Motor Driven Unwind System
#02

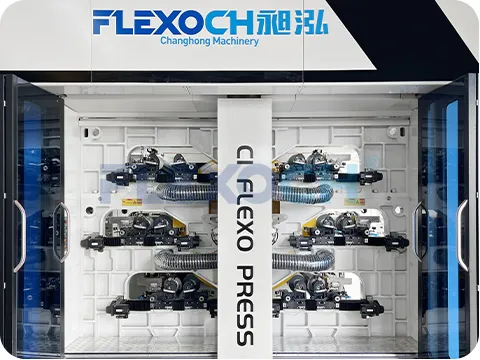

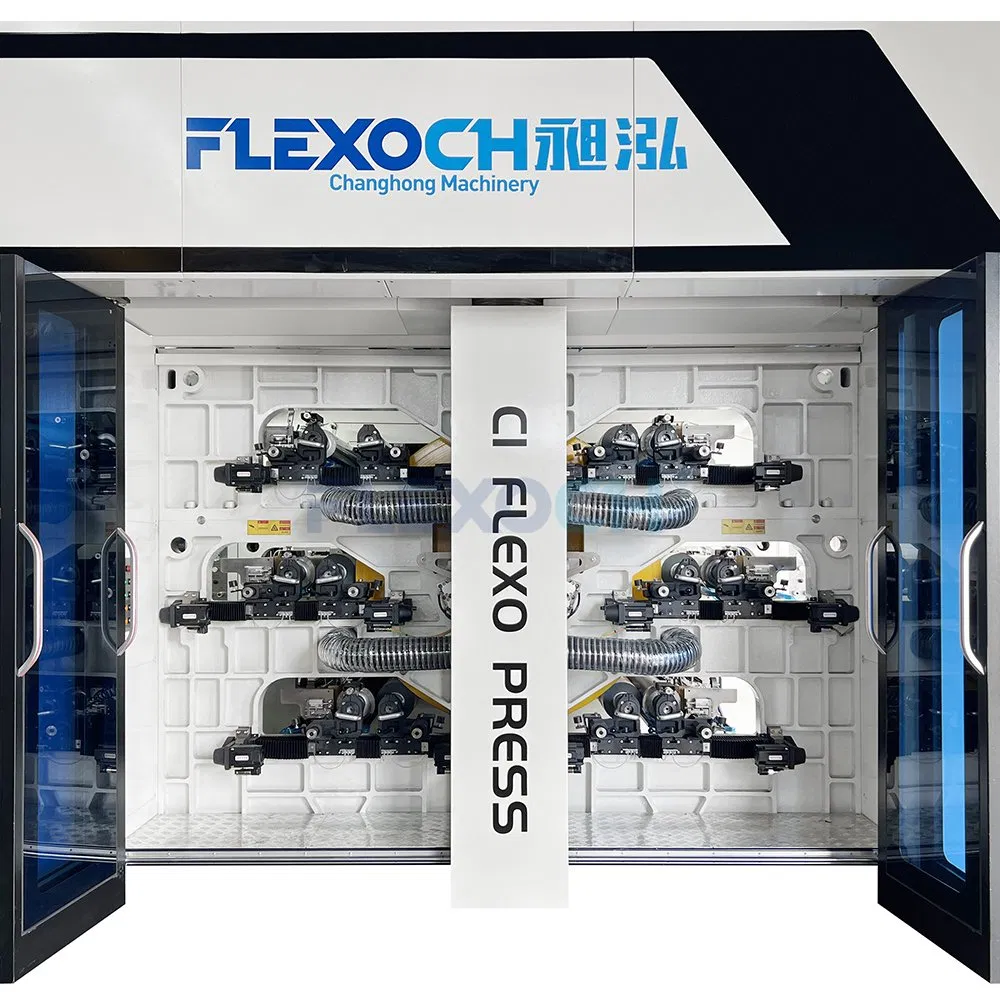

Printing Units

Gearless Servo Drive, Ceramic Anilox Roller, Chambered Doctor Blade, Central Impression (CI) Drum, Fast Sleeve Change System.

Gearless Servo Drive Printing Units
#03

Video Inspection System

Full-width Video Inspection System. High-speed cameras monitor the entire web width in real time, automatically detecting print defects such as color variation, missing print, and streaks.

Video Inspection System
#04

Drying System

Electric Heating System, Variable Frequency Airflow Control, Intelligent Constant Temperature Control, Hot Air Circulation Drying System, Fully Enclosed Oven Structure.

Electric Heating System Dryer
#05

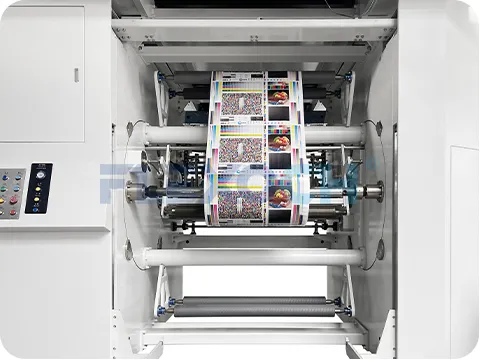

Rewind System

Servo Motor Driven, Dual-Station Non-Stop, Center Driven Rewind, Automatic Tension Control, Automatic Fault Detection.

Rewind System

Testimonials

Specification

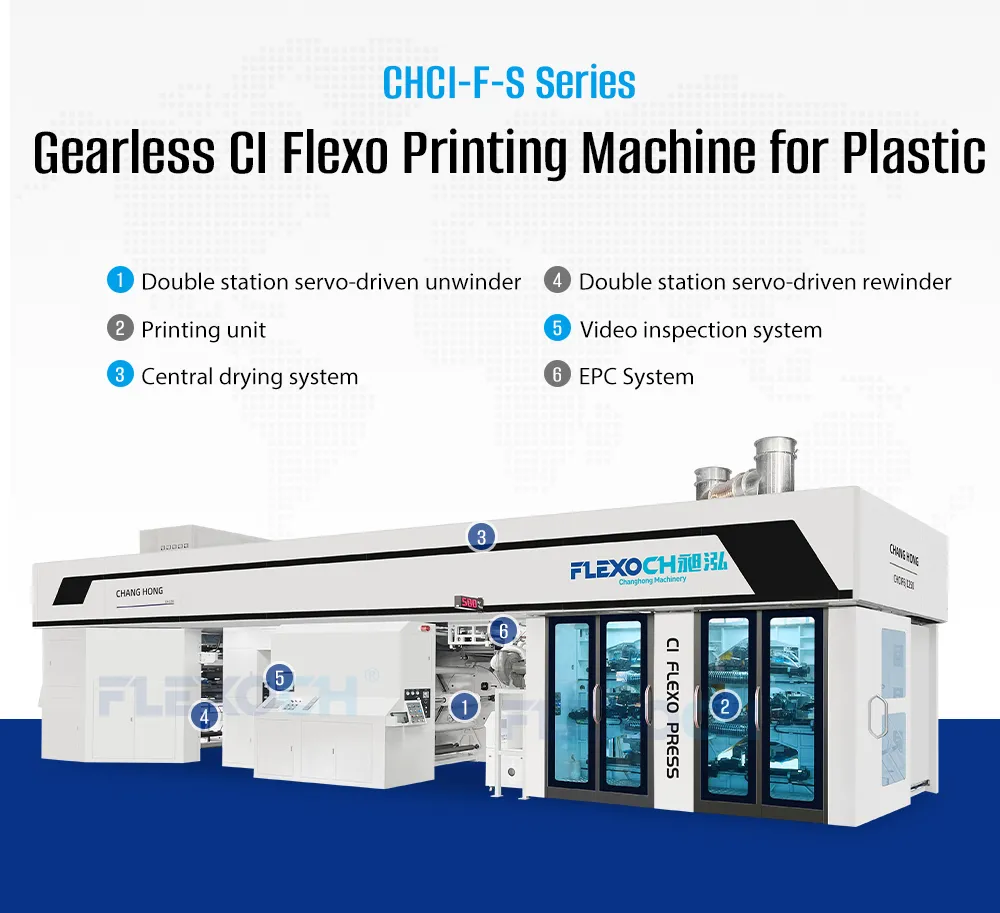

Flexo Machine Specification Image

The 6 colors gearless flexo printing machine handles plastic films and flexible packaging. Servo motors replace traditional gears throughout. Running up to 500 meters per minute, print quality doesn't become a trade-off at higher speeds. Food packaging, shopping bags, labels, flexible packaging on PE, PP, PET — these are the everyday jobs this machine was built around.

Full Servo Motor Drive: Every printing unit on the 6 colors gearless flexo printing machine runs its own servo motor independently — no shared drives, no gear-based compromises. Color alignment stays tighter, maintenance needs drop, and the overall precision is in a different league compared to traditional gear systems.

Central Drum Design: Six colors, one central cylinder — that's the whole idea. The film stays wrapped around a single fixed point through the entire print run, so stability comes from the structure itself rather than something that needs constant managing.

High-Speed Operation: Top speed sits at 500 meters per minute, and it's fully adjustable depending on the material and job requirements. High-volume production schedules don't require compromising one for the other.

Automatic Roll Changing (Non-Stop Production): Two roll holders mean the next roll loads while printing is still happening. The 6 colors gearless flexo printing machine switches rolls on its own.

Corona Treatment: Plastic film goes through surface treatment before ink ever touches it, which is what makes adhesion reliable across common plastic materials.

Automatic Color Registration: Sensors run in the background the whole time, nudging each color back into alignment before any drift becomes visible on the print. Even at full speed, registration doesn't drift.

Model CHCI6-600F-S CHCI6-800F-S CHCI6-1000F-S CHCI6-1200F-S
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Mechanical Speed 500m/min
Max. Printing Speed 450m/min
Max. Unwind/Rewind Dia. φ 800mm/φ1200mm/φ1500mm
Drive Type Gearless full servo drive
Printing Length (repeat) 400-800mm
Electrical Supply Voltage 380V, 50 HZ, 3PH or to be specified
Ink Water base ink or solvent ink
Range of Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon
Photopolymer Plate To be specified

Samples Display

Flexo Printing Samples Display

Company Profile

Manufacturing Facilities and Workshop

Packaging & Shipping

Packaging and Loading Process

FAQ

What is the maximum printing speed of this 6 colors gearless flexo printing machine?
Mechanical speed tops out at 500 m/min. Where it actually runs depends on the substrate, ink coverage, and conditions on the day — but the servo-driven system keeps registration accurate regardless of where speed sits during the run.
What types of materials can this machine print on?
PE, PP, PET, BOPP, CPP, nylon, breathable films, laminated materials — most flexible substrates used in packaging production are covered. If a material isn't on that list, it's worth asking before assuming it won't run.
How does the gearless servo drive system benefit production?
Getting rid of mechanical gears takes backlash out of the picture entirely. Noise drops, maintenance needs shrink, and registration accuracy ends up noticeably better than what gear-driven systems typically deliver — especially over long runs.
What is the registration accuracy of this machine?
Under normal operating conditions, registration holds within ±0.1mm. The closed-loop servo control keeps monitoring and correcting throughout the run, so color-to-color alignment doesn't drift as the job goes on.
How does the non-stop unwinding/rewinding system work?
Two unwind and rewind stations run in tandem. When one roll gets close to finished, the system splices across to the new roll automatically — the line never stops, and the swap happens without any operator intervention.
Is the corona treatment device standard equipment?
Yes, it comes standard. Film surfaces get treated before printing, which is what makes ink adhesion reliable on non-porous substrates — without it, print quality on those materials tends to be inconsistent no matter how well everything else is dialed in.
