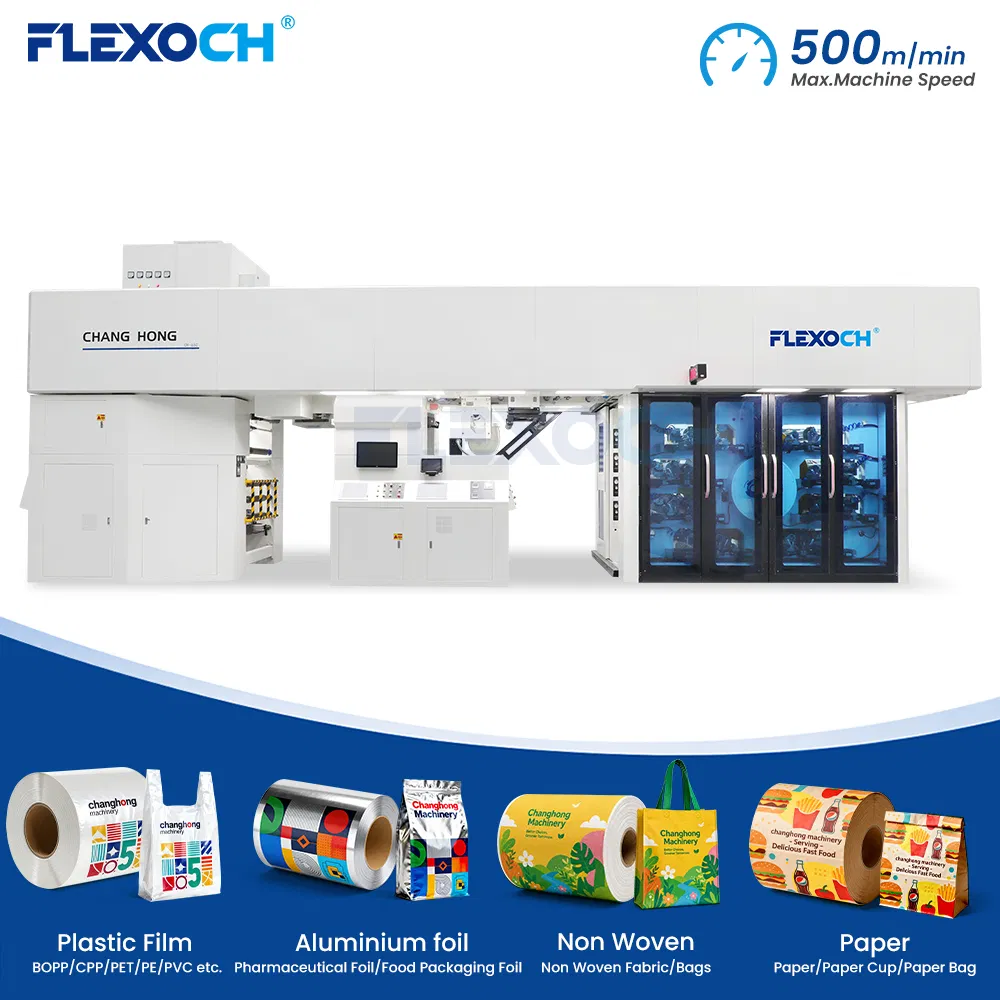

6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
1 / 5
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine
6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine

6 8 Colors Plastic Film Gearless Ci Central Drum Flexo/Flexographic/Flexograpy Printing Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info
Model NO.
CHCI-F-S
Anilox Roller
Ceramic Anilox Roller
Dryer
UV & IR
Type
Ink Jet
Embossing Structure
Rotary Letterpress
Structure
Satellite
Application
Pre Printed Carton
Automatic Grade
Automatic
Printing Speed
500m/Min
Print Color
8 Color
Color Print Choice
6+0, 5+1, 4+2, 3+3
Tension
Automatic Tension Controller
EPC
Auto EPC
Printing Roller Lift up and Down
by Automatic Hydraulic
Normal Print Speed
10-500m/Min
Transport Package
Wooden Pallet
Specification
CE, ISO Certificate
HS Code
84431600
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
9000.00cm * 3500.00cm * 5000.00cm
Package Gross Weight
10000.000kg
Product Description
We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.
Production Capacity: Two modern manufacturing facilities covering 60,000 m², with 10+ R&D engineers and 100+ experienced technicians, producing 200+ machines annually.
Experience & Certification: Over 20 years of manufacturing experience in flexographic printing machinery; all products are CE certified.
Global Reach: Serving 1,500+ clients across 65+ countries, including Asia, North America, South America, the Middle East, Europe, and Africa.
After-Sales Service: We provide on-site commissioning after delivery, operation training, and remote video troubleshooting, along with free replacement of wearing parts within the first year.
Gearless CI Central Drum Flexo Printing Machine
Machine Features
#01
Unwind System
  • Servo Motor Driven
  • Dual-Station Non-Stop
  • Shaftless Unwind System
  • Automatic Tension Control
  • Edge Position Control System

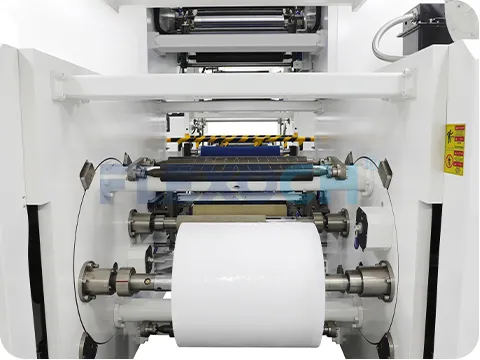

Servo Motor Driven Unwind System
#02

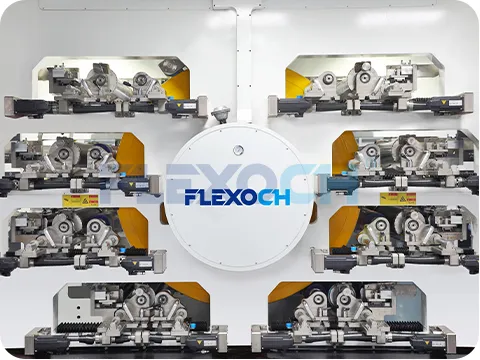

Printing Unit
  • Gearless Servo Drive
  • Ceramic Anilox Roller
  • Chambered Doctor Blade
  • Central Impression (CI) Drum
  • Fast Sleeve Change System

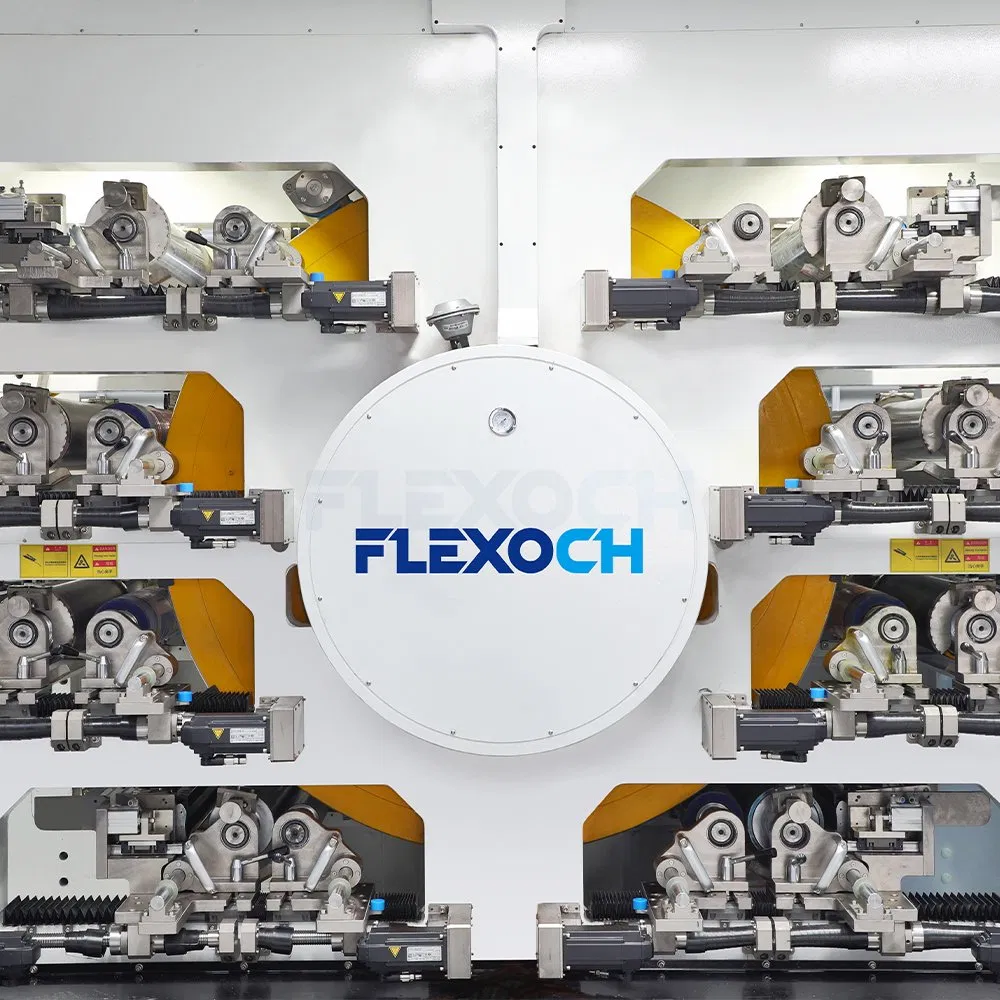

Gearless Servo Drive Printing Unit
#03

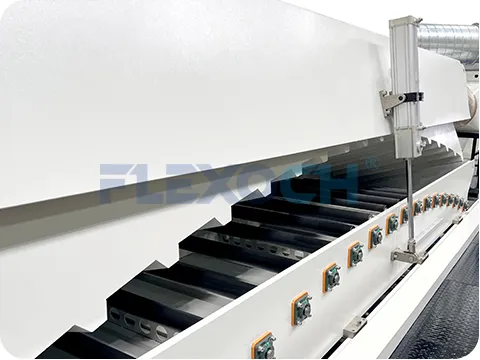

Drying System
  • Electric Heating System
  • Variable Frequency Airflow Control
  • Intelligent Constant Temperature Control
  • Hot Air Circulation Drying System
  • Fully Enclosed Oven Structure
Drying System
#04

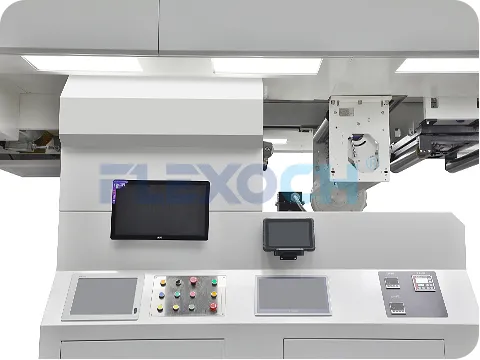

Video Inspection System
  • Full-width Video Inspection System
  • High-speed cameras monitor the entire web width in real time, automatically detecting print defects such as color variation, missing print, and streaks.
Video Inspection System
#05

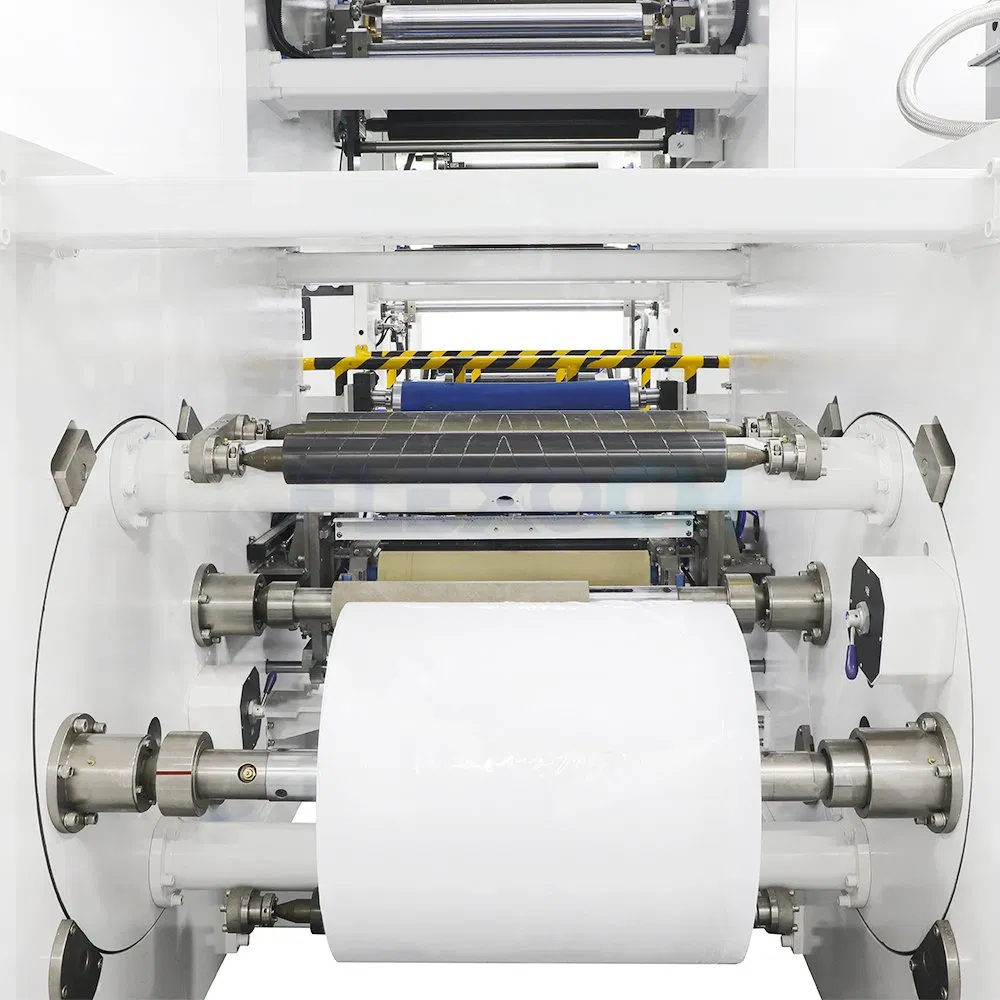

Rewind System
  • Servo Motor Driven
  • Dual-Station Non-Stop
  • Center Driven Rewind
  • Automatic Tension Control
  • Automatic Fault Detection

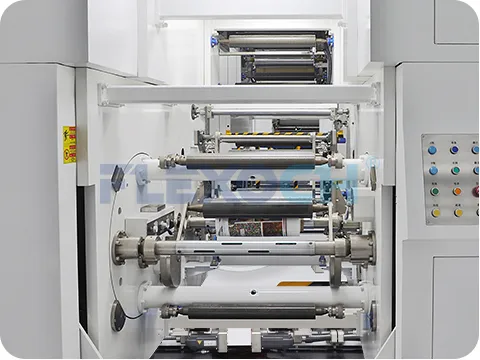

Rewind System
Testimonials
Client Feedback Info
Client Testimonial Detail
Specifications
Gearless flexo printing press is an innovative machine that offers advanced printing solutions. Its high-speed capability, precise registration control system, efficient ink delivery system, and user-friendly operation make it the perfect choice for those in need of advanced printing solutions. The high speed and high precision of the gearless flexo printing press make it a perfect choice for printing various materials, such as flexible packaging, labels, paper, non-woven fabrics, etc.
Gearless technology
Operates without gears, making it quieter, smoother, and more precise in its operation.
Superior registration
Gearless technology allows for more accurate and precise registration, resulting in higher print quality.
Wide substrate range
Capable of printing on a wide range of substrates, including film, paper, and Non Woven.
High-speed operation
Gearless technology enables faster printing speed of 500m/min, shortening lead time.
Environmentally friendly
Uses water-based inks, which are more environmentally friendly than solvent-based inks.
Reduced waste
Features minimal waste due to its precise registration and reduced setup time.
Advanced automation
Features advanced automation, including automatic registration and substrate handling, resulting in less operator intervention and higher productivity.

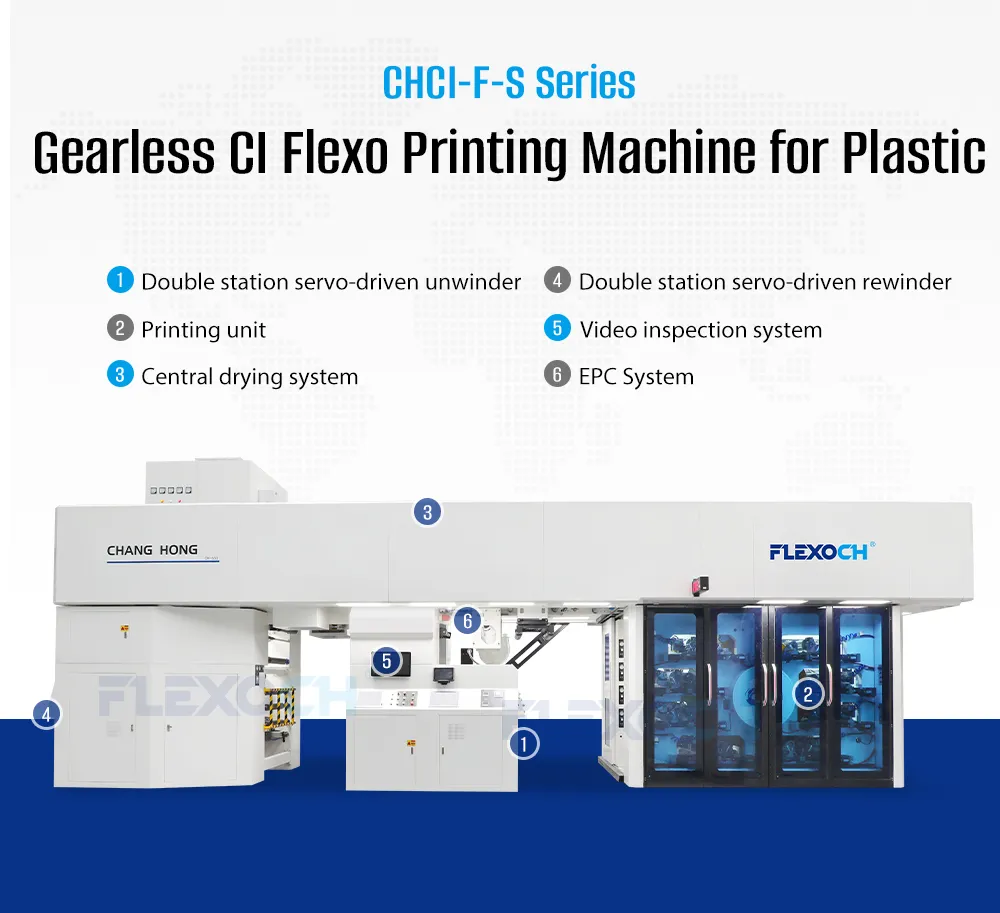

Gearless Flexo printing press diagram
TECHNICAL SPECIFICATIONS
Model CHCI8-600F-S CHCI8-800F-S CHCI8-1000F-S CHCI8-1200F-S
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Mechanical Speed 500m/min
Max. Printing Speed 450m/min
Max. Unwind/Rewind Dia. φ800mm/φ1200mm
Drive Type Gearless full servo drive
Printing Length (repeat) 400-800mm
Electrical Supply Voltage 380V. 50 HZ. 3PH or to be specified
Ink Water base ink or solvent ink
Range of Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Breathable Film
Photopolymer Plate To be specified
Samples Display
Flexo Printing Samples Display
Company Profile
Factory layout and machinery manufacturing
Packaging & Shipping
Packaging and shipping loading process
Frequently Asked Questions
Q1: What is a gearless flexo printing press?
A1: A gearless flexo printing press is a type of printing press that uses a direct drive system instead of gears to run the printing plates. This technology allows for greater precision and flexibility in printing operations.
Q2: What are the advantages of a gearless flexo printing press?
A2: The advantages of a gearless flexo printing press include increased printing quality and accuracy, quick job changes, reduced downtime and maintenance, and significant energy savings.
Q3: How does a gearless flexo printing press work?
A3: A gearless flexo printing press uses a direct drive system that allows the printing plates to be mounted directly onto the press cylinder without the use of gears. This system allows for greater control over the printing process, including printing pressure, registration, and drying.
Q4: What industries use gearless flexo printing presses?
A4: Gearless flexo printing presses are used in a variety of industries, including packaging, label printing, flexible packaging, and more.
Q5: What should be considered when choosing a gearless flexo printing press?
A5: When choosing a gearless flexo printing press, consider factors such as printing speed, substrate flexibility, color capability, and ease of use. It's important to choose a press that can meet the specific needs of your business and industry.
Q6: What substrates can be printed using this gearless flexo printing press?
A6: The press is capable of handling a wide range of substrates, including LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Breathable Film, paper, and non-woven fabrics.
