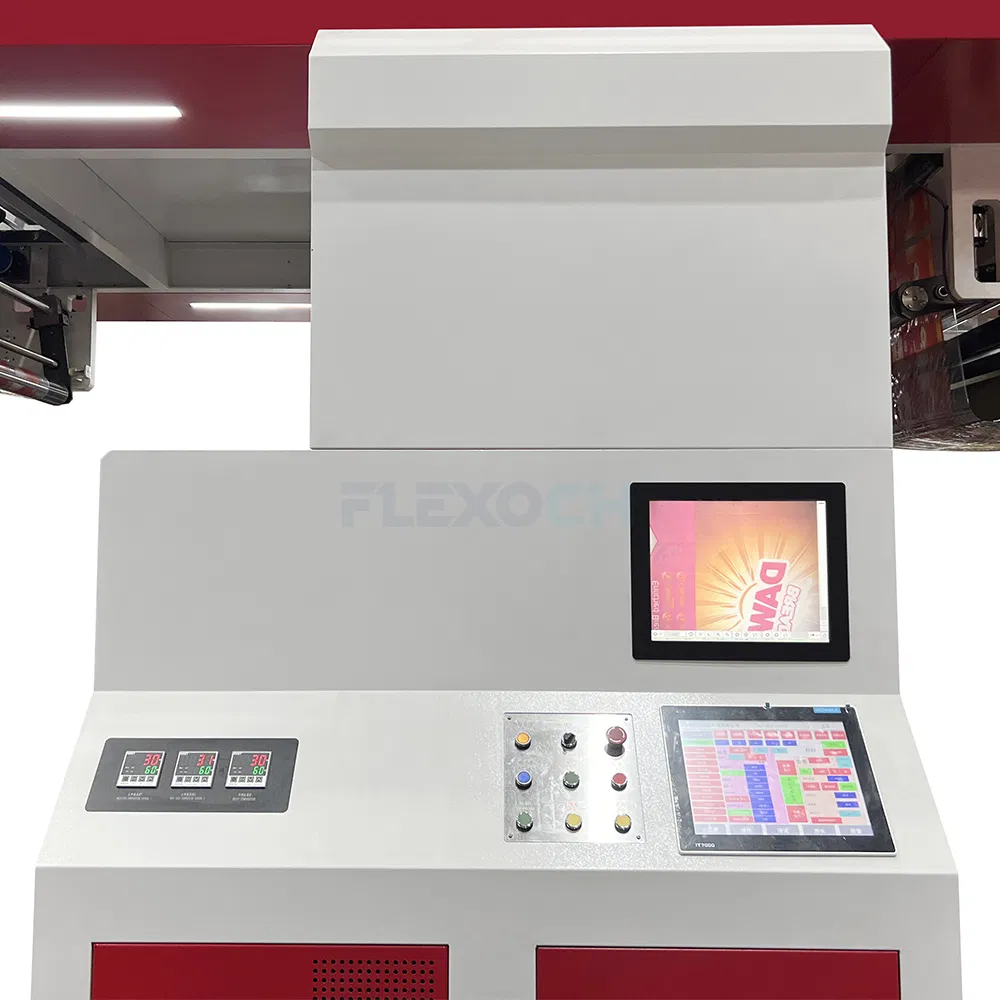

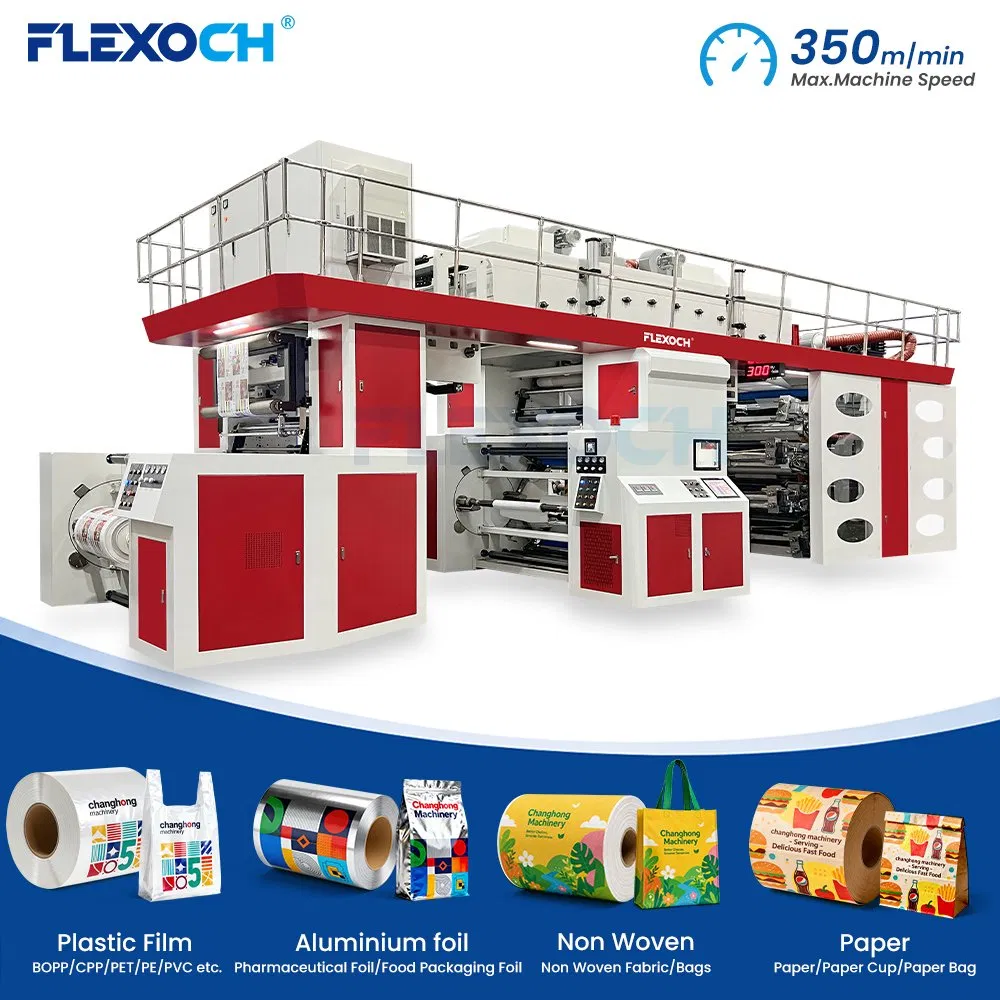

Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
1 / 5
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color
Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color

Central Drum Ci Roll to Roll Paper Cup Plastic Film Nylon Shopping Bag PE Non Woven Flexo/Flexographic Printing Machine 8 Color

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

  • Overview
  • Machine Features
  • Testimonials
  • Specification
  • Samples Display
  • Company Profile
  • Packaging & Shipping
  • FAQ
Basic Info.
Model NO.CHCI-E-S
Anilox RollerCeramic Anilox Roller
DryerUV & IR
TypeInk Jet
Embossing StructureRotary Letterpress
StructureSatellite
ApplicationPre Printed Carton
Automatic GradeAutomatic
Printing Speed300m/Min
Print Color8 Color
Color Print Choice8+0,6+2,4+4
TensionAutomatic Tension Controller
EPCAuto EPC
Printing Roller Lift up and Downby Automatic Hydraulic
Normal Print Speed10-300m/Min
Machine RunningSynchronous Belt Instead of Gear
Transport PackageFilm, Then Use Wooden Pallet Sea Safety Packages
Specification600-2200mm, at your choice
HS Code84431600
Production Capacity20sets/Month
Packaging & Delivery
Package Size9000.00cm * 3500.00cm * 5000.00cm
Package Gross Weight10000.000kg
Product Description
We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.
1
Production Capacity
Two modern manufacturing facilities covering 60,000 m², with 10+ R&D engineers and 100+ experienced technicians, producing 200+ machines annually.
2
Experience & Certification
Over 20 years of manufacturing experience in flexographic printing machinery; all products are CE certified.
3
Global Reach
Serving 1,500+ clients across 65+ countries, including Asia, North America, South America, the Middle East, Europe, and Africa.
4
After-Sales Service
We provide on-site commissioning after delivery, operation training, and remote video troubleshooting, along with free replacement of wearing parts within the first year.
Flexographic Printing Machine Overview
Machine Features
#01

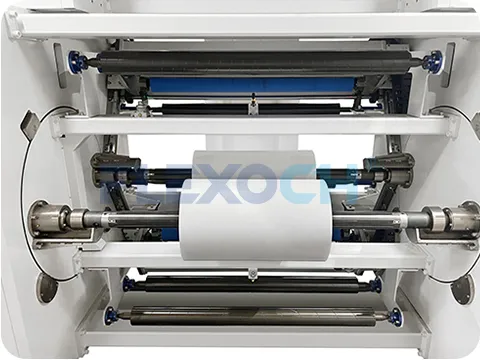

Center Driven Unwind System
Dual-Station Non-Stop unwinding accompanied by an Ultrasonic Web Guide System and Automatic Tension Control for smooth material feed.
Center Driven Unwind System
#02

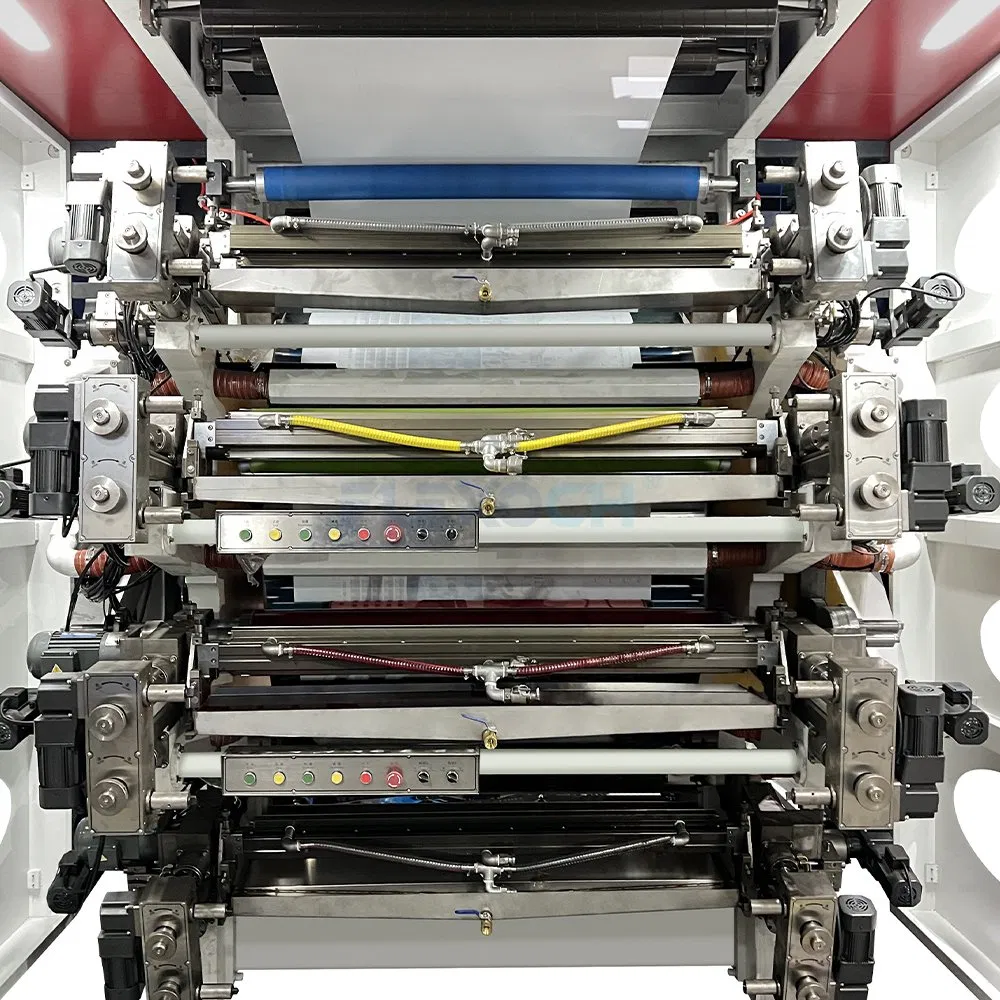

Advanced Printing & Cleaning
Equipped with Plate Self-Cleaning Function, Central Impression (CI) Drum, Hydraulic Position Printing, Ceramic Anilox Roller, and Chambered Doctor Blade systems.

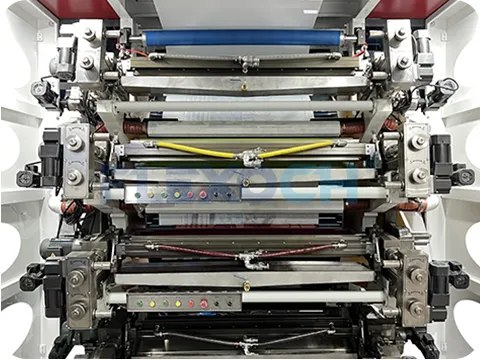

Central Impression Drum System
#03
Video Inspection System
High-speed cameras monitor the entire web width in real time, automatically detecting print defects such as color variation, missing print, and streaks.
Video Inspection System
#04

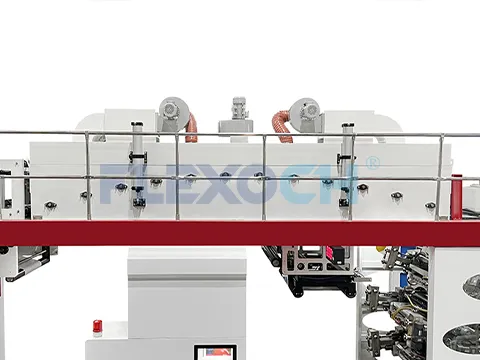

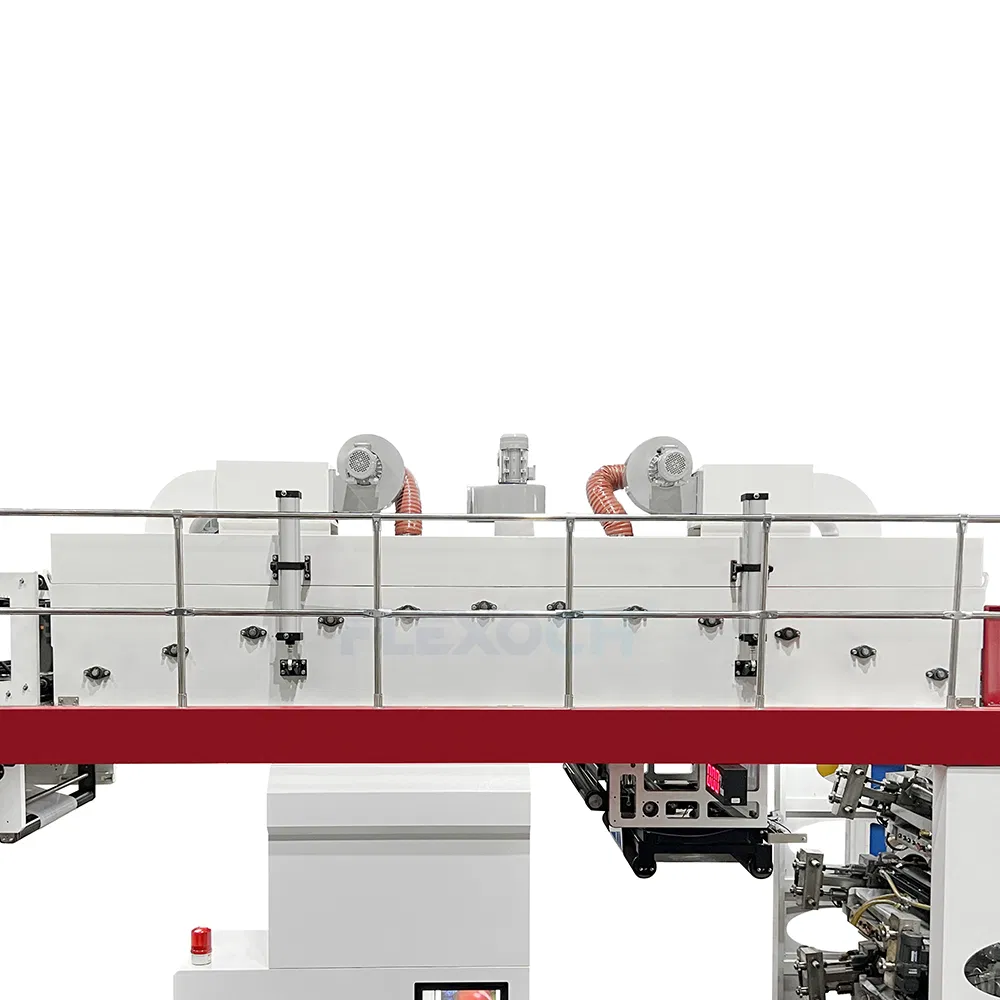

Drying & Temperature Control
Electric Heating System combined with Variable Frequency Airflow Control, Intelligent Constant Temperature Control, Hot Air Circulation Drying System, and a Fully Enclosed Oven Structure.
Heating and Drying System
#05

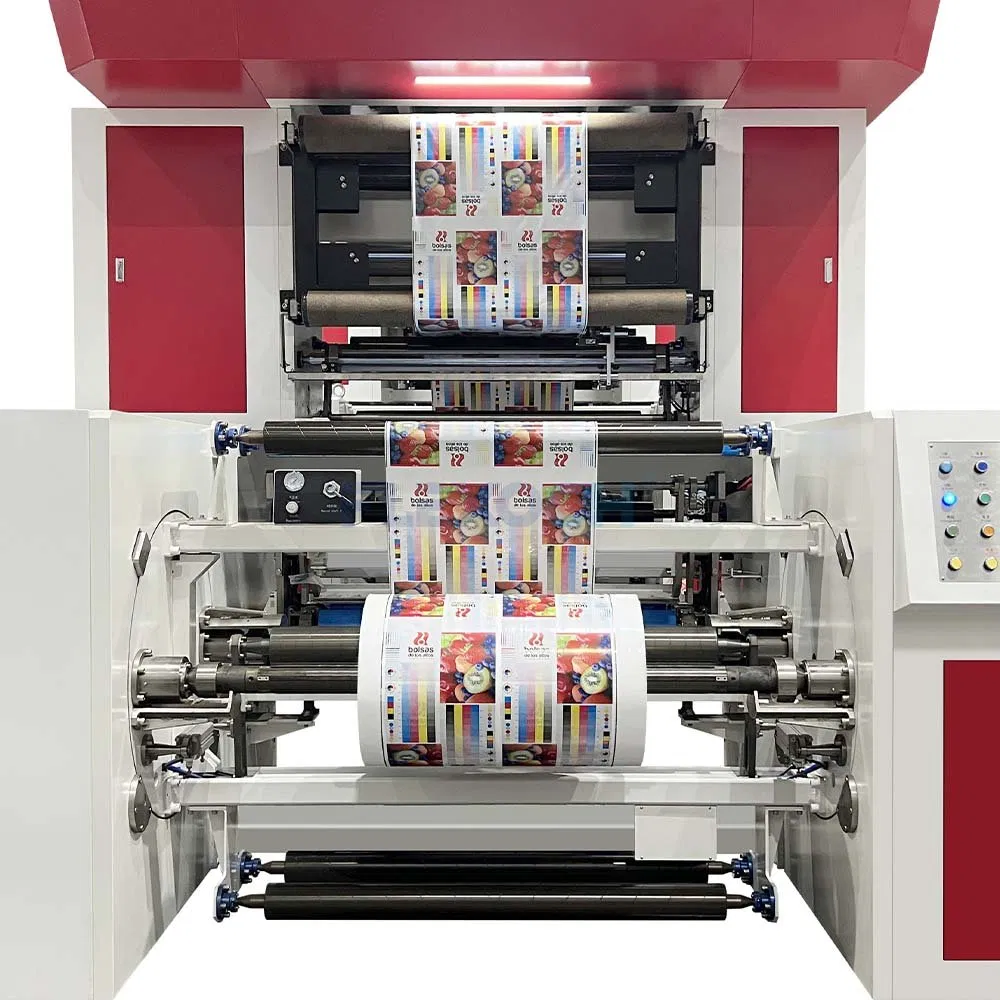

Servo Motor Driven Rewind
Servo Motor Driven Dual-Station Non-Stop Center Driven Rewind System featuring Automatic Tension Control for consistent output winding.

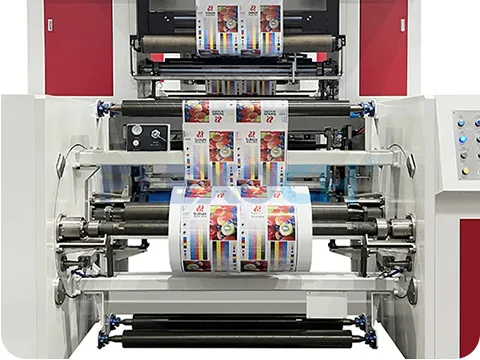

Servo Motor Driven Rewind System
Testimonials
Customer Testimonial 1
Customer Testimonial 2
Specification

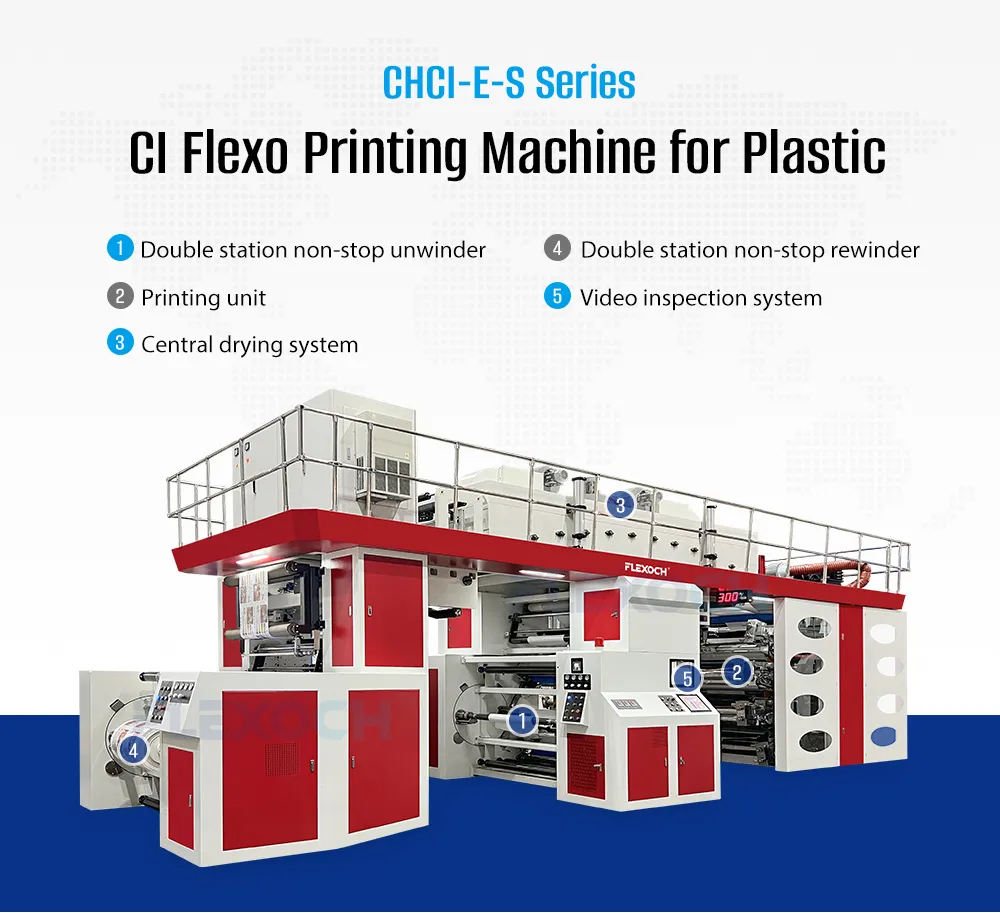

Specification Chart Overview

This CI flexo printing machine was built with flexible packaging in mind. It runs dual-station unwind and rewind units, so roll changes happen without stopping the line — which matters a lot when you're doing high-volume runs. Color registration stays accurate even when speed climbs up to 350 m/min, largely thanks to the central impression drum design. Tension is managed automatically throughout the web path, and the hot-air drying system is modular, so it adapts to different job requirements. As for materials, it handles PE, BOPP, CPP, PET, PVC, and similar films without issue.

  • Non-stop Rewinder and Unwinder: Roll changes no longer mean production stops. This machine handles changeover on the fly.
  • High-Precision Central Impression Drum: The large-diameter CI drum keeps color registration tight across all print stations.
  • Fully Automatic Tension Control System: Tension runs automatically all the way from unwind to rewind.
  • Compatible with Various Film Materials: Easily handles PE, PET, BOPP, CPP, PVC, and more.
  • High-Speed Printing Capability: Speeds can reach 350 m/min or beyond, compatible with water-based and solvent-based inks.
  • Modular Drying System: Multi-zone hot air dryers offer the ability to finely tune temperatures during the cycle.
  • Automatic Web Guiding & Shortage Alarm: Monitors and adjusts web edge positions to keep film aligned.
TECHNICAL SPECIFICATIONS
Model CHCI8-600E-S CHCI8-800E-S CHCI8-1000E-S CHCI8-1200E-S
Max. Web Width 700mm 900mm 1100mm 1300mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Mechanical Speed 350m/min
Max. Printing Speed 300m/min
Max. Unwind/Rewind Dia. φ 800mm/φ1000mm/φ1200mm
Drive Type Central drum with Gear drive
Printing Length (repeat) 350-900mm
Electrical Supply Voltage 380V. 50 HZ.3PH or to be specified
Ink Water base ink or solvent ink
Range of Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon
Photopolymer Plate To be specified
Samples Display
Printing Samples Show
Company Profile
Company Facilities Profile
Packaging & Shipping
Packaging & Shipping Details
FAQ
What kind of film materials does this machine use?
It's built for flexible plastic films — PE, BOPP, CPP, PET, PVC are all standard. Laminated materials used in food and industrial packaging also run fine on this machine.
Why does the dual-station unwind/rewind matter?
Essentially, it eliminates the need to halt the machine for roll replacements. The transition occurs seamlessly, allowing the line to keep operating. This translates to reduced downtime and fewer disruptions.
How fast can this machine print?
Up to 350 meters per minute. That said, actual speed depends on the material you're running and what print quality you need — pushing to max speed on a detailed job isn't always the right call.
What inks can I use?
Both water-based and solvent-based inks work. Which one makes more sense for you really comes down to your substrate and whether you have environmental or regulatory constraints to consider.
Can the machine be customized?
Yes — that's actually one of the more common requests we get. Color stations (anywhere from 4 to 8), web width, drying configuration, and automation level are all adjustable based on what your production line actually needs.
What does after-sales support look like?
Online technical support and installation guidance come standard. If needed, on-site service can be arranged. We also keep spare parts available and offer remote diagnostics, so issues don't have to wait for someone to show up in person.
