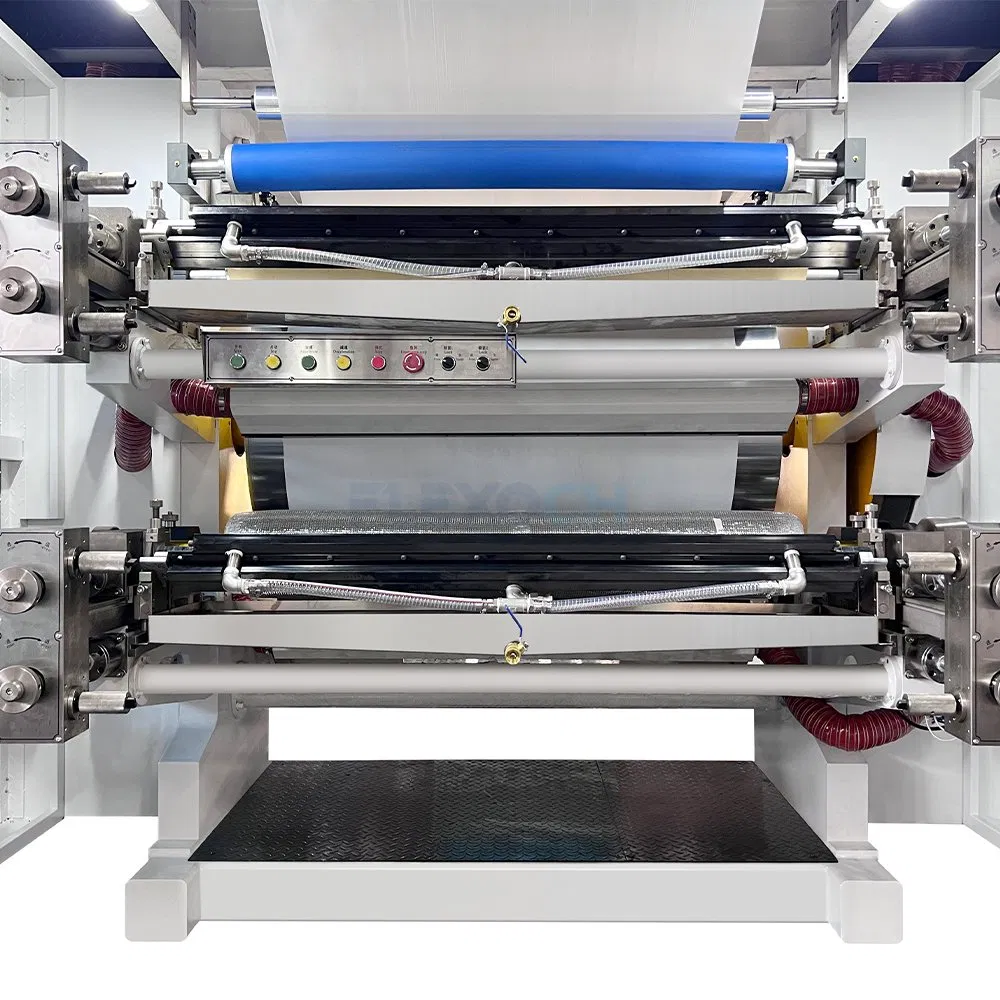

High Speed 4 6 8 Color Central Drum Ci PE Plastic Film Bag Flexo/Flexographic/Flexography Printing Machine Printer for Paper Cup

Overview & Basic Info

Model NO.

CHCI-J-S

Printing Color

4 Colors

Anilox Roller

Ceramic Anilox Roller

Dryer

Electric Drying

Type

Roller to Roller

Embossing Structure

Rotary Letterpress

Structure

Satellite

Application

Pre Printed Carton

Automatic Grade

Automatic

Printing Speed

250m/Min

Power

45kw

Tension

Magnetic Power and Auto Tension Controller

EPC System

Edge Position Control

Unwinder

Single Unwinder

Rewinder

Single Rewinder

Shaft

Air Shaft

Transport Package

Wrapping Film

Specification

L*W*H: 6.7m*2.5m*3.5m

Origin

China

HS Code

8443160090

Production Capacity

20sets/Month

Packaging & Delivery

Package Size

5500.00cm * 2000.00cm * 2600.00cm

Package Gross Weight

9000.000kg

Product Description

Source Manufacturer

Specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.

Production Capacity: Two modern manufacturing facilities covering 60,000 m², with 10+ R&D engineers and 100+ experienced technicians, producing 200+ machines annually.

Experience & Certification: Over 20 years of manufacturing experience in flexographic printing machinery; all products are CE certified.

Global Reach: Serving 1,500+ clients across 65+ countries, including Asia, North America, South America, the Middle East, Europe, and Africa.

After-Sales Service: On-site commissioning after delivery, operation training, and remote video troubleshooting, along with free replacement of wearing parts within the first year.

High Speed 4 6 8 Color Central Drum Ci PE Plastic Film Bag Flexo/Flexographic/Flexography Printing Machine Printer for Paper Cup

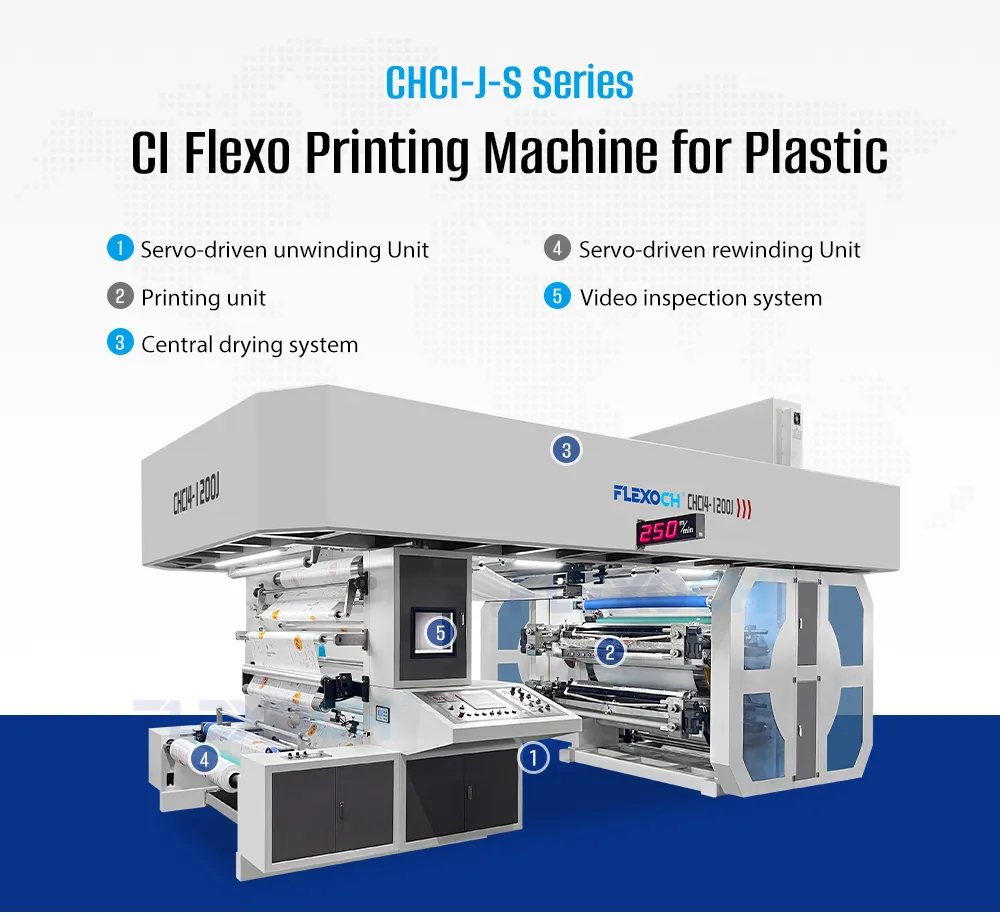

Machine Features

#01

Unwind & Control

Servo Motor Driven
Center Driven Unwind System
Ultrasonic Web Guide System
Automatic Tension Control

#02

Printing Drum & Anilox

Plate Self-Cleaning Function
Central Impression (CI) Drum
Hydraulic Position Printing
Ceramic Anilox Roller
Chambered Doctor Blade

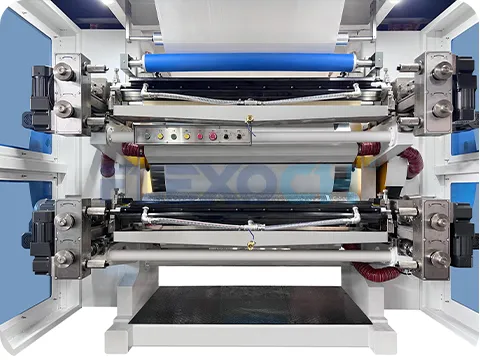

Central Impression Drum and Ceramic Anilox Roller

#03

Drying System

Electric Heating System
Variable Frequency Airflow Control
Intelligent Constant Temperature Control
Hot Air Circulation Drying System
Fully Enclosed Oven Structure

#04

Inspection System

Video Inspection System
High-speed cameras monitor the entire web width in real time
Automatically detects print defects such as color variation, missing print, and streaks

#05

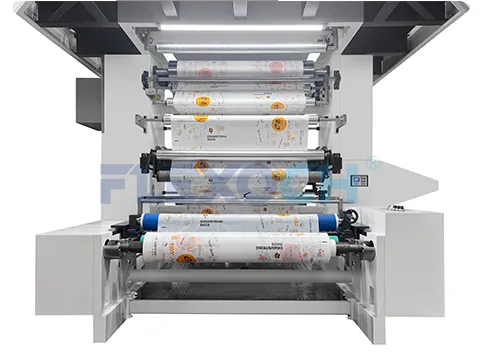

Rewind & Diagnostics

Servo Motor Driven
Center Driven Rewind System
Automatic Tension Control
Automatic Fault Detection

Testimonials

Specifications

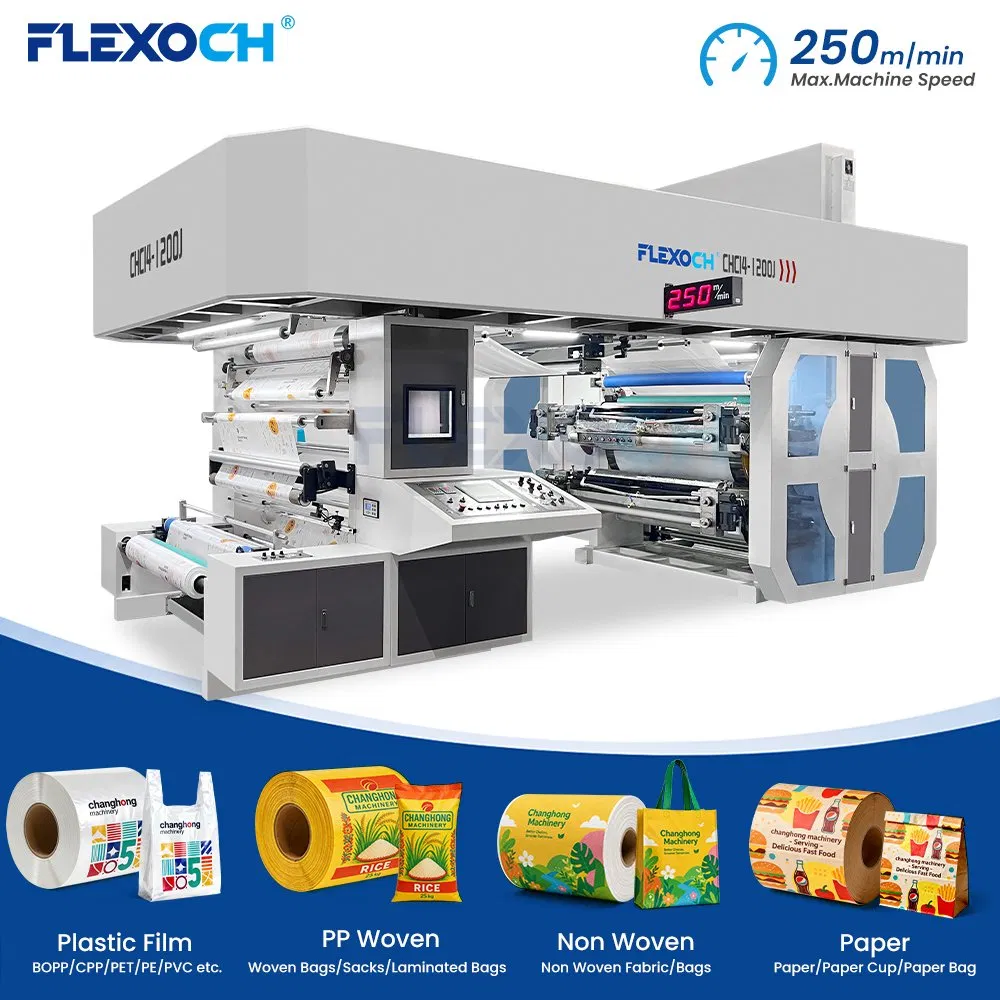

This 4-color CI flexo press was put together with plastic film and flexible packaging in mind. The central impression drum keeps registration consistent and color accuracy where it needs to be — something that makes a real difference when you're running food packaging, shopping bags, or label work where tolerances are tight.

At up to 250 meters per minute, it moves fast enough to keep production output competitive without the print quality falling apart across different film substrates.

Central Impression Drum Configuration: Everything runs around one central drum — and for thin-gauge films, that matters more than most people realize. It's the secret sauce that maintains registration and prevents print quality from going haywire during a run.

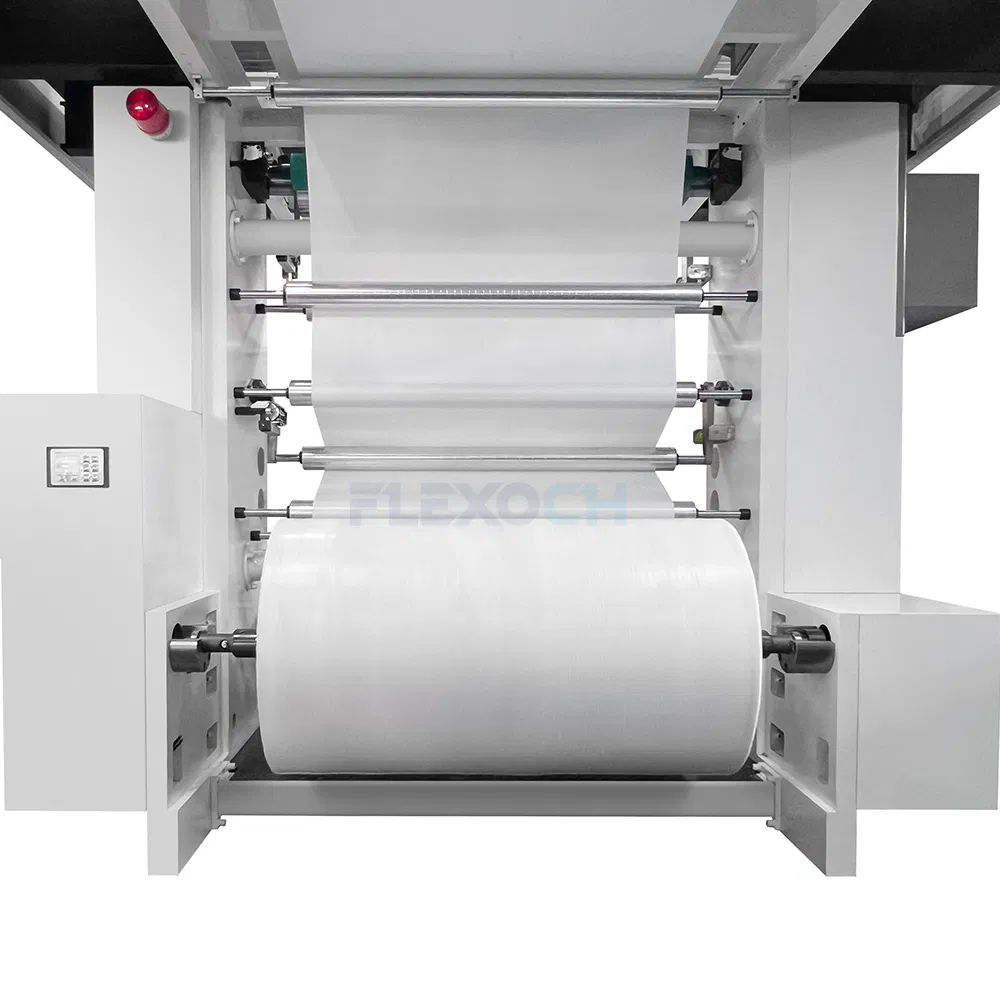

Servo Motor Unwind and Rewind Systems: Both the unwind and rewind sides run off precision servo motors, so tension doesn't just get set at the start and forgotten. It's actively managed throughout the entire roll, right down to the core.

High-Speed Operation: The press holds up reliably at speeds reaching 250 m/min. More importantly, print quality doesn't noticeably drop off as speeds climb — which is where a lot of machines start to struggle.

Full-Width Turner Bar: A turner bar is built right into the web path, making full web reversal straightforward for double-sided printing or whenever the job calls for a non-standard web configuration. It's a small addition that opens up a lot of production options.

In-Line Slitting Function: Slitting is handled on the press itself, so there's no separate pass needed after printing. That alone takes a chunk of handling time out of the workflow.

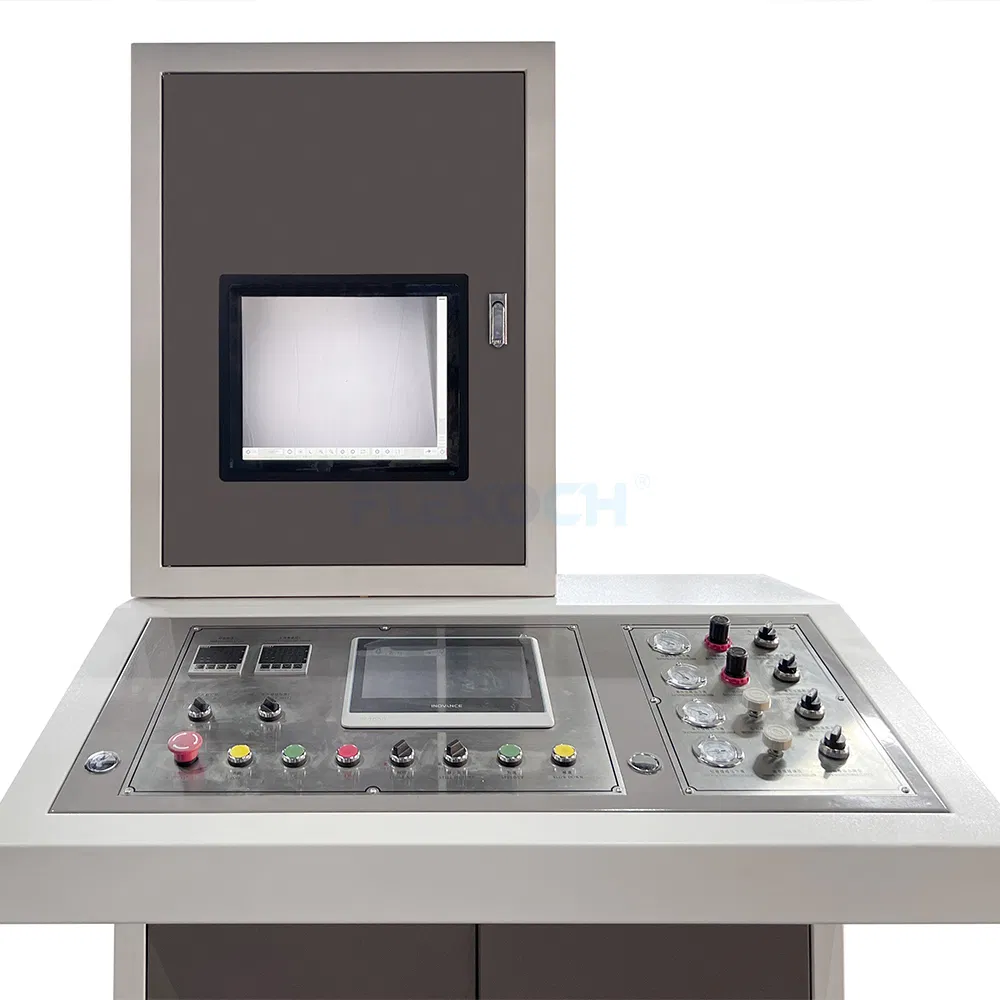

User-Friendly Control Panel: One centralized control system covers setup, operation, and troubleshooting. Operators don't need to hunt across different panels to make adjustments, which keeps downtime short when something needs attention.

Flexible Ink Compatibility: Water-based and solvent-based inks both run without issue, so the press adapts to different packaging applications without requiring modifications — and stays within reach of current environmental standards either way.

Model	CHCI-600J-S	CHCI-800J-S	CHCI-1000J-S	CHCI-1200J-S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Mechanical Speed	250m/min
Max. Printing Speed	200m/min
Max. Unwind/Rewind Dia.	φ1200mm/φ1500mm
Drive Type	Central drum with Gear drive
Printing Length (repeat)	350-900mm
Electrical Supply	Voltage 380V. 50 HZ. 3PH or to be specified
Ink	Water base ink or solvent ink
Range of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon
Photopolymer Plate	To be specified

Samples Display

Company Profile

Factory Workshop and Manufacturing Environment

Packaging & Shipping

Machine Packaging and Container Loading Details

Frequently Asked Questions

Q: What types of materials can this CI flexo press handle?

Plastic films are the main focus — PE, BoPP, laminated films. If you're running food packaging, shopping bags, or labels, chances are the material you're already using will work fine on this press.

Q: Can the CI flexo press use water-based inks?

Yes, it can. It can use both water-based and solvent-based inks. You don't have to choose just one system; the press can use either one, depending on what you need.

Q: How easy is it to use and take care of the CI flexo press?

Everything is controlled by one panel, so operators don't have to look for settings in different parts of the machine. Daily maintenance is also easy, so it shouldn't take people off the line for long.

Q: What is the production output of the CI flexo press?

Up to 250 m/min, and it holds that through full production shifts. For medium to large-scale film printing, the output is there — it's not just a spec sheet number.

Q: What is the typical delivery time for this CI flexo press?

Somewhere in the 60 to 90 day range after the order is confirmed. Customization needs and where things sit on the production schedule at the time can nudge that either way.

Q: Is technical support available after installation?

Remote support is the first call, and if that's not enough, on-site visits can be arranged. It's not a hand-off situation — support stays available after the press is up and running.
