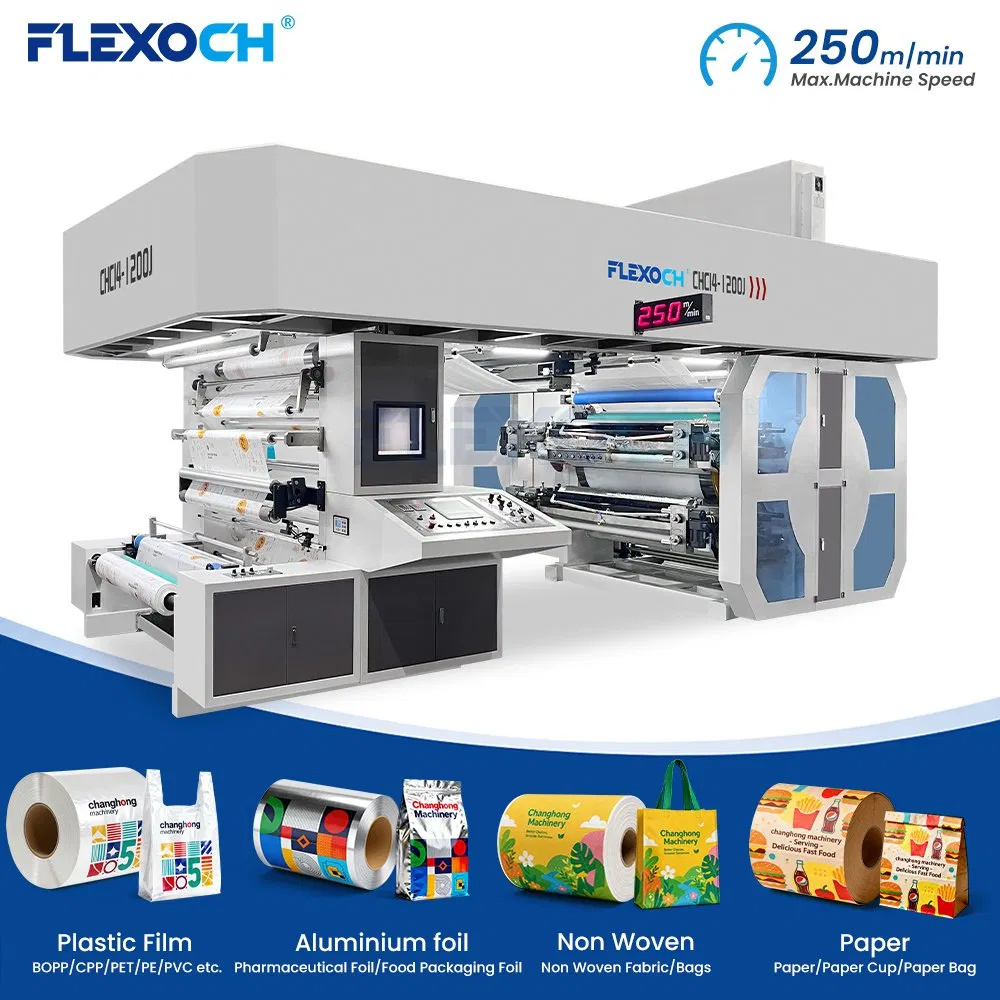

High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
1 / 5
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup
High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup

High Speed 4 6 8 Color Roll to Roll Ci Flexo/Flexographic Printing Print Machine for Plastic Bag /Film /Paper Cup

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
CH-J-S
Anilox Roller
Ceramic Anilox Roller
Dryer
UV & IR
Type
Flexographic Printer
Embossing Structure
Rotary Letterpress
Structure
Satellite
Application
Pre Printed Carton
Automatic Grade
Automatic
Printing Speed
250m/Min
Plate Type
Photopolymer Plate
Usage
Woven Bag Printer
Color
4 Color
Color & Page
Multicolor
Applicable Industries
Flexo Printing Machine
Weight
8000kg
Lead Time
Within 60 Work Days After Receive The Deposit
Key Word 1
4 Color Printing Machine
After-Sales Service
Online Support, Field Installation
Voltage
380V
Printing Material
Woven Bag
Certification
CE Certification
Size
7.3m * 2.0m * 3.5m
Dimensions(L*W*H)
7300*2000*3500mm
Transport Package
Firstly Wrapped by Plastic Film
Production Capacity
20 Set/Sets Per Month
Packaging & Delivery
Package Size
9000.00cm * 3500.00cm * 5000.00cm
Package Gross Weight
10000.000kg
Product Description
We are a source manufacturer specializing in flexographic printing machines, including Stack Type Flexo Printing Machines, CI (Central Impression) Flexo Printing Machines, and Full Servo Gearless Flexo Printing Machines.
Production Capacity
Two modern manufacturing facilities covering 60,000 m², with 10+ R&D engineers and 100+ experienced technicians, producing 200+ machines annually.
Experience & Certification
Over 20 years of manufacturing experience in flexographic printing machinery; all products are CE certified.
Global Reach
Serving 1,500+ clients across 65+ countries, including Asia, North America, South America, the Middle East, Europe, and Africa.
After-Sales Service
On-site commissioning after delivery, operation training, remote video troubleshooting, and free replacement of wearing parts within the first year.
High Speed Ci Flexo Printing Machine Overview
Machine Features
01

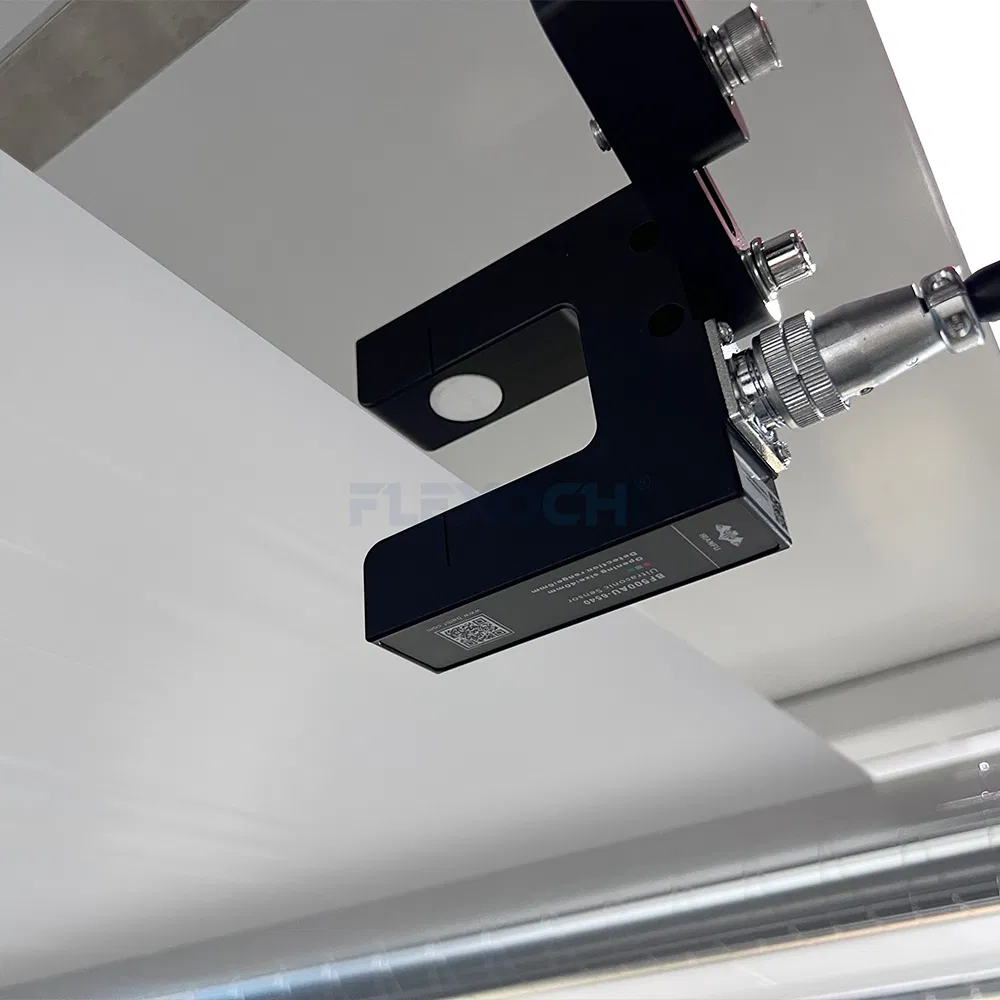

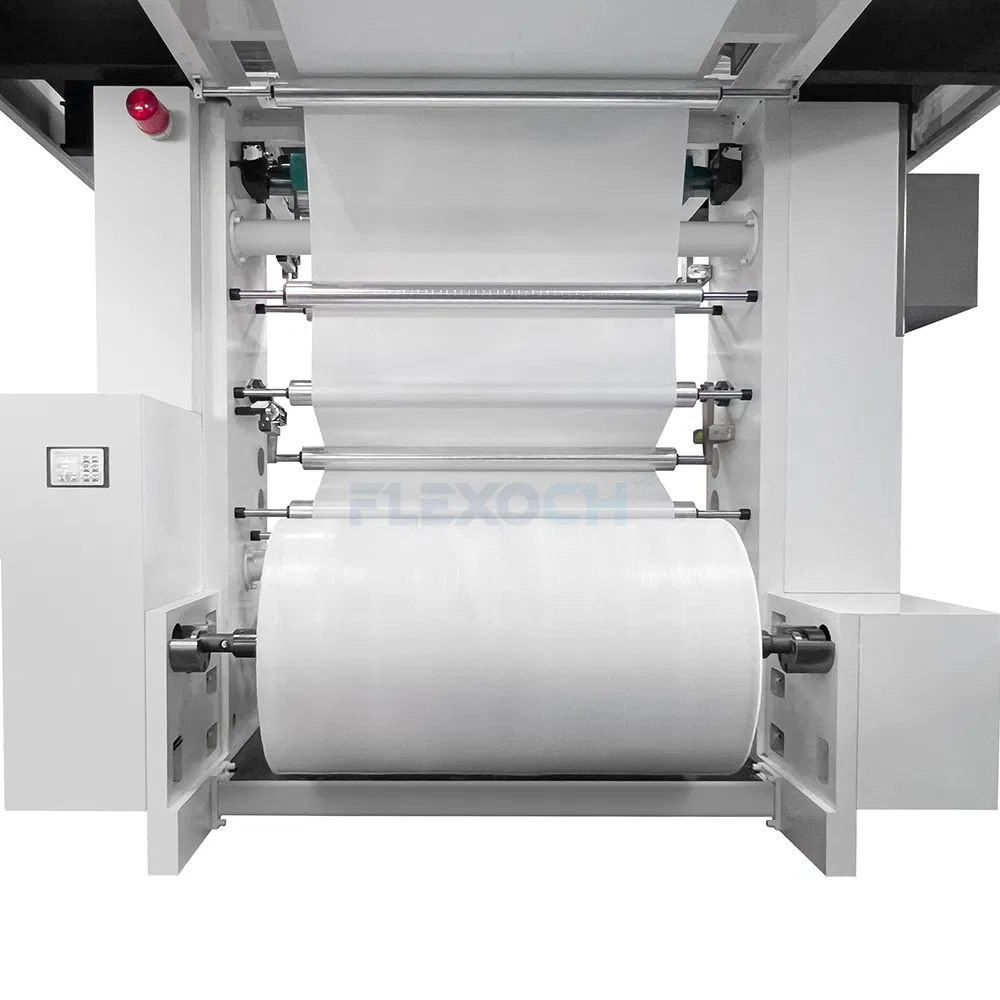

Unwind System & Web Guide

Features a servo motor driven, center driven unwind system. Integrates an ultrasonic web guide system alongside automatic tension control to ensure smooth feed.

Servo Driven Unwind System
02

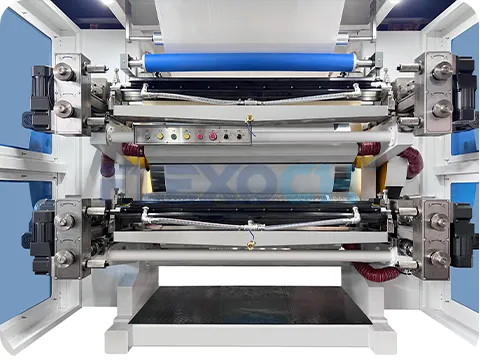

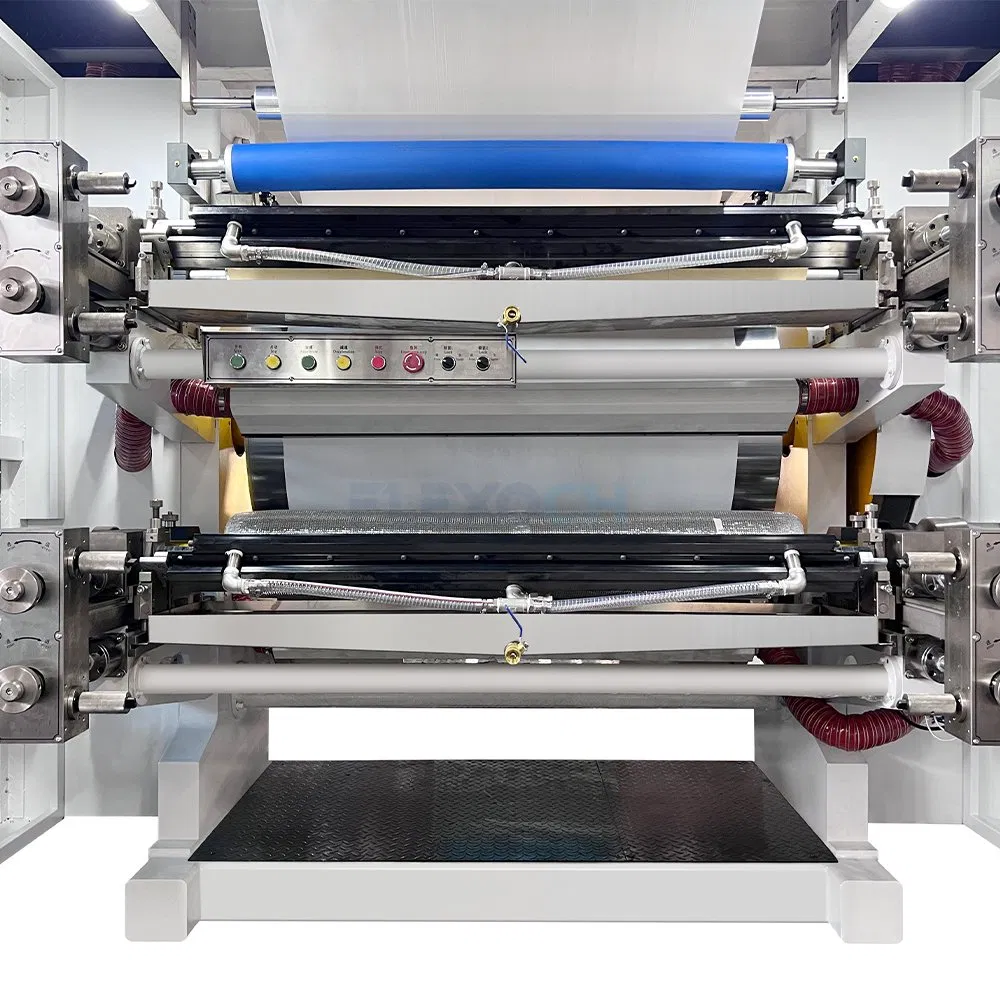

Central Impression (CI) Drum

Offers a plate self-cleaning function, central impression (CI) drum configuration, hydraulic position printing, ceramic anilox roller, and a chambered doctor blade setup for precision printing.

Central Impression Drum Configuration
03
Drying & Oven Structure

Equipped with an electric heating system, variable frequency airflow control, intelligent constant temperature control, and a hot air circulation drying system inside a fully enclosed oven structure.

Drying System & Oven
04
Video Inspection System

High-speed cameras monitor the entire web width in real-time, automatically detecting print defects such as color variation, missing print, and streaks to minimize waste.

Video Inspection System
05

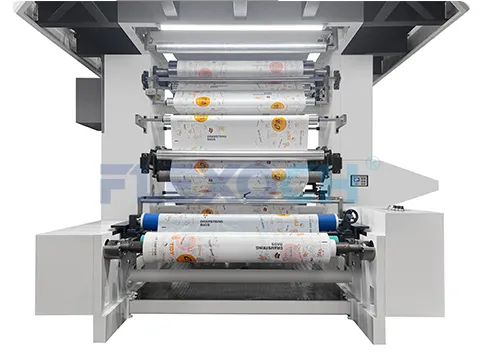

Rewind System & Fault Detection

Equipped with a servo motor driven, center driven rewind system with automatic tension control and automatic fault detection mechanisms.

Rewind System and Tension Control
Testimonials
Customer Testimonial 1 Customer Testimonial 2
Specification

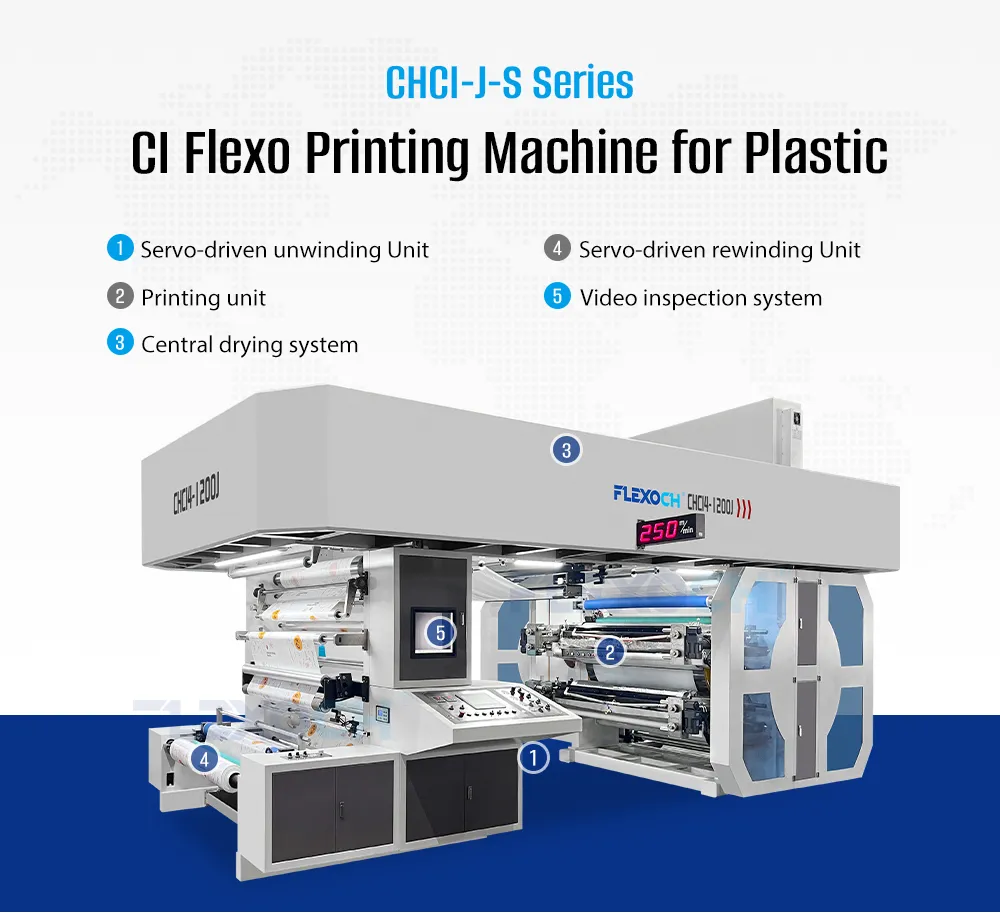

CI Flexo Press Specifications Diagram

This 4-color CI flexo press was put together with plastic film and flexible packaging in mind. The central impression drum keeps registration consistent and color accuracy where it needs to be — something that makes a real difference when you're running food packaging, shopping bags, or label work where tolerances are tight. At up to 250 meters per minute, it moves fast enough to keep production output competitive without print quality falling apart across different film substrates.

  • Central Impression Drum Configuration: Maintains strict registration and prevents print quality variations during runs on thin-gauge films.
  • Servo Motor Unwind and Rewind Systems: Active tension management from start to core via precision servo motors.
  • High-Speed Operation: Performs reliably at speeds reaching up to 250 m/min without drop-offs in print quality.
  • Full-Width Turner Bar: Straightforward web reversal built right in, ideal for double-sided or custom layouts.
  • In-Line Slitting Function: Integrates slitting on the press itself, eliminating separate post-printing handling passes.

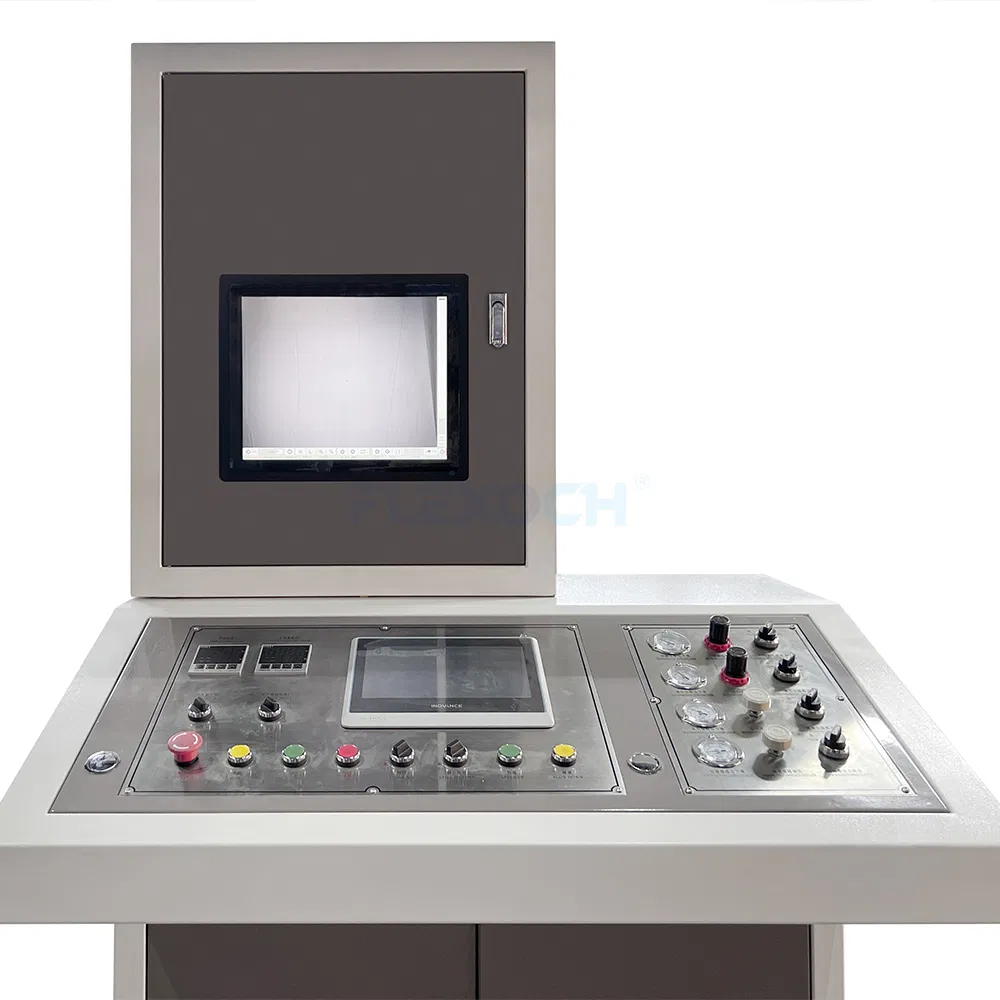

  • User-Friendly Control Panel: A centralized control interface manages setups, operation settings, and troubleshooting.
  • Flexible Ink Compatibility: Runs water-based or solvent-based inks easily to support various environmental standards.
Model CHCI-600J-S CHCI-800J-S CHCI-1000J-S CHCI-1200J-S
Max. Web Width 650mm 850mm 1050mm 1250mm
Max. Printing Width 600mm 800mm 1000mm 1200mm
Max. Mechanical Speed 250m/min
Max. Printing Speed 200m/min
Max. Unwind/Rewind Dia. φ1200mm/φ1500mm
Drive Type Central drum with Gear drive
Printing Length (repeat) 350-900mm
Electrical Supply Voltage 380V. 50 HZ.3PH or to be specified
Ink Water base ink or solvent ink
Range of Substrates LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon
Photopolymer Plate To be specified
Samples Display
Flexo Printing Samples Showcase
Company Profile
Factory Facilities and Manufacturing Process
Packaging & Shipping
Machine Packaging and Loading Process
FAQ
Q1 What types of materials can this CI flexo press handle?
Plastic films are the main focus — PE, BoPP, laminated films. If you're running food packaging, shopping bags, or labels, chances are the material you're already using will work fine on this press.
Q2 What is the maximum printing width of this CI flexo press?
That depends on the configuration, and there's more than one option. It's best to review the specifications together — width can be set up around what your jobs actually require.
Q3 Can the CI flexo press use water-based inks?
Yes, it can. It is compatible with both water-based and solvent-based inks. You don't have to choose just one system; the press can utilize either configuration based on your needs.
Q4 How easy is it to use and maintain the CI flexo press?
Everything is controlled via a centralized control panel, so operators don't have to manage settings across different parts of the machine. Daily maintenance is simplified to keep downtime minimal.
Q5 What is the production output of the CI flexo press?
It operates at speeds up to 250 m/min, holding this rate consistently through full production shifts. It is highly suitable for medium to large-scale film printing operations.
Q6 Is technical support available after installation?
Yes. Remote technical support is the first line of contact, and if required, on-site technician visits can be arranged. Full support remains active after the press is fully operational.
