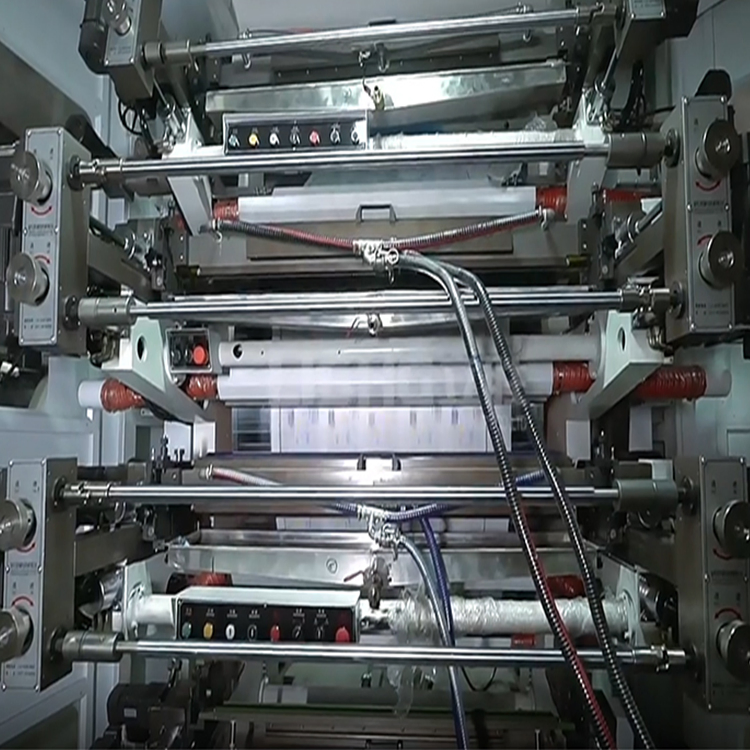

Lisheng High Speed Precise 8 Colors Ci Type Flexo Printing Machine

1 / 5

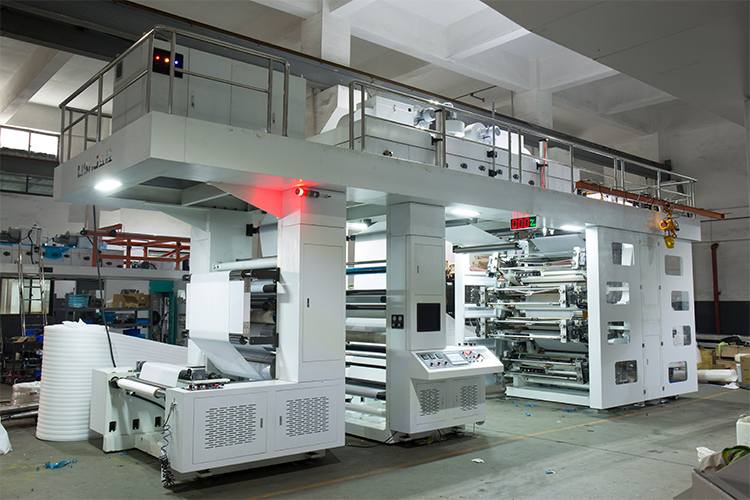

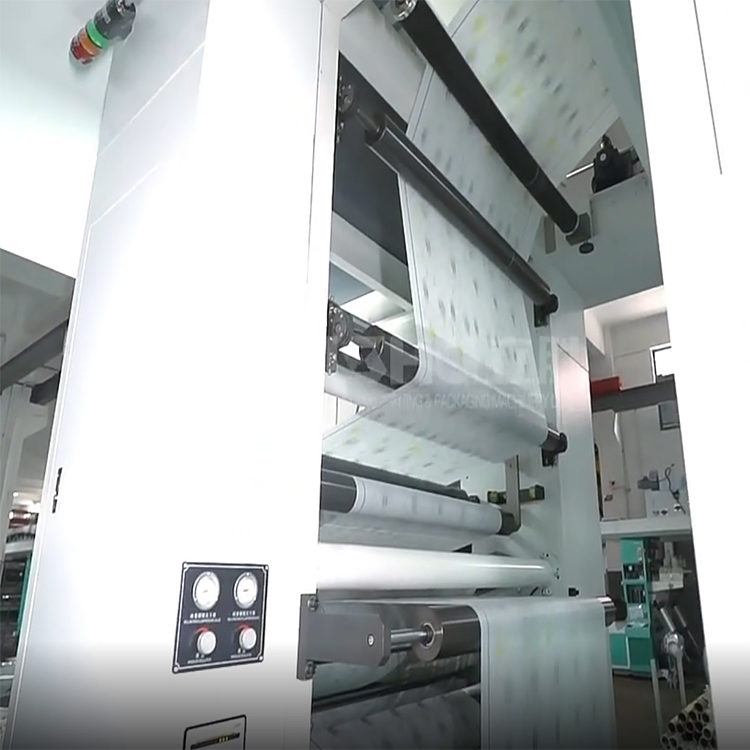

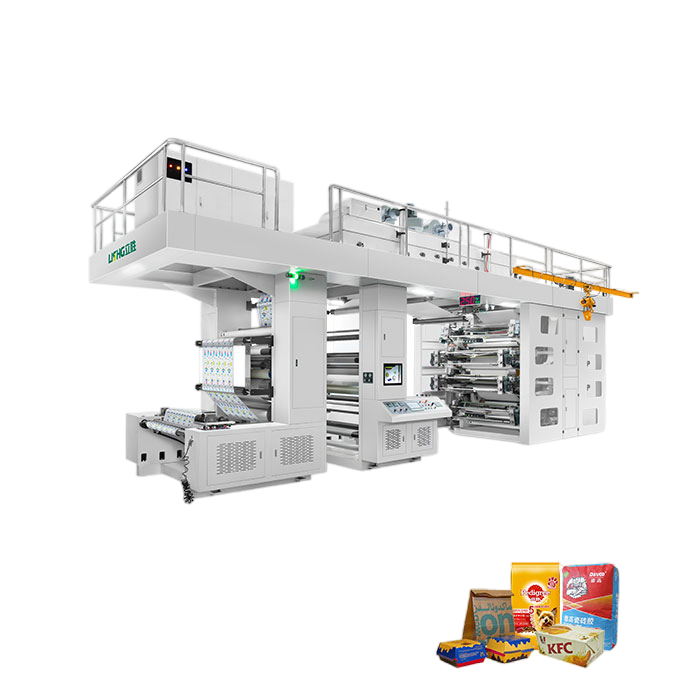

Lisheng High Speed Precise 8 Colors Ci Type Flexo Printing Machine

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO. YTD-8

Printing Page Double Faced

Printing Color 8 Colors

Anilox Roller Ceramic Anilox Roller

Dryer UV & IR

Type Ink Jet

Embossing Structure Rotary Letterpress

Structure Satellite

Application Flexible Packaging Printing

Automatic Grade Automatic

Printing Speed 250m/Min

Max.Width of Printing Material 1200mm

Max.Printing Width 1160mm

Length Range of Printed Products 300~1000mm

Max.Diameter of Material Roll 1000mm

Suitable Ink Water Based Ink or Solvent Ink

Ink Pump Pneumatic Double-Way Diaphragm Pump

Transport Package Film Packaging

Specification 11*3.6*4.36m(L*W*H)

HS Code 84431600

Production Capacity 20sets/Month

Packaging & Delivery

Package Size 11000.00cm * 3600.00cm * 4360.00cm

Package Gross Weight 8500.000kg

Product Description

High Speed Precise 8 Colors Ci Type Flexo Printing Machine

Technical parameter (YTD SERIES)
Technical parameter	Max Width Of Material	1200mm
	Max Printing Width	1160mm
	Suitable Material	paper , films , non-woven , fabric , foils
	Printing Color	8 colors
	Max Printing Speed	250m/min
	Machine Weight	17000kg
	Machine Dimension	11 * 3.6* 4.36m ( L * W * H)
	Machine Power	380V,3PH,50HZ

TECHNICAL DATA

Number of print units: 8-colors
Printing width: max. 1200 mm
Material width: min. 200 mm, max. 1240 mm
Print repeat: min. 370 mm, max. 900 mm
Print repeat infinitely variable from min. up to max. repeat range.
The press enables a minimum mechanical print repeat of 370 mm.

Anilox: Anilox sleeves - Ø 156 mm

Circumference: 560 mm
Basic shaft diameter for Anilox: Ø 133.806 mm, with pressured air supply. Can be customized.
Optional brand: ZECHER GERMANY, SONDON ENGLAND, MURATA JAPAN

Printing cylinders sleeves

Fiberglass printing cylinder basic shaft with pneumatic mounting of sleeves
Basic shaft diameter: Ø 105.158 mm
Repeat length: Min Ø 370mm Circumference, Max Ø 900mm Circumference
(Depending on type of substrate and according to above web tension range)
Inks to be converted: Solvent based and water based

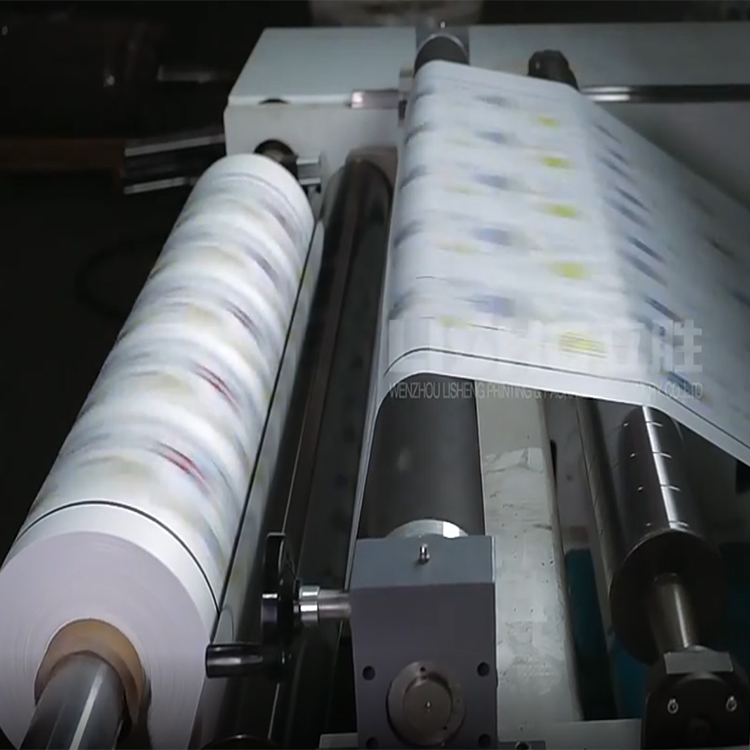

Active Servo Unwind

Max material width: 1240mm
Maximum unwind diameter: 800mm
Manually locking system for expanding shafts, without tools
1 pc. Compressed-air expansion gun for the winding shaft
1 pc. Dancer for constant web tension and for controlling the winding shaft drives
The use of floating roller device, low friction cylinder and encoder ensures constant tension
In feed control by servo motor. The material has no stretching, ensuring the printing effect
Aluminum alloy air shaft 3/6 inch Hydraulic loading and unloading, convenient and efficient
The material has no stretching, ensuring the printing effect

Machine main frames

High strength and low stress alloy cast iron frame (100mm), with two aging treatment, to eliminate vibration in high speed printing
Holding frame of each printing unit is also use high strength and low stress alloy cast iron frame
The iron base is level adjustable.

Central drum

The central drum adopts double-layer structural steel pipe, which is processed by multiple heat treatment shaping processes
The surface electrical layer reaches more than 200um
The diameter of the central drum is 1600MM
It is installed with a jump treatment of 0.01MM
The central drum and the rewind roller is equipped with a water cooling system to extend the life of the large roller, maintain a constant temperature, and prevent the material from stretching due to the influence of temperature.

Chamber doctor blade

Denmark design Chamber Doctor blade profile (spraying), seals the printing ink, reduce solvent evaporation, and keep the ink viscosity and clean
With forward and reverse doctor blade in the chamber, reverse doctor blade is for sealing and forward angle doctor blade is for doctoring.
Pneumatic pressure, the pressure of the whole pressure is uniform, the pressure can be adjusted by hand; Fast changing blade design

Ink supply system

With ink pump and circulation pipe
With a new process to spray material ink tank
Safety protection cover in each unit
Equipped with automatic ink cleaning function: automatic water, with a closed chamber system and circulating ink pump, automatic cleaning anilox roller, membrane pump, ink tube and ink knife parts ink, reduce the labor intensity of the operator.

Printing unit moves

Supports of both printing and anilox air mandrels move on high precision linear slide ways.
High precision recirculating balls-screws, pre-loaded and backlash free, for the movement of the slides
Anilox pressure and Printing pressure controlled by Servo motor with fast back and force capability
Individual controls on each unit
Protection covers on the lead screw and linear guide slide-ways
Registration control: Running circumferential adjustment with Servo Motor control. Adjusting through circumferential (Vertical) movement of the printing cylinder by motor.
Automatic anilox roll throw-off without loss of registry when the press stops. Accurate repositioning ability. Automatic self-cleaning throw-off without loss of registry when the press stops
Automatic plate roll throw-off without loss of registry when the press stop

Mounting machine

The rack construction with the wallboard structure after high-strength holistic processing has great working stability and is durable in use
The 650-line color high-definition camera can reach 70-times amplification ratio, present clear images, possess high resolution ratio, and substantially improve the precision of the plate
The 19-inch high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers.
The maximum width of the equipment is within 2m, the longitudinal length is controlled at 0.7m or so, the height of the equipment is smaller than 1.7m and the drive is on the two sides of the wall-boards of the equipment. The operation, usage, repairing and maintenance are very convenient.
Noted: Optional, According to customer needs

Ultrasonic cleaning machine

Quantity of vibrators: 36
Working frequency of the cleanser: 40 KHz
Total power of electric heater: 3KW
Temperature control range: 30ºC-100ºC
Ultrasonic power source: 25A/220V
Heating power source of rinsing tank: 220V 25A

Electro requirements

Press (without drying system) approx. 180 kVA, 3P, 380V, 60 HZ (according customer country requirement)
(Final capacity to be determined according to final press equipment.)
In order to guarantee a trouble-free operation of all electrical and electronic components, the following requirements are to be fulfilled by the customer:
Symmetrical three (3) phase network (TN-S network) with grounded, loadable star point
Stable, power failure protected mains, admissible power drop:
a) Main voltage > 0,8 main rating voltage for max. 20 ms (slow power drop)
b) Main voltage < 0,8 main rating voltage for max. 2 ms (sudden power drop)
Voltage tolerances: main rating voltage + 5 % / - 10 %
Ambient temperature (machine) 15 - 35°C *

Chiller system

The machine is equipped with water cooling function.
Input power: 4.3kw
Cooling capacity: 12300 kcal/hr
Cistern Storage: 80L

Pressure air requirements

Compressed air min. 7 bar Volume during printing and for Smart clean system, During printing: approx. 1300 Nl/min Maximum: approx. 2000 Nl/min

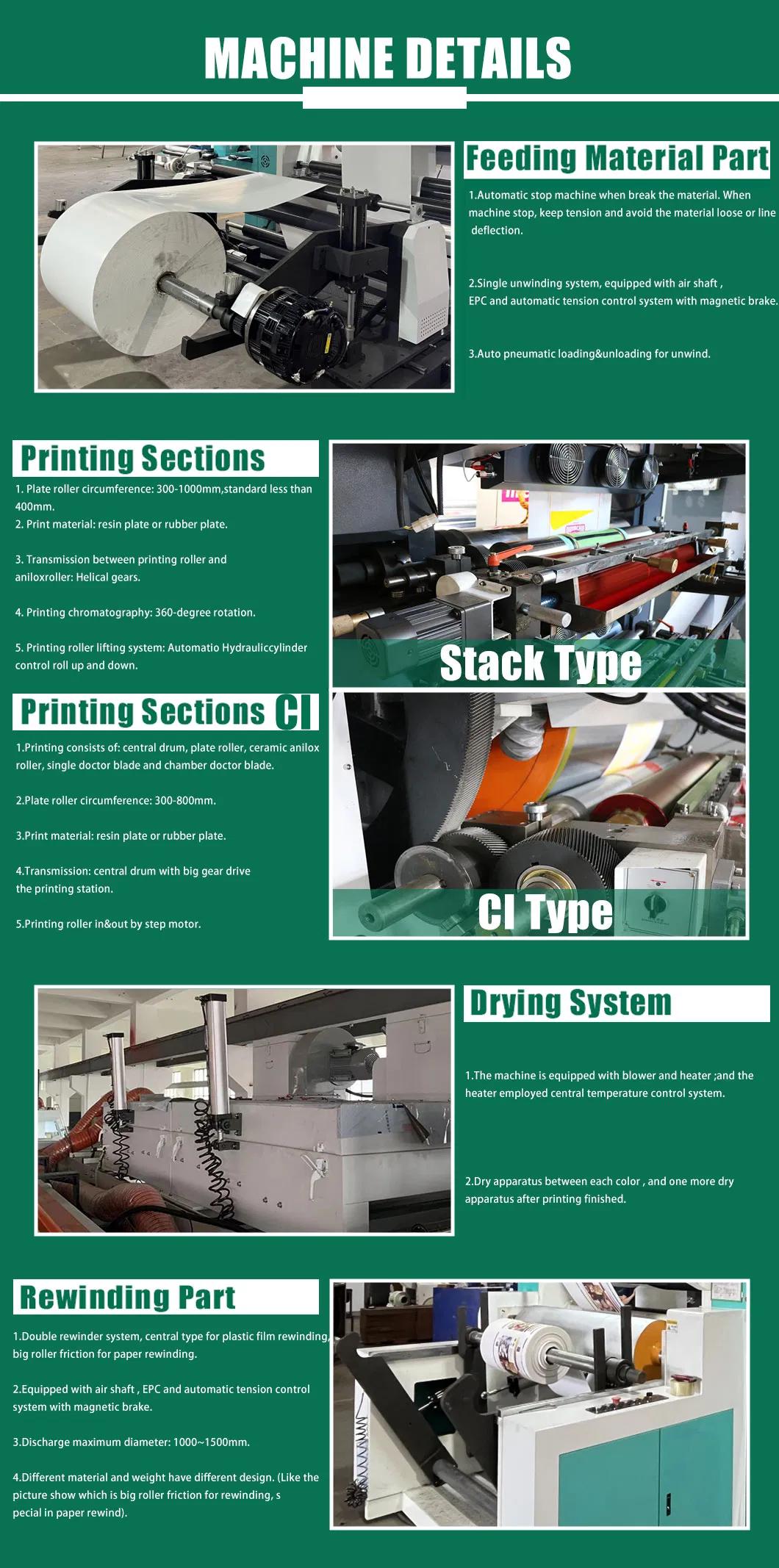

Product Gallery

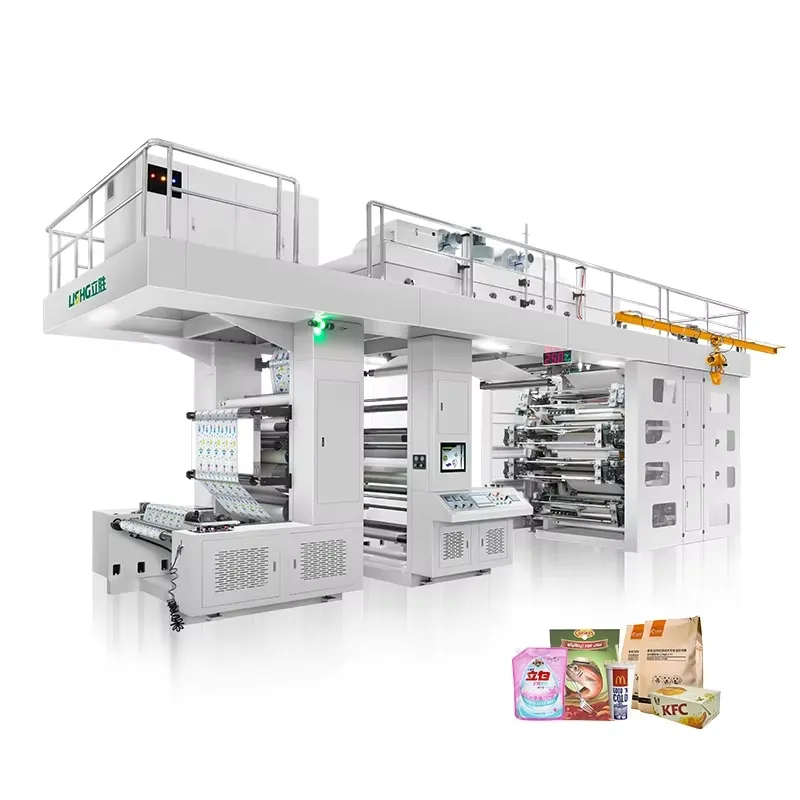

High Speed Precise 8 Colors Ci Type Flexo Printing Machine details 1
