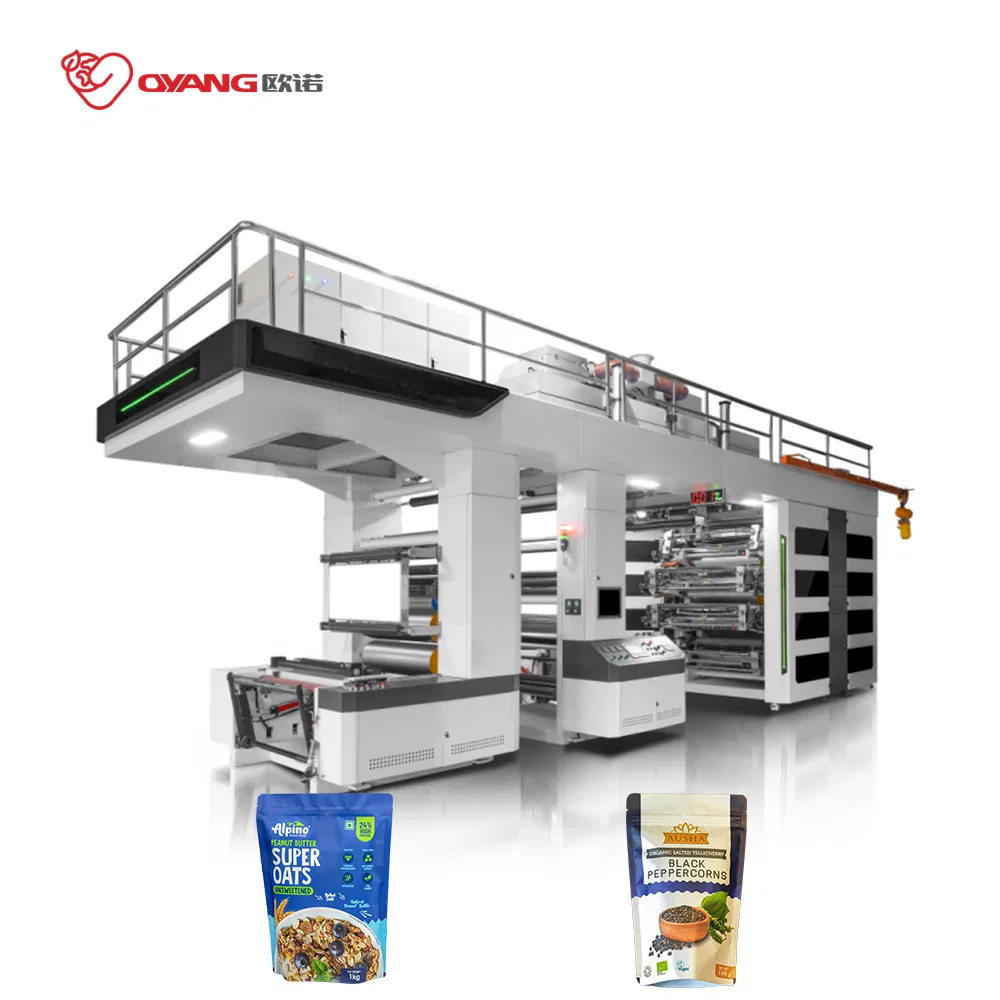

Oyang 1800 mm Two Colors Ci Flexography Flexographic Flexible Kraft Paper Cup Plastic Bag Non Woven Film Print Printer Press Flexo Printing Machine

Customization: Available
After-sales Service: Overseas Engineering Team Technical Support
Warranty: 1 Year

Product Description

Basic Info.

Model NO. Oyang-16 YTB Series
Printing Page Single Faced
Printing Color 2/4/6 Colors
Anilox Roller Ceramic Anilox Roller
Dryer UV & IR
Type Ink Jet
Embossing Structure Rotary Letterpress
Structure Unit Type
Application Flexible Packaging Printing
Automatic Grade Automatic
Printing Speed 100 M/Min
Printing Width Customize
Printing Length Customize
Accuracy 0.10mm
Name Oyang-16 Ytb Series
Transport Package Packed by The Pearl Cotton and Plastic Film.
Specification Standard Specifications or Customized
Origin China Mainland
HS Code 8443140000
Production Capacity 40sets/Month

Packaging & Delivery

Package Size 900.00cm * 240.00cm * 270.00cm
Package Gross Weight 5500.000kg

Printing Sample

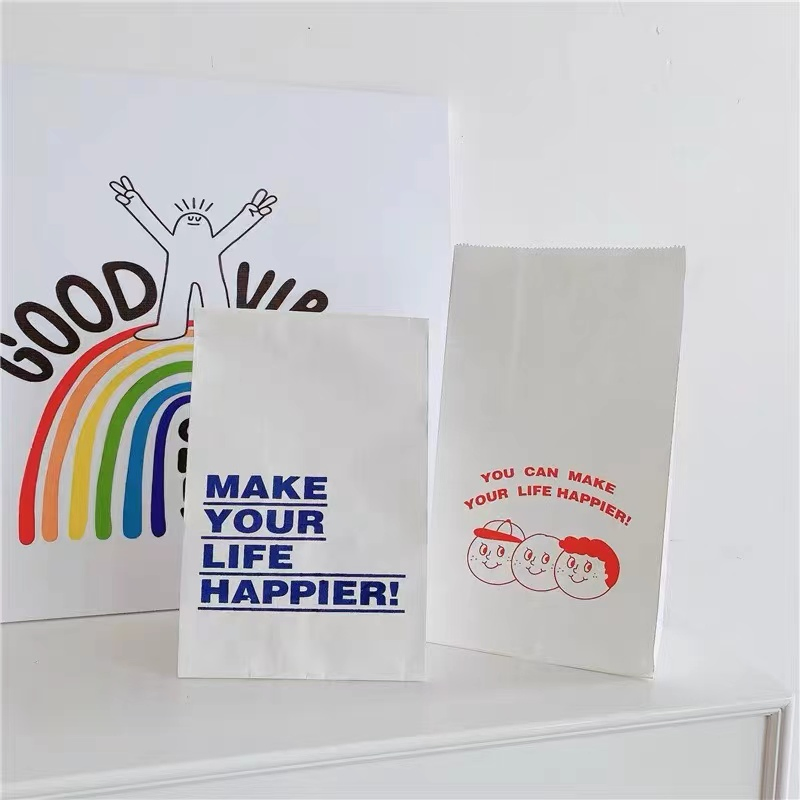

Printing Sample 1

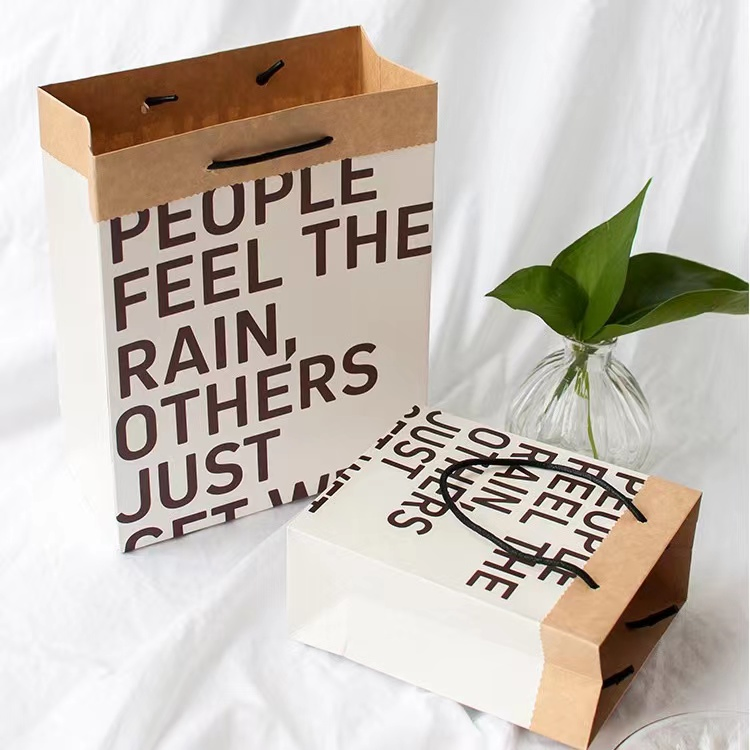

Printing Sample 2

Product Parameters

Number of printing colors 2/4/8colors
Maximum paper width 1320
Maximum printing width 1300
Printing length 300mm -900mm
Registration accuracy ±0.10mm
Maximum machine speed 80 m/min
Electricity demand 380V 50Hz 3PH
Maximum power 180kw

Product Description

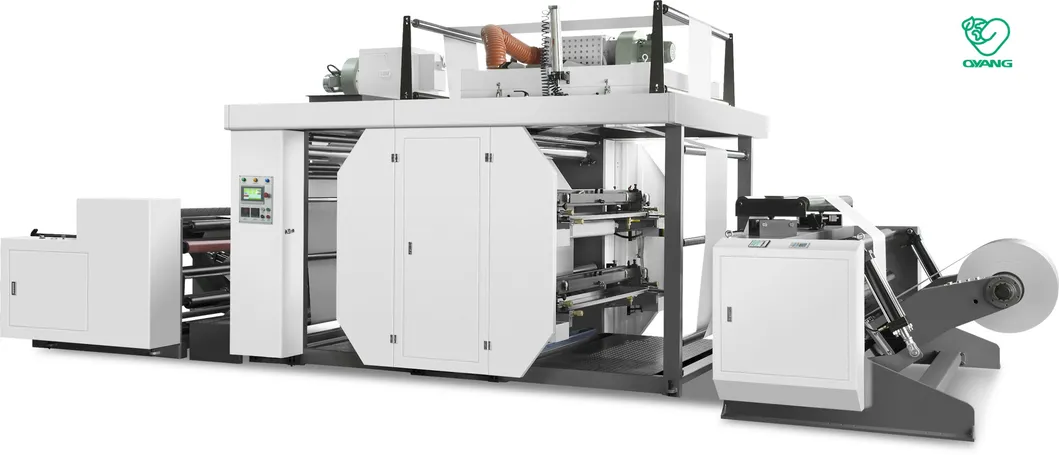

Flexo Printing Machine Banner
Feeding material part:
  • Single unwind system, pneumatic loader for unwind system
  • Automatic stop machine when break the material; When machine stop, keep tension and avoid the material loose or line deflection.
  • Air shaft
  • EPC (edge position control): With manually/automatically/ central return function, can adjust the rewind move left and right.
  • Automatic tension control system with magnetic brake(20KG).
  • Roller core diameter: 76mm
  • Discharge maximum diameter: 1000mm
Printing sections:
  • Plate roller circumference: 300-1000mm, standard less than 400mm
  • Print material: resin plate or rubber plate
  • Transmission between printing roller and anilox roller: Helical gears
  • Printing chromatography: 360-degree rotation
  • Adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
  • Printing roller lifting system: Automatic Hydraulic cylinder control roll up and down.
Drying system:
  • The machine is equipped with blower and heater; and the heater employed central temperature control system
  • Dry apparatus between each color, and one more dry apparatus after printing finished
Rewinding Part:
  • Single rewind system, pneumatic loader for rewind system
  • Film central rewind system
  • Air shaft
  • Roller core diameter: 76mm
  • Discharge maximum diameter: 1000mm

Company Profile

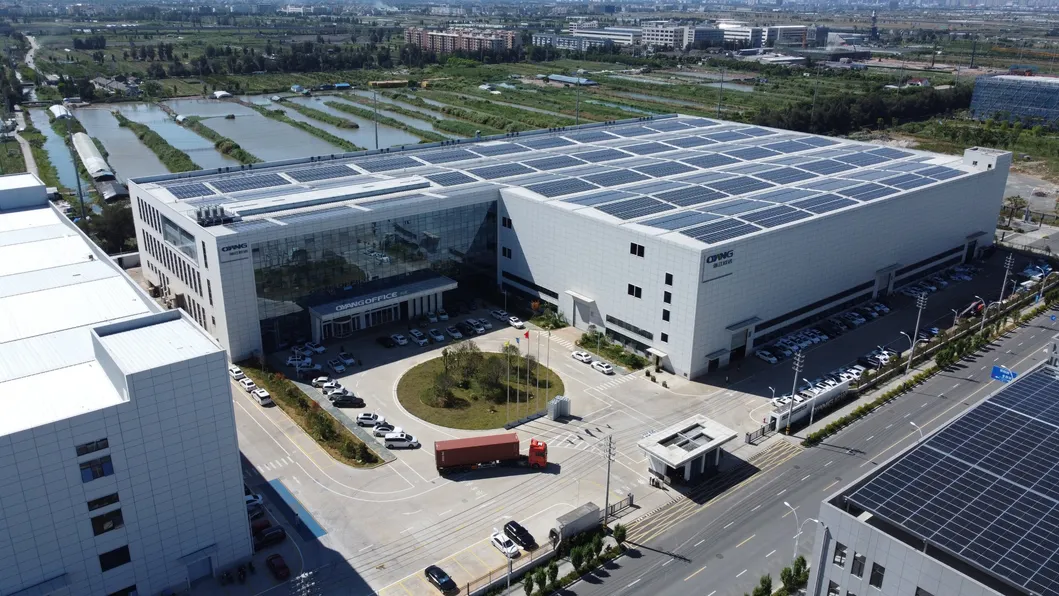

Company Overview Image

Founded in 2006, covering an area of 130,000 square meters, with more than 400 workers, we are a comprehensive enterprise and a leading manufacturer of paper bag machines and nonwoven bag making machines in China. We offer complete solutions to customers in eco-friendly bag making projects, including paper bag making solutions, nonwoven bag making solutions, and nonwoven fabric production lines, which we have exported worldwide. Every year we introduce at least one new machine design. Creating value for customers is our key to achieving self-worth. We look forward to cooperating with you!

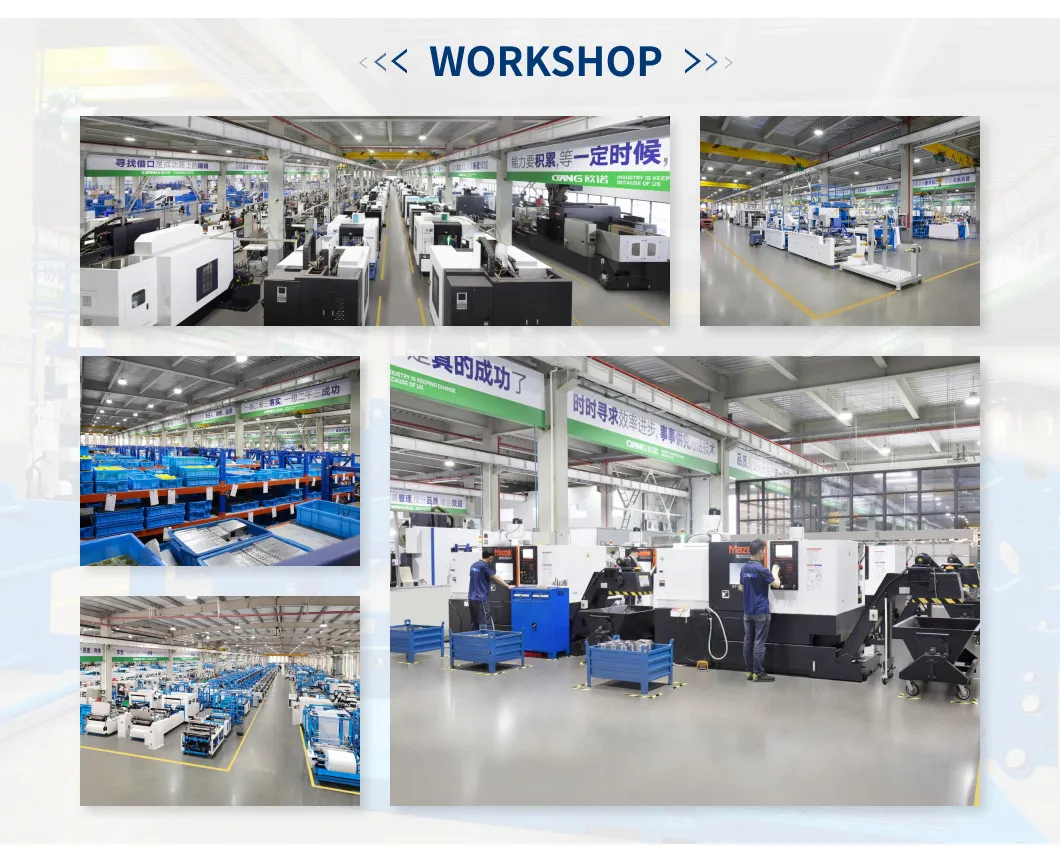

Factory Image 1
Factory Image 2
Factory Image 3
Factory Image 4
Factory Image 5

FAQ

How long will your engineer reach our factory?

Our After-sales Specialist would contact you to confirm the final scheduling according to your reasonable request.

How many days will you finish installing?

We will finish installation and training within 1-2 weeks.

How long is your machine's warranty period?

All our machines have a one-year guarantee, starting from finished installation.

How could we do if the parts are broken within warranty?

We would express the free replacement parts during the warranty period.

Does your engineer speak English?

Our engineers understand a little English. All of our engineers have more than five years of machine installation experience.

How do we solve the machine problem after your engineer leaves?

Generally speaking, there will be no problem after finishing installation. In case of any problem, you can contact our after-sales specialist at any time. There are 30 engineers in our after-sales department, and they will provide solution videos based on your description.
